JAECOO J7 (2023 – 2026) Fuse Box Location & Diagrams
Looking for the JAECOO J7 (2023–2026) fuse box location and diagrams? This guide provides detailed information about the passenger compartment and engine compartment fuse boxes, including their locations, fuse layouts, relay assignments, and functions. Whether you’re troubleshooting an electrical issue or replacing a blown fuse, these diagrams will help you identify the correct fuse for your JAECOO J7 quickly and easily.
Fuse Box Location
Passenger Compartment Fuse Box

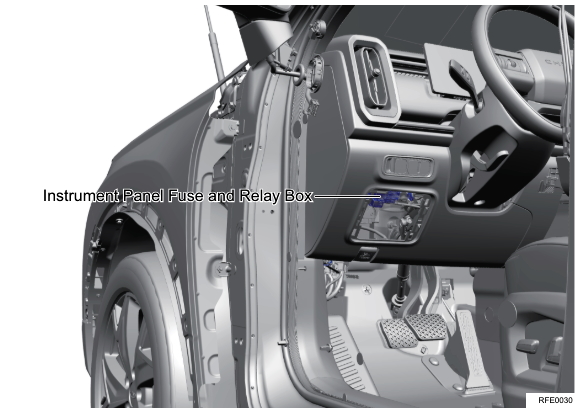

Inside the car, the fuse and relay box is located at the bottom of the instrument panel behind a plastic protective cover.

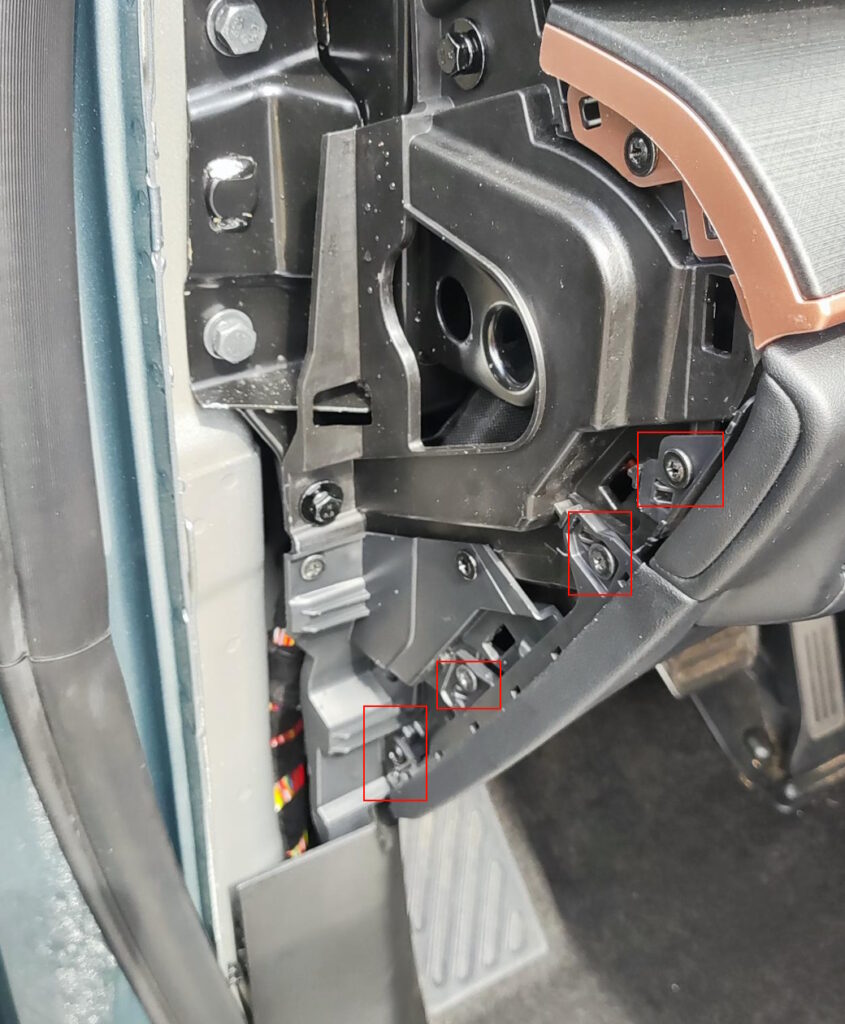

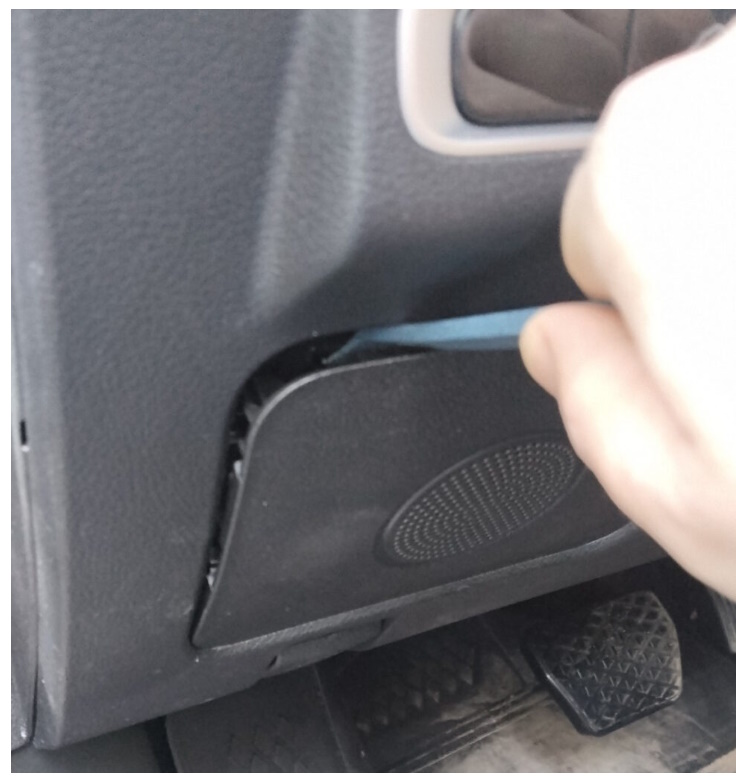

You must take off the door seal next to the panel in order to reach it. Next, take off the instrument panel’s left end cover. We take off the cover by inserting a screwdriver into the opening. Using a cross-head screwdriver, remove the three screws. Next, we take the big trim from the hooks on the left and drag it under the steering column from the right. We put things together in reverse order. Remember to unplug the speaker and button connectors.
And also through the protective cover, if there is one on the panel.

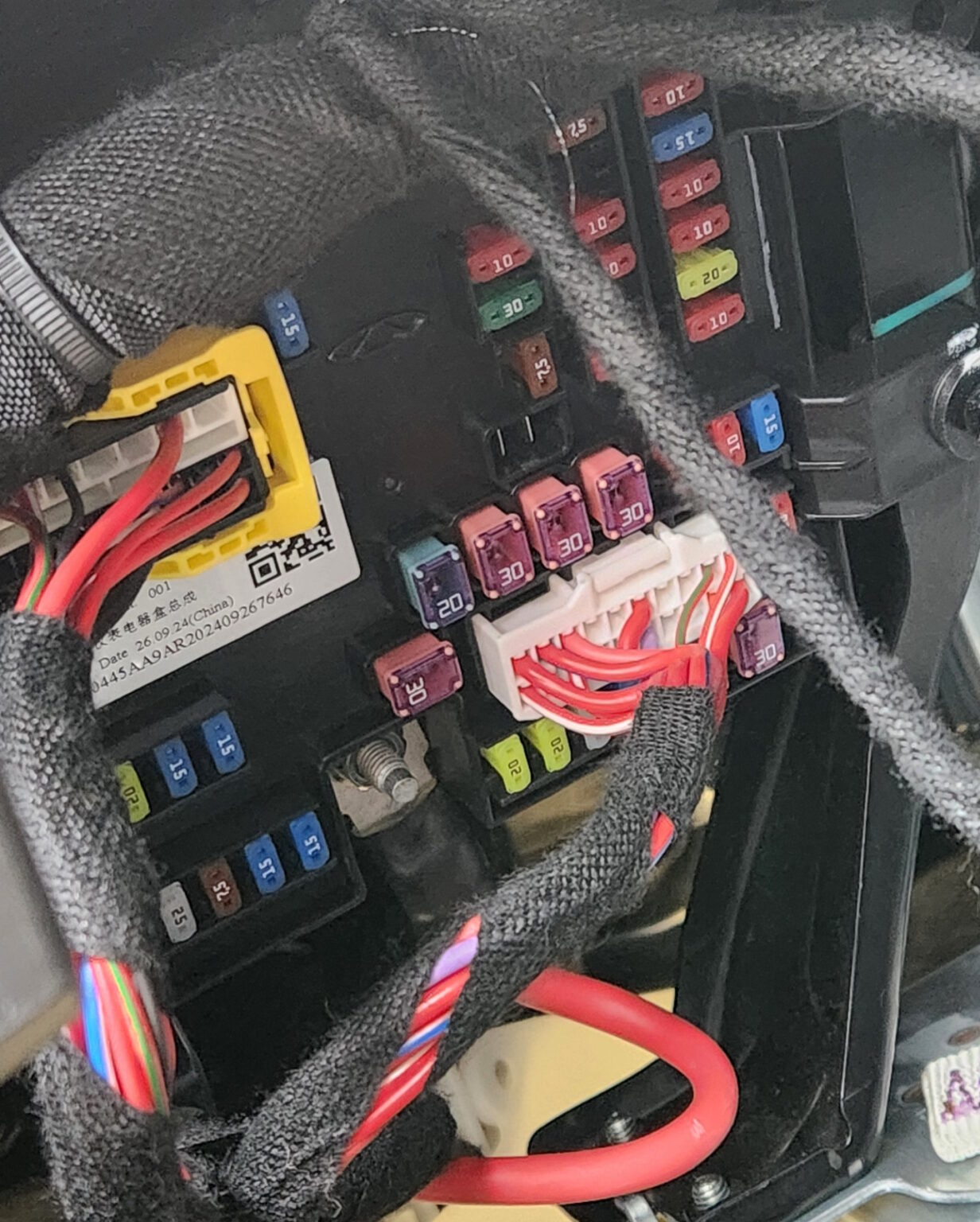

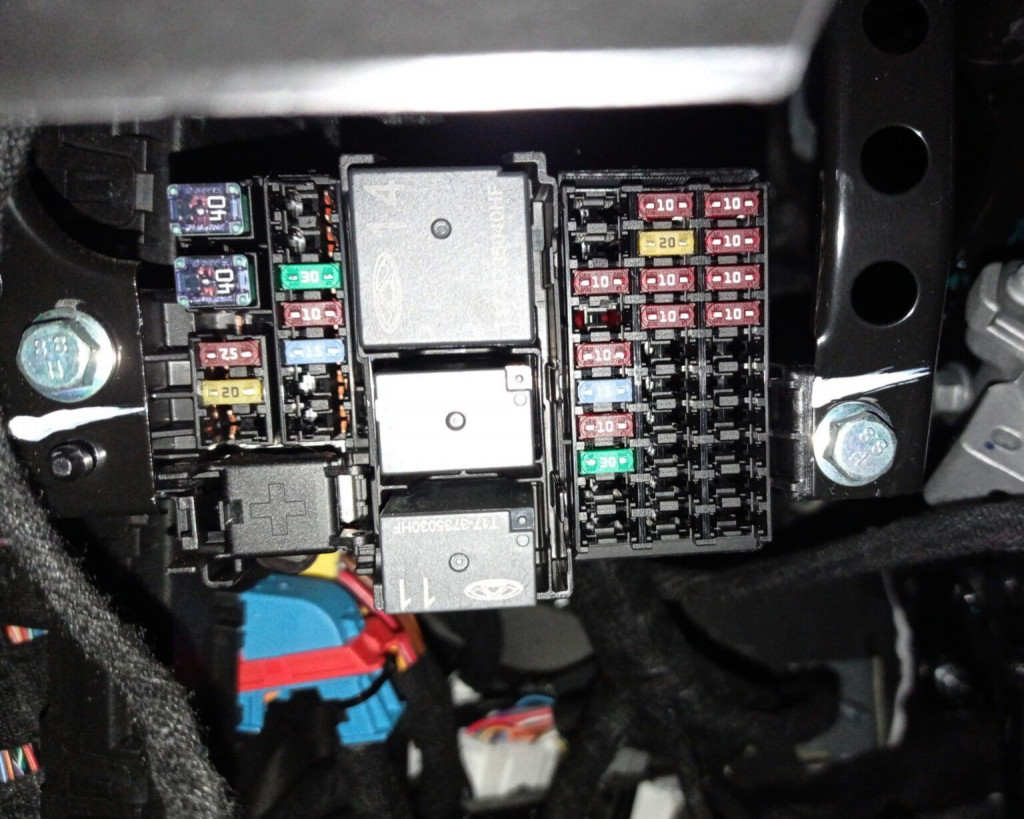

The block itself looks something like this.
Engine Compartment Fuse Box

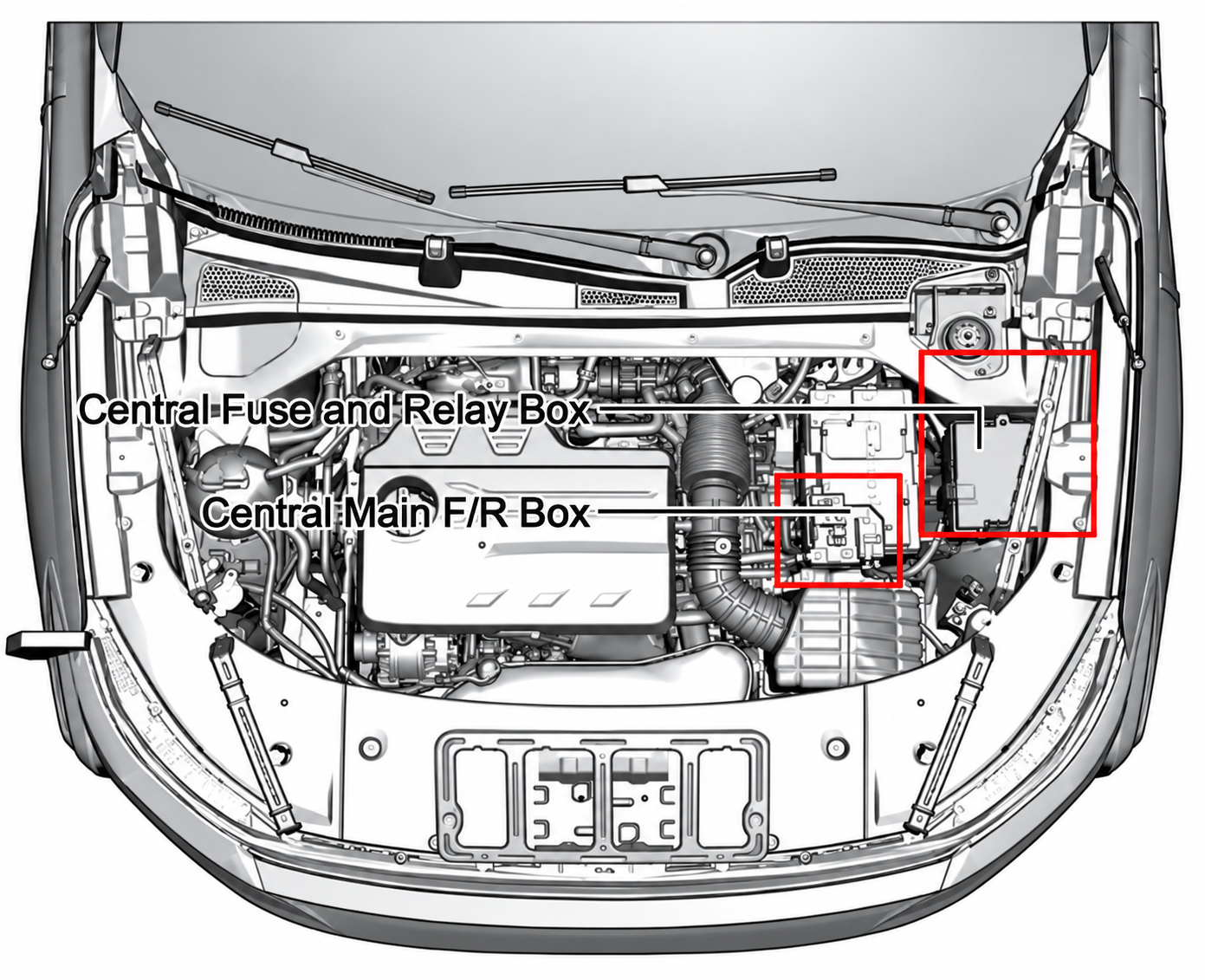

There are 2 fuse boxes installed under the hood of the car.
Fuse and Relay Box
The fuse and relay box is located on the left side, next to the battery, and is covered by a protective cover.
Fuse Box Diagrams
Passenger Compartment Fuse Box
| RF01 | 10A — Driver Monitoring System (BDM/DMS/ETC/GLONASS/ECALL) |
| RF02 | 10A — Rear USB charging module |
| RF03 | 10A — EPS / Tilt Sensor |
| RF04 | 20A — Entertainment Domain Controller |
| RF05 | 10A — Airbag Controller |
| RF06 | 10A — Instrument panel / Head lighting / Flavour generator / T-BOX / A/C / Wireless charging |
| RF07 | 10A — Entertainment Domain Controller / TBOX / A/C / Display / Electronic Shift (7DCT) |
| RF08 | 10A — Reversing radar / 360° camera / Electronic shift (7DCT) |
| RF09 | 10A — PHEV Battery Management System |
| RF10 | 10A — Front USB charging module |
Engine Compartment Fuse Box

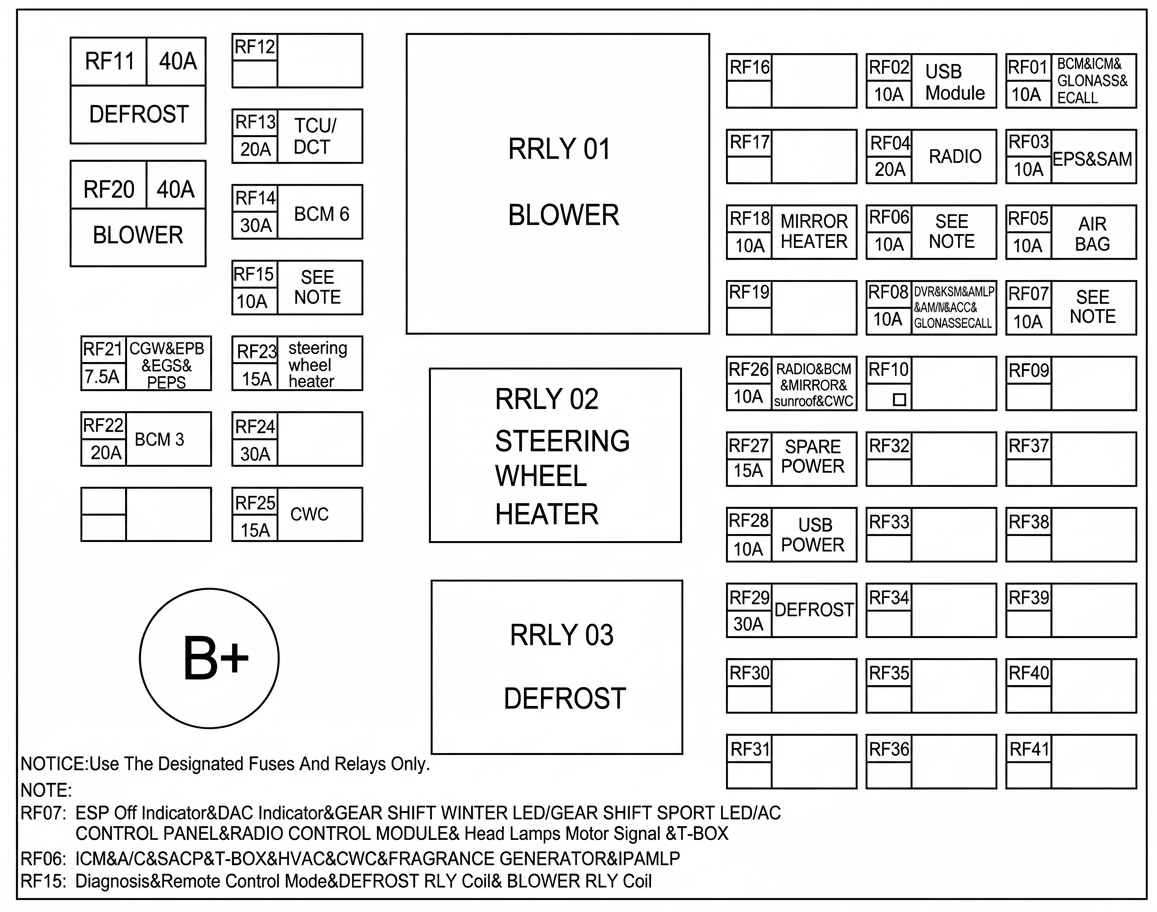

Diagram 1 – RF Fuse Box & Relays
| Fuse / Relay Number | Rating | Description |
|---|---|---|
| RF01 | 10A | BCM, ICM, GLONASS & ECALL |
| RF02 | 10A | USB Module |
| RF03 | 10A | EPS & SAM |
| RF04 | 20A | Radio |
| RF05 | 10A | Airbag |
| RF06 | 10A | ICM, A/C, SAC, T-BOX, HVAC, CWC, Fragrance Generator & IPAMLP |
| RF07 | 10A | ESP Off Indicator, DAC Indicator, Gear Shift Winter/Sport LED, A/C Control Panel, Radio Control Module, Headlamp Motor Signal & T-BOX |
| RF08 | 10A | DVR, SKS, M&MLP, AVM, AOC, GLONASS & ECALL |
| RF09 | – | – |
| RF10 | – | – |
| RF11 | 40A | Defrost |
| RF12 | – | – |
| RF13 | 20A | TCU / DCT |
| RF14 | 30A | BCM 6 |
| RF15 | 10A | Diagnosis, Remote Control Mode, Defrost Relay Coil & Blower Relay Coil |
| RF16 | – | – |
| RF17 | – | – |
| RF18 | 10A | Mirror Heater |
| RF19 | – | – |
| RF20 | 40A | Blower |
| RF21 | 7.5A | CGW, EPB, EGS & PEPS |
| RF22 | 20A | BCM 3 |
| RF23 | 15A | Steering Wheel Heater |
| RF24 | 30A | – |
| RF25 | 15A | CWC |
| RF26 | 10A | Radio, BCM, Mirror, Sunroof & CWC |
| RF27 | 15A | Spare Power |
| RF28 | 10A | USB Power |
| RF29 | 30A | Defrost |
| RF30 | – | – |
| RF31 | – | – |
| RF32 | – | – |
| RF33 | – | – |
| RF34 | – | – |
| RF35 | – | – |
| RF36 | – | – |
| RF37 | – | – |
| RF38 | – | – |
| RF39 | – | – |
| RF40 | – | – |
| RF41 | – | – |
| RRLY01 | – | Blower |
| RRLY02 | – | Steering Wheel Heater |
| RRLY03 | – | Defrost |

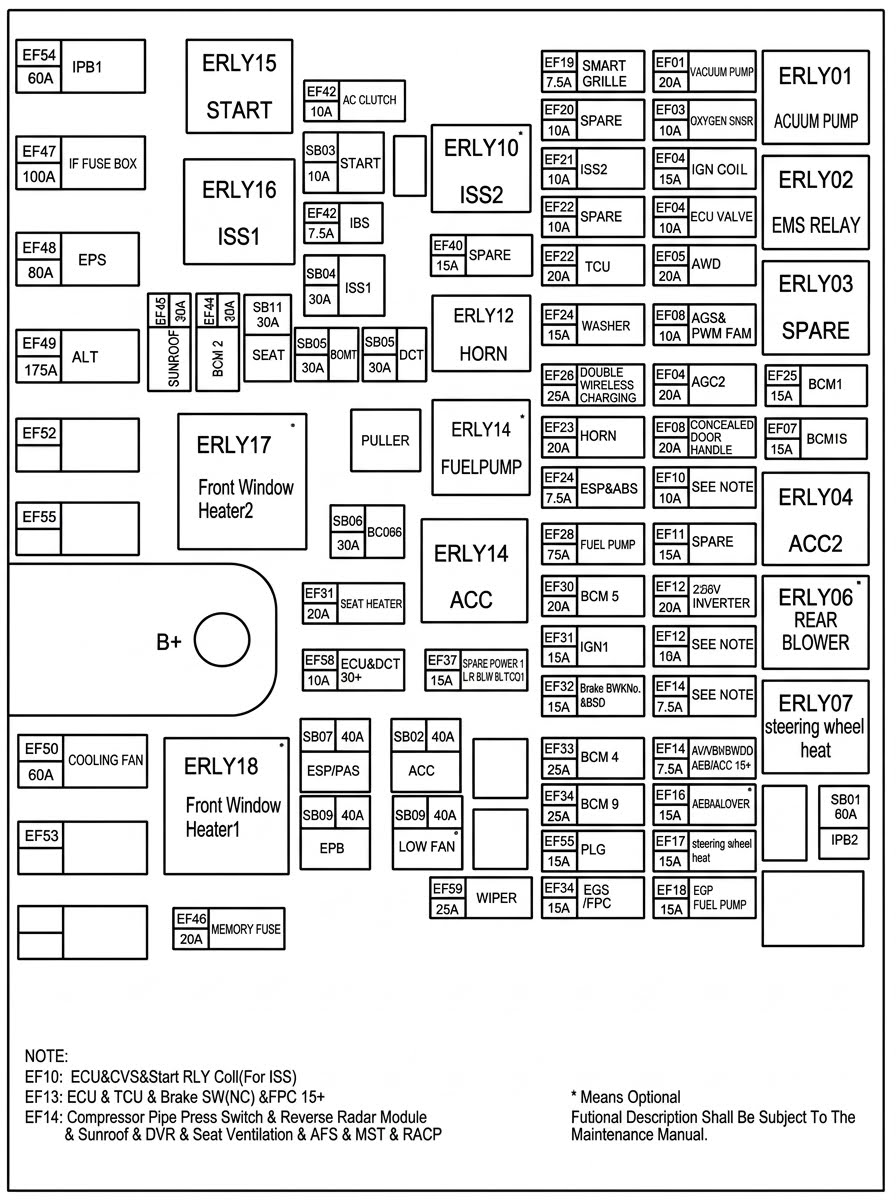

Diagram 2 – EF Fuse Box, SB Fuses & Relays
| Fuse / Relay Number | Rating | Description |
|---|---|---|
| EF01 | 20A | Vacuum Pump |
| EF02 | 15A | Oxygen Sensor |
| EF03 | 15A | Ignition Coil |
| EF04 | 15A | ECU Valve |
| EF05 | 20A | AWD |
| EF06 | 10A | AGS & PWM Fan |
| EF07 | 15A | Spare |
| EF08 | 20A | ACC2 |
| EF09 | 25A | Concealed Door Handle |
| EF10 | 10A | ECU, CVS & Start Relay Coil (for ISS) |
| EF11 | 15A | Spare |
| EF12 | 25A | 220V Inverter |
| EF13 | 10A | ECU, TCU, Brake Switch (NC) & FPC 15+ |
| EF14 | 7.5A | Compressor Pipe Pressure Switch, Reverse Radar Module, Sunroof, DVR, Seat Ventilation, AFS, MST & RACP |
| EF15 | 7.5A | AVM, BSD, LDW, AEB & ACC 15+ |
| EF16 | 15A | Rear Blower |
| EF17 | 15A | Steering Wheel Heat |
| EF18 | 15A | EOP Fuel Pump |
| EF19 | 7.5A | Smart Grille |
| EF20 | 15A | Spare |
| EF21 | 10A | ISS2 |
| EF22 | 10A | Spare |
| EF23 | 20A | TCU |
| EF24 | 15A | Washer |
| EF25 | 15A | BCM1 |
| EF26 | 20A | Double Wireless Charging |
| EF27 | 20A | Horn |
| EF28 | 7.5A | ESP & ABS |
| EF29 | 20A | Fuel Pump |
| EF30 | 25A | BCM 5 |
| EF31 | 15A | IGN1 |
| EF32 | 10A | Brake Switch (NC) & BSD |
| EF33 | 25A | BCM 4 |
| EF34 | 15A | BCM 9 |
| EF35 | 25A | PLG |
| EF36 | 15A | EGS / FPC |
| EF37 | 15A | Spare Power & Relay Coil |
| EF38 | 10A | ECU & DCT 30+ |
| EF39 | 25A | Wiper |
| EF40 | 15A | Spare |
| EF41 | 20A | Seat Heater |
| EF42 | 10A | AC Clutch |
| EF43 | 7.5A | IBS |
| EF44 | 30A | BCM 2 |
| EF45 | 30A | Sunroof |
| EF46 | 25A | Memory Fuse |
| EF47 | 100A | IP Fuse Box |
| EF48 | 80A | EPS |
| EF49 | 175A | Alternator |
| EF50 | 60A | Cooling Fan |
| EF51 | – | Not shown in diagram |
| EF52 | – | – |
| EF53 | – | – |
| EF54 | 60A | IPB1 |
| EF55 | – | – |
| SB01 | 60A | IPB2 |
| SB02 | 20A | ACC |
| SB03 | 30A | Start |
| SB04 | 30A | ISS1 |
| SB05 | 30A | BCM8 |
| SB06 | 30A | BCM7 |
| SB07 | 40A | ESP / ABS |
| SB08 | 40A | EPB |
| SB09 | 40A | Low Fan |
| SB10 | 30A | DCT |
| SB11 | 30A | Seat |
| ERLY01 | – | Accum Pump |
| ERLY02 | – | EMS Relay |
| ERLY03 | – | Spare |
| ERLY04 | – | ACC2 |
| ERLY06 | – | Rear Blower |
| ERLY07 | – | Steering Wheel Heat |
| ERLY10 | – | ISS2 |
| ERLY12 | – | Horn |
| ERLY13 | – | Fuel Pump |
| ERLY14 | – | ACC |
| ERLY15 | – | Start |
| ERLY16 | – | ISS1 |
| ERLY17 | – | Front Window Heater 2 |
| ERLY18 | – | Front Window Heater 1 |

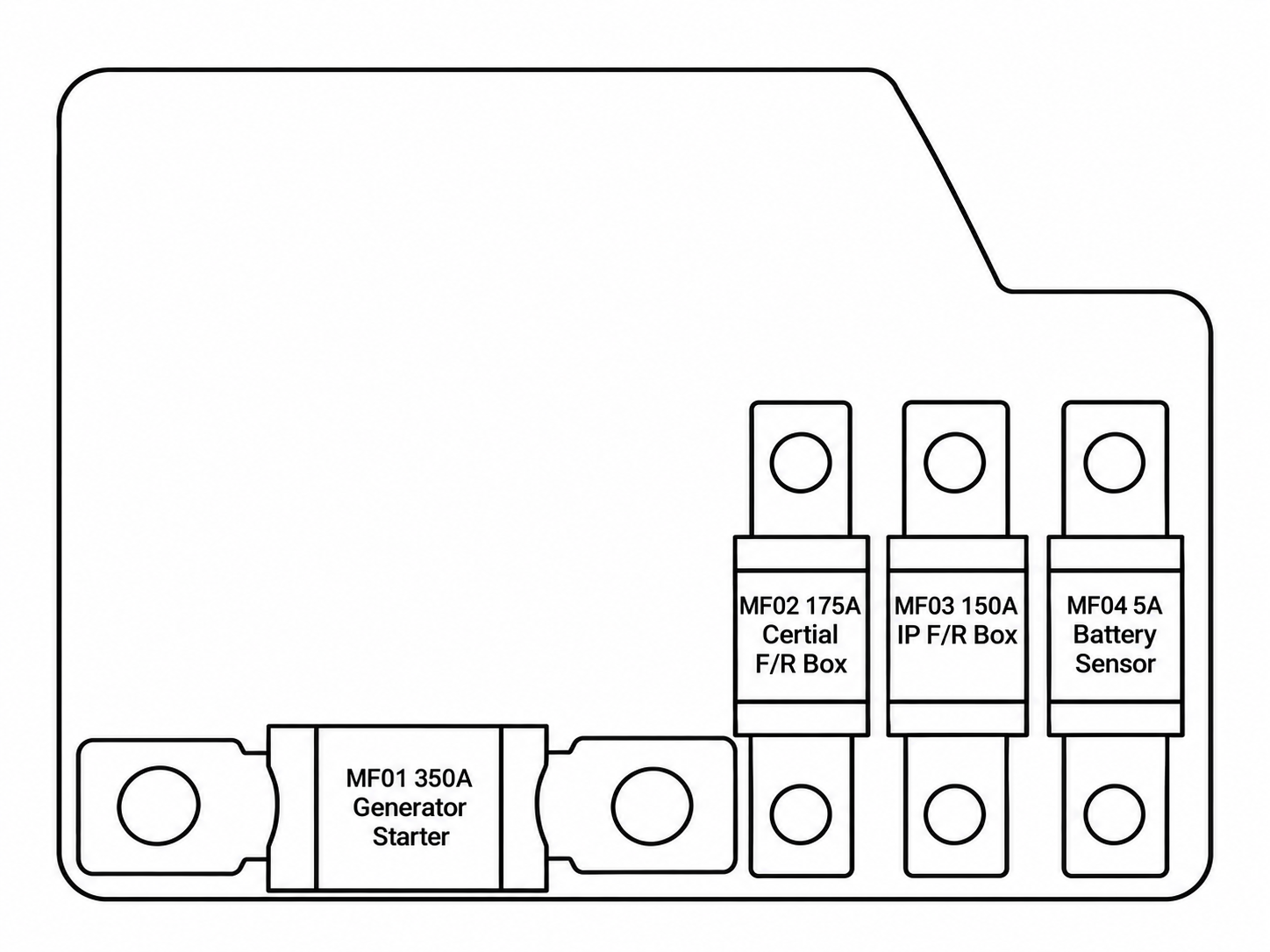

Power Fuse Box
| Fuse Number | Rating | Description |
|---|---|---|
| MF01 | 350A | Alternator, Starter |
| MF02 | 175A | Central F/R Box (Engine Compartment Unit) |
| MF03 | 150A | IP F/R Box (Passenger Compartment Unit) |
| MF04 | 5A | Battery Sensor (IBS Sensor) |
