Buick Enclave (2025 – 2026) Fuse Box Location & Diagrams
The Buick Enclave (2025–2026) combines premium comfort, advanced technology, and family-friendly practicality. Knowing the fuse box locations and fuse assignments helps with troubleshooting electrical issues, replacing blown fuses, and maintaining vehicle systems. This reference provides clear fuse box locations along with detailed fuse diagrams.
Fuse Box Location
Engine Compartment Fuse Box

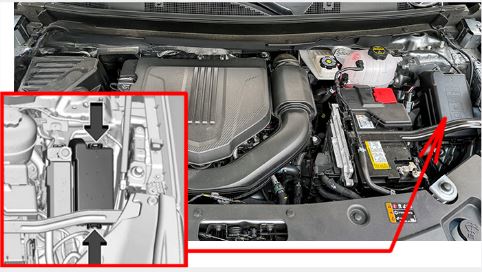

The underhood fuse block is in the engine compartment, on the driver’s side of the vehicle. To remove the fuse block cover, press the clips on the cover and lift it straight up.
Passenger Compartment Fuse Box

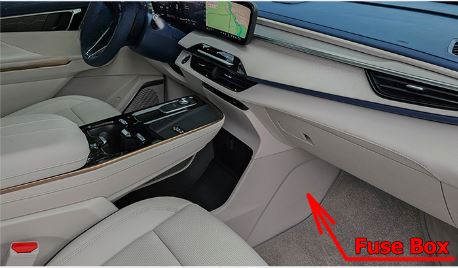

The instrument panel fuse block is inside the centre console on the passenger side of the vehicle. Remove the fuse access door by inserting a coin or tool into the slot of the access door.
Luggage Compartment Fuse Box

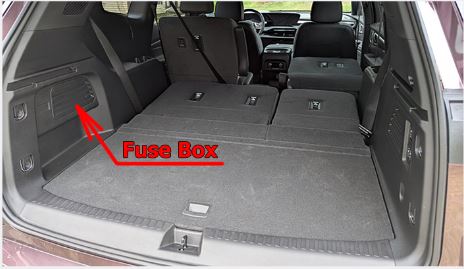

The rear compartment fuse block is behind a trim panel on the driver’s side of the rear storage compartment. The panel is removed by prying along the top edge of the trim panel. Remove the trim panel to access the fuse block, or see your dealer.
Fuse Box Diagram

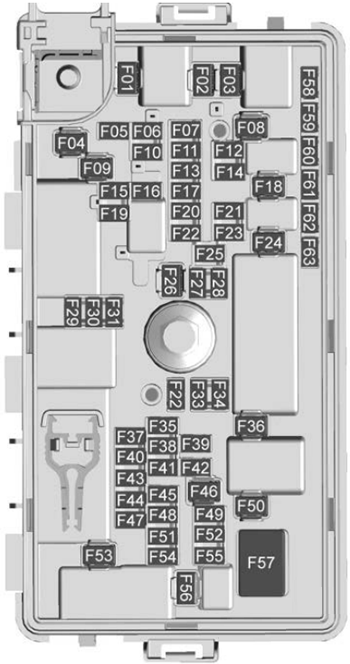

Engine Compartment Fuse Box
| № | Usage |
|---|---|
| F01 | SPARE |
| F02 | SPARE |
| F03 | FRT_WIPER – Front Wiper |
| F04 | SPARE |
| F05 | SPARE |
| F06 | HDLP RT – Headlight Right |
| F07 | RR WIPER – Rear Wiper |
| F08 | SPARE |
| F09 | RR DEFOG – Rear Defog |
| F10 | ELM_4 – Exterior Lighting Module 4 |
| F11 | HDLP LT – Headlight Left |
| F12 | HORN |
| F13 | SPARE |
| F14 | SPARE |
| F15 | SPARE |
| F16 | RR_WPR_CTRL- Rear Wiper Control |
| F17 | RLY COIL GND – Relay Coil Ground |
| F18 | DC DC BATT1 – Direct Current Direct Current Battery 1 |
| F19 | ELM7 – Exterior Lighting Module7 |
| F20 | SPARE |
| F21 | SPARE |
| F22 | ELM_5 – Exterior Lighting Module 5 |
| F23 | WIPER_DE_ICE |
| F24 | EBCM1 – Electronic Brake Control Module 1 |
| F25 | ELM_3 – Exterior Lighting Module3 |
| F26 | SPARE |
| F27 | TRLR_STP_TRN_LT – Trailer Light Stop Left |
| F28 | TRLR_STP_TRN_RT – Trailer Light Stop Right |
| F29 | WASH |
| F30 | AERO SHUTTER |
| F31 | SPARE |
| F32 | PCM – Power Control Module |
| F33 | SPARE |
| F34 | SPARE |
| F35 | PCM – Power Control Module |
| F36 | STRTR MTR – Starter Motor |
| F37 | AC CLUTCH GAS – Alternating Current Clutch Gas |
| F38 | SOL CP TURBO BYPASS – Solenoid Turbo Bypass |
| F39 | COIL ODD |
| F40 | SPARE |
| F41 | SNSR MAF/IAT/H/P SNSR O2H MTR EVAPP |
| F42 | SPARE |
| F43 | SPARE |
| F44 | SPARE |
| F45 | SPARE |
| F46 | SPARE |
| F47 | SPARE |
| F48 | SPARE |
| F49 | SPARE |
| F50 | E-PHASER – Electronic Phaser |
| F51 | SPARE |
| F52 | PCM 2 – Power Control Module 2 |
| F53 | SPARE |
| F54 | AIR_PUMP |
| F55 | SPARE |
| F56 | STRTR PINION |
| F57 | WATER PUMP |
| F58 | SERVICE FUSE |
| F59 | SERVICE FUSE |
| F60 | SERVICE FUSE |
| F61 | SERVICE FUSE |
| F62 | SERVICE FUSE |
| F63 | SERVICE FUSE |

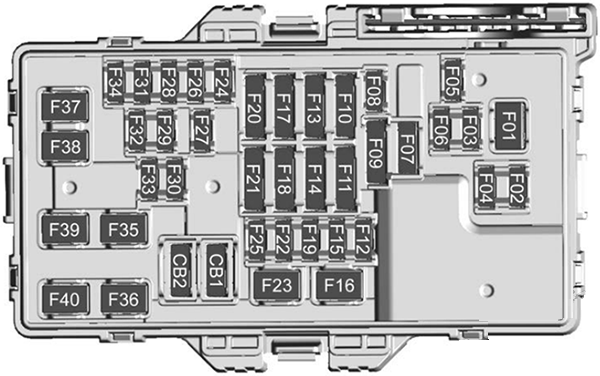

Passenger Compartment Fuse Box
| № | Usage |
|---|---|
| F01 | BLOWER MOTOR |
| F02 | 2025: ELM 1 – Exterior Lighting Module 1 2026: SPARE |
| F03 | SCL – Steering Column Lock |
| F04 | 2025: ELM 2 – Exterior Lighting Module 2 2026: SPARE |
| F05 | BCM2 – Body Control Module2 |
| F06 | OHC – OnStar Hands – Free Calling |
| F07 | STEERING WHEEL CONTROL |
| F08 | TELEMATICS |
| F09 | BCM BATT1 & ETS SHIFTER – Body Control Module Battery 1 and Euro Truck Shifter |
| F10 | RAIN SNR/UGDO – Rain Sensor/Universal Garage Door Opener |
| F11 | HVAC & TPIM_HUD – Heating, Ventilation, and Air Conditioning and Traction Power Inverter Module / Head-Up Display |
| F12 | STEERING COLUMN LOCK |
| F13 | CGM&DLC – Central Gateway Module and Data Link Connector |
| F14 | EBCM&PCM – Electronic Brake Control Module and Power Control Module |
| F15 | AUX DISPLAY |
| F16 | APO_RR_CARGO – Auxiliary Power Outlet_Rear_Cargo |
| F17 | SDM_AOS – Sensing Diagnostic Module_Automatic Occupant Sensor |
| F18 | SEAT FAN CTR/HDLP CO & DR – Seat Fan Control Headlamp CO and Driver |
| F19 | ELM RC – Exterior Lighting Module Ride Control |
| F20 | VKM – Virtual Key Module SPARE |
| F21 | VCU_BATT 1 & 2 – Virtual Cockpit Unit Battery 1 and 2 |
| F22 | SDM – Sensing Data Module |
| F23 | 2026: APO ROW 1 – Auxiliary Power Outlet Row 1 |
| F24 | WCM – Wireless Charging Module |
| F25 | HVPO – High Voltage Power Outlet |
| F26 | SPARE |
| F27 | AUX |
| F28 | LRR – Long Range Radar |
| F29 | SRR – Short Range Radar |
| F30 | – |
| F31 | BCM3 – Body Control Module 3 |
| F32 | HSWM – Heated Steering Wheel Module |
| F33 | – |
| F34 | CPM – Column Position Module |
| F35 | AMPLIFIER |
| F36 | DC/DC BAH 2 – Direct Current/Direct Current Battery 2 |
| F37 | BCM4 – Body Control Module 4 |
| F38 | AMPLIFIER 2 |
| F39 | ELM 6 – Exterior Lighting Module 6 |
| F40 | DCAC – Direct Current Alternating Current |
| CB01 | – |
| CB02 | APO – Auxiliary Power Outlet |

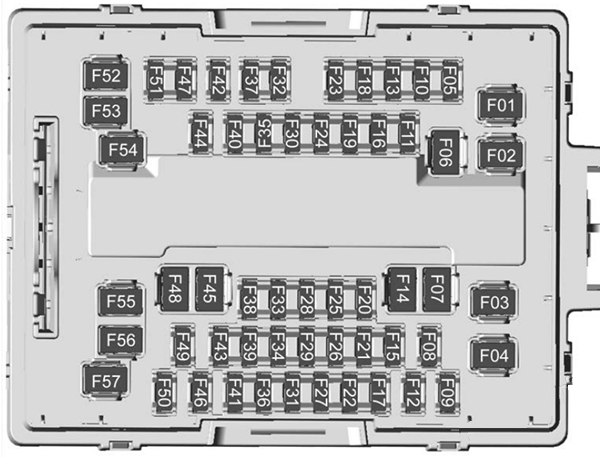

Luggage Compartment Fuse Box
| № | Usage |
|---|---|
| F01 | RR_BLOW – Rear Blower |
| F02 | DSP_CODR – Door Switch Panel_Code |
| F03 | TAILGATE |
| F04 | TRLR_BAT1 – Trailer Battery 1 |
| F05 | ACP2 – AWD Control Processor 2 |
| F06 | PWR_FOLD_SEAT_L_R – Power Fold Seat Left and Rear |
| F07 | DSP – Door Switch Panel |
| F08 | SPARE |
| F09 | LAMPS_RT – Right Lights |
| F10 | SPARE |
| F11 | SPARE |
| F12 | 2025: ELM 2 – Exterior Lighting Module 2 2026: SPARE |
| F13 | LAMPS_LT – Left Lights |
| F14 | SP_DRVR |
| F15 | MSM_DRIVER – Memory Seat Module Driver |
| F16 | MTR PFTS_ROW 2_L |
| F17 | FRT |
| F18 | SBP_CO_DRIVER |
| F19 | MTR PFTS_ROW 2_R |
| F20 | SPARE |
| F21 | RFA – Remote Function Actuator |
| F22 | SPARE |
| F23 | SPARE |
| F24 | SPARE |
| F25 | SPARE |
| F26 | CANISTER |
| F27 | UPA – Universal Park Assist |
| F28 | RDCM – Right Door Control Module |
| F29 | SBZA – Side Blind Zone Assist |
| F30 | TRLR PRK LMP – Trailer Park Light |
| F31 | FCM – Front Camera Module |
| F32 | SPARE |
| F33 | ROW 2_BAT1 – Second Row Battery 1 |
| F34 | SPARE |
| F35 | SPARE |
| F36 | ROW 2_BAT2 – Second Row Battery 2 |
| F37 | SPARE |
| F38 | SPARE |
| F39 | SPARE |
| F40 | TRLR_BACK_UP – Trailer Backup Light |
| F41 | 2025: SPARE 2026: ELM 2 – Exterior Lighting Module 2 |
| F42 | DSP – Door Switch Panel |
| F43 | POWER FOLD SEAT SW/ N 3_ROW |
| F44 | OUT_OF_PARK_DISABLE |
| F45 | TRAILER_BRAKE |
| F46 | ACP 3 – AWD Control Processor 3 |
| F47 | FTZM – Fuel Tank Zone Module |
| F48 | SP_PASS |
| F49 | SPARE |
| F50 | ELM 1 – Exterior Lighting Module! |
| F51 | FRT_BAT2 – Front Battery 2 |
| F52 | SPARE |
| F53 | SPARE |
| F54 | ROW 2_FOLD_RH – Second Row Right-hand Fold |
| F55 | ROW 3 |
| F56 | SUNROOF |
| F57 | RDCM – Right Door Control Module |
