Infiniti Q45 (2001 – 2006) Fuse Box Location and Diagrams
Infiniti Q45 (2001–2006) fuse box schematics and locations are covered in this guide. Understanding fuse box layouts helps diagnose electrical issues and perform maintenance safely and efficiently for various model years in this generation.
Passenger Compartment Fuse Box
Infiniti Q45 (2001 to 2006)

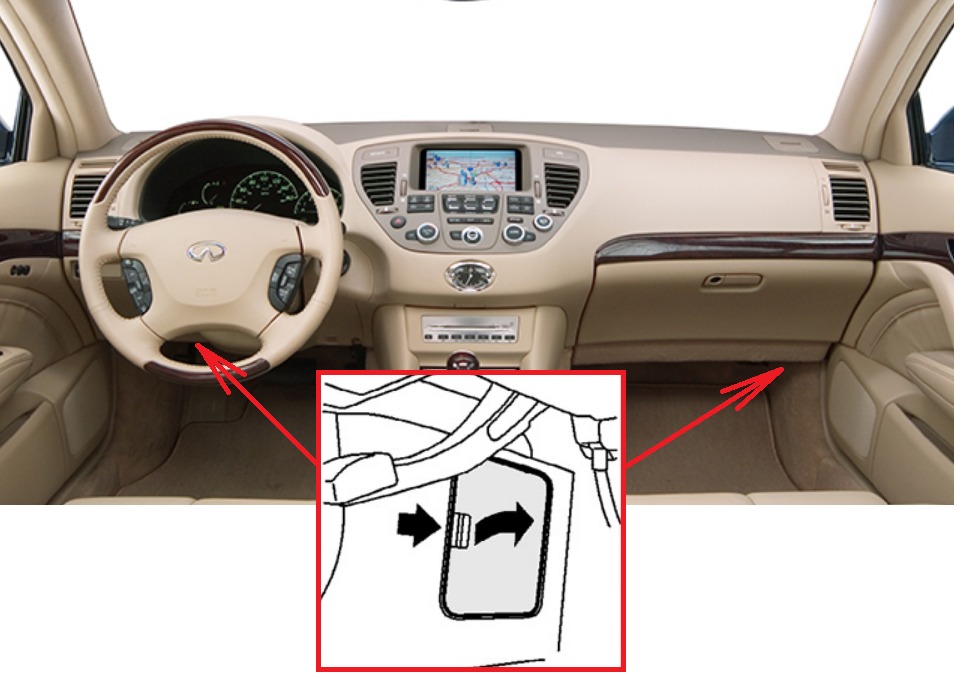

Fuse Box Location
There are two fuse boxes that are located on the right and left under the dashboard (open the lids to access the fuses).

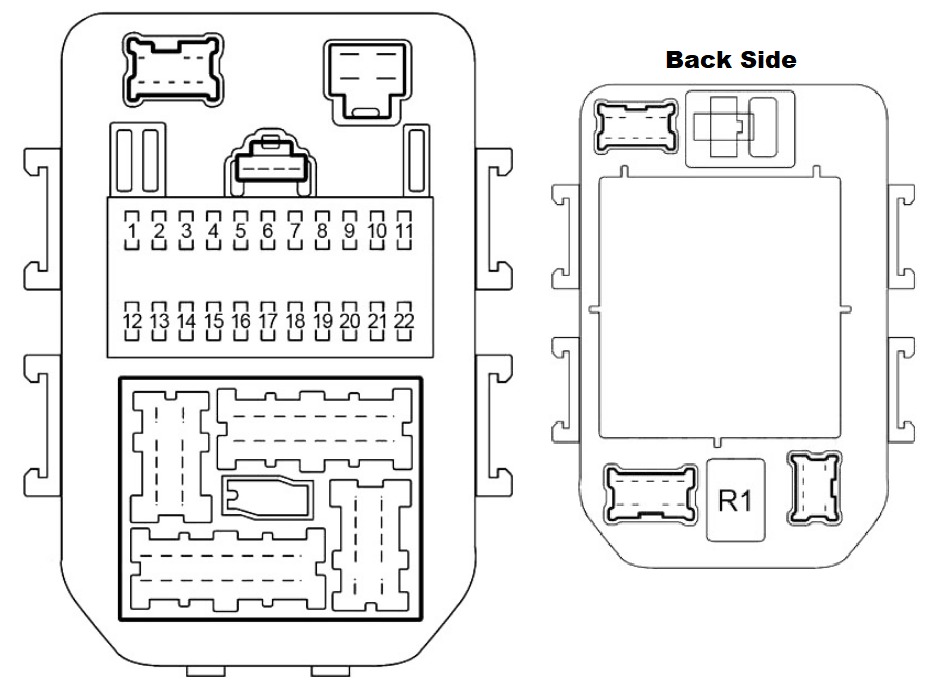

Fuse Box Diagram (Driver side)
| No | Ampere Rating | Description |
|---|---|---|
| 1 | 10 | Body Control Module (BCM), Power Door Lock, Intelligent Cruise Control (ICC) Control Unit, ICC Warning Chime, ICC Brake Hold Relay, ICC Sensor, ICC Brake Switch, Headlamp Battery Saver Control Unit, AV and Navi Control Unit, TEL Adapter Unit, Theft Warning System, Nissan Anti Theft System (NATS) Immobilizer, Warning Chime, Lane Departure Warning (LDW) Switch, LDW Chime, LDW Camera Unit, Compass (Auto Anti-Dazzling Inside Mirror), Rear Window Defogger Relay, Dual Mode Meffler Control Unit, Power Window, Headlamp, Daytime Light System, Sunroof, Pre-Crash Seat Belt Control Unit, Power Seat, Climate Controlled Seat Relay, Rain Sensor, Trunk Lid Opener Relay |
| 2 | 10 | Auto Air Conditioner Amplifier, ECV Solenoid Valve (A/C Compressor) |
| 3 | 10 | Body Control Module (BCM), Power Door Lock, Trunk Lid Opener Relay, Trunk Lid Opener Switch, Theft Warning System, Warning Chime, Power Window, Reverse Interlock Door Mirror System, Headlamp, Daytime Light System, Sunroof, Power Seat |
| 4 | 10 | Rear Sunshade Unit, Rear Control Cancel Switch, Rear Control Cancel Relay, Handset, Door Mirror Defogger Relay, Auto Return Cancel Switch |
| 5 | 10 | Combination Flasher Unit |
| 6 | 10 | Data Link Connector, Combination Meter, Warning Chime, Auto Air Conditioner Amplifier, Headlamp Battery Saver Control Unit, Low Tire Pressure Warning Control Unit, Handset, Security Indicator Lamp, Body Control Module (BCM), Theft Warning System, Nissan Anti Theft System (NATS) Immobilizer, Steering Lock Control Unit, Clock, Active Damper Suspension Control Unit |
| 7 | 10 | VDC/TCS/ABS Control Unit, Active Damper Suspension Control Unit, Rear Active Steer (RAS) Control Unit |
| 8 | 10 | Map Lamp, Console Lamp, Rear Personal Lamp, Front Step Lamp, Rear Step Lamp, Vanity Mirror Lamp, Trunk Room Lamp, Foot Well Lamp, Homelink Universal Transceiver, Detention Switch (A/T), Shift Lock Control Unit, Microphone, Door Mirror Control Unit, Reverse Interlock Door Mirror System, Ignition Key Hole Illumination, Seat Memory Switch |
| 9 | 10 | Combination Meter, Back-Up Lamp Relay, Back-Up Lamp, A/T Device, Alternator, Transmission Control Module (TCM), AV and Navi Control Unit, Rear View Camera Unit, Reverse Interlock Door Mirror System |
| 10 | 20 | Rear Window Defogger Relay |
| 11 | 20 | Rear Window Defogger Relay |
| 12 | 10 | Automatic Speed Control Device (ASCD) Control Unit, ASCD Brake Switch |
| 13 | 15 | Engine Control Module (ECM), Injectors, Fuel Pump Relay |
| 14 | 10 | Starter, Daytime Light Control Unit, Body Control Module (BCM) |
| 15 | 20 | Trunk Lid Opener Actuator, Fuel Lid Opener Actuator, Trunk Lid Opener Relay, Body Control Module (BCM), Trunk Closure Control Unit, Auto Trunk Control Unit, Auto Trunk Buzzer, Auto Trunk Motor |
| 16 | 10 | Air Fuel Ratio Sensor |
| 17 | 10 or 15 | 2002-2004 (15A): Stop Lamp Switch, VDC/TCS/ABS Control Unit, Intelligent Cruise Control (ICC) Brake Hold Relay, ICC Control Unit, Shift Lock Control Unit, Active Damper Suspension Control Unit; 2005-2006 (10A): Stop Lamp Switch, VDC/TCS/ABS Control Unit, Intelligent Cruise Control (ICC) Brake Hold Relay, ICC Control Unit, Shift Lock Control Unit, Active Damper Suspension Control Unit, Rear Active Steer (RAS) Control Unit |
| 18 | 10 | Heated Oxygen Sensors |
| 19 | 15 | Shift Lock Solenoid, Shift Lock Control Unit |
| 20 | 10 | Air Bag Diagnosis Sensor Unit, Occupant Classification System |
| 21 | 10 | Audio Unit, Display, Satellite Radio Tuner, BOSE Amplifier, Auto Air Conditioner Amplifier, CD Auto Changer, Rear Control Cancel Relay, Rear Control Switch, Antenna Amplifier, AV and Navi Control Unit, Multifunction Switch, Voice Activated Control Module, TEL Adapter Unit, Low Tire Pressure Warning Control Unit, Body Control Module (BCM), Remote Keyless Entry System, Theft Warning System, Combination Meter, Rear View Camera Unit, Headlamp, Daytime Light System, Power Seat |
| 22 | 15 | Combination Flasher Unit |
| R1 | Accessory Relay |

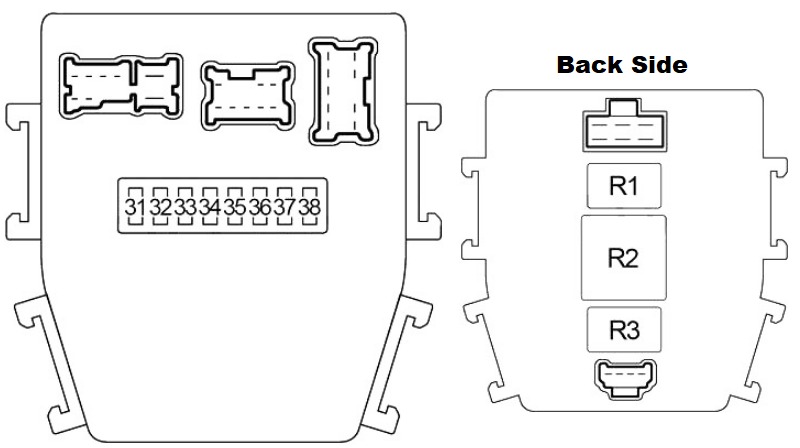

Fuse Box Diagram (Passenger side)
| No | Ampere Rating | Description |
|---|---|---|
| 31 | 15 | Blower Motor, Auto Air Conditioner Amplifier |
| 32 | 10 | Key Switch and Key Lock Solenoid, Power Window, Detention Switch (A/T), Body Control Module (BCM), Auto Trunk Control Unit, Nissan Anti Theft System (NATS) Immobilizer, Steering Lock Control Unit, Warning Chime, Engine Control Module (ECM) Relay (Intake Valve Timing Control Position Sensor, Mass Air Flow Sensor, Crankshaft Position Sensor, Camshaft Position sensor, EVAP Canister Purge Volume Control Solenoid Valve, EVAP Canister Vent Control Valve) |
| 33 | 15 | Blower Motor, Auto Air Conditioner Amplifier |
| 34 | 20 | Front Wiper Relay, Front Wiper Motor, Front Washer Motor, Intelligent Cruise Control (ICC) Control Unit |
| 35 | 10 | Transmission Control Module (TCM), A/T PV IGN Relay |
| 36 | 15 | Fuel Pump Relay, Fuel Pump Control Module (FPCM) |
| 37 | 10 | Handset |
| 38 | – | Not Used |
| R1 | Blower Relay | |
| R2 | Engine Control Module (ECM) Relay | |
| R3 | Fuel Pump Relay |
