Dodge Sprinter (2002 – 2006) Fuse Box Location and Diagrams
The Dodge Sprinter (2002–2006) fuse box schematics and locations are covered in this guide. Identification of fuse operations, electrical troubleshooting, and correct maintenance across this generation’s models require this information.
Instrument Panel Fuse Box
Dodge Sprinter (2002 to 2006)

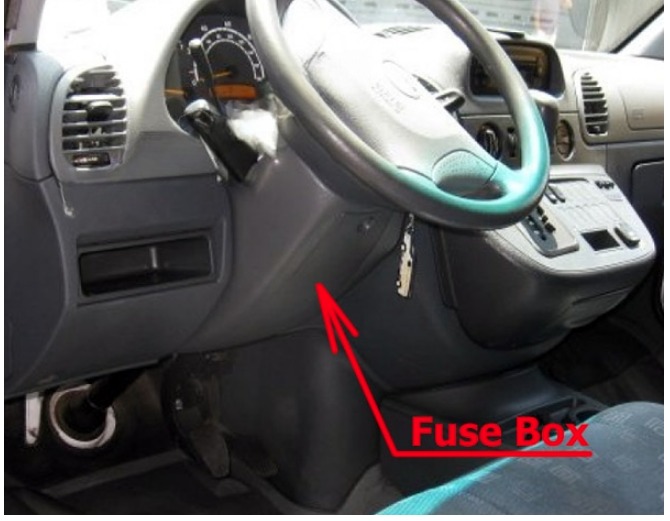

Fuse Box Location

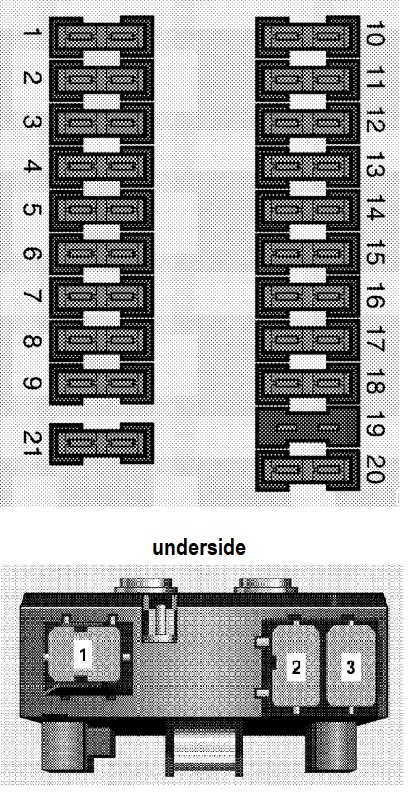

Fuse Box Diagram
| No | Circuit | A |
|---|---|---|
| 1 | Parking lamp right, taillamp right | 10 |
| 2 | High beam head lamp, right | 10 |
| 3 | High beam head lamp, left, high beam indicator lamp | 10 |
| 4 | Backup lamp | 10 |
| 5 | Brake lamp | 10 |
| 6 | Windshield wiper motor | 20 |
| 7 | Horn, heated rear window,air recirculation switch,optional equipment relay (terminal 15) | 15 |
| 8 | Interior lighting, cigarette lighter,radio (terminal 30) | 20 |
| 9 | Clock, hazard warning lamps,parking lamps | 15 |
| 10 | Instrument lighting, license plate lampdaytime driving lamps | 10 |
| 11 | Side lamp, left; taillamp, left | 10 |
| 12 | Low beam headlamp, right | 10 |
| 13 | Low beam headlamp, left | 10 |
| 14 | Fog lamp | 15 |
| 15 | Radio (terminal 15) | 10 |
| 16 | Engine control unit | 25 |
| 17 | Engine control unit | 15 |
| 18 | Ignition (terminal 15) | 15 |
| 19 | Not in use | 15 |
| 20 | Heater controls (terminal 30) | 15 |
| 21 | Heater blower (terminal 30) | 30 |
| Relays | ||
| 1 | Windshield wiper motor (W) | |
| 2 | Diesel engine control unit (M) | |
| 3 | Turn signals (B) |
Fuse Box under driver’s seat
Dodge Sprinter (2002 to 2006)

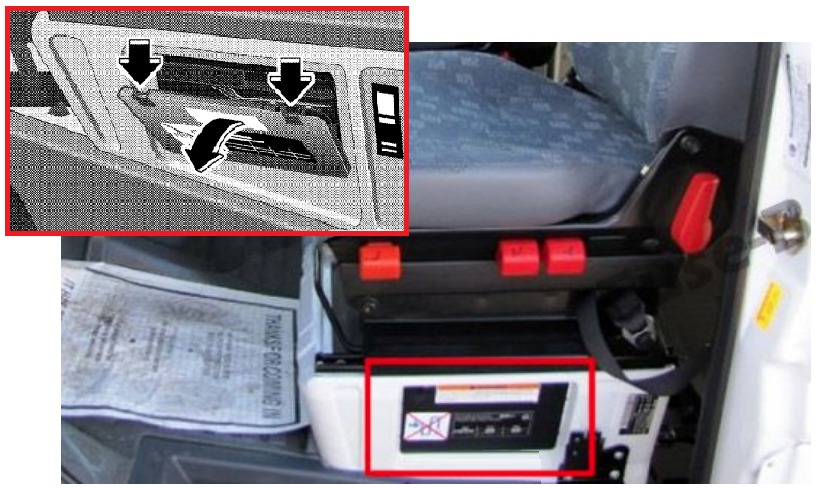

Fuse Box Location

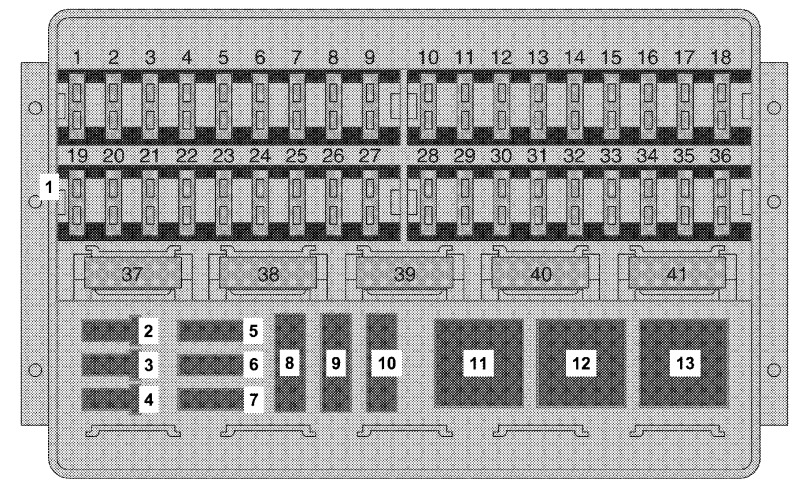

Fuse Box Diagram
| No | Circuit | A |
|---|---|---|
| Diodes | ||
| 1 | Not in use | |
| 2 | Not in use | |
| 3 | Not in use | |
| 4 | Not in use | |
| Fuses | ||
| 5 | Immobilizer | 10 |
| 6 | Anti-lock brake system (ABS) Electronic Stability program (ESP) (2500 Type Vehicles only) | 7.5 |
| 7 | Anti-lock brake system (ABS) Electronic Stability program (ESP) (2500 Type Vehicles only) | 25 |
| 8 | Not in use Electronic Stability program (ESP) (2500 Type Vehicles only) | 40 |
| 9 | Anti-lock brake system (ABS) | 40 |
| 10 | Not in use | – |
| Relays | ||
| 11 | Not in use | |
| 12 | Starter relay | |
| 13 | Not in use |
