KIA Cerato (2003 – 2008) Fuse Box Location & Diagrams

KIA Cerato (2003 – 2008) Fuse Box Location & Diagrams

If you’re driving a KIA Cerato from 2003 to 2008, knowing the location of the fuse box is essential for troubleshooting electrical issues. This guide provides clear diagrams and instructions to help you locate and understand the fuse box in your vehicle. Whether you’re replacing a blown fuse or trying to identify specific components, we’ve got you covered!

Fuse Box Locations

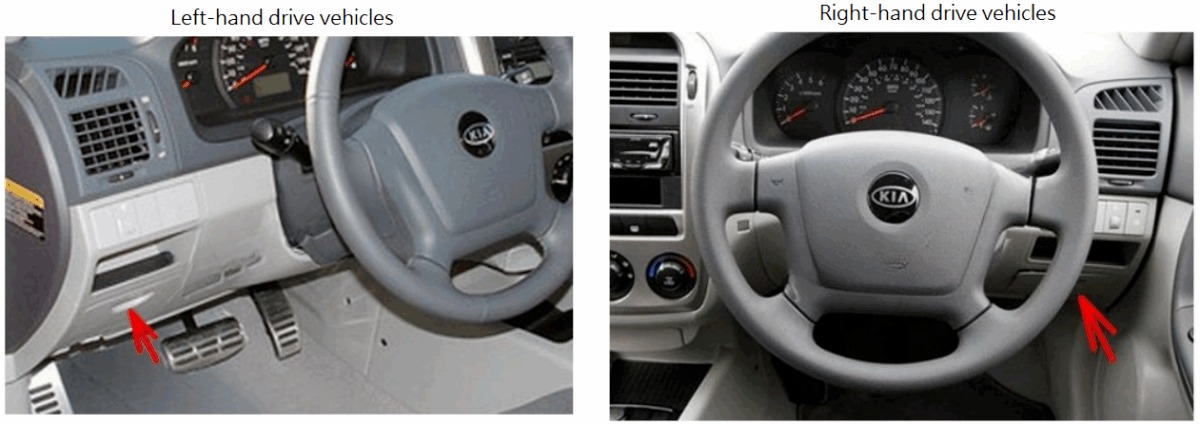

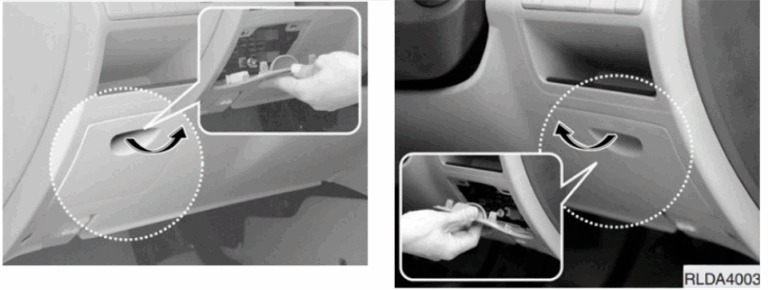

Instrument panel Fuse Box

KIA Cerato (2003 – 2008) fig-1 KIA Cerato (2003 – 2008) fig-1.

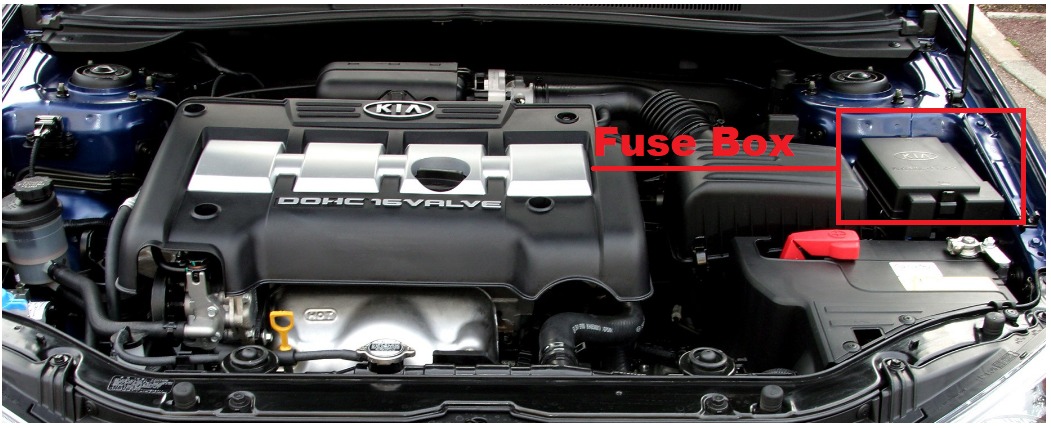

Engine Compartment Fuse Box

KIA Cerato (2003 – 2008) fig-2

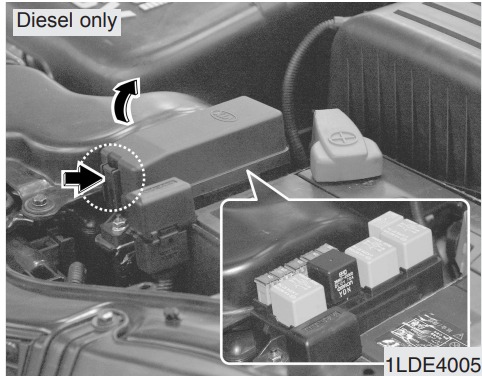

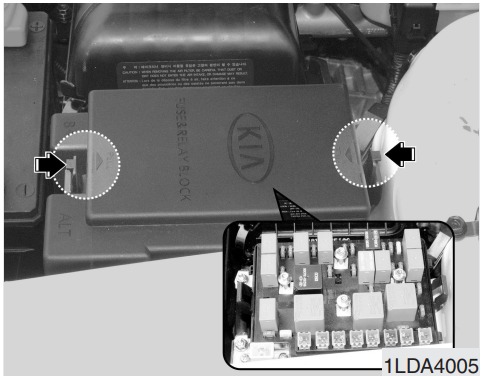

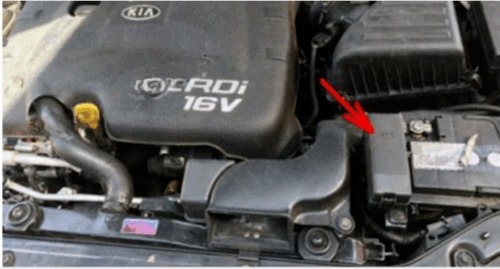

Additional fuse panel (Diesel engine only)

KIA Cerato (2003 – 2008) fig-3 KIA Cerato (2003 – 2008) fig-4 KIA Cerato (2003 – 2008) fig-5

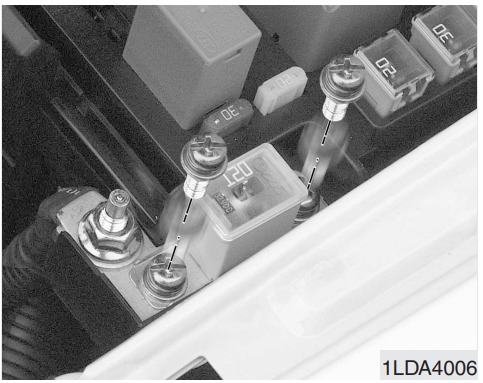

Main fuse

KIA Cerato (2003 – 2008) fig-6

Instrument panel Fuse Box

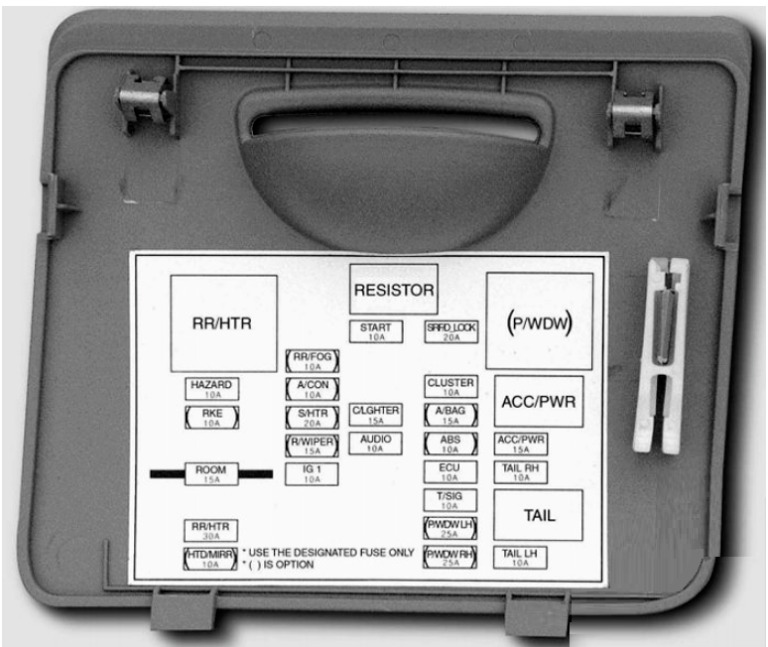

KIA Cerato (2004, 2005 and 2006)

KIA Cerato (2003 – 2008) fig-7

DescriptionAmp ratingProtected component
START10AStart motor
SRF/D_LOCK20ASunroof, Door lock
RR FOG10ARear fog light
HAZARD10AHazard warning flasher
A/CON10AAir conditioner
CLUSTER10ACluster
RKE10ARemote keyless entry
S/HTR20ASeat warmer
C/LIGHTER15ACigar lighter
A/BAG15AAirbag
R/WIPER15ARear wiper
AUDIO10AAudio
ABS10AAnti-lock brake system
ACC/PWR15AAccessory / Power socket
ROOM15ARoom lamp
IGN10AIgnition
ECU10AEngine control unit
TAIL RH10ATail light (right)
T/SIG10ATurn signal light
RR/HTR30ARear window defroster
P/WDW LH25APower window (left)
HTD/MIRR10AOutside rearview mirror heater
P/WDW RH25APower window (right)
TAIL LH10ATail light (left)
RR/HTR–Rear window defroster relay
RESISTOR–Resistor
P/WDW–Power window relay
ACC/PWR–Accessory / Power socket relay
TAIL–Tail light relay

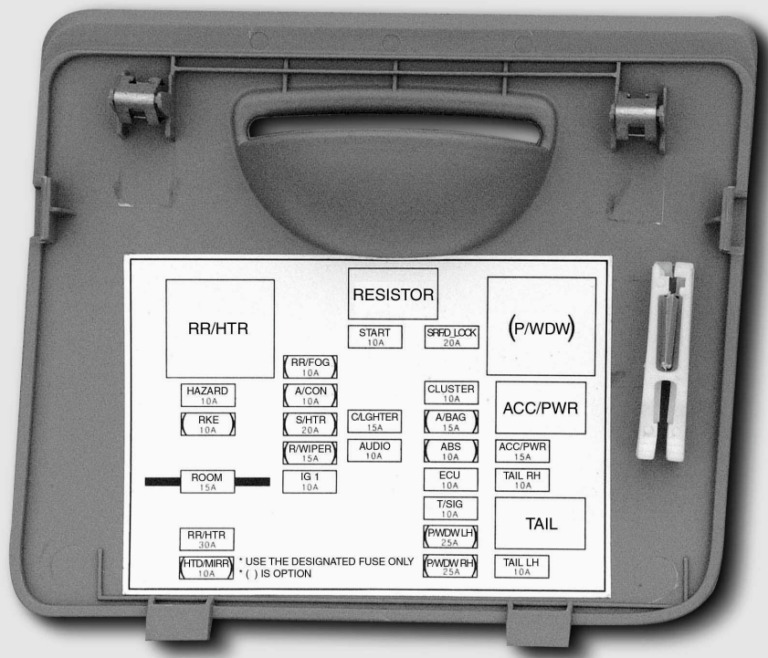

KIA Cerato (2007 and 2008)

KIA Cerato (2003 – 2008) fig-8

DescriptionAmp ratingProtected component
START10AStart motor
SRF/D_LOCK20ASunroof, Door lock
RR FOG10ARear fog light
HAZARD10AHazard warning flasher
A/CON10AAir conditioner
CLUSTER10ACluster
RKE10ARemote keyless entry
S/HTR20ASeat warmer
C/LIGHTER15ACigar lighter
A/BAG15AAirbag
R/WIPER15ARear wiper
AUDIO10AAudio
ABS10AAnti-lock brake system
POWER15APower outlet
ROOM15ARoom lamp
IGN10AIgnition
ECU10AEngine control unit
TAIL RH10ATail light (right)
T/SIG10ATurn signal light
RR/HTR30ARear window defroster
P/WDW LH25APower window (left)
HTD/MIRR10AOutside rearview mirror heater
P/WDW RH25APower window (right)
TAIL LH10ATail light (left)
RR/HTR–Rear window defroster relay
RESISTOR–Resistor
P/WDW–Power window relay
ACC/PWR–Accessory / Power socket relay
TAIL–Tail light relay

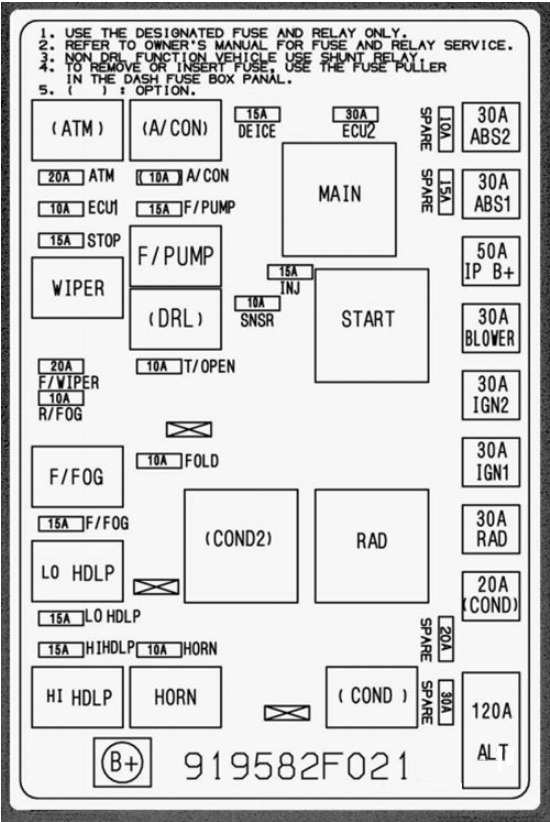

Engine Compartment Fuse Box

KIA Cerato (2004, 2005 and 2006)

KIA Cerato (2003 – 2008) fig-9

DescriptionAmp ratingProtected component
ATM20AAutomatic transaxle control
ECU110AEngine control unit
STOP15AStop light
F/WIPER15AFront wiper
R/FOG10ARear fog light
F/FOG15AFront fog light
LO HDLP15AHeadlight (low)
HI HDLP15AHeadlight (high)
A/CON10AAir conditioner
F/PUMP15AFuel pump
T/OPEN10ATrunk lid opener
FOLD10AOutside rearview mirror folding
HORN10AHorn
DEICE15ADeicer
INJ15AInjection
SNSR10AO2 sensor
ECU230AEngine control unit
SPARE10Aspare fuse
SPARE15Aspare fuse
SPARE20Aspare fuse
SPARE30Aspare fuse
ABS230AAnti-lock brake system
ABS130AAnti-lock brake system
IP B+50AIn panel B+
BLOWER30ABlower
IGN230AIgnition
IGN130AIgnition
RAD30ARadiator fan
COND20ACondenser fan
ALT120A (Gasoline) / 140A (Diesel)Alternator
ATM–Automatic transaxle control relay
WIPER–Wiper relay
F/FOG–Front fog light relay
LO HDLP–Headlight relay (low)
HI HDLP–Headlight relay (high)
A/CON–Air conditioner relay
F/PUMP–Fuel pump relay
DRL–Daytime running light relay
COND2–Condenser fan relay
HORN–Horn relay
MAIN–Main relay
START–Start motor relay
RAD–Radiator fan relay
COND–Condenser fan relay

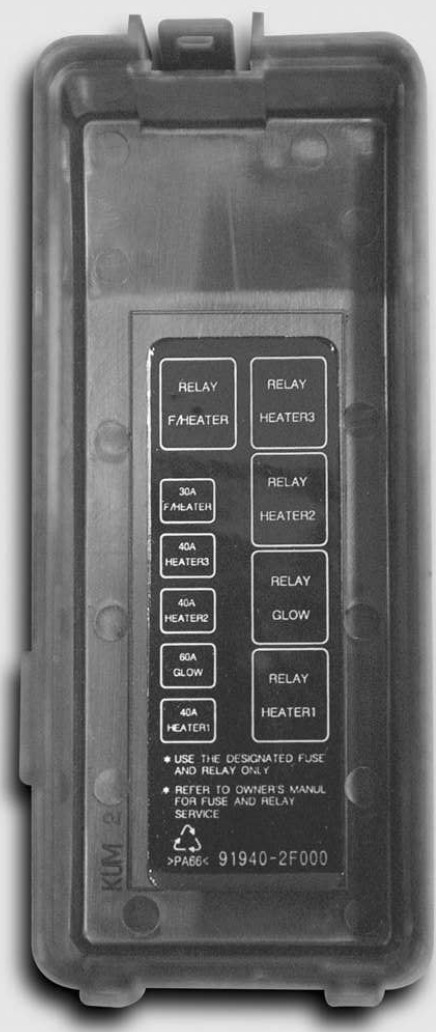

Additional fuse panel (Diesel engine only)

KIA Cerato (2003 – 2008) fig-10

DescriptionAmp ratingProtected component
F/H EATER30AFuel filter heater
HEATER 340APTC heater 3
HEATER 240APTC heater 2
GLOW60AGlow plug
HEATER 140APTC heater 1
RELAY F/HEATER–Fuel filter heater relay
RELAY HEATER 3–PTC heater relay 3
RELAY HEATER 2–PTC heater relay 2
RELAY GLOW–Glow plug relay
RELAY HEATER 1–PTC heater relay 1

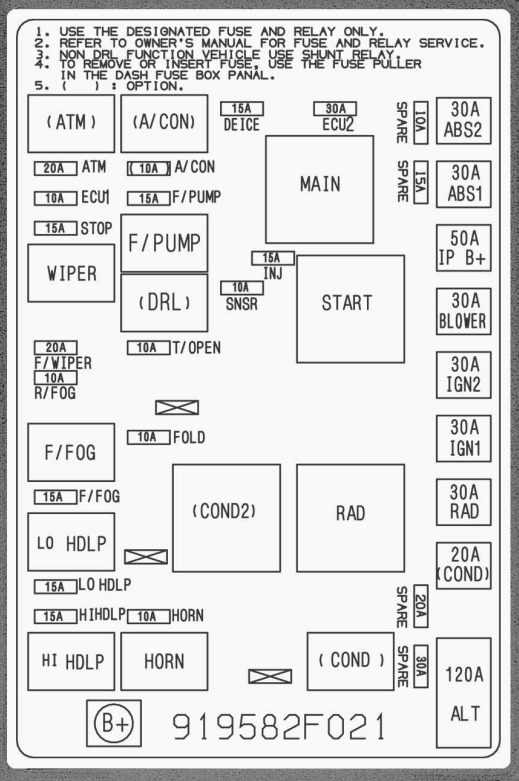

KIA Cerato (2007 and 2008)

KIA Cerato (2003 – 2008) fig-11

DescriptionAmp ratingProtected component
ECU110AEngine control unit
STOP15AStop light
F/WIPER20AFront wiper
R/FOG10ARear fog light
F/FOG15AFront fog light
LO HDLP15AHeadlight (low)
HI HDLP15AHeadlight (high)
A/CON10AAir conditioner
F/PUMP15AFuel pump
T/OPEN10ATrunk lid opener
SAFTY P/WINDOW20ASafety power window module
HORN10AHorn
INJ15AInjector
SNSR10A02 sensor
ECU230AEngine control unit
SPARE10Aspare fuse
SPARE15Aspare fuse
SPARE20Aspare fuse
SPARE30Aspare fuse
ABS230AAnti-lock brake system
ABS130AAnti-lock brake system
IP B+50AIn panel B+
BLOWER30ABlower
IGN230AIgnition switch
IGN130AIgnition switch
RAD30A (Gasoline) / 40A (Diesel)Radiator fan
COND20ACondenser fan
ALT120A (Gasoline) / 140A (Diesel)Alternator
ATM–Automatic transaxle control relay
WIPER–Wiper relay
F/FOG–Front fog light relay
LO HDLP–Headlight relay (low)
HI HDLP–Headlight relay (high)
A/CON–Air conditioner relay
F/PUMP–Fuel pump relay
DRL–Daytime running light relay
COND2–Condenser fan relay
HORN–Horn relay
MAIN–Main relay
START–Start motor relay
RAD–Radiator fan relay
COND–Condenser fan relay

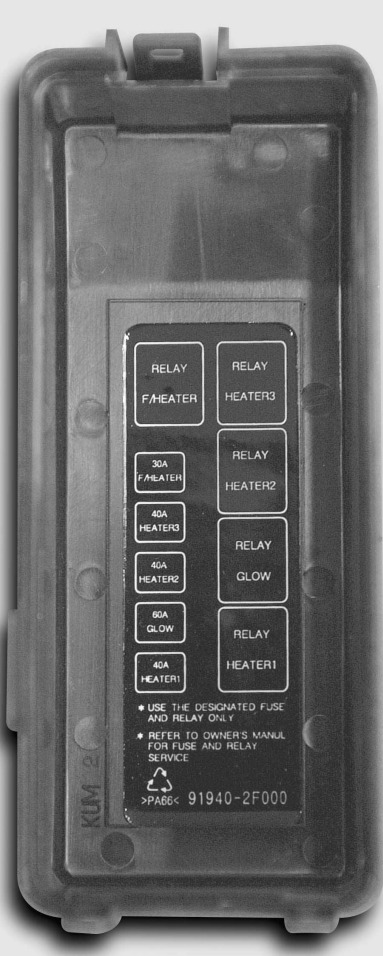

Additional fuse panel (Diesel engine only)

KIA Cerato (2003 – 2008) fig-12

DescriptionAmp ratingProtected component
F/HEATER30AFuel filter heater
HEATER 340APTC heater 3
HEATER 240APTC heater 2
GLOW60AGlow plug
HEATER 140APTC heater 1
RELAY F/HEATER–Fuel filter heater relay
RELAY HEATER 3–PTC heater relay 3
RELAY HEATER 2–PTC heater relay 2
RELAY GLOW–Glow plug relay
RELAY HEATER 1–PTC heater relay 1
