KIA (Sedona & Carnival) (2006 – 2010) Fuse Box Location & Diagrams
For KIA Sedona and Carnival owners from 2006 to 2010, knowing the location of the fuse box is essential for maintaining your vehicle’s electrical system. This user guide offers detailed diagrams and step-by-step instructions to help you quickly locate and identify the correct fuses. Whether you’re replacing a fuse or diagnosing issues, this guide simplifies the process.
Passenger Compartment Fuse Box
2006 to 2010 KIA (Sedona & Carnival)
Fuse Box Location

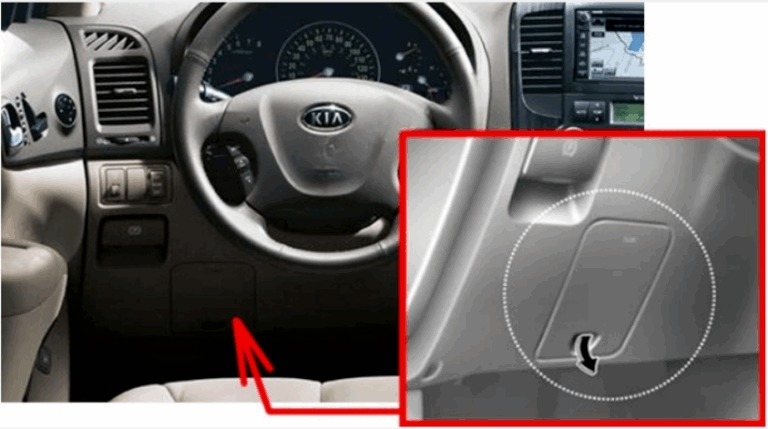

The fuse box is located behind the cover below the steering wheel.
To check and replace a fuse:
- Turn the ignition switch and all other switches off.
- Open the fuse panel cover.
- Pull the suspected fuse straight out. Use the removal tool provided on the main fuse box in the engine compartment.
- Check the removed fuse; replace it if it is blown. Spare fuses are provided in the main fuse box in the engine compartment.
- Push in a new fuse of the same rating, and make sure it fits tightly in the clips.

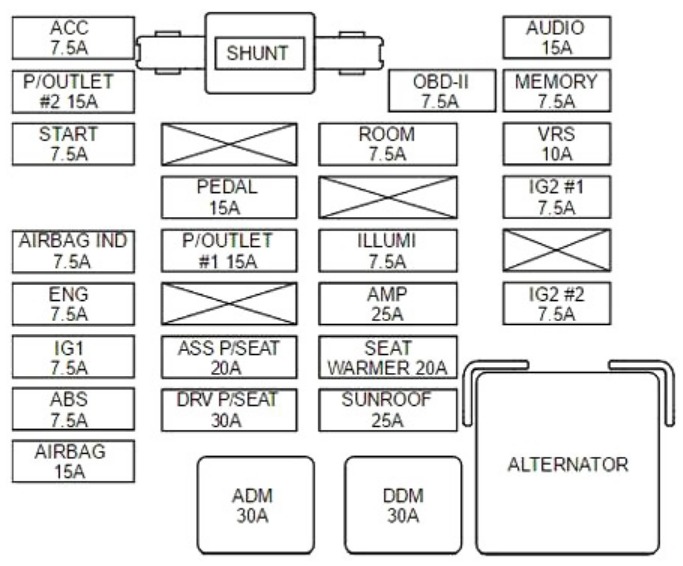

Fuse Box Diagram
| Fuse | A | Circuit Protected |
|---|---|---|
| ACC | 7.5 | POWER OUTSIDE MIRROR & MIRROR FOLDING SWITCH, AUDIO, DIGITAL CLOCK, MEDIA MODULE |
| P/OUTLET #2 | 15 | CIGARETTE LIGHTER & POWER OUTLET |
| START | 7.5 | BURGLAR ALARM RELAY, TRANSAXLE RANGE SWITCH, ECM (DSL) |
| AIRBAG IND | 7.5 | INSTRUMENT CLUSTER |
| ENG | 7.5 | ATM LEVER SWITCH, STOP LAMP SWITCH (GSL), INPUT SPEED SENSOR, OUTPUT SPEED SENSOR, TRANSAXLE RANGE SWITCH, PCM (GSL), VEHICLE SPEED SENSOR, ECM (DSL), TCM (DSL), BACK-UP LAMP SWITCH, FUEL FILTER WARNING SWITCH (DSL), CLUTCH SWITCH (2.7L), MASS AIR FLOW SENSOR (2.9L VGT) |
| IG1 | 7.5 | TRIP COMPUTER, BACK WARNING BUZZER, RHEOSTAT, ESP SWITCH, INSTRUMENT CLUSTER, MULTIFUNCTION SWITCH, GENERATOR, AMB SWITCH |
| ABS | 7.5 | ABS CONTROL MODULE, ESP CONTROL MODULE, YAW RATE SENSOR, STEERING ANGLE SENSOR, MULTIPURPOSE CHECK CONNECTOR |
| AIRBAG | 15 | SRS CONTROL MODULE, PAB CUT OFF SWITCH |
| PEDAL | 15 | PEDAL ADJUST RELAY |
| P/OUTLET #1 | 15 | CIGARETTE LIGHTER & POWER OUTLET |
| ASS P/SEAT | 20 | PASSENGER POWER SEAT MODULE |
| DRV P/SEAT | 30 | LIMIT SWITCH, DRIVER POWER SEAT MODULE |
| OBD-II | 7.5 | DATA LINK CONNECTOR, MULTIPURPOSE CHECK CONNECTOR |
| ROOM | 7.5 | VANITY LAMP LH(RH), MAP LAMP, A/C CONTROL MODULE, REAR ROOM LAMP SWITCH, OVER HEAD CONSOLE |
| VRS | 10 | VRS SWITCH, VRS MODULE |
| ILLUMI | 7.5 | INSTRUMENT PANEL MODULE |
| AMP | 25 | AMP |
| SEAT WARMER | 20 | SEAT WARMER RELAY |
| SUNROOF | 25 | SUNROOF MODULE |
| AUDIO | 15 | STEP LAMP LH(RH), AUDIO, MEDIA MODULE |
| MEMORY | 7.5 | A/C CONTROL MODULE, DIGITAL CLOCK, INSTRUMENT CLUSTER, TRIP COMPUTER, DOOR MODULE, FRONT AREA MODULE, DRIVER POWER SEAT MODULE, POWER TAIL GATE MODULE |
| IG2 #1 | 7.5 | MULTIFUNCTION SWITCH, A/C CONTROL MODULE, ELECTRO CHROMIC MIRROR, RAIN SENSOR, RELAY BOX |
| IG2 #2 | 7.5 | DOOR MODULE, REAR A/C CONTROL SWITCH, FRONT AREA MODULE, POWER TAIL GATE MODULE DRIVER POWER SEAT MODULE |
| DDM | 30 | DRIVER DOOR MODULE, SAFETY POWER WINDOW MOTOR |
| ADM | 30 | PASSENGER DOOR MODULE |
Engine Compartment Fuse Box
2006 to 2010 KIA (Sedona & Carnival)

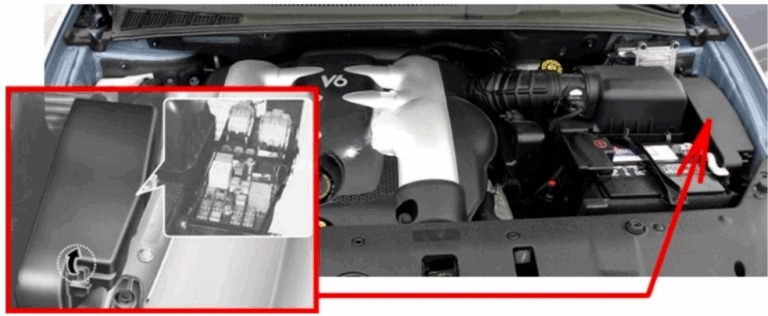

Fuse Box Location
To check and replace a fuse:
- Turn the ignition switch and all other switches off.
- Remove the fuse box cover by pressing the tab and pulling up.
- Check the removed fuse; replace it if it is blown. To remove or insert the fuse, use the fuse puller in the main fuse box in the engine compartment.
- Push in a new fuse of the same rating, and make sure it fits tightly in the clips.

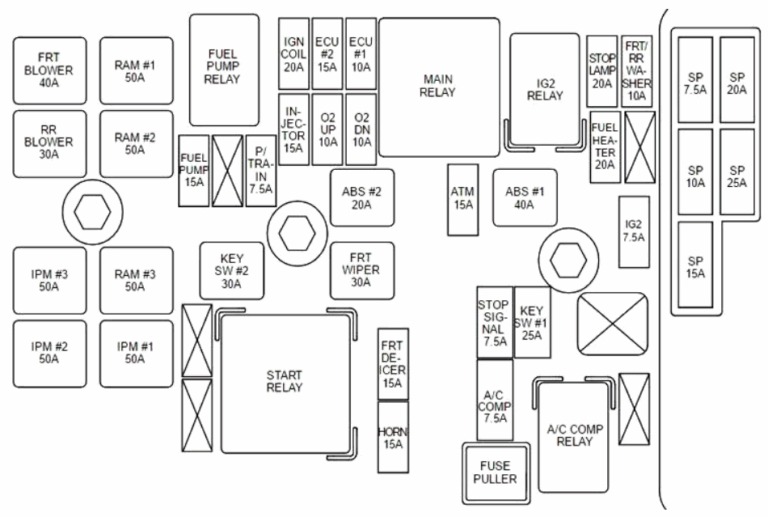

Fuse Box Diagram
| Fuse | A | Circuit Protected |
|---|---|---|
| FRT/RR WASHER | 10 | FRONT WASHER MOTOR RELAY, REAR WASHER MOTOR RELAY |
| STOP LAMP | 20 | STOP LAMP SWITCH |
| KEY SW #1 | 25 | IGNITION SWITCH |
| STOP SIGNAL | 7.5 | ABS CONTROL MODULE, ESP CONTROL MODULE, PCM (GSL), ECM (DSL), TCM (DSL) |
| A/C COMP | 7.5 | A/C COMP RELAY |
| ATM | 15 | ATM RELAY |
| FRT DEICER | 15 | WINDSHIELD DEFOGGER RELAY |
| HORN | 15 | HORN RELAY |
| ECU #1 | 10 | A/C COMP RELAY, PCM (GSL), MASS AIR FLOW SENSOR (GSL), STOP LAMP SWITCH (2.9L VGT), IMMOBILIZER MODULE, ECM (DSL), AIRCON RELAY (2.9L WGT), COOLING BOX (2.7L) |
| 02 DN | 10 | OXYGEN SENSOR (GSL) |
| ECU #2 | 15 | PCM (GSL), VARIABLE INTAKE MANIFOLD VALVE (GSL), COOLING FAN RELAY (3.8L), PCSV (GSL), OCV (GSL), ECM (DSL) |
| 02 UP | 10 | OXYGEN SENSOR (GSL) |
| IGN COIL | 20 | IGNITION COIL #1 – #6 (GSL), CONDENSER (GSL) |
| INJECTOR | 15 | INJECTOR #1 – #6 (GSL), PCM (GSL), INLET METERING VALVE (DSL), EGR SOLENOID VALVE (2.9L WGT), VGT CONTROL SOLENOID VALVE (2.9L VGT), INTAKE THROTTLE SOLENOID VALVE (DSL), ECM (DSL), MASS AIR FLOW SENSOR (2.9L WGT), DIESEL BOX (DSL) |
| P/TRAIN | 7.5 | MAIN RELAY, BURGLAR HORN RELAY, PCM (GSL), TCM (DSL), GENERATOR (2.9L WGT) |
| FUEL PUMP | 15 | FUEL PUMP RELAY |
| ABS #1 | 40 | ABS CONTROL MODULE, ESP CONTROL MODULE |
| ABS #2 | 20 | ABS CONTROL MODULE, ESP CONTROL MODULE |
| FRT WIPER | 30 | FRONT WIPER ON RELAY |
| KEY SW #2 | 30 | START RELAY, IGNITION SWITCH |
| FRT BLOWER | 40 | FRONT BLOWER RELAY |
| RR BLOWER | 30 | REAR BLOWER RELAY |
| IPM #1 | 50 | INSTRUMENT PANEL MODULE |
| IPM #2 | 50 | INSTRUMENT PANEL MODULE |
| IPM #3 | 50 | INSTRUMENT PANEL MODULE |
| RAM #1 | 50 | REAR AREA MODULE |
| RAM #2 | 50 | REAR AREA MODULE |
| RAM #3 | 50 | REAR AREA MODULE |
| IG2 | 7.5 | |
| FUEL HEATER | 20 | FUEL FILTER HEATER (DSL) |

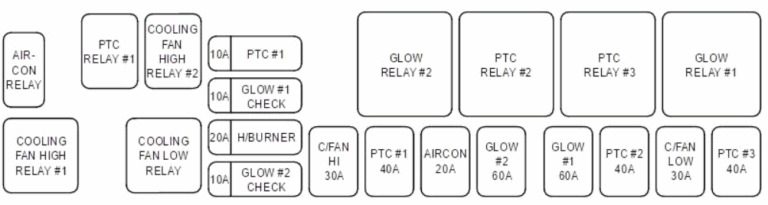

Additional box (Diesel)

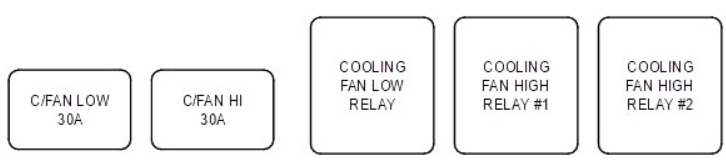

Cooling box (2.7 L)

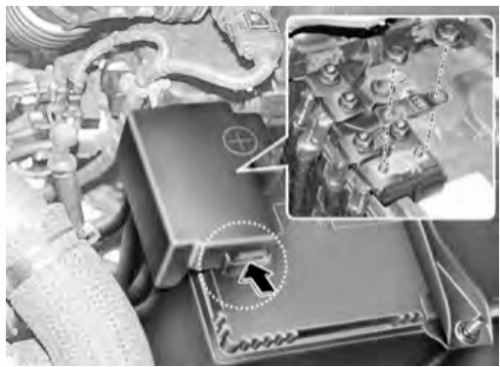

Main Fuse
| Fuse | A | Circuit Protected |
|---|---|---|
| ALT | 150 | Generator |
| C/FAN | 60 | Cooling fan |
Luggage Compartment Fuse Box
2006 to 2010 KIA (Sedona & Carnival)
Fuse Box Location

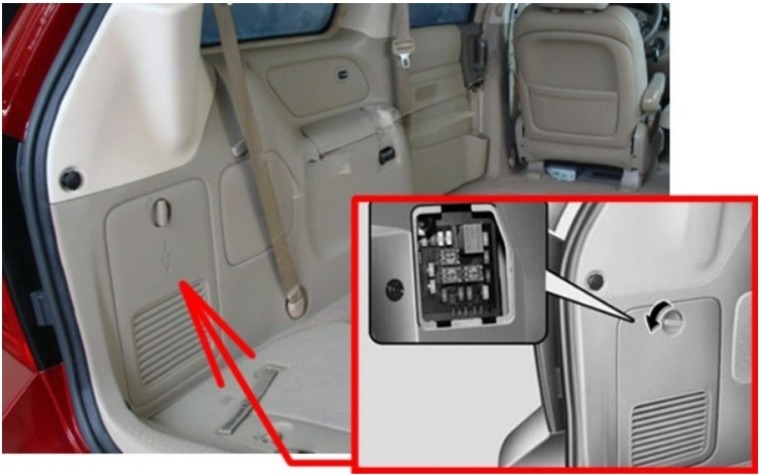

The rear cargo area fuse panel is behind the left-side trim panel.
To check and replace a fuse:
- Turn the ignition switch and all other switches off.
- Open the fuse panel cover.
- Pull the suspected fuse straight out. Use the removal tool provided on the main fuse box in the engine compartment.
- Check the removed fuse; replace it if it is blown. Spare fuses are provided in the main fuse box in the engine compartment.
- Push in a new fuse of the same rating, and make sure it fits tightly in the clips.

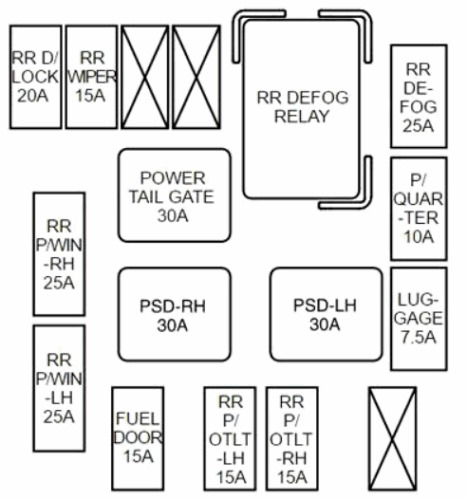

Fuse Box Diagram
| Fuse | A | Circuit Protected |
|---|---|---|
| PSD-LH | 30 | POWER SLIDING DOOR MODULE LH |
| PSD-RH | 30 | POWER SLIDING DOOR MODULE RH |
| RR DEFOG | 25 | RR DEFOG RELAY, REAR DEFOGGER |
| POWER TAIL GATE | 30 | POWER TAIL GATE MODULE |
| P/QUARTER | 10 | QUARTER GLASS OPEN RELAY LH, QUARTER GLASS CLOSE RELAY LH, QUARTER GLASS OPEN RELAY RH, QUARTER GLASS CLOSE RELAY RH, QUARTER GLASS MOTOR LH, QUARTER GLASS MOTOR RH |
| RR WIPER | 15 | REAR WIPER RELAY, REAR WIPER MOTOR |
| RR D/LOCK | 20 | S/DOOR LOCK RELAY, S/DOOR UNLOCK RELAY, SLIDING DOOR LOCK ACTUATOR, TAIL GATE LOCK ACTUATOR |
| RR P/OTLT-LH | 15 | REAR POWER OUTLET LH |
| RR P/OTLT-RH | 15 | REAR POWER OUTLET RH |
| FUEL DOOR | 15 | FUEL FILLER RELAY, FUEL FILLER ACTUATOR |
| RR P/WIN-LH | 25 | S/DOOR WINDOW RELAY (UP) LH, S/DOOR WINDOW RELAY (DN) LH, SLIDING DOOR POWER WINDOW MOTOR LH |
| RR P/WIN-RH | 25 | S/DOOR WINDOW RELAY (UP) RH, S/DOOR WINDOW RELAY (DN) RH, SLIDING DOOR POWER WINDOW MOTOR RH |
| LUGGAGE | 7.5 | LUGGAGE LAMP, POWER TAIL GATE ON/OFF SWITCH |
