KIA Sedona (2002 – 2005) Fuse Box Location & Diagrams
For KIA Sedona owners from 2002 to 2005, understanding the fuse box location is crucial for electrical repairs. This user guide provides clear fuse box diagrams and easy-to-follow instructions, helping you locate and identify fuses. Whether you’re replacing a fuse or troubleshooting electrical issues, our guide ensures a hassle-free process.
Passenger Compartment Fuse Box
KIA Sedona (2002 to 2005)
Fuse Box Location

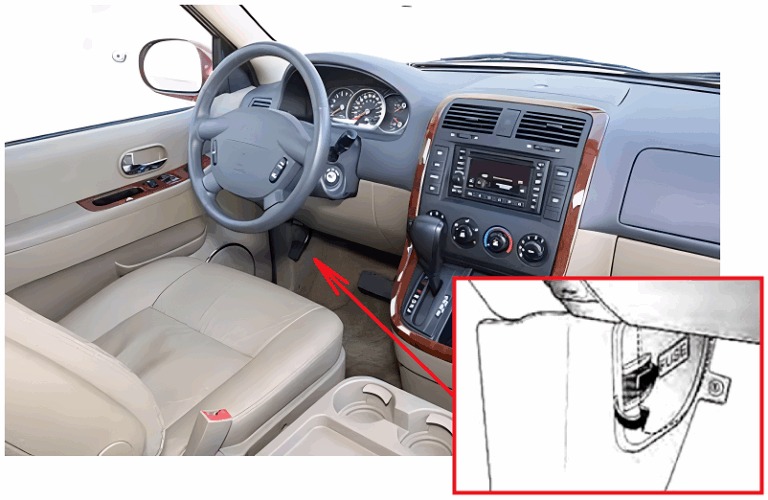

The fuse box is located behind the cover below the instrument panel.

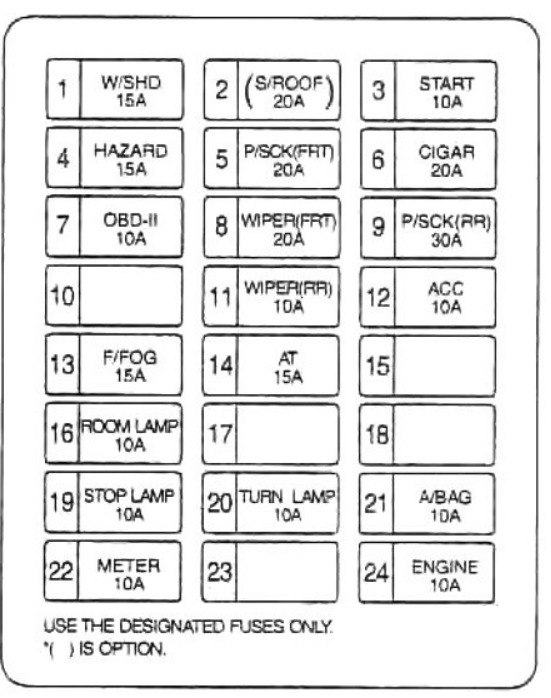

Fuse Box Diagram
Assignment of the fuses in the Passenger compartment
| Description | AMP RATING | PROTECTED COMPONENT |
|---|---|---|
| 1. W/SHD | 15 A | Defroster |
| 2. S/ROOF | 20 A | Sunroof |
| 3. SRART | 10 A | Starting system. PCM, ACC |
| 4. HAZARD | 15 A | Turn & Hazard flasher unit |
| 5. P/SCK(FRT) | 20 A | Front Power Socket |
| 6. CIGAR | 20 A | Cigar lighter |
| 7. OBD-II | 10 A | Check connector |
| 8. WIPER (FRT) | 20 A | Wiper & Washer, Head light, Front heater & Aircon. Cooling svstem. Defroster |
| 9. P/SCK (RR) | 30 A | Rear power socket |
| 10. | – | – |
| 11. WPER(RR) | 10 A | Wper & Washer, ETWS, Heater & Aircon, Trip computer, sunroof |
| 12. ACC | 10 A | Power mirror, Cigar lighter Power Socket, Clock, Keyless entry, Audio |
| 13. F/FOG | 15 A | Front foq lamp |
| 14. AT | 15 A | PCM (Power train control svstem) |
| 15. | – | |
| 16. ROOM LAMP | 10 A | Instrument cluster. ETWIS, Head light, DRL, Keyless entry. Room lamp, Sunvior lamp, Clock |
| 17. | – | . |
| 18. | – | – |
| 19. STOP LAMP | 20 A | Stop light |
| 20. TURN LAMP | 10 A | Turn & Hazard flasher unit |
| 21. A/BAG | 10 A | Airbag |
| 22. METER | 10 A | PCM, ACC, Trip computer, Stop light, DRL, ETWS. Instrument cluster. Front heater & Aircon |
| 23. | – | – |
| 24. ENGINE | 10 A | PCM. Cooling, Speed sensor, Diagnosis connectior, ACC, Instrument cluster, ABS |
Engine Compartment Fuse Box
KIA Sedona (2002 to 2005)

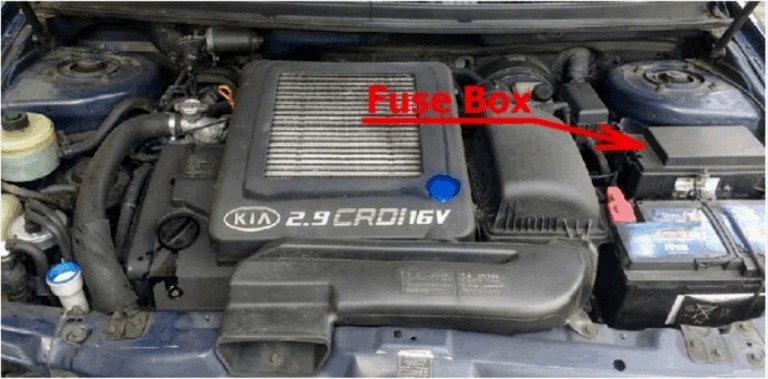

Fuse Box Location

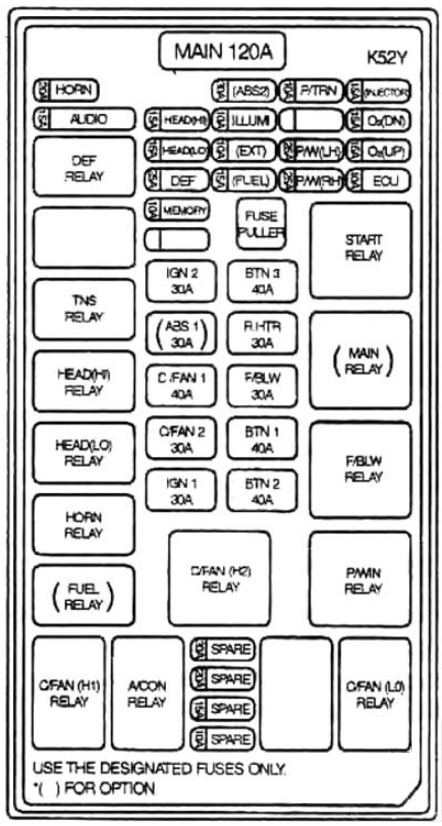

Fuse Box Diagram
Assignment of the fuses in the Engine compartment
| Description | AMP RATING | PROTECTED COMPONENT |
|---|---|---|
| HORN | 20 A | Horn |
| ABS2 | 30 A | ABS |
| P/TRN | 10 A | PCM, Main relay |
| INJECTOR | 15 A | PCM |
| AUDIO | 15 A | Audio |
| HEAD (HI) | 15 A | Head Light |
| ILLUMI | 10 A | Key hole illumination |
| O2 (DN) | 15 A | PCM |
| HEAD (LO) | 15 A | Head light |
| EXT | 1G A | DRL, License lamp, Tail lamp, Position lamp, Turn lamp |
| P/W (LH) | 25 A | Power window |
| O2 (UP) | 15 A | PCM |
| DEF | 25 A | Defroster |
| FUEL | 15 A | Fuel pump relay |
| P/W (RH) | 25 A | Power window |
| ECU | 10 A | PCM, Cooling |
| Memory | 10 A | Front heater & aircon, Etwis, Keyless entry system |
| IGN 2 | 30 A | Ignition switch |
| BTN 3 | 30 A | Turn & Hazard flasher unit, Power door lock |
| ABS 1 | 30 A | ABS |
| R.HTR | 30 A | Rear heater & Aircon |
| C/FAN 1 | 40 A | Cooling system |
| F/BLW | 30 A | Front heater & Aircon |
| C/FAN 2 | 30 A | Cooling system |
| BTN 1 | 40 A | Cigar lighter. Power socket |
| IGN 1 | 30 A | Ignition switch |
| BTN 2 | 40 A | Power seat, PCM |
