Fuse Box Locations

Passenger Compartment Fuse Box

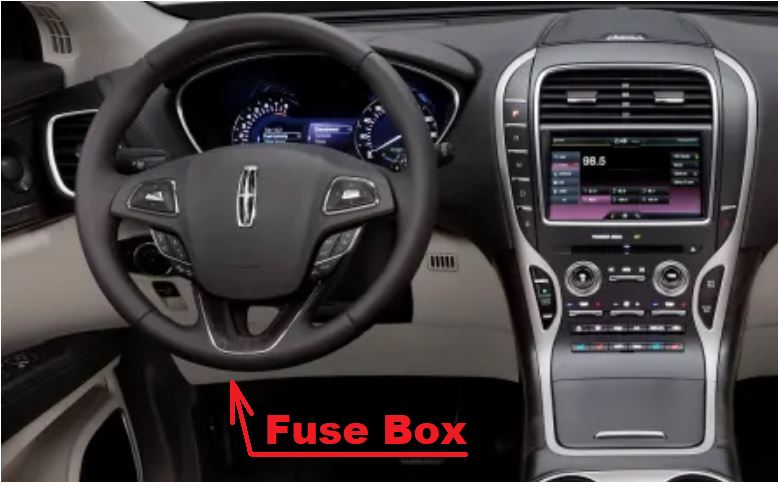

The fuse panel is located under the instrument panel to the left of the steering column.Lincoln MKX Fuse Box Location and Diagrams User Guide (2016 - 2018) fig 1

Engine Compartment Fuse Box

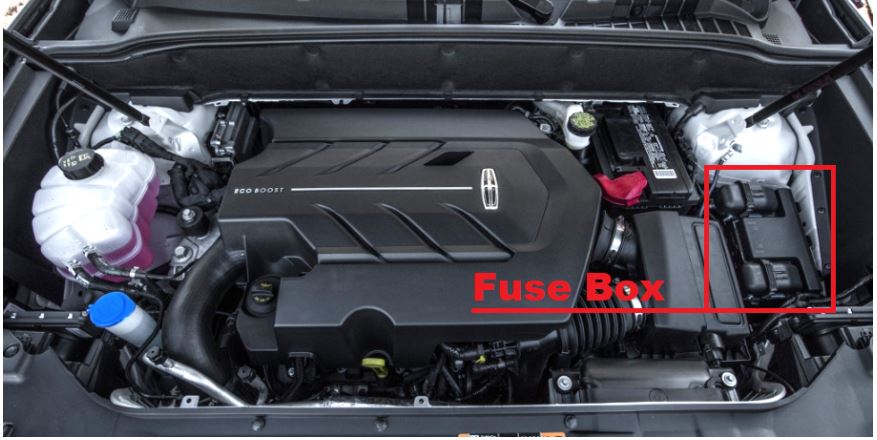

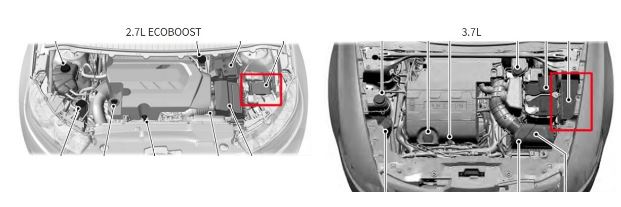

The power distribution box is located in the engine compartment (left-side).Lincoln MKX Fuse Box Location and Diagrams User Guide (2016 - 2018) fig 2

Power Distribution Box – Bottom
There are fuses located on the bottom of the fuse box.Lincoln MKX Fuse Box Location and Diagrams User Guide (2016 - 2018) fig 3

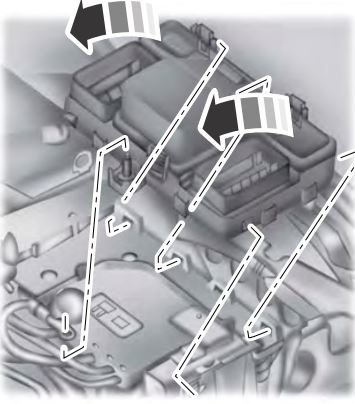

To access, do the following:

  1. Release the two latches, located on both sides of the fusebox.
  2. Raise the inboard side of the fusebox from the cradle.
  3. Move the fusebox toward the center of the engine compartment.
  4. Pivot the outboard side of the fusebox to access the bottom side.

Passenger Compartment Fuse Box Diagram

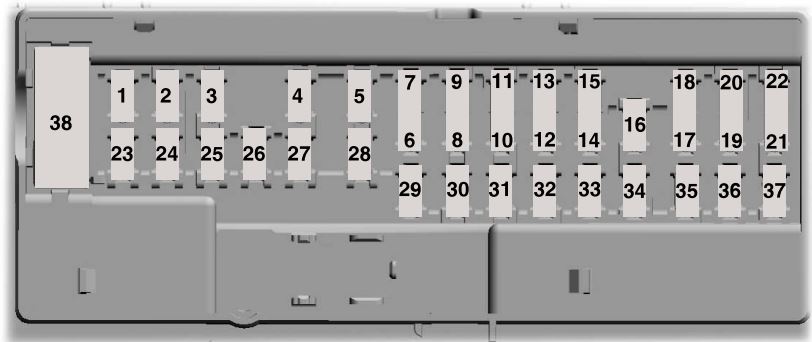

Lincoln MKX (2016 and 2017)Lincoln MKX Fuse Box Location and Diagrams User Guide (2016 - 2018) fig 4
NoAmp RatingProtected components
110A2016: Demand lighting (glove box, vanity, dome). Battery saver relay coil. Second row easy fold relay coil.
27.5 AMemory seats. Lumbar. Power mirrors. Driver seat module logic power.
320ADriver door unlock.
45ANot used (spare).
520ASubwoofer amplifier.
610AUSB charger.
710ANot used (spare).
810A

–

2016: Not used (spare).

2017: Security horn relay

910ARear seat entertainment system module. 360 camera badge.
105A2016: Keypad. Power liftgate module logic power. Hands free liftgate module. MyLincoln module.

2017: Keypad. Power liftgate module logic power. Hands free liftgate module. SYNC 3 module.

115A2016: Not used (spare).

2017: Combined sensing module.

127.5A2016: Climate control module.

2017: Climate control module. Gear shift module.

137.5 ACluster. Steering column control module. Smart datalink connector (gateway) module.
1410ANot used (spare).
1510ADatalink power.
1615 ANot used (spare).
175ANot used (spare).
185A2016: Ignition switch. Push button start switch. Key inhibit solenoid.

2017: Not used (spare).

197.5A2016: Not used (spare).

2017: Extended power module – Run/Start

207.5AActive front steering logic power.
215AHumidity and in-car temperature sensor.
225AOccupant classification sensor.
2310 A2016: Delayed accessory (power inverter logic, moonroof logic, driver window switch power). Heads up display. Gear shift module. Front camera. 360 camera module.

2017: Delayed accessory (power inverter logic, moonroof logic, driver window switch power).

2420ACentral lock unlock.
2530 ADriver door (window, mirror). Driver door module. Driver door lock indicator. Driver lock switch illumination.
2630 AFront passenger door (window, mirror). Front passenger door module. Front passenger lock indicator. Front passenger switch illumination (window, lock).
2730 AMoonroof.
2820AAmplifier.
2930ARear driver side door smart window.
3030ARear passenger side door smart window.
3115 ANot used (spare).
3210 A2016: Global positioning system module. Centerstack display. Voice control (SYNC). Radio transceiver module. Multimedia gateway module.

2017: Voice control (SYNC). Radio transceiver module.

3320ARadio.
3430ARun-start bus (fuse 19, 20, 21, 22, 35, 36, 37, circuit breaker 38).
355A2016: Restraints control module.

2017: Not used (spare).

3615 AAuto-dimming rear view mirror. Heated seat. Auto high beam/lane departure mirror module. Rear heated seat module logic power. Suspension module.
3720A2016: Heated steering wheel module (without active front steering).

2017: Not used (spare).

3830ARear power windows. Rear window switch illumination.

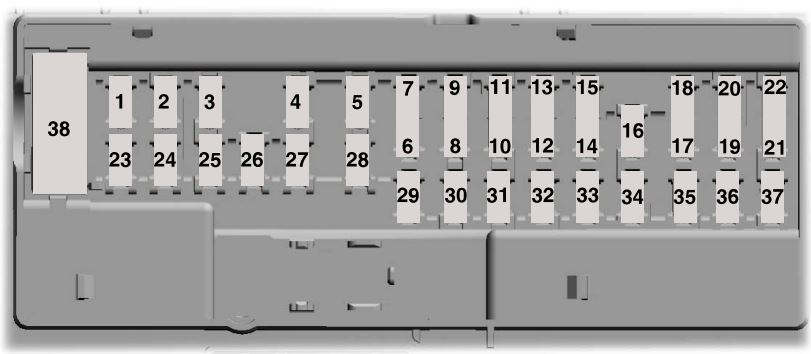

Lincoln MKX (2018)Lincoln MKX Fuse Box Location and Diagrams User Guide (2016 - 2018) fig 5
NoAmp RatingProtected Components
1—Not used.
27.5AMemory seats. Lumbar. Driver seat module logic power.
320ADriver door unlock.
45ANot used (spare).
520ASubwoofer amplifier.
610AUSB charger.
710ANot used (spare).
8—Security horn relay.
910ARear seat entertainment system module. 360 camera badge.
105AKeypad. Power liftgate module logic power. Hands free liftgate module. SYNC 3 module. Embedded Modem.
115ACombined sensing module.
127.5AClimate control module. Gear shift module.
137.5ACluster. Steering column control module. Smart datalink connector (gateway) module.
1410AExtended power module – power.
1510ADatalink power.
1615ANot used (spare).
175ANot used (spare).
185ANot used (spare).
197.5AExtended power module – Run/Start.
207.5AActive front steering logic power.
215AHumidity and in-car temperature sensor.
225AOccupant classification sensor.
2310ADelayed accessory (power inverter logic, moonroof logic, driver window switch power).
2420ACentral lock unlock.
2530ADriver door (window, mirror). Driver door module. Driver door lock indicator. Driver lock switch illumination.
2630AFront passenger door (window, mirror). Front passenger door module. Front passenger lock indicator. Front passenger switch illumination (window, lock).
2730AMoonroof.
2820AAmplifier.
2930ARear driver side door smart window.
3030ARear passenger side door smart window.
3115ANot used (spare).
3210AVoice control (SYNC). Radio transceiver module.
3320ARadio.
3430ARun-start bus (fuse 19, 20, 21, 22, 35, 36, 37, circuit breaker 38).
355ANot used (spare).
3615AAuto-dimming rearview mirror. Auto high beam/lane departure mirror module. Rear heated seat module logic power. Suspension module.
3720ANot used (spare).
3830ARear power windows. Rear window switch illumination.

Engine Compartment Fuse Box Diagram

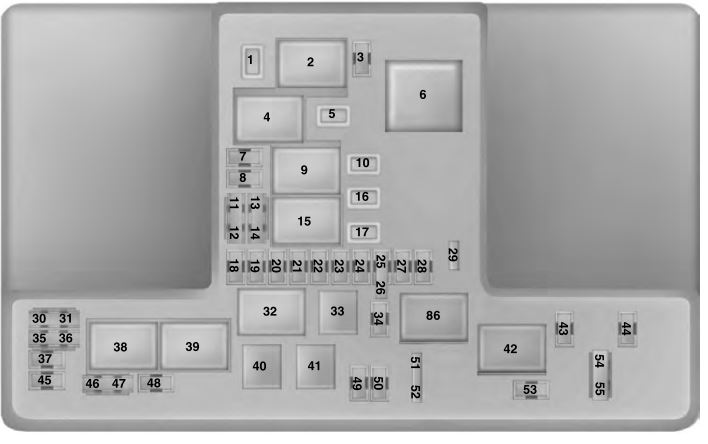

Lincoln MKX (2016 and 2017)Lincoln MKX Fuse Box Location and Diagrams User Guide (2016 - 2018) fig 6
NoAmp RatingProtected Components
130APower fold 2nd row seats.
2—Starter relay.
315 ARear wiper. Rain sensor
4—Blower motor relay.
520APower point 3 – back of console.
6—Not used.
720APowertrain control module – vehicle power 1.
820APowertrain control module – vehicle power 2.
9—Powertrain control module relay.
1020APower point 1 – driver front.
1115 APowertrain control module – vehicle power 4.
1215 APowertrain control module – vehicle power 3.
13—Not used.
14—Not used.
15—Run-start relay.
1620APower point 2 – console bin.
1720APower point 4 – luggage compartment.
1820ARH HID headlamp.
1910 ARun-start electronic power assist steering.
2010 ARun/start lighting.
2115 ATransmission oil pump logic power (start/stop).
2210 AAir conditioner clutch solenoid.
2315 ARun-start 6. Blind spot information system. Rear view camera. Adaptive cruise control. Heads-up display. Voltage quality module (start/stop). Front split view camera. Front split view camera module.
2410 ANot used (spare).
2510ARun-start anti-lock brake system.
2610ARun-start powertrain control module.
27—Not used.
2810 ARear washer pump.
29—Not used.
30—Not used.
31—Not used.
32—Electronic fan 1 relay.
33—A/C clutch relay.
3415 AGlove box release.
35—Not used.
36—Not used.
3710 APower transfer unit fan.
38—Electronic fan 2 relay.
39—Electric fan 3 relay.
40—Horn relay.
41—Not used.
42—Fuel pump relay.
4310 A2nd row easy fold seat release.
4420ALH HID headlamp.
45—Not used.
46—Not used.
47—Not used.
48—Not used.
49—Not used.
5020AHorn.
51—Not used.
52—Not used.
53—Not used.
5410ABrake on off switch.
5510AALT sensor.

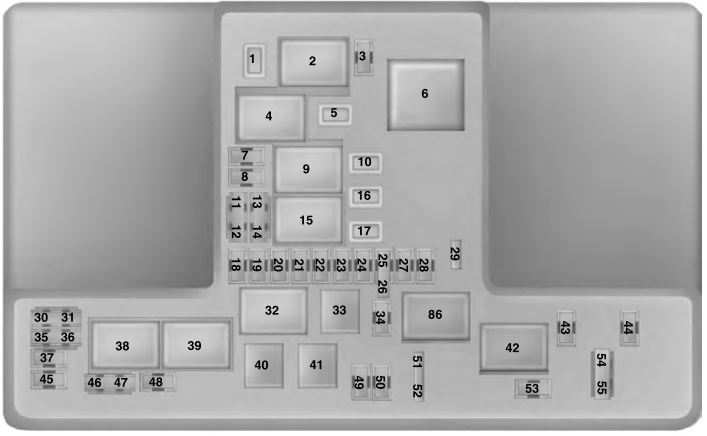

Lincoln MKX (2018)Lincoln MKX Fuse Box Location and Diagrams User Guide (2016 - 2018) fig 7
NoAmp RatingProtected Components
130APower fold 2nd row seats.
2—Starter relay.
315ARear wiper. Rain sensor
4—Blower motor relay.
520APower point 3 – back of console.
6—Not used.
720APowertrain control module – vehicle power 1.
820APowertrain control module – vehicle power 2.
9—Powertrain control module relay.
1020APower point 5-main bin.
1115APowertrain control module – vehicle power 4.
1215APowertrain control module – vehicle power 3.
13—Not used.
14—Not used.
15—Run-start relay.
1620APower point 2 – console bin.
1720APower point 4 – luggage compartment.
1820ARH HID headlamp.
1910ARun-start electronic power assist steering.
2010ARun/start lighting.
2115ATransmission oil pump logic power (start/stop).
2210AAir conditioner clutch solenoid.
2315AFront split view camera. Rear view camera. Front split view camera module. Gear shift actuator.
2410ANot used (spare).
2510ARun-start anti-lock brake system.
2610ARun-start powertrain control module.
27—Not used.
2810ARear washer pump.
29—Not used.
30—Not used.
31—Not used.
32—Electronic fan 1 relay.
33—A/C clutch relay.
3415AGlove box release.
35—Not used.
36—Not used.
3710APower transfer unit fan.
38—Electronic fan 2 relay.
39—Electric fan 3 relay.
40—Horn relay.
41—Not used.
42—Fuel pump relay.
4310A2nd row easy fold seat release.
4420ALH HID headlamp.
45—Not used.
46—Not used.
47—Not used.
48—Not used.
49—Not used.
5020AHorn.
51—Not used.
52—Not used.
5310ANot used (spare).
5410ABrake on off switch.
5510AALT sensor.
86—Not used.

Power Distribution Box – Bottom Diagram

Lincoln MKX (2016 and 2017)Lincoln MKX Fuse Box Location and Diagrams User Guide (2016 - 2018) fig 8
NoAmp RatingProtected components
56—Not used.
57—Not used.
5830AFuel pump feed.
5940AElectronic fan 3.
6040AElectronic fan 1.
61—Not used.
6250ABody control module 1.
6325AElectronic fan 2.
64—Not used.
6520AFront heated seat.
66—

15A

2016: Not used.

2017: Heated wiper park

6750ABody control module 2.
6840AHeated rear window.
6930AAnti-lock brake system valves.
7030APassenger seat.
7150AActive front steering.
7220ATransmission oil pump (start/stop).
7320ARear heated seats.
7430ADriver seat module.
7525AWiper motor 1.
7630APower liftgate module.
7730AClimate control seat module.
7840ATrailer lighting module.
7940ABlower motor.
8025AWiper motor 2.
8140A110 volt inverter.
82—Not used.
8320ATRCM (iShifter).
8430AStarter solenoid.
8530A2016: Vista roof.

2017: Not used (spare)

86—Not used.
8760AAnti-lock brake system pump.

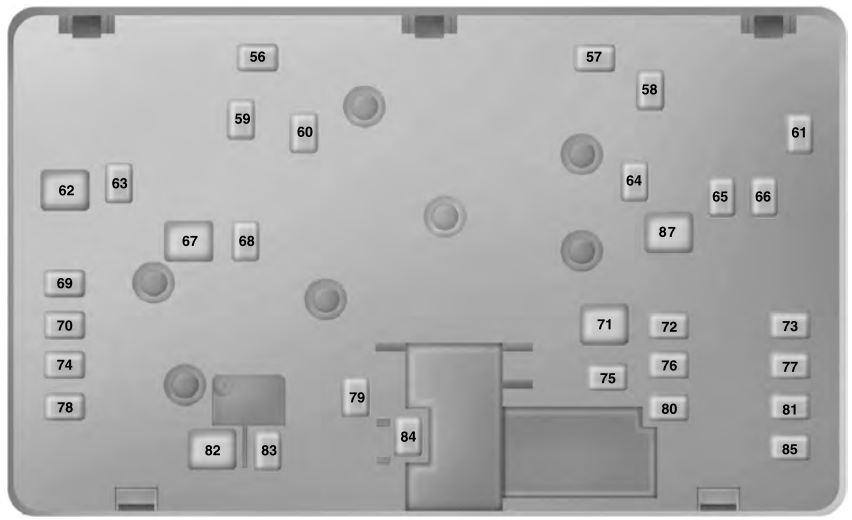

Lincoln MKX (2018)Lincoln MKX Fuse Box Location and Diagrams User Guide (2016 - 2018) fig 9
NoAmp RatingProtected Components
56—Not used.
5720 APower Point 1 – Driver Front.
5830AFuel pump feed.
5940AElectronic fan 3.
6040AElectronic fan 1.
61—Not used.
6250ABody control module 1.
6325AElectronic fan 2.
6420AHeadlamp washer.
6520AFront heated seat.
6615AHeated wiper park.
6750ABody control module 2.
6840AHeated rear window.
6930AAnti-lock brake system valves.
7030APassenger seat.
7150AActive front steering.
7220ATransmission oil pump (start/stop).
7320ARear heated seats.
7430ADriver seat module.
7525AWiper motor 1.
7630APower liftgate module.
7730AClimate control seat module.
7840ATrailer lighting module.
7940ABlower motor.
8025AWiper motor 2.
8140A110 volt inverter.
82—Not used.
8320ATRCM (iShifter).
8430AStarter solenoid.
8530ANot used (spare).
8760AAnti-lock brake system pump.
