Lincoln MKX (2011 – 2015) Fuse Box Location & Diagrams

Lincoln MKX (2011 – 2015) Fuse Box Location & Diagrams

This detailed user guide covers the fuse box locations and diagrams for the 2011–2015 Lincoln MKX models. Whether you’re troubleshooting electrical issues or performing routine fuse replacements, this guide offers clear, step-by-step instructions to help you locate and manage the fuse panels in your vehicle.

Fuse Box Locations

Passenger Compartment Fuse Box

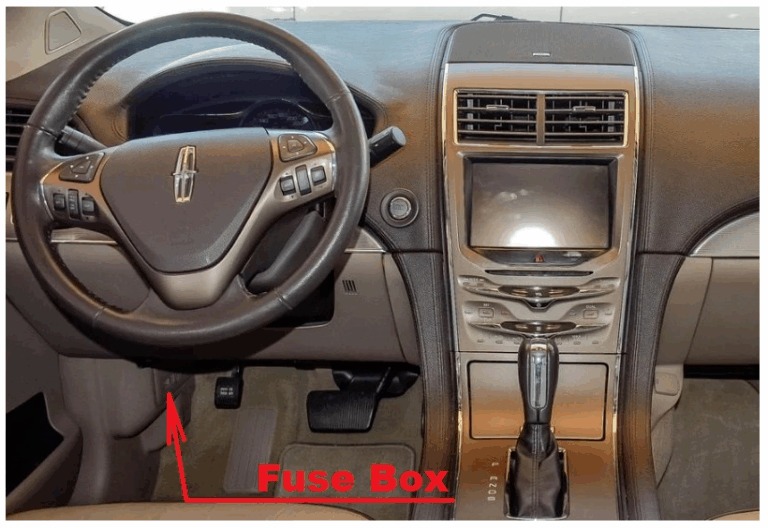

The fuse panel is located behind a trim panel on the left side of the driver’s footwell near the parking brake.

] Lincoln MKX (2011 – 2015) FIG-1
  • To remove the trim panel, slide the release lever to the right then pull the trim panel out.
  • To remove the fuse panel cover, press in the tabs on both sides of the cover, then pull the cover off.
  • To reinstall the fuse panel cover, place the top part of the cover on the fuse panel, then push the bottom part of the cover until it clicks into place. Gently pull on the cover to make sure it is secure.
  • To reinstall the trim panel, align the tabs on the bottom of the panel with the grooves, push the panel shut and slide the release lever to the left to secure the panel.

Engine Compartment Fuse Box

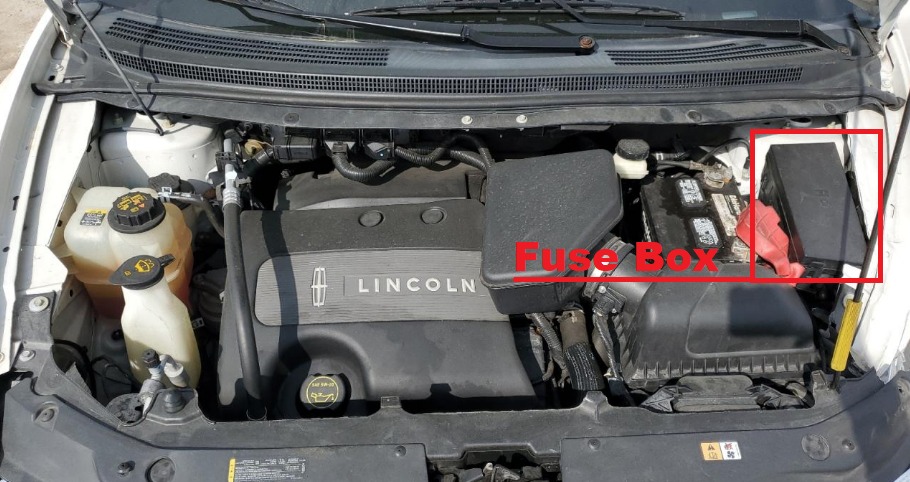

The power distribution box is located in the engine compartment (left-side).

] Lincoln MKX (2011 – 2015) FIG-2

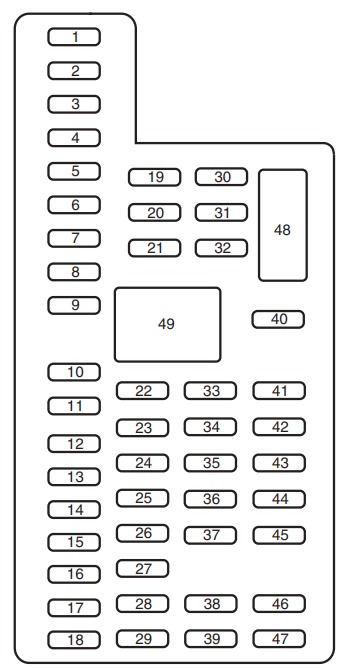

Passenger Compartment Fuse Box Diagram

Lincoln MKX (2011 to 2015)

] Lincoln MKX (2011 – 2015) FIG-3

NoAmp ratingProtected components
130ADriver front smart window
215ANot used (spare)
330APassenger front smart window
410ADemand lamps relay
520ASubwoofer
65ARadio frequency module
77.5APower mirror switch, Memory seat switch, Driver seat module
810ANot used (spare)
910APower liftgate
1010ARun/accessory relay
1110AInstrument panel cluster, Heads-up display
1215AInterior lighting, Puddle lamps, Backlighting
1315ARight turn/stop lamps and turn signals
1415ALeft turn/stop lamps and turn signals
1515AReverse lamps, High-mounted stop lamps
1610ALow beam headlamps (right)
1710ALow beam headlamps (left)
1810AKeypad illumination, Brake shift interlock, Start button LED, Passive anti-theft system, Powertrain control module wake-up, Second row power enable
1920AAudio amplifier
2020ALock/unlock relays – vehicles without intelligent access
2110ANot used (spare)
2220AHorn relay
2315ASteering wheel control, Intelligent access, Headlamp switch
2415APower tilt/telescope steering column, On-board diagnostics
2515ALiftgate release
265AGlobal positioning system module
2720AIntelligent access
2815AIgnition switch (without intelligent access), Key inhibit solenoid, Push button start (with intelligent access)
2920ARadio, Electronic finish panel, SYNC module
3015AFront park lamps
315ANot used (spare)
3215AMoonroof, Power windows (front), Compass/auto-dimming rear view mirror
3310ANot used (spare)
3410AReverse sensing system, Rearview camera, Blind spot monitor, Rear heated seat module
355AHeads-up display
3610AHeated steering wheel
3710AClimate control
3810ANot used (spare)
3915AHigh beam headlamps
4010ARear park lamps, License plate lamps
417.5AOccupant classification sensor, Restraints control module
425ANot used (spare)
4310ANot used (spare)
4410ANot used (spare)
455ANot used (spare)
4610AClimate control
4715AFog lamps relay, LED signal mirrors
4830A Circuit BreakerRear power windows
49—Delayed accessory relay

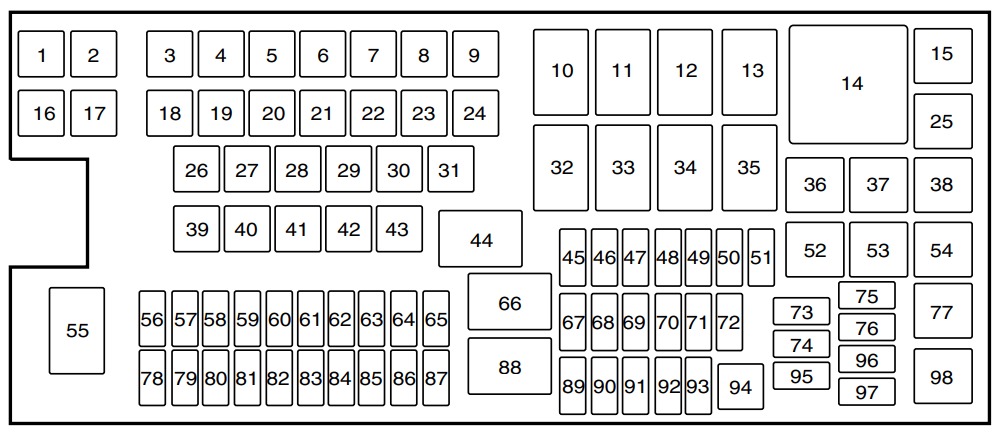

Engine Compartment Fuse Box Diagram

Lincoln MKX (2011 to 2015)

] Lincoln MKX (2011 – 2015) FIG-4

NoAmp ratingProtected components
1—Not used
2—Not used
3—Not used
430A**Wipers
540A**Anti-lock brake system pump
6—Not used
730A**Power liftgate
820A**Moonroof
920A**Power point #2 (console rear)
10—Not used
11—Rear window defroster and heated mirror relay
12—Not used
13—Starter relay
14—Not used
15—Fuel pump relay
16—Not used
17—Not used
1840A**Blower motor
1930A**Starter motor
2020A**Power point #1 (console bin)
2120A**Cargo area power point
22—Not used
2330A**Driver seat module
24—Not used
25—Not used
2640A**Rear window defroster
2720A**Front power point or lighter
2830A**Climate controlled seats
29—Not used
3030A**Rear heated seats
31—Not used
32—Not used
33—Not used
34—Blower motor relay
35—Not used
36—Rear seat relay
37—Right trailer tow stop/turn lamps relay
38—Not used
3940A**Cooling fan (vehicles with trailer tow)
3960A**Cooling fan (vehicles without trailer tow)
4040A**Cooling fan (trailer tow only)
41—Not used
4230A**Passenger seat
4325A**Anti-lock brake system valves
44—Rear washer relay
455A*Rain sensor
46—Not used
47—Not used
48—Not used
49—Not used
5015A*Heated mirror
51—Not used
52—Not used
53—Left trailer tow stop/turn lamps relay
54—Not used
55—Wiper relay
56—Not used
5720 A*Left high-intensity discharge headlamps
5810 A*Alternator sensor
5910 A*Brake on/off switch
60—Not used
6110 A*Rear seat release
6210 A*Air conditioner clutch
6315 A*Trailer tow stop/turn lamps relay
6420A*Rear wiper motor
6515 A*Fuel pump
66—Powertrain control module relay
6720A*Vehicle power #2
6815 A*Vehicle power #4
6915 A*Vehicle power #1
7010 A*Air conditioner relay, All-wheel drive module
71—Not used
72—Not used
73—Not used
74—Not used
75—Air conditioner clutch diode
76—Not used
77—Trailer tow park lamps relay
7820A*Right high-intensity discharge headlamps
795A*Adaptive cruise control
80—Not used
81—Not used
8215 A*Rear washer
83—Not used
8420A*Trailer tow park lamps
85—Not used
867.5 A*Powertrain control module keep-alive, Powertrain control module relay
875A*Run/start relay
88—Run/start relay
895A*Adaptive lighting
9010 A*Powertrain control module
9110 A*Adaptive cruise control
9210 A*Anti-lock brake system module
935A*Blower motor/rear defroster relay
9430A**Passenger compartment fuse panel run/start
95—Not used
96—Not used
97—Not used
98—Air conditioner clutch relay
* Mini Fuses
** Cartridge Fuses
