Lincoln Navigator (1998 – 2002) Fuse Box Diagrams & Location
The Lincoln Navigator (1998-2002) Fuse Box Diagrams & Location User Guide provides essential insights into the fuse box setup for these models. Whether you’re troubleshooting electrical issues or performing maintenance, this guide offers detailed diagrams and fuse location information for easy identification. Keep your vehicle’s electrical systems running smoothly with this comprehensive resource.
Fuse Box Locations

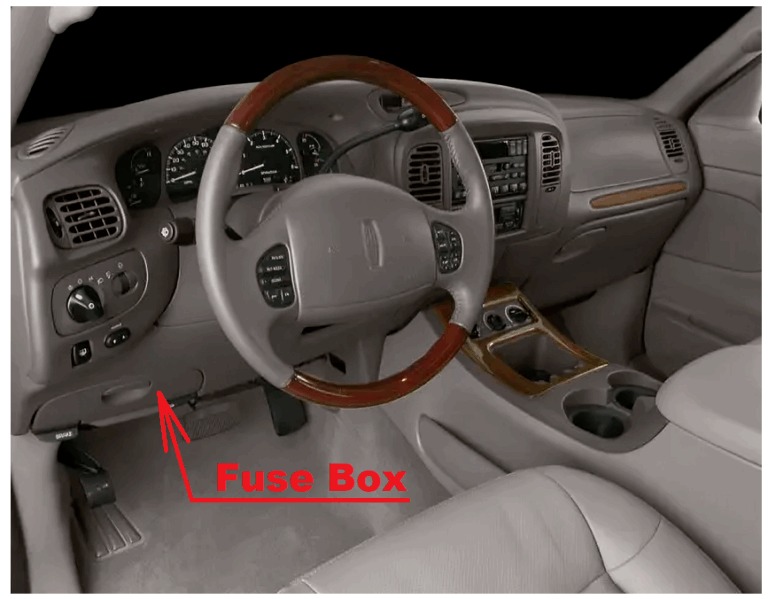

Passenger Compartment Fuse Box
The fuse panel is located below and to the left of the steering wheel behind the cover.

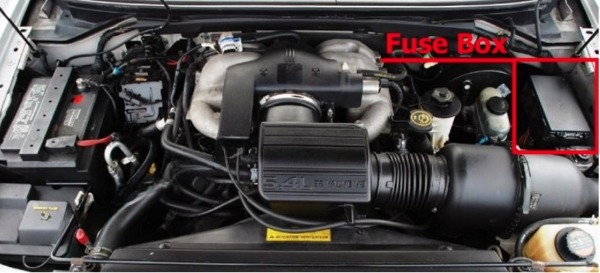

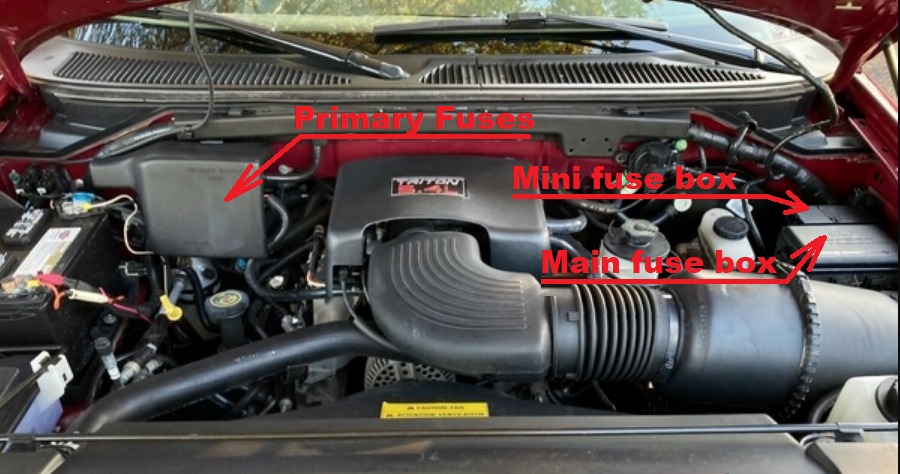

Engine Compartment Fuse Box
The power distribution box is located in the engine compartment (on the driver’s side).
1998
1999 – 2002

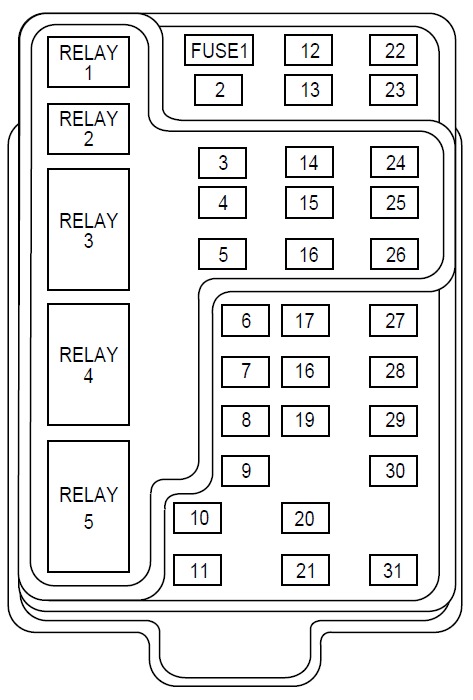

Passenger Compartment Fuse Box Diagram

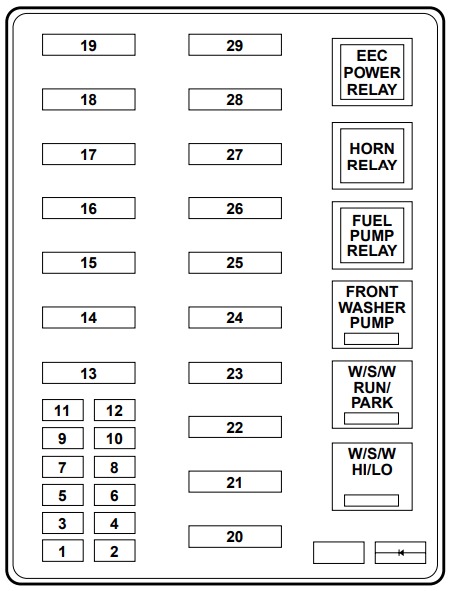

Lincoln Navigator (1998)
| No | Amp Rating | Description |
|---|---|---|
| 1 | 20A | Trailer Tow Running Lamp Relay, Trailer Tow Backup Lamp Relay |
| 2 | 10A | Air Bag Diagnostic monitor |
| 3 | 30A | All Unlock Relay, All Lock Relay, Driver’s Unlock Relay |
| 4 | 15A | Air Suspension Sendee Switch |
| 5 | 20A | Horn Relay |
| 6 | 30A | Radio, Premium Sound Amplifier, CD Changer, Rear Integrated Control Panel, Sub-Woofer power |
| 7 | 15A | Main Light Switch, Park Lamp Relay |
| 8 | 30A | Main Light Switch, Headlamp Relay, Multi-Function Switch |
| 9 | 15A | Daytime running lamps (DRL) Module, Fog Lamp Relay |
| 10 | 25A | I/P Auxiliary Power Socket |
| 11 | 25A | Console Auxiliary Power Socket |
| 12 | 10A | Rear Wiper Up Motor Relay, Rear Wiper Down Motor Relay |
| 13 | 30A | Auxiliary A/C Relay |
| 14 | 60A | 4 Wheel Anti-Lock Brake System (4WABS) Module |
| 15 | 50A | Air Suspension Solid State Compressor Relay |
| 16 | 40A | Trailer tow battery Charge Relay, Mini Fuse Block (fuse 2), Trailer Tow Right Turn Relay, Trailer tow Left Turn Relay |
| 17 | 30A | Transfer Case Shift Relay, Torque on Demand Relay |
| 18 | 30A | Memory Seat Module |
| 19 | 20A | Fuel Pump Relay |
| 20 | 50A | Ignition Switch |
| 21 | 50A | Ignition Switch |
| 22 | 50A | Junction Box Fuse/Relay Panel Battery Feed |
| 23 | 40A | I/P Blower Relay |
| 24 | 30A | PCM Power Relay, Mini Fuse Block (fuse 1), Powertrain Control Module |
| 25 | 30A (CB) | Junction Box Fuse/Relay Panel, ACC Delay Relay |
| 26 | 30A | Passenger Power Seat Control Switch |
| 27 | 40A | Junction Box Fuse/Relay Panel, Heated Grid Relay |
| 28 | 30A | Trailer Electronic Brake Control |
| 29 | 30A | RPO Relay Block, Vent Window/Moonroof Relay |

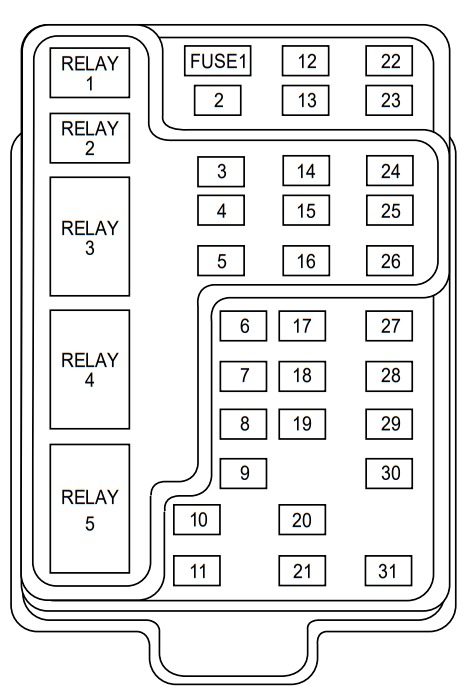

Lincoln Navigator (1999)
| No | Amp Rating | Description |
|---|---|---|
| 1 | 25A | Audio |
| 2 | 5A | Clock, Overhead Trip Computer, Electronic Automatic Temperature Control (EATC), Powertrain Control Module (PCM), Cluster |
| 3 | 20A | Cigar Lighter, OBD-II Scan Tool Connector |
| 4 | 15A | Autolamp Module, Remote Entry Module, Mirrors, Memory Module, Adjustable Pedals, Air Suspension Switch |
| 5 | 15A | AC Clutch Relay, Speed Control Module, Reverse Lamp, EVO Module, Climate Mode Switch, Daytime Running Lamp Relay |
| 6 | 5A | Cluster, Overhead Trip Computer, Compass, Steering Sensor, Brake Shift Interlock Solenoid, Air Suspension Module, GEM Module |
| 7 | 5A | Aux A/C Blower Relay, Console Blower |
| 8 | 5A | Radio, Remote Entry Module, Cell Phone, Clock, GEM Module |
| 9 | — | Not Used |
| 10 | — | Not Used |
| 11 | 30A | Front Washer Pump Relay, Wiper Run/Park Relay, Wiper Hi/LO Relay, Windshield Wiper Motor, Rear Washer Pump Relay |
| 12 | — | Not Used |
| 13 | 20A | Stop Lamp Switch (Lamps), Turn/Hazard Flasher, Speed Control Module |
| 14 | 15A | Rear Wipers, Running Board Lamps, Batteiy Saver Relay, Interior Lamp Relay, Accessory Delay Relay (Power Windows, Flip Windows, Audio) |
| 15 | 5A | Stop Lamp Switch, (Speed Control, Brake Shift Interlock, ABS, PCM Module Inputs), GEM Module |
| 16 | 20A | Headlamps (Hi Beams), Cluster (Hi Beam Indicator) |
| 17 | 10A | Heated Mirrors/Rear Window Defroster Indicator |
| 18 | 5A | Instrument Illumination (Dimmer Switch Power), Clock (Dimmer) |
| 19 | — | Not Used |
| 20 | 5A | Audio, Four Wheel Air Suspension (4WAS) Module, Memory Module, GEM Module, Digital Transmission Range Selector |
| 21 | 15A | Starter Relay, Fuse 20 |
| 22 | 10A | Air Bag Module |
| 23 | 10A | Electrochromic Mirror, Aux A/C, Heated Seats, Trailer Tow Battery Charge, Turn/Hazard Flasher, Console Blower Door Actuator |
| 24 | 10A | Climate Mode Switch (Blower Relay), EATC (via fuse 7), EATC Blower Relay |
| 25 | 5A | 4 Wheel Anti-Lock Brake System (4WABS) Module |
| 26 | 10A | Right Side Low Beam Headlamp |
| 27 | 5A | Foglamp Relay and Foglamp Indicator |
| 28 | 10A | Left Side Low Beam Headlamp |
| 29 | 5A | Autolamp Module, Transmission Overdrive Control Switch |
| 30 | 30A | Passive Anti Theft Transceiver, Cluster, Ignition Coils, Powertrain Control Module Relay |
| 31 | 10A | Rear Integrated Control Panel (Audio), CD Player, Cell Phone |
| Relay 1 | — | Interior Lamp Relay |
| Relay 2 | — | Battery Saver Relay |
| Relay 3 | — | Rear Window Defroster Relay |
| Relay 4 | — | One Touch Down Wmdow Relay |
| Relay 5 | — | ACC Delay Relay |
Lincoln Navigator (2000, 2001 and 2002 )
| No | Amp Rating | Description |
|---|---|---|
| 1 | 25A | Audio |
| 2 | 5A | Clock, Overhead Trip Computer, Electronic Automatic Temperature Control (EATC), Powertrain Control Module (PCM), Cluster, Navigation |
| 3 | 20A | Cigar Lighter, OBD-II Scan Tool Connector |
| 4 | 7.5A | Remote Entry Module, Mirrors, Memory Module, Adjustable Pedals, Drivers Seat, Power Fold Mirrors |
| 5 | 15A | Speed Control Module, Reverse Lamp, Daytime Running Lamp Relay, Reverse Sensing System, Autolock, E/C Mirror, Navigation |
| 6 | 5A | Cluster, Overhead Trip Computer, Compass, Steering Sensor, Brake Shift Interlock Solenoid, Air Suspension Module, GEM Module, Heated Mirror, Rear Defroster, Reverse Sensing System, Automatic Park Brake Release |
| 7 | 5A | Aux A/C Blower Relay, Console Blower |
| 8 | 5A | Remote Entry Module, Cell Phone, Clock, GEM Module, Navigation |
| 9 | — | Not Used |
| 10 | — | Not Used |
| 11 | 30A | Front Washer Pump Relay, Wiper Run/Park Relay, Wiper Ili/LO Relay, Windshield Wiper Motor, Rear Washer Pump Relay |
| 12 | 15A | Air Suspension Switch |
| 13 | 20A | Stop Lamp Switch (Lamps), Turn/Hazard Flasher, Speed Control Module |
| 14 | 15A | Rear Wipers, Running Board Lamps, Battery Saver Relay, Interior Lamp Relay, Accessory Delay Relay (Power Windows, Moonroof, Flip Windows, Audio), Homelink |
| 15 | 5A | Stop Lamp Switch, (Speed Control, Brake Shift Interlock, ABS, PCM Module Inputs), GEM Module, Autolock, Air Suspension Module |
| 16 | 20A | Headlamps (Hi Beams), Cluster (Hi Beam Indicator) |
| 17 | 10A | Heated Mirrors/Rear Window Defroster Indicator |
| 18 | 5A | Instrument Illumination (Dimmer Switch Power), Clock (Dimmer), Navigation Screen |
| 19 | — | Not Used |
| 20 | 5A | Audio, Air Suspension Module, Memory Module, GEM Module |
| 21 | 15A | Starter Relay, Fuse 20, Digital Transmission Range Selector |
| 22 | 10A | Air Bag Module, EATC, EATC Blower Relay, Feeds Fuse 7 |
| 23 | 10A | Electrochromic Mirror, Aux A/C, Heated Seats, Trailer Tow Battery Charge, Tum/Hazard Flasher, Console Blower Door Actuator, 4×4 Clutch Relay, 4 Wheel Anti-Lock Brake System (4WABS) Module |
| 24 | 10A | 2000-2001: Not Used 2002: EATC Module, EATC Blower/Flasher Relay, Climate Control Selector Switch, Feeds fuse 7 |
| 25 | — | Not Used |
| 26 | 10A | Right Side Low Beam Headlamp |
| 27 | 5A | Foglamp Relay and Foglamp Indicator |
| 28 | 10A | Left Side Low Beam Headlamp |
| 29 | 5A | Autolamp Module, Transmission Overdrive Control Switch |
| 30 | 30A | Passive Anti Theft Transceiver, Cluster, Ignition Coils, Powertrain Control Module Relay |
| 31 | 10A | Rear Integrated Control Panel (Audio), CD Player, Cell Phone |
| Relay 1 | — | Interior Lamp Relay |
| Relay 2 | — | Battery Saver Relay |
| Relay 3 | — | Rear Window Defroster Relay |
| Relay 4 | — | One Touch Down Window Relay |
| Relay 5 | — | ACC Delay Relay |
Engine Compartment Fuse Box Diagram
Lincoln Navigator (1998)
| No | Amp Rating | Description |
|---|---|---|
| 1 | 15A | Flasher Relay |
| 2 | 5A | Instrument Cluster, Overhead Trip Computer (OTC) Module, Redundant Steering Control Module, Electronic Automatic Temperature Control (EATC) Module, Clock |
| 3 | 25A | Cigar Lighter |
| 4 | 5A | Park Lamp Relay, Headlamp Relay, Autolamp Module, Remote Anti-theft Personality (RAP) Module, Power Mirror Switch, Memory Seat and Mirror Module, Driver Power Seat Control Switch, Memory Seat Switch |
| 5 | 15A | Digital Transmission Range (DTR) Sensor, Daytime Running Lamps (DRL) Module, Speed Control Servo/Amplifier Assembly, EATC Clutch Relay |
| 6 | 5A | Shift Lock Actuator, Generic Electronic Module (GEM), 4 Wheel Air Suspension 4WAS Module, Compass Sensor, Steering Wheel Rotation Sensor, Heated Grid Relay, Overhead Trip Computer (OTC) Module |
| 7 | 5A | Auxiliary A/C Relay, Console Blower Motor |
| 8 | 5A | Radio, Main Light Switch, Remote Anti-theft Personality (RAP) Module, Generic Electronic Module (GEM), Ignition Switch, Clock |
| 9 | – | Not used |
| 10 | – | Not used |
| 11 | 30A | Washer Pump Relay, Wiper Run/Park Relay |
| 12 | 5A | Data Link Connector (DLC) |
| 13 | 15A | Brake On/Off (BOO) Switch, Brake Pressure Switch |
| 14 | 15A | Battery Saver Relay, Interior Lamp Relay |
| 15 | 5A | Generic Electronic Module (GEM), SecuriLock |
| 16 | 20A | Instrument Cluster (W/O DRL), Daytime Running Lamps (DRL) Module, Hi-Beam Headlamps (Power supplied through Multi-Function Switch) |
| 17 | 10A | Heated Backlite Switch, Left Power/Heated Signal Mirror, Right Power/Heated Signal Mirror |
| 18 | 5A | Main Light Switch, Generic Electronic Module (GEM), Instrument Illumination, (Power supplied through Main Light Switch), Park Lamp Relay, Trailer Electronic Brake Control, Trailer Tow Running Lamp Relay, Left Side Marker Lamps, Right Side Marker Lamps, Left Front Park/Turn Lamp, Right Front Park/Turn Lamp, Left Stop/Park/Tum Lamp, Right Stop/Park/Tum Lamp, Left License Lamp, Right License Lamp |
| 19 | 10A | Instrument Cluster, Air Bag Diagnostic Monitor |
| 20 | 5A | 4 Wheel Air Suspension 4WAS Generic Electronic Module (GEM), Memory Seat and Mirror Module |
| 21 | 15A | Digital Transmission Range (DTR) Sensor, Junction Box Fuse/Relay Panel (Fuse 20) |
| 22 | 10A | Air Bag Diagnostic Monitor, Ignition Swatch |
| 23 | 10A | Trailer Tow Battery Charge Relay, 4X4 Center Axle Disconnect Solenoid, 4X2 Center Axle Disconnect Solenoid, Electronic Day/Night Mirror, Rear Integrated Control Panel, Auxiliary A/C Mode Actuator, Auxiliary A/C Control Module, Auxiliary A/C Blend Actuator Flasher Relay |
| 24 | 10A | Electronic Automatic Temperature Control (EATC) Module, Console Blower Relay, Auxiliary A/C Relay |
| 25 | 5A | 4 Wheel Anti-Lock Brake System (4WABS) Module 4WABS Relay |
| 26 | 10A | Daytime Running Lamps (DRL) Module, Right Headlamp (Powder supplied through Multi-Function Swatch) |
| 27 | 5A | Main Light Swatch, Fog Lamp Relay |
| 28 | 10A | Left Headlamp |
| 29 | 5A | Autolamp Module, Instrument Cluster, Transmission Control Swatch (TCS) |
| 30 | 30A | Radio Noise Capacitor, PCM Power Diode, Coil on Plugs, PCM Powder Relay, SecuriLock |
| 31 | – | Not Used |

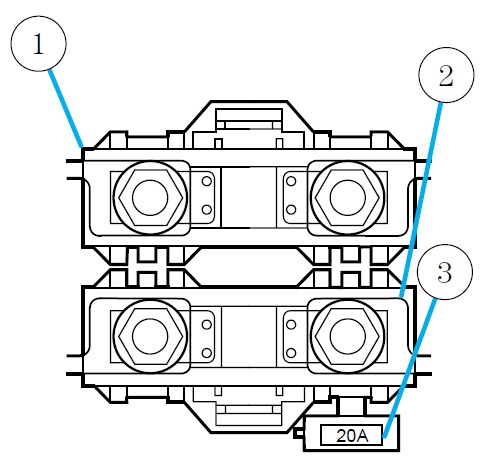

Primary battery fuses
| No | Amperage | Description |
|---|---|---|
| 1 | 175 | Power Network Box Megafuse |
| 2 | 175 | Alternator Megafuse |
| 3 | 20 | Alternator Field Minifuse |

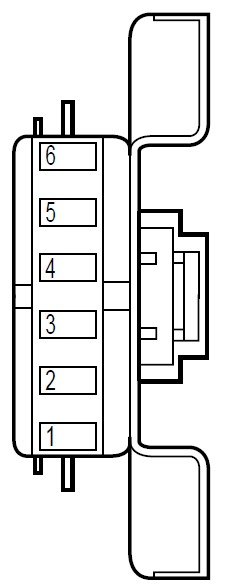

Engine mini fuse box
| No | Amperage Rating | Description |
|---|---|---|
| 1 | 5A | Powertrain Control Module (PCM) |
| 2 | 20A | Trailer Tow Stop/Turn Lamps |
| 3 | 10A | Audio Rear Integrated Control Panel (RICP), Compact Disc Changer, Radio |
| 4 | 10A | Running Board Lamps |
| 5 | 20A | Amplifier, Subwoofer Amplifier |
| 6 | — | Not Used |

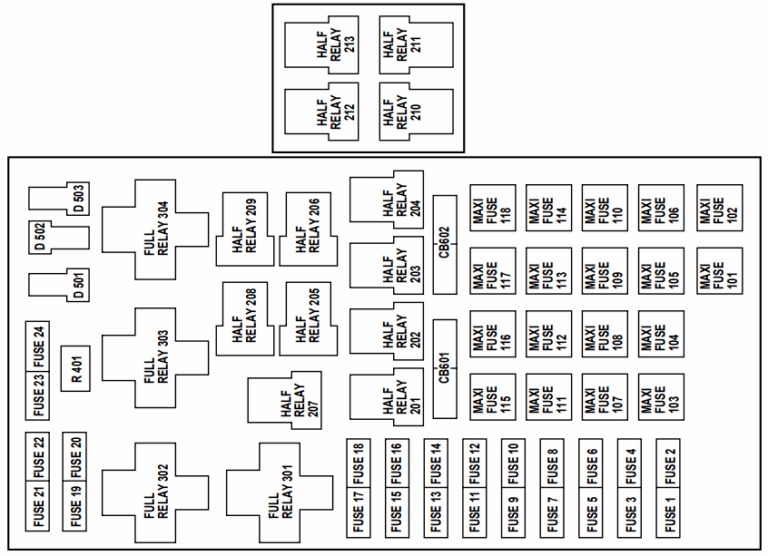

Lincoln Navigator (1999)
| No | Amp Rating | Description |
|---|---|---|
| 1 | 25A | Power Point |
| 2 | 30A | Powertrain Control Module |
| 3 | 30A | Headlamps/Autolamps |
| 4 | 25A | Console PowerPoint |
| 5 | 20A | Trailer Tow Backup/Park Lamps |
| 6 | 15A | Parklamps/Autolamps |
| 7 | 20A | Horn |
| 8 | 30A | Power Door Locks |
| 9 | 15A | Daytime Running Lamps (DRL), Fog Lamps |
| 10 | 20A | Fuel Pump |
| 11 | 20A | Alternator Field |
| 12 | 10A | Rear Wipers |
| 13 | — | Not Used |
| 14 | — | Not Used |
| 15 | 10A | Running Board Lamps |
| 16 | — | Not Used |
| 17 | 10A | Delayed Accessory (Audio, Moonroof) |
| 18 | 15A | Powertrain Control Module, Fuel Injectors, Fuel Pump, Mass Air Flow Sensor |
| 19 | 10A | Trailer Tow Stop and Right Turn Lamp |
| 20 | 10A | Trailer Tow Stop and Left Turn Lamp |
| 21 | — | Not Used |
| 22 | — | Not Used |
| 23 | 15A | Powertrain Control Module, HEGO Sensors, Canister Vent |
| 24 | 15A | Powertrain C ontrol Module, Transmission, CMS Sensor |
| 101 | 30A | Trailer Tow Battery Charge |
| 102 | 50A | Four Wheel Antilock Brake Module |
| 103 | 50A | Junction Box Battery Feed |
| 104 | 30A | 4×4 Shift Motor & Clutch |
| 105 | 40A | Climate Control Front Blower |
| 106 | — | Not Used |
| 107 | 30A | Passenger Power Seat |
| 108 | 30A | Trailer Tow Electric Brake |
| 109 | 50A | Air Suspension Compressor |
| 110 | 30A | Moonroof, Flip Windows and Heated Seats |
| 111 | 50A | Ignition Switch Battery Feed (Run and Start Circuits) |
| 112 | 30A | Memory (Drivers Seat, Adjustable Pedals, Mirrors) |
| 113 | 50A | Ignition Switch Batteiy Feed (Run and Accessory Circuits) |
| 114 | 30A | Climate Control Auxilary Blower |
| 115 | — | Not Used |
| 116 | 40A | Rear Window Defroster, Heated Mirrors |
| 117 | — | Not Used |
| 118 | — | Not Used |
| 201 | — | Trailer Tow Park Lamp Relay |
| 202 | — | Front Wiper Run/Park Relay |
| 203 | — | Trailer Tow Backup Lamp Relay |
| 204 | — | A/C Clutch Relay |
| 205 | — | Horn Relay |
| 206 | — | Fog Lamp Relay |
| 207 | — | Front Washer Pump Relay |
| 208 | — | Rear Washer Pump Relay |
| 209 | — | Front Wiper Hi/Lo Relay |
| 210 | — | Not Used |
| 211 | — | Not Used |
| 212 | — | Rear Wiper Up Relay |
| 213 | — | Rear Wiper Down Relay |
| 301 | — | Fuel Pump Relay |
| 302 | — | Trailer Tow Battery Charge Relay |
| 303 | — | Not Used |
| 304 | — | Powertrain Control Module Relay |
| 401 | — | Not Used |
| 501 | — | Powertrain Control Module Diode |
| 502 | — | A/C Clutch Diode |
| 503 | — | Not Used |
| 601 | 30A | Delayed Accessory (Power Windows, Flip Windows, Radio) |
| 602 | — | Not Used |

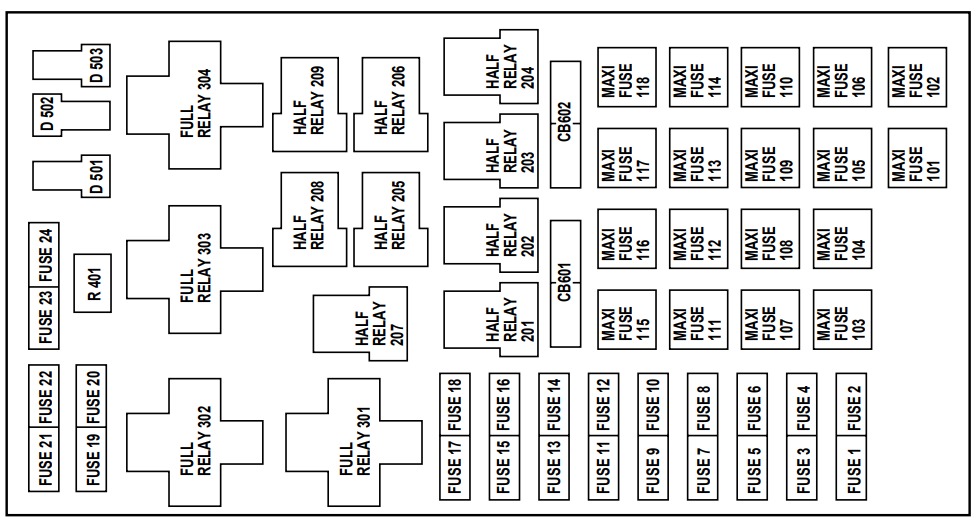

Lincoln Navigator (2000, 2001 and 2002 )
| No | Amp Rating | Description |
|---|---|---|
| 1 | 20A | Power Point |
| 2 | 30A | Powertrain Control Module |
| 3 | 30A | Headlamps/Autolamps |
| 4 | 20A | Console Powerpoint |
| 5 | 20A | Trailer Tow Backup/Park Lamps |
| 6 | 15A | Parklamps/Autolamps, Feeds Passenger Compartment Fuse 18 |
| 7 | 20A | Horn |
| 8 | 30A | Power Door Locks |
| 9 | 15A | Daytime Running Lamps (DRL), Fog Lamps |
| 10 | 20A | Fuel Pump |
| 11 | 20 A | Alternator Field |
| 12 | 10A | Rear Wipers |
| 13 | 15A | A/C Clutch |
| 14 | — | Not Used |
| 15 | 10A | Running Board Lamps |
| 16 | — | Not Used |
| 17 | 10A | Delayed Accessory (Audio, Flip Windows) |
| 18 | 15A | Powertrain Control Module, Fuel Injectors, Fuel Pump, Mass Air Flow Sensor |
| 19 | 10A | Trailer Tow Stop and Right Turn Lamp |
| 20 | 10A | Trailer Tow Stop and Left Turn Lamp |
| 21 | — | Not Used |
| 22 | — | Not Used |
| 23 | 15A | HEGO Sensors, Canister Vent, Transmission, CMS Sensor |
| 24 | — | Not Used |
| 101 | 30A | Trailer Tow Battery Charge |
| 102 | 50A | Four Wheel Antilock Brake Module |
| 103 | 50A | Junction Box Battery Feed |
| 104 | 30A | 4×4 Shift Motor & Clutch |
| 105 | 40A | Climate Control Front Blower |
| 106 | — | Not Used |
| 107 | 30A | Passenger Power Seat, Passenger Seat Lumbar |
| 108 | 30A | Trailer Tow Electric Brake |
| 109 | 50A | Air Suspension Compressor |
| 110 | 30A | Heated Seats/CCS |
| 111 | 40A | Ignition Switch Battery Feed (Run and Start Circuits) |
| 112 | 30A | Memory (Drivers Seat, Adjustable Pedals, Mirrors), Drivers Seat Lumbar |
| 113 | 40A | Ignition Switch Battery Feed (Run and Accessory Circuits) |
| 114 | 30A | Climate Control Auxilary Blower |
| 115 | — | Not Used |
| 116 | 40A | Rear Window Defroster, Heated Mirrors |
| 117 | — | Not Used |
| 118 | — | Not Used |
| 201 | — | Trailer Tow Park Lamp Relay |
| 202 | — | Front Wiper Run/Park Relay |
| 203 | — | Trailer Tow Backup Lamp Relay |
| 204 | — | A/C Clutch Relay |
| 205 | — | Rear Wiper Down |
| 206 | — | Fog Lamp Relay |
| 207 | — | Front Washer Pump Relay |
| 208 | — | Rear Washer Pump Relay |
| 209 | — | Rear Wiper Up Relay |
| 301 | — | Fuel Pump Relay |
| 302 | — | Trailer Tow Battery Charge Relay |
| 303 | — | Front Wiper Hi/Lo Relay |
| 304 | — | Powertrain Control Module Relay |
| 401 | — | Not Used |
| 501 | — | Powertrain Control Module Diode |
| 502 | — | A/C Clutch Diode |
| 503 | — | Automatic Park Brake Release Diode |
| 601 | 30A | Delayed Accessory (Power Windows, Flip Windows, Radio, Moonroof) |
| 602 | — | Not Used |
