Lincoln Navigator (2003 – 2006) Fuse Box Location & Diagrams
This Guide covers Lincoln Navigator (2003–2006) fuse box diagrams and locations. Identifying fuse layouts helps diagnose electrical faults and replace blown fuses in this full-size luxury SUV.
Fuse Box Location

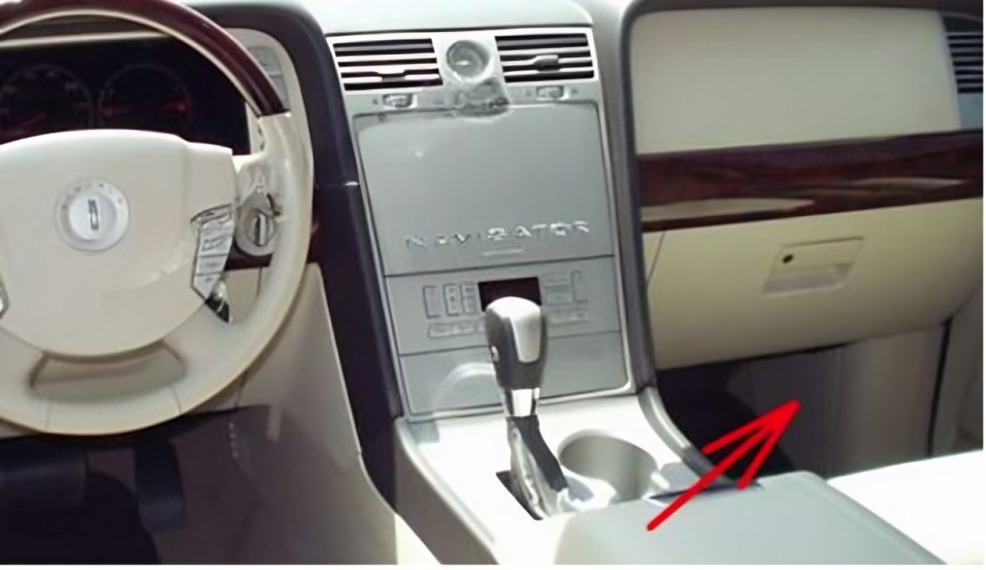

Passenger Compartment Fuse Box

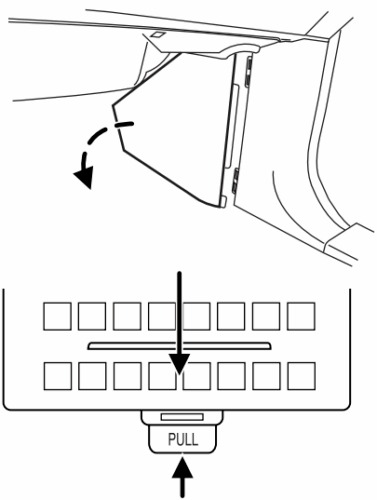

To remove the trim panel for access to the fusebox, pull the panel toward you and swing it out away from the side and remove it. To reinstall it, line up the tabs with the grooves on the panel, then push it shut.
To remove the fuse box cover, place a finger behind the PULL tab and your thumb above the PULL tab as shown in the illustration, then pull the cover off. To reinstall the cover, place the top part of the cover on the fuse panel, then push the bottom part of the cover until you hear it click shut. Gently pull on the cover to make sure it is seated properly.

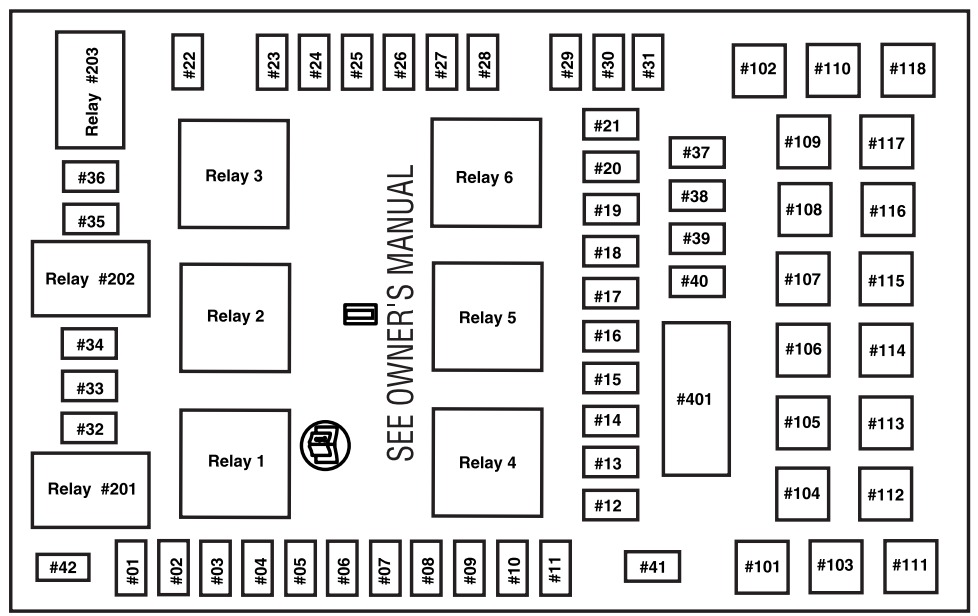

Passenger Compartment Fuse Box Diagram
Lincoln Navigator (2003)
| Fuse/Relay Location | Fuse Amp Rating | Passenger Compartment Fuse Panel Description |
| 1 | 10A* | Run/Accessory – Instrument cluster, Front wiper motor, Rear wiper motor, Tire Pressure Monitor System (TPMS) module |
| 2 | 20A* | Brake On/Off (stoplamp) switch, Turn signal/Hazard flasher, AdvanceTrac® stoplamps relay, Stoplamps, Center High-Mounted Stoplamp (CHMSL), Turn signal lamps |
| 3 | 7.5A* | Power mirror switch, Memory module (logic power), Driver seat switch (memory) |
| 4 | 15A* | Rear seat audio controls, Navigation module, DVD player |
| 5 | 7.5A* | Brake On/Off (stoplamp) switch, Powertrain Control Module (PCM) (keep alive power), EATC control head, Body Security Module (BSM) (keep alive power), Speed control deactivation switch, Speed control servo, SecuriLock LED, 3rd row seat relay coils, Power liftgate module, Clock, Brake Shift Interlock (BSI) solenoid |
| 6 | 15A* | Headlamp switch (parklamps and switch backlighting feed), Parklamps, License lamps, Foglamp relay coil, Trailer tow electric brake controller (illumination), BSM (autolamp parklamps), Floor console gear selector lighting, Switch backlighting module, Foglamp indicator |
| 7 | 7.5A* | Radio (Start signal) |
| 8 | 10A* | Rear window defroster switch, Heated outside mirrors, Rear window defroster indicator (climate control head) |
| 9 | — | Not used |
| 10 | 20A* | Trailer tow back-up lamps relay, Trailer tow 7–wire connector (back-up lamps), Trailer tow parklamps relay, Trailer tow 7– and 4–wire connectors (parklamps) |
| 11 | 10A* | A/C compressor clutch relay, A/C compressor clutch solenoid, Air suspension compressor relay, 4×4 Integrated Wheel Ends (IWE) solenoid |
| 12 | 10A* | Speed control relay, Speed control servo |
| 13 | 10A* | Rear window defroster relay coil, A/C refrigerant containment switch, A/C compressor thermistor, DEATC control head, DEATC solenoids, DEATC blower controller, Trailer tow battery charge relay coil |
| 14 | 10A* | Daytime Running Lamps (DRL) ignition relay coil, Digital Transmission Range Sensor (DTRS back-up lamps), Trailer tow back-up lamps relay coil, Elctrochromatic mirror |
| 15 | 5A* | AdvanceTrac® switch, Instrument cluster (Run/Start feed) |
| 16 | 10A* | ABS/AdvanceTrac® module (Run/Start feed) |
| 17 | 15A* | Foglamps |
| 18 | 10A* | Auxiliary A/C temperature blend door actuator, Auxiliary A/C front auxiliary control, Park brake release relay coils, Turn signal flasher, Electrochromatic mirror, Auxiliary mode motor, Climate controlled seat modules |
| 19 | 10A* | Restraints Control Module (RCM) |
| 20 | 30A* | 4×4 module, Air suspension module (air spring solenoids and height sensors) |
| 21 | 15A* | Instrument cluster (B+), Interior (courtesy) lamps, TPMS module, Park brake release relays, Park brake release motor, Puddle lamps (outside mirrors) |
| 22 | 10A* | Moonroof switch illumination, Flip window switch, Flip window relays, Flip window motors, Electronic Hidden Antenna Module (EHAM) antenna amplifier (navigation radio), Radio (delayed accessory feed), Left front window motor, Navigation radio amplifier |
| 23 | 10A* | RH low beam |
| 24 | 15A* | Interior demand lamps (front map/dome lamps, glove compartment lamp, cargo lamp, roof rail lamps, vanity mirror lamps), Battery saver relay coil, Battery saver relay power |
| 25 | 10A* | LH low beam |
| 26 | 20A* | Horn relay, Horns |
| 27 | 5A* | BSI solenoid, Overdrive cancel switch, Reverse park aid system module, Air suspension module (Run/Start), Compass module |
| 28 | 5A* | PCM relay coil, Speed control relay coil, SecuriLock transceiver |
| 29 | 30A* | Trailer tow electric brake controller, Trailer tow 7–wire connector (electric brake) |
| 30 | 30A* | BSM (door locks, liftgate glass release relay), Liftgate glass release motor, Left front window motor, Door/Liftgate lock motors |
| 31 | 25A* | Radio (B+), Subwoofer, Navigation radio audio amplifier |
| 32 | 15A* | Catalyst Monitor Sensors (CMS), Transmission solenoids |
| 33 | 20A* | HEGO sensors, EGR vacuum regulator (EVR) solenoid, Intake Manifold Tuning valve (IMTV) solenoid, Canister vent solenoid, Vapor Management valve (VMV) solenoid, A/C compressor clutch relay coil |
| 34 | 20A* | PCM, Idle Air Control (IAC) solenoid, Mass Air Flow (MAF) sensor, Fuel injectors, Fuel pump relay, Fuel pump shut-off switch, Fuel pump motor |
| 35 | 20A* | High beam headlamps, Instrument cluster high beam indicator |
| 36 | 10A* | Trailer tow right turn/stop lamps |
| 37 | 20A* | Cargo area power point |
| 38 | 25A* | Rear wiper motor, Washer pump (rear window wash) |
| 39 | 20A* | Console power points |
| 40 | 20A* | DRL relays, DRL foglamps, DRL headlamp relay coil, Headlamp switch (headlamps), Multifunction switch (flash-to-pass), BSM (autolamp headlamps relay), High beam relay coil, Fuse 25 (LH low beam), Fuse 23 (RH low beam) |
| 41 | 20A* | Cigar lighter, OBD II diagnostic connector |
| 42 | 10A* | Trailer tow left turn/stop lamps |
| 101 | 30A** | Starter motor relay, Starter motor solenoid |
| 102 | 30A** | Ignition switch power |
| 103 | 30A** | ABS/AdvanceTrac® module (pump motor) |
| 104 | 30A** | LH 3rd row seat relay, LH 3rd row seat switch, LH 3rd row seat motor |
| 105 | 40A** | Power liftgate module, Power liftgate motors, Power running boards control |
| 106 | 30A** | Trailer tow battery charge relay, Trailer tow 7–wire connector (battery charge) |
| 107 | 30A** | Auxiliary A/C blower relay, Auxiliary A/C blower motor |
| 108 | 30A** | Passenger seat motor switch, Passenger seat lumbar switch and motor |
| 109 | 30A** | Driver seat lumbar switch and motor, Memory module, Power memory mirrors, Adjustable pedals switch and motor |
| 110 | 30A** | Power running boards |
| 111 | 50A** | Air suspension compressor relay, Air suspension compressor |
| 112 | 30A** | ABS/AdvanceTrac® module (valves) |
| 113 | 30A** | Front wiper motor, Washer pump (windshield wash) |
| 114 | 40A** | Rear window defroster relay, Rear window defroster grid, Heated mirrors (Fuse 8) |
| 115 | 30A** | 4×4 module, Transfer case shift motor |
| 116 | 40A** | Front blower motor relay, Front blower motor |
| 117 | 30A** | RH 3rd row seat relay, RH 3rd row seat switch, RH 3rd row seat motor |
| 118 | 30A** | Driver and passenger climate control seat module |
| 401 | 30A** | Power windows (circuit breaker), Main window switch, Window motors, Window switches, Moonroof module |
| R01 | Starter relay | Starter motor solenoid |
| R02 | Delayed accessory relay | Fuse 22, CB 401, Power windows, Moonroof, Flip windows, Radio, DVD, Navigation radio amplifier, Navigation antenna amplifier |
| R03 | Hi-beam relay | Fuse 35, Hi-beam headlamps, Hi-beam indicator |
| R04 | Rear window defrost relay | Fuse 8 (heated mirrors), Rear window defroster, Heated outside mirrors, Rear window defroster indicator (climate control head) |
| R05 | Trailer tow battery charge relay | Trailer tow 7–wire connector (battery charge) |
| R06 | Front blower relay | Front blower motor |
| R201 | Trailer tow park lamp relay | Trailer tow 7– and 4–wire connectors (park lamps) |
| R202 | Foglamp relay | Front foglamps |
| R203 | PCM relay | Fuse 32, Fuse 33, Fuse 34, Fuel pump relay, Fuel pump, PCM solenoids and sensors |
| R301 | Trailer tow back-up lamp relay | Trailer tow 7–wire connector (back-up lamps) |
| R302 | Speed control relay | Speed control servo |
| R303 | Fuel pump relay | Fuel pump shut-off switch, PCM (fuel pump monitor), Fuel pump |
| R304 | Battery saver relay | Roof rail lamps, Vanity mirror lamps, Map/Dome lamp, Glove box lamp, Cargo area lamp, Outside mirror puddle lamps, Instrument cluster (interior lamps) |
| R305 | Horn relay | Dual note horn |
| * Mini Fuses ** Maxi Fuses | ||
Lincoln Navigator (2004)
| Fuse/Relay Location | Fuse Amp Rating | Passenger Compartment Fuse Panel Description |
| 1 | 10A* | Run/Accessory – Instrument cluster, Front wiper motor, Rear wiper motor, Tire Pressure Monitor System (TPMS) module |
| 2 | 20A* | Brake On/Off (stoplamp) switch, Turn signal/Hazard flasher, AdvanceTrac® stoplamps relay (if equipped), Stoplamps, Center High-Mounted Stoplamp (CHMSL), Turn signal lamps |
| 3 | 7.5A* | Power mirror switch, Memory module (logic power), Driver seat switch (memory) |
| 4 | 15A* | Rear seat audio controls, Navigation module, DVD player |
| 5 | 7.5A* | Brake On/Off (stoplamp) switch, Powertrain Control Module (PCM) (keep alive power), EATC control head, Body Security Module (BSM) (keep alive power), Speed control deactivation switch, Speed control servo, SecuriLock LED, 3rd row seat relay coils, Power liftgate module, Clock, Brake Shift Interlock (BSI) solenoid |
| 6 | 15A* | Headlamp switch (parklamps and switch backlighting feed), Parklamps, License lamps, Foglamp relay coil, Trailer tow electric brake controller (illumination), BSM (autolamp parklamps), Floor console gear selector lighting, Switch backlighting module, Foglamp indicator |
| 7 | 7.5A* | Radio (Start signal) |
| 8 | 10A* | Rear window defroster switch, Heated outside mirrors, Rear window defroster indicator (climate control head) |
| 9 | 15A* | Fuel pump relay, Fuel pump shut-off switch, Fuel pump motor |
| 10 | 20A* | Trailer tow back-up lamps relay, Trailer tow 7–wire connector (back-up lamps), Trailer tow parklamps relay, Trailer tow 7– and 4–wire connectors (parklamps) |
| 11 | 10A* | A/C compressor clutch relay, A/C compressor clutch solenoid, Air suspension compressor relay, 4×4 Integrated Wheel Ends (IWE) solenoid |
| 12 | 10A* | Speed control relay, Speed control servo |
| 13 | 10A* | Rear window defroster relay coil, A/C refrigerant containment switch, A/C compressor thermistor, DEATC control head, DEATC solenoids, DEATC blower controller, Trailer tow battery charge relay coil |
| 14 | 10A* | Daytime Running Lamps (DRL) ignition relay coil, Digital Transmission Range Sensor (DTRS back-up lamps), Trailer tow back-up lamps relay coil, Electrochromatic mirror |
| 15 | 5A* | AdvanceTrac® switch, Instrument cluster (Run/Start feed) |
| 16 | 10A* | ABS/AdvanceTrac® module (Run/Start feed) |
| 17 | 15A* | Foglamps |
| 18 | 10A* | Auxiliary A/C temperature blend door actuator, Auxiliary A/C front auxiliary control, Park brake release relay coils, Turn signal flasher, Electrochromatic mirror, Auxiliary mode motor, Climate controlled seat modules |
| 19 | 10A* | Restraints Control Module (RCM) |
| 20 | 30A* | 4×4 module, Air suspension module (air spring solenoids and height sensors) |
| 21 | 15A* | Instrument cluster (B+), Interior (courtesy) lamps, TPMS module, Park brake release relays, Park brake release motor, Puddle lamps (outside mirrors) |
| 22 | 10A* | Moonroof switch illumination, Flip window switch, Flip window relays, Flip window motors, Electronic hidden antenna amplifier (navigation radio), Radio (delayed accessory feed), Left front window motor, Navigation module |
| 23 | 10A* | RH low beam |
| 24 | 15A* | Interior demand lamps (front map/dome lamps, glove compartment lamp, cargo lamp, roof rail lamps, vanity mirror lamps), Battery saver relay coil, Battery saver relay power |
| 25 | 10A* | LH low beam |
| 26 | 20A* | Horn relay, Horns |
| 27 | 5A* | Brake Shift Interlock solenoid, Overdrive cancel switch, Reverse park aid system module, Air suspension module (Run/Start), Compass module |
| 28 | 5A* | PCM relay coil, Speed control relay coil, SecuriLock transceiver |
| 29 | 30A* | Trailer tow electric brake controller, Trailer tow 7–wire connector (electric brake) |
| 30 | 30A* | BSM (door locks, liftgate glass release relay), Liftgate glass release motor, Left front window motor, Door/Liftgate lock motors |
| 31 | 20A* | Radio (B+), Subwoofer, Navigation radio audio amplifier |
| 32 | 15A* | Catalyst Monitor Sensors (CMS), Transmission solenoids |
| 33 | 10A* | HEGO sensors, EGR vacuum regulator (EVR) solenoid, Canister vent solenoid, Vapor Management valve (VMV) solenoid, A/C compressor clutch relay coil |
| 34 | 15A* | PCM, Idle Air Control (IAC) solenoid, Mass Air Flow (MAF) sensor, Fuel injectors |
| 35 | 20A* | High beam headlamps, Instrument cluster high beam indicator |
| 36 | 10A* | Trailer tow right turn/stop lamps |
| 37 | 20A* | Cargo area power point |
| 38 | 25A* | Rear wiper motor, Washer pump (rear window wash) |
| 39 | 20A* | Console power points |
| 40 | 20A* | DRL relays, DRL foglamps, DRL headlamp relay coil, Headlamp switch (headlamps), Multifunction switch (flash-to-pass), BSM (autolamp headlamps relay), High beam relay coil, Fuse 25 (LH low beam), Fuse 23 (RH low beam) |
| 41 | 20A* | Cigar lighter, OBD II diagnostic connector |
| 42 | 10A* | Trailer tow left turn/stop lamps |
| 101 | 30A** | Starter motor relay, Starter motor solenoid |
| 102 | 30A** | Ignition switch power |
| 103 | 30A** | ABS/AdvanceTrac® module (pump motor) |
| 104 | 30A** | LH 3rd row seat relay, LH 3rd row seat switch, LH 3rd row seat motor |
| 105 | 30A** | Power liftgate module, Power liftgate motors, Power running boards control |
| 106 | 30A** | Trailer tow battery charge relay, Trailer tow 7–wire connector (battery charge) |
| 107 | 30A** | Auxiliary A/C blower relay, Auxiliary A/C blower motor |
| 108 | 30A** | Passenger seat motor switch, Passenger seat lumbar switch and motor |
| 109 | 30A** | Driver seat lumbar switch and motor, Memory module, Power memory mirrors, Adjustable pedals switch and motor |
| 110 | 30A** | Power running boards |
| 111 | 50A** | Air suspension compressor relay, Air suspension compressor |
| 112 | 30A** | ABS/AdvanceTrac® module (valves) |
| 113 | 30A** | Front wiper motor, Washer pump (windshield wash) |
| 114 | 40A** | Rear window defroster relay, Rear window defroster grid, Heated mirrors (Fuse 8) |
| 115 | 30A** | 4×4 module, Transfer case shift motor |
| 116 | 40A** | Front blower motor relay, Front blower motor |
| 117 | 30A** | RH 3rd row seat relay, RH 3rd row seat switch, RH 3rd row seat motor |
| 118 | 30A** | Driver and passenger climate control seat module |
| 401 | 30A CB (circuit breaker) | Power windows (circuit breaker), Main window switch, Window motors, Window switches, Moonroof module |
| R01 | Starter relay | Starter motor solenoid |
| R02 | Delayed accessory relay | Fuse 22, CB 401, Power windows, Moonroof, Flip windows, Radio, Navigation module, Navigation antenna amplifier |
| R03 | Hi-beam relay | Fuse 35, Hi-beam headlamps, Hi-beam indicator |
| R04 | Rear window defrost relay | Fuse 8 (heated mirrors), Rear window defroster, Heated outside mirrors, Rear window defroster indicator (climate control head) |
| R05 | Trailer tow battery charge relay | Trailer tow 7–wire connector (battery charge) |
| R06 | Front blower relay | Front blower motor |
| R201 | Trailer tow park lamp relay | Trailer tow 7– and 4–wire connectors (park lamps) |
| R202 | Foglamp relay | Front foglamps |
| R203 | PCM relay | Fuse 32, Fuse 33, Fuse 34, Fuel pump relay, PCM solenoids and sensors |
| R301 | Trailer tow back-up lamp relay | Trailer tow 7–wire connector (back-up lamps) |
| R302 | Speed control relay | Speed control servo |
| R303 | Fuel pump relay | Fuel pump shut-off switch, PCM (fuel pump monitor), Fuel pump |
| R304 | Battery saver relay | Roof rail lamps, Vanity mirror lamps, Map/Dome lamp, Glove box lamp, Cargo area lamp, Outside mirror puddle lamps, Instrument cluster (interior lamps) |
| R305 | Horn relay | Dual note horn |
| * Mini Fuses ** Maxi Fuses | ||
Lincoln Navigator (2005 and 2006)
| Fuse/Relay Location | Fuse Amp Rating | Passenger Compartment Fuse Panel Description |
| 1 | 7.5A* | Run/Accessory – Instrument cluster, Front wiper motor, Rear wiper motor |
| 2 | 20A* | Brake On/Off (stoplamp) switch, Turn signal/Hazard flasher, Stoplamps, Center High-Mounted Stoplamp (CHMSL), Turn signal lamps |
| 3 | 7.5A* | Power mirror switch, Memory module (logic power), Driver seat switch (memory) |
| 4 | 15A* | Rear seat audio controls, Navigation module, DVD player |
| 5 | 7.5A* | Brake On/Off (stoplamp) switch, Powertrain Control Module (PCM) (keep alive power), EATC control head, Body Security Module (BSM) (keep alive power), Speed control deactivation switch, SecuriLock LED, 3rd row seat relay coils, Power liftgate module, Clock, Brake Shift Interlock (BSI) solenoid |
| 6 | 15A* | Headlamp switch (parklamps and switch backlighting feed), Parklamps, License lamps, Foglamp relay coil, Trailer tow electric brake controller (illumination), BSM (autolamp parklamps), Floor console gear selector lighting, Foglamp indicator |
| 7 | 5A* | Radio (Start signal) |
| 8 | 10A* | Rear window defroster switch, Heated outside mirrors, Rear window defroster indicator (climate control head) |
| 9 | 15A* | Transmission control module |
| 10 | 20A* | Trailer tow back-up lamps relay, Trailer tow 7–wire connector (back-up lamps), Trailer tow parklamps relay, Trailer tow 7– and 4–wire connectors (parklamps) |
| 11 | 10A* | A/C compressor clutch relay, A/C compressor clutch solenoid, 4×4 Integrated Wheel Ends (IWE) solenoid |
| 12 | 15A* | Fuel pump relay, Fuel pump shut-off switch, Fuel pump driver module, Fuel pump motor |
| 13 | 10A* | Rear window defroster relay coil, A/C refrigerant containment switch, A/C de-icing switch, A/C low pressure switch, DEATC control head, DEATC solenoids, DEATC blower controller, Trailer tow battery charge relay coil |
| 14 | 10A* | Daytime Running Lamps (DRL) ignition relay coil, Trailer tow back-up lamps relay coil, Electrochromatic mirror, Back-up lamps relay, Back-up lamps |
| 15 | 5A* | AdvanceTrac® with RSC switch, Instrument cluster (Run/Start feed) |
| 16 | 10A* | ABS/AdvanceTrac® with RSC module (Run/Start feed) |
| 17 | 15A* | Foglamps |
| 18 | 10A* | Auxiliary A/C temperature blend door actuator, Auxiliary A/C front auxiliary control, Park brake release relay coils, Turn signal flasher, Electrochromatic mirror, Auxiliary mode motor |
| 19 | 10A* | Restraints Control Module (RCM) |
| 20 | 30A* | BSM (door locks, liftgate glass release relay), Liftgate glass release motor, Left front window motor, Door/Liftgate lock motors |
| 21 | 15A* | Instrument cluster (B+), Interior (courtesy) lamps, Park brake release relays, Park brake release motor, Puddle lamps (outside mirrors) |
| 22 | 10A* | Moonroof switch illumination, Flip window switch, Flip window relays, Flip window motors, Electronic hidden antenna amplifier (navigation radio), Radio (delayed accessory feed), Left front window motor, Navigation module |
| 23 | 10A* | RH low beam |
| 24 | 15A* | Interior demand lamps (front map/dome lamps, glove compartment lamp, cargo lamp, roof rail lamps, vanity mirror lamps), Battery saver relay coil, Battery saver relay power, Heated Positive Crankcase Ventilation (PCV) valve, Heated PCV valve relay |
| 25 | 10A* | LH low beam |
| 26 | 20A* | Horn relay, Horns |
| 27 | 5A* | Brake Shift Interlock solenoid, Reverse park aid system module, Air suspension module (Run/Start), Compass module |
| 28 | 5A* | PCM relay coil, SecuriLock transceiver, Heated PCV valve relay coil |
| 29 | 30A* | Trailer tow electric brake controller, Trailer tow 7–wire connector (electric brake) |
| 30 | 25A* | PCM (4×4 transfer case clutch), Air suspension module (air spring solenoids and height sensors) |
| 31 | 20A* | Radio (B+), Subwoofer, Navigation radio audio amplifier |
| 32 | 15A* | Catalyst Monitor Sensors (CMS), 6–speed transmission (ignition sense), HEGO sensors, Canister vent solenoid, Vapor Management valve (VMV) solenoid, A/C compressor clutch relay coil, CMCV, VCT actuators |
| 33 | — | Not used |
| 34 | 15A* | PCM, Mass Air Flow (MAF) sensor, Fuel injectors |
| 35 | 20A* | High beam headlamps, Instrument cluster high beam indicator |
| 36 | 10A* | Trailer tow right turn/stop lamps |
| 37 | 20A* | Cargo area power point |
| 38 | 25A* | Rear wiper motor, Washer pump (rear window wash) |
| 39 | 20A* | Console power points |
| 40 | 20A* | DRL relays, DRL foglamps, DRL headlamp relay coil, Headlamp switch (headlamps), Multifunction switch (flash-to-pass), BSM (autolamp headlamps relay), High beam relay coil, Fuse 25 (LH low beam), Fuse 23 (RH low beam) |
| 41 | 20A* | Cigarette lighter, OBD II diagnostic connector |
| 42 | 10A* | Trailer tow left turn/stop lamps |
| 101 | 30A** | Starter motor relay, Starter motor solenoid |
| 102 | 30A** | Ignition switch power |
| 103 | 30A** | ABS/AdvanceTrac® with RSC module (pump motor) |
| 104 | 30A** | LH 3rd row seat relay, LH 3rd row seat switch, LH 3rd row seat motor |
| 105 | 30A** | Power liftgate module, Power liftgate motors, Power running boards control |
| 106 | 30A** | Trailer tow battery charge relay, Trailer tow 7–wire connector (battery charge) |
| 107 | 30A** | Auxiliary A/C blower relay, Auxiliary A/C blower motor |
| 108 | 30A** | Passenger seat motor switch, Passenger seat lumbar switch and motor |
| 109 | 30A** | Driver seat lumbar switch and motor, Memory module, Power memory mirrors, Adjustable pedals switch and motor |
| 110 | 30A** | Power running boards |
| 111 | 50A** | Air suspension compressor relay, Air suspension compressor |
| 112 | 30A** | ABS/AdvanceTrac® with RSC module (valves) |
| 113 | 30A** | Front wiper motor, Washer pump (windshield wash) |
| 114 | 40A** | Rear window defroster relay, Rear window defroster grid, Heated mirrors (Fuse 8) |
| 115 | 30A** | Transfer case shift motor, 4×4 relays |
| 116 | 40A** | Front blower motor relay, Front blower motor |
| 117 | 30A** | RH 3rd row seat relay, RH 3rd row seat switch, RH 3rd row seat motor |
| 118 | 30A** | Driver and passenger climate control seat module |
| 401 | 30A CB (circuit breaker) | Power windows (circuit breaker), Main window switch, Window motors, Window switches, Moonroof module |
| R01 | Starter relay | Starter motor solenoid |
| R02 | Delayed accessory relay | Fuse 22, CB 401, Power windows, Moonroof, Flip windows, Radio, Navigation module, Navigation antenna amplifier |
| R03 | Hi-beam relay | Fuse 35, Hi-beam headlamps, Hi-beam indicator |
| R04 | Rear window defrost relay | Fuse 8 (heated mirrors), Rear window defroster, Heated outside mirrors, Rear window defroster indicator (climate control head) |
| R05 | Trailer tow battery charge relay | Trailer tow 7–wire connector (battery charge) |
| R06 | Front blower relay | Front blower motor |
| R201 | Trailer tow park lamp relay | Trailer tow 7– and 4–wire connectors (park lamps) |
| R202 | Foglamp relay | Front foglamps |
| R203 | PCM relay | Fuse 32, Fuse 34, PCM solenoids and sensors |
| R301 | Trailer tow back-up lamp relay | Trailer tow 7–wire connector (back-up lamps) |
| R302 | Heated PCV valve relay | Heated PCV valve |
| R303 | Fuel pump relay | Fuel pump shut-off switch, PCM (fuel pump monitor), Fuel pump, Fuel pump driver module |
| R304 | Battery saver relay | Roof rail lamps, Vanity mirror lamps, Map/Dome lamp, Glove box lamp, Cargo area lamp, Outside mirror puddle lamps, Instrument cluster (interior lamps) |
| R305 | Horn relay | Dual note horn |
| * Mini Fuses ** Maxi Fuses | ||
