MG HS / HS PHEV (2024 & 2025) Fuse Box Location & Diagrams
The MG HS and HS PHEV (2024 & 2025) feature multiple fuse boxes that protect essential electrical systems. This blog covers their fuse box locations and diagrams, helping you identify fuse positions, ratings, and protected components when checking or troubleshooting electrical issues.
Fuse Box Location
Passenger Compartment Fuse Box

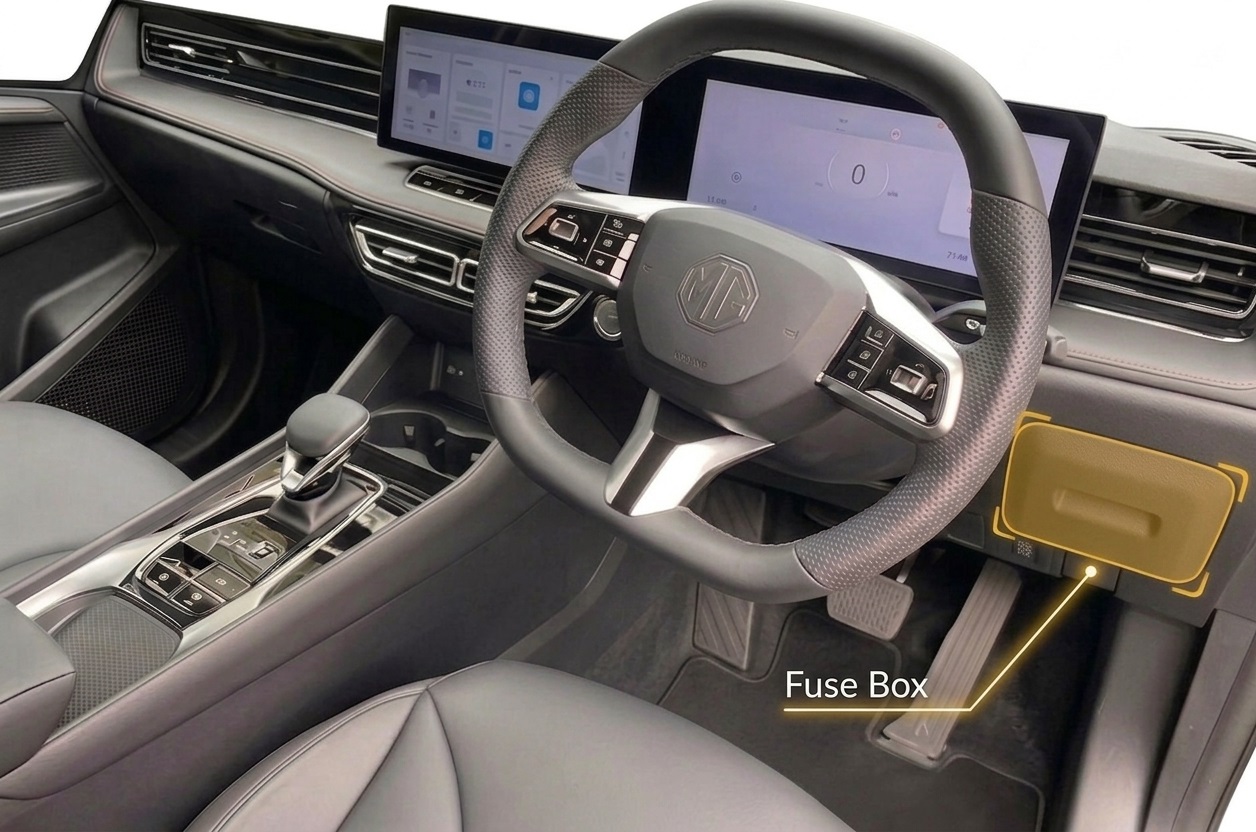

Located inside the cabin, behind the driver’s side lower trim panel or knee trim panel near the steering column.

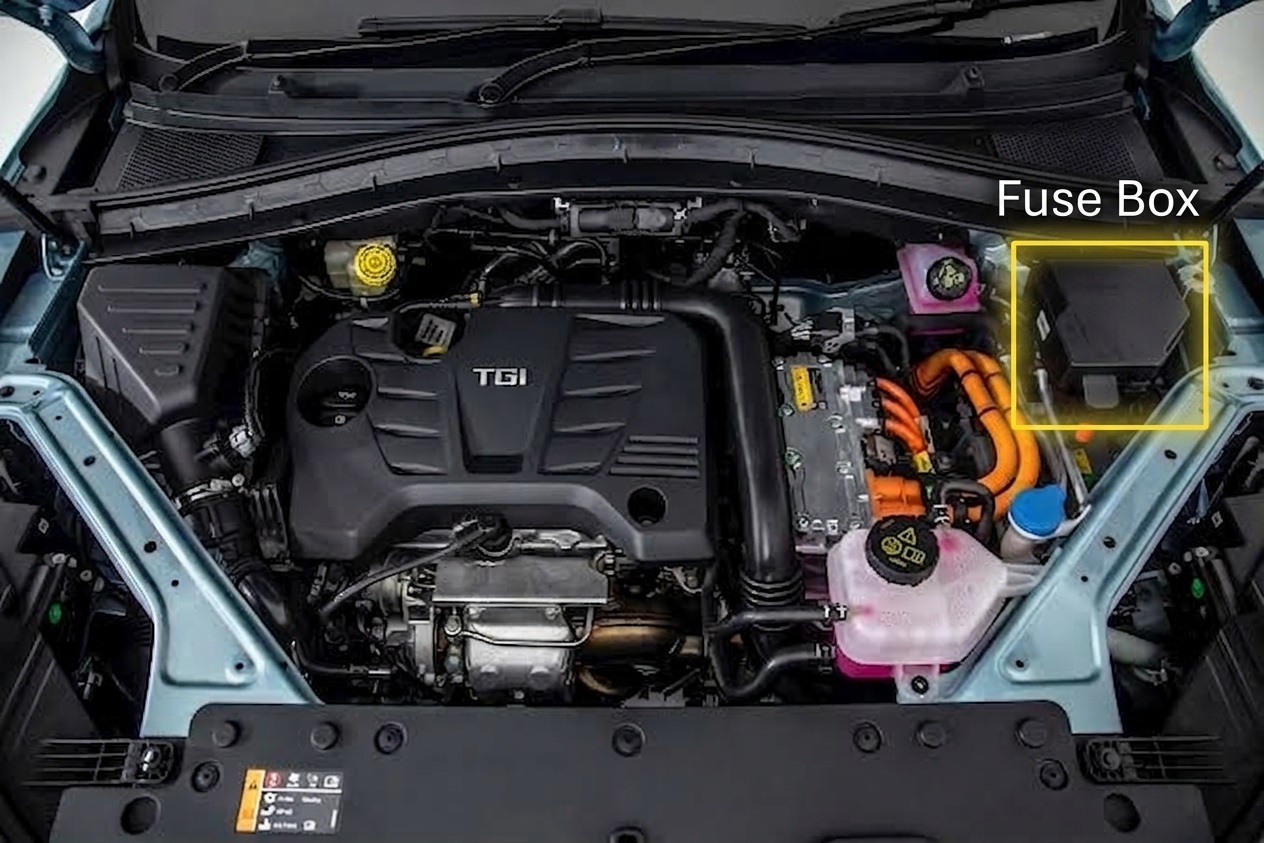

Engine Compartment Fuse Box
Fuse Box Diagrams

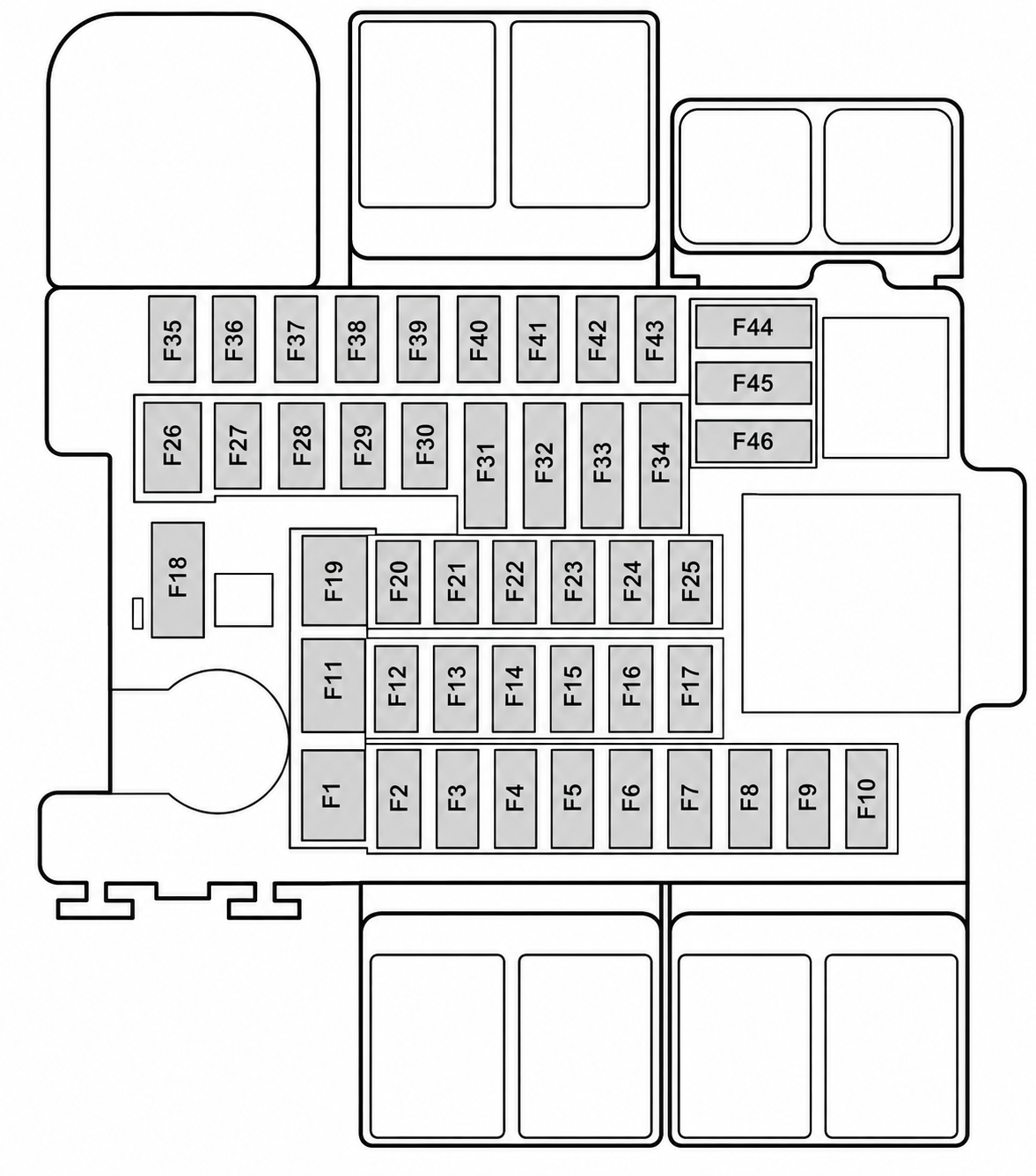

Passenger Compartment Fuse Box
| Code | Spec | Function |
| F01 | 40A | Blower, automatic temperature control |
| F02 | 5A | Instrument pack display, data link connector |
| F03 | 10A | Gateway |
| F04 | 5A | Front view camera module, rearward driver assistance control module |
| F05 | 5A | Driver door combination switch, driver seat lumbar support switch |
| F06 | 5A | Display, infotainment faceplate module (IFP), clock spring, digital audio broadcasting (DAB) module |
| F07 | 5A | Data link connector (DLC) |
| F08 | – | – |
| F09 | 5A | Driver fatigue detection |
| F10 | – | – |
| F11 | 25A | Driver seat adjustment switch, driver seat control module |
| F12 | – | – |
| F13 | 5A | Shifter control unit |
| F14 | 10A | Sensing and diagnostic module |
| F15-F16 | – | – |
| F17 | 10A | Combined charging unit (CCU) |
| F18 | 10A | Battery management system for hybrid vehicles |
| F19 | 25A | Front passenger seat adjustment switch |
| F20 | 30A | Sunroof motor |
| F21 | 20A | Entertainment mainframe |
| F22 | – | – |
| F23 | 10A | Automatic temperature control |
| F24 | – | – |
| F25 | 5A | Communication module |
| F26-F28 | – | – |
| F29 | 10A | Steering column lock |
| F30 | 10A | Alcohol interlock interface device |
| F31-F34 | – | – |
| F35 | 5A | Instrument pack, DC-DC converter |
| F36 | 20A | Entertainment mainframe, DC-DC converter |
| F37 | 5A | Entertainment panel switch, DC-DC converter |
| F38 | 10A | Air-conditioning, DC-DC converter |
| F39 | 15A | Super Lock Relay |
| F40-F44 | – | – |
| F45 | 15A | Power socket |
| F46 | 10A | Wireless Charge, Rear USB |

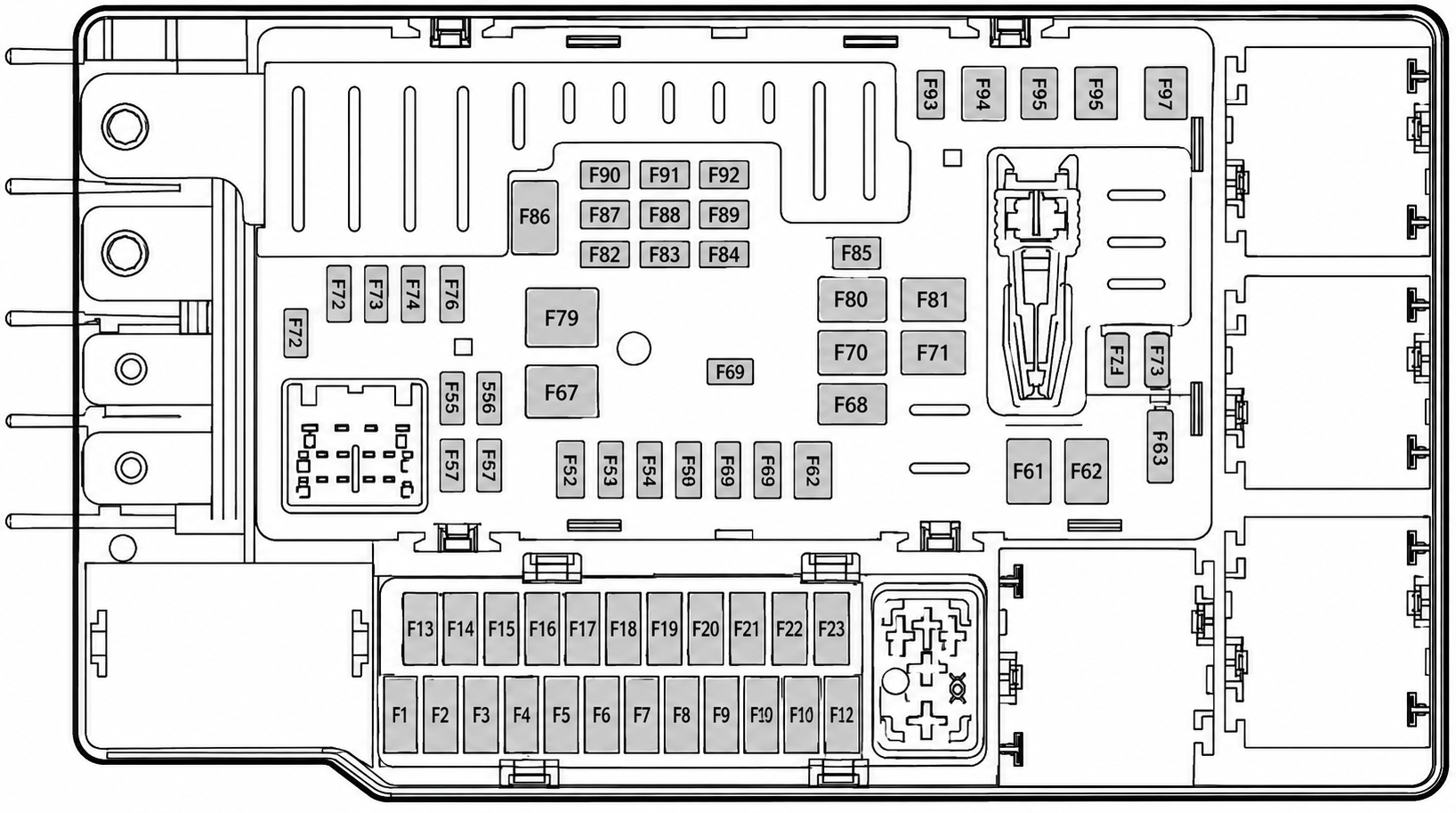

Engine Compartment Fuse Box
| Code | Spec | Function |
| F01 | – | – |
| F02 | 5A | Power liftgate control module |
| F03 | – | – |
| F04 | 40A | Transmission control module, front windscreen heater relay |
| F05 | 5A | High-voltage electric heater |
| F06 | 15A | Towing Device Module |
| F07 | 20A | Towing Device Module |
| F08-F11 | – | – |
| F12 | 20A | Transmission control module, DC-DC converter |
| F13 | 25A | Power liftgate control module |
| F14 | – | – |
| F15 | 30A | DC-DC converter, front windscreen heater relay |
| F16-F50 | – | – |
| F51 | 15A | Ignition Coil |
| F52 | 20A | Engine control module |
| F53 | 5A | Engine control module |
| F54 | 10A | Battery chiller electronic expansion valve |
| F55 | 10A | Engine control module |
| F56 | 5A | Battery current sensor |
| F57 | 5A | Brake Switch |
| F58 | 30A | Body control module |
| F59 | 30A | Power control unit |
| F60 | 30A | Body control module |
| F61 | 30A | Electric vacuum pump |
| F62 | 30A | Body control module |
| F63 | 10A | Reverse gear switch |
| F64 | 5A | Body control module, gateway, power control unit, parking distance sensor |
| F65 | – | – |
| F66 | 15A | Engine Electronic Water Pump Auxiliary System |
| F67 | 60A | Integrated Brake System Pump |
| F67 | 40A | Stability Control System Pump |
| F68 | 20A | Power control unit, transmission control module, auxiliary drive control unit |
| F69 | 5A | Brake lamp switch |
| F70 | 15A | Left headlamp assembly |
| F71 | 30A | Rear right window regulator motor, rear right window switch, front passenger window switch, front passenger window regulator motor |
| F72 | 5A | Engine control module, integrated braking system, auxiliary drive control unit, transmission control module, dynamic stability control module |
| F73-F74 | – | – |
| F75 | 15A | Variable Valve Lift Actuator |
| F76 | 15A / 20A | Neutral switch, fuel tank isolation valve, starter motor relay, transmission oil cooler coolant drive water pump, clutch master cylinder stroke sensor, constant pressure supply oil pump relay |
| F77 | 15A | Rear oxygen sensor, WCAC 3-Way valve, cooling system 2-Way valve |
| F78 | – | – |
| F79 | 60A | Integrated Brake System Valve |
| F79 | 40A | Stability Control System Valve |
| F80 | 30A | Rear left window regulator switch, rear left window regulator motor |
| F81 | 15A | Right headlamp assembly, front right fog lamp |
| F82 | 30A | Body control module |
| F83 | – | – |
| F84 | 30A | Body control module |
| F85 | 20A | Constant pressure supply oil pump |
| F86 | 30A | Starter motor relay |
| F87 | 5A | Pedestrian alert control module |
| F88 | – | – |
| F89 | 15A | Front windscreen washer relay, rear window washer relay |
| F90 | 10A | Left headlamp, right headlamp |
| F91 | – | – |
| F92 | 15A | Horn relay, rear wiper relay |
| F93 | 10A | Heated exterior rearview mirror |
| F94 | 30A | Heated rear window |
| F95 | 30A | Body control module |
| F96 | 30A | Clutch cooling/lubrication electronic pump assembly |
| F97 | 25A | Front wiper motor |
