Mitsubishi L200 (2017 – 2019) Fuse Box Location & Diagrams
This guide provides a comprehensive overview of the fuse box locations and diagrams for the Mitsubishi L200 (2017–2019). Understanding these layouts is essential for troubleshooting electrical issues, from dead outlets to failing headlights. Follow this manual to quickly identify and replace blown fuses to keep your vehicle’s systems running smoothly.
Fuse Box Locations
Instrument panel Fuse Box

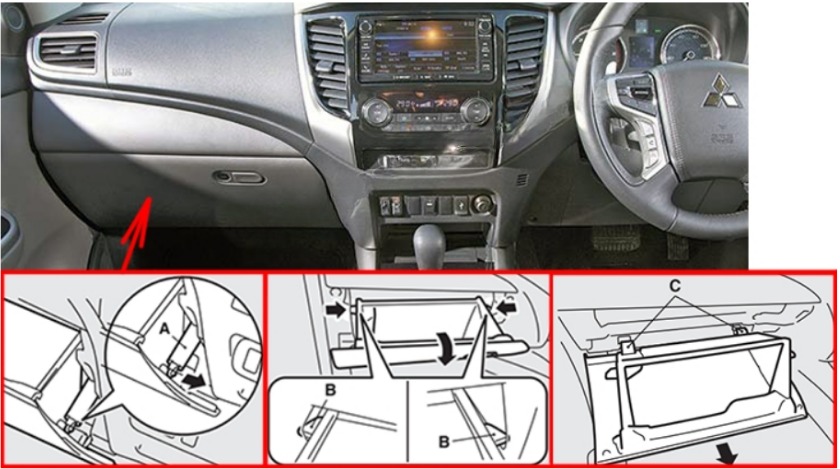

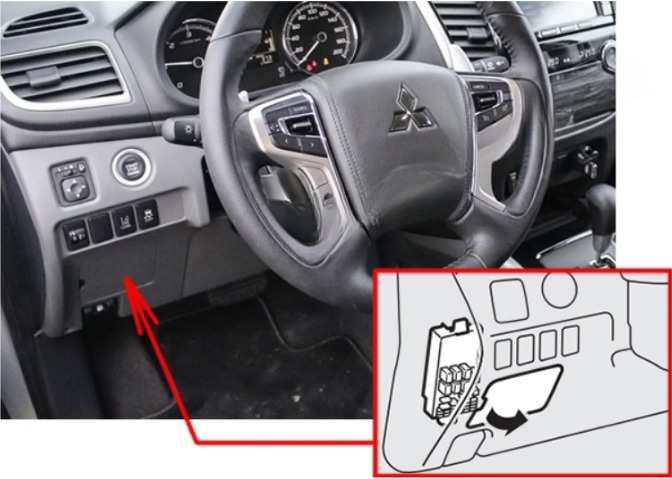

Left-hand drive vehicles:The fuse box is located in the instrument panel (left side), behind the cover (Pull the fuse lid to remove it).
Right-hand drive vehicles: It is located behind the glove box.
- Open the glove box;
- Move the rod (A) on the right side of the glove box to the right side of the box;
- While pressing the side of the glove box, unhook the left and right hooks (B) and lower the glove box;
- Remove the glove box fastener (C), and then remove the glove box.

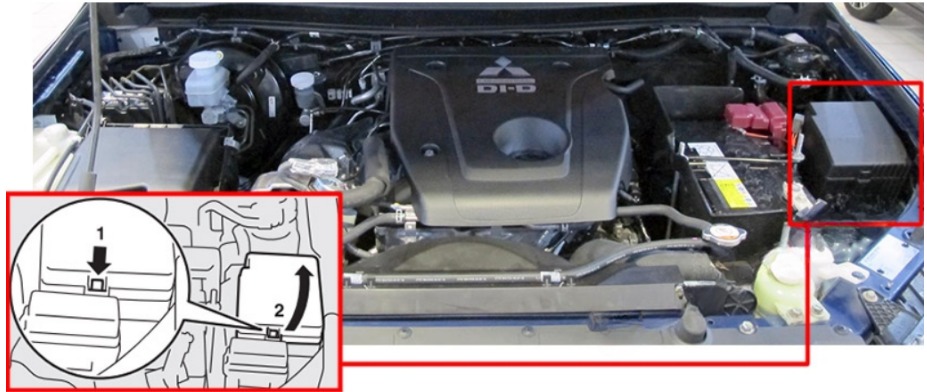

Engine Compartment Fuse Box

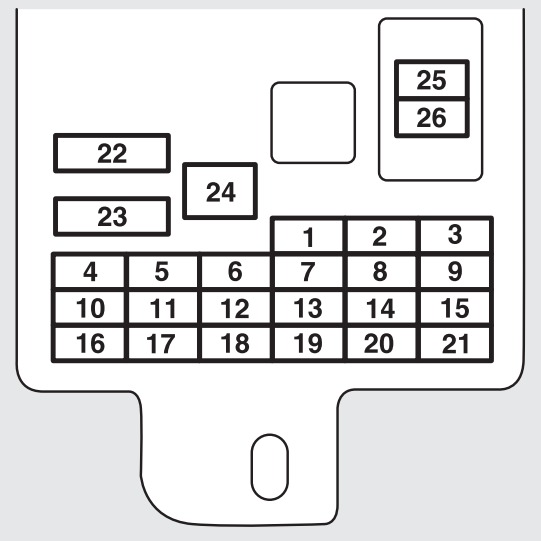

Instrument panel Fuse Box Diagram
Mitsubishi L200 (2017, 2018 and 2019)

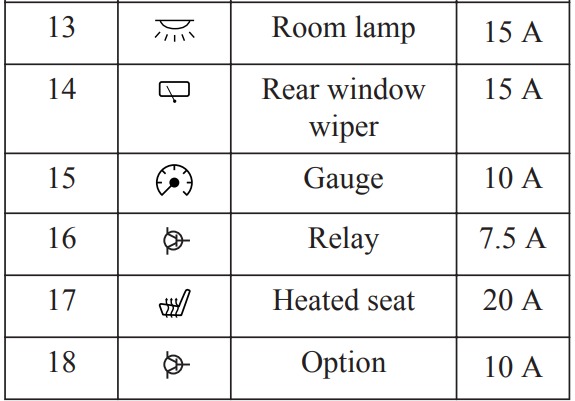

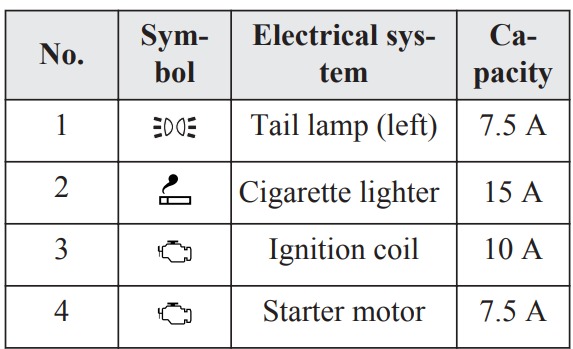

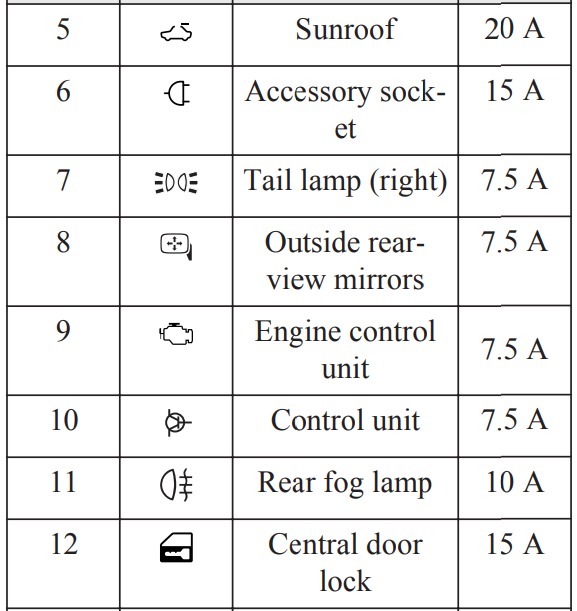

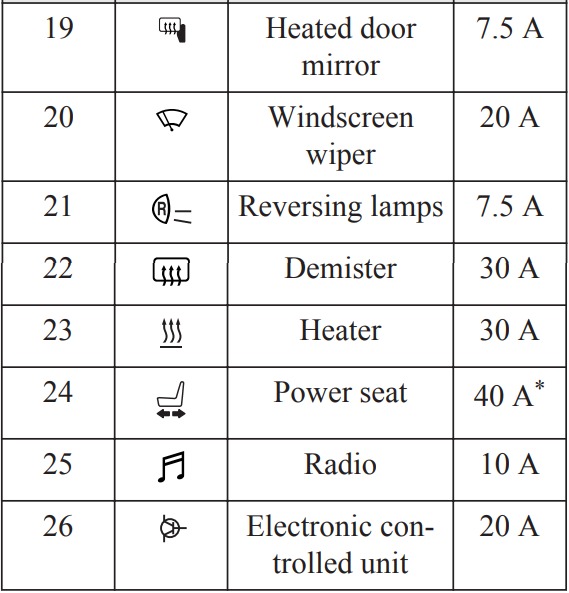

Assignment of the fuses in the Instrument Panel Fuse Box
Engine Compartment Fuse Box Diagram
Mitsubishi L200 (2017, 2018 and 2019)

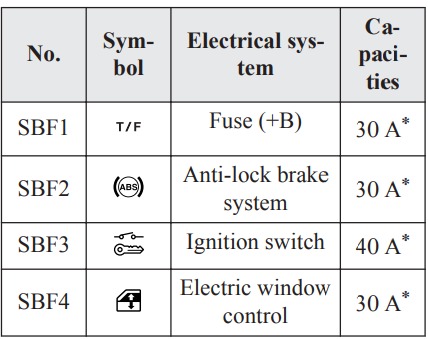

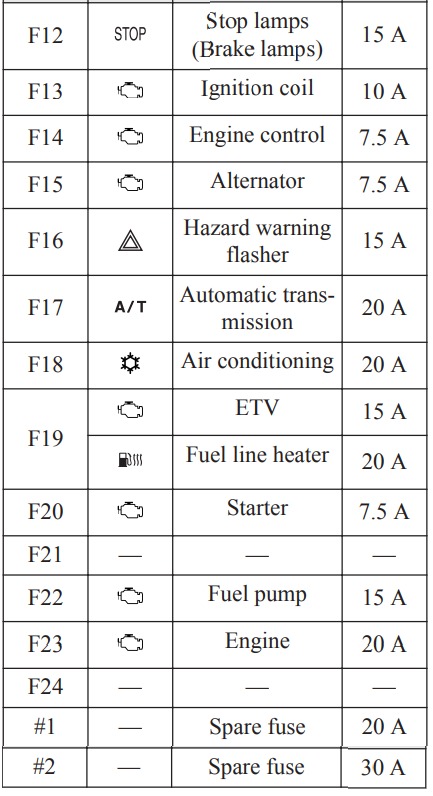

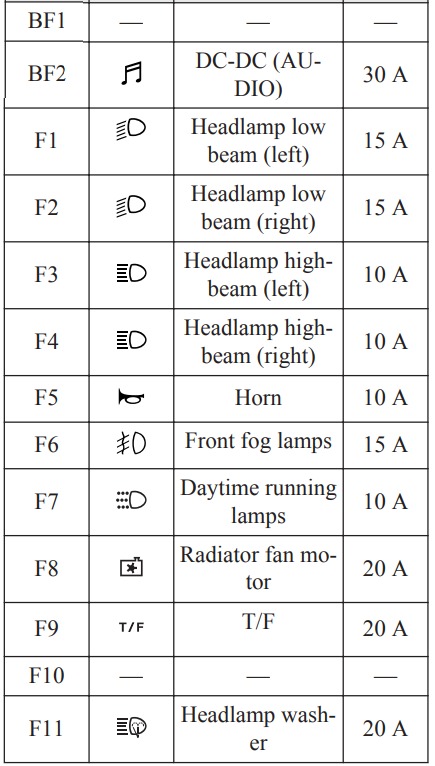

Assignment of the fuses in the Engine Compartment Fuse Box
