Mitsubishi L200 (2020 – 2023) Fuse Box Diagrams & Location
This manual pertains to the Sixth-generation Mitsubishi L200 (2020–2023). It offers comprehensive fuse box diagrams, fuse panel locations, and a detailed explanation of each fuse’s function. Whether you are diagnosing issues or performing routine maintenance on your vehicle, this guide will assist you in managing the fuse system efficiently.
Passenger Compartment Fuse Box
Mitsubishi L200 (2020 to 2023)

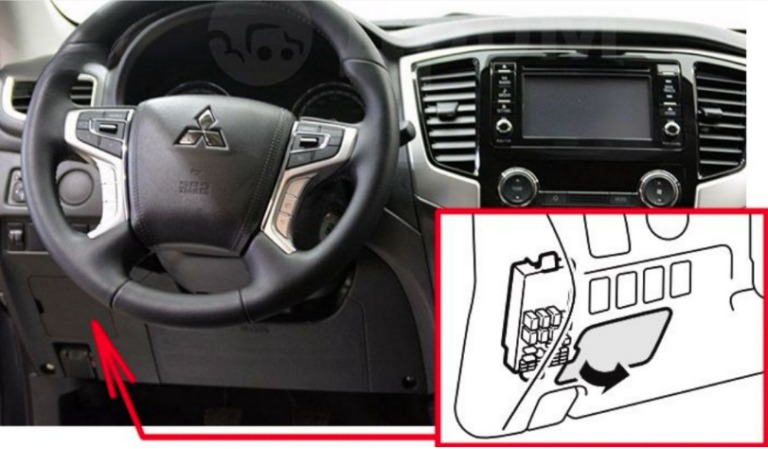

Fuse box location
- Left-hand drive vehicles: the fuse panel is located behind the fuse lid in front of the driver’s seat. Pull the fuse lid to remove it.
- Right-hand drive vehicles: the fuse panel is located behind the glove box.

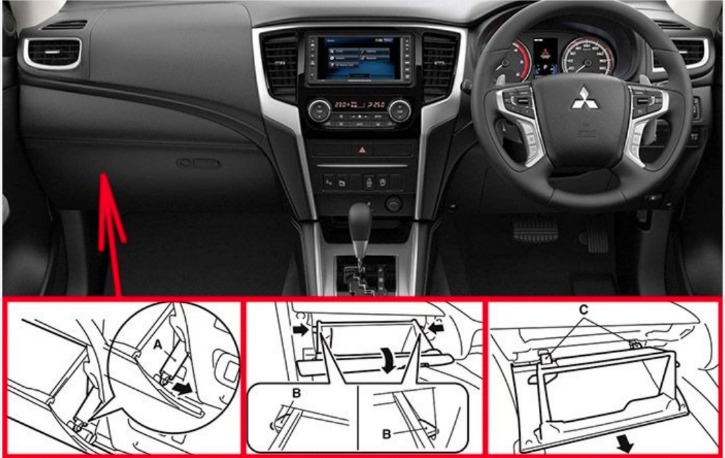

To access:
- Open the glove box.
- Move the rod (A) on the right side of the glove box to the right side of the box.
- While pressing the side of the glove box, unhook the left and right hooks (B) and lower the glove box.
- Remove the glove box fastener (C), and then remove the glove box.

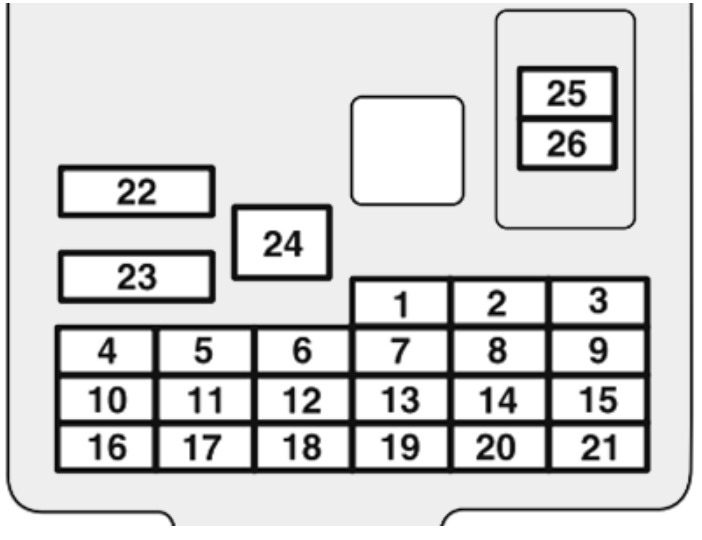

Fuse box diagram
Assignment of the fuses in the passenger compartment
| № | Amps | Electrical system |
|---|---|---|
| 1 | 7.5A | Tail lamp (left) |
| 2 | 15A | Cigarette lighter/ Accessory socket |
| 3 | 10A | Ignition coil |
| 4 | 7.5A | Starter motor |
| 5 | 20A | Sunroof |
| 6 | 15A | Accessory socket |
| 7 | 7.5A | Tail lamp (right) |
| 8 | 7.5A | Outside rearview mirrors |
| 9 | 7.5A | Engine control unit |
| 10 | 7.5A | Control unit |
| 11 | 10A | Rear fog lamp |
| 12 | 15A | Central door lock |
| 13 | 15A | Room lamp |
| 14 | 15A | Rear window wiper |
| 15 | 10A | Gauge |
| 16 | 7.5A | Relay |
| 17 | 20A | Heated seat |
| 18 | 10A | Option |
| 19 | 7.5A | Heated door mirror |
| 20 | 20A | Windscreen wiper |
| 21 | 7.5A | Reversing lamps |
| 22 | 30A | Demister |
| 23 | 30A | Heater |
| 24 | 40A | Power seat |
| 25 | 10A | Radio |
| 26 | 20A | Electronic controlled unit |
Engine Compartment Fuse Box
Mitsubishi L200 (2020 to 2023)

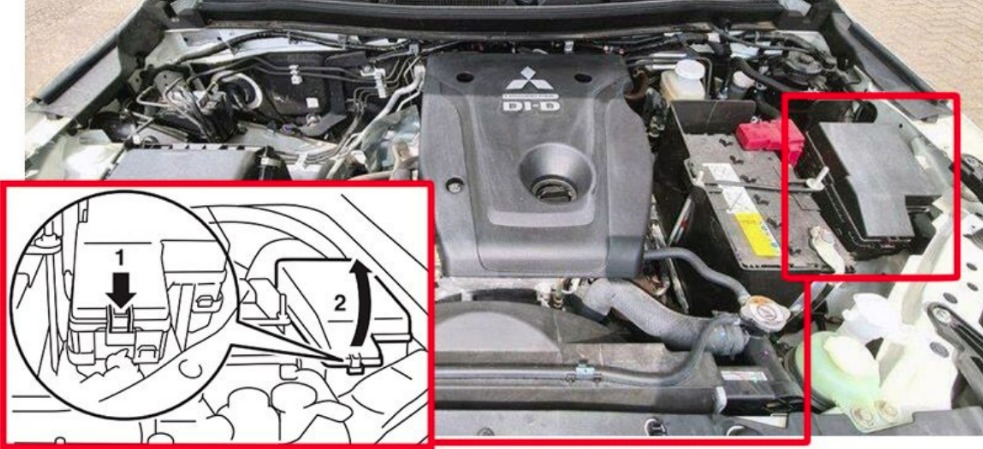

Fuse box location
- Push the tab(1)
- Remove the cover (2).

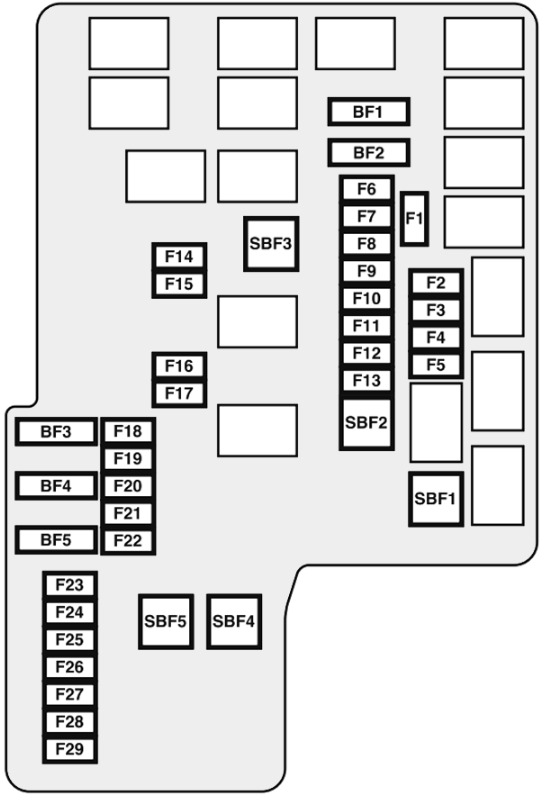

Fuse box diagram
Assignment of the fuses in the engine compartment
| № | Amps | Electrical system |
|---|---|---|
| SBF1 | 40A | Ignition switch |
| SBF2 | 30A | Electric window control |
| SBF3 | 40A | Power seat |
| SBF4 | 30A | Anti-lock brake system |
| SBF5 | 30A | Electric parking brake |
| BF1 | 30A | Audio system amp |
| BF2 | 30A | Rear air conditioning/ Rear circulator |
| BF3 | – | – |
| BF4 | 30A | DCDC( AUDIO) |
| BF5 | 30A | UREA SCR |
| F1 | 10A | NOX sensor |
| F2 | 20A | Engine |
| F3 | 15A | Fuel pump/ PMNOX sensor |
| F4 | 7.5A | IBS |
| F5 | 7.5A | Starter |
| F6 | 20A | Fuel line heater |
| F6 | 15A | ETV |
| F7 | 20A | Air conditioning |
| F8 | 20A | Automatic transmission |
| F9 | 10A | Daytime running lamps |
| F10 | 7.5A | Alternator |
| F11 | 7.5A | Engine control |
| F12 | 10A | Ignition coil |
| F13 | 15A | Front fog lamps |
| F14 | 10A | Headlamp high-beam (left) |
| F15 | 10A | Headlamp high-beam (right) |
| F16 | 15A | Headlamp low beam (left) |
| F17 | 15A | Headlamp low beam (right) |
| F18 | 15A | Steering heater |
| F19 | 15A | Hazard warning flasher |
| F20 | – | – |
| F21 | 20A | Radiator fan motor |
| F22 | 15A | Stop lamps (Brake lamps) |
| F23 | 20A | T/F |
| F24 | 20A | Rear heated seat |
| F25 | 20A | Headlamp washer |
| F26 | 20A | Security horn |
| F27 | 10A | Horn |
| F28 | – | – |
| F29 | 20A | AC inverter |
