Nissan Navara & Frontier NP300 (2015 – 2024) Fuse Box Location & Diagrams
This blog covers Nissan Navara & Frontier NP300 (2015 – 2024) fuse box locations and detailed diagrams, helping users quickly identify fuses, relays, and electrical layouts for maintenance, troubleshooting, and repairs with clear and accurate automotive information for better understanding.
Fuse Box Location

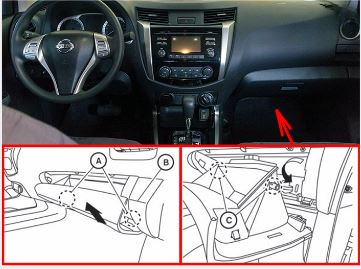

Passenger Compartment Fuse Box
- Open the glove box.
- Hold the glove box lid and pull upward to release hinges A located on the underside of the glove box. For reference, align the glove box with corner B.
- Carefully release the left and right stops C and remove the glove box.

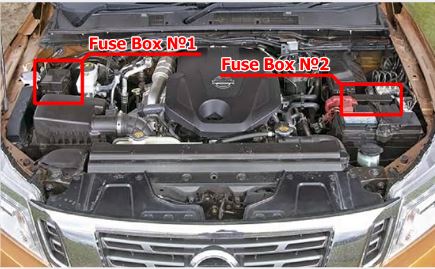

Engine Compartment Fuse Boxes
Fuse Box Diagrams
Passenger Compartment Fuse Box
| № | Amps | Name | Description |
|---|---|---|---|
| 1 | 5A | BCM SW | BCM SW |
| 2 | 20A | AUDIO | Audio system |
| 3 | 10A | ELECTRIC PARTS (BAT-1) | ELECTRIC PARTS (BAT-1) |
| 4 | 10A | METER (BAT) | Instrument cluster |
| 7 | EXTENDED STORAGE SW | ||
| 8 | 10A | STOP LAMP | Stop lights |
| 9 | 5A | PUSH START | PUSH START |
| 10 | 10A | ELECTRIC PARTS (BAT-4) | ELECTRIC PARTS (BAT-4) |
| 11 | 20A | TOWING (BAT) | TOWING (BAT) |
| 12 | 10A | FUEL LID | Fuel lid opener |
| 13 | 10A | ELECTRIC PARTS (BAT-3) | ELECTRIC PARTS (BAT-3) |
| 14 | 10A | ELECTRIC PARTS (BAT-2) | ELECTRIC PARTS (BAT-2) |
| 15 | 10A | DIFFERENTIAL LOCK | DIFFERENTIAL LOCK |
| 16 | 10A | AUTOMATIC TRANSMISSION CONTROL | AUTOMATIC TRANSMISSION CONTROL |
| 17 | 10A | ROOM LAMP | Dome light and interior light |
| 18 | 10A | ELECTRIC PARTS (IGN) | Protects several circuits |
| 19 | 10A | AIR BAG | Airbag |
| 20 | 5A | METER (IGN) | Instrument cluster |
| 21 | 10A | ELECTRIC PARTS (IGN POWER) | ELECTRIC PARTS (IGN POWER) |
| 22 | 5A | ELECTRIC PARTS (IGN SIGNAL) | ELECTRIC PARTS (IGN SIGNAL) |
| 23 | 15A | HEATED SEATS | Seat heater |
| 24 | 15A | BLOWER MOTOR | AC blower motor |
| 25 | 20A | TOWING (IGN) | Trailer lights |
| 27 | 10A | DTRL LEFT | DTRL LEFT |
| 28 | 10A | DTRL RIGHT | DTRL RIGHT |
| 30 | 20A | FRONT POWER SOCKET 2 | FRONT POWER SOCKET 2 |
| 31 | 5A | ELECTRIC PARTS (ACC-1) | Protects several circuits |
| 32 | 15A | FRONT POWER SOCKET 1 | FRONT POWER SOCKET 1 |
| 33 | 10A | ELECTRIC PARTS (ACC-2) | Protects several circuits |
| 34 | 15A | BLOWER MOTOR | AC blower motor |
| S | SPARE | Spare fuses | |
Engine Compartment Fuse Boxes

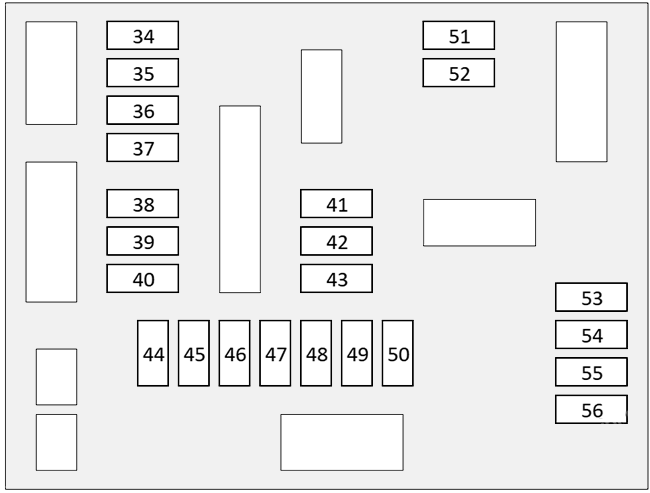

Fuse Box №1
| № | Amps | Name | Description |
|---|---|---|---|
| 34 | 15A | FUEL PUMP | Fuel pump |
| 35 | 15A | FR FOG | Front fog lights |
| 36 | 10A | ESCL | Steering lock |
| 37 | 15A | INJECTOR | Fuel injectors |
| 38 | 15A | H/L LO RH | Right-hand headlight low beam |
| 39 | 15A | H/L LO LH | Left-hand headlight low beam |
| 40 | 15A | IGN COIL | Ignition coil |
| 41 | 30A | FR WIP | Front wipers |
| 42 | 10A | CLEARANCE LH | CLEARANCE LH |
| 43 | 10A | CLEARANCE RH | CLEARANCE RH |
| 44 | 10A | H/L HI RH | Right-hand headlight high beam |
| 45 | 10A | H/L HI LH | Left-hand headlight high beam |
| 46 | 10A | ABS ECU | Anti-lock braking system |
| 51 | 10A | A/C CLUTCH | A/C magnetic clutch |
| 53 | 20A | RR DEF | Rear window defogger |
| 55 | 15A | THROTTLE MTR | Electronic throttle control |
| 56 | 20A | ECCS | Air conditioning system |
| 47 | 10A | A/T ECU | Automatic transmission controller |
| 48 | 10A | REVERSE LAMP | Backup lights |

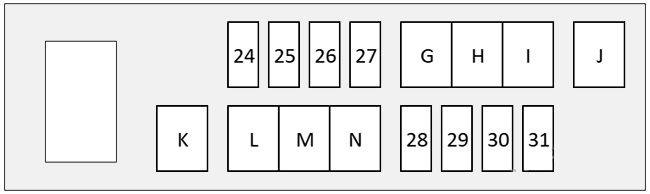

Fuse Box №2
| № | Amps | Name | Description |
|---|---|---|---|
| 24 | 15A | TRAILER TOW TURN | TRAILER TOW TURN |
| 25 | 10A | DTRL | Daytime running lights |
| 27 | 10A | TRAILER TOW REV | TRAILER TOW REV |
| 28 | 15A | INJECTOR 2 | Fuel injectors |
| 29 | 10A | DIFF LOCK | DIFF LOCK |
| 30 | 15A | HORN | Horn |
| 31 | 15A | INJECTOR 1 | Fuel injectors |
| G | 60A | F/L INVERTER | F/L INVERTER |
| H | 30A | F/L ELEC BRAKE | F/L ELEC BRAKE |
| I | 30A | F/L TF CONT (MTR) | F/L TF CONT (MTR) |
| J | 40A | IGN SW | Ignition switch |
| K | 40A | F/L VDC | F/L VDC |
| L | 30A | F/L ABS MTR | Anti-lock braking system |
| M | 30A | F/L TRAILER TOW | Trailer lights |
| N | 50A | F/L BCM | F/L BCM |
