Nissan (Navara & Frontier) (1997 – 2004) Fuse Box Location and Diagrams
The 1997–2004 Nissan Navara and Frontier fuse box diagrams and locations are covered in this guide. Understand how to locate fuse placements, understand their functions, and fix electrical faults quickly.
Passenger Compartment Fuse Box
1997 to 2004 Nissan (Navara & Frontier)

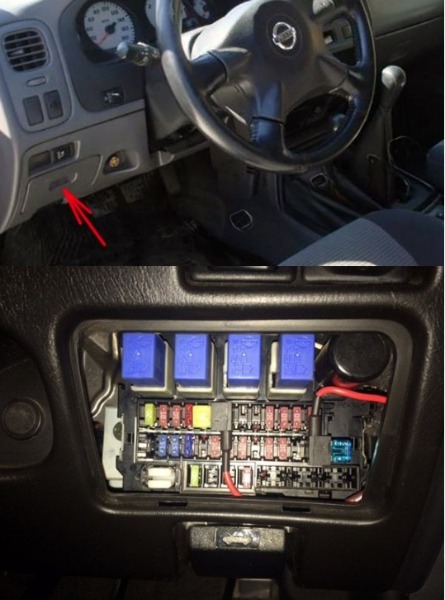

Fuse Box Location
It is located in the instrument panel, behind the protective cover.
If the electrical equipment does not operate, check for an open fuse.
- Be sure the ignition switch is in the “OFF” position.
- Be sure the headlight switch is in the “OFF” position.
- Open the glove box.
- Hold the glove box lid and pull it up to release the hinges located on the underside of the glove box.
- Carefully release the left and right stoppers and remove the glove box.
- Locate the fuse that needs to be replaced.
- Remove the fuse using the fuse puller.
- If the fuse is open , replace it with a new fuse.
- Install the glove box following removal steps in opposite sequence.

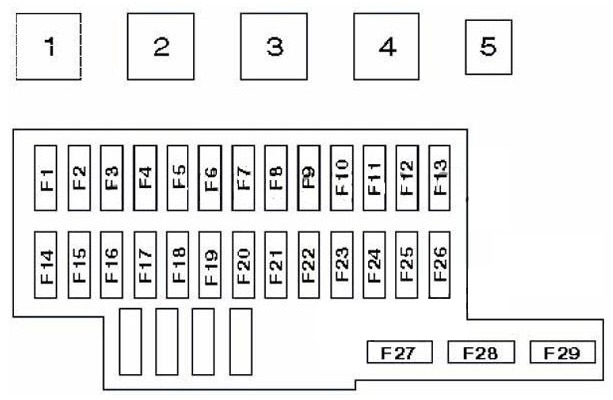

Fuse Box Diagram
| No | Amp | Component |
|---|---|---|
| 1 | Relay 1 main ignition circuits | |
| 2 | Auxiliary Ignition Circuit Relay | |
| 3 | Relay 2 main ignition circuits | |
| 4 | The power windows relay | |
| 5 | Thermal fuse (central locking) | |
| F1 | 20A | Rear window defogger |
| F2 | 10A | Anti-lock Braking System (ABS), brake lights |
| F3 | 10A | Interior lighting lamps, fog lamp (s) |
| F4 | – | – |
| F5 | 10A | Turn lights / alarms |
| F6 | 10A | Air conditioning, anti-theft system, audio antenna, automatic transmission control system, clock, diagnostic connector, immobilizer, instrument cluster, central locking remote control system, car speed sensor |
| F7 | 10A | Audio system, audio antenna |
| F8 | 10A | Seat heater |
| F9 | – | – |
| F10 | 10A | Turn lights / alarms |
| F11 | 10A | SRS (airbag) system, automatic transmission control system, charging system, daytime running light, engine management system malfunction indicator glow plug, immobilizer, instrument cluster, meters / indicators, reversing lights, car speed sensor, indicators |
| F12 | 10A | ABS system, audible warning / buzzer, automatic transmission control system, diagnostic connector, daytime running light, low headlights / high beams, power windows, engine warm-up switch, door mirror heater, rear window defogger, central locking remote control system |
| F13 | 10A | Additional idle air control valve (some models), air conditioning system, cooling fan relay |
| F14 | – | – |
| F15 | 15A | Heater / air conditioning |
| F16 | 15A | Heater / air conditioning |
| F17 | 15A | Cigarette lighter |
| F18 | 20A | Headlight washers |
| F19 | 10A | Heated door mirror heater |
| F20 | 10A | Daytime running light, electronic engine control unit (start signal) |
| F21 | 10A | Engine management system, immobilizer |
| F22 | 15A | Engine management system, fuel pump relay |
| F23 | 15A | Engine Management System (ZD30) |
| F24 | 10A | Airbag |
| F25 | 10A | Engine management |
| F26 | 20A | Windscreen wiper / washer |
| F27 | 10A | Audible warning / buzzer, headlight corrector, front / rear (left), left license plate light, backlighting of switches |
| F28 | 10A | Front / rear dimensions (right), right license plate light |
| F29 | – | – |
Engine Compartment Fuse Box
1997 to 2004 Nissan (Navara & Frontier)

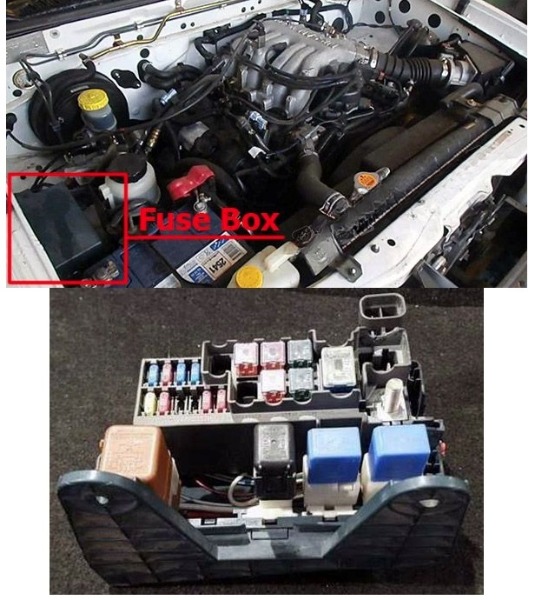

Fuse Box Location
The fuse box is located in the engine compartment (right-side).
The location and the amperage rating of fuses are shown on the backside of the fuse box lid.
The number of fuses may vary depending on the features equipped to the vehicle.
If any electrical equipment does not operate, check for an open fuse.
- Be sure the ignition switch is in the “OFF” or “LOCK” position.
- Be sure the headlight switch is in the “OFF” position.
- Open the engine hood.
- Remove the fuse/fusible link cover by pushing the tab.
- Locate the fuse which needs to be replaced.
- Remove the fuse using the fuse puller located in the passenger compartment fuse box.
- If the fuse is open A, replace it with a new fuse B.

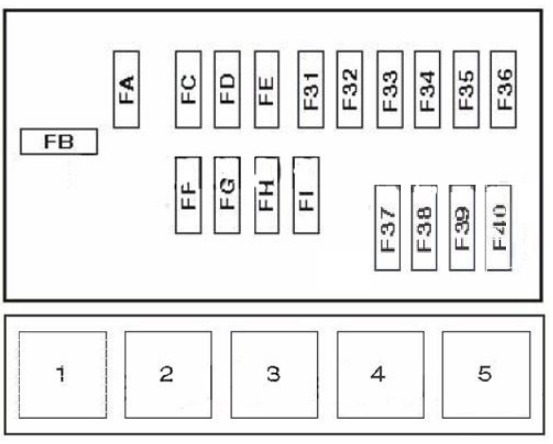

Fuse Box Diagram
| № | Amp | Component |
|---|---|---|
| FA | 80A/100A | Battery power distribution (80A-petrol, 100A-Diesel) |
| FB | 60A/80A | Glow plugs (60A-YD engine, 80A-except YD engine) |
| FC | 40A | Central locking, power windows |
| FD | 30A | Cooling fan motor |
| FE | – | – |
| FF | 40A | Ignition switch |
| FG | 30A | Anti-lock Braking System (ABS) |
| FH | 30A | Anti-lock Braking System (ABS) |
| FI | 30A | Combination switch, daytime running lights |
| F31 | 10A | Charging system |
| F32 | 10A | Horn(s) |
| F33 | 10A | Engine management system, immobilizer (petrol) |
| F34 | – | – |
| F35 | 10A | Engine Management System (Diesel) |
| F36 | 20A | Engine management system, immobilizer (Diesel) |
| F37 | 15A | Combination switch, daytime running light, low beam / high beam, headlights, fog light (s) |
| F38 | 15A | Combination switch, daytime running light, low beam / high beam, headlights |
| F39 | 10A | Audio system |
| F40 | 15A | Fog lights (some models) |
| Relay | ||
| 1 | Cooling Fan Relay | |
| 2 | Relay of the electromagnetic clutch of the A/C compressor | |
| 3 | Horn relay | |
| 4 | Start inhibit relay (“P” / “N”) | |
| 5 | Engine control system relay |
