Nissan Navara & Frontier (2005 – 2014) Fuse Box Location and Diagrams
The 2005–2014 Nissan Navara and Frontier fuse box diagrams and locations are covered in this guide. For easy vehicle operation and maintenance, know fuse functions, find fuse panels, and fix electrical issues.
Fuse Box Locations
Passenger Compartment Fuse Box

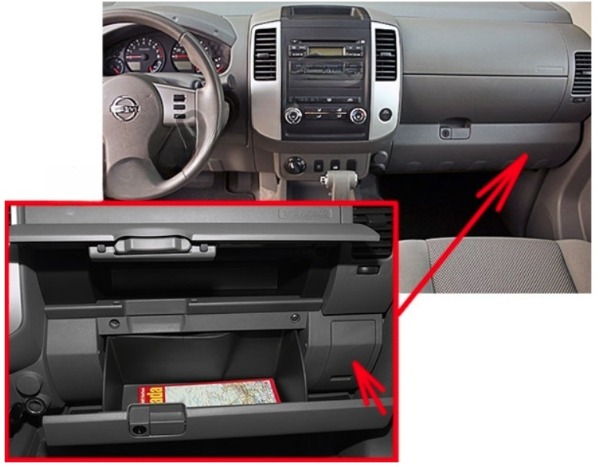

The fuse box is located behind the cover in the glove compartment.

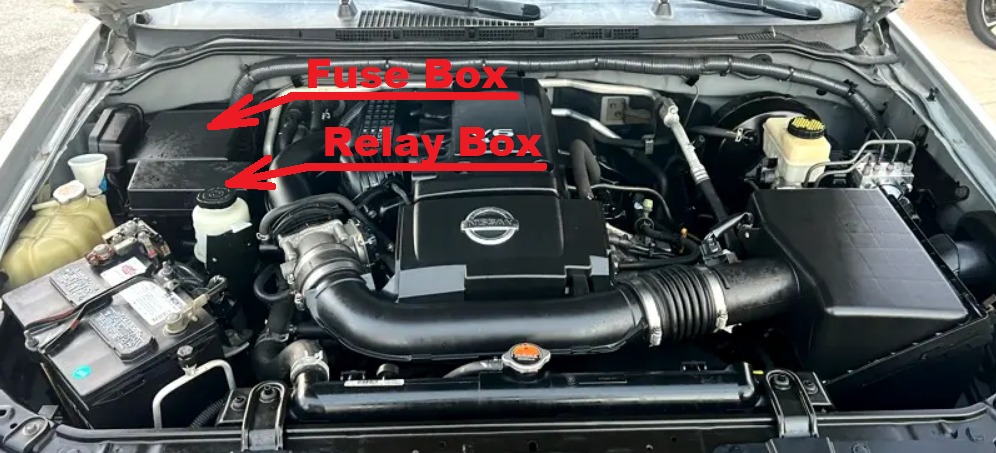

Engine Compartment Fuse Box

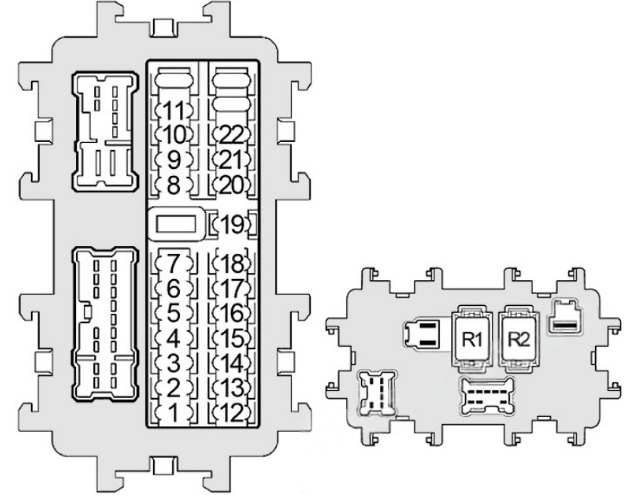

Passenger Compartment Fuse Box
2005 to 2009 Nissan (Navara & Frontier)
| № | Amp | Description |
|---|---|---|
| 1 | 10 | Body Control Module, Engine Control Module |
| 2 | – | Not Used |
| 3 | 10 | Differential Lock Control Unit, Differential Lock Mode Switch |
| 4 | 10 | Audio, Body Control Module, Satellite Radio Tuner |
| 5 | 15 | Console Power Socket |
| 6 | 10 | Door Mirror Remote Control Switch |
| 7 | 15 | Upper Front Power Socket |
| 8 | 10 | Front Air Control, Front Blower Motor Relay |
| 9 | – | Not Used |
| 10 | – | Not Used |
| 11 | – | Not Used |
| 12 | 10 | ASCD Brake Switch, Heated Seat Relay, Data Link Connector, Stop Lamp Swicth, Sonar System, Automatic Transmission Control System, Audio |
| 13 | 10 | Air Bag Diagnosis Sensor Unit, Occupant Classification System Control Unit |
| 14 | 10 | Combination Meter, Auto Anti-Dazzling Inside Mirror |
| 15 | 10 | Combination Switch |
| 16 | 10 | Heated Seat Relay |
| 17 | 15 | Audio Amplifier, Satellite Radio Tuner |
| 18 | 10 | Body Control Module, Cargo Lamp Relay, Front Room/Map Lamp, Ignition Keyhole Illumination, Room Lamp 2-nd Row, Brake Control System, 4WD |
| 19 | 10 | Auto Anti-Dazzling Inside Mirror, Combination Meter, Data Link Connector, Differential Lock Control Unit, Front Air Control, Tire Pressure Monitoring System |
| 20 | 10 | Stop Lamp Relay, Stop Lamp Switch |
| 21 | 10 | Steering Angle Sensor, Transfer Control Unit, Body Control Module, Interior Room Lamp, Power Door Lock System, NVIS, Vehicle Security System |
| 22 | 10 | Automatic Transmission Assembly |
| Relays | ||
| R1 | Not Used | |
| R2 | Accessory |
2010 to 2014 Nissan (Navara & Frontier)
| No | Amp | Description |
|---|---|---|
| 1 | 10 | Body Control Module, Engine Control Module |
| 2 | – | Not Used |
| 3 | 10 | Differential Lock Control Unit, Differential Lock Mode Switch |
| 4 | 10 | Audio, Body Control Module, Satellite Radio Tuner |
| 5 | 20 | Power Socket |
| 6 | 10 | Door Mirror Remote Control Switch |
| 7 | – | Not Used |
| 8 | 10 | Front Air Control, Front Blower Motor Relay |
| 9 | – | Not Used |
| 10 | – | Not Used |
| 11 | – | Not Used |
| 12 | 10 | ASCD Brake Switch, Heated Seat Relay, Data Link Connector, Stop Lamp Swicth, Sonar System, Automatic Transmission Control System, Audio |
| 13 | 10 | Air Bag Diagnosis Sensor Unit, Occupant Classification System Control Unit |
| 14 | 10 | Combination Meter, Auto Anti-Dazzling Inside Mirror |
| 15 | 10 | Combination Switch |
| 16 | 10 | Heated Seat Relay |
| 17 | 15 | Audio Amplifier, Satellite Radio Tuner |
| 18 | 10 | Body Control Module, Cargo Lamp Relay, Front Room/Map Lamp, Ignition Keyhole Illumination, Room Lamp 2-nd Row, Brake Control System, 4WD |
| 19 | 10 | Auto Anti-Dazzling Inside Mirror, Combination Meter, Data Link Connector, Differential Lock Control Unit, Front Air Control, Tire Pressure Monitoring System |
| 20 | 10 | Stop Lamp Relay, Stop Lamp Switch |
| 21 | 10 | Steering Angle Sensor, Transfer Control Unit, Body Control Module, Interior Room Lamp, Power Door Lock System, NVIS, Vehicle Security System |
| 22 | 10 | Automatic Transmission Assembly |
| Relays | ||
| R1 | Not Used | |
| R2 | Accessory |

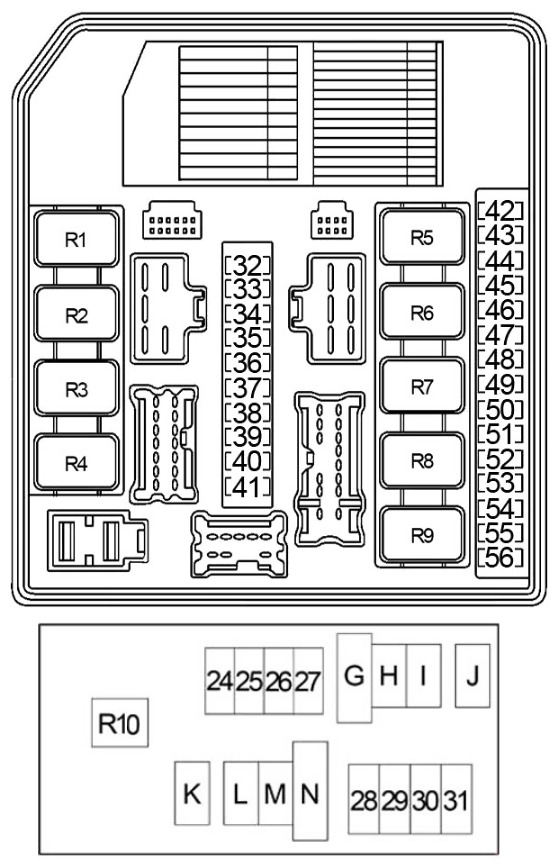

Engine Compartment Fuse Box
2005 to 2009 Nissan (Navara & Frontier)
| № | Amp | Description |
|---|---|---|
| 24 | 15 | Front Blower Motor Relay |
| 25 | 10 | Key Switch |
| 26 | 20 | Lower Front Power Socket |
| 27 | 15 | Front Blower Motor Relay |
| 28 | – | Not Used |
| 29 | 20 | Audio |
| 30 | 15 | Generator, Horn Relay |
| 31 | – | Not Used |
| G | 50 | BCM (Body Control Module), Circuit Breaker 2 |
| H | 30 | Electric Brake (Trailer Tow) |
| I | 40 | Cooling Fan Relay, Heated Mirror Relay |
| J | 40 | Ignition Switch, Transfer Shut Off Relay 1 and Relay 2 |
| K | – | Not Used |
| L | 30 / 40 | ABS |
| M | 30 | Trailer Tow Relay |
| N | 30 / 40 | ABS |
| 32 | 10 | Trailer Tow Relay 2 |
| 33 | – | Not Used |
| 34 | 10 | Headlamp RH (High) |
| 35 | 10 | Headlamp LH (High) |
| 36 | 10 | Front Combination Lamps |
| 37 | 10 | Rear Combination Lamps, License Plate Lamps, Switch Illumination, Trailer Tow Relay 1 |
| 38 | 10 | Back-Up Lamp Relay (automatic transmission), Trailer Tow Relay 2 |
| 39 | 30 | Front Wiper Relay |
| 40 | 15 | Headlamp LH (Low), Daytime Light Relay 2 |
| 41 | 15 | Headlamp RH (Low) |
| 42 | 10 | Air Conditioner Relay |
| 43 | 15 | Heated Mirror Relay |
| 44 | – | Not Used |
| 45 | 10 | Daytime Light Relay 1 |
| 46 | 15 | Rear Window Defogger Relay |
| 47 | 15 | Rear Window Defogger Relay |
| 48 | 15 | Fuel Pump Relay |
| 49 | 10 | Automatic Transmission Assembly, Clutch Interlock Switch, Interlock Cancel Switch, Clutch Interlock Cancel Relay 2 |
| 50 | 10 | ABS, Steering Angle Sensor |
| 51 | 10 | Back-Up Lamp Relay (automatic transmission), Back-Up Lamp Switch (manual transmission) |
| 52 | 20 | Throttle Control Motor Relay |
| 53 | 20 | Engine Control Module (ECM), ECM Relay, NATS Antenna Amplifier |
| 54 | 10 | Air Flow Sensor, Heated Oxygen Sensor |
| 55 | 15 | Injectors |
| 56 | 20 | Front Fog Lamps |
| Relays: | ||
| R1 | Rear Window Defogger | |
| R2 | Engine Control Module (ECM) | |
| R3 | Headlamp Low | |
| R4 | Front Fog Lamp | |
| R5 | Starter | |
| R6 | Heated Mirror | |
| R7 | Cooling Fan (High) | |
| R8 | Cooling Fan (Low) | |
| R9 | Ignition | |
| R10 | Horn |

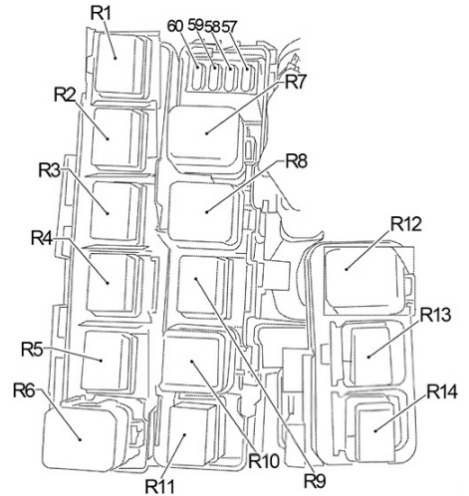

Relay Box
| № | Amp | Description |
|---|---|---|
| 57 | 10 | Transfer Shut Off Relay 1 and Relay 2, Transfer Control Unit |
| 58 | 10 | 4WD Shift Switch, Transfer Control Unit |
| 59 | – | Not Used |
| 60 | 15 | 2006-2014: Body Control Module, Trailer Tow |
| Relays: | ||
| R1 | 2006-2014: Tailer Turn (right) | |
| R2 | Transfer Shut Off Relay 2 (with 4WD) | |
| R3 | Daytime Light Relay 2 | |
| R4 | Stop Lamp (with hill descent control and hillstart assist) 2006-2014: Clutch Interlock Cancel Relay 1 | |
| R5 | Daytime Light Relay 1 | |
| R6 | Back-up Lamp (with automatic transmission) 2006-2014: Clutch Interlock Cancel Relay 2 | |
| R7 | Front Blower Motor | |
| R8 | Transfer Shift Low (with 4WD) | |
| R9 | Transfer Shut Off Relay 1 (with 4WD) | |
| R10 | Transfer Shift High (with 4WD) | |
| R11 | 2004-2005: Clutch Interlock Cancel Relay 2 2006-2014: Tailer Turn (left) | |
| R12 | 2006-2014: Back-up Lamp (with manual transmission) | |
| R13 | 2006-2014: Trailer Tow Relay 1 | |
| R14 | 2006-2014: Trailer Tow Relay 2 |

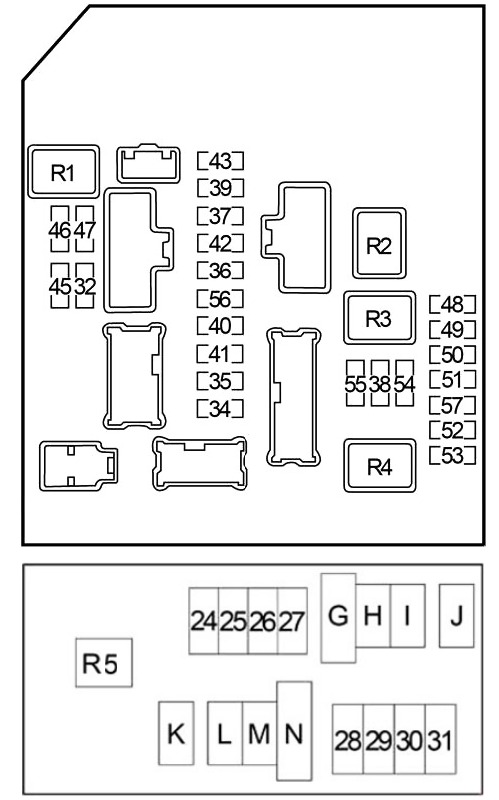

2010 to 2014 Nissan (Navara & Frontier)
| № | Amp | Description |
|---|---|---|
| 24 | 15 | Front Blower Motor Relay |
| 25 | 10 | Key Switch |
| 26 | 20 | Lower Front Power Socket |
| 27 | 15 | Front Blower Motor Relay |
| 28 | – | Not Used |
| 29 | 20 | Audio |
| 30 | 15 | Generator, Horn Relay |
| 31 | – | Not Used |
| G | 50 | BCM (Body Control Module), Circuit Breaker 2 |
| H | 30 | Electric Brake (Trailer Tow) |
| I | 40 | Cooling Fan Relay, Heated Mirror Relay |
| J | 40 | Ignition Switch, Transfer Shut Off Relay 1 and Relay 2 |
| K | – | Not Used |
| L | 30 / 40 | ABS |
| M | 30 | Trailer Tow Relay |
| N | 30 / 40 | ABS |
| 32 | 10 | Trailer Tow |
| 33 | – | Not Used |
| 34 | 10 | Headlamp RH (High), Auto Light System, Vehicle Security System |
| 35 | 10 | Headlamp LH (High), Auto Light System, Vehicle Security System |
| 36 | 10 | Front Combination Lamps |
| 37 | 10 | Rear Combination Lamps, License Plate Lamps, Switch Illumination |
| 38 | 10 | Back-Up Lamp Relay (automatic transmission), Trailer Tow |
| 39 | 30 | Front Wiper Relay |
| 40 | 15 | Headlamp LH (Low), Daytime Light Relay 2, Auto Light System, Vehicle Security System |
| 41 | 15 | Headlamp RH (Low), Auto Light System, Vehicle Security System |
| 42 | 10 | Air Conditioner Relay |
| 43 | 15 | Heated Mirror Relay |
| 44 | – | Not Used |
| 45 | 10 | Daytime Light Relay 1 |
| 46 | 15 | Rear Window Defogger Relay |
| 47 | 15 | Rear Window Defogger Relay |
| 48 | 15 | Fuel Pump Relay |
| 49 | 10 | Automatic Transmission Assembly, Clutch Interlock Switch, Interlock Cancel Switch, Clutch Interlock Cancel Relay 2 |
| 50 | 10 | ABS |
| 51 | 10 | Back-Up Lamp Relay (automatic transmission), Back-Up Lamp Switch (manual transmission), Sonar System, Audio |
| 52 | 20 | Throttle Control Motor Relay |
| 53 | 20 | Engine Control Module (ECM), ECM Relay, NVIS |
| 54 | 15 | Air Flow Sensor, Heated Oxygen Sensor |
| 55 | 15 | Injectors |
| 56 | 20 | Front Fog Lamps |
| 57 | – | Not Used |
| Relays: | ||
| R1 | Rear Window Defogger | |
| R2 | Cooling Fan (Low) | |
| R3 | Cooling Fan (High) | |
| R4 | Ignition | |
| R5 | Horn |
Relay Box
| № | Amp | Description |
|---|---|---|
| 57 | 10 | Transfer Shut Off Relay 1 and Relay 2, Transfer Control Unit |
| 58 | 10 | 4WD Shift Switch, Transfer Control Unit |
| 59 | – | Not Used |
| 60 | 15 | 2006-2014: Body Control Module, Trailer Tow |
| Relays: | ||
| R1 | 2006-2014: Tailer Turn (right) | |
| R2 | Transfer Shut Off Relay 2 (with 4WD) | |
| R3 | Daytime Light Relay 2 | |
| R4 | Stop Lamp (with hill descent control and hillstart assist) 2006-2014: Clutch Interlock Cancel Relay 1 | |
| R5 | Daytime Light Relay 1 | |
| R6 | Back-up Lamp (with automatic transmission) 2006-2014: Clutch Interlock Cancel Relay 2 | |
| R7 | Front Blower Motor | |
| R8 | Transfer Shift Low (with 4WD) | |
| R9 | Transfer Shut Off Relay 1 (with 4WD) | |
| R10 | Transfer Shift High (with 4WD) | |
| R11 | 2004-2005: Clutch Interlock Cancel Relay 2 2006-2014: Tailer Turn (left) | |
| R12 | 2006-2014: Back-up Lamp (with manual transmission) | |
| R13 | 2006-2014: Trailer Tow Relay 1 | |
| R14 | 2006-2014: Trailer Tow Relay 2 |
