Opel Combo (2019 – 2022) Fuse Box Location & Diagrams
The Opel Combo (2019-2022) fuse box is essential for maintaining your vehicle’s electrical system. This user guide provides clear fuse box diagrams and locations, making it easy for you to troubleshoot and resolve any electrical problems, ensuring optimal vehicle performance.
Passenger Compartment Fuse Box Diagram
Opel Combo (2019 to 2022)
Fuse Box Location

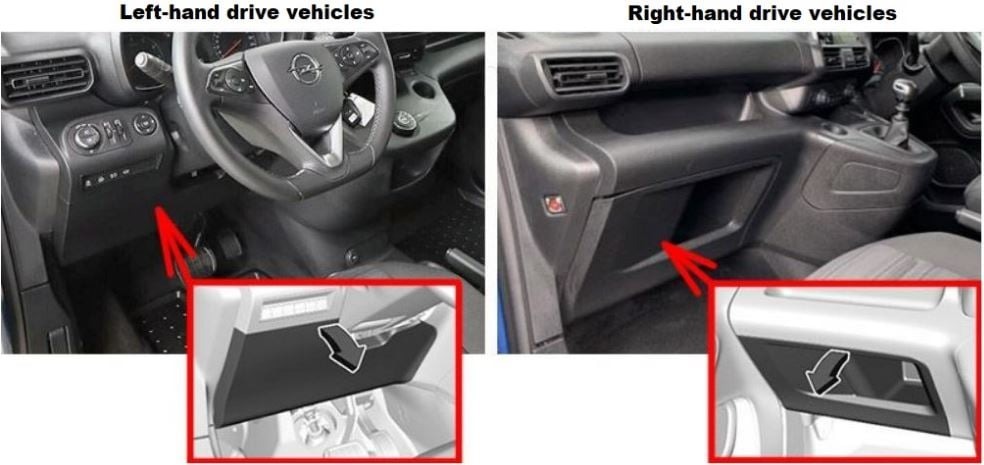

The fuse box is located behind a cover in the instrument panel at the left side.

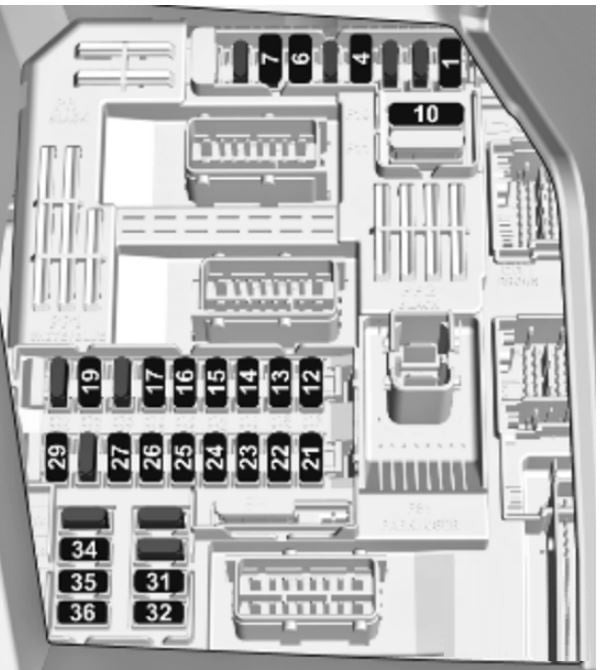

Fuse Box Diagram
| No | Circuit |
|---|---|
| 1 | Inductive charging, clutch switch, selective ride control, power steering, diesel exhaust system, interior mirror |
| 4 | Horn |
| 5 | Windscreen washer (Electric vehicle) |
| 6 | Windscreen washer |
| 7 | Power outlet rear |
| 8 | Rear wiper (Electric vehicle) |
| 10 | Door lock |
| 12 | Diagnostic connector, power supply transformer |
| 13 | Head-up display, climate control, Infotainment system |
| 14 | Anti-theft alarm system, telematic unit (Non-electric vehicle) Anti-theft alarm system, charging status indicator (Electric vehicle) |
| 15 | Automatic transmission, instrument cluster, climate control (Non-electric vehicle) Instrument socket, automatic gearbox selector (e-toggle) (Electric vehicle) |
| 16 | Starter, power supply transformer |
| 17 | Instrument cluster |
| 19 | Trailer socket, steering wheel controls (Non-electric vehicle) Steering wheel controls, top column module (Electric vehicle) |
| 21 | Anti-theft system, power button |
| 22 | Rear view camera, rain and light sensor |
| 23 | Seat belt reminder, special vehicle control module, start-stop, trailer socket |
| 24 | Parking assist, Infotainment system, rear view camera, side blind spot camera |
| 25 | Airbag |
| 26 | Steering angle sensor (Non-electric vehicle) Panoramic view system (Electric vehicle) |
| 27 | Parking heater (Non-electric vehicle) |
| 29 | Infotainment system |
| 31 | – |
| 32 | Power outlet |
| 34 | Parking assist, interior mirror |
| 35 | Diagnostic connector, headlight range adjustment, heated windscreen, climate control |
| 36 | Interior lights, USB port |
Engine Compartment Fuse Box Diagram
Opel Combo (2019 to 2022)
Fuse Box Location

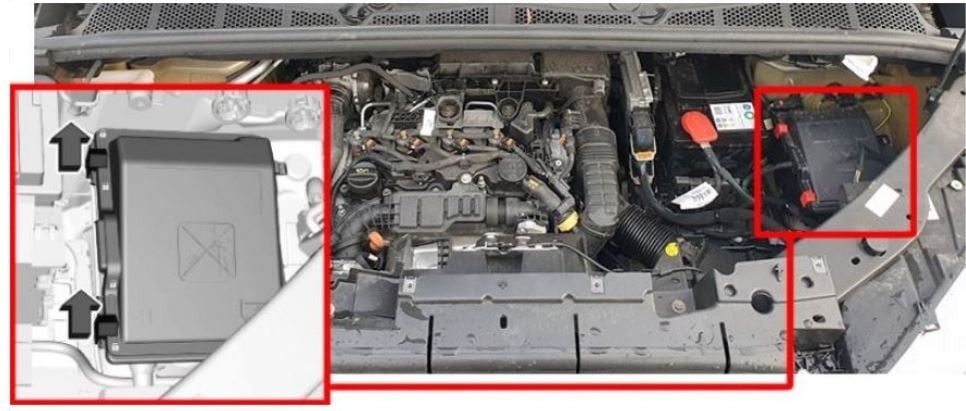

The fuse box is in the front left of the engine compartment. Disengage the cover and remove it.

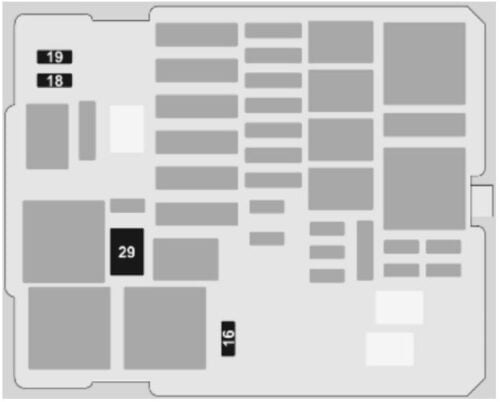

Fuse Box Diagram
| No | Circuit |
|---|---|
| 16 | Front fog lights |
| 18 | Right headlight |
| 19 | Left headlight |
| 29 | Windscreen wiper |
