Opel Combo (2012 – 2018) Fuse Box Location & Diagrams
The Opel Combo (2012-2018) fuse box plays a key role in the vehicle’s electrical system. This user guide offers detailed diagrams and location information, helping you quickly locate and fix any fuse-related issues to maintain your vehicle’s performance and reliability.
Fuse Box Locations
Passenger Compartment

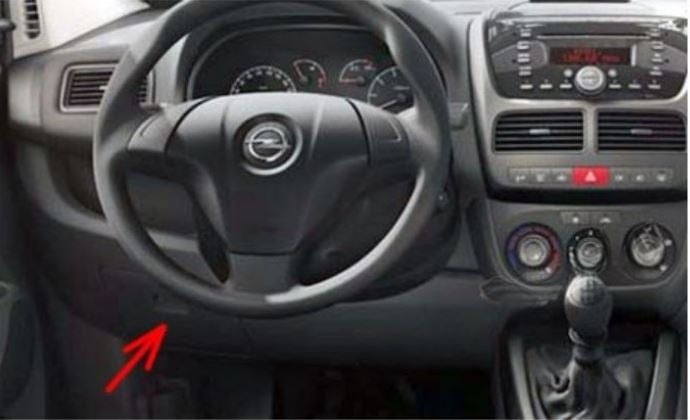

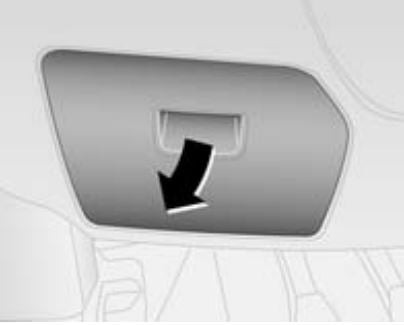

The fuse box is located behind a cover on the lower part of the instrument panel, on the driver’s side.
Engine Compartment

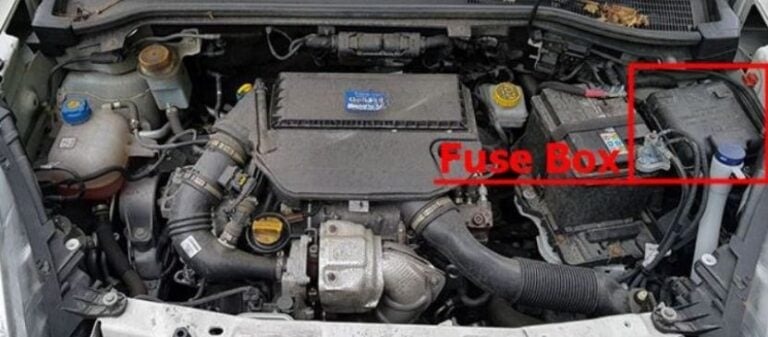

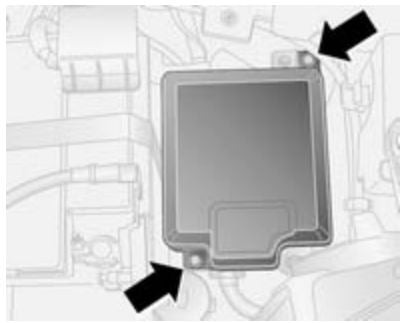

The fuse box is on the right of the engine compartment, next to the battery.

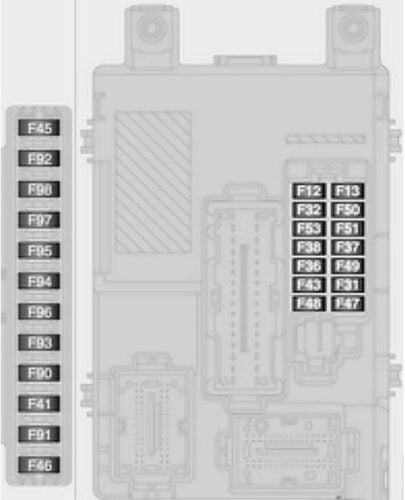

Passenger Compartment Fuse Box Diagram
Opel Combo (2013, 2014 and 2015)
| No | Circuit |
|---|---|
| F12 | Right low beam |
| F13 | Left low beam/Headlight range adjustment |
| F31 | Fusebox relays/Body control unit relays |
| F32 | Courtesy lights |
| F36 | Diagnostic connector, climate control system, Infotainment system |
| F37 | Instrument panel/Braking system |
| F38 | Central locking system |
| F41 | – |
| F43 | Windscreen washer system |
| F45 | – |
| F46 | – |
| F47 | Power windows |
| F48 | Power windows |
| F49 | Exterior mirrors, Infotainment system, parking assist |
| F50 | – |
| F51 | Infotainment system, braking system, clutch |
| F53 | Instrument panel |
| F90 | – |
| F91 | – |
| F92 | – |
| F93 | – |
| F94 | Power outlet load compartment |
| F95 | Cigarette lighter/Power outlet |
| F96 | Cigarette lighter/Power outlet |
| F97 | Heated front seat |
| F98 | Heated front seat |
Opel Combo (2016, 2017 and 2018)
| No | Circuit |
|---|---|
| F12 | Right low beam |
| F13 | Left low beam/Headlight range adjustment |
| F31 | Fusebox relays/Body control unit relays |
| F32 | Courtesy lights |
| F36 | Diagnostic connector/Climate control system/Infotainment system/Tyre pressure moni‐ toring system/Alarm siren |
| F37 | Instrument panel/Braking system |
| F38 | Central locking system |
| F41 | – |
| F43 | Windscreen washer system |
| F45 | – |
| F46 | – |
| F47 | Power windows |
| F48 | Power windows |
| F49 | Exterior mirrors/Infotainment system/Parking assist/Tyre pressure monitoring system/ Instrument illumination/Rain sensor |
| F50 | – |
| F51 | Infotainment system/Braking system/Clutch/Interior heater |
| F53 | Instrument panel |
| F90 | – |
| F91 | – |
| F92 | – |
| F93 | – |
| F94 | Power outlet load compartment |
| F95 | Cigarette lighter/Power outlet |
| F96 | Cigarette lighter/Power outlet |
| F97 | Heated front seat |
| F98 | Heated front seat |

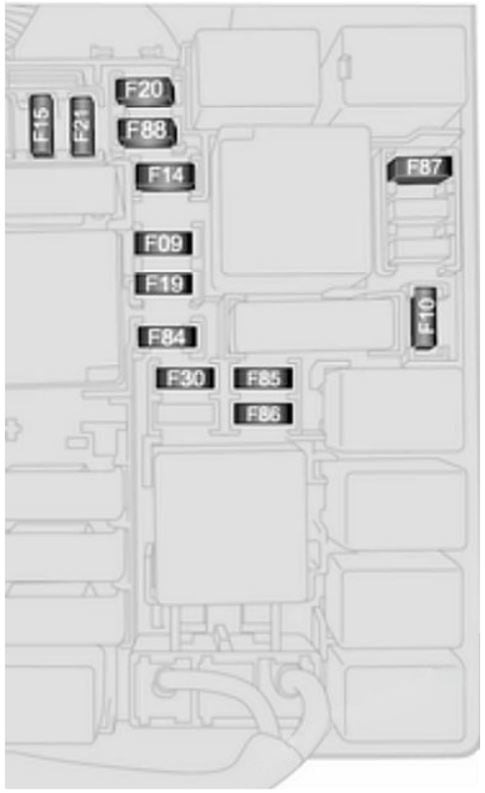

Engine Compartment Fuse Box Diagram
Opel Combo (2013, 2014 and 2015)
| No | Circuit |
|---|---|
| F09 | Rear door switch |
| F10 | Horn |
| F14 | High beam |
| F15 | PTCI additional heater |
| F19 | Air conditioning system |
| F20 | Heated rear window |
| F21 | Fuel pump |
| F30 | Fog lights |
| F84 | CNG system |
| F85 | Power outlets |
| F86 | Cigarette lighter/Heated seats |
| F87 | Stop-start system |
| F88 | Mirror heating |
Opel Combo (2016, 2017 and 2018)
| No | Circuit |
|---|---|
| F09 | Rear door switch |
| F10 | Horn |
| F14 | High beam |
| F15 | PTCI additional heater |
| F19 | Air conditioning system |
| F20 | Heated rear window |
| F21 | Fuel pump |
| F30 | Fog lights |
| F84 | CNG system |
| F85 | Power outlets |
| F86 | Cigarette lighter/Heated seats |
| F87 | Stop-start system |
| F88 | Mirror heating |
