Opel Combo (2001 – 2011) Fuse Box Location & Diagrams
The Opel Combo (2001-2011) fuse box is vital for your vehicle’s electrical system. This user guide provides comprehensive diagrams and location details to help you identify and resolve fuse-related issues quickly, ensuring optimal vehicle performance.
Fuse Box Location
Engine Compartment

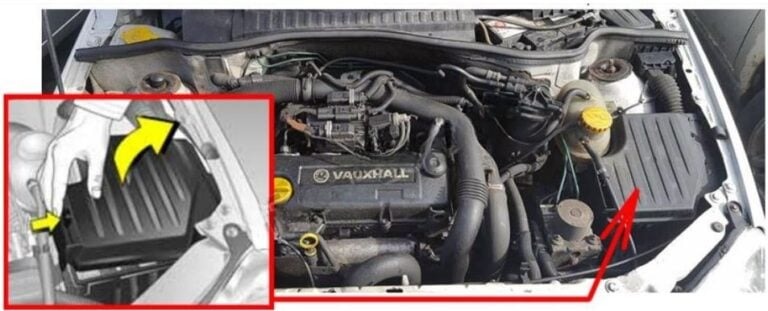

The fuse box is located in the engine compartment next to the coolant expansion tank.

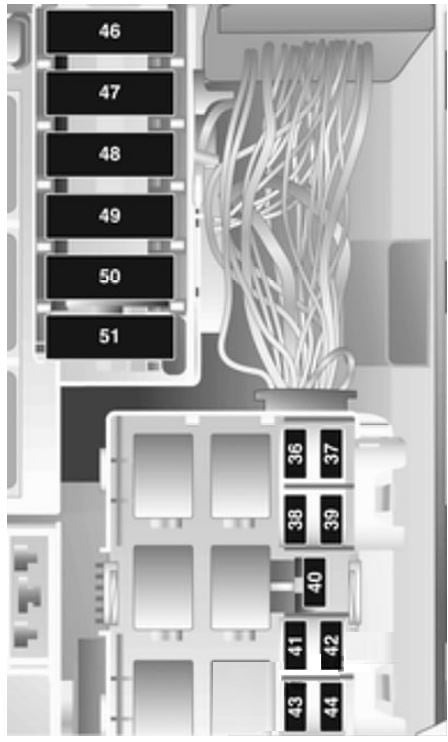

Vehicles with engine Z13DTJ

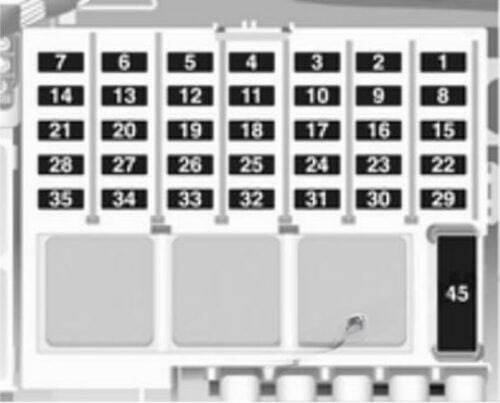

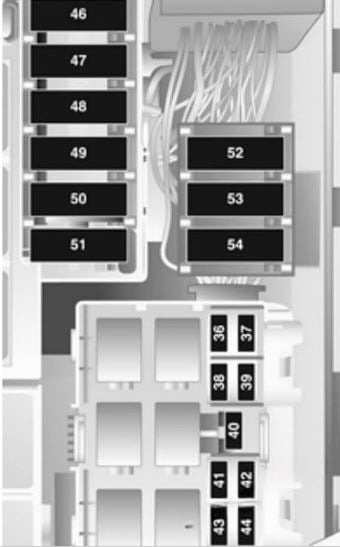

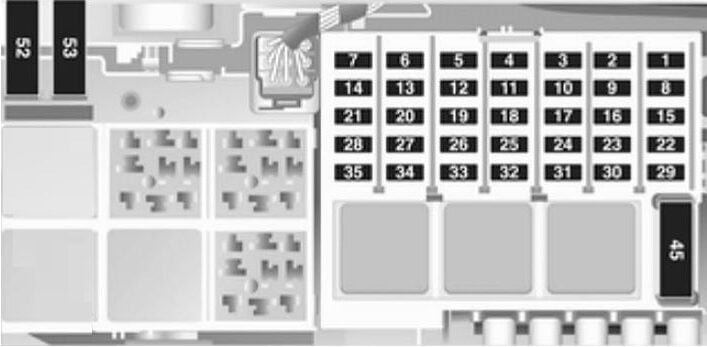

Other engines
Assignment of the fuses
| No | Circuit |
|---|---|
| 1 | Central control unit |
| 2 | Engine control unit |
| 3 | Instruments, information display, light switch, horn, hazard warning lamps, immobiliser |
| 4 | Towing equipment, number plate lights |
| 5 | Power window (left) |
| 6 | – |
| 7 | – |
| 8 | Starter |
| 9 | Fuel injection system, fuel pump, stationary heater |
| 10 | Horn |
| 11 | Central control unit |
| 12 | Information display, infotainment system |
| 13 | Anti-theft alarm system |
| 14 | Exterior mirrors |
| 15 | Windscreen washer system |
| 16 | Courtesy light |
| 17 | Central control unit |
| 18 | – |
| 19 | Power window (right) |
| 20 | Central control unit, immobiliser |
| 21 | – |
| 22 | – |
| 23 | Windscreen wipers |
| 24 | Infotainment system, information display, light switch, courtesy lamp, instruments, EPS |
| 25 | Reversing lights, cigarette lighter, power outlet |
| 26 | Seat heater (right) |
| 27 | Seat heater (left) |
| 28 | ABS |
| 29 | Rear window wiper |
| 30 | Engine control unit |
| 31 | Air conditioning system |
| 32 | ABS, manual transmission automated, airbag |
| 33 | Engine control |
| 34 | Diesel filter heater |
| 35 | Power windows, Infotainment system |
| 36 | Low beam (left) |
| 37 | Low beam (right) |
| 38 | Left tail light, left parking light |
| 39 | Right tail light, right parking light |
| 40 | Brake light |
| 41 | Fog light |
| 42 | Rear fog light |
| 43 | High beam (left) |
| 44 | High beam (right) |
| 45 | Ventilation fan |
| 46 | Engine control unit |
| 47 | Heated rear window |
| 48 | Starter |
| 49 | EPS |
| 50 | ABS |
| 51 | Petrol engine: manual transmission automated Diesel engine: engine control unit |
| 52 | Radiator fan |
| 53 | Cooling fan, air conditioning system |
| 54 | Manual transmission automated |
