Peugeot Expert VU (2016 – 2019) Fuse Box Diagrams & Location
The Peugeot Expert VU (2016–2019) offers a convenient layout for its fuse box, designed to help drivers easily locate and manage their vehicle’s fuses. This guide provides detailed diagrams and locations for quick access and troubleshooting, ensuring you stay on top of any electrical issues.
Passenger Compartment Fuse Box
Peugeot Expert VU (2016 to 2019)

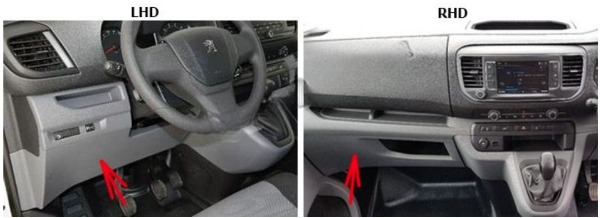

Fuse Box Location

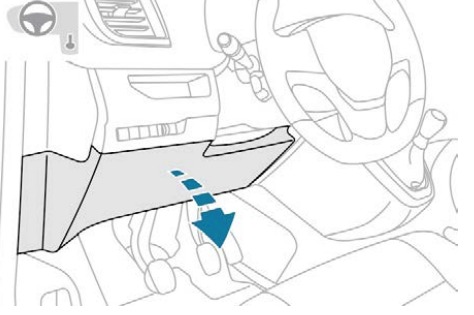

- Left-hand drive vehicles: the fusebox is placed in the lower dashboard (left-hand side). Unclip the cover by pulling at top left, then right.
- Right-hand drive vehicles: it is located in the left-hand part of the glove box.

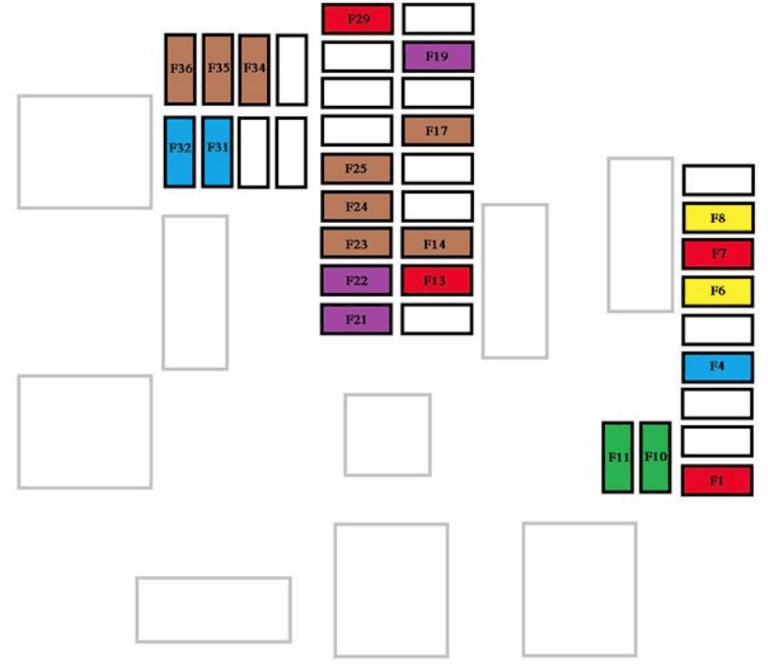

Fuse box diagram (Version 1 (Eco))
Assignment of the fuses in the Dashboard Fuse box Version 1 (Eco)
| Fuse N° | Rating (A) | Functions |
| F1 | 10 | Electric power steering, clutch switch. |
| F4 | 15 | Horn. |
| F5 | 20 | Front/rear screenwash pump. |
| F6 | 20 | Front/rear screenwash pump. |
| F7 | 10 | Rear 12 V accessory socket. |
| F8 | 20 | Single or double rear wipers. |
| F10/F11 | 30 | Internal/external locks, front and rear. |
| F13 | 10 | Front air conditioning controls, audio system controls, gear lever, head-up display. |
| F14 | 5 | Alarm, emergency and assistance calls. |
| F17 | 5 | Instrument panel. |
| F19 | 3 | Steering mounted controls. |
| F21 | 3 | Keyless Entry and Starting or anti-theft system. |
| F22 | 3 | Rain and sunshine sensor, multifunction detection camera. |
| F23 | 5 | Seat belt unfastened or not fastened display screen. |
| F24 | 5 | Touch screen, reversing camera and parking sensors. |
| F25 | 5 | Airbags. |
| F29 | 20 | Audio system, touch screen, CD player, navigation. |
| F31 | 15 | Audio system (+ battery). |
| F32 | 15 | Front 12 V accessory socket. |
| F34 | 5 | Blind spot monitoring system, door mirror electric controls. |
| F35 | 5 | Heated washer jets, headlamp beam height control. |
| F36 | 5 | Torch charger, rear courtesy lamp. |

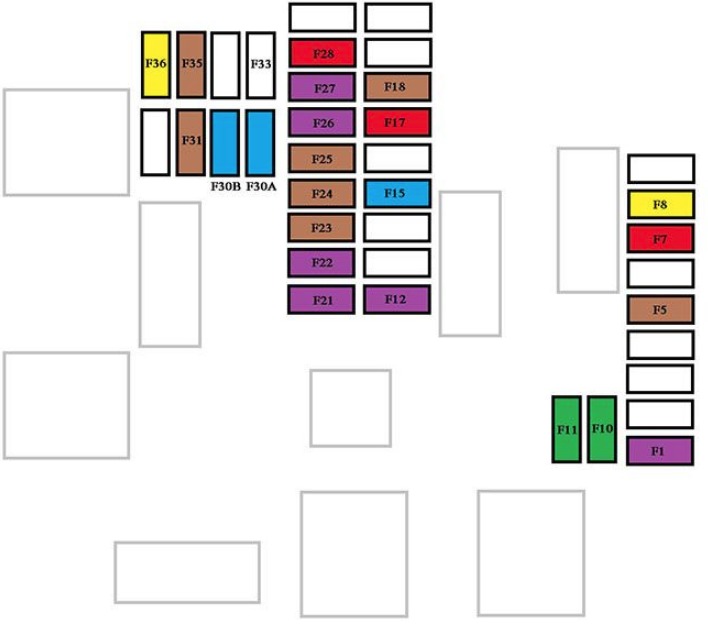

Fuse box diagram (Version 2 (Full))
Assignment of the fuses in the Dashboard Fuse box Version 2 (Full)
| Fuse N° | Rating (A) | Functions |
| F1 | 3 | Keyless Entry and Starting or anti-theft system. |
| F5 | 5 | Touch screen, reversing camera and parking sensors. |
| F7 | 10 | Rear air conditioning controls, Hi-Fi amplifier. |
| F8 | 20 | Single or double rear wipers. |
| F10/F11 | 30 | Internal/external locks, front and rear. |
| F12 | 3 | Alarm. |
| F17 | 10 | Rear 12 V accessory socket. |
| F18 | 5 | Emergency and assistance calls. |
| F21 | 3 | Torch charger, rear courtesy lamp. |
| F22 | 3 | Glove box lamp, rear courtesy lamps. |
| F23 | 5 | Blind spot monitoring system, door mirror electric controls. |
| F24 | 5 | Steering mounted controls. |
| F25 | 5 | Headlamp beam height control. |
| F26 | 3 | Seat belt unfastened or not fastened display screen. |
| F27 | 3 | Rain and sunshine sensor, multifunction detection camera. |
| F28 | 10 | Front air conditioning controls, radio controls, gear lever, head-up display. |
| F30A or B | 15 | Audio system (+ battery). |
| F31 | 5 | Airbags. |
| F33 | 15 | Front 12 V accessory socket. |
| F35 | 5 | Instrument panel. |
| F36 | 20 | Audio system, touch screen, CD player, navigation. |
Engine Compartment Fuse Box
Peugeot Expert VU (2016 to 2019)

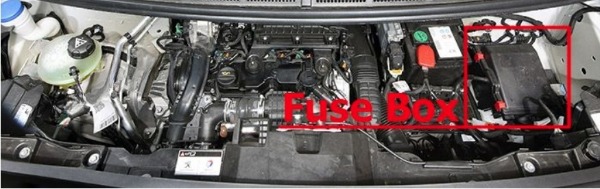

The fusebox is located in the engine compartment near the battery.

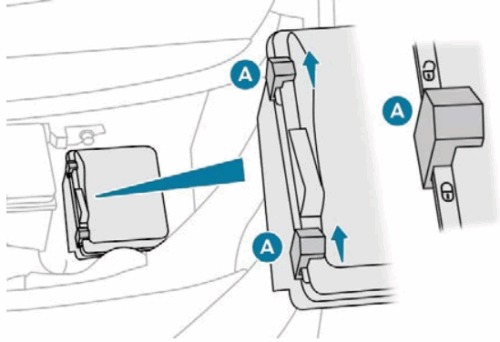

For access, release the two latches A, remove the cover.
Assignment of the fuses in the engine compartment
| Fuse No. | Rating (A) | Functions |
| F12 | 5 | Heated washer jets. |
| F14 | 25 | Front and rear screenwash pump. |
| F15 | 5 | Emergency braking front radar, electric power steering. |
| F17 | 10 | Built-in systems interface. |
| F19 | 30 | Front wiper motor. |
| F20 | 15 | Front and rear screenwash pump. |
| F21 | 20 | Headlamp wash pump. |
| F22 | 15 | Horn. |
| F23 | 15 | Right-hand main beam headlamp. |
| F24 | 15 | Left-hand main beam headlamp. |
