Peugeot Expert VU (2007 – 2015) Fuse Box Diagrams & Location
The Peugeot Expert VU (2007-2015) is a reliable commercial vehicle, and knowing its fuse box layout is essential for proper maintenance. This comprehensive user guide covers the fuse box location and includes detailed diagrams to help you identify and replace fuses easily. Whether you’re troubleshooting electrical problems or performing regular upkeep, this guide provides the clarity you need for efficient repairs on your Peugeot Expert VU.
Fuse Box Locations

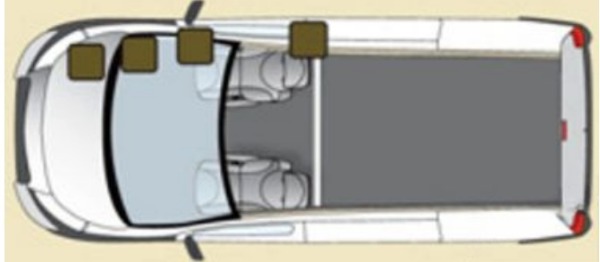

The three fuse boxes are placed:

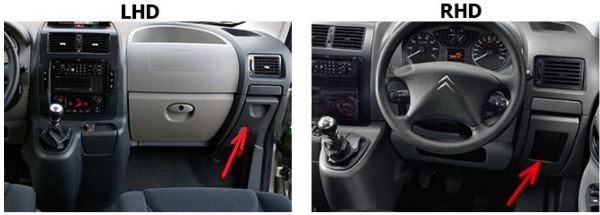

In the fascia panel on the right-hand side (behind the storage compartment, retractable). Tilt the storage compartment then pull it firmly to access the fuses.

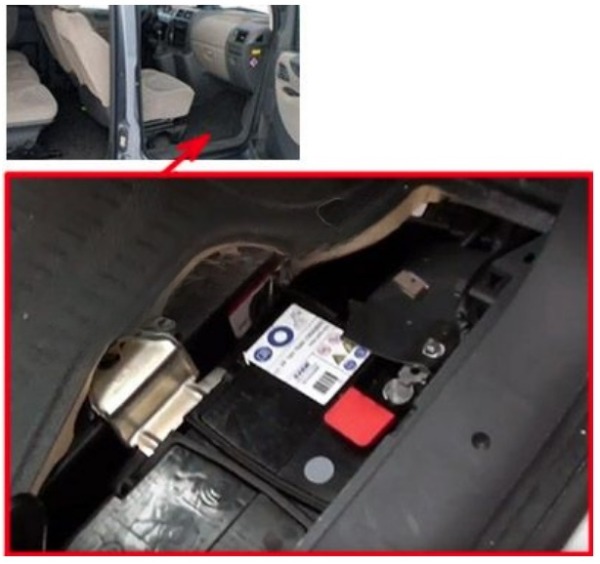

In the passenger compartment (battery compartment).
Unclip the battery compartment cover, remove the red battery terminal (+).

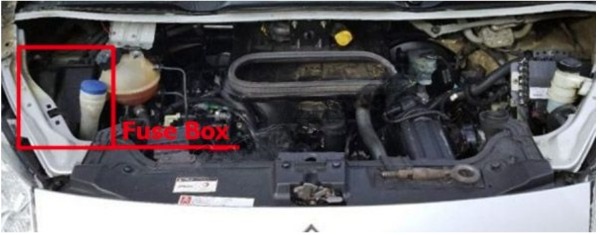

Under the bonnet.
After opening the bonnet, slide the screenwash support to make access easier; unclip and tilt the box to access the fuses.

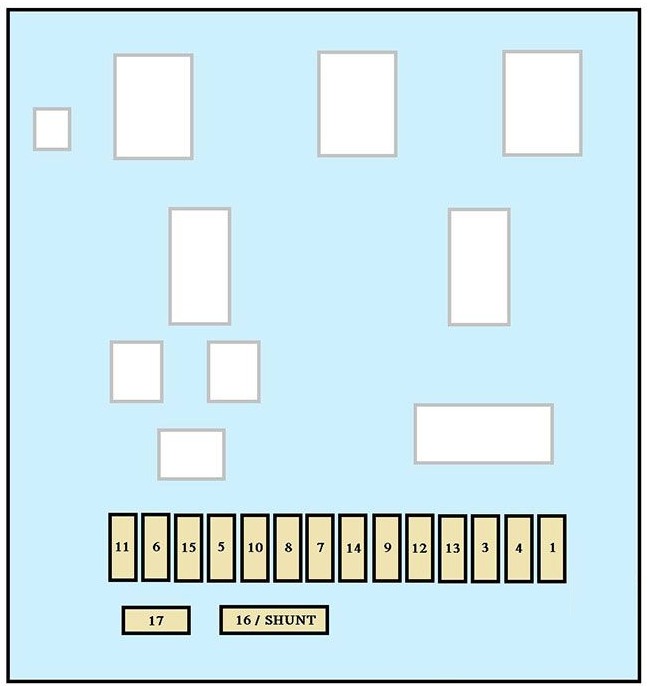

Dashboard Fuse box diagram
Peugeot Expert VU (2007 to 2015)
Assignment of the fuses in the Dashboard Fuse box
| No | A (amps) | Allocation |
|---|---|---|
| 1 | 15 | Rear wiper |
| 2 | – | Free |
| 3 | 5 | Airbag control unit |
| 4 | 10 | Steering wheel angle sensor, Diagnostic socket, ESP sensor, Manual ventilation, Clutch switch, Headlamp beam height, Particle emission filter pump |
| 5 | 30 | Electric mirrors, Passenger electric window motor |
| 6 | 30 | Front electric windows supply |
| 7 | 5 | Courtesy lamps and glove box lamp |
| 8 | 20 | Multifunction screen, Anti-theft alarm siren, Audio equipment, Compact disc changer, Audio/telephone, Trailer fusebox (accessory), Coachbuilder/vehicle converter unit (platform cab) |
| 9 | 10 | Load space accessory socket |
| 10 | 30 | Rear ride height corrector, Steering wheel switching, Instrument panel |
| 11 | 15 | Diagnostic socket, Ignition switch |
| 12 | 15 | Hands-free kit, Airbag control unit, Parking sensors control unit |
| 13 | 5 | Engine fusebox, Trailer fusebox |
| 14 | 15 | Rain sensor, Digital air conditioning, Instrument panel |
| 15 | 30 | Locking/unlocking/deadlocking |
| 16 | – | Free |
| 17 | 40 | Heated rear screen, Heated mirrors |
| 17 | 10 | Heated mirrors only |
Passenger compartment fuses diagram
Peugeot Expert VU (2007 to 2015)
Assignment of the fuses in the passenger compartment
| No | Amperes | Allocation |
|---|---|---|
| 1 | 30 | Heated seats |
| 2 | 20 /- | Battery state of charge unit/Free |
| 3 | 40/50 | Trailer fuse box (accessory) / Coachbuilder/vehicle modifier unit (platform cab) |
| 4 | – | Free |
| 36 | 15 | Hinged door locks |
| 37 | 10 | Hinged door locks |
| 38 | 20 | Hinged door rear wiper |
| 39 | – | Free |
| 40 | 5 | Folding door mirrors |
Towing/towbar/coachbuilders/platform cab fuses
Peugeot Expert VU (2007 to 2015)

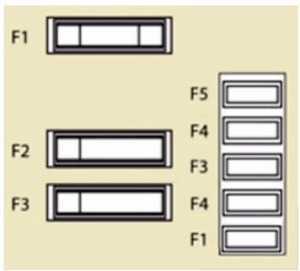

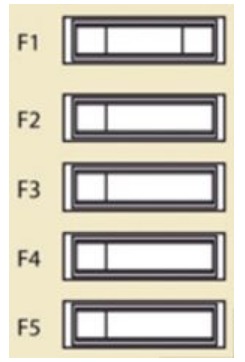

Assignment of the platform cab fuses
| No | Amperes | Allocation |
|---|---|---|
| 1 | 15 | Free |
| 2 | 15 | Ignition relay and optional generator |
| 3 | 15 | Trailer 12V supply |
| 4 | 15 | Permanent supply for vehicle converters |
| 5 | 10 | Hazard warning lamps |
Engine compartment diagram
Peugeot Expert VU (2007 to 2015)
Assignment of the fuses in the engine compartment
| No | Amperes | Allocation |
|---|---|---|
| 1 | 20 | Engine control unit, Fuel supply and air supply systems, Fan assembly |
| 2 | 15 | Horn |
| 3 | 10 | Front and rear screenwash pump |
| 4 | 20 | Headlamp wash pump |
| 5 | 15 | Fuel supply system |
| 6 | 10 | Power steering, Secondary brake pedal switch |
| 7 | 10 | Braking system (ABS/DSC) |
| 8 | 20 | Starter motor control |
| 9 | 10 | Main brake pedal switch |
| 10 | 30 | Fuel supply and air supply systems, Emissions control systems |
| 11 | 40 | Front ventilation |
| 12 | 30 | Windscreen wipers |
| 13 | 40 | Built-in systems interface |
| 14 | 30 | Free |
