Peugeot 508 (2011 – 2017) Fuse Box Location & Diagrams
The Peugeot 508 (2011-2017) offers a sleek design and advanced features, but understanding its fuse box is key to maintaining its electrical system. In this guide, we provide clear diagrams and detailed explanations of the fuse box location, helping you troubleshoot issues and perform efficient repairs. Whether you’re replacing a fuse or dealing with electrical problems, this user-friendly guide ensures quick and easy solutions for your Peugeot 508.
Fuse Box Locations
Passenger Compartment Fuse Box

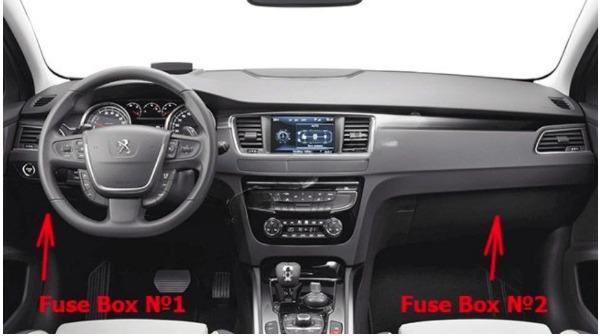

(Left-hand drive vehicles)

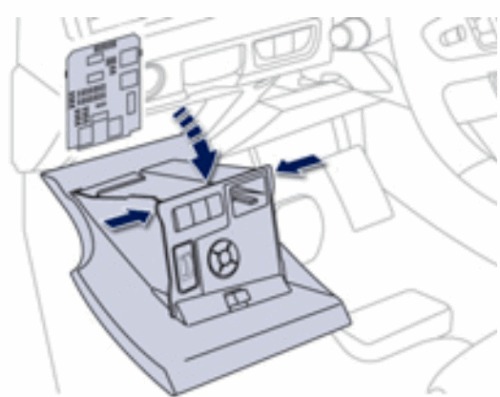

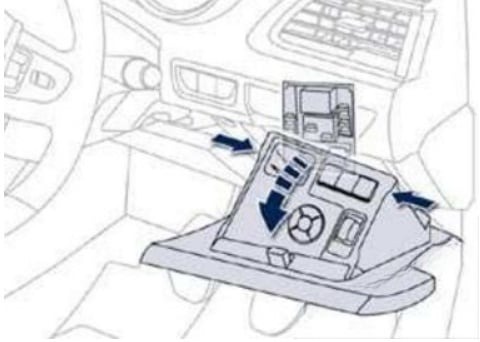

- The fusebox 1 is located in the lower dashboard (left-hand side). Open the hinged panel, then apply light force to bypass the stops

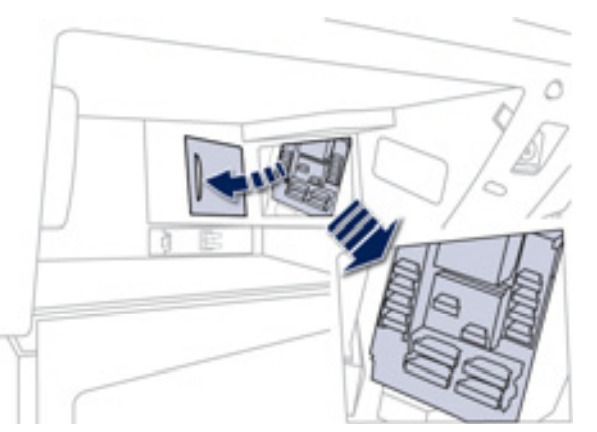

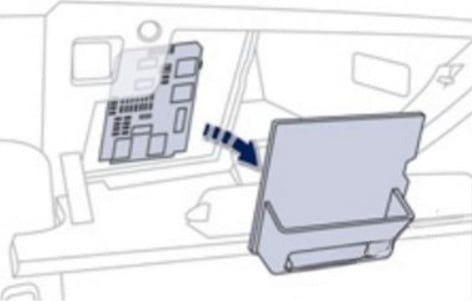

- The fusebox 2 is located in the glove box (right-hand side)

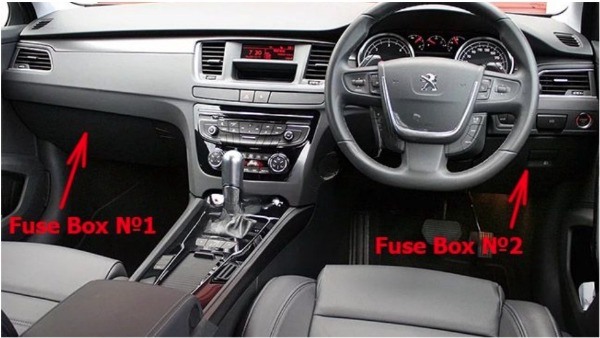

(Right-hand drive vehicles)
- The fusebox 1 is located in the glove box (left-hand side)
- The fusebox 2 is located in the lower dashboard (right-hand side)

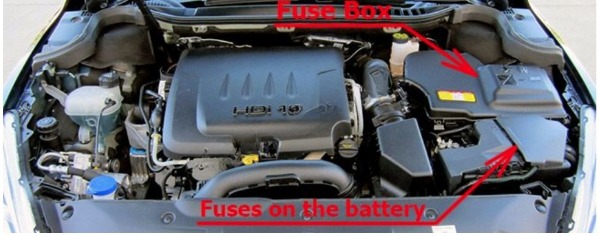

- Engine Compartment Fuse Box
It is placed in the engine compartment near the battery.
Passenger Compartment Fuse Box
Peugeot 508 (2011 to 2014)

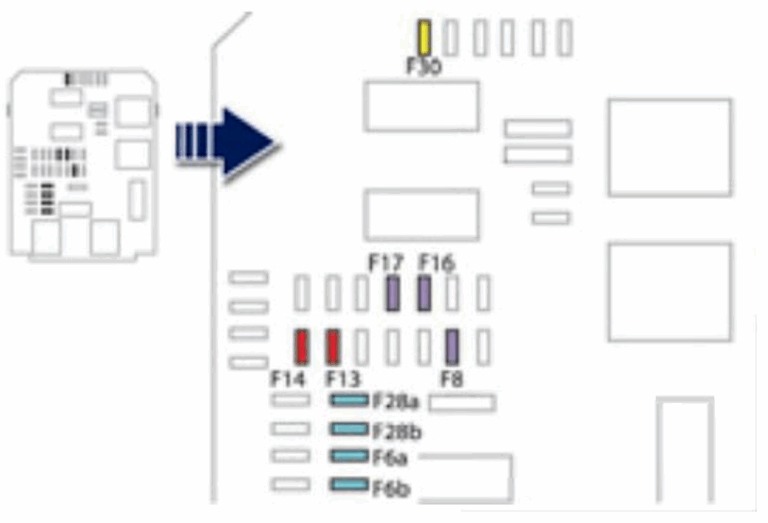

Dashboard Fuse box 1 (Left)
| Fuse No | Rating (A) | Functions |
|---|---|---|
| F6 A or B | 15 | Audio system. |
| F8 | 3 | Alarm. |
| F13 | 10 | Front cigar lighter. |
| F14 | 10 | Front 12 V socket. |
| F16 | 3 | Rear courtesy lamp, rear map reading lamps. |
| F17 | 3 | Rear courtesy lamp, courtesy mirror. |
| F28 A or B | 15 | Audio system. |
| F30 | 20 | Rear wiper. |
| F32 | 10 | Audio amplifier. |

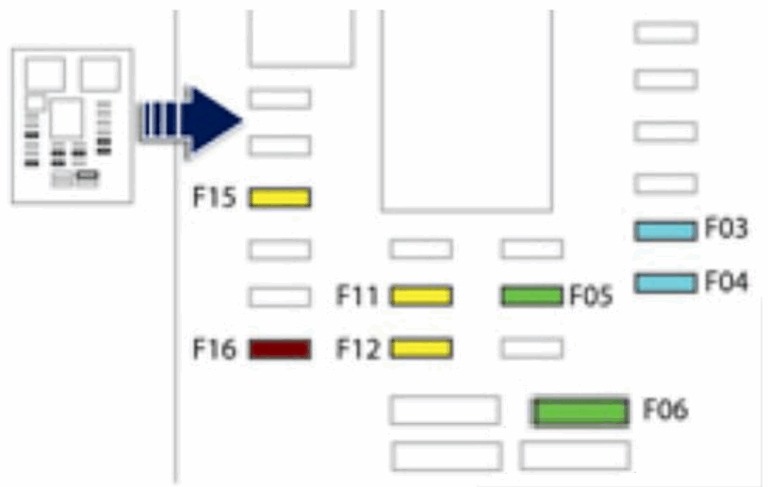

Dashboard Fuse box 2 (Right)
| Fuse No | Rating (A) | Functions |
|---|---|---|
| F3 | 15 | Driver’s electric window panel, 12 V socket for rear seats. |
| F4 | 15 | 12 V socket in boot. |
| F5 | 30 | One-touch rear window. |
| F6 | 30 | One-touch front window. |
| F11 | 20 | Trailer unit. |
| F12 | 20 | Audio amplifier. |
| F15 | 20 | Panoramic sunroof blind (SW). |
| F16 | 5 | Driver’s electric window switch panel. |
Peugeot 508 (2015 to 2017)
Dashboard Fuse box 1 (left)
| Fuse No | Rating (A) | Functions |
|---|---|---|
| F6 A or B | 15 | Audio system. |
| F8 | 3 | Alarm. |
| F13 | 10 | Front cigar lighter. |
| F14 | 10 | Front 12 V socket. |
| F16 | 3 | Rear courtesy lamp, rear map reading lamps. |
| F17 | 3 | Rear courtesy lamp, courtesy mirror. |
| F28 A or B | 15 | Audio system. |
| F30 | 20 | Rear wiper. |
| F32 | 10 | Audio amplifier. |
Dashboard Fuse box 2 (right)
| Fuse No | Rating (A) | Functions |
|---|---|---|
| F3 | 15 | Driver’s electric window panel, 12 V socket for rear seats. |
| F4 | 15 | 12 V socket in boot. |
| F5 | 30 | One-touch rear window. |
| F6 | 30 | One-touch front window. |
| F11 | 20 | Trailer unit. |
| F12 | 20 | Audio amplifier. |
| F15 | 20 | Panoramic sunroof blind (SW and non-hybrid RXH). |
| F16 | 5 | Driver’s electric window switch panel. |

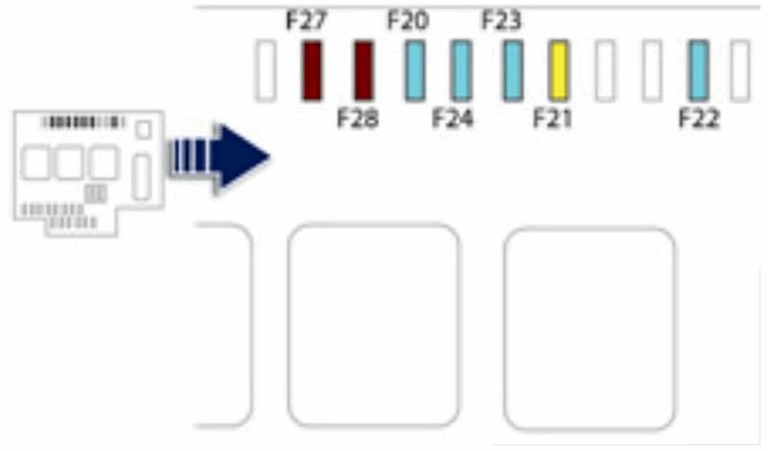

Engine Compartment Fuse Box
Peugeot 508 (2011 to 2014)
| Fuse No | Rating (A) | Functions |
|---|---|---|
| F20 | 15 | Front/rear screenwash pump. |
| F21 | 20 | Headlamp wash pump. |
| F22 | 15 | Horn. |
| F23 | 15 | Right-hand main beam headlamp. |
| F24 | 15 | Left-hand main beam headlamp. |
| F27 | 5 | Left hand lamp mask. |
| F28 | 5 | Right hand lamp mask. |
Peugeot 508 (2015 to 2017)
| Fuse No | Rating (A) | Functions |
|---|---|---|
| F20 | 15 | Front / rear screenwash pump. |
| F21 | 20 | Headlamp wash pump. |
| F22 | 15 | Horn. |
| F23 | 13 | Right-hand main beam headlamp. |
| F24 | 15 | Left-hand main beam headlamp. |
