Suzuki Jimny (2018 – 2020) Fuse Box Location & Diagrams
The Suzuki Jimny (2018-2020) is a rugged, compact SUV that’s built for adventure, but understanding its fuse box is essential for keeping it running smoothly. This user guide provides an in-depth look at the fuse box location and includes detailed diagrams for easy identification of each fuse. Whether you need to replace a fuse or solve electrical issues, this guide will help you navigate the fuse box with ease.
Fuse Box Locations

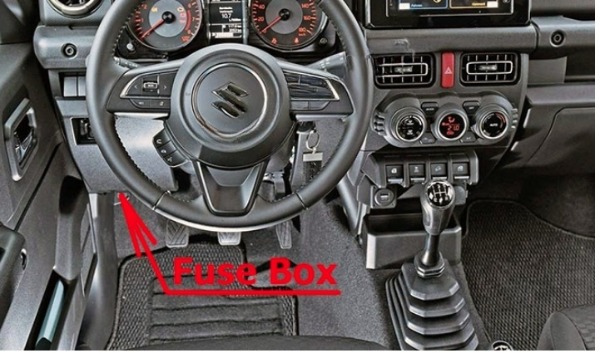

Passenger Compartment Fuse Box

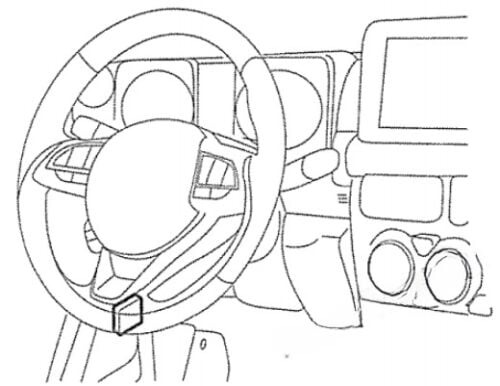

The fuse panel is located under the dashboard (on the driver’s side).

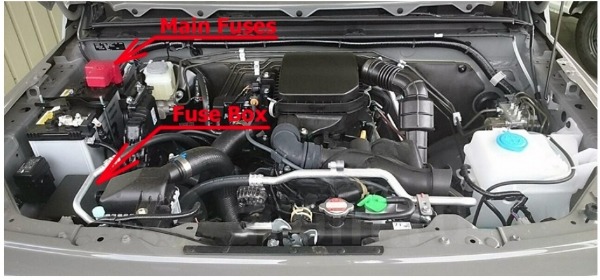

Engine Compartment Fuse Box
The main fuses are located on the positive terminal of the battery, the fuse box is located next to the battery.

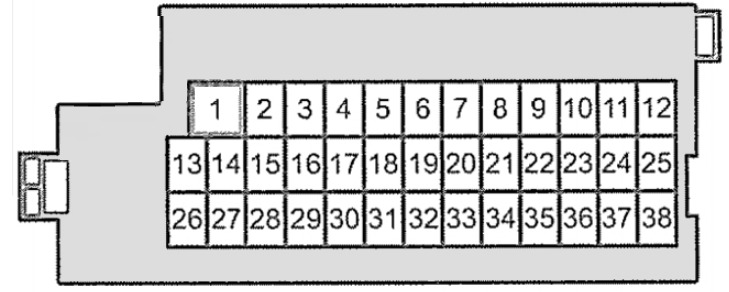

Passenger Compartment Fuse Box Diagram
Suzuki Jimny (2018, 20219 and 2020)
Assignment of the fuses in the instrument panel fuse box
| PRIMARY FUSE | ||
| (1) | 30A | Power window |
| (2) | 10A | Meter |
| (3) | 15A | Engine Control Module |
| (4) | SA | Jgnition-1 signal 2 |
| (5) | 20A | Blank |
| (6) | – | Blank |
| (7) | – | Blank |
| (8) | 20A | Door lock |
| (9) | 15A | Steering lock |
| (10) | 10A | Hazard |
| (11) | – | Blank |
| (12) | 10A | Rear fog lamp |
| (13) | SA | ABS/Esp® control mod- cle |
| (14) | 15A | Seat heater |
| (15) | SA | lgnition-1 signal 3 |
| (16) | 10A | Dome light-2 |
| (17) | SA | Dome light |
| (18) | 15A | Radio |
| (19) | SA | CONT |
| (20) | SA | Key2 |
| (21) | 20A | Power window timer |
| (22) | SA | Key |
| (23) | 15A | Horn |
| (24) | SA | Tail light (Left) |
| (25) | 10A | Tail light |
| (26) | 10 A | Airbag |
| (27) | 10A | lgnition-1 signal |
| (28) | 10 A | Back-up light |
| (29) | 5A | ACC-3 |
| (30) | 20A | Rear defogger |
| (31) | ‘ 10 A | Heated mirror |
| (32) | 15A | ACC-2 |
| (33) | SA | ACC |
| (34) | 10A | Rear wiper |
| (35) | SA | lgnition-2 signal |
| (36) | 15A | Washer |
| (37) | 25A | Front wiper |
| (38) | 10A | stop light |

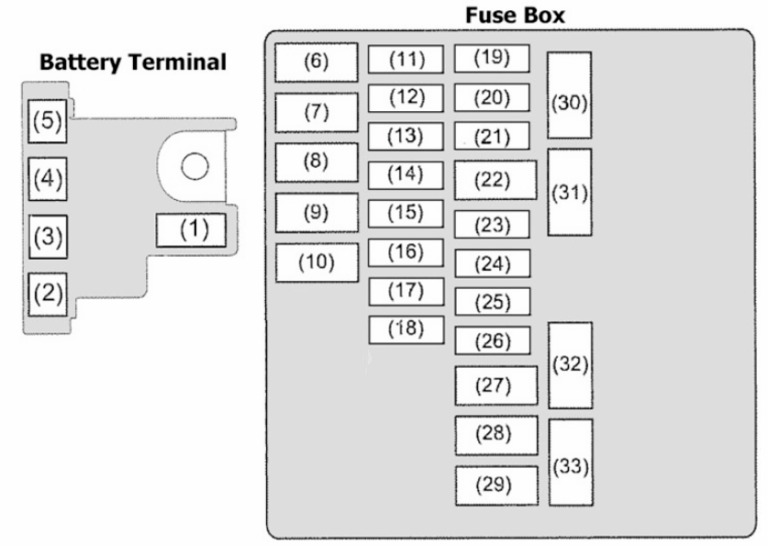

Engine Compartment Fuse Box Diagram
Suzuki Jimny (2018, 20219 and 2020)
Assignment of the fuses in the engine compartment fuse box
| MAIN FUSE / PRIMARY FUSE | ||
| (1) | 120A | FL1 |
| (2) | 100A | FL2 |
| (3) | 80A | FL3 |
| (4) | 100A | FL4 |
| (5) | SOA | FLS |
| (6) | SOA | Ignition switch |
| (7) | 40A | ABS motor |
| (8) | – | Blank |
| (9) | 30A | Blower fan |
| (10) | 30A | Starter motor |
| (11) | 30A | Headlight cleaner |
| (12) | 15A | Headlight (Right) |
| (13) | 15A | Headlight (Left) |
| (14) | 25A | ABS/ESP® control mod- ule |
| (15) | – | Blank |
| (16) | 15A | Ignition coil |
| (17) | 25A | Headlight high |
| (18) | 30A | Back up |
| (19) | – | Blank |
| (20) | 15A | Fuel injection |
| (21) | 15A | Transmission |
| (22) | SOA | Ignition sw2 |
| (23) | 10 A | AIC compressor |
| (24) | 10A | 4WD |
| (25) | 20A | Front fog light |
| (26) | – | Blank |
| (27) | 40A | Power steering |
| (28) | – | Blank |
| (29) | 40A | Radiator fan |
| (30) | – | Blank |
| (31 I | SA | Starter motor |
| (32) | 15A | Headlight high (Left) |
| (33) | 15A | Headlight high (Right) |
