Suzuki Jimny (2000 – 2017) Fuse Box Location & Diagrams
The Suzuki Jimny (2000-2017) is known for its compact design and off-road capabilities, but understanding its fuse box layout is crucial for maintenance. In this user guide, we’ll walk you through the fuse box location, explain its components, and provide clear diagrams for quick reference. Whether you’re troubleshooting electrical issues or performing routine checks, this guide makes it easier to find and replace fuses in your Jimny.
Passenger Compartment Fuse Box
Suzuki Jimny (2000 to 2017)

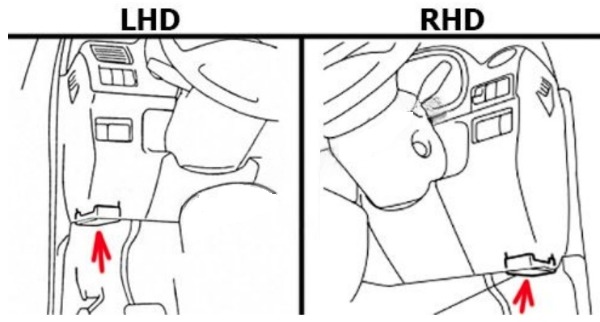

Fuse Box Location
The fuse box is located under the instrument panel (on the driver’s side).

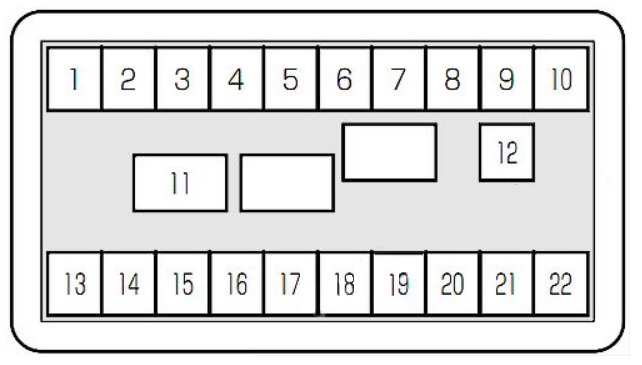

Fuse Box Diagram
Assignment of the fuses in the instrument panel
| No | Name | Amp | Description |
|---|---|---|---|
| 1 | IG2 SIG | 10A | IG2 SIG |
| 2 | REAR DEFG | 20A | Rear fog lamp |
| 3 | WIPER WASHER | 15A | Wiper, washer |
| 4 | SEAT HEATER | 15A | Seat heater |
| 5 | CIGAR | 15A | Cigarette lighter |
| 6 | DEICER | 15A | Rear window heater |
| 7 | HORN HAZARD | 15A | Horn, Hazard |
| 8 | RADIO DOME | 15A | Radio Interior lighting |
| 9 | — | — | Not used |
| 10 | — | — | Not used |
| 11 | ST | 10A | Starter |
| 12 | POWER WINDOW | 30A | Power windows |
| 13 | IG | 15A | Ignition switch |
| 14 | 4WD | 20A | 4WD |
| 15 | BACK | 10A | Revers lights |
| 16 | AIR BAG | 15A | Airbag |
| 17 | METER | 10A | Meter |
| 18 | ABS | 10A | ABS |
| 19 | AT | 10A | AT |
| 20 | TAIL | 10A | Tail lamp |
| 21 | STOP | 15A | Brake light |
| 22 | DOOR LOCK | 15A | Door lock |
Engine Compartment Fuse Box
Suzuki Jimny (2000 to 2017)

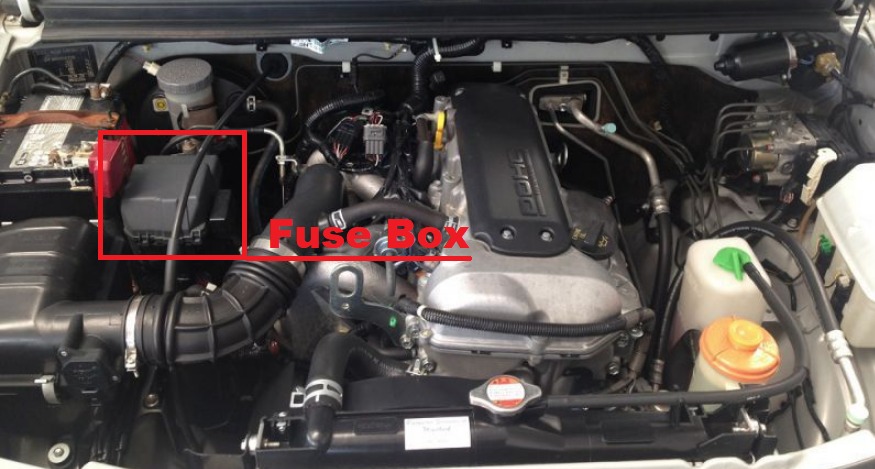

Fuse Box Location

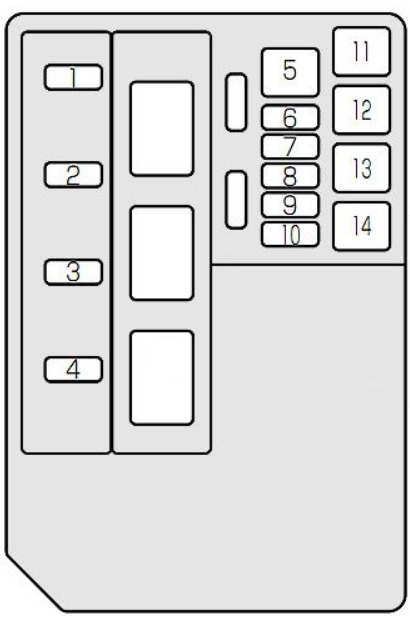

Fuse Box Diagram
Assignment of the fuses in the engine compartment
| No | Name | Amp | Description |
|---|---|---|---|
| 1 | CPRSR | 10A | Compressor |
| 1* | A/C | 20A | A/C system |
| 2 | ST | 30A | Starting motor |
| 3 | HTR FAN | 20A | Blower fan |
| 4 | FR FOG | 15A | Front fog light |
| 5 | LAMP | 50A | Lighting |
| 6 | H/L R | 15A | Headlight right |
| 7 | H/L L | 15A | Headlight left |
| 8 | RDTR | 30A | Radiator fan |
| 9 | P/S | 30A | Power steering |
| 10 | FI | 15A | EPI system |
| 11 | ABS SOL | 30A | ABS solenoid |
| 12 | IGN1 | 40A | Ignition |
| 13 | ABS MOT | 40A | ABS motor |
| 14 | IGN2 | 50A | Ignition Power windows |
