Suzuki SX4 (2014 – 2017) Fuse Box Location & Diagrams
In this user guide, we explore the fuse box location and diagrams for the Suzuki SX4 (2014-2017). Whether you’re troubleshooting or performing routine maintenance, this guide provides easy-to-follow instructions to help you locate and replace the right fuses. Ensure your vehicle’s electrical system stays in top condition with our expert insights!
Passenger Compartment Fuse Box
Suzuki SX4 (2014 to 2017)

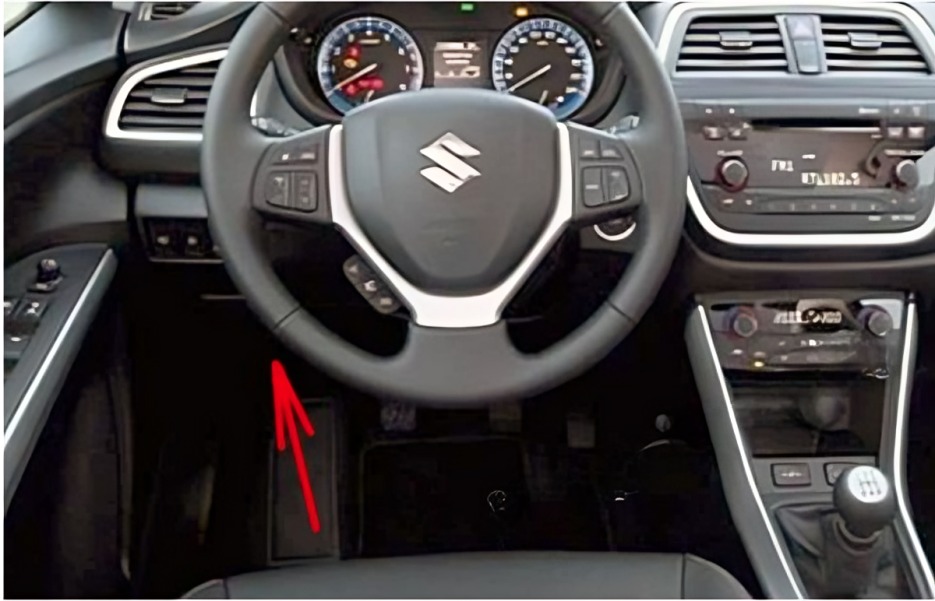

Fuse Box Location
The fuse box is located under the instrument panel (on the driver’s side).

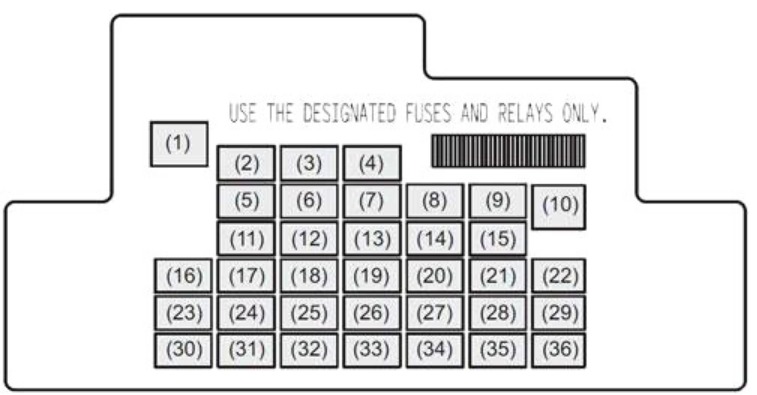

Fuse Box Diagram
Assignment of the fuses in the instrument panel
| No | Amp | Function/component |
|---|---|---|
| 1 | – | Not used |
| 2 | 20 | Power window timer |
| 3 | 15 | Steering lock |
| 4 | 20 | Rear defogger |
| 5 | 20 | Sunroof |
| 6 | 10 | DRL |
| 7 | 10 | Heated mirror |
| 8 | 7.5 | Starting signal |
| 9 | 15 | Accessory socket 2 |
| 10 | 30 | Power window |
| 11 | 10 | Hazard |
| 12 | 7.5 | BCM |
| 13 | 15 | Ignition coil |
| 14 | 10 | ABS control module |
| 15 | 15 | Accessory socket |
| 16 | 10 | A-STOP controller |
| 17 | 15 | Horn |
| 18 | 10 | Stop light |
| 19 | 10 | Air bag |
| 20 | 10 | Back-up light |
| 21 | 15 | Wiper / Washer |
| 22 | 30 | Front wiper |
| 23 | 10 | Dome light |
| 24 | 15 | 4WD |
| 25 | 7.5 | RR fog lamp |
| 26 | – | Not used |
| 27 | 7.5 | Ignition-1 signal |
| 28 | 15 | Radio 2 |
| 29 | 10 | Accessory socket 3 |
| 30 | 15 | Radio |
| 31 | 10 | Tail lamp |
| 32 | 20 | D/L |
| 33 | 7.5 | Cruise control |
| 34 | 10 | Meter |
| 35 | 7.5 | Ignition-2 signal |
| 36 | 20 | Seat heater |
Engine Compartment Fuse Box
Suzuki SX4 (2014 to 2017)

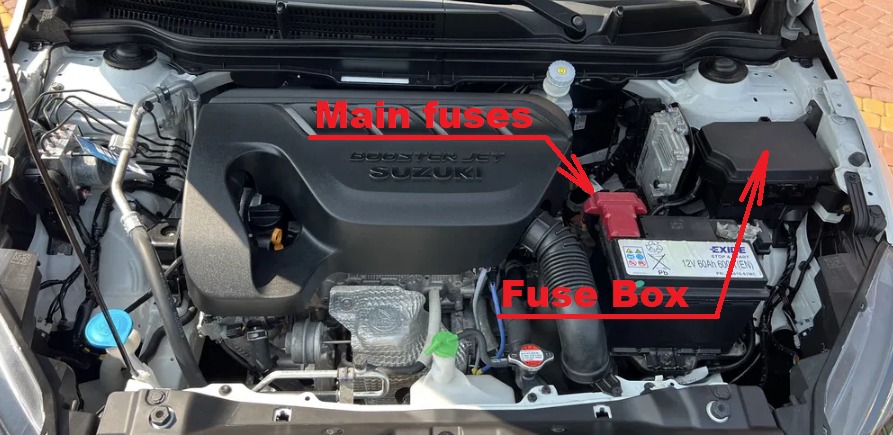

Fuse Box Location

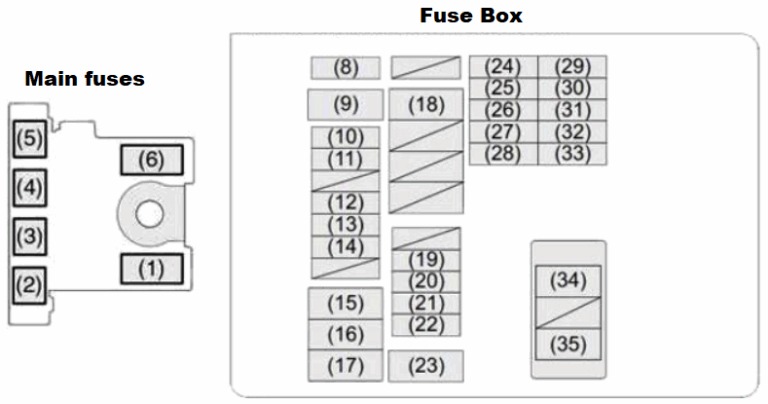

Fuse Box Diagram
Assignment of the fuses in the engine compartment
| No | Amp | Function/component |
|---|---|---|
| 1 | 60 | FL7 |
| 2 | 80 | FL6 |
| 3 | 100 | FL5 |
| 4 | 80 | FL4 |
| 5 | 100 | FL3 |
| 6 | 100 | FL2 |
| 7 | 120 | FL1 |
| 8 | 7.5 | Ignition-1 signal 2 (D16AA) |
| 9 | 30 | Radiator fan 2 |
| 10 | 20 | Front fog light |
| 11 | 7.5 | Headlight 2 |
| 12 | 25 | ABS control module |
| 13 | 25 | Headlight |
| 14 | 30 | Back up |
| 15 | 40 | Ignition switch |
| 16 | 40 | ABS motor |
| 17 | 30 | Starting motor |
| 18 | 30 | Radiator fan |
| 19 | 30 | FI main |
| 20 | 20 | Fuel pump |
| 21 | 10 | Air compressor |
| 22 | 7.5 | ECM (D13A) |
| 23 | 30 | Blower fan |
| 24 | 10 | FI 2 (D13A) |
| 25 | 20 | INJ DRV (D13A) |
| 26 | 7.5 | Starting signal |
| 27 | 15 | Headlight (Left) |
| 28 | 15 | Headlight high (Left) |
| 29 | 7.5 | FI 2 (D16AA) |
| 30 | 20 | INJ DRV (D16AA) |
| 31 | 15 | FI 3 (D16AA) |
| 32 | 15 | Headlight (Right) |
| 33 | 15 | Headlight high (Right) |
| 34 | 50 | Ignitbn switch 2 |
| 35 | 50 | Battery |
