Renault Clio (2020 – 2025) Fuse Box Location & Diagrams
This article provides detailed information about the fuse box locations and fuse diagrams for the Renault Clio models from 2020 to 2025. It helps owners quickly identify fuse assignments, troubleshoot electrical issues, and locate the correct fuse for various vehicle systems and components.
Fuse Box Location
Passenger Compartment Fuse Box
Driver Side Fuse Box

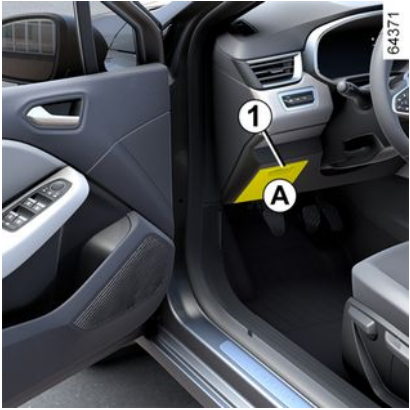

- Unclip the flap 1.

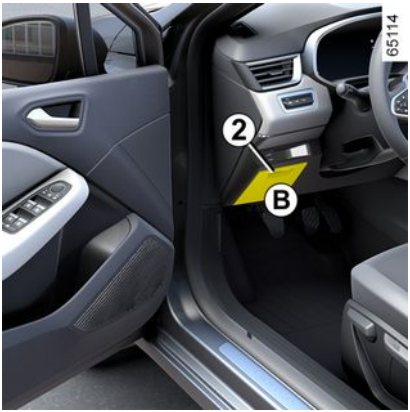

- Unclip the access flap 2.
Open and tilt the flap 2 completely, then pull it downwards to move it in order to access the fuses.

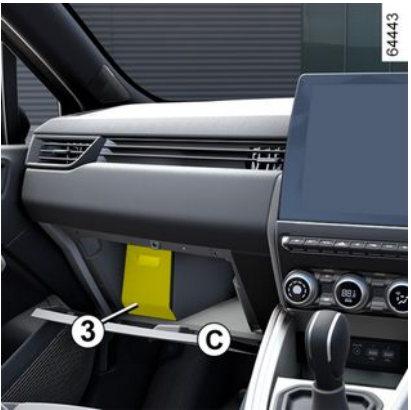

Passenger Side Fuse Box
- Unclip the flap 3
- Remove the fuse using the tweezers located on the back of the flap.
To remove the fuse from the tweezers, slide the fuse to the side. It is not advisable to use the free fuse locations.
Engine Compartment Fuse Box

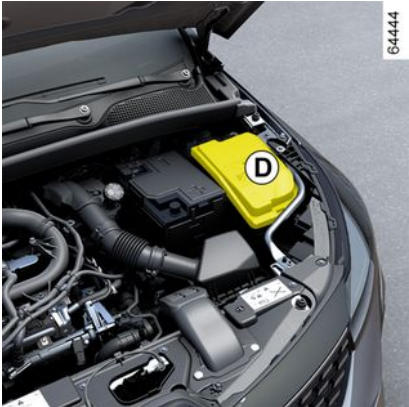

Some functions are protected by fuses located in fuse box D in the engine compartment.
Fuse Box Diagrams

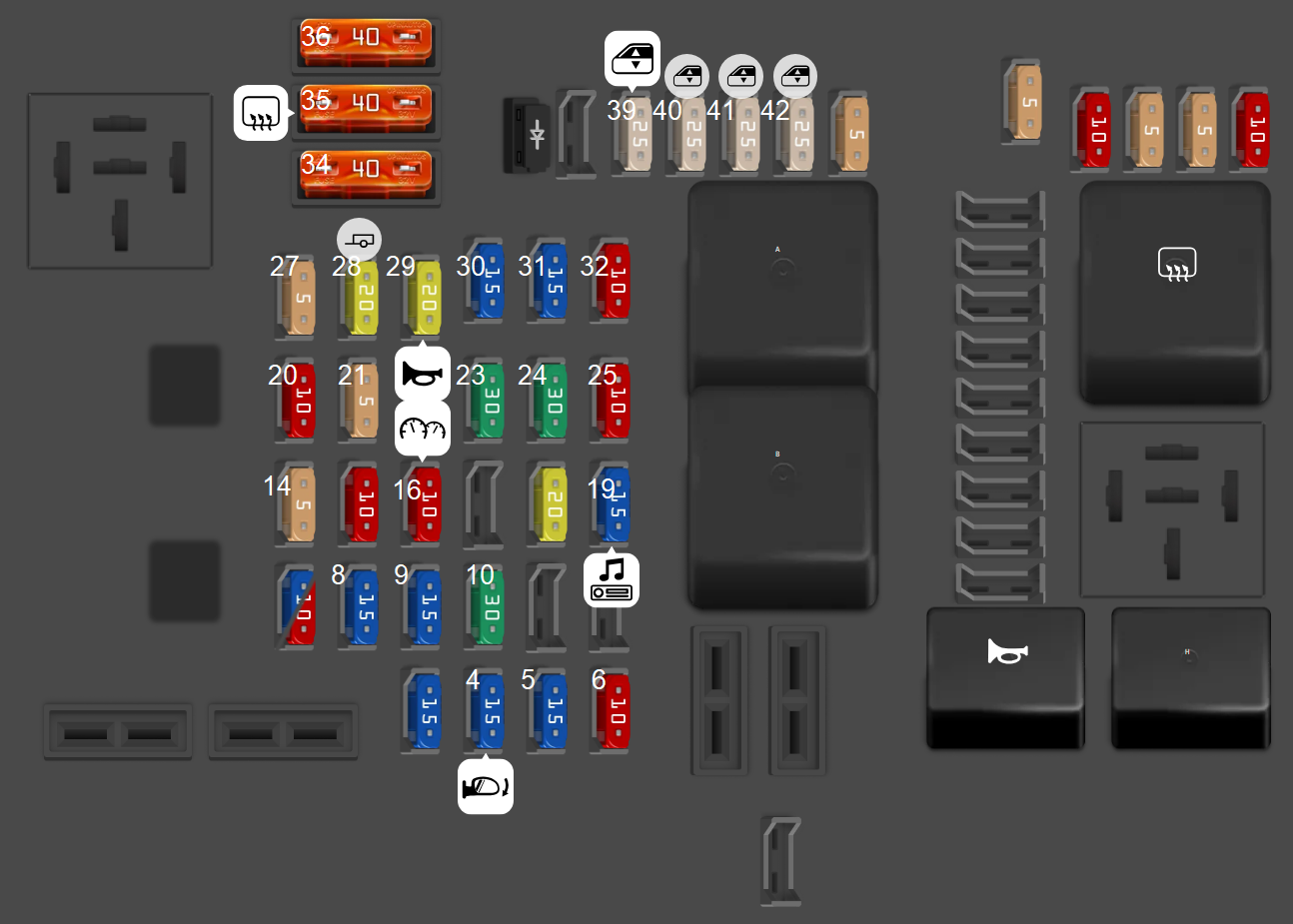

Passenger Compartment Fuse Box
Renault Clio (2020 – 2025)
| Type | No. | Description |
| Fuse MINI 15A | 4 | Right and Left Tail Lights – Right and Left Power Outside Mirrors – Trailer Connector Switching Module – Right and Left Front Turn Signals |
| Fuse MINI 15A | 5 | Tailgate lock – Central locking of the right and left rear doors – Upper brake light |
| Fuse MINI 10A | 6 | BCM (Body Electrical Control Module) |
| Fuse MINI 15A | 8 | Direction indicators and alarms |
| Fuse MINI 15A | 9 | BCM (Body Electrical Control Module) |
| Fuse MINI 30A | 10 | Parking brake computer |
| Fuse MINI 5A | 14 | BCM (Body Electrical Control Module) |
| Fuse MINI 10A | 16 | Instrument panel |
| Fuse MINI 15A | 19 | Audio system |
| Fuse MINI 30A | 23 | Audio System Amplifier |
| Fuse MINI 30A | 24 | Parking brake computer |
| Fuse MINI 10A | 25 | Left and right rear light, brake lights |
| Fuse MINI 5A | 27 | Mirrors with electric drive |
| Fuse MINI 20A | 28 | Trailer module |
| Fuse MINI 20A | 29 | Horn |
| Fuse MINI 15A | 30 | Cigarette lighter or accessory sockets |
| Fuse MINI 15A | 31 | Sockets in the luggage compartment |
| Fuse MINI 10A | 32 | Rear and front window washer pump |
| Fuse ATO 40A | 34 | Saloon electric fan |
| Fuse ATO 40A | 35 | Heated rear window |
| Fuse ATO 40A | 36 | Rear door |
| Fuse MINI 25A | 39 | Electric windows |
| Fuse MINI 25A | 40 | Electric windows |
| Fuse MINI 25A | 41 | Electric windows |
| Fuse MINI 25A | 42 | Electric windows |
| Relay | A | Relay 1 “+” battery with power off during start |
| Relay | B | Time delayed battery + relay (no power off during start) |
| Relay | G | Horn relay |
| Relay | H | Steering wheel heater relay |
| Relay | F | Heated rear window relay |

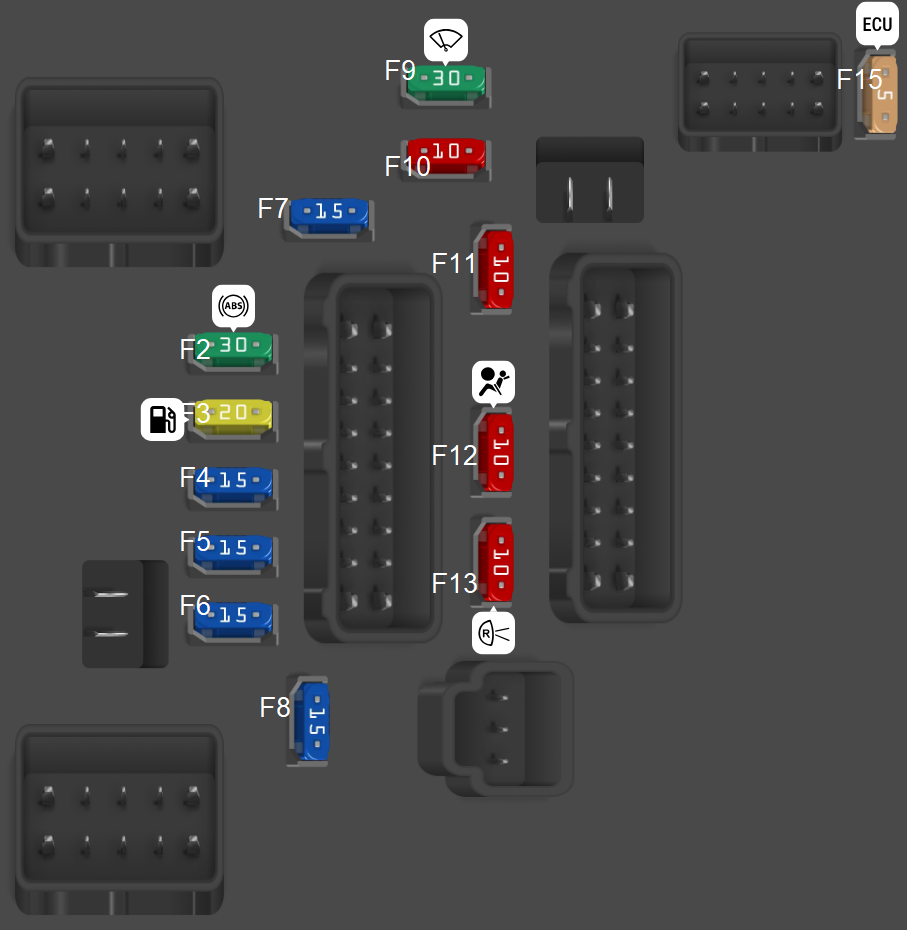

Engine Compartment Fuse Box
Renault Clio (2020 – 2025)
| Type | No. | Description |
| Fuse MINI 30A | F2 | ABS |
| Fuse MINI 20A | F3 | Fuel pump |
| Fuse MINI 15A | F4 | Actuator 1 (ECU for fuel preparation and injection and engine circuits) |
| Fuse MINI 15A | F5 | Actuator 2 (ECU for fuel preparation and injection and engine circuits) |
| Fuse MINI 15A | F6 | Actuator 3 (ECU for fuel preparation and injection and engine circuits) |
| Fuse MINI 15A | F7 | Actuator 4 (ECU for fuel preparation and injection and engine circuits) |
| Fuse MINI 15A | F8 | Actuator 5 (ECU for fuel preparation and injection and engine circuits) |
| Fuse MINI 30A | F9 | Wiper |
| Fuse MINI 10A | F10 | Washer motor |
| Fuse MINI 10A | F11 | Automatic transmission |
| Fuse MINI 10A | F12 | Airbags |
| Fuse MINI 10A | F13 | Manual Transmission/ Reverse Light Neutral Position Sensor, Fuel Heater Relay Control, Reverse Light Relay |
| Fuse MINI 5A | F15 | ECM |
