Renault Megane (2020 – 2024) Fuse Box Location & Diagrams
Finding the correct fuse box is essential for troubleshooting electrical issues in your Renault Megane. This guide provides fuse box locations and detailed diagrams for Renault Megane models from 2020 to 2024, helping owners quickly identify fuse assignments, inspect circuits, and perform maintenance with confidence.
Fuse Box Location

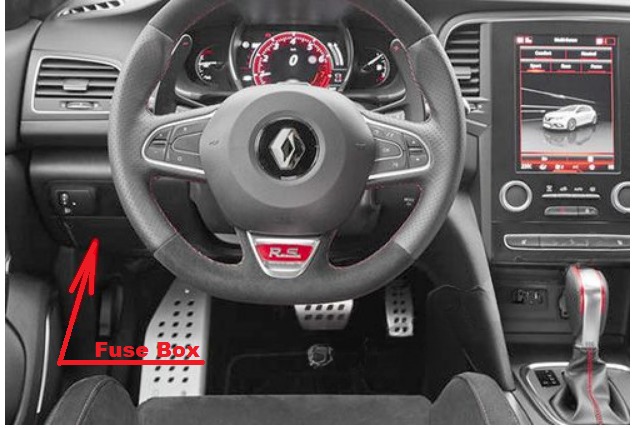

Passenger Compartment Fuse Box
It is located behind the cover to the left of the steering wheel.

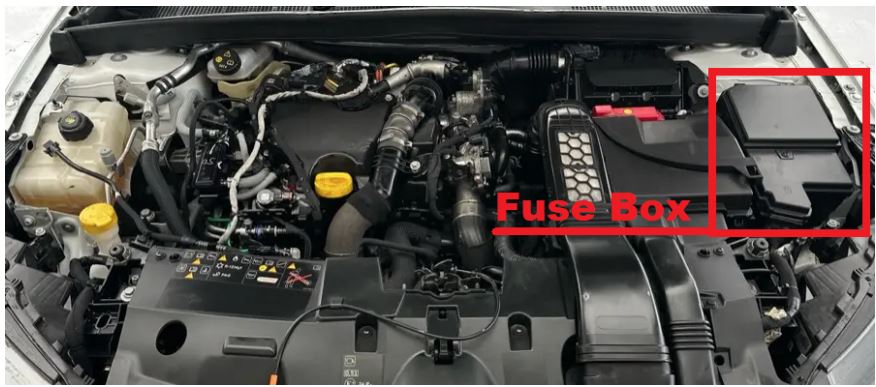

Engine Compartment Fuse Box
In the engine compartment, under the hood, there can be located 3 boxes with fuses and relays, closed with protective covers.
Fuse Box Diagrams

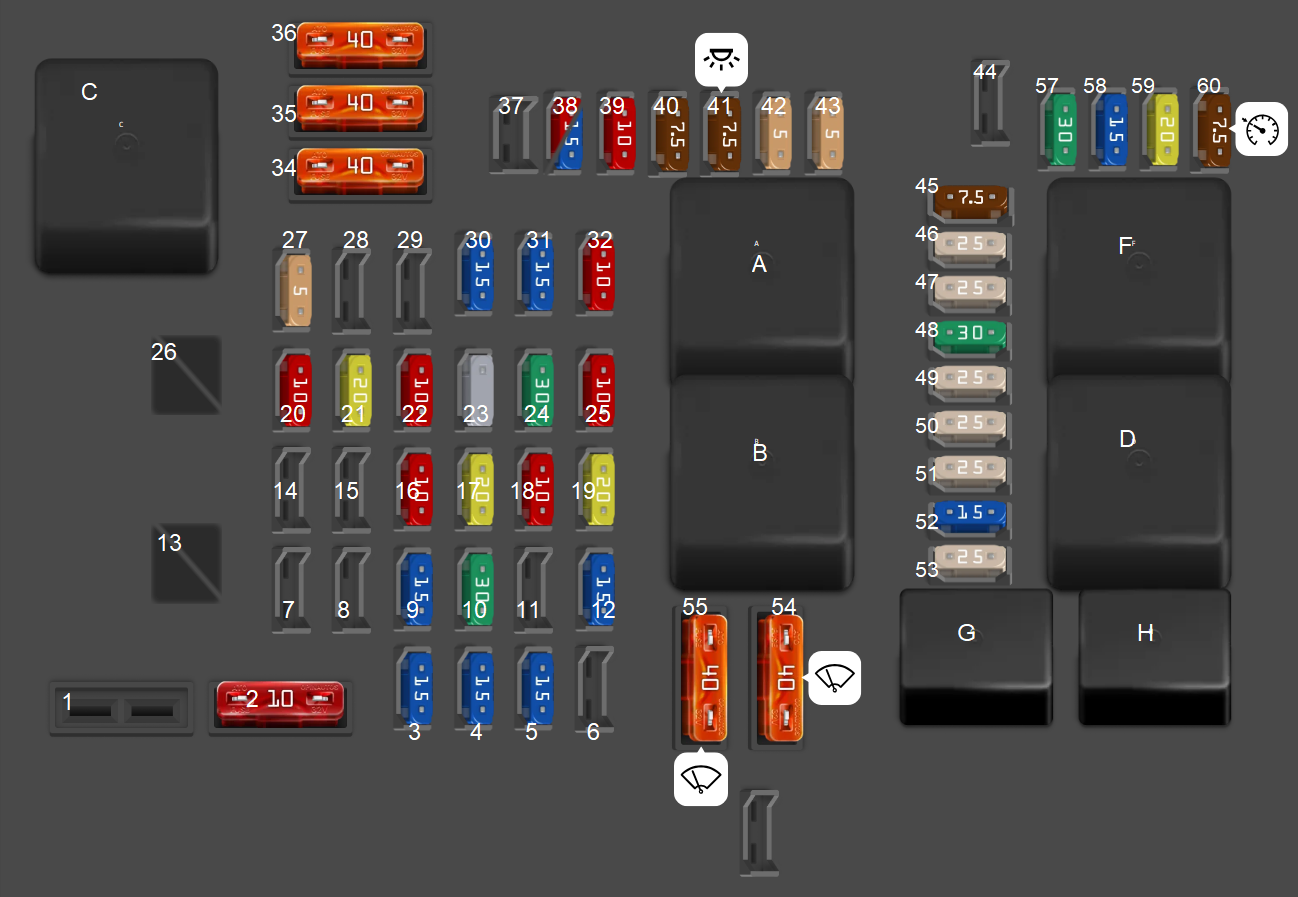

Passenger Compartment Fuse Box
Renault Megane (2020 – 2024)
| Type | No. | Description |
| Fuse ATO – | 1 | Not involved |
| Fuse ATO 10A | 2 | Sockets for multimedia equipment [Right-hand drive version] |
| Fuse MINI 15A | 3 | Fuel filler flap lock motor (844), driver and passenger door central locking (140-141) |
| Fuse MINI 15A | 4 | Front direction indicators (255-256), rear lights (172-173), trailer connector switching module (1971), electrically adjustable exterior mirrors (2230-2231) |
| Fuse MINI 15A | 5 | Rear passenger door central locking (138-139), upper brake light (639), tailgate lock (1322) |
| Fuse MINI – | 6 | Not involved |
| Fuse MINI – | 7 | Not involved |
| Fuse MINI – | 8 | Not involved |
| Fuse MINI 15A | 9 | Rear fog lights (174-175), rear window wiper motor (211) |
| Fuse MINI 30A | 10 | Parking brake control module (1217) |
| Fuse MINI – | 11 | Not involved |
| Fuse MINI 15A | 12 | Variable damping system (543) |
| Other | 13 | Power circuits for fuses 3, 4, 5 and 6 in the passenger compartment (260) |
| Other | 13 | output: protection relay No. 2 after the ignition switch (ap2) (752) in the cabin unit (260-4) |
| Fuse MINI – | 14 | Not involved |
| Fuse MINI – | 15 | Not involved |
| Fuse MINI 10A | 16 | Dashboard (247) |
| Fuse MINI 20A | 17 | Horn relay (229) |
| Fuse MINI 10A | 18 | Diagnostic connector (225) and alarm (1838) |
| Fuse MINI 20A | 19 | Trailer connector (1971) |
| Fuse MINI 10A | 20 | A Cabin Central Electronic Switching Unit (BCM) |
| Fuse MINI 20A | 21 | Audio system (261), telemetry control unit (2152) |
| Fuse MINI 10A | 22 | Automatic parking brake and cruise control/speed limiter controls (2519), CD changer (1272), multifunction display (2402), multimedia outlets (1877) |
| Fuse MINI | 23 | Audio system amplifier (1917) |
| Fuse MINI 30A | 24 | Parking brake computer (1217) |
| Fuse MINI 10A | 25 | Rear lights (172-173), trailer connector (1971) |
| Other | 26 | Not involved |
| Other | 26 | Output fuse protection (F16-F17-F18-F19-F35) in cabin unit (260-1) |
| Fuse MINI 5A | 27 | Electric outside rear-view mirrors (2230-2231) |
| Fuse MINI – | 28 | Not involved |
| Fuse MINI – | 29 | Not involved |
| Fuse MINI 15A | 30 | Cigarette lighter fuse Renault Megane 4 (101) or sockets for additional equipment (506) |
| Fuse MINI 15A | 31 | Cigarette lighter sockets in luggage compartment (1384) |
| Fuse MINI 10A | 32 | Double-acting windshield and rear washer pump (677) |
| Fuse ATO 40A | 34 | Interior electric fan 1 (1156) |
| Fuse ATO 40A | 35 | Heated rear window (235) |
| Fuse ATO 40A | 36 | backdoor |
| Diode MINI | 37 | Not involved |
| Fuse MINI 10A | 38 | Passenger side stowage compartment release motor (2518) 10A |
| Fuse MINI 15A | 38 | Fuel filler flap lock motor (844) 15A |
| Fuse MINI 10A | 39 | Air conditioner control unit (419), opening element horn unit (wac) (1920) |
| Fuse MINI 7.5A | 40 | Clutch position sensor (1057) in modification with manual transmission – display on the windshield (2400) in modification with a display on the windshield, versión 1 – receiving ring (1618) in modification with a system for locking and unlocking doors in the hands-free mode on 433 MHz |
| Fuse MINI 7.5A | 41 | Interior lighting lamps |
| Fuse MINI 5A | 42 | Power door mirrors (2230-2231) via multiplex door matrix control (1667), front passenger door light (1752), door light |
| Fuse MINI 5A | 43 | ABS and/or ESP ECU (1094), brake light switch (160) |
| Fuse MINI – | 44 | Not involved |
| Fuse MINI 7.5A | 45 | Rain and sun sensor (1415), interior air temperature sensor (1872), interior lamps (328-329), passenger and driver sun visor lamps (541), rear crossmember interior lamp (300) |
| Fuse MINI 25A | 46 | Driver’s door electric window motor (203) |
| Fuse MINI 25A | 47 | Passenger door power window motor (204) |
| Fuse MINI 30A | 48 | Sunroof (304) |
| Fuse MINI 25A | 49 | Rear left electric window motor (202) |
| Fuse MINI 25A | 50 | Rear right power window motor (201) |
| Fuse MINI 25A | 51 | Front right seat memory computer (2576) |
| Fuse MINI 15A | 52 | Rear seat fold switch |
| Fuse MINI 25A | 53 | Front Left Seat Position Memory ECU (2567): Front Left Seat Lumbar Adjustment (2564), Front Left Seat 2 Lumbar Support Adjustment (2565) |
| Fuse ATO 40A | 54 | Windshield wiper motor |
| Fuse ATO 40A | 55 | Windshield wiper motor |
| Fuse MINI 30A | 57 | Rear cabin fan |
| Fuse MINI 15A | 58 | HEated rear left and right seat controls (2120-2121), rear left and right seat cushion heating elements (24232424) |
| Fuse MINI 20A | 59 | Front left and right seat position memory control unit (2567 /2576) front seat heating (987-988), front left and right seat heating control unit (985-986) |
| Fuse MINI 7.5A | 60 | Heated steering wheel control (2483), cruise control and airbag switch (689) |
| Relay | A | RELAY 1 “+” BATTERY WITH POWER OFF DURING START (1760) |
| Relay | B | Time Delayed Battery + Relay Not Turned Off (NO POWER OFF DURING START) (1762) |
| Relay | C | Not involved |
| Relay | D | Not involved |
| Relay | G | Horn relay (229) |
| Relay | H | Steering wheel heating (2499) |
| Relay | F | Heated rear window (235) |
| 33 | Output fuse supply circuits (F2) in passenger compartment fuse and relay box (260) RHD version | |
| 56 | Output fuse protection 38 in cabin unit (260) |

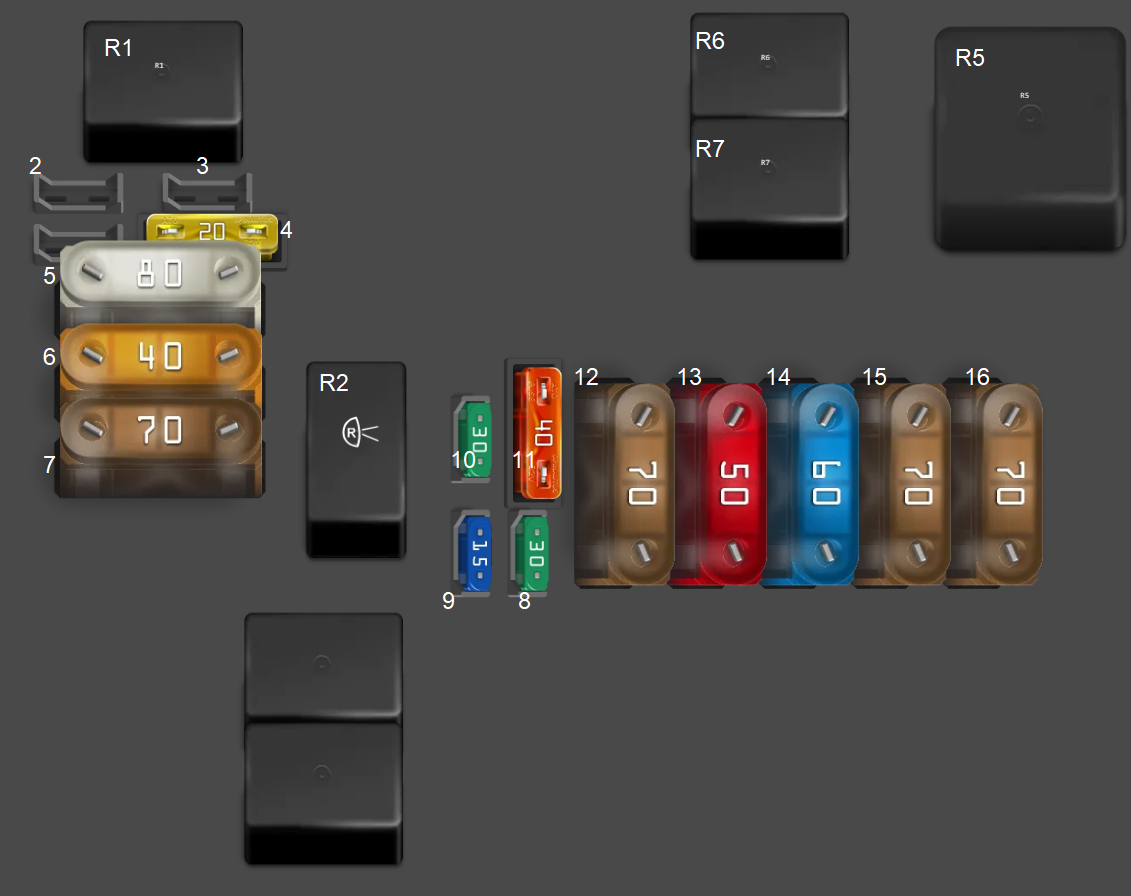

Bottom section
| Type | No. | Description |
| Fuse MINI – | 1 | Not involved |
| Fuse MINI – | 2 | Not involved |
| Fuse MINI – | 3 | Not involved |
| Fuse ATO 20A | 4 | Headlight washer pump relay |
| Fuse MAXI 80A | 5 | Windshield heating |
| Fuse MAXI 40A | 6 | Four-wheel drive electronic control unit (1663) |
| Fuse MAXI 70A | 7 | Fuse supply circuits (F57 – F58 – F59 – F60) in the cabin unit |
| Fuse MINI 30A | 8 | Electronic fuel injection control unit (120) automatic transmission parking pin mechanism (2372) |
| Fuse MINI 15A | 9 | Automatic transmission control unit |
| Fuse MINI 30A | 10 | Fuel heater with water-in-fuel sensor (1866) Electronic control unit of the fuel injection system (120) |
| Fuse ATO 40A | 11 | Protection and switching unit (1337) |
| Fuse MAXI 70A | 12 | Preheating electronic control unit (257) Electronic fuel injection system (120) |
| Fuse MAXI 50A | 13 | Electronic control unit automatic transmission (119) |
| Fuse MAXI 60A | 14 | Engine cooling fan (188) |
| Fuse MAXI 70A | 15 | Heating control circuits (1550) |
| Fuse MAXI 70A | 16 | Auxiliary heater interface unit (1550) |
| Relay | R1 | Headlight washer relay |
| Relay | R2 | Reverse Lamp Relay |
| Relay | R5 | Fuel heating relay |
| Relay | R6 | Fuel pump relay (2523) – diesel |
| Relay | R7 | Remote Engine Start Relay (2619) |

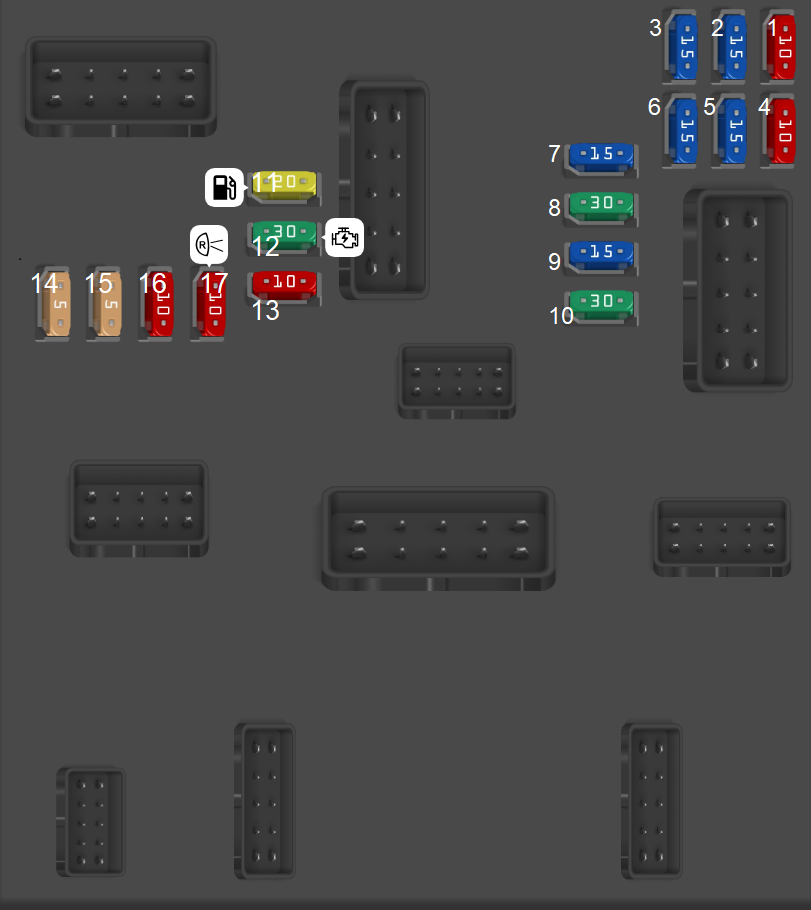

Engine Compartment Fuse Box
Renault Megane (2020 – 2024)
| Type | No. | Description |
| Fuse MINI 10A | 1 | Engine heating dampers (2232), Electronic injection control unit (120) |
| Fuse MINI 15A | 2 | Electronic control unit and relay of the fuel injection system (preheating) |
| Fuse MINI 15A | 3 | Electronic control unit for the injection system |
| Fuse MINI 10A | 4 | Electronic control unit for the fuel injection system (120) and engine circuits |
| Fuse MINI 15A | 5 | Eengine management |
| Fuse MINI 15A | 6 | Auxiliary heating relay 1 and 2 (1067-1068) on the board (1067), automatic parking brake and cruise control/speed limiter control (2519), shift mode switch (129), gear lever position indicator (1129), electronic unit parking system control unit (1222), interior rearview mirror (1340), seat belt warning unit (1601), front camera control unit (2236), automatic parking brake control unit (1217), limiter switch and cruise control unit (1081) rear window heating relay control (235) in the passenger compartment fuse and relay box (260), left and right headlight corrector motors (537-538) |
| Fuse MINI 15A | 7 | Air conditioning compressor clutch (171) |
| Fuse MINI 30A | 8 | ABS and/or ESP electronic control unit (1094) |
| Fuse MINI 15A | 9 | A/C refrigerant pump (2084) |
| Fuse MINI 30A | 10 | Windshield wiper motor (212) |
| Fuse MINI 20A | 11 | Fuel level sensor, fuel temperature sensor. fuel pump fuse |
| Fuse MINI 30A | 12 | Starter |
| Fuse MINI 10A | 13 | Electronic transmission control unit |
| Fuse MINI 5A | 14 | Electric Power Steering (1232), Stop Lamp Switch (160), 4WD ECM (1663) |
| Fuse MINI 5A | 15 | Injection ECU (120), remote self-adjusting governor control unit (2037) |
| Fuse MINI 10A | 16 | electric steering column lock (1088), steering wheel angle sensor (583), airbag/pretensioner control module (756) |
| Fuse MINI 10A | 17 | neutral position sensor for manual transmission / reverse light (1109), fuel heater relay control (450), reverse light relay |
