Renault Megane (2008 – 2015) Fuse Box Location and Diagrams
The Renault Megane (2008–2015) fuse box schematics and locations are covered in this tutorial. This comprehensive guide will help you choose the right parts and maintain them when troubleshooting electrical issues or replacing fuses.
Fuse Box Locations
Passenger Compartment Fuse Box

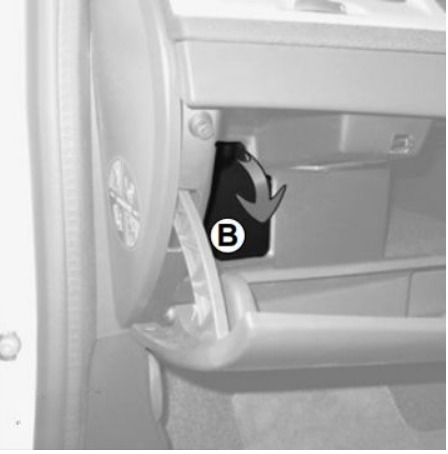

Right-hand drive vehicles: The fuse box is located behind the cover in the glove compartment

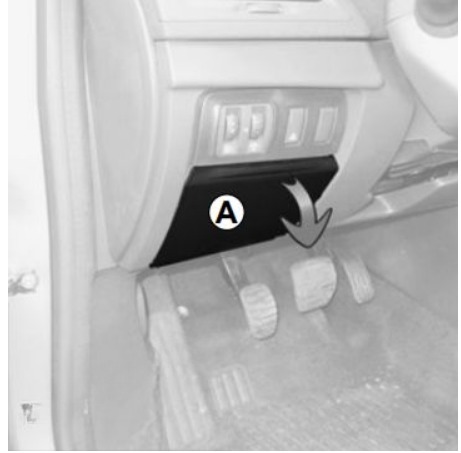

Left-hand drive vehicles: The fuse box is located behind the cover below and to the left of the steering wheel.

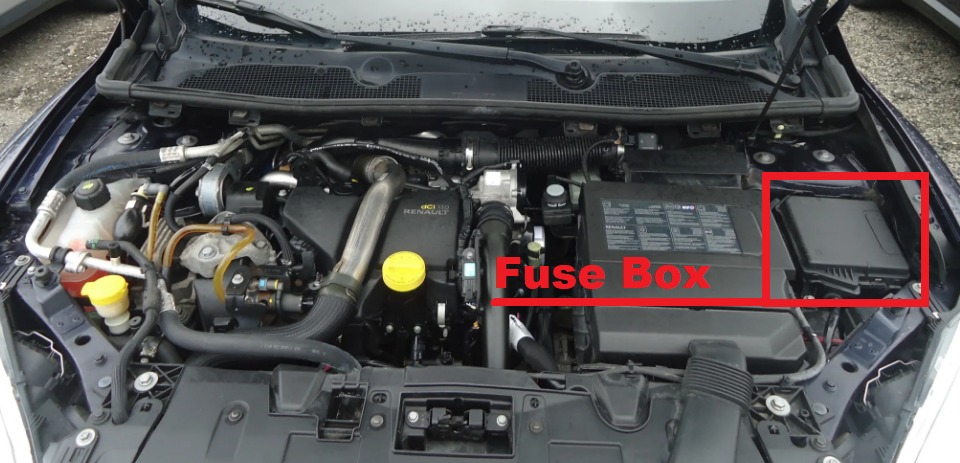

Engine Compartment Fuse Box
Block #2 in the engine compartment
The mounting block is located under the protection and switching block.

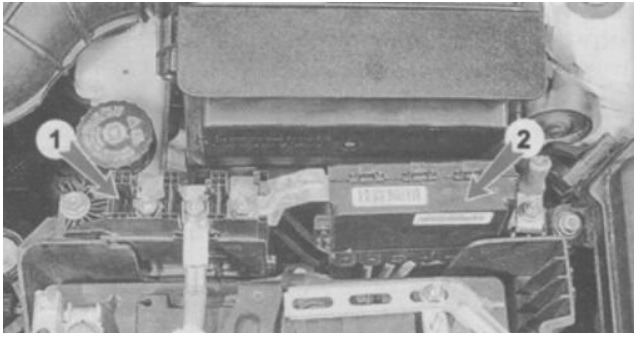

Blocks near the battery
There are 2 additional blocks located near the battery.

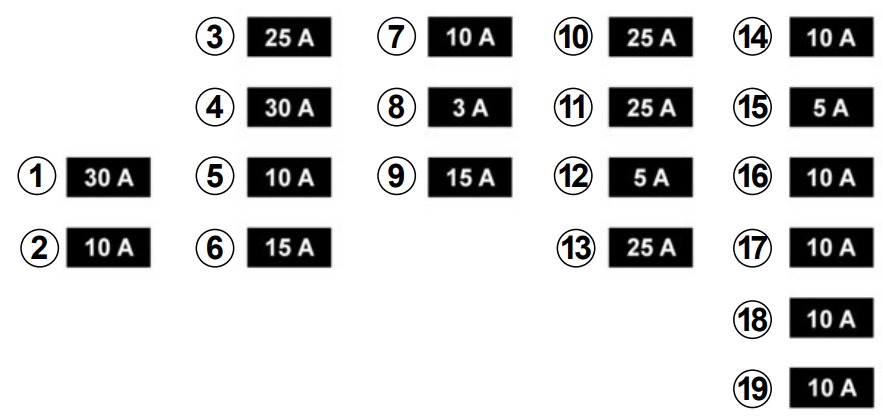

Passenger Compartment Fuse Box Diagram
Renault Megane (2008 to 2015)
| № | Circuit |
|---|---|
| 1 | Electronic parking brake |
| 2 | Brake lights |
| 3 | Automatic door locking |
| 4 | Driver’s electric window |
| 5 | Passenger compartment unit |
| 6 | Direction indicator lights |
| 7 | Navigation system |
| 8 | Interior rear-view mirror |
| 9 | Rear screen wiper |
| 10 and 11 | Rear electric windows |
| 12 | ABS/ESC |
| 13 | Passenger electric window |
| 14 | Windscreen washer |
| 15 | Heated door mirrors |
| 16 | Radio |
| 17 | Luggage compartment accessories socket |
| 18 | Rear seat accessories socket |
| 19 | Cigarette lighter |

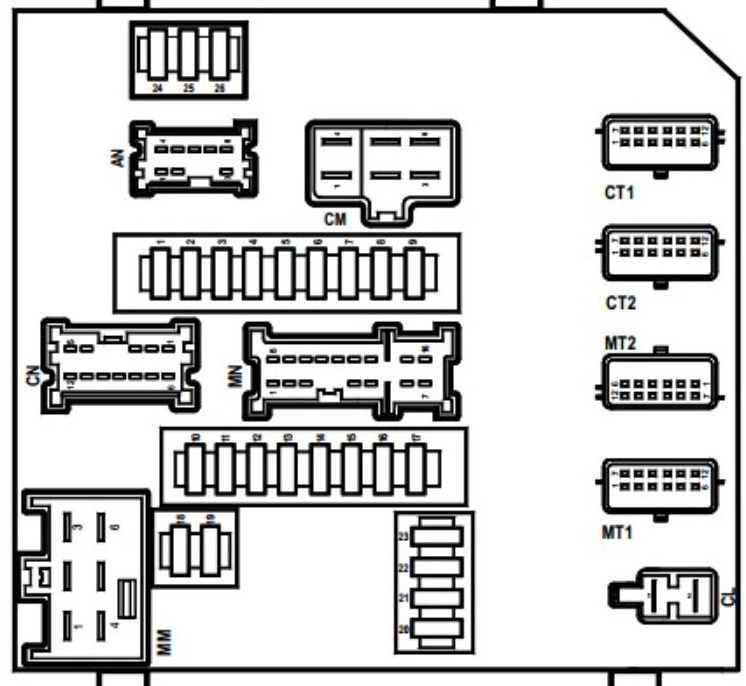

Engine Compartment Fuse Box Diagram
Renault Megane (2008 to 2015)
| No. | Fuse Rating | Circuit Description |
|---|---|---|
| 1 | 10A | Side light (right headlamp, right tail light, headlamps), license plate lights, cigarette lighter lights, power window switch lights, audio system, navigation system control unit, multimedia system keyboards |
| 2 | 10A | Side light (left headlamp, left rear lamp), left lamp on the tailgate |
| 3 | 15A | Headlight washer pump |
| 4 | 20A | Fog lights |
| 5 | 10A | High beam (left block headlamp) |
| 6 | 10A | High beam (right headlamp) |
| 7 | 15A | Diagnostic socket, rear window heating relay, automatic transmission mode selector, electric headlight corrector, gas discharge lamp control unit, auxiliary heater control unit, speed limiter, automatic parking brake, automatic parking control unit, dimmable mirror in the passenger compartment |
| 8 | 30A | ABS, ESP control unit |
| 9 | 30A | Front wiper |
| 10 | 10A | Airbag control unit |
| 11 | 20A | Not used |
| 12 | 7.5A | Transmission ECU |
| 13 | 25A | Engine management system |
| 14 | 15A | Oxygen concentration sensors – heating |
| 15 | 20A | Transmission ECU |
| 16 | 5A | Braking signals, electrical control unit, electric power steering |
| 17 | 10A | Automatic gearbox operating modes sensor, electro-corrector of headlights, reversing light relay |
| 18 | 15A | Electrical equipment control unit |
| 19 | 30A | Starter |
| 20 | – | Not used |
| 21 | 20A | Fuel module, ignition coils, LPG ECU |
| 22 | 101 | Electromagnetic clutch of the air conditioner compressor |
| 23 | 5A | ECU injection system |
| 24 | 20A | Low beam (left headlight), electrocorrector |
| 25 | 20A | Low beam (right headlight), electrocorrector |
| 26 | – | Not used |

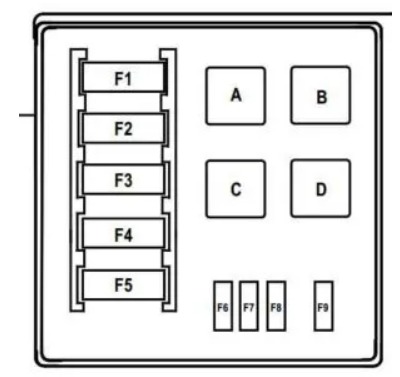

Block #2 in the engine compartment
Renault Megane (2008 to 2015)
| No. | Rating | Description |
|---|---|---|
| A | – | Not used |
| B | – | Fuel heater relay |
| C | – | Reverse light relay |
| D | – | Not used |
| F1 | 80A | Immersion heater control unit |
| F2 | 70A | Pre-heating unit |
| F3 | – | Not used |
| F4 | 80A | Immersion heater control unit |
| F5 | 60A / 40A | Electric fan relay |
| F6 | 20A | Fuel heater |
| F7 | – | Not used |
| F8 | 30A | Electric fan relay |
| F9 | – | Not used |

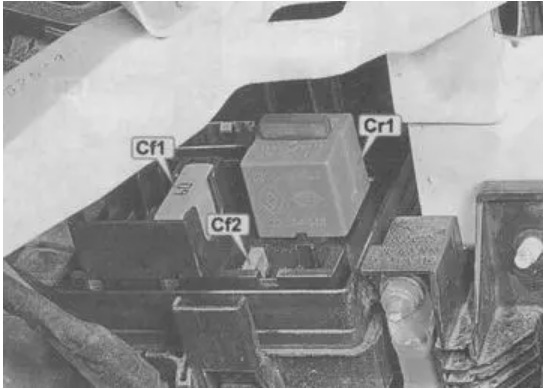

Blocks near the battery
Renault Megane (2008 to 2015)
There are 2 additional blocks located near the battery.

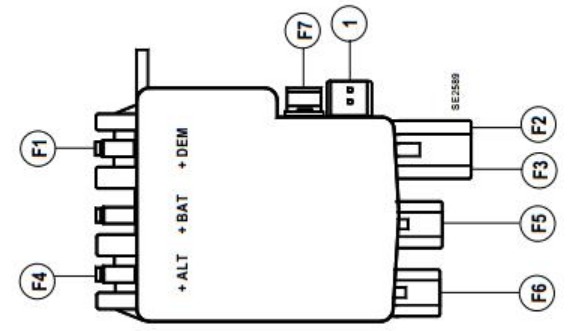

Battery disconnect unit diagram
| No. | Rating | Description |
|---|---|---|
| F1 | 190A | Starter |
| F2 | 50A | Fuse and relay box in the passenger compartment |
| F3 | 80A | Fuse and relay box (control and switching unit) in engine compartment 1, fuse and relay box in the passenger compartment |
| F4 | 300A / 190A | Engine compartment fuse and relay box 2 / Generator |
| F5 | 80A | Electric Power Steering |
| F6 | 35A | Electronic Engine Control Unit (ECU) / Fuse and relay box (control and switching unit) in engine compartment 1 |
| F7 | 5A | Fuse and relay box (control and switching unit) in engine compartment 1 |

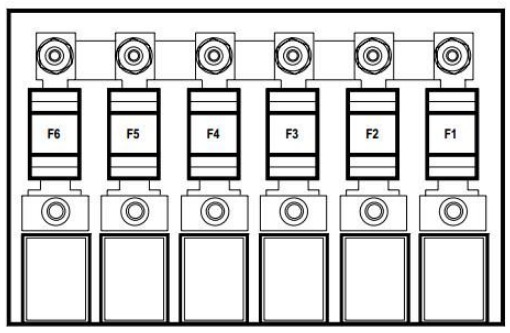

Schematic diagram of the high power fuse block
| Rating | Description |
|---|---|
| 70A | Additional interior heater |
| 80A | Fuse and relay box in the passenger compartment |
| 80A | Fuse and relay box in the passenger compartment |
| 80A | Fuse and relay box (control and switching unit) in engine compartment 1, and fuse and relay box in the passenger compartment |
| 30A | Additional heater |
| 50A | ABS ECU with ESP |
