Renault Megane (2016 – 2019) Fuse Box Location and Diagrams
The Renault Megane (2016–2019) fuse box schematics and locations are covered in this blog. This information is needed to diagnose electrical issues, replace fuses, and maintain your vehicle’s electrical system.
Passenger Compartment Fuse Box
Renault Megane (2016 to 2019)
Fuse box location

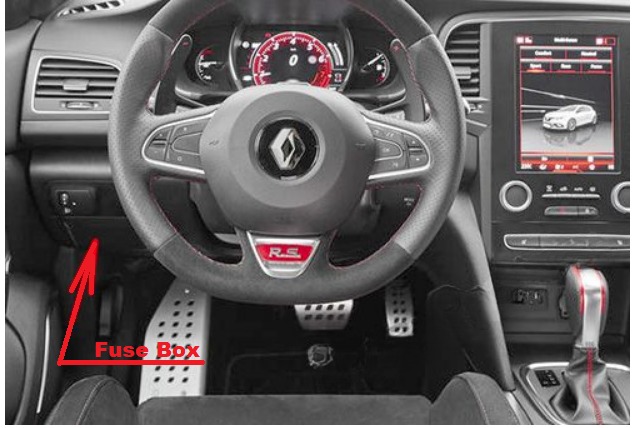

It is located behind the cover to the left of the steering wheel.

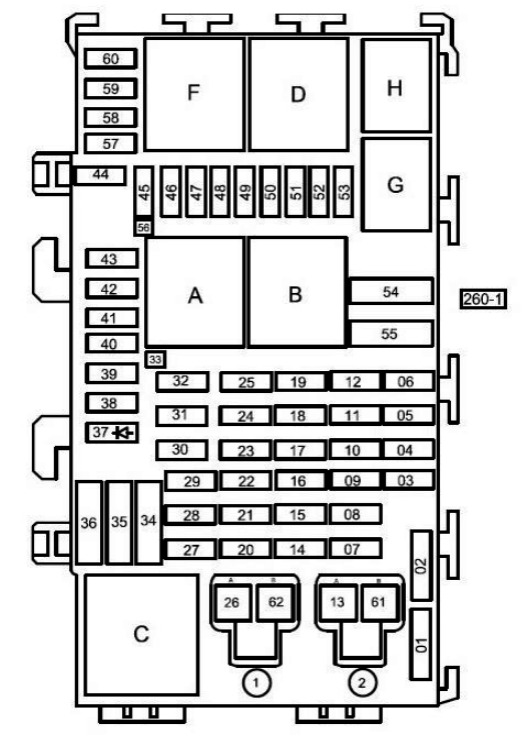

Fuse box diagram
| No | Rating | Description |
|---|---|---|
| 1 | ATO- | Not involved |
| 2 | ATO10A | Sockets for multimedia equipment [Right-hand drive version] |
| 3 | MINI15A | Fuel filler flap lock motor, driver and passenger door central locking |
| 4 | MINI15A | Front indicators, rear lights, trailer connector switching, exterior mirrors |
| 5 | MINI15A | Rear door central locking, upper brake light, tailgate lock |
| 6 | MINI- | Not involved |
| 7 | MINI- | Not involved |
| 8 | MINI- | Not involved |
| 9 | MINI15A | Rear fog lights, rear window wiper motor |
| 10 | MINI30A | Parking brake control module |
| 11 | MINI- | Not involved |
| 12 | MINI15A | Variable damping system |
| 13 | Other | Power circuits for fuses 3–6 in passenger compartment |
| 13 | Other | Output: protection relay No. 2 after ignition switch in cabin unit |
| 14 | MINI- | Not involved |
| 15 | MINI- | Not involved |
| 16 | MINI10A | Dashboard |
| 17 | MINI20A | Horn relay |
| 18 | MINI10A | Diagnostic connector and alarm |
| 19 | MINI20A | Trailer connector |
| 20 | MINI10A | Cabin Central Electronic Switching Unit (BCM) |
| 21 | MINI20A | Audio system, telemetry control unit |
| 22 | MINI10A | Parking brake & cruise control controls, CD changer, multimedia outlets |
| 23 | MINI | Audio system amplifier |
| 24 | MINI30A | Parking brake computer |
| 25 | MINI10A | Rear lights, trailer connector |
| 26 | Other | Not involved |
| 26 | Other | Output fuse protection (F16–F17–F18–F19–F35) in cabin unit |
| 27 | MINI5A | Electric outside mirrors |
| 28 | MINI- | Not involved |
| 29 | MINI- | Not involved |
| 30 | MINI15A | Cigarette lighter or additional sockets |
| 31 | MINI15A | Luggage compartment cigarette lighter sockets |
| 32 | MINI10A | Windshield and rear washer pump |
| 33 | Other | Output fuse supply circuits (F2) in passenger fuse box |
| 34 | ATO40A | Interior electric fan |
| 35 | ATO40A | Heated rear window |
| 36 | ATO40A | Backdoor |
| 37 | Diode | Not involved |
| 38 | MINI10A | Stowage compartment release motor |
| 38 | MINI15A | Fuel filler flap lock motor |
| 39 | MINI10A | A/C control unit, horn unit |
| 40 | MINI7.5A | Clutch position sensor, windshield display, hands-free receiver |
| 41 | MINI7.5A | Interior lighting lamps |
| 42 | MINI5A | Power mirrors, door lights |
| 43 | MINI5A | ABS/ESP ECU, brake light switch |
| 44 | MINI- | Not involved |
| 45 | MINI7.5A | Rain/sun sensor, interior temp sensor, sun visor lamps |
| 46 | MINI25A | Driver’s door power window |
| 47 | MINI25A | Passenger door power window |
| 48 | MINI30A | Sunroof |
| 49 | MINI25A | Rear left power window |
| 50 | MINI25A | Rear right power window |
| 51 | MINI25A | Front right seat memory computer |
| 52 | MINI15A | Rear seat fold switch |
| 53 | MINI25A | Front left seat memory, lumbar adjustment units |
| 54 | ATO40A | Windshield wiper motor |
| 55 | ATO40A | Windshield wiper motor |
| 56 | Other | Output fuse protection 38 in cabin unit |
| 57 | MINI30A | Rear cabin fan |
| 58 | MINI15A | Heated rear seat controls and cushions |
| 59 | MINI20A | Front seat heating and memory units |
| 60 | MINI7.5A | Heated steering wheel, cruise control, airbag switch |
| A | Relay | Relay 1 – Battery off during start |
| B | Relay | Time-delayed battery relay – no power off during start |
| C | Relay | Not involved |
| D | Relay | Not involved |
| F | Relay | Heated rear window |
| G | Relay | Horn relay |
| H | Relay | Steering wheel heating |
Engine Compartment Fuse Box
Renault Megane (2016 to 2019)
Fuse box location

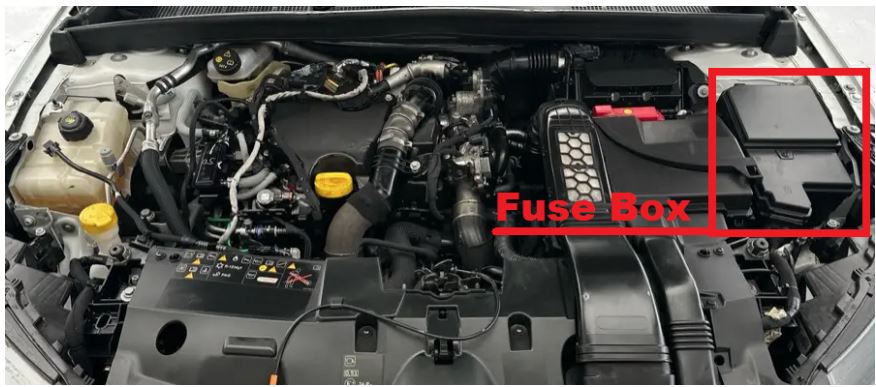

In the engine compartment, under the hood, there can be located 3 boxes with fuses and relays, closed with protective covers.

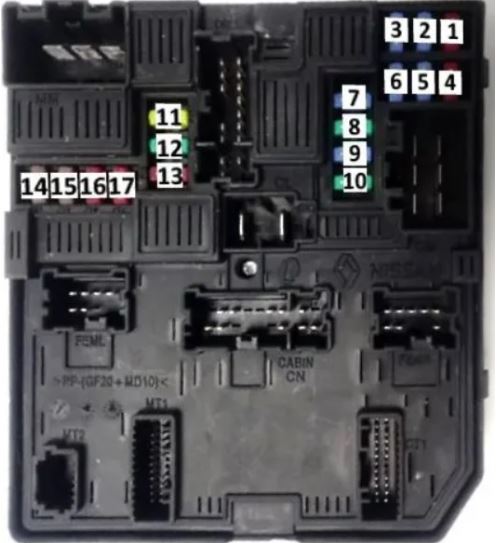

Fuse box diagram
| No | Rating | Description |
|---|---|---|
| 1 | MINI10A | Engine heating dampers (2232), Electronic injection control unit (120) |
| 2 | MINI15A | Electronic control unit and relay of the fuel injection system (preheating) |
| 3 | MINI15A | Electronic control unit for the injection system |
| 4 | MINI10A | Electronic control unit for the fuel injection system (120) and engine circuits |
| 5 | MINI15A | Engine management |
| 6 | MINI15A | Auxiliary heating relay 1 and 2 (1067-1068) on the board (1067), automatic parking brake and cruise control/speed limiter control (2519), shift mode switch (129), gear lever position indicator (1129), electronic unit parking system control unit (1222), interior rearview mirror (1340), seat belt warning unit (1601), front camera control unit (2236), automatic parking brake control unit (1217), limiter switch and cruise control unit (1081), rear window heating relay control (235) in passenger compartment fuse and relay box (260), left and right headlight corrector motors (537-538) |
| 7 | MINI15A | Air conditioning compressor clutch (171) |
| 8 | MINI30A | ABS and/or ESP electronic control unit (1094) |
| 9 | MINI15A | A/C refrigerant pump (2084) |
| 10 | MINI30A | Windshield wiper motor (212) |
| 11 | MINI20A | Fuel level sensor, fuel temperature sensor, fuel pump fuse |
| 12 | MINI30A | Starter |
| 13 | MINI10A | Electronic transmission control unit |
| 14 | MINI5A | Electric Power Steering (1232), Stop Lamp Switch (160), 4WD ECM (1663) |
| 15 | MINI5A | Injection ECU (120), remote self-adjusting governor control unit (2037) |
| 16 | MINI10A | Electric steering column lock (1088), steering wheel angle sensor (583), airbag/pretensioner control module (756) |
| 17 | MINI10A | Neutral position sensor for manual transmission / reverse light (1109), fuel heater relay control (450), reverse light relay |
Fuse and relay box
Renault Megane (2016 to 2019)

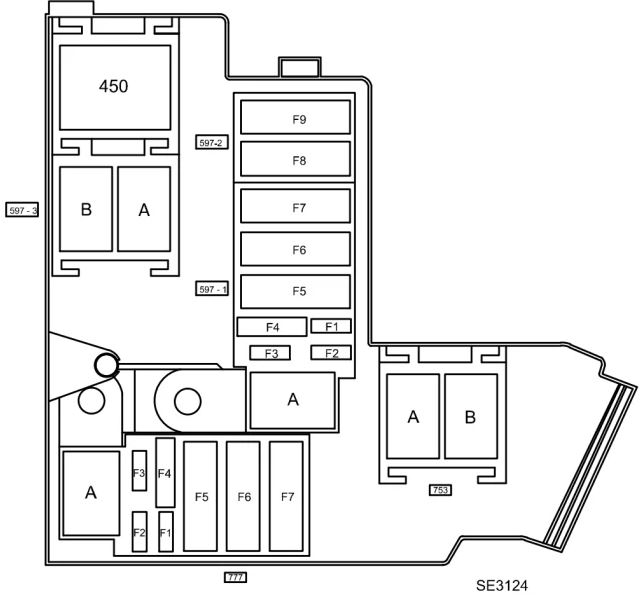

Fuse box diagram
| No | Rating | Description |
|---|---|---|
| 1 | MINI- | Not involved |
| 2 | MINI- | Not involved |
| 3 | MINI- | Not involved |
| 4 | ATO20A | Headlight washer pump relay |
| 5 | MAXI80A | Windshield heating |
| 6 | MAXI40A | Four-wheel drive electronic control unit |
| 7 | MAXI70A | Fuse supply circuits (F57 – F58 – F59 – F60) in cabin unit |
| 8 | MINI30A | Electronic fuel injection control unit, automatic transmission parking pin mechanism |
| 9 | MINI15A | Automatic transmission control unit |
| 10 | MINI30A | Fuel heater with water-in-fuel sensor, electronic control unit of fuel injection system |
| 11 | ATO140A | Protection and switching unit |
| 12 | MAXI70A | Preheating electronic control unit, electronic fuel injection system |
| 13 | MAXI50A | Electronic control unit automatic transmission |
| 14 | MAXI60A | Engine cooling fan |
| 15 | MAXI70A | Heating control circuits |
| 16 | MAXI70A | Auxiliary heater interface unit |
| R1 | Relay | Headlight washer relay |
| R2 | Relay | Reverse lamp relay |
| R5 | Relay | Fuel heating relay |
| R6 | Relay | Fuel pump relay (diesel) |
| R7 | Relay | Remote Engine Start Relay |
