SEAT Exeo (2008 – 2013) Fuse Box Location & Diagrams
This blog covers the SEAT Exeo (2008–2013) fuse box location and diagrams, helping you identify fuse panels, fuse numbers, ratings, and protected components. Find clear information for checking or replacing blown fuses and understanding the electrical layout of your SEAT Exeo.
Fuse Box Location
Passenger Compartment Fuse Box

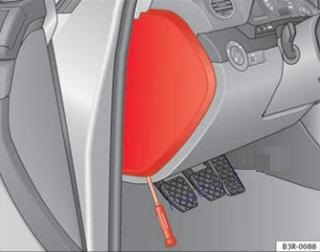

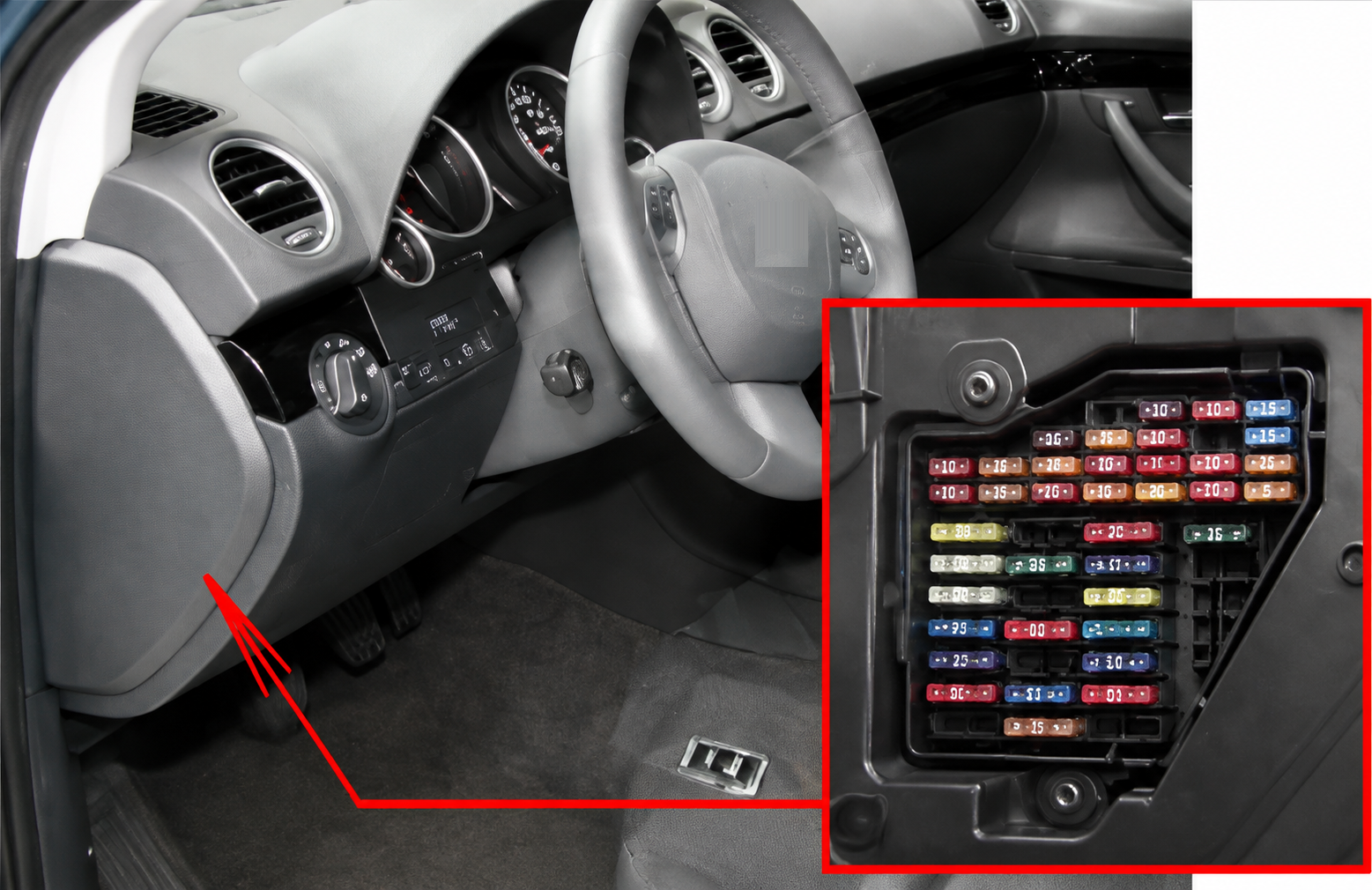

The fuse box is located on the left side of the dashboard panel.
Fuse Box Diagrams

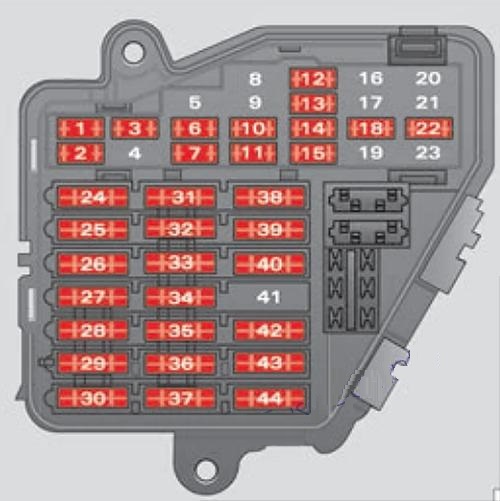

Passenger Compartment Fuse Box
| No. | Consumer | Amps |
|---|---|---|
| 1 | Air conditioner | 10 |
| 2 | Footwell lamps | 5 |
| 3 | Heated washer jets | 5 |
| 4 | Radiator fan | 5 |
| 5 | Parking aid, automatic gearbox | 10 |
| 6 | Air conditioner (air purity sensor), pressure sensor | 5 |
| 7 | Electronic Stability Programme (ESP), brake light switch, clutch pedal switch, steering angle sensor | 10 |
| 8 | Telephone | 5 |
| 9 | Brake servo (vacuum pump) | 15 |
| 10 | Adaptive headlights right | 5 |
| 11 | Airbag and disconnection of the front passenger airbag | 5 |
| 12 | Diagnostic socket | 10 |
| 13 | Steering column unit | 10 |
| 14 | Brake lights | 10 |
| 15 | Instrument panel | 10 |
| 16 | Vacant | |
| 17 | Tyre pressure control, rain/light sensor | 10 |
| 18 | Adaptive headlights left | 5 |
| 19 | Vacant | |
| 20 | Vacant | |
| 21 | Vacant | |
| 22 | Driver door / front passenger door | 15 |
| 23 | Rear doors | 15 |
| 24 | Central electrics unit for convenience equipment | 20 |
| 25 | Heater blower | 30 |
| 26 | Rear window heater | 30 |
| 27 | Power socket for trailer (control unit) | 30 |
| 28 | Fuel pump, auxiliary pump for diesel | 20 |
| 29 | Vacant | |
| 30 | Sliding/tilting sunroof | 20 |
| 31 | Diagnosis connection, automatic anti-dazzle interior mirror, reverse light, automatic gearbox | 15 |
| 32 | Towing socket | 15 |
| 33 | Lighter | 20 |
| 34 | Lambda probe heater | 10 |
| 35 | Luggage compartment power socket | 20 |
| 36 | Wiper system | 30 |
| 37 | Pump for windscreen washer and headlight washer system | 30 |
| 38 | Luggage compartment illumination, alarm | 15 |
| 39 | Radio, Amplifier | 20 |
| 40 | Horn | 25 |
| 41 | 230 volt socket | 30 |
| 42 | Electronic Stability Programme (ESP) | 25 |
| 43 | Engine management | 15 |
| 44 | Seat heating | 35 |
