Toyota Sienna (2011 – 2018) Fuse Box Location and Diagrams
This guide covers Toyota Sienna fuse box schematics and locations from 2011 to 2018. Understand how to identify fuse functions, repair blown fuses, and efficiently manage your vehicle’s electrical system with this simple guide.
Fuse Box Locations

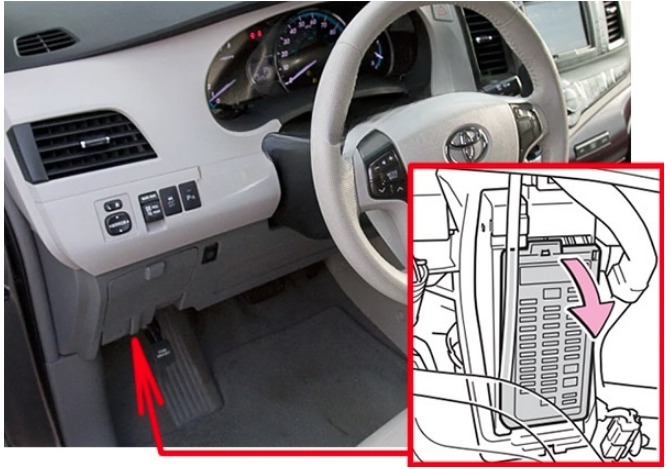

Passenger Compartment Fuse Box
The fuse box is located under the instrument panel (on the left side), behind the lid.

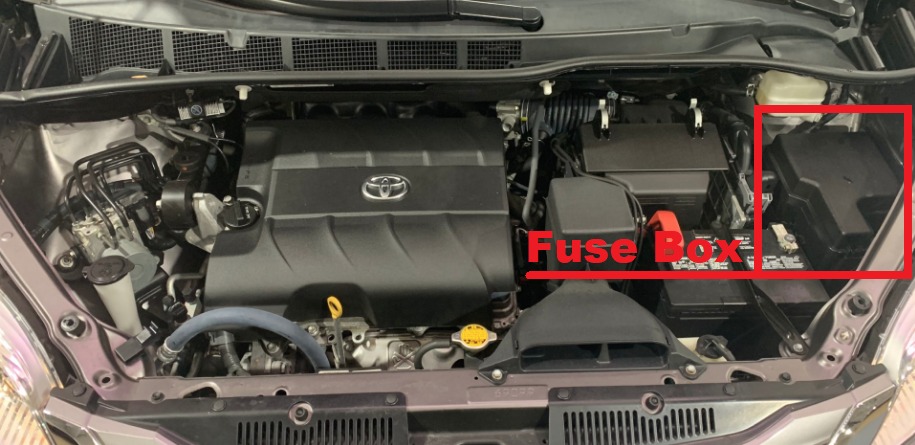

Engine Compartment Fuse Box
It is located in the engine compartment (left-side).

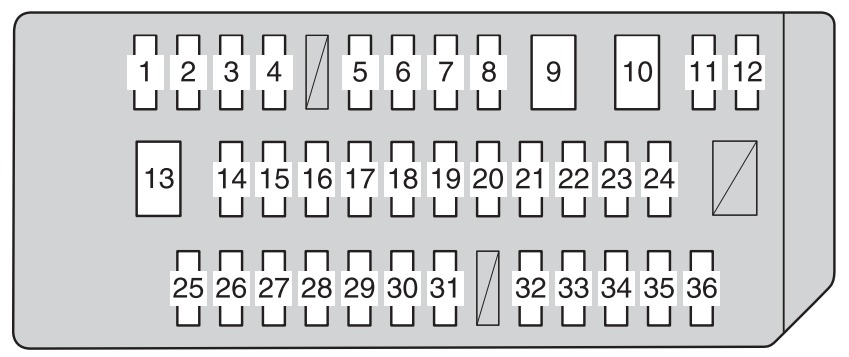

Passenger Compartment Fuse Box Diagram
Toyota Sienna (2011 to 2018)
| Fuse | Ampere | Circuit | |
| 1 | P/OUTLET | 15 A | Power outlets |
| 2 | RAD NO.2 | 7.5 A | Audio system, navigation system, rear seat entertainment system |
| 3 | ECU-ACC | 10 A | Main body ECU, clock, shift lock system, power rear view mirror control, multiplex communication system |
| 4 | CIG | 15 A | Power outlets |
|
5 |
GAUGE NO.1 |
10 A | Emergency flashers, buck up lights, navigation system, multi information display, automatic tran- saxle, multiport fuel injection sys- tem/sequential multiport fuel injection system, charging system |
|
6 |
ECU-IG NO.1 |
10 A | Multiplex communication system, stop lights, navigation system, vehicle stability control system, Active Torque Control 4WD, intui- tive parking assist, auto anti-glare inside rear view mirror, pre-collision seat belt, outside rear view mirror, seat heater, TPMS, yaw rate & G sensor, steering angle sensor, AUTO ACCESS SEAT, main body ECU |
| 7 | P/W RL | 20 A | Rear power windows (left-side) |
| 8 | D/L | 15 A | Power door lock system |
| 9 | P/SEAT FR | 30 A | Power front seat (right-side) |
| 10 | S/ROOF | 30 A | Moon roof |
| 11 | P/W RR | 20 A | Rear power windows (right-side) |
| 12 | P/W FR | 20 A | Front power windows (right-side) |
| 13 | P/SEAT FL | 30 A | Power front seat (left-side), driving position memory system |
|
14 |
STOP |
10 A | Stop lights, ABS, vehicle stability control system, rear combination light, high mounted stop light, auto- matic transaxle, shift lock system, multiplex communication system, power third seat switch, multiport fuel injection system/sequential multiport fuel injection system, trailer lights (stop lights) |
| 15 | P/W FL | 20 A | Front power windows (left-side) |
| 16 | PSD LH | 25 A | Power sliding door (left-side) |
| 17 | 4WD | 7.5 A | Active Torque Control 4WD |
| 18 | AM1 | 10 A | Starting system |
| 19 | GAUGE NO.2 | 7.5 A | Gauges and meters, multi informa- tion display |
|
20 |
IG2 |
7.5 A | Automatic transaxle, multiport fuel injection system/sequential multi- port fuel injection system, SRS air- bag system, front passenger occupant classification system, steering lock system, smart key system, starting system, fuel pump |
|
21 |
PANEL |
10 A | Air conditioning system, navigation system, front passenger’s seat belt reminder light, audio system, steer- ing switch, intuitive parking assist switch, personal/interior light main switch, shift lever light, headlight levering switch, power door lock main switch, clock, power quarter window switch, seat heater switch, emergency flashers, rear window defogger switch, vehicle stability control off switch, console box light, power slide switch light |
| 22 | TAIL | 10 A | Tail lights, trailer lights (tail lights), license plate light, rear combination lights |
| 23 | WIP ECU | 7.5 A | Windshield wiper and rear window wiper |
| 24 | P/VENT | 15 A | Power quarter windows |
| 25 | AFS | 10 A | Automatic High Beam |
| 26 | WIP | 30 A | Windshield wiper |
| 27 | WASHER | 20 A | Windshield washer |
| 28 | WIP RR | 20 A | Rear window wiper |
| 29 | WASHER RR | 15 A | Rear window washer |
| 30 | HTR-IG | 10 A | Air conditioning system |
| 31 | SHIFT LOCK | 7.5 A | Shift lock system, multiport fuel injection system/sequential multi- port fuel injection system |
|
32 |
ECU-IG NO.2 |
10 A | Pre-collision system, pre-collision seat belt, dynamic radar cruise control, electric power steering, rain-sensing windshield wipers, driving position memory system, power sliding door, power third seat, power back door, multiplex communication system |
| 33 | PSD RH | 25 A | Power sliding door (right-side) |
| 34 | OBD | 7.5 A | On-board diagnosis system |
| 35 | S-HTR FL | 15 A | Seat heater (left-side) |
| 36 | S-HTR FR | 15 A | Seat heater (right-side) |

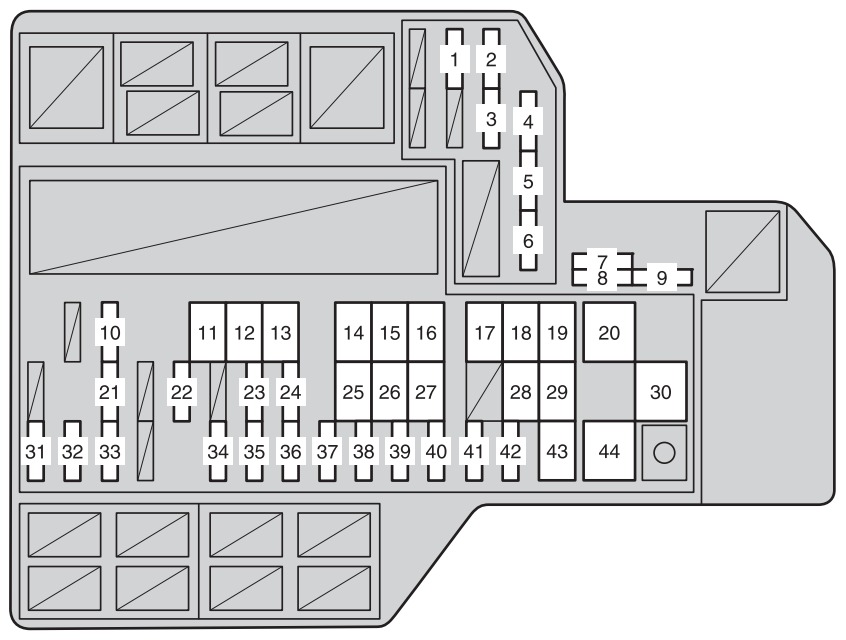

Engine Compartment Fuse Box Diagram
Toyota Sienna (2011)
| Fuse | Ampere | Circuit | |
| 1 | DSS1 | 7.5 A | PCS (Pre-collision system), dynamic radar cruise control sys- tem |
| 2 | ST NO.2 | 7.5 A | Starting system, multiport fuel injection system/sequential multi- port fuel injection system |
| 3 | ECT | 7.5 A | Multiport furl injection system/ sequential multiport fuel injection system, automatic transaxle |
| 4 | EFI NO.2 | 10 A | Multiport furl injection system/ sequential multiport fuel injection system |
| 5 | H-LP RH HI | 10 A | Right-hand headlight (high beam) |
| 6 | H-LP LH HI | 10 A | Left-hand headlight (high beam) |
| 7 | SPARE | 10 A | Spare-fuse |
| 8 | SPARE | 15 A | Spare-fuse |
| 9 | SPARE | 20 A | Spare-fuse |
| 10 | INV | 20 A | Inverter |
| 11 | PTC HTR NO.1*1 | 50 A | PTC heater |
| 12 | PTC HTR NO.2*1 | 30 A | PTC heater |
| 13 | PTC HTR NO.3*1 | 30 A | PTC heater |
| 14 | A/C RR | 40 A | Rear air conditioning system |
| 15 | PBD | 30 A | Power back door |
| 16 | FOLD SEAT*2 | 30 A | Power third seat |
| 17 | HTR | 50 A | Air conditioning system |
| 18 | PSB*2 | 30 A | Pre-collision seat belt |
| 19 | A/A SEAT | 30 A | AUTO ACCESS SEAT |
| 20 | FAN | 60 A | Electric cooling fans |
| 21 | HAZ | 15 A | Turn signal lights, gauges and meters |
| 22 | RSE | 15 A | Rear seat entertainment system |
| 23 | MIRROR*2 | 10 A | Outside rear view mirror control, outside rear view mirror heaters |
| 24 | AMP | 30 A | Audio system |
| 25 | VSC NO.2 | 30 A | Vehicle dynamics integrated man- agement, ABS, vehicle stability control |
| 26 | ST | 30 A | Starting system |
| 27 | P/I | 40 A | Horn, alarm, left-hand headlight (low beam), right-hand headlight (low beam) |
| 28 | AM2*3 | 30 A | “ST NO.2”, “GAUGE NO.2” and “IG2” fuses |
| 29 | VSC NO.1 | 50 A | Vehicle dynamics integrated man- agement, ABS, vehicle stability control |
|
30 |
ALT |
140 A | Charging system, horn, alarm, left- hand headlight (low beam), right- hand headlight (low beam), fog light, outside rear view mirror heat- ers, rear window defoggers, wind- shield wiper de-icer |
| 31 | RAD NO.1 | 15 A | Audio system |
|
32 |
DOME |
7.5 A | Vanity lights, personal/interior lights, personal lights, engine switch light, rear ceiling lights, door courtesy lights, luggage compart- ment light, gauges and meters, clock |
|
33 |
ECU-B |
10 A | Main body ECU, smart key system, wireless remote control, power back door, power sliding door, rear view monitor, multi information dis- play, power window, outside rear view mirror control, steering angle sensor, auto-anti glare inside rear view mirror, AUTO ACCESS SEAT remote control, front passenger occupant classification system |
| 34 | ETCS | 10 A | Multiport furl injection system/ sequential multiport fuel injection system |
| 35 | A/F | 20 A | Multiport furl injection system/ sequential multiport fuel injection system |
| 36 | STRG LOCK*4 | 20 A | Steering lock system |
| 37 | ALT-S | 7.5 A | Charging system |
| 38 | INJ | 25 A | Multiport furl injection system/ sequential multiport fuel injection system, “IG NO.2” and “IG2” fuses |
| 39 | ECU-B NO.2 | 7.5 A | Air conditioning system |
| 40 | AM2 NO.2*4 | 7.5 A | Multiplex communication system, starting system |
| 41 | EFI NO.1 | 25 A | Multiport furl injection system/ sequential multiport fuel injection system, “ECT” and “EFI NO.2” fuses |
| 42 | SMART*4 | 5 A | Smart key system |
| 43 | DRL | 30 A | Daytime running light system, “H- LP LH (HI)” and “H-LP RH (HI)” fuses |
| 44 | EPS | 60 A | Electric power steering |

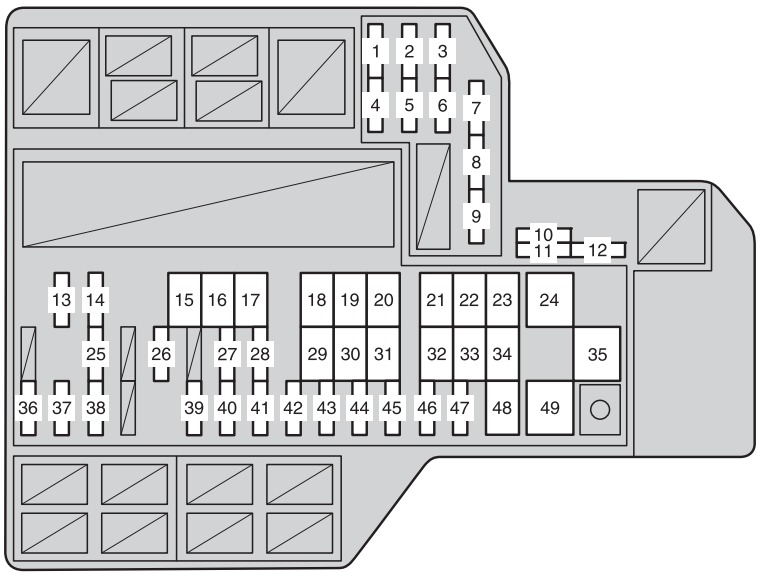

Toyota Sienna (2012 and 2013)
| Fuse | Ampere | Circuit | |
| 1 | H-LP LVL*1 | 7.5 A | Headlight leveling system |
| 2 | DSS1 | 7.5 A | PCS (Pre-collision system), dynamic radar cruise control sys- tem |
| 3 | ST NO.2 | 7.5 A | Starting system, multiport fuel injection system/sequential multi- port fuel injection system |
| 4 | H-LP LH*1 | 20 A | Left-hand headlight (low beam) |
| 5 | H-LP RH*1 | 20 A | Right-hand headlight (low beam) |
| 6 | ECT | 7.5 A | Multiport fuel injection system/ sequential multiport fuel injection system, automatic transaxle |
| 7 | EFI NO.2 | 10 A | Multiport fuel injection system/ sequential multiport fuel injection system |
| 8 | H-LP RH HI | 10 A | Right-hand headlight (high beam) |
| 9 | H-LP LH HI | 10 A | Left-hand headlight (high beam) |
| 10 | SPARE | 10 A | Spare-fuse |
| 11 | SPARE | 15 A | Spare-fuse |
| 12 | SPARE | 20 A | Spare-fuse |
| 13 | MG CLT | 7.5 A | A/C magnetic clutch |
| 14 | INV | 20 A | Inverter |
| 15 | PTC HTR NO.1*2 | 50 A | PTC heater |
| 16 | PTC HTR NO.2*2 | 30 A | PTC heater |
| 17 | PTC HTR NO.3*2 | 30 A | PTC heater |
| 18 | A/C RR | 40 A | Rear air conditioning system |
| 19 | PBD | 30 A | Power back door |
| 20 | FOLD SEAT*3 | 30 A | Power third seat |
| 21 | HTR | 50 A | Air conditioning system |
| 22 | PSB*3 | 30 A | Pre-collision seat belt |
| 23 | A/A SEAT | 30 A | AUTO ACCESS SEAT |
| 24 | FAN | 60 A | Electric cooling fans |
| 25 | HAZ | 15 A | Turn signal lights, gauges and meters |
| 26 | RSE | 15 A | Rear seat entertainment system |
| 27 | MIRROR*3 | 10 A | Outside rear view mirror control, outside rear view mirror heaters |
| 28 | AMP | 30 A | Audio system |
| 29 | VSC NO.2 | 30 A | Vehicle dynamics integrated man- agement, ABS, vehicle stability control |
| 30 | ST | 30 A | Starting system |
| 31 | P/I | 40 A | Horn, left-hand headlight (low beam), right-hand headlight (low beam) |
| 32 | H-LP MAIN*1 | 40 A | Discharge headlight |
| SPARE*4 | 30 A | Spare-fuse | |
| 33 | AM2*5 | 30 A | “ST NO.2”, “GAUGE NO.2” and “IG2” fuses |
| 34 | VSC NO.1 | 50 A | Vehicle dynamics integrated man- agement, ABS, vehicle stability control |
|
35 |
ALT |
140 A | Charging system, horn, left-hand headlight (low beam), right-hand headlight (low beam), fog light, out- side rear view mirror heaters, rear window defoggers, windshield wiper de-icer |
| 36 | RAD NO.1 | 15 A | Audio system |
|
37 |
DOME |
7.5 A | Vanity lights, personal/interior lights, personal lights, engine switch light, rear ceiling lights, door courtesy lights, luggage compart- ment light, gauges and meters, clock |
|
38 |
ECU-B |
10 A | Main body ECU, smart key system, wireless remote control, power back door, power sliding door, rear view monitor, multi information dis- play, power window, outside rear view mirror control, steering angle sensor, auto-anti glare inside rear view mirror, AUTO ACCESS SEAT remote control, front passenger occupant classification system |
| 39 | ETCS | 10 A | Multiport fuel injection system/ sequential multiport fuel injection system |
| 40 | A/F | 20 A | Multiport fuel injection system/ sequential multiport fuel injection system |
| 41 | STRG LOCK*6 | 20 A | Steering lock system |
| 42 | ALT-S | 7.5 A | Charging system |
| 43 | INJ | 25 A | Multiport fuel injection system/ sequential multiport fuel injection system, “IG NO.2” and “IG2” fuses |
| 44 | ECU-B NO.2 | 7.5 A | Air conditioning system |
| 45 | AM2 NO.2*6 | 7.5 A | Multiplex communication system, starting system |
| 46 | EFI NO.1 | 25 A | Multiport fuel injection system/ sequential multiport fuel injection system, “ECT” and “EFI NO.2” fuses |
| 47 | SMART*6 | 5 A | Smart key system |
| 48 | DRL | 30 A | Daytime running light system, “H- LP LH (HI)” and “H-LP RH (HI)” fuses |
| 49 | EPS | 60 A | Electric power steering |

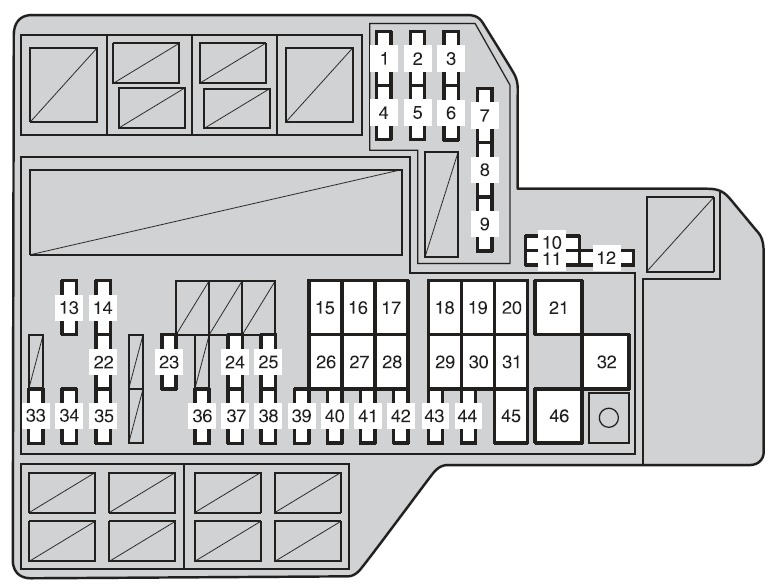

Toyota Sienna (2014 to 2018)
| Fuse | Ampere | Circuit | |
| 1 | H-LP LVL*1 | 7.5 A | Headlight leveling system |
| 2 | DSS1 | 7.5 A | PCS (Pre-collision system), dynamic radar cruise control sys- tem |
| 3 | ST NO.2 | 7.5 A | Starting system, multiport fuel injection system/sequential multi- port fuel injection system |
| 4 | H-LP LH*1 | 20 A | Left-hand headlight (low beam) |
| 5 | H-LP RH*1 | 20 A | Right-hand headlight (low beam) |
| 6 | ECT | 7.5 A | Multiport fuel injection system/ sequential multiport fuel injection system, automatic transaxle |
| 7 | EFI NO.2 | 10 A | Multiport fuel injection system/ sequential multiport fuel injection system |
| 8 | H-LP RH HI | 10 A | Right-hand headlight (high beam) |
| 9 | H-LP LH HI | 10 A | Left-hand headlight (high beam) |
| 10 | SPARE | 10 A | Spare-fuse |
| 11 | SPARE | 15 A | Spare-fuse |
| 12 | SPARE | 20 A | Spare-fuse |
| 13 | MG CLT | 7.5 A | A/C magnetic clutch |
| 14 | INV | 20 A | Inverter |
| 15 | A/C RR | 40 A | Rear air conditioning system |
| 16 | PBD | 30 A | Power back door |
| 17 | FOLD SEAT | 30 A | Power third seat |
| 18 | HTR | 50 A | Air conditioning system |
| 19 | PSB | 30 A | Pre-collision seat belt |
| 20 | A/A SEAT | 30 A | AUTO ACCESS SEAT |
| 21 | FAN | 60 A | Electric cooling fans |
| 22 | HAZ | 15 A | Turn signal lights, gauges and meters |
| 23 | RSE | 15 A | Rear seat entertainment system |
| 24 | MIRROR | 10 A | Outside rear view mirror control, outside rear view mirror heaters |
| 25 | AMP | 30 A | Audio system |
| 26 | VSC NO.2 | 30 A | Vehicle dynamics integrated man- agement, ABS, vehicle stability control |
| 27 | ST | 30 A | Starting system |
| 28 | P/I | 40 A | Horn, left-hand headlight (low beam), right-hand headlight (low beam) |
| 29 | H-LP MAIN*1 | 40 A | Discharge headlight |
| SPARE*2 | 30 A | Spare-fuse | |
| 30 | AM2*3 | 30 A | “ST NO.2”, “GAUGE NO.2” and “IG2” fuses |
| 31 | VSC NO.1 | 50 A | Vehicle dynamics integrated man- agement, ABS, vehicle stability control |
|
32 |
ALT |
140 A | Charging system, horn, left-hand headlight (low beam), right-hand headlight (low beam), fog light, out- side rear view mirror heaters, rear window defoggers, windshield wiper de-icer |
| 33 | RAD NO.1 | 15 A | Audio system |
|
34 |
DOME |
7.5 A | Vanity lights, personal/interior lights, personal lights, engine switch light, rear ceiling lights, door courtesy lights, luggage compart- ment light, gauges and meters, clock |
|
35 |
ECU-B |
10 A | Main body ECU, smart key system, wireless remote control, power back door, power sliding door, rear view monitor, multi information dis- play, power window, outside rear view mirror control, steering angle sensor, auto-anti glare inside rear view mirror, AUTO ACCESS SEAT remote control, front passenger occupant classification system |
| 36 | ETCS | 10 A | Multiport fuel injection system/ sequential multiport fuel injection system |
| 37 | A/F | 20 A | Multiport fuel injection system/ sequential multiport fuel injection system |
| 38 | STRG LOCK*4 | 20 A | Steering lock system |
| 39 | ALT-S | 7.5 A | Charging system |
| 40 | INJ | 25 A | Multiport fuel injection system/ sequential multiport fuel injection system, “IG NO.2” and “IG2” fuses |
| 41 | ECU-B NO.2 | 7.5 A | Air conditioning system |
| 42 | AM2 NO.2*4 | 7.5 A | Multiplex communication system, starting system |
| 43 | EFI NO.1 | 25 A | Multiport fuel injection system/ sequential multiport fuel injection system, “ECT” and “EFI NO.2” fuses |
| 44 | SMART*4 | 5 A | Smart key system |
| 45 | DRL | 30 A | Daytime running light system, “H- LP LH (HI)” and “H-LP RH (HI)” fuses |
| 46 | EPS | 60 A | Electric power steering |
