Toyota Tacoma (1995 – 2000) Fuse Box Location and Diagrams
Fuse box schematics and locations for 1995–2000 Toyota Tacoma vehicles are covered in this tutorial. This detailed guide helps owners identify fuse operations, troubleshoot electrical faults, and repair fuses quickly and accurately.
Fuse Box Locations
Passenger Compartment Fuse Box

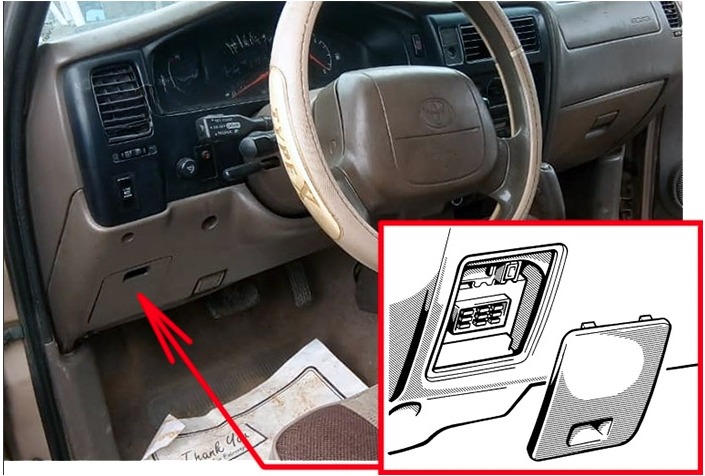

The fuse box is located behind the cover to the left and below the steering wheel.

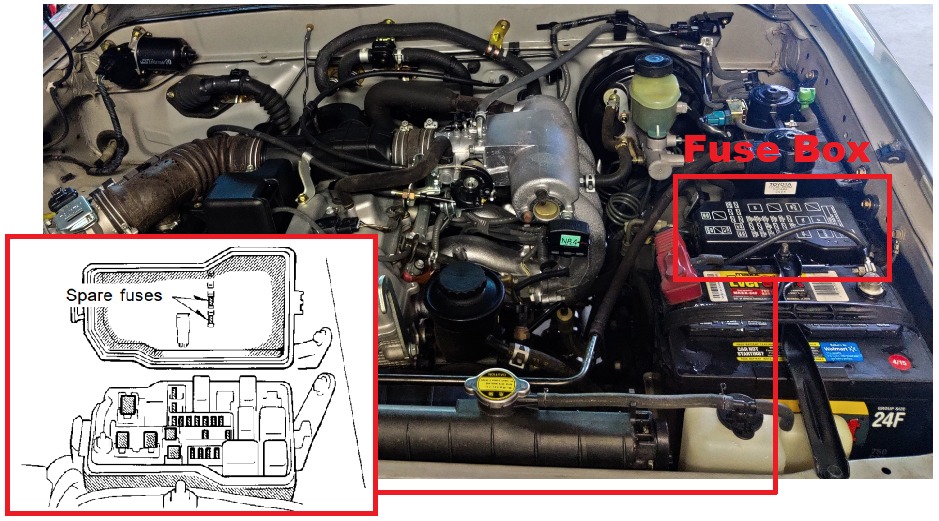

Engine Compartment Fuse Box
Passenger Compartment Fuse Box Diagram

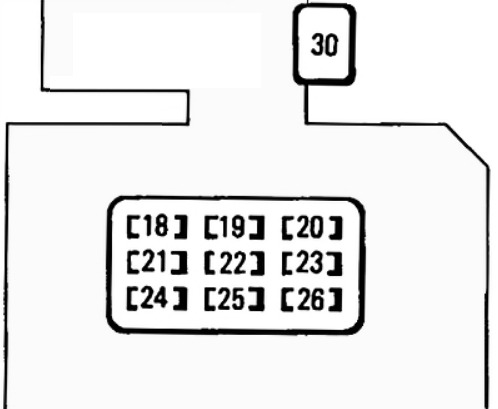

Toyota Tacoma (1995, 1996 and 1997)
| No | Name | Amp | Description |
|---|---|---|---|
| 18 | 4WD | 15A | A.D.D. control system, four-wheel drive control system, rear differential lock system |
| 19 | GAUGE | 10A | Gauges and meters, back-up lights, cruise control system, power antenna, power door lock control system, electronically controlled automatic transmission system, starting system, charging system, heater control system |
| 20 | TURN | 10A | Turn signal lights |
| 21 | ECU-IG | 15A | Cruise control system, anti-lock brake system, shift lock system |
| 22 | WIPER | 20A | Windshield wipers and washer |
| 23 | IGN | 7.5A | Discharge warning light, SRS airbag system |
| 24 | RADIO | 7.5A | Car audio system, power antenna |
| 25 | CIG | 15A | Cigarette lighter, clock, power rear view mirrors, back-up lights, shift lock system |
| 26 | ECU-B | 15A | SRS airbag warning light, daytime running light system, cruise control syste, anti-lock brake system |
| 30 | POWER | 30A | Power windows, power door lock control system |

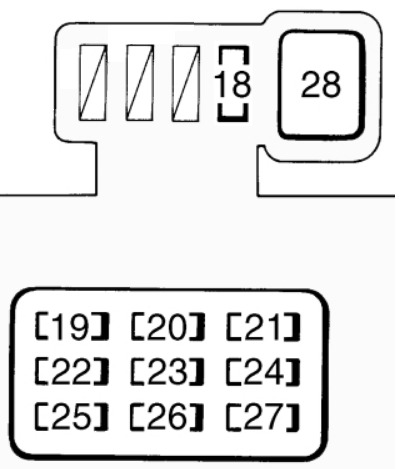

Toyota Tacoma (1998, 1999 and 2000)
| № | Name | Amp | Description |
|---|---|---|---|
| 18 | STA | 7.5A | Clutch start cancel system, starting system, gauges and meters |
| 19 | 4WD | 20A | A.D.D. control system, four-wheel drive control system, rear differential lock system |
| 20 | GAUGE | 10A | Gauges and meters, back-up lights, cruise control system, power antenna, power door lock control system, electronically controlled automatic transmission system, starting system, charging system, air conditioning system |
| 21 | TURN | 10A | Turn signal lights, emergency flashers |
| 22 | ECU-IG | 15A | Cruise control system, anti-lock brake system, automatic transmission shift lock system |
| 23 | WIPER | 20A | Windshield wipers and washer |
| 24 | IGN | 7.5A | Discharge warning light, SRS airbag system, seat belt pretensioners, multiport fuel injection system/ sequential multiport fuel injection system |
| 25 | RADIO | 7.5A | Car audio system, power antenna |
| 26 | CIG | 15A | Cigarette lighter, clock, power rear view mirrors, back-up lights, automatic transmission shift lock system, SRS airbag system, seat belt pretensioners |
| 27 | ECU-B | 15A | SRS warning light, daytime running light system, cruise control system, SRS airbag system, seat belt pretensioners |
| 28 | POWER | 30A | Power windows |
Engine Compartment Fuse Box Diagram

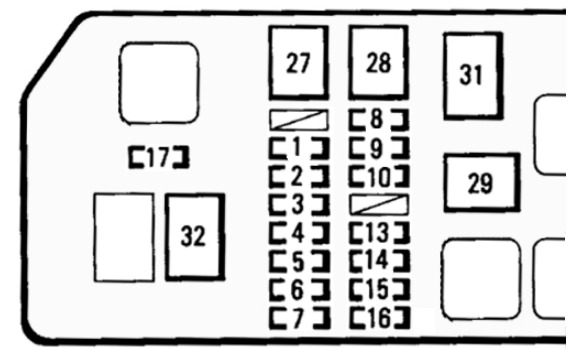

Toyota Tacoma (1995, 1996 and 1997)
| № | Name | Amp | Description |
|---|---|---|---|
| 1 | STOP | 15A | Stop lights, high-mounted stoplight, cruise control system |
| 2 | ALT-S | 7.5A | Charging system |
| 3 | STA | 7.5A | Multiport fuel injction system/sequential multiport fuel injection system, starting system, gauges and meters |
| 4 | OBD | 10A | On-board diagnosis system |
| 5 | EFI | 15A | Multiport fuel injection sys-tem/sequential multiport fuel injection system |
| 6 | HORN | 15A | Emergency flashers, horns |
| 7 | DOME | 15A | Car audio system, power antenna, interior light, clock, ignition switch light, personal ligths, door courtesy lights |
| 8 | TAIL | 10A | Tail lights, license plate lights |
| 9 | PANEL | 10A | Emergency flashers, heater cotnrol system, air conditioning cooling system, gauges and meters, clock, car audio system overdrive indicator light, glovebox light, cigarette lighter, instrument panel lights |
| 10 | A/C | 10A | Air conditionin cooling system |
| 13 | HEAD (HI RH) | 10A | With DRL: Right-hand headlight (high beam), hi-beam indicator light |
| 13 | HEAD (RH) | 10A | Without DRL: Right-hand headlight |
| 14 | HEAD (HI LH) | 10A | With DRL: Left-hand headlight (high beam) |
| 14 | HEAD (LH) | 10A | Without DRL: Left-hand headlight |
| 15 | HEAD (LO RH) | 10A | With DRL: Right-hand headlight (low beam); Without DRL: Not Used |
| 16 | HEAD (LO LH) | 10A | With DRL: Left-hand headlight (low beam); Without DRL: Not Used |
| 17 | DRL | 7.5A | With DRL: Daytime running light system; Without DRL: Not Used |
| 27 | HEATER | 40A | “A/C” fuse |
| 28 | AM1 | 40A | All components in “STA”, “ECU-B”, “POWER”’ “RADIO”, “CIG”, “GAUGE”, “TURN”, “ECU-IG”, “WIPER” and “4WD” fuses |
| 29 | AM2 | 30A | All components in “IGN” fuse |
| 31 | ABS | 60A | Anti-lock brake system |
| 32 | ALT | 80A | All components in “ABS”, “AM1”, “STA”, “ECU-B”, “POWER”, “RADIO”, “CIG”, “GAUGE”, “TURN”, “ECU-IG”, “WIPER”, “4WD”, “HEATER”, “A/C”, “TAIL”, “PANEL”, “STOP” and “ALT-S” fuses |

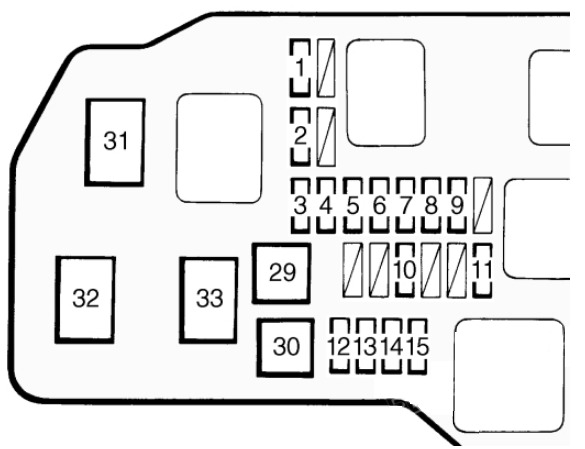

Toyota Tacoma (1998, 1999 and 2000)
| № | Name | Amp | Description |
|---|---|---|---|
| 1 | PWR OUTLET | 15A | Power outlet |
| 2 | DRL | 7.5A | with DRL: Daytime running light system; without DRL: Not Used |
| 3 | HEAD (HI RH) | 10A | with DRL: Right-hand headlight (high beam), high beam indicator light; without DRL: Not Used |
| 4 | HEAD (HI LH) | 10A | with DRL: Left-hand headlight (high beam); without DRL: Not Used |
| 5 | HEAD (LO RH) | 10A | with DRL: Right-hand headlight (low beam) |
| 5 | HEAD (RH) | 10A | without DRL: Right-hand headlight |
| 6 | HEAD (LO LH) | 10A | with DRL: Left-hand headlight (low beam) |
| 6 | HEAD (LH) | 10A | without DRL: Left-hand headlight |
| 7 | TAIL | 10A | Tail lights, licence plate lights |
| 8 | PANEL | 10A | Emergency flashers, heater control system, air conditioning system, gauges and meters, clock, car audio system, overdrive indicator light, glove box light, cigarette lighter, instrument panel lights, rear differential lock system, Multiport fuel injection system/ sequential multiport fuel injection system, electronically controlled automatic transmission system |
| 9 | A.C. | 10A | Air conditioning system |
| 10 | STOP | 15A | Stop lights, high mounted stoplight, cruise control system |
| 11 | ALT-S | 7.5A | Charging system |
| 12 | DOME | 15A | Car audio system, power antenna, interior light, clock, ignition switch light, personal lights, door courtesy lights |
| 13 | OBD | 10A | On-board diagnosis system |
| 14 | HORN | 15A | Emergency flashers, horns |
| 15 | EFI | 20A | Multiport fuel injection system/sequential multiport fuel injection system |
| 29 | AM1 | 40A | Starting system |
| 30 | AM2 | 30A | Ignition system |
| 31 | ABS | 60A | Anti-lock brake system |
| 32 | HEATER | 40A | “A.C.” fuse |
| 33 | ALT | 120A | “ABS”, “AM1”, “HEATER”, “A.C”, “TAIL”, “PANEL”, “STOP” and “ALT-S”, “PWR OUTLET” fuses |
