Volvo S60 (2011 – 2018) Fuse Box Location & Diagrams
The Volvo S60 (2011–2018) features multiple fuse boxes that protect its electrical circuits and vehicle systems. Knowing their locations and fuse assignments helps identify electrical faults, replace blown fuses, and maintain essential components such as lighting, power windows, climate control, and infotainment systems.

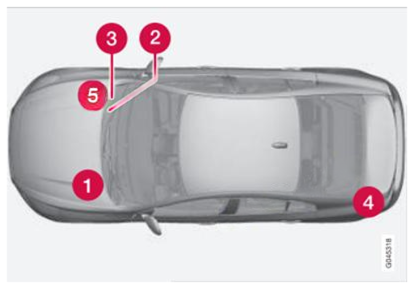

Fuse Box Location

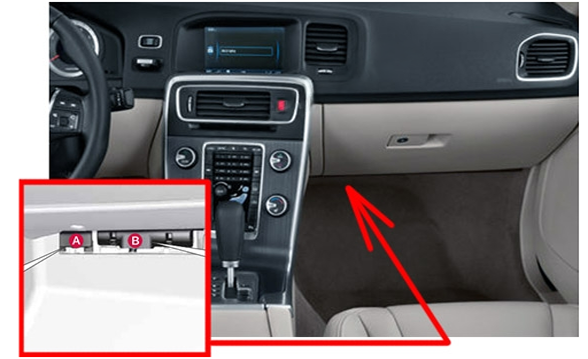

Passenger Compartment Fuse Box

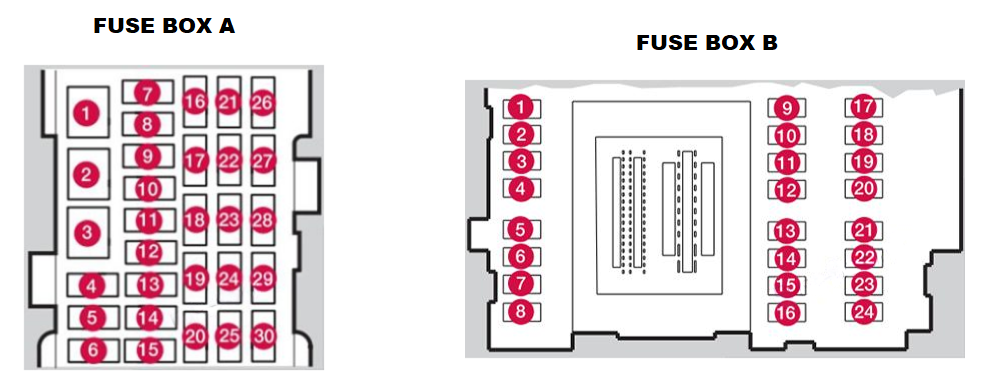

- Under the glove compartment Fusebox A (General fuses)
- Under the glove compartment Fusebox B (Control module fuses)
It is located under the lining.

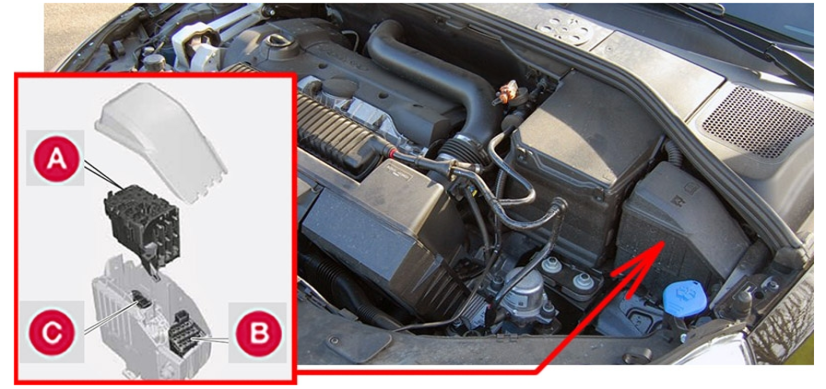

Engine Compartment Fuse Box

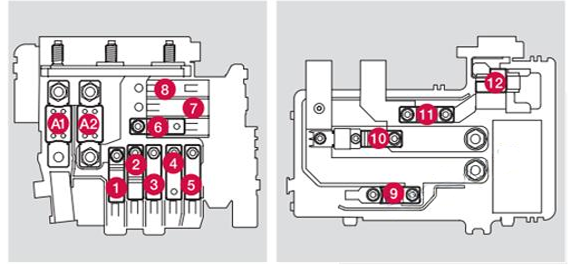

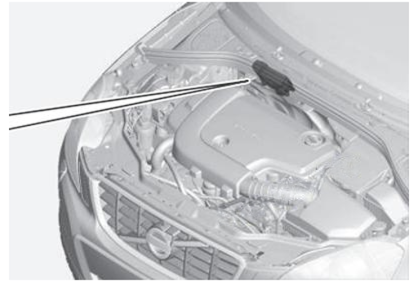

Engine compartment cold zone (Start/Stop only)

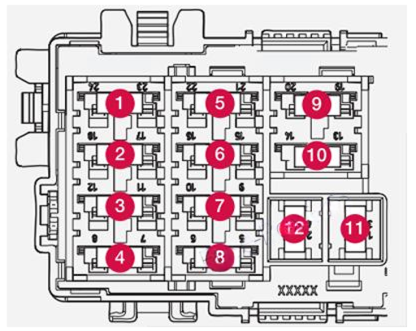

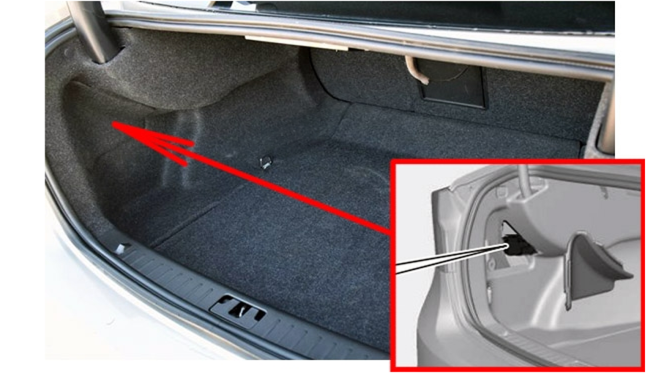

Luggage Compartment Fuse Box
Located behind the upholstery on the left side of the trunk.
Fuse Box Diagram
Passenger Compartment Fuse Box
Volvo S60 (2011-2014)
(Fusebox A)
| Fuse No. | Function | Amp Rating |
|---|---|---|
| 1 | 2011–2013: Circuit breaker – infotainment system. 2014: Circuit breaker for infotainment system and fuses 16–20. | 40A |
| 2 | Not Used | — |
| 3 | Not Used | — |
| 4 | Not Used | — |
| 5 | Not Used | — |
| 6 | Keyless drive (Option) – door handles | 5A |
| 7 | Not Used | — |
| 8 | Controls in driver’s door | 20A |
| 9 | Controls in front passenger’s door | 20A |
| 10 | Controls in right rear passenger’s door | 20A |
| 11 | Controls in left rear passenger’s door | 20A |
| 12 | Keyless drive (Option) | 7.5A |
| 13 | Power driver’s seat (Option) | 20A |
| 14 | Power front passenger’s seat (Option) | 20A |
| 15 | 2011: Folding rear seat head restraints. 2012–2013: Folding rear seat head restraints. 2014: Windshield washers. | 15A / 25A (2014) |
| 16 | Infotainment control module | 5A |
| 17 | 2011: Infotainment system, Navigation system display (Option). 2012–2013: Infotainment system, Sirius satellite radio (Option). 2014: Infotainment system, SiriusXM™ satellite radio (Option). | 10A |
| 18 | Infotainment system | 15A |
| 19 | Bluetooth hands-free system | 5A |
| 20 | Not Used | — |
| 21 | Power moonroof (Option), Courtesy lighting, Climate system sensor | 5A |
| 22 | 12-volt sockets | 15A |
| 23 | 2011: Heated front passenger’s seat (Option). 2012–2014: Heated rear seat (Option) – passenger’s side. | 15A |
| 24 | 2011: Heated driver’s seat (Option). 2012–2014: Heated rear seat (Option) – driver’s side. | 15A |
| 25 | Not Used | — |
| 26 | 2011: Heated rear passenger’s seat (right) (Option). 2012–2014: Heated front passenger’s seat (Option). | 15A |
| 27 | 2011: Heated rear passenger’s seat (left) (Option). 2012–2014: Heated driver’s seat (Option). | 15A |
| 28 | Park assist (Option), Trailer hitch control module (Option), Park assist camera (Option), Blind Spot Information System (BLIS/BUS) (Option) | 5A |
| 29 | All Wheel Drive (Option) control module | 5A |
| 30 | Active chassis system (Option) | 10A |
Fusebox B
| Fuse No. | Function | Amp Rating |
|---|---|---|
| 1 | Not Used | — |
| 2 | Not Used | — |
| 3 | Front courtesy lighting, driver’s door power window controls, power seat(s) (Option), HomeLink® Wireless Control System (Option) | 7.5A |
| 4 | 2011–2013: Instrument panel information display. 2014: Instrument panel. | 5A |
| 5 | Adaptive cruise control / collision warning (Option) | 10A |
| 6 | Courtesy lighting, rain sensor (Option) | 7.5A |
| 7 | Steering wheel module | 7.5A |
| 8 | Central locking: fuel filler door | 10A |
| 9 | 2011: Washers. 2012–2013: Not Used. 2014: Electrically heated steering wheel (Option). | 15A |
| 10 | 2011–2013: Windshield washer. 2014: Electrically heated windshield (Option). | 15A |
| 11 | Trunk open / trunk unlock | 10A |
| 12 | 2011–2012: Not Used. 2013–2014: Electrical folding rear seat outboard head restraints (Option). | 10A (2013–2014) |
| 13 | Fuel pump | 20A |
| 14 | 2011: Remote key receiver, alarm, climate system. 2012–2013: Climate system control panel. 2014: Climate system control panel. | 5A |
| 15 | 2011: Steering wheel lock. 2012–2014: Not Used. | 15A (2011) |
| 16 | Alarm, On-board diagnostic system | 5A |
| 17 | Not Used | — |
| 18 | Airbag system, occupant weight sensor / occupant weight system | 10A |
| 19 | Adaptive cruise control front radar / collision warning system (Option) | 5A |
| 20 | 2011: Accelerator pedal, power door mirrors, heated rear seats (Option). 2012: Accelerator pedal, auto-dim mirror function, heated rear seats (Option). 2013: Throttle pedal, auto-dim mirror function, heated rear seats (Option). 2014: Accelerator pedal, auto-dim mirror function, heated rear seats (Option). | 7.5A |
| 21 | 2011: Infotainment system, CD and radio. 2012–2014: Not Used. | 15A (2011) |
| 22 | Brake lights | 5A |
| 23 | Power moonroof (Option) | 20A |
| 24 | Immobilizer | 5A |
Volvo S60 (2015-2018)
(Fusebox A)
| № | Function | Amp (A) |
|---|---|---|
| 1 | Circuit breaker for infotainment system and fuses 16–20 (2015–2018). 2016–2017 also listed as primary fuse for audio control module (Option). | 40 |
| 2 | Windshield/Windscreen washers (2015–2018). | 25 |
| 3 | — (Unused fuse position, 2015–2018). | — |
| 4 | — (Unused fuse position, 2015–2018). | — |
| 5 | — (Unused fuse position, 2015–2018). | — |
| 6 | Keyless drive door handles (Option) (2015–2018). | 5 |
| 7 | — (Unused fuse position, 2015–2018). | — |
| 8 | Driver’s door control panel/controls (2015–2018). | 20 |
| 9 | Front passenger door control panel/controls (2015–2018). | 20 |
| 10 | Right rear passenger door control panel/controls (2015–2018). | 20 |
| 11 | Left rear passenger door control panel/controls (2015–2018). | 20 |
| 12 | Keyless drive system (Option) (2015–2018). | 7.5 |
| 13 | Power driver’s seat (Option) (2015–2018). | 20 |
| 14 | Power front passenger seat (Option) (2015–2018). | 20 |
| 15 | — (Unused fuse position, 2015–2018). | — |
| 16 | Infotainment control module/display/screen: 2015 control module; 2016–2017 control module or screen; 2018 infotainment system display. | 5 |
| 17 | Infotainment amplifier and audio options: 2015 amplifier + SiriusXM; 2016–2017 amplifier + TV + digital radio; 2018 amplifier + SiriusXM. | 10 |
| 18 | Infotainment/Sensus control module: 2015 infotainment system; 2016–2017 audio control module or Sensus; 2018 Sensus control module. | 15 |
| 19 | Bluetooth/Telematics system: 2015 Bluetooth hands-free; 2016–2017 telematics + Bluetooth; 2018 Bluetooth hands-free system. | 5 |
| 20 | — (Unused fuse position, 2015–2018). | — |
| 21 | Power moonroof (Option), courtesy lighting, climate sensor (2015–2018). 2016–2017 also include air intake damper motors. | 5 |
| 22 | 12V socket in tunnel console (2015–2018). | 15 |
| 23 | Heated rear seat, passenger side (Option) (2015–2018). | 15 |
| 24 | Heated rear seat, driver side (Option) (2015–2018). | 15 |
| 25 | Unused position: 2015 and 2018 blank. 2016–2017 electric additional heater (Option). | 5 |
| 26 | Heated front passenger seat (Option) (2015–2018). | 15 |
| 27 | Heated driver’s seat (Option) (2015–2018). | 15 |
| 28 | Park assist, parking camera, BLIS: 2015 includes trailer hitch control module; 2016–2018 include park assist, camera, and BLIS. | 5 |
| 29 | All-Wheel Drive (AWD) control module (Option) (2015–2018). | 15 |
| 30 | Active chassis system: 2015–2018. 2016–2017 specifically listed as Active chassis Four-C. | 10 |
Fusebox B
| № | Function | Amp (A) |
|---|---|---|
| 1 | — (Unused fuse position) | — |
| 2 | — (Unused fuse position) | — |
| 3 | Front courtesy/interior lighting; driver’s door control panel and power windows; power seat(s) (Option). 2015 also includes HomeLink® Wireless Control System (Option). | 7.5 |
| 4 | Instrument panel / Combined instrument panel | 5 |
| 5 | Adaptive cruise control (ACC) / collision warning system (Option) | 10 |
| 6 | Courtesy/interior lighting; rain sensor (Option). 2018 also includes HomeLink® Wireless Control System (Option). | 7.5 |
| 7 | Steering wheel module | 7.5 |
| 8 | Central locking system: fuel filler door/flap | 10 |
| 9 | Electrically heated / heated steering wheel (Option) | 15 |
| 10 | Electrically heated / heated windshield (Option) | 15 |
| 11 | Trunk/boot lid opening | 10 |
| 12 | Electrical folding rear seat outboard head restraints / folding head restraint (Option) | 10 |
| 13 | Fuel pump | 20 |
| 14 | Climate system control panel / Climate panel. 2016–2017 also include movement detector alarm (Option). | 5 |
| 15 | Steering lock (2016–2017 only). 2015 and 2018 unused. | 15 |
| 16 | Alarm, On-board diagnostic system (OBDII). 2016–2017 also include siren (Option) and data link connector. | 5 |
| 17 | Satellite radio (Option), audio system amplifier (2018 only). 2015–2017 unused. | 10 |
| 18 | Airbag system / occupant weight sensor | 10 |
| 19 | Collision warning system (Option) | 5 |
| 20 | Accelerator pedal sensor; auto-dim interior rearview mirror; heated rear seats (Option) | 7.5 |
| 21 | Infotainment control module (Performance); Audio (Performance) (2016–2017 only). 2015 and 2018 unused. | 15 |
| 22 | Brake lights | 5 |
| 23 | Power moonroof / Sunroof (Option) | 20 |
| 24 | Immobilizer | 5 |

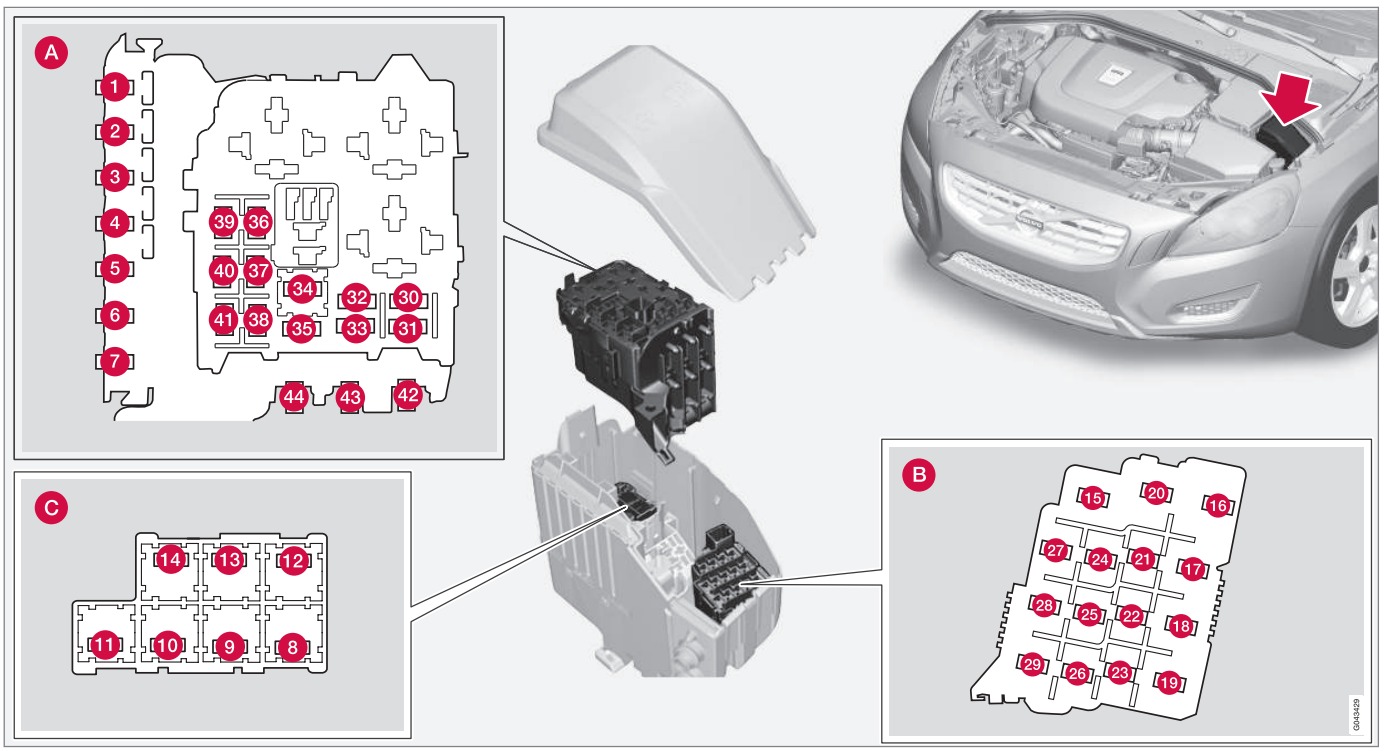

Engine Compartment Fuse Box
Volvo S60 ( 2011-2014)
| № | Function | Amp |
|---|---|---|
| 1 | Circuit breaker | 50 A (2011–2014) |
| 2 | Circuit breaker | 50 A (2011–2014) |
| 3 | Circuit breaker | 60 A (2011–2014) |
| 4 | Circuit breaker | 60 A (2011–2014) |
| 5 | Circuit breaker | 60 A (2011–2014) |
| 6 | — | — |
| 7 | — | — |
| 8 | 2011–2013: Headlight washers (Option)2014: Heated windshield, driver’s side (Option) | 2011–2013: 20 A2014: 40 A |
| 9 | Windshield wipers | 30 A (2011–2014) |
| 10 | — | — |
| 11 | Climate system blower | 40 A (2011–2014) |
| 12 | 2011–2013: —2014: Heated windshield, passenger’s side (Option) | 2011–2013: —2014: 40 A |
| 13 | ABS pump | 40 A (2011–2014) |
| 14 | ABS valves | 20 A (2011–2014) |
| 15 | 2011–2013: —2014: Headlight washers | 2011–2013: —2014: 20 A |
| 16 | Active Bending Lights / Headlight leveling (Option) | 10 A (2011–2014) |
| 17 | Central electrical module | 20 A (2011–2014) |
| 18 | 2011: ABS 15 feed2012–2014: ABS | 5 A (2011–2014) |
| 19 | 2011–2013: Speed-dependent steering force (Option)2014: Adjustable steering force (Option) | 5 A (2011–2014) |
| 20 | Engine Control Module (ECM), transmission, SRS | 10 A (2011–2014) |
| 21 | Heated washer nozzles (Option) | 10 A (2011–2014) |
| 22 | 2011: Vacuum pump I5T2012–2013: Vacuum pump (5-cylinder engine)2014: — | 2011–2013: 5 A2014: — |
| 23 | Lighting panel | 5 A (2011–2014) |
| 24 | — | — |
| 25 | — | — |
| 26 | — | — |
| 27 | 2011–2013: Relay – engine compartment box2014: Relay coils | 5 A (2011–2014) |
| 28 | Auxiliary lights (Option) | 20 A (2011–2014) |
| 29 | Horn | 15 A (2011–2014) |
| 30 | 2011–2013: Engine Control Module (ECM)2014: Relay coils, Engine Control Module (ECM) | 10 A (2011–2014) |
| 31 | Control module – automatic transmission | 15 A (2011–2014) |
| 32 | A/C compressor | 15 A (2011–2014) |
| 33 | 2011–2013: Relay coils2014: A/C relay coils, Start/Stop engine compartment relay coils | 5 A (2011–2014) |
| 34 | Starter motor relay | 30 A (2011–2014) |
| 35 | Ignition coils | 20 A (2011–2014) |
| 36 | 2011–2013: Engine Control Module2014: Engine Control Module (4-cylinder engines)2014: Engine Control Module (5/6-cylinder engines) | 2011–2013: 10 A2014: 20 A (4-cylinder)2014: 10 A (5/6-cylinder) |
| 37 | 2011–2013: Injection system, mass air meter2014: 4-cylinder: mass air meter, thermostat, EVAP valve2014: 5/6-cylinder: injection system, mass air meter, ECM | 2011–2013: 15 A2014: 10 A (4-cylinder)2014: 15 A (5/6-cylinder) |
| 38 | 2011–2013: A/C compressor, engine valves, ECM, solenoids, mass air meter (engine dependent)2014: Added engine valves/oil pump/oxygen sensor functions for 4-cylinder engines | 2011–2013: 10 A2014: 10 A / 15 A (engine dependent) |
| 39 | 2011–2013: EVAP valve, heated oxygen sensor2014: Front/rear heated oxygen sensors, EVAP valve (engine dependent) | 15 A (2011–2014) |
| 40 | 2011: —2012: Vacuum pump/crankcase ventilation heater2013: Vacuum pump/crankcase ventilation heater2014: Oil pump (automatic transmission), crankcase ventilation heater, ignition coils | 2011: —2012: 20 A2013: 10 A2014: 10 A / 15 A |
| 41 | 2011–2013: Fuel leakage detection2014: Fuel leakage detection + radiator shutter module (5/6-cylinder)2014: Fuel leakage detection + A/C relay (4-cylinder) | 2011–2013: 5 A2014: 5 A / 15 A |
| 42 | 2011–2013: —2014: Coolant pump (4-cylinder engines) | 2011–2013: —2014: 50 A |
| 43 | 2011: Cooling fan2012–2014: Cooling fan (engine dependent) | 2011: 80 A2012–2014: 60 A (5-cylinder)2012–2014: 80 A (6-cylinder) |
| 44 | Electro-hydraulic power steering / Power steering | 100 A (2011–2014) |
Volvo S60 ( 2015-2018)
| Fuse No. | Function | Amp Rating |
|---|---|---|
| 1 | Central Electronic Module (CEM) under glove compartment primary fuse/circuit breaker. 2015–2018: Same function. | 50A |
| 2 | Central Electronic Module (CEM) under glove compartment primary fuse. 2015–2018: Same function. | 50A |
| 3 | Central electrical unit in cargo area/trunk primary fuse (not used with optional Start/Stop). 2015–2018: Same function. | 60A |
| 4 | Primary fuse under glove compartment. 2015: Central electrical module. 2016–2017: Relay/fuse box under glovebox. 2018: Central electrical module (not used with Start/Stop). | 60A |
| 5 | Primary fuse for relay/fuse box under glove compartment (not used with optional Start/Stop). 2015–2018: Same function. | 60A |
| 6 | Not Used. 2015–2018: Same. | — |
| 7 | Electric additional heater. 2015: Not Used. 2016–2017: Electric additional heater (not used with Start/Stop). 2018: Not Used. | 100A (2016–2017 only) |
| 8 | Heated windshield, driver’s side. 2015–2018: Same function. | 40A |
| 9 | Windshield wipers. 2015–2018: Same function. | 30A |
| 10 | Parking heater option. 2015: Not Used. 2016–2017: Parking heater. 2018: Not Used. | 25A (2016–2017 only) |
| 11 | Climate system blower / ventilation fan (not used with optional Start/Stop). 2015–2018: Same function. | 40A |
| 12 | Heated windshield, passenger side. 2015–2018: Same function. | 40A |
| 13 | ABS pump. 2015–2018: Same function. | 40A |
| 14 | ABS valves. 2015–2018: Same function. | 20A |
| 15 | Headlight washers. 2015–2018: Same function. | 20A |
| 16 | Active Bending Lights (ABL) / headlight leveling option. 2015–2018: Same function. | 10A |
| 17 | Central Electronic Module (CEM) under glove compartment. 2015–2018: Same function. | 20A |
| 18 | ABS system. 2015–2018: Same function. | 5A |
| 19 | Adjustable steering force option. 2015–2018: Same function. | 5A |
| 20 | Engine Control Module (ECM), transmission control module, SRS/airbags. 2015–2018: Same function. | 10A |
| 21 | Heated washer nozzles option. 2015–2018: Same function. | 10A |
| 22 | Not Used. 2015–2018: Same. | — |
| 23 | Lighting control. 2015: Lighting panel. 2016–2018: Headlamp control. | 5A |
| 24 | Not Used. 2015–2018: Same. | — |
| 25 | Not Used. 2015–2018: Same. | — |
| 26 | Not Used. 2015–2018: Same. | — |
| 27 | Relay coils. 2015–2018: Same function. | 5A |
| 28 | Auxiliary lamps option. 2015–2018: Same function. | 20A |
| 29 | Horn. 2015–2018: Same function. | 15A |
| 30 | Engine management relay coil and ECM. 2015: 4-cylinder ECM 5A, 5/6-cylinder ECM 10A. 2016: Engine management relay coil and ECM (4-cylinder 5A, 5/6-cylinder 10A). 2017: 4-cylinder ECM 5A, 5-cylinder diesel ECM 10A. 2018: Relay coils and ECM 10A. | 5A / 10A |
| 31 | Transmission Control Module / automatic transmission control module. 2015–2018: Same function. | 15A |
| 32 | A/C compressor and coolant pump circuit. 2015: A/C compressor (not 4-cylinder). 2016–2017: Supporting coolant pump (4-cylinder diesel). 2018: A/C compressor (not 4-cylinder). | 15A |
| 33 | A/C relay coils and Start/Stop engine compartment relay coils. 2015–2018: Same function. | 5A |
| 34 | Starter motor relay. 2015: Starter motor relay. 2016: Starter relay (5/6-cylinder petrol). 2017: Not Used. 2018: Starter motor relay. | 30A |
| 35 | Engine control and ignition circuit. 2015: ECM, ignition coils, condenser. 2016: Glow control module or ECM/ignition coils depending on engine. 2017: Glow control module or ECM. 2018: ECM and ignition coils. | 10A / 20A |
| 36 | Engine Control Module (ECM). 2015: 4-cylinder 20A, 5/6-cylinder 10A. 2016: 5/6-cylinder petrol 10A, 5-cylinder diesel 15A, 4-cylinder 20A. 2017: 5-cylinder diesel 15A, 4-cylinder 20A. 2018: 4-cylinder 20A, 5-cylinder 10A. | 10A / 15A / 20A |
| 37 | Engine sensors and fuel control. 2015: Mass air meter, thermostat, EVAP valve, injection system. 2016: Added EGR cooling pump and engine-specific controls. 2017: Mass airflow meter and control valves (diesel). 2018: Mass air meter, thermostat, EVAP valve, injection system. | 10A / 15A |
| 38 | Engine management components. 2015: A/C compressor, valves, ECM, solenoids, sensors. 2016: A/C clutch, valves, ECM, oil level sensor. 2017: A/C clutch, valves, oil level sensor. 2018: A/C compressor, valves, oil level sensor, oxygen sensor. | 10A / 15A |
| 39 | Oxygen sensors and emissions system. 2015: Heated oxygen sensors and EVAP valve. 2016: Lambda sensors and radiator shutter module. 2017: Lambda sensors and radiator roller cover module. 2018: Front/rear oxygen sensors and EVAP valve. | 15A |
| 40 | Engine auxiliary systems. 2015: Oil pump (automatic transmission), crankcase ventilation heater (5-cylinder), ignition coils. 2016: Coolant pump (5-cylinder petrol), crankcase ventilation heater, automatic gearbox oil pump, ignition coils, diesel filter heater. 2017: Ignition coils (4-cylinder petrol), diesel filter heater. 2018: Oil pump, crankcase ventilation heater, coolant pump (5-cylinder), ignition coils (4-cylinder). | 10A / 15A / 20A |
| 41 | Fuel, A/C, and engine auxiliary controls. 2015: Fuel leakage detection (5/6-cylinder), radiator shutter control module, A/C relay (4-cylinder). 2016: Radiator shutter control module, A/C solenoid clutch, glow control module, oil pump depending on engine. 2017: A/C solenoid clutch (4-cylinder), glow control module, oil pump, crankcase ventilation heater, automatic gearbox oil pump depending on engine. 2018: Fuel leakage detection, radiator shutter control module, A/C solenoid. | 5A / 7.5A / 10A / 15A |
| 42 | Cooling and diesel starting system. 2015: Coolant pump (4-cylinder engines). 2016: Coolant pump (4-cylinder petrol) and glow plugs (diesel engines). 2017: Coolant pump (4-cylinder petrol) and glow plugs (diesel engines). 2018: Coolant pump (4-cylinder engines). | 50A / 70A |
| 43 | Cooling fan system. 2015: Cooling fan (4/5-cylinder engines) 60A, (6-cylinder engines) 80A. 2016: Cooling fan (4/5-cylinder petrol) 60A, (6-cylinder petrol and diesel) 80A. 2017: Cooling fan (petrol) 60A/80A depending on variant, diesel 80A. 2018: Cooling fan (4-cylinder engines) 60A/80A, (5-cylinder engines) 60A. | 60A / 80A |
| 44 | Power steering. 2015–2018: Same function. | 100A |
Engine compartment cold zone ( 2015-2018)
| Pos | Function | A |
|---|---|---|
| A1 | Circuit breaker: central electrical module in the engine compartment | 175 |
| A2 | Circuit breaker: fuseboxes under the glove compartment, central electrical module in the trunk | 175 |
| 1 | — | — |
| 2 | Circuit breaker: fusebox B under the glove compartment (see Fuses – glove compartment) | 50 |
| 3 | Circuit breaker: fusebox A under the glove compartment (see Fuses – glove compartment) | 60 |
| 4 | Circuit breaker: fusebox A under the glove compartment (see Fuses – glove compartment) | 60 |
| 5 | Circuit breaker: central electrical module in the trunk | 60 |
| 6 | Climate system blower | 40 |
| 7 | — | — |
| 8 | — | — |
| 9 | Starter motor relay | 30 |
| 10 | Internal diode | 50 |
| 11 | Auxiliary battery | 70 |
| 12 | Central electrical module: auxiliary battery reference voltage, auxiliary battery charging point | 15 |
Luggage Compartment Fuse Box
| № | Function | Amp |
|---|---|---|
| 1 | Electric parking brake (left side) | 30 |
| 2 | Electric parking brake (right side) | 30 |
| 3 | Heated rear window | 30 |
| 4 | Trailer socket 2 (Option) | 15 |
| 5 | – | |
| 6 | ||
| 7 | Rear 12-volt socket | 15 |
| 8 | – | – |
| 9 | – | – |
| 10 | – | – |
| 11 | Trailer socket 1 (option) | 40 |
| 12 | – | – |
Related Posts:
