SEAT Ateca (2016 – 2026) Fuse Box Location & Diagrams
The SEAT Ateca (2016–2026) features several fuse boxes that protect essential electrical systems throughout the vehicle. This blog covers the fuse box locations, fuse assignments, and diagrams for different Ateca model years, helping you identify the correct fuse when troubleshooting electrical components or replacing a blown fuse.
Fuse Box Location
Passenger Compartment Fuse Box

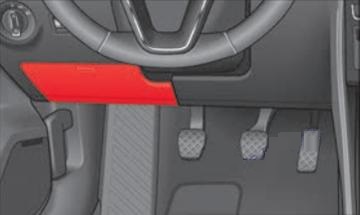

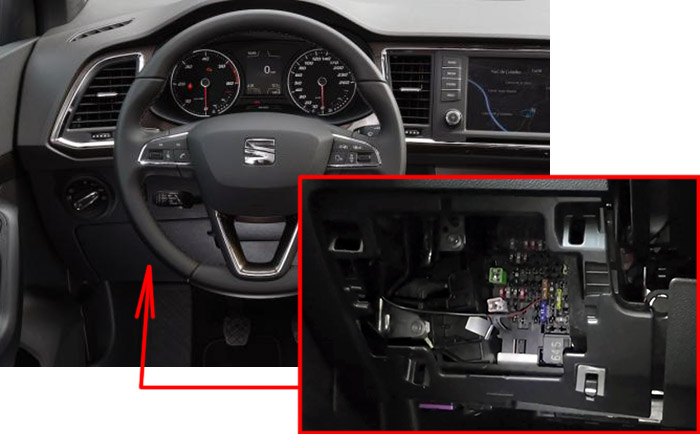

Left-hand drive vehicles: The fuse box is located behind the storage compartment.

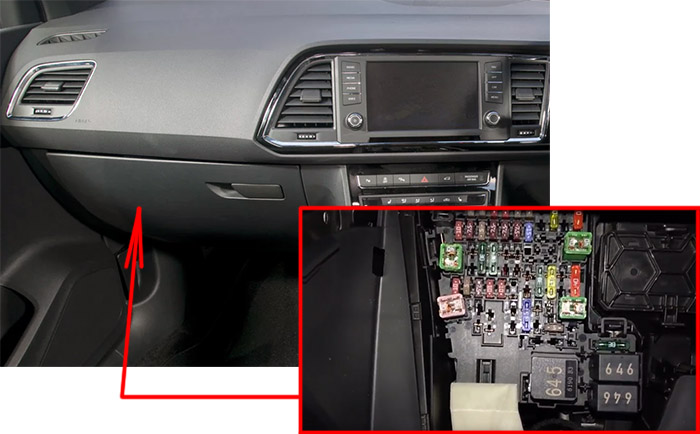

Right-hand drive vehicles: The fuse box is located in the glove compartment.

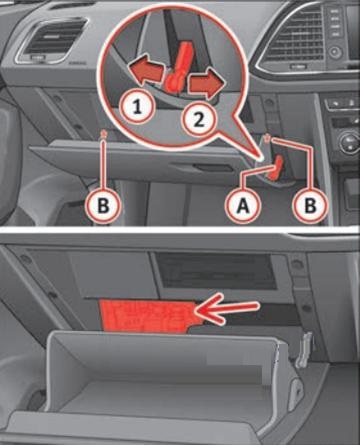

Undo the opening limiter (A) in two steps:
- First, unlock the limiter by pulling back on it (arrow 1) and then move it gently to the right (arrow 2). Remove the guide when the cover is in the normal opening position (30°).
- Free the side pivots (B) to release the cover to its second opening position (60°).

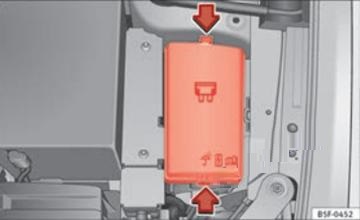

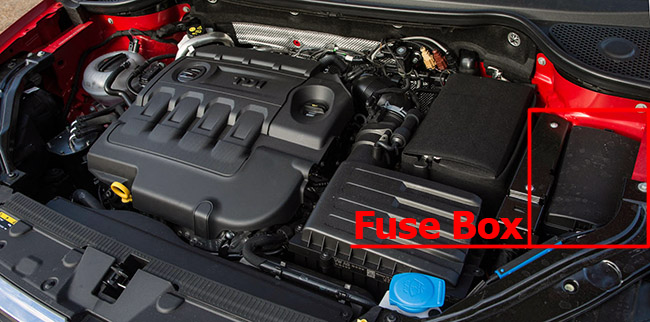

Engine Compartment Fuse Box
Fuse Box Diagrams

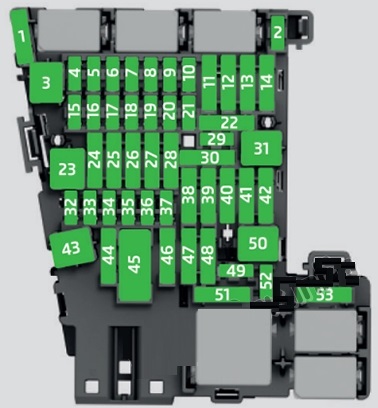

Passenger Compartment Fuse Box
SEAT Ateca (2016 – 2018)
| № | Consumers | Amps |
|---|---|---|
| 1 | Adblue (SCR) | 30 |
| 5 | Gateway | 5 |
| 6 | Automatic gearbox lever | 5 |
| 7 | Air conditioning and heating control panel, back window heating, auxiliary heating. | 10 |
| 8 | Diagnosis, handbrake switch, light switch, reverse light, interior lighting, driving mode 2018: Diagnosis, handbrake switch, light switch, reverse light, interior lighting, driving mode, lit-up door sill | 10 |
| 9 | Steering column | 5 |
| 10 11 | Radio display 2018: Left lights | 7.5 40 |
| 12 | Radio | 20 |
| 14 | Air conditioner fan | 40 |
| 15 | Steering column release | 10 |
| 16 | Connectivity box koppelantenne | 7.5 |
| 17 | Instrument panel | 5 |
| 18 | Rear camera | 7.5 |
| 19 | Kessy | 7.5 |
| 21 | 4×4 Haldex Control Unit | 15 |
| 22 | Trailer | 15 |
| 23 | Right lights | 40 |
| 2A | Electric sunroof | 30 |
| 25 | Left door | 30 |
| 26 | Heated seats | 30 |
| 28 | Trailer | 25 |
| 31 | Left lights | 40 |
| 32 | Parking aid control unit 2018: Control unit for parking aid, front camera and radar | 7.5/10 |
| 33 | Airbag | 5 |
| 34 | Reverse switch, climate sensor, electro-chromic mirror 2018: Reverse switch, climate sensor, electrochromic mirror, rear power sockets (USB) | 7.5 |
| 35 | Diagnosis, headlight control unit, headlight adjuster | 10 |
| 36 | Front camera, Radar 2018: Right LED headlight | 5/10/7.5 |
| 38 | Trailer | 25 |
| 39 | Right door | 30 |
| 40 | 12V socket | 20 |
| 42 | Central locking | 40 |
| 43 | Interior light 2018: SEAT Sound, beats sound CAN and MOST. | 30 |
| 44 | Trailer | 15 |
| 45 | Electric driver’s seat | 15 |
| 47 | Rear window wiper | 15 |
| 49 | Starter motor; clutch sensor | 5 |
| 50 52 | Electric rear lid 2018: Driving mode. | 40 15 |
| 53 | Heated rear window | 30 |
SEAT Ateca (2019 & 2020)
| № | Protected component | Amps |
|---|---|---|
| 1 | Adblue (SCR) | 20 |
| 4 | Alarm horn | 7.5 |
| 5 | Gateway | 7.5 |
| 6 | Automatic gearbox lever | 7.5 |
| 7 | Air conditioning and heating control panel, back window heating, auxiliary heating. | 10 |
| 8 | Diagnosis, electronic parking brake switch, light switch, reverse light, interior lighting, driving mode, lit-up door sill | 7.5 |
| 9 | Steering column | 7.5 |
| 10 | Radio display | 7.5 |
| 11 | Left lights | 40 |
| 12 | Radio | 20 |
| 14 | Air conditioner fan | 40 |
| 15 | Steering column release | 10 |
| 16 | Connectivity Box | 7.5 |
| 17 | Instrument panel, OCU | 7.5 |
| 18 | Rear camera | 7.5 |
| 19 | Kessy | 7.5 |
| 20 | SCR, engine relay, 1.5 | 10/15 |
| 21 | 4×4 Haldex Control Unit | 15 |
| 22 | Trailer | 15 |
| 23 | Electric sunroof | 20 |
| 24 | Right lights | 40 |
| 25 | Left door | 30 |
| 26 | Heated seats | 30 |
| 27 | Interior light | 30 |
| 28 | Trailer | 25 |
| 32 | Control unit for parking aid, front camera and radar | 7.5/10 |
| 33 | Airbag | 7.5 |
| 34 | Reverse switch, climate sensor, electrochromic mirror, rear power sockets (USB) | 7.5 |
| 35 | Diagnosis, headlight control unit, headlight adjuster | 7.5 |
| 36 | Right LED headlight | 7.5 |
| 37 | Left LED headlight | 7.5 |
| 38 | Trailer | 25 |
| 39 | Right door | 30 |
| 40 | 12V socket | 20 |
| 42 | Central locking | 40 |
| 43 | Beats Audio CAN and MOST. | 30 |
| 44 | Trailer | 15 |
| 45 | Electric driver’s seat | 15 |
| 47 | Rear window wiper | 15 |
| 49 | Starter motor; clutch sensor | 7.5 |
| 50 | Electric rear lid | 40 |
| 52 | Driving mode. | 15 |
| 53 | Heated rear window | 30 |
| – | Rear power sockets (In-line fuse) | 7.5 |
SEAT Ateca (2021 – 2026)
| № | Consumers | Amps |
|---|---|---|
| 1 | Adblue (SCR) | 20 |
| 4 | Alarm horn | 7.5 |
| 5 | Gateway | 7.5 |
| 6 | Automatic gearbox lever | 7.5 |
| 7 | Air conditioning and heating control panel, back window heating, auxiliary heating. | 10 |
| 8 | Diagnosis, electronic parking brake switch, light switch, reversing light, interior lighting, driving mode, lit-up door sill, rain sensor | 7.5 |
| 9 | Steering column, coolant pump (T2C) | 7.5 |
| 10 | Radio display | 7.5 |
| 11 | Left lights | 40 |
| 12 | Radio | 20 |
| 13 | Driver and passenger seat belt pre-tensioner | 25 |
| 14 | Air conditioner fan | 40 |
| 15 | Steering column release | 10 |
| 16 | Connectivity Box | 7.5 |
| 17 | Instrument panel, OCU | 7.5 |
| 18 | Rear camera and surroundings camera | 7.5 |
| 19 | Kessy | 7.5 |
| 20 | SCR, engine relay, 1.5 | 10/15 |
| 21 | 4×4 Haldex Control Unit | 15 |
| 22 | Trailer | 15 |
| 23 | Electric sunroof | 30 |
| 24 | Right lights | 40 |
| 25 | Left door | 30 |
| 26 | Heated seats | 30 |
| 27 | Interior light | 30 |
| 28 | Trailer | 25 |
| 31 | Rear lid control unit | 30 |
| 32 | Control unit for parking aid, front camera and radar | 7.5/10 |
| 33 | Airbag | 7.5 |
| 34 | Reverse switch, climate sensor, electrochromic mirror, rear power sockets (USB) | 7.5 |
| 35 | Diagnosis, headlight control unit, headlight adjuster | 7.5 |
| 38 | Trailer | 25 |
| 39 | Right door | 30 |
| 40 | 12V socket | 20 |
| 41 | Driver and passenger seat belt pre-tensioner | 25 |
| 42 | Central locking | 40 |
| 43 | Sound amplifier / Beats Audio CAN and MOST. | 40 |
| 44 | Trailer | 15 |
| 45 | Electric driver’s seat | 15 |
| 46 | USB socket | 7.5 |
| 47 | Rear window wiper | 15 |
| 49 | Starter motor; clutch sensor | 7.5 |
| 52 | Driving mode. | 15 |
| 53 | Heated rear window | 30 |
| – | In-line fuse: 230V rear power sockets | 30 |

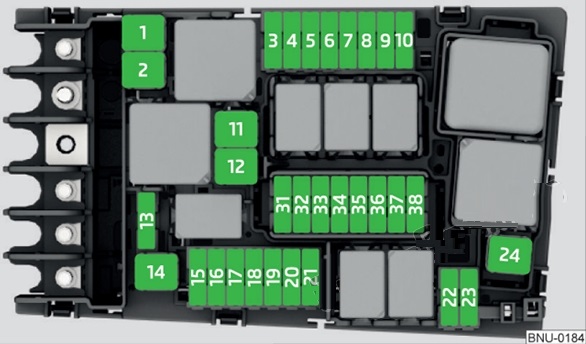

Engine Compartment Fuse Box
SEAT Ateca (2016 – 2018)
| № | Consumers | Amps |
|---|---|---|
| 1 | ESP control unit | 40 |
| 2 | ESP control unit | 40 |
| 3 | Engine control unit (diesel/petrol) | 30/15 |
| 4 | Engine sensors | 5/10 |
| 5 | Engine sensors | 10 |
| 6 | Brake light sensor | 5 |
| 7 | Engine power supply | 10 |
| 8 | Lambda probe | 10/15 |
| 9 | Engine | 5/20 |
| 10 | Fuel pump control unit | 15/20 |
| 11 | PTC | 40 |
| 12 | PTC | 40 |
| 13 | Automatic gearbox control unit | 15/30 |
| 14 | Heated windscreen | 40 |
| 15 16 | Horn 2018: Petrol pump | 15 5/15/20 |
| 17 | Engine control unit | 7.5 |
| 18 | Terminal 30 (positive reference) | 5 |
| 19 | Front windscreen washer | 30 |
| 20 | Alarm horn | 10 |
| 22 | Engine control unit | 5 |
| 23 | Starter motor | 30 |
| 24 | PTC | 40 |
| 31 | Pressure pump | 15 |
| 33 | Gearbox pump | 30 |
| 37 | Parking heating | 20 |
SEAT Ateca (2019 & 2020)
| № | Protected component | Amps |
|---|---|---|
| 1 | ESP control unit | 25 |
| 2 | ESP control unit | 40/60 |
| 3 | Engine control unit (diesel/petrol) | 30/15 |
| 4 | Engine sensors | 7.5/10 |
| 5 | Engine sensors | 7.5/10 |
| 6 | Brake light sensor | 7.5 |
| 7 | Engine power supply | 7.5/10 |
| 8 | Lambda probe | 10/15 |
| 9 | Engine | 5/10/20 |
| 10 | Fuel pump control unit | 15/20 |
| 11 | PTC | 40 |
| 12 | PTC | 40 |
| 13 | Gearbox pump | 15/30 |
| 14 | Heated windscreen | 40 |
| 15 | Horn | 15 |
| 16 | Petrol pump | 7.5/15/20 |
| 17 | Engine control unit | 7.5 |
| 18 | Terminal 30 (positive reference] | 7.5 |
| 19 | Front windscreen washer | 30 |
| 21 | Automatic gearbox control unit | 15/30 |
| 22 | Engine control unit | 7.5 |
| 23 | Starter motor | 30 |
| 24 | PTC | 40 |
| 31 | Pressure pump | 15 |
| 37 | Parking heating | 20 |
SEAT Ateca (2021 – 2026)
| № | Consumers | Amps |
|---|---|---|
| 1 | ESP control unit | 25 |
| 2 | ESP control unit | 40/60 |
| 3 | Engine control unit (diesel/petrol) | 30/15 |
| 4 | Engine sensors | 7.5/10/15 |
| 5 | Engine sensors | 10 |
| 6 | Brake light sensor | 7.5 |
| 7 | Engine power supply | 10 |
| 8 | Lambda probe | 10 |
| 9 | Engine | 20 |
| 10 | Fuel pump control unit | 15/20 |
| 11 | PTC | 40 |
| 12 | PTC | 40 |
| 13 | Gearbox pump | 15/30 |
| 14 | Heated windscreen | 50 |
| 15 | Horn | 15 |
| 16 | Petrol pump | 20 |
| 17 | Engine control unit | 7.5 |
| 18 | Terminal 30 (positive reference) | 7.5 |
| 19 | Front windscreen washer | 30 |
| 21 | Automatic gearbox control unit | 15/30 |
| 22 | Engine control unit | 7.5 |
| 23 | Starter motor | 30 |
| 24 | PTC | 40 |
| 36 | Left LED headlight | 15 |
| 37 | Parking heating | 20 |
| 38 | Right LED headlight | 15 |
