Fuse Box Location

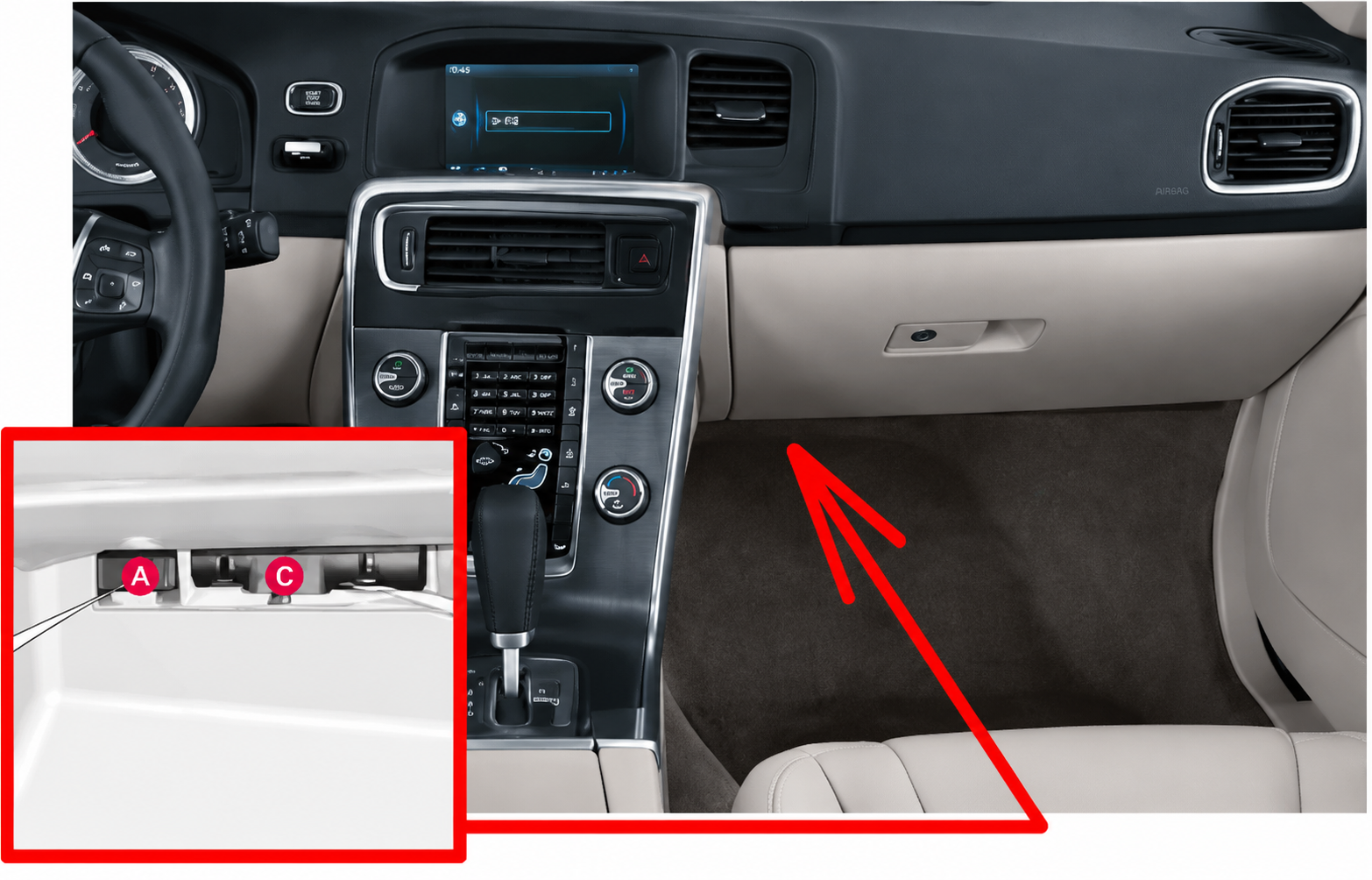

Passenger Compartment Fuse Box
The fuse boxes are located behind the lining.
- Under the glovebox: Fusebox A (General fuses)
- Under the glovebox: Fusebox B (Control module fuses)

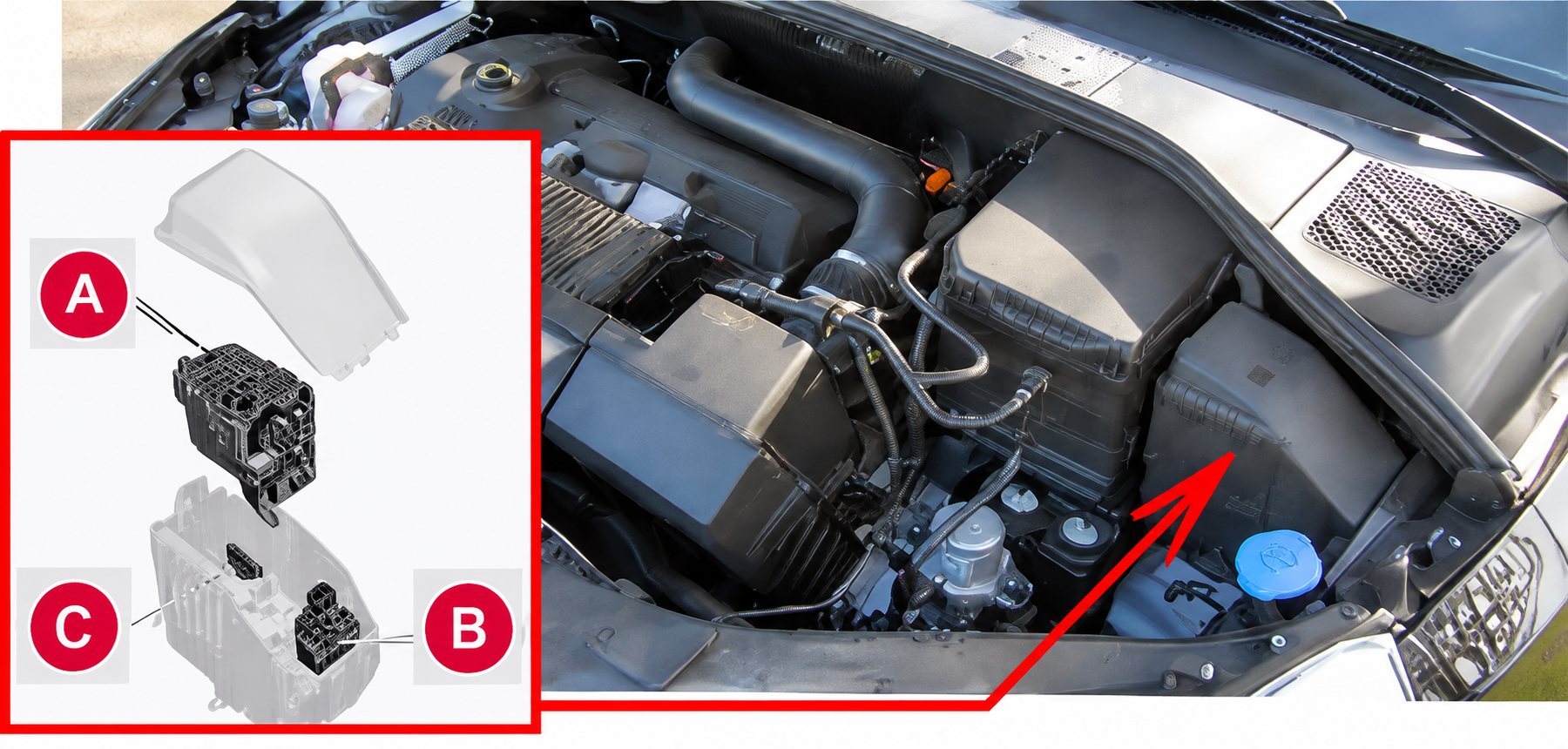

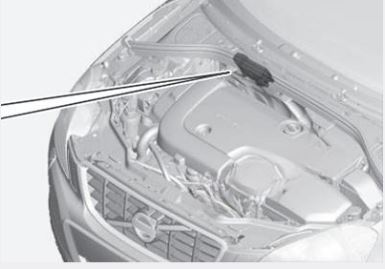

Engine Compartment Fuse Box
Main Fuse Box
Engine compartment cold zone (Start/Stop only)

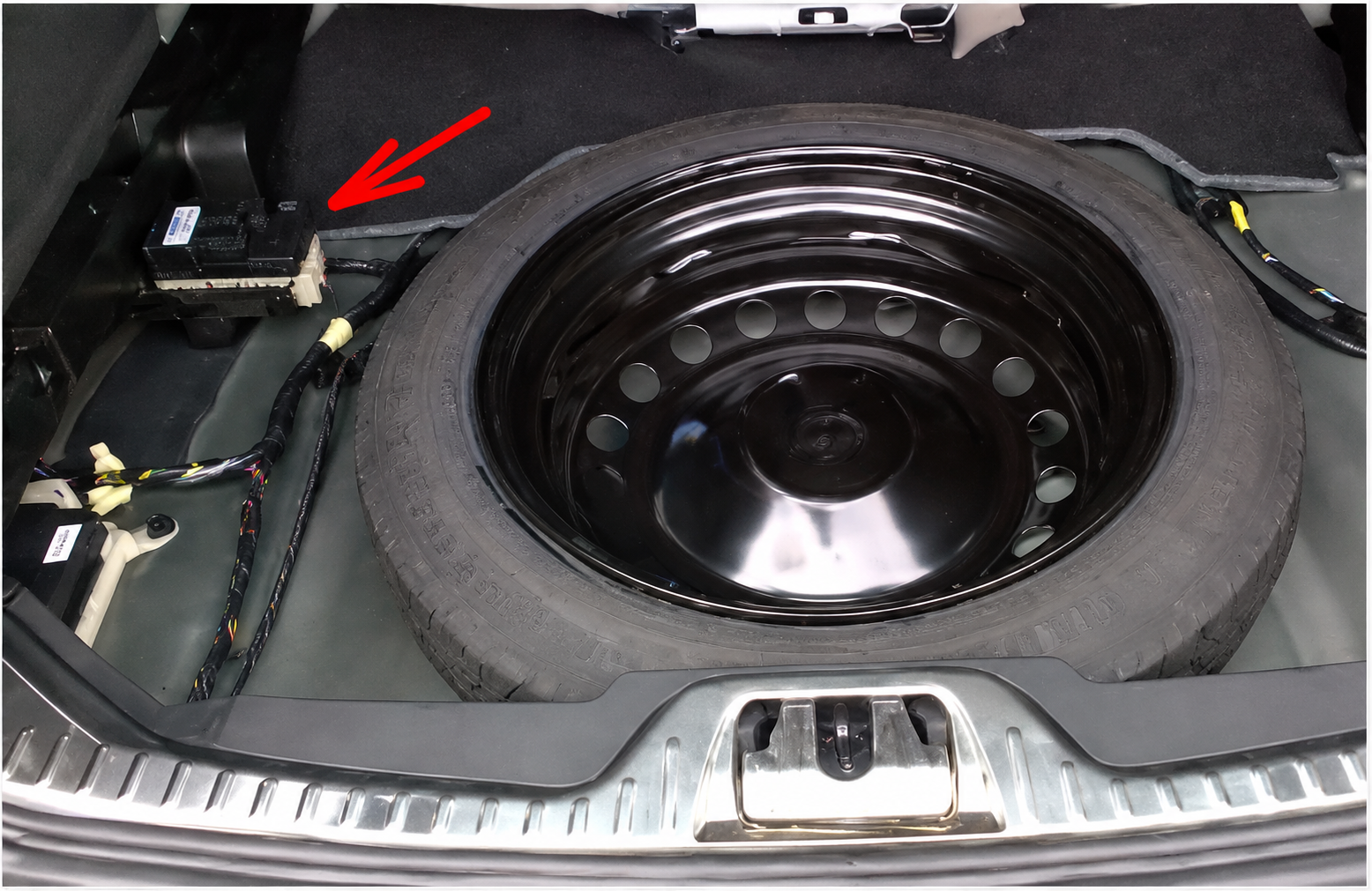

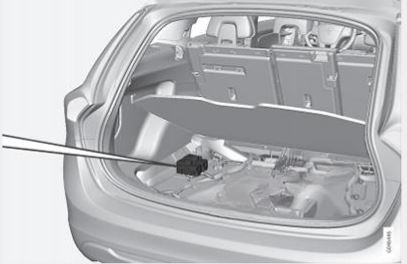

Luggage Compartment Fuse Box
Fuse Box Diagrams
Passenger Compartment Fuse Box

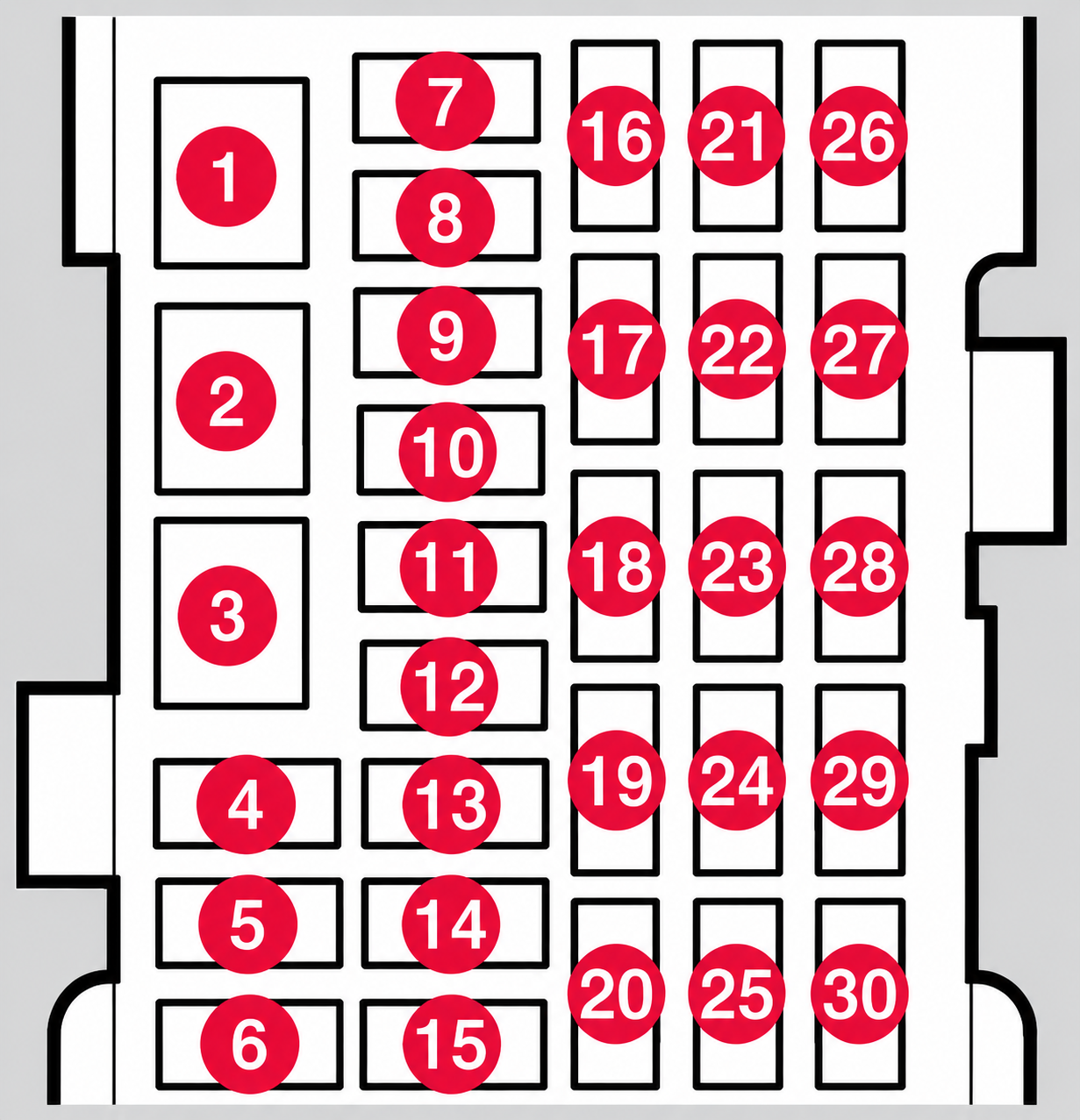

Glove Compartment Fuse Box A
| № | Function | Amp |
|---|---|---|
| 1 | Primary fuse for audio control module (option) 2012: Primary fuse for audio control module (option), Primary fuse for fuses 16-20 2014,2016-2017: Primary fuse for audio control module (option); Primary fuse for fuses 16-20: Infotainment 2015,2017: Circuit breaker for the infotainment system and for fuses 16-20 | 40 |
| 2 | 2014: Windscreen washers; Rear window washer 2015,2017: Windshield washers 2016-2017: Windscreen washers | 25 |
| 3 | ||
| 4 | ||
| 5 | ||
| 6 | Door handle (Keyless (option)) 2015,2017: Keyless drive (Option) (door handles) | 5 |
| 7 | – | – |
| 8 | Control panel, driver’s door 2015,2017: Controls in driver’s door | 20 |
| 9 | Control panel, front passenger door 2015,2017: Controls in front passenger’s door | 20 |
| 10 | Control panel, rear passenger door, right 2015,2017: Controls in right rear passenger’s door | 20 |
| 11 | Control panel, rear passenger door, left 2015,2017: Controls in left rear passenger’s door | 20 |
| 12 | Keyless (option) 2015,2017: Keyless drive (Option) | 7.5 |
| 13 | Power seat driver’s side (option) 2015,2017: Power driver’s seat (Option) | 20 |
| 14 | Power seat passenger side (option) 2015,2017: Power front passenger’s seat (Option) | 20 |
| 15 | Folding head restraint (option) 2013-2016-2017: – | 15 |
| 16 | Infotainment control module 2015,2017: Infotainment system control module | 5 |
| 17 | Audio control module (option), TV (option), Satellite radio (option), Digital radio (option) 2012: Audio control module (option), TV (option), Digital radio (option) 2013-2014,2016-2017: Audio control unit (amplifier) (option), TV (option), Digital radio (option) 2015,2017: Infotainment system: amplifier, SiriusXM™ satellite radio (Option) | 10 |
| 18 | Audio 2014: Audio or Control Module Sensus (Certain model variants) 2015: Infotainment system 2016-2017: Audio control module or Control module Sensus 2018: Sensus control module | 15 |
| 19 | Phone (option) 2012: Audio control module (option), TV (option), Digital radio (option) 2013-2014,2016-2017: Telematics (option), Bluetooth (option) 2015,2018: Bluetooth hands-free system | 5 |
| 20 | ||
| 21 | Sunroof (option), Interior roof lighting, Climate sensor 2013-2014,2016-2017: Sunroof (option), Interior roof lighting, Climate sensor, Damper motors, air intake 2015,2018: Power moonroof (Option), Courtesy lighting, climate system sensor | 5 |
| 22 | 12 V socket, tunnel console | 15 |
| 23 | Seat heating (passenger side) 2012-2014,2016-2017: Seat heating, rear right (option) 2015,2018: Heated rear seat (Option) (passenger’s side) | 15 |
| 24 | Seat heating (driver’s side) 2012-2014,2016-2017: Seat heating, rear left (option) 2015,2018: Heated rear seat (Option) (driver’s side) | 15 |
| 25 | 2014,2016-2017: Electric additional heater (option) 2018: – | 5 |
| 26 | Seat heating, rear passenger side right (option) 2012-2014,2016-2017: Seat heating (passenger side) 2015,2018: Heated front passenger’s seat (Option) | 15 |
| 27 | Seat heating, rear passenger side left (option) 2012-2014,2016-2017: Seat heating (driver’s side) 2015,2018: Heated driver’s seat (Option) | 15 |
| 28 | Parking assistance (option), Parking camera (option), Towbar control module (option), BLIS (option) 2015: Park assist (Option), trailer hitch control module (Option), park assist camera(Option), Blind Spot Information System (BLIS) (Option) 2016-2017: Parking assistance (Option); Parking camera (Option); BLIS (Option) 2018: Park assist (Option), Blind Spot Information System (BUS) (Option), park assist camera (Option) | 5 |
| 29 | AWD control module (option) 2015,2018: All Wheel Drive (Option) control module | 10/15 |
| 30 | Active chassis Four-C (option) 2015,2018: Active chassis system (Option) | 10 |

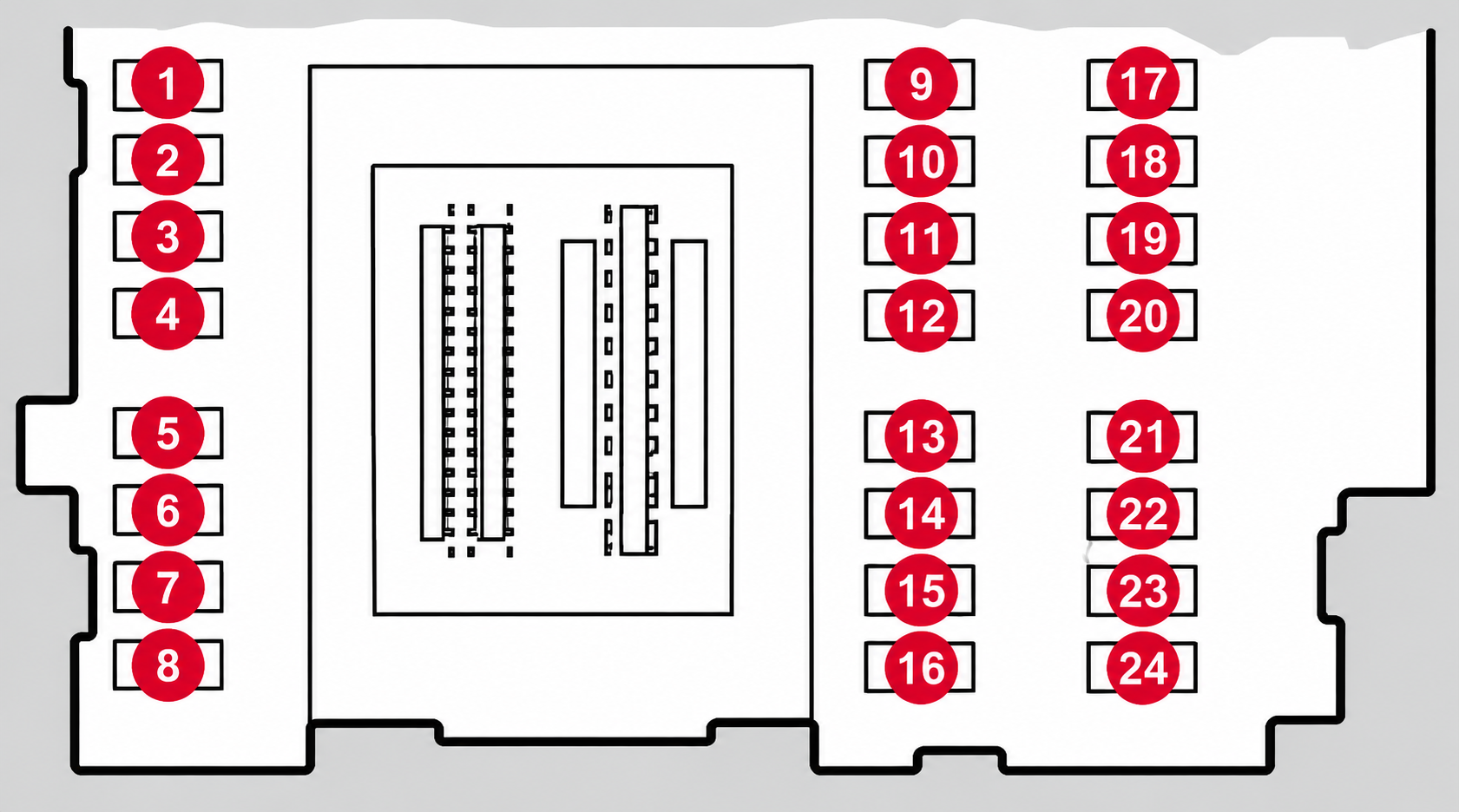

Glove Compartment Fusebox B
| № | Function | Amp |
|---|---|---|
| 1 | Rear window wiper 2015-2017-2018: Tailgate wiper | 15 |
| 2 | ||
| 3 | Interior lighting, Driver’s door control panel, power windows, Power seats, front (option), remote-controlled garage door opener (option) 2015: Front courtesy lighting, driver’s door power window controls, power seat(s) (Option), HomeLInk® Wireless Control System (Option) 2016-2017: Interior lighting; Driver’s door control panel, power windows; Power seats (Option) 2018: Front courtesy lighting, driver’s door power window controls, power seat(s) (Option), | 7.5 |
| 4 | Information display (DIM) 2014,2016-2017: Combined instrument panel 2015,2018: Instrument panel | 5 |
| 5 | Adaptive cruise control, ACC (option), collision warning system (option) 2015,2018: Adaptive cruise control/collision warning (Option) | 10 |
| 6 | Interior lighting, Rain sensor 2015,2018: Courtesy lighting, rain sensor (Option) | 7.5 |
| 7 | Steering wheel module | 7.5 |
| 8 | Central locking system rear, Central locking system fuel filler flap 2014-2017-2018: Central locking system, fuel filler flap | 10 |
| 9 | Rear window washer 2014,2016-2017: Heated steering wheel (option) 2015: Electrically heated steering wheel (Option) | 15 |
| 10 | Windscreen washers 2014,2016-2017: Heated windscreen (option) 2015,2018: Electrically heated windshield (Option) | 15 |
| 11 | Opening tailgate 2015-2016-2017-2018: Tailgate unlock | 10 |
| 12 | – 2013-2014,2016-2017: Folding head restraint (option) 2015,2018: Electrical folding rear seat outboard head restraints (Option) | – 10 |
| 13 | Fuel pump | 20 |
| 14 | Remote control key receiver, Movement detector alarm (option), Climate panel 2012: Climate panel 2013-2014,2016-2017: Movement detector alarm (option); Climate panel 2015,2018: Climate system control panel | 5 |
| 15 | Steering lock 2015,2018: – | 15 |
| 16 | Siren alarm (option), Data link connector OBDII 2015,2018: Alarm, On-board diagnostic system | 5 |
| 17 | 2018: Satellite radio (Option), audio system amplifier | 10 |
| 18 | Airbags 2015,2018: Airbag system, occupant weight sensor | 10 |
| 19 | Collision warning system | 5 |
| 20 | Accelerator pedal, PTC element air preheater (option), Dimming, interior rearview mirror (option), Seat heating, rear (option) 2014: Accelerator pedal sensor; Dimming interior rearview mirror (option); Seat heating, rear (option); Electric additional heater (option) 2015: Accelerator pedal, auto-dim mirror function, heated rear seats (Option) 2016-2017: Accelerator pedal sensor; Dimming interior rearview mirror (Option); Seat heating, rear (Option) 2018: Accelerator pedal sensor, auto-dim mirror function, heated rear seats (Option) | 7.5 |
| 21 | – 2014,2017: Infotainment control module (Performance); Audio (Performance) | – 15 |
| 22 | Brake light | 5 |
| 23 | Sunroof (option) 2015,2018: Power moonroof (Option) | 20 |
| 24 | Immobiliser | 5 |
Engine Compartment Fuse Box

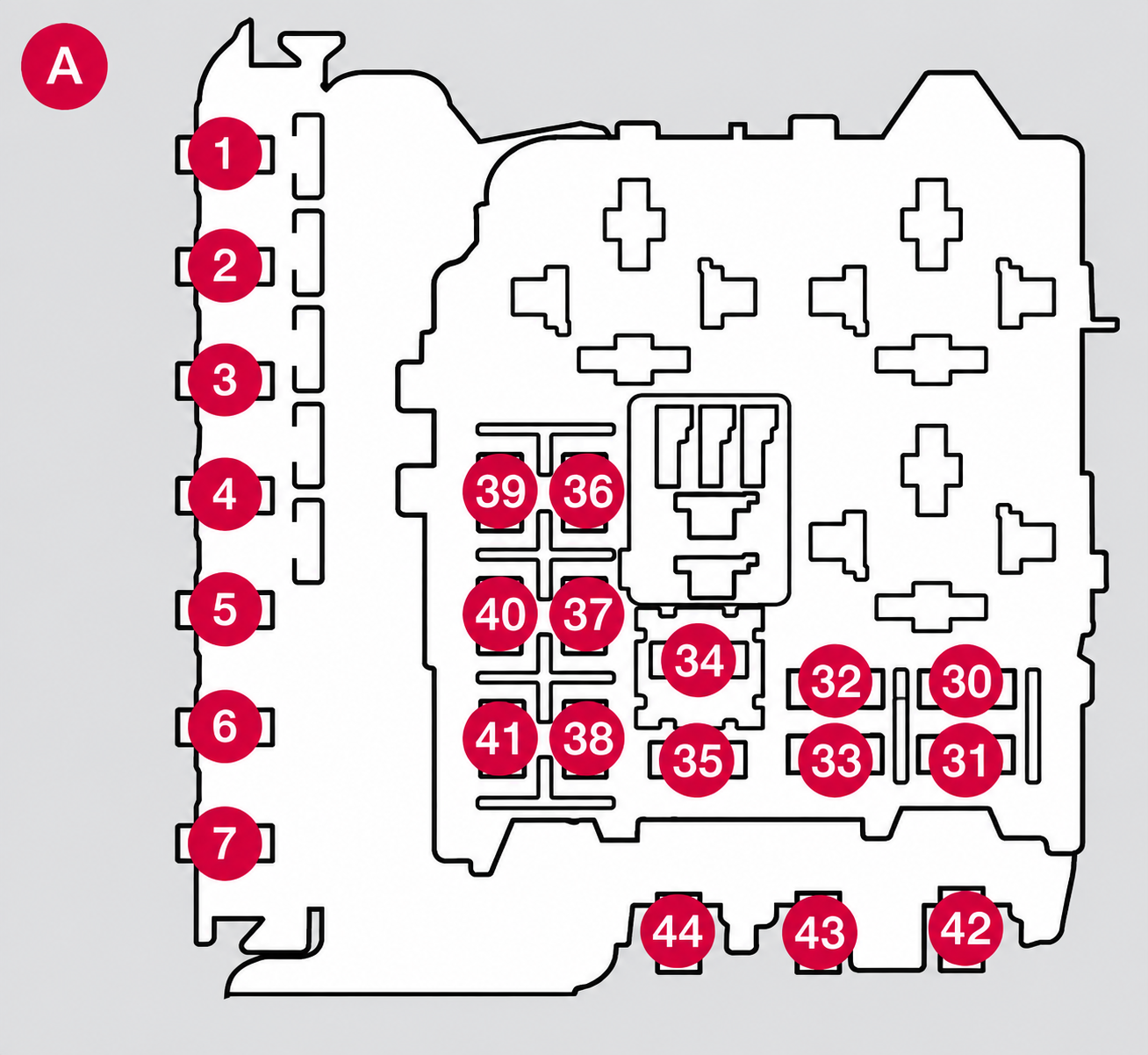

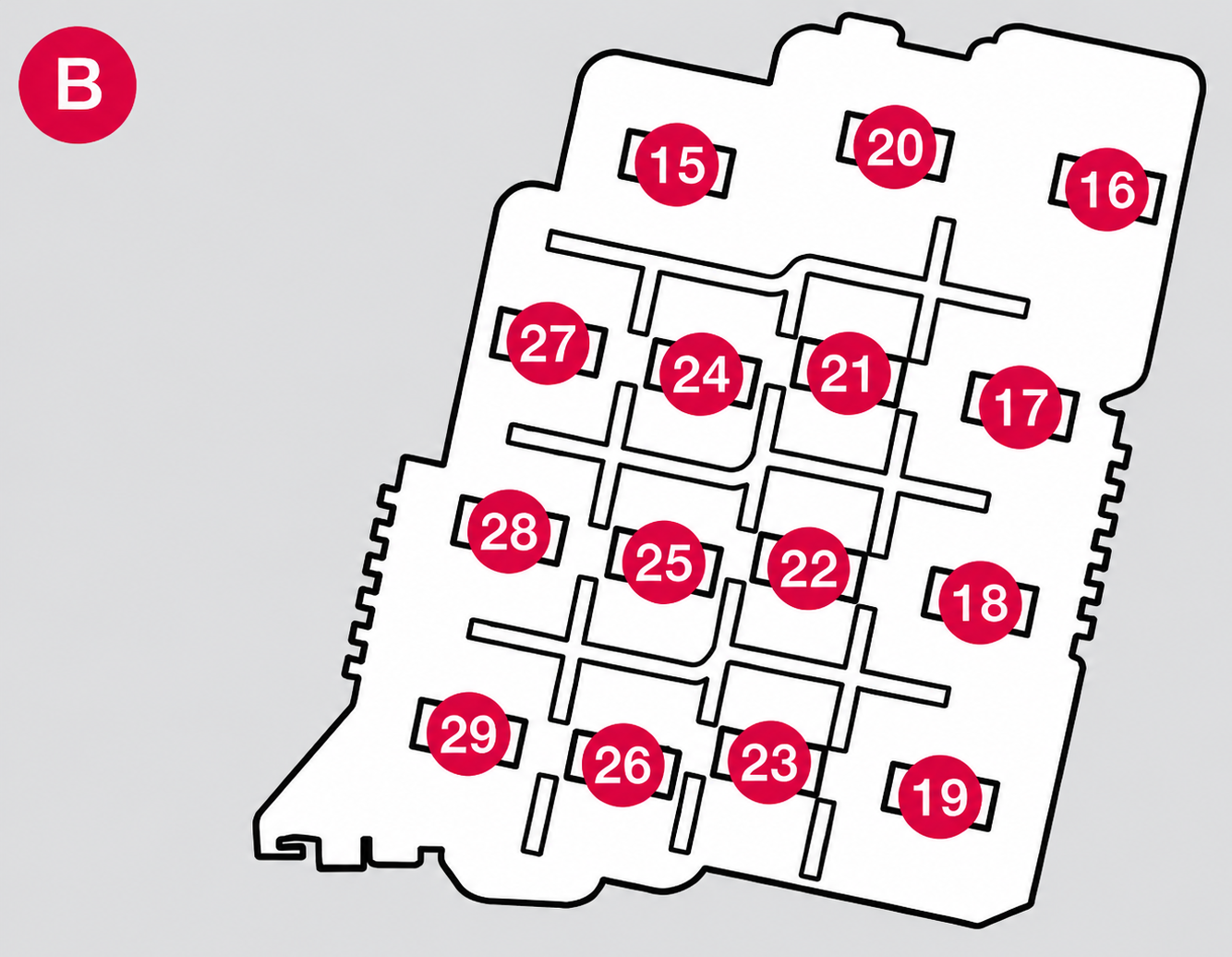

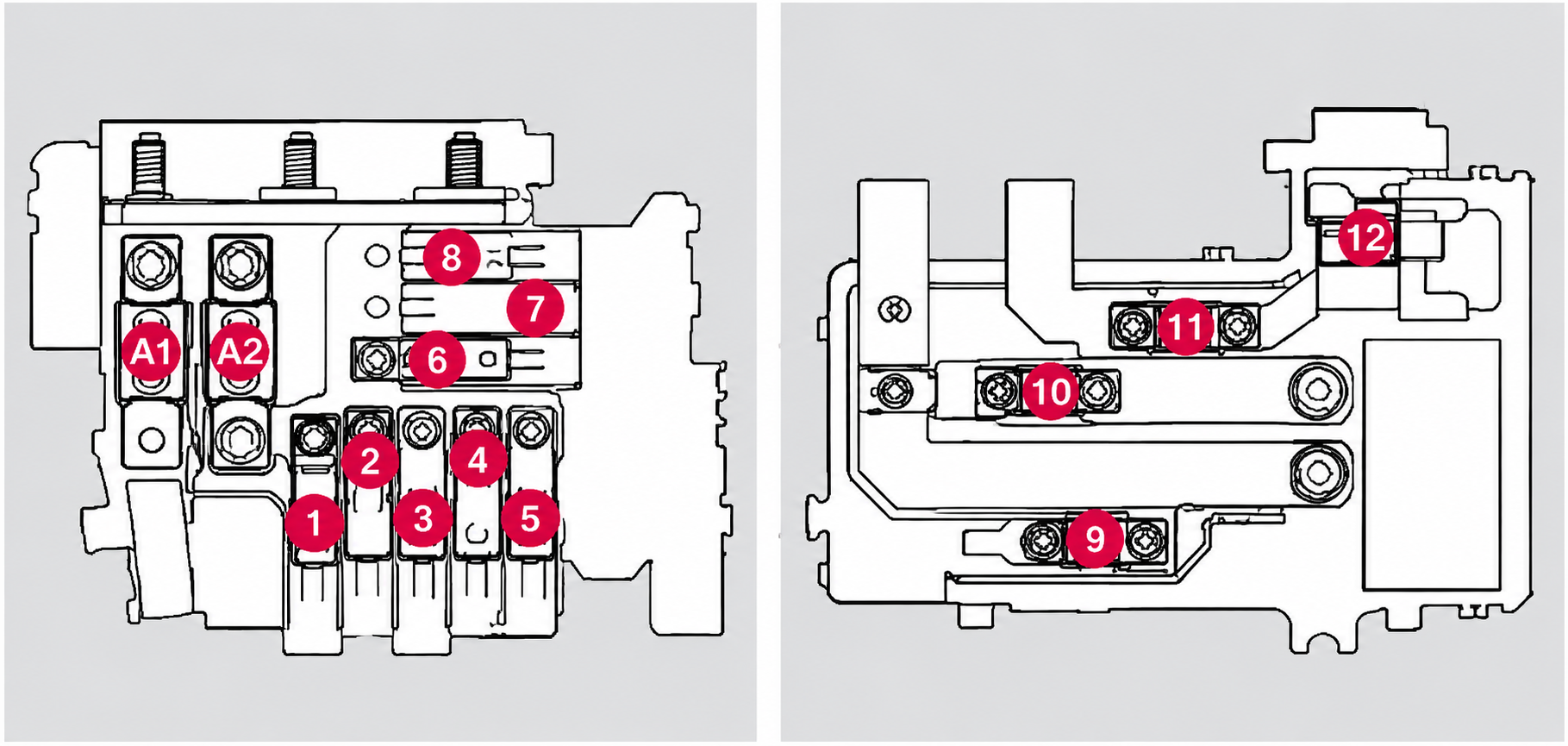

Main Fuse Box
| № | Function | Amp |
|---|---|---|
| 1 | Primary fuse for the central electronic module (CEM) with fuse box B under the glovebox (For cars with the Start/Stop function, this fuse location is empty) 2014: Primary fuse for the central electronic module (CEM) under the glovebox (For cars with the Start/Stop function, this fuse location is empty) 2015-2017: Circuit breaker: central electrical module under the glove compartment (not used on vehicles with the optional Start/Stop function) | 50 |
| 2 | Primary fuse for the central electronic module (CEM) with fuse box B under the glovebox 2014,2017: Primary fuse for the central electronic module (CEM) under the glovebox 2015: Circuit breaker: central electrical module under the glove compartment | 50 |
| 3 | Primary fuse for central electrical unit in cargo area (For cars with the Start/Stop function, this fuse location is empty) 2015: Circuit breaker: central electrical module in the trunk (not used on vehicles with the optional Start/Stop function) | 60 |
| 4 | Primary fuse for central electrical unit in passenger compartment with fuse box A under the glove-box (For cars with the Start/Stop function, this fuse location is empty) 2014: Primary fuse for relay/fuse box under the glove box (For cars with the Start/Stop function, this fuse location is empty) 2015: Circuit breaker: central electrical module under the glove compartment (not used on vehicles with the optional Start/Stop function) 2016-2017: Primary fuse for relay/fuse box under the glovebox | 60 |
| 5 | Primary fuse for central electrical unit in passenger compartment with fuse box A under the glove-box (For cars with the Start/Stop function, this fuse location is empty) 2014: Primary fuse for relay/fuse box under the glove box (For cars with the Start/Stop function, this fuse location is empty) 2015: Circuit breaker: central electrical module under the glove compartment (not used on vehicles with the optional Start/Stop function) 2016-2017: Primary fuse for relay/fuse box under the glovebox (not used on vehicles with the optional Start/Stop function) | 60 |
| 6 | ||
| 7 | PTC element air preheater (For cars with the Start/Stop function this fuse location is empty) 2014: Electric additional heater (option) (For cars with the Start/Stop function this fuse location is empty) 2015: – 2016-2017: Electric additional heater (not used on vehicles with the optional Start/Stop function) | 100 |
| 8 | Headlamp washers (option) 2014: Heated windscreen (option), left-hand side 2015: Headed windshield (Option), driver’s side 2016-2017: Heated windscreen (not used on vehicles with the optional Start/Stop function) , lefthand side | 20/40 |
| 9 | Windscreen wipers 2015: Windshield wipers | 30 |
| 10 | Parking heater (option) 2015:- | 25 |
| 11 | Ventilation fan (For cars with the Start/Stop function this fuse location is empty) 2015: Climate system blower (not used on vehicles with the optional Start/Stop function) 2016-2017: Ventilation fan (not used on vehicles with the optional Start/Stop function) | 40 |
| 12 | – 2014: Heated windscreen (option), right-hand side 2015: Heated windscreen (Option), passenger’s side 2016-2017: Heated windscreen (not used on vehicles with the optional Start/Stop function) , righthand side | – 40 |
| 13 | ABS pump | 40 |
| 14 | ABS valves | 20 |
| 15 | 2014,2016-2017: Headlamp washer (option) 2015: Headlight washers | 50/20 |
| 16 | Headlamp levelling (Xenon, Active Xenon) (option) 2014: Headlamp levelling (option); Active Xenon headlamps – ABL (option) 2015: Active Bending Lights-headlight leveling (Option) 2016: Headlamp levelling (Option); Active Xenon headlamps – ABL (Option) | 10 |
| 17 | Primary fuse for the central electronic module (CEM) with fuse box B under the glovebox 2014,2017: Primary fuse for the central electronic module (CEM) under the glovebox 2015: Central electrical module (under the glove compartment) 2016: Primary fuse for the central electronic module (CEM) under the glovebox | 20 |
| 18 | ABS | 5 |
| 19 | Speed-related power steering (option) 2014-2016-2017: Adjustable steering force (option) | 5 |
| 20 | Engine control module, Transmission control module, Airbags 2015: Engine Control Module (ECM), transmission, SRS | 10 |
| 21 | Heated washer nozzles (option) | 10 |
| 22 | Relay coil, relay, vacuum pump (5-cyl. petrol and 2.0T) 2013-2015,2017: – | 5 |
| 23 | Headlamp control 2014: Light switches 2015: Lighting panel | 5 |
| 24 | ||
| 25 | ||
| 26 | ||
| 27 | Internal relay coils 2015-2017: Relay coils | 5 |
| 28 | Auxiliary lamps (option) | 20 |
| 29 | Horn | 15 |
| 30 | Relay coil, main relay, engine management system; Engine control module (5, 6-cyl. petrol) 2013: Relay coil in main relay for engine management system; Engine control module (5, 6-cyl. petrol) 2014: Relay coil in main relay for engine management system; Engine control module (4-cyl. 2.0 l (Does not apply to the B4204T7 engine), 5, 6-cyl.) 2015: Relay coils, Engine Control Module (ECM) 2016-2017: Relay coil in main relay for engine management system (4-cyl.); Engine control module (4-cyl.) 2016-2017: Relay coil in main relay for engine management system (5, 6-cyl.); Engine control module (5, 6-cyl.) | 10/5 |
| 31 | Transmission control module 2015: Control module – automatic transmission | 15 |
| 32 | Compressor A/C 2012: Compressor A/C (not 5-cyl. diesel), Coolant pump (5-cyl. Diesel; Start/Stop) 2014: Solenoid clutch A/C (not 4-cyl. 2.0 l (However, does apply to the B4204T7 engine), not 5-cyl. diesel); Supporting coolant pump (4-cyl. 2.0 1 diesel) 2015: A/C compressor (not 4-cyl. engines) 2016-2017: Solenoid clutch A/C (5, 6-cyl. petrol); Supporting coolant pump (4-cyl. diesel) | 15 |
| 33 | Relay coil, relay, compressor A/C; Relay coils in central electrical unit in engine compartment cold zone Start/ Stop 2012: Relay coil, relay, compressor A/ C (not 5-cyl. diesel), Relay coil, relay, coolant pump (5-cyl. diesel Start/Stop); Relay coils in central electrical unit in engine compartment cold zone Start/Stop 2013-2014: Relay coil in relay for solenoid clutch A/C (not 5-cyl. diesel); Relay coil in relay for coolant pump (5-cyl. diesel Start/Stop); Relay coils in central electrical unit in engine compartment cold zone (Start/Stop) 2015: Relay-coils A/C, relay coils in engine compartment cold zone for Start/Stop 2016: Relay coil in relay for solenoid clutch A/C (5, 6-cyl. petrol); Relay coils in central electrical unit in engine compartment cold zone (Start/Stop) 2017: Relay coils in central electrical unit in engine compartment cold zone Start/Stop | 5 |
| 34 | Actuator solenoid, starter motor (For cars with the Start/Stop function, this fuse location is empty) 2013-2014: Start relay (For cars with the Start/Stop function, this fuse location is empty) 2015: Starter motor relay (not used on vehicles with the optional Start/Stop function) 2016: Start relay (5, 6-cyl. petrol) (not used on vehicles with the optional Start/Stop function) 2017: – | 30 |
| 35 | Ignition coils (4-cyl. petrol), Glow control module (diesel) 2014: Ignition coils (1.6 l petrol, engine B4204T7); Glow control module (5-cyl. diesel) 2015: Engine control module (4-cyl. engines) Ignition coils (5-/6-cyl. engines), condenser (6-cyl. engines) 2016-2017: Glow control module (5-cyl. diesel) | 10/20 |
| 35 | Ignition coils (5, 6-cyl. petrol) 2014: Engine control module (4-cyl. 2.0 l (Does not apply to the B4204T7 engine)); Ignition coils (5, 6-cyl. petrol); Capacitor (6-cyl.) 2016-2017: Engine control module (4-cyl.); Ignition coils (5, 6-cyl. petrol); Capacitor (6-cyl.) 2018: Engine control module (4-cyl. engines) Ignition coils (5 cyl. engines) | 20 |
| 36 | Engine control module (petrol) 2014: Engine control module (petrol except 4-cyl. 2.0 l (However, does apply to the B4204T7 engine)) 2015,2017-2018: Engine Control Module (5-cyl. & 6-cyl. engines) | 10 |
| 36 | Engine control module (diesel) 2014: Engine control module (1.6 l diesel, 5-cyl. diesel) 2014: Engine control module (4-cyl. 2.0 l (Does not apply to the B4204T7 engine)) 2015,2017-2018: Engine Control Module (4-cyl. engines) | 15/20 |
| 37 | Valves (1.6 I petrol) Mass air flow sensor (DRIVe), Control valve, fuel flow (DRIVe) 2014: Valves (1.6 l petrol); mass air flow sensor (1.6 l, 4-cyl. 2.0 l (Does not apply to the B4204T7 engine)); Thermostat (4-cyl. 2.0 l petrol (Does not apply to the B4204T7 engine)); EVAP valve (4-cyl. 2.0 l petrol (Does not apply to the B4204T7 engine)); Cooling valve for climate control system (4-cyl. 2.0 l diesel); Cooling pump for EGR (4-cyl. 2.0 l diesel); Mass air flow sensor (engine D4162T); Control valve, fuel flow (engine D4162T) 2015,2018: 4-cyl. engines: mass air meter, thermostat, EVAP valve 2016-2017: Mass air flow sensor (4-cyl.); Thermostat(4-cyl. petrol); EVAP valve (4-cyl. petrol); Cooling pump for EGR (4-cyl. diesel) | 10 |
| 37 | Mass air flow sensor (5-cyl. diesel), Control valves (5-cyl. diesel), Injectors (5, 6-cyl. petrol), Engine control module (6-cyl.) 2012-2013: Mass air flow sensor (5-cyl. diesel, 6-cyl.); Control valves (5- cyl. diesel); Injectors (5, 6-cyl. petrol); Engine control module (5-cyl. petrol, 6-cyl.) 2014: Mass air flow sensor (5-cyl. diesel, 6-cyl.); Control valves (5-cyl. diesel); Injectors (5, 6- cyl. petrol); Engine control module (5-cyl. petrol, 6-cyl.) 2015: 5-/6-cyl. engines: Injection system, mass air meter (6-cyl. engines only), engine control module 2016: Mass air flow sensor (5-cyl. diesel, 6-cyl.); Control valves (5-cyl. diesel); Injectors (5, 6- cyl. petrol); Engine control module (5, 6-cyl. petrol) 2017: Mass airflow meter (5-cyl. diesel); Control valves (5-cyl. diesel) 2018: 5-cyl. engines: Injection system, engine control module | 15 |
| 38 | Engine valves, Engine control module (6-cyl.) Solenoids, cam profile (6- cyl.) Actuator motors, intake manifold (6-cyl.) Mass air flow sensor (4- cyl. 2.0 l petrol); Coolant pump (DRIVe) 2012: Compressor A/C (5, 6-cyl.), Engine valves, Engine control module (6-cyl.) Solenoids (6-cyl. without turbo), Actuator motors, intake manifold (6-cyl. without turbo), Mass air flow sensor (4- cyl. 2.0 l petrol), Oil level sensor (5-cyl. diesel); Coolant pump (D4162T) 2013: Solenoid clutch A/C (5, 6-cyl.); Valves, Engine control module (6-cyl.) Solenoids (6-cyl. without turbo); Actuator motors, intake manifold (6-cyl. without turbo); Mass air flow sensor (4-cyl. 2.0 l petrol, 5-cyl. petrol); Oil level sensor (5-cyl. diesel); Coolant pump (D4162T) 2014: Solenoid clutch A/C (5, 6-cyl.); Valves (1.6 I, engine B4204T7; 5-cyl., 6-cyl.); Engine control module (6-cyl.); Solenoids (6-cyl. without turbo); Actuator motors, intake manifold (6-cyl. without turbo); Mass air flow sensor (engine B4204T7; 5-cyl. petrol); Oil level sensor (5-cyl. diesel) 2014: Valves (4-cyl. 2.0 l (Does not apply to the B4204T7 engine)); Oil pump (4-cyl. 2.0 I petrol (Does not apply to the B4204T7 engine)); Lambda-sond, centre (4-cyl. 2.0 I petrol (Does not apply to the B4204T7 engine)); Lambda-sond, rear (4-cyl. 2.0 I diesel) 2015: A/C compressor (5-/6-cyl. engines), engine valves, engine control module (6-cyl. engines), solenoids (6-cyl. non-turbo only), mass air meter (6-cyl. only) 2015: Engine valves/oil pump/center heated oxygen sensor (4-cyl. engines) 2016: Solenoid clutch A/C (5, 6-cyl.); Valves (5, 6-cyl.); Engine control module (6-cyl.); Mass air flow sensor (5-cyl. petrol); Oil level sensor 2016: Valves (4-cyl.); Oil pump (4- cyl. petrol); Lambda-sond, centre (4-cyl. petrol); Lambdasond, rear (4-cyl. diesel) 2017: Solenoid clutch A/C (5-cyl. diesel); Valves (5-cyl. diesel); Oil level sensor 2017: Valves (4-cyl.); Oil pump (4-cyl. petrol); Lambda-sond, centre (4-cyl. petrol); Lambda-sond, rear (4-cyl. diesel) 2018: A/C compressor (5-cyl. engines), engine valves, oil level sensor (5-cyl. only) 2018: Engine valves/oil pump/ center heated oxygen sensor (4-cyl. engines) | 10/15 |
| 39 | Lambda-sond (4-cyl. petrol, 5-cyl. diesel), Control module, radiator roller cover (D3 manual) Control module, radiator roller cover (DRIVe) 2012-2013: Lambda-sonds (4-cyl. petrol), Lambda-sond (diesel), Control module, radiator roller cover (manual 5-cyl. 2.0 l diesel) 2014: Lambda-sonds (1.6 l petrol, engine B4204T7); Lambdasond (5-cyl. diesel); Control module, radiator roller cover (1.6 l diesel, 5-cyl. diesel) | 10 |
| 39 | EVAP valve (5, 6-cyl. petrol), Lambda-sonds (5, 6-cyl. petrol) 2014: Lambda-sond, front (4-cyl. 2.0 l (Does not apply to the B4204T7 engine)); Lambda-sond, rear (4- cyl. 2.0 l petrol (Does not apply to the B4204T7 engine)); EVAP valve (5, 6-cyl. petrol); Lambdasonds (5, 6-cyl. petrol) 2015: Front/rear heated oxygen sensors (4-cyl. engines), EVAP valve (5-/6-cyl. engines), heated oxygen sensors (5-/6-cyl. engines) 2015: Lambda-sond, front (4-cyl.); Lambda-sond, rear (4-cyl. petrol), EVAP valve (5, 6-cyl. petrol); Lambda-sonds (5, 6-cyl.); Control module radiator roller cover (5-cyl. diesel) 2017: Lambda-sond, front (4-cyl.); Lambda-sond, rear (4-cyl. petrol) Lambda-sonds (5-cyl. diesel); Control module, radiator roller cover (5-cyl. diesel) 2018: Front/rear heated oxygen sensors (4-cyl. engines), EVAP valve (5-cyl. engines), heated oxygen sensors (5-cyl. engines) | 15 |
| 40 | Coolant pump (1.6 I petrol Start/Stop) 2013: Coolant pump (1.6 l petrol Start/ Stop, 5-cyl. petrol Start/Stop); Crankcase ventilation heater (5- cyl. Petrol); Oil pump automatic gearbox (5-cyl. petrol Start/ Stop) 2014: Coolant pump (1.6 I petrol Start/Stop); Crankcase ventilation heater (5-cyl. petrol); Oil pump automatic gearbox(5-cyl. petrol Start/Stop) 2014: Ignition coils (4-cyl. 2.0 I petrol (Does not apply to the B4204T7 engine)) 2015: Oil pump (automatic transmission)/crank-case ventilation heater (5-cyl. engines) 2015: Ignition coils 2016: Coolant pump (5-cyl. petrol); Crankcase ventilation heater (5-cyl. petrol); Oil pump automatic gearbox (5-cyl. petrol Start/Stop) 2016-2017-2018: Ignition coils (4-cyl. petrol) 2018: Oil pump/crankcase ventilation heater/coolant pump (5-cyl. engines) | 10/15 |
| 40 | Vacuum pump (4-cyl. 2.0 I petrol), Crankcase ventilation heater (5-cyl.), Diesel filter heater (5-cyl.) Diesel filter heater (DRIVe) 2013-2014,2016-2017: Diesel filter heater | 20 |
| 41 | – 2012: Crankcase ventilation heater (5- cyl. diesel) 2013-2014,2016: Control module, radiator roller cover (5-cyl. petrol) 2013-2014,2016-2017: Crankcase ventilation heater (5- cyl. diesel); Oil pump automatic gearbox (5-cyl. diesel Start/ Stop) 2014: Solenoid clutch A/C (4-cyl. 2.0 l (Does not apply to the B4204T7 engine)); Glow control module (4-cyl. 2.0 1 diesel); Oil pump (4-cyl. 2.0 1 diesel) 2015: Fuel leakage detection (5-/6-cyl. engines), control module for radiator shutter (5-cyl. engines) 2015: Fuel leakage detection, A/C relay (4-cyl. engines) 2016-2017: Solenoid clutch A/C (4-cyl.); Glow control module (4-cyl. diesel); Oil pump (4-cyl. diesel) 2018: Fuel leakage detection (5-cyl. engines), control module for radiator shutter (5-cyl. engines) 2018: Fuel leakage detection, A/C solenoid (4-cyl. engines) | – 15/10/5/7.5 |
| 42 | Glow plugs (diesel) 2014: Coolant pump (4-cyl. 2.0 1 petrol (Does not apply to the B4204T7 engine)) 2015-2016-2017-2018: Coolant pump (4-cyl. engines) | 50/70 |
| 43 | Cooling fan (4-cyl., 5-cyl. petrol) 2014: Cooling fan (1.6 I, 4-cyl. 2.0 I petrol, 5-cyl. petrol) 2015: Cooling fan (4/5-cyl. engines) | 60 |
| 43 | Cooling fan (6-cyl. petrol, 5-cyl. diesel) 2014: Cooling fan (6-cyl., 4-cyl. 2.0 I diesel, 5-cyl. diesel) 2015: Cooling fan (6-cyl. engines) | 80 |
| 44 | Electro-hydraulic power steering 2014-2016-2017-2018: Power steering | 100 |

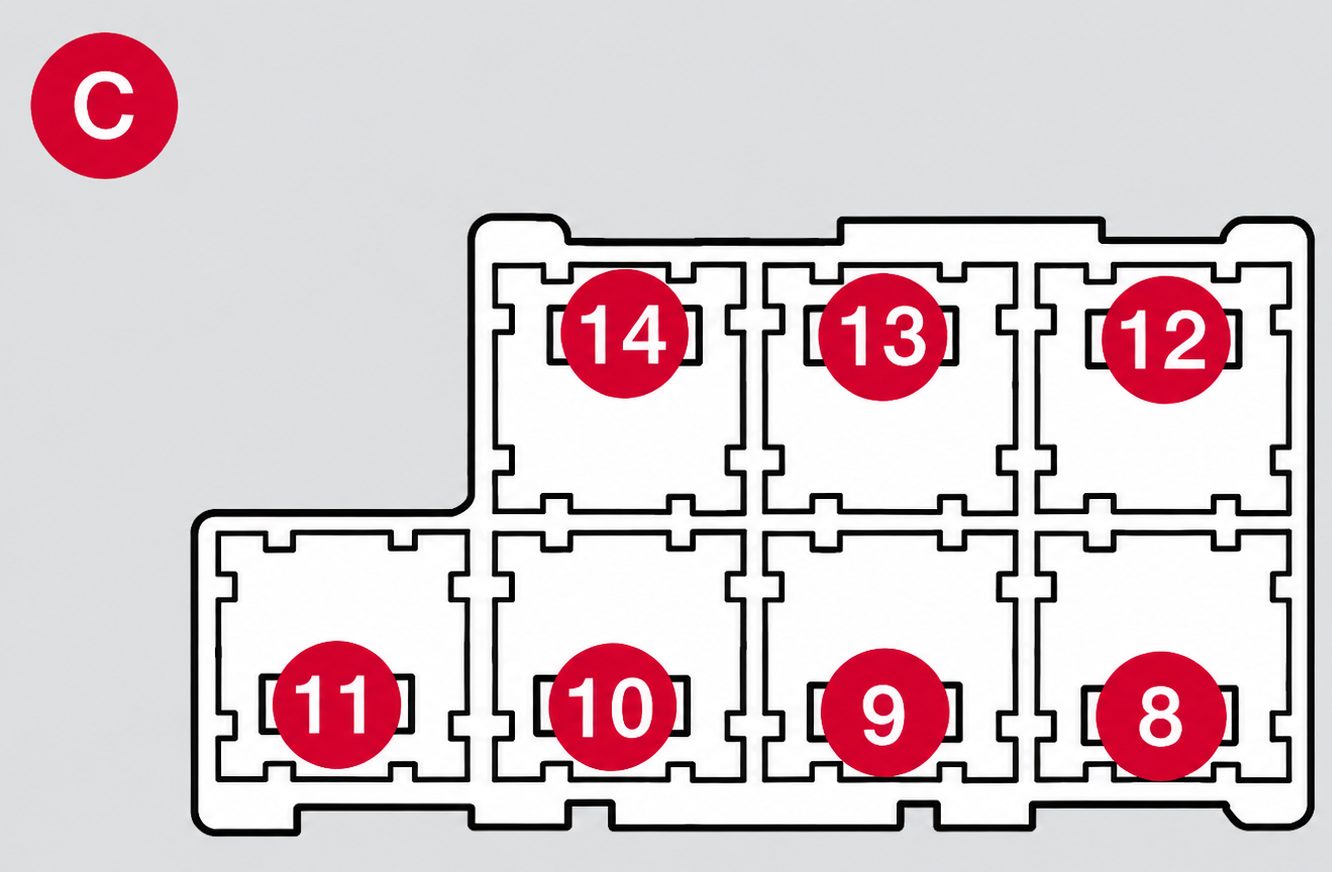

Cold Zone (Start/Stop only)
| № | Function | A |
|---|---|---|
| A1 | Main fuse for central electrical unit in the engine compartment 2015,2018: Circuit breaker: central electrical module in the engine compartment | 175 |
| A2 | Main fuse for central electronic module (CEM) with fuse box B under the glovebox, central electrical unit in passenger compartment with fuse box A under the glovebox, central electrical unit in cargo area 2015,2018: Circuit breaker: fuseboxes under the glove compartment, central electrical module in the trunk 2016-2017: Main fuse for central electronic module (CEM) under the glovebox, relay/fuse box under the glovebox, central electrical unit in cargo area | 175 |
| 1 | PTC element air preheater (option) 2014,2016-2017: Electric additional heater (option) 2015,2018: – | 100 |
| 2 | Primary fuse for the central electronic module (CEM) with fuse box B under the glovebox 2014,2016-2017: Primary fuse for the central electronic module (CEM) under the glovebox 2015,2017: Circuit breaker: fusebox B under the glove compartment | 50 |
| 3 | Primary fuse for the central electrical unit in the passenger compartment with fuse box A under the glovebox 2014,2016-2017: Primary fuse for relay/fuse box under the glovebox 2015,2017: Circuit breaker: fusebox A under the glove compartment | 60 |
| 4 | Primary fuse for central electrical unit in passenger compartment with fuse box A under the glovebox 2014: Primary fuse for relay/fuse box under the glovebox 2015,2017: Circuit breaker: fuse box A under the glove compartment 2016-2017: Heated windscreen (option) | 60 |
| 5 | Primary fuse for central electrical unit in cargo area 2015,2017: Circuit breaker: central electrical module in the trunk | 60 |
| 6 | Ventilation fan 2015,2017: Climate system blower | 40 |
| 7 | ||
| 8 | ||
| 9 | Actuator solenoid, starter motor 2013-2014,2016-2017: Start relay 2015,2017: Starter motor relay | 30 |
| 10 | Internal diode 2016-2017: – | 50 |
| 11 | Support battery 2015,2017: Auxiliary battery | 70 |
| 12 | CEM 2013-2014: Central electronic module (CEM) – reference voltage support battery; Charging point support battery 2015,2017: Central electrical module: auxiliary battery reference voltage, auxiliary battery charging point 2016-2017: Central electronic module (CEM) – reference voltage support battery | 5/15 |

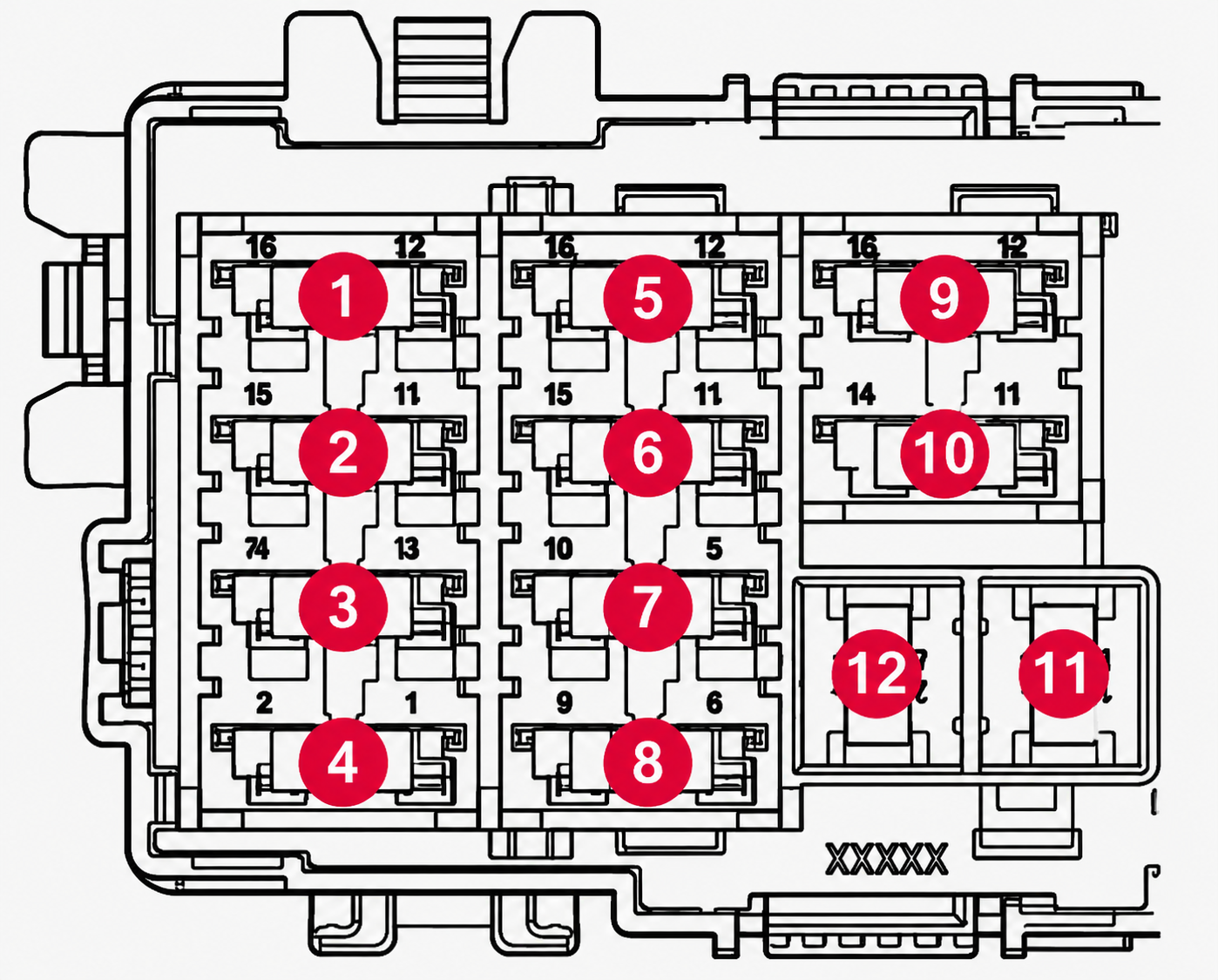

Luggage Compartment Fuse Box
| № | Function | Amp |
|---|---|---|
| 1 | Electric parking brake (left side) | 30 |
| 2 | Electric parking brake (right side) | 30 |
| 3 | Rear window defroster 2015-2016-2017-2018: Heated rear window | 30 |
| 4 | Trailer socket 2 (Option) | 15 |
| 5 | – | |
| 6 | ||
| 7 | 12 V socket, cargo area | 15 |
| 8 | – | – |
| 9 | – | – |
| 10 | – | – |
| 11 | – | – |
| 12 | Trailer socket 1 (Option) | 40 |
| 13 | – | – |
