Volvo V70 / XC70 (2001 – 2007) Fuse Box Location & Diagrams
The Volvo V70 and XC70 (2001–2007) feature several fuse boxes that protect the vehicle’s electrical systems. This blog provides clear fuse box locations and diagrams, helping you identify fuse numbers, ratings, and protected components when troubleshooting electrical issues or replacing a blown fuse.
Fuse Box Location

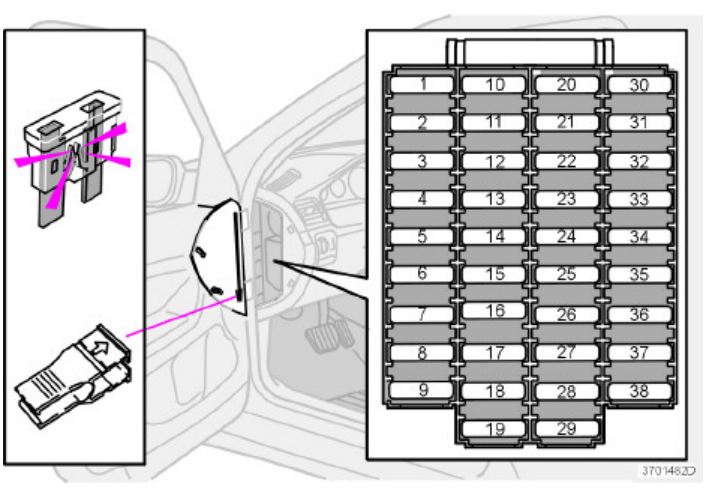

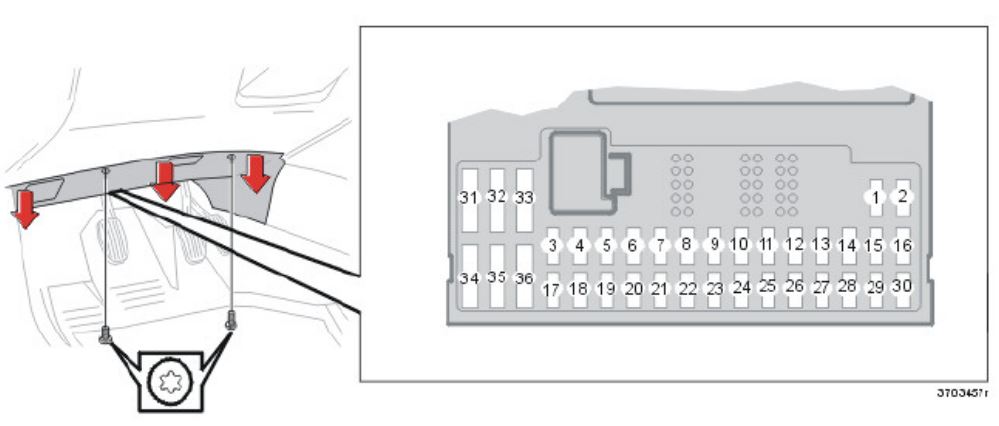

Passenger Compartment Fuse Box
Fuses in the passenger compartment within the sound barrier on the driver’s sid

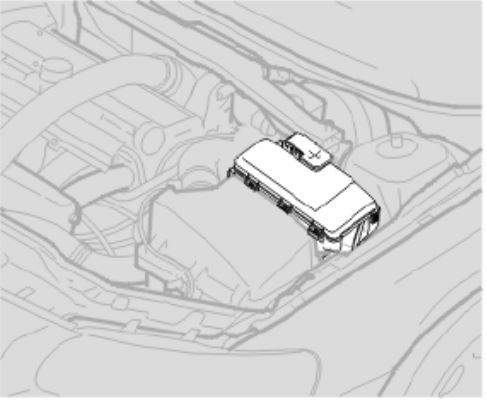

Engine Compartment Fuse Box

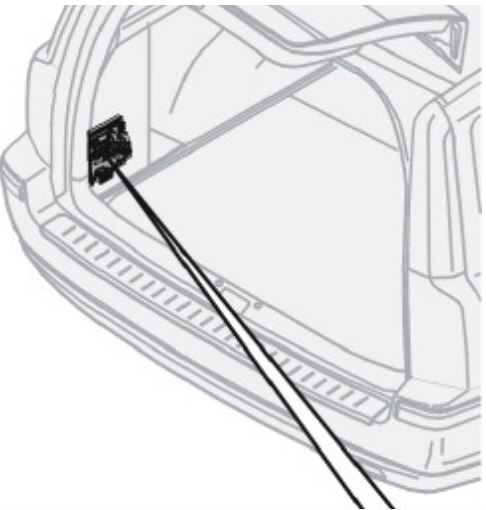

Luggage Compartment Fuse Box
Fuse Box Diagrams
Passenger Compartment Fuse Box

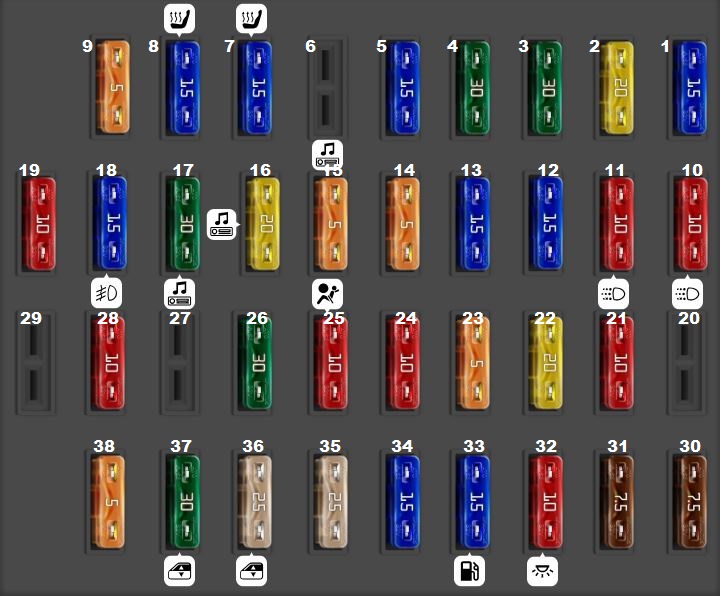

Volvo V70 / XC70 Fuse Box 1 (2001 – 2007)
| Type | No. | Description |
| Fuse ATO 15A/10A/25A | 1 | Low beam headlights 2001: Left low beam 2005-2007: Power driver’s seat |
| Fuse ATO 20A/10A/25A | 2 | High beam headlights 2001: Right low beam 2005-2007: Power passenger seat |
| Fuse ATO 30A/15A | 3 | Power driver’s seat 2001: Low beam headlights 2002: Fuse protection for 11B/17-18 via 20/27, 2/62 2005-2007: Climate system blower |
| Fuse ATO 30A/20A/25A | 4 | Power passenger’s seat 2001: High beam headlights 2002: Fuse protection for 11B/20-21 via 2/63 2005-2007: Right front door control module |
| Fuse ATO 15A/30A/25A/10A | 5
6 | Speed-dependent power steering, vacuum pump 2001: Power driver’s seat 2002: Power driver seat module PSM 2002: Power passenger seat module 2005-2007: Left front door control module 2005-2007: General interior lighting (RCM), Upper Electronic Module (UEM) |
| Fuse ATO 15A/30A | 7 | Heated seat – front left [option] 2001: Power passenger’s seat 2002: LH seat heater 2005-2007: Sunroof |
| Fuse ATO 15A/7.5A | 8 | Heated seat – front right [option] 2001: Heated front seat – left 2002: RH seat heater 2005-2007: Ignition switch, SRS system, Engine Control Module (ECM), Passenger Airbag Cut-Off Switch (PACOS), Immobilizer (IMMO) |
| Fuse ATO 5A | 9 | ABS/STC/DSTC 2002: Brake Control Module BCM 2005-2007: OBDII, Light Switch Module (LSM), Steering Angle Sensor (SAS), Steering Wheel Module (SWM) |
| Fuse ATO 10A/15A/20A | 10 | Daytime running lights 2001: Left high beam 2005-2007: Audio |
| Fuse ATO 10A/15A/20A | 11 | Daytime running lights 2001: Right high beam 2005-2007: Audio amplifier |
| Fuse ATO 15A/10A | 12 | Headlight wipers (certain models) 2001: Headlight wipers 2002: Motor, RH headlight wiper 6/3 Motor, LH headlight wiper 6/4 LH headlight level adjustment motor 6/38 RH headlight adjustment motor 6/39 2005-2007: RTI display |
| Fuse ATO 15A/20A/5A | 13 | Electric socket 12 V 2002: Front 12V outlet 9/1 Rear 12V outlet 9/25 2005-2007: Telephone |
| Fuse ATO 5A | 14 | Power passenger’s seat 2002: Switch, seat belt latch left seat 3/93 Switch, seat belt latch left seat 3/94 Central Electronic Module CEM 4/56 Power passenger seat module 3/27 2005-2007: – |
| Fuse ATO 5A | 15 | Audio system, VNS 2002: Audio 16/1 RTI Display 16/46 2005-2007: – |
| Fuse ATO 20A | 16 | Audio system 2005-2007: – |
| Fuse ATO 30A | 17 | Audio amplifier 2005-2007: – |
| Fuse ATO 15A | 18 | Front fog lights 2002: FL fog light 10/5 via 2/34 FR fog light 10/6 via 2/34 2005-2007: – |
| Fuse ATO 10A/15A 15A | 19
20 | VNS display 2002: RTI Display 16/46 2005-2007: –
2001: Transport switch 2005-2007: – |
| Fuse ATO 10A | 21 | Automatic transmission, shiftlock, extended D2 feed 2001: Transmission module 2002: Gear Shift Module GSM 3/156 Geartronic via 2/101 Transmission Control Module TCM 4/28 Fuel distributor, gas 6/105 Shift lock solenoid 8/36 Valve, fuel cut-off DFCO 8/75 2005-2007: – |
| Fuse ATO 20A | 22 | Direction indicators 2002: Central Electronic Module CEM 4/56 FL direction indicator 10/13 via 4/56 FR direction indicator 10/14 via 4/56 FL fender direction indicator 10/15 via 4/56 FR fender direction indicator 10/16 via 4/56 RR direction indicator 10/47 via 4/56 RL direction indicator 10/54 via 4/56 LH direction indicator shunt CEM 20/32 via 4/56 RH direction indicator shunt CEM 20/34 via 4/56 2005-2007: – |
| Fuse ATO 5A | 23 | Headlight switch module, climate control system, onboard diagnostic connector, steering wheel lever modules 2002: Data link connector 17/13 Light Switch Module LSM 3/111 Climate Control Module CCM 3/112 Steering Wheel Module SWM 3/130 2005-2007: – |
| Fuse ATO 10A | 24 | Relay for extended D1 feed: climate control system, power driver’s seat, driver’s info 2001: Relay for extended X-feed: climate control system, power driver’s seat, text window, shiftlock geartronic 2002: Control module CPM 4/7 via 2/29, Power driver seat module PSM 4/52, Climate Control Module CCM 3/112, Combined instrument panel DIM 5/1 2005-2007: – |
| Fuse ATO 30A 15A | 26
27 | Climate control system blower 2001: Control module – climate control blower 2002: Motor, passenger compartment fan 6/28 via 4/31 2001: Central locking system, power windows 2002: Control module FL door DDM/PDM 3/126 Control module FR door PDM/DDM 3/127 Lock units, FL door 3/74 via 3/126 Lock units, FR door 3/75 via 3/127 LH power door mirror 6/62 via 3/126 RH power door mirror 6/63 via 3/127 LH heated door mirror 9/33 via 3/126 RH heated door mirror 9/34 via 3/127 2005-2007: – |
| Fuse ATO 10A | 28
29 | Electronic module- courtesy lighting 2001: Power sun roof, courtesy lights, vanity mirror lights 2002: Ceiling light switch unit 3/117 Upper Electronic Module UEM 4/70 Remote control unit for garage door opener 4/76 via 4/70 Rain sensor 7/149 Ceiling light, cargo compartment 10/25 via 4/70 LH vanity mirror lighting 10/114 RH vanity mirror lighting 10/115 via 4/70 Rear reading light 10/150 2001: Telephone (option) 2002: Integrated mobile phone 16/60 2005-2007: – |
| Fuse ATO 7.5A/10A | 30 | Left front/rear parking lights 2002: FL parking light 10/11 LH tail light lamp 1 10/51 via 20/28 LH tail light lamp 2 10/52 via 20/28 FL parking light 10/129 FL lamp housing 10/1 electronic unit Bi-Xenon 2005-2007: – |
| Fuse ATO 7.5A/10A | 31 | Right front/rear parking lights, license plate lights 2002: FR parking light 10/12 EU/OS FR parking light 10/130 USA/CDN RH tail light lamp 1 10/44 via 20/33 RH tail light lamp 2 10/45 via 20/33 License plate lighting 10/3 FR lamp housing 10/2 electronic unit Bi-Xenon 2005-2007: – |
| Fuse ATO 10A | 32 | Central electrical module, vanity mirror lightings, glove compartment light, interior courtesy lighting 2001: Central electrical module, interior courtesy lights, power steering 2002: Central Electronic Module CEM 4/56 Stepper motor, speed-dependent power steering 6/71 via 4/56 Fuse protection for 11C/38 2005-2007: – |
| Fuse ATO 15A | 33 | Fuel pump 2005-2007: – |
| Fuse ATO 15A | 34 | Power moonroof 2002: Sunroof motor 6/15 via 4/33 2005-2007: – |
| Fuse ATO 25A | 35 | Central locking system, power windows- left door mirror 2001: Defroster, Lighting, Sideview mirrors, central locking system, power windows – left front 2002: FL door lock unit 3/74 via 3/126 LH power door mirror 6/62 via 3/126 LH heated door mirror 9/33 via 3/126 2005-2007: – |
| Fuse ATO 25A | 36 | Central locking system, power windows – right door mirror 2001: Defroster, Lighting, Sideview mirrors, central locking system, power windows – right front 2002: FR door lock unit 3/75 via 3/127 RH power door mirror 6/63 via 3/127 RH heated door mirror 9/34 via 3/127 2005-2007: – |
| Fuse ATO 30A | 37 | Rear power windows 2001: Power windows – rear doors 2002: Deadlock relay, RL door 2/138 via 2/120 Deadlock relay, RR door 2/139 via 2/120 LR door power window switch 3/85 via 2/116, 2/118 RR door power window switch 3/86 via 2/117, 2/119 Motor, RL power window 6/92 via 3/85 Motor, RR power window 6/93 via 3/86 RL door switch lighting 10/151 via 2/120 RR door switch lighting 10/152 via 2/120 2005-2007: – |
| Fuse ATO 5A | 38 | Alarm siren 2002: Alarm siren SCM 16/35 2005-2007: – |
| Fuse ATO 10A | 25 | Ignition switch, relay starter motor, SRS, engine control module 2001: Ignition switch, Relay starter motor 2002: Ignition switch 3/1 2005-2007: – |

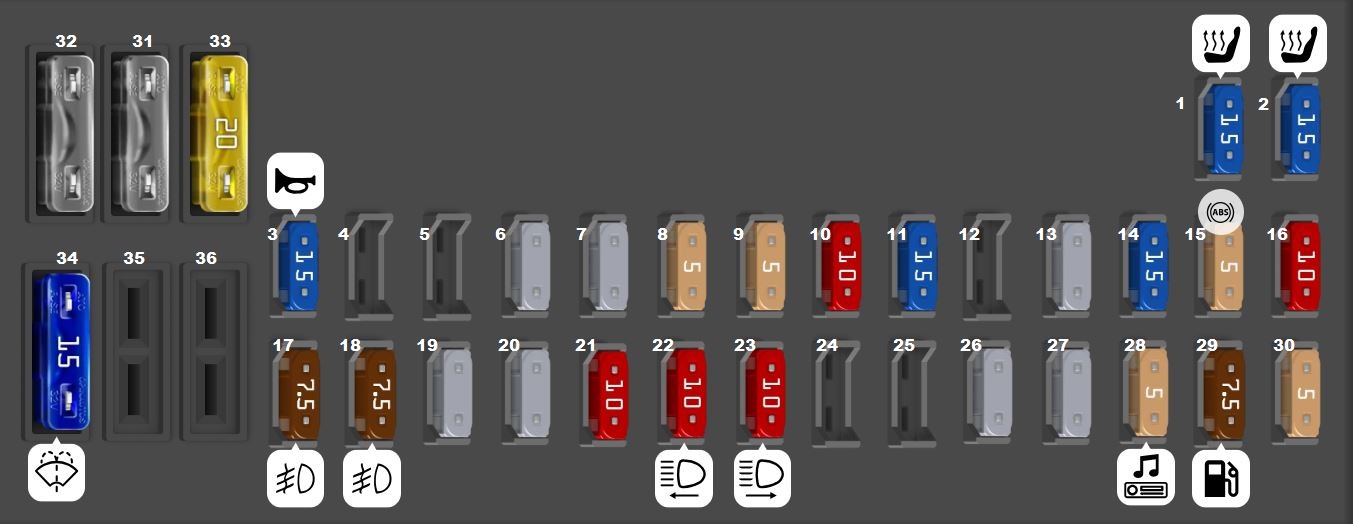

Volvo V70 / XC70 Fuse Box 2 (2005 – 2007)
| Type | No. | Description |
| Fuse MINI 15A | 1 | Seat heating, right side |
| Fuse MINI 15A | 2 | Seat heating, left side |
| Fuse MINI 15A | 3 | Horn |
| Fuse MINI – | 4 | – |
| Fuse MINI – | 5 | – |
| Fuse MINI | 6 | Spare position |
| Fuse MINI | 7 | Spare position |
| Fuse MINI 5A | 8 | Alarm siren |
| Fuse MINI 5A | 9 | Brake light contact, power supply |
| Fuse MINI 10A | 10 | Driver Information Module (DIM), Climate Control Module (CCM), parking heater, power driver’s seat |
| Fuse MINI 15A | 11 | Power outlet in front and rear seat |
| Fuse MINI – | 12 | – |
| Fuse MINI | 13 | Spare position |
| Fuse MINI 15A | 14 | Headlight washer [V70 R] |
| Fuse MINI 5A | 15 | ABS, STC/DSTC |
| Fuse MINI 10A | 16 | Electronic Power Steering (ECPS), Active Bi-Xenon (HCM), headlight leveling control |
| Fuse MINI 7.5A | 17 | Front left fog light |
| Fuse MINI 7.5A | 18 | Front right fog light |
| Fuse MINI | 19 | Spare position |
| Fuse MINI | 20 | Spare position |
| Fuse MINI 10A | 21 | Transmission Control Module (TCM), reverse gear inhibitor [M66] |
| Fuse MINI 10A | 22 | High beam (left) |
| Fuse MINI 10A | 23 | High beam (right) |
| Fuse MINI – | 24 | – |
| Fuse MINI – | 25 | – |
| Fuse MINI | 26 | Spare position |
| Fuse MINI | 27 | Spare position |
| Fuse MINI 5A | 28 | Power passenger seat, audio |
| Fuse MINI 7.5A | 29 | Bi-fuel, fuel pump |
| Fuse MINI 5A | 30 | BLIS |
| Fuse ATO | 31 | Spare position |
| Fuse ATO | 32 | Spare position |
| Fuse ATO 20A | 33 | Vacuum pump |
| Fuse ATO 15A | 34 | Washer pump, headlight washer [V70 R] |
| Fuse ATO – | 35 | – |
| Fuse ATO – | 36 | – |
Engine Compartment Fuse Box

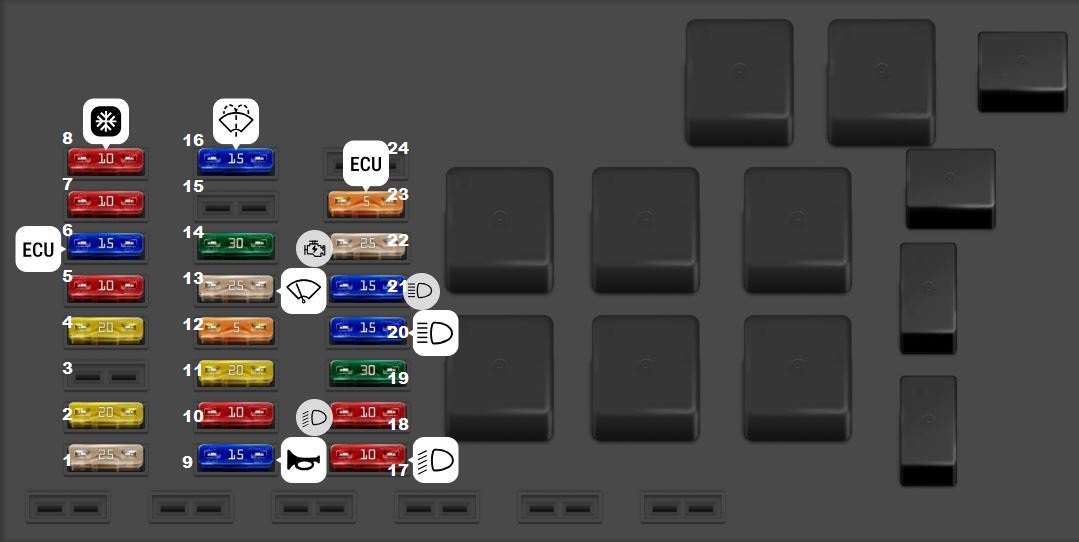

Volvo V70 / XC70 (2001 – 2005)
| Type | No. | Description |
| Fuse ATO 25A | 1 | Parking heater [optional] |
| Fuse ATO 20A/15A | 2 | Auxiliary lights [optional] 2001: Auxiliary lamps |
| Fuse ATO 10A | 3 | Throttle regulator [5 cyl. non-turbo/ Bi-fuel] 2002: Solenoid valve, high-pressure diesel 8/111 E.E |
| Fuse ATO 20A | 4 | Lambda sensor [petrol], engine control module (ECM) [diesel], high-pressure valve [diesel] |
| Fuse ATO 10A/15A | 5 | Crankcase ventilation heater, solenoid valves, fuel distributor [Bi-Fuel] 2001: Crankcase ventilation heater, Solenoid valves |
| Fuse ATO 15A | 6 | Mass air flow sensor, engine control module, injection valves [petrol] |
| Fuse ATO 10A/5A | 6 | Mass air flow sensor [diesel] 2002: Mass airflow sensor MAF 7/17 Diesel Engine Control Module ECM 4/46 Injectors 8/6-10 Mass air flow sensor MAF 7/17 |
| Fuse ATO – | 7 | – |
| Fuse ATO 10A | 8 | Accelerator pedal sensor (APM), AC compressor, electronics box fan |
| Fuse ATO 10A | 9 | Fuel tank valve (Bi-fuel LPG) |
| Fuse ATO – | 10 | – |
| Fuse ATO 20A | 11 | Glow plugs [diesel], relay coils |
| Fuse ATO – | 12 | – |
| Fuse ATO 25A | 13 | Windshield wipers |
| Fuse ATO 30A | 14 | ABS |
| Fuse ATO 35A/15A | 15 | High-pressure headlight washers 2002: Relay, fuel system 2/33 Valve LPG 8/79 |
| Fuse ATO – | 16 | – |
| Fuse ATO 20A/15 | 17 | Low beam (left) |
| Fuse ATO 15A/20A | 18 | Position light (front) 2001: High beam |
| Fuse ATO 30A | 19 | ABS |
| Fuse ATO 20A | 20 | Low beam (right) |
| Fuse ATO 15A | 21 | Fuel pump |
| Fuse ATO 35A | 22 | Starter motor |
| Fuse ATO 10A | 23 | Engine control module (ECM) power supply, engine relay (ECR), coil |
| Fuse ATO – | 24 | – |

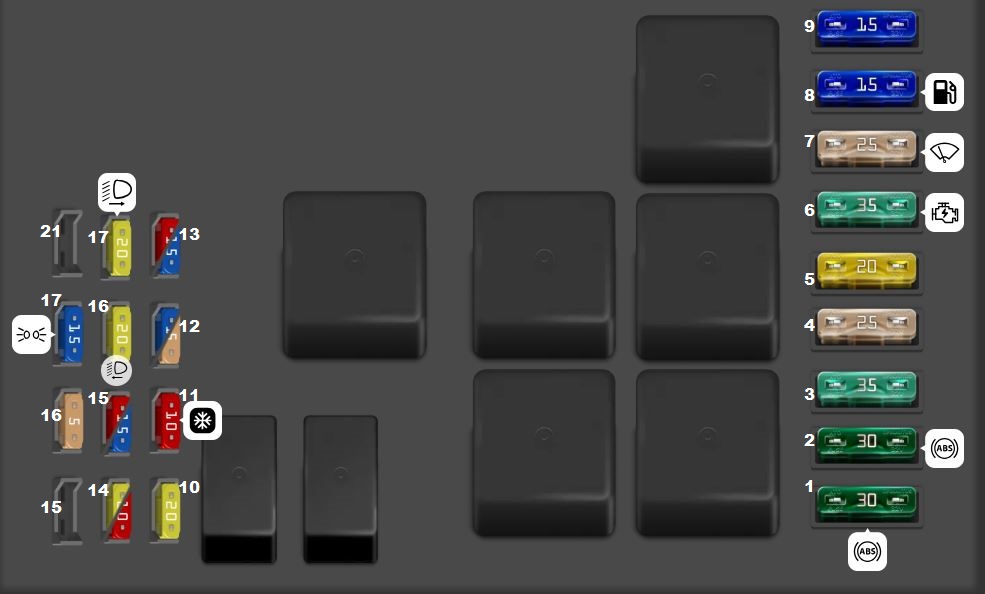

Volvo V70 / XC70 (2006 & 2007)
| Type | No. | Description |
| Fuse ATO 30A | 1 | ABS |
| Fuse ATO 30A | 2 | ABS |
| Fuse ATO 35A | 3 | High-pressure headlight washers |
| Fuse ATO 25A | 4 | Parking heater [optional] |
| Fuse ATO 20A | 5 | Auxiliary lights [optional] |
| Fuse ATO 35A | 6 | Starter motor relay |
| Fuse ATO 25A | 7 | Windshield wipers |
| Fuse ATO 15A | 8 | Fuel pump |
| Fuse ATO 15A | 9 | Transmission Control Module (TCM), [diesel, R models] |
| Fuse MINI 20A | 10 | Ignition coils [gasoline], Engine Control Module (ECM), injectors [diesel] |
| Fuse MINI 10A | 11 | Accelerator Pedal Module (APM), AC compressor, fan electronics box |
| Fuse MINI 15A | 12 | Engine Control Module (ECM) [gasoline], injectors [gasoline], mass air flow sensor [gasoline] |
| Fuse MINI 5A | 12 | mass air flow sensor [diesel] |
| Fuse MINI 10A | 13 | Throttle body control unit, [gasoline] |
| Fuse MINI 15A | 13 | Throttle body control unit, air mixing valve, fuel pressure regulator, solenoid valve, (diesel) |
| Fuse MINI 20A | 14 | Lambda sensor [gasoline] |
| Fuse MINI 10A | 14 | Lambda sensor [diesel] |
| Fuse MINI 10A | 15 | Crankcase ventilation heater, solenoid valves [gasoline] |
| Fuse MINI 15A | 15 | solenoid valves, glow plug [diesel] |
| Fuse MINI 20A | 16 | Left low beam |
| Fuse MINI 20A | 17 | Right low beam |
| Fuse MINI – | 18 | – |
| Fuse MINI 5A | 19 | Engine Control Module (ECM) power supply, engine relay |
| Fuse MINI 15A | 20 | Position lights |
| Fuse MINI – | 21 | – |
Luggage Compartment Fuse Box

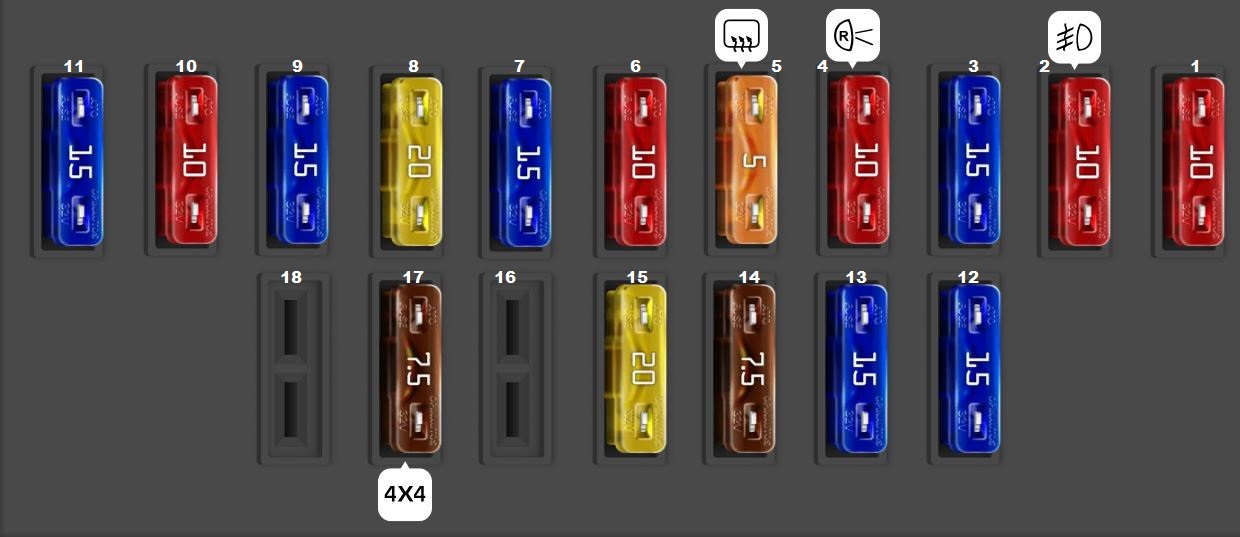

Volvo V70 / XC70 (2001 – 2004)
| Type | No. | Description |
| Fuse ATO 10A | 1 | Rear electrical module, cargo area lighting |
| Fuse ATO 10A | 2 | Rear fog light |
| Fuse ATO 15A | 3 | Brake lights |
| Fuse ATO 10A | 4 | Backup lights |
| Fuse ATO 5A | 5 | Rear window defroster, relay 151 – accessories |
| Fuse ATO 10A | 6 | Unlocking tailgate |
| Fuse ATO 15A | 7 | Auxiliary 12 volt socket in cargo area [option] |
| Fuse ATO 20A/15A | 8 | Central locking rear doors/fuel filler door |
| Fuse ATO 15A | 9 | Trailer hitch(30 feed) |
| Fuse ATO 10A | 10 | CD changer, VNS |
| Fuse ATO 15A | 11 | Accessory control module (AEM) |
| Fuse ATO 15A | 12 | Tailgate wiper |
| Fuse ATO 7.5A | 14 | Brake lights 2001-2002: – |
| Fuse ATO 20A | 15 | Trailer hitch (151 feed) 16 – |
| Fuse ATO 7.5A/5A | 17 | All Wheel Drive control module 2002: Relay, preheated fuel filter 2/142 2001: – |
| Fuse ATO 15A/10A | 13 | Loudspeaker (subwoofer) cargo area – [option] 2002: Bass speaker V70 16/79 Relay CNG/LPG 2/140 |

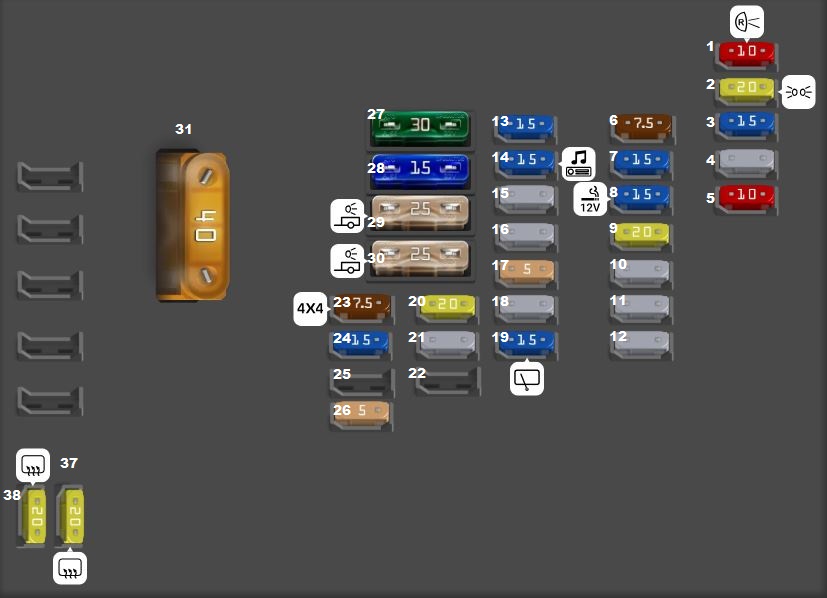

Volvo V70 / XC70 (2005 – 2007)
| Type | No. | Description |
| Fuse MINI 10A | 1 | Reverse lights |
| Fuse MINI 20A | 2 | Position lights, fog lights, trunk lighting, license plate lighting, brake light diodes |
| Fuse MINI 15A | 3 | Accessories (AEM) |
| Fuse MINI | 4 | Spare position |
| Fuse MINI 10A | 5 | REM electronic system |
| Fuse MINI 7.5A | 6 | CD changer, TV, RTI |
| Fuse MINI 15A | 7 | Towing wiring (30-feed) |
| Fuse MINI 15A | 8 | Power outlet, trunk |
| Fuse MINI 20A | 9 | Right rear door: power windows, window lock |
| Fuse MINI | 10 | Left rear door: power windows, window lock 20 A |
| Fuse MINI | 11 | Spare position |
| Fuse MINI | 12 | Spare position |
| Fuse MINI 15A | 13 | Diesel filter heater |
| Fuse MINI 15A | 14 | Subwoofer |
| Fuse MINI | 15 | Spare position |
| Fuse MINI | 16 | Spare position |
| Fuse MINI 5A | 17 | Audio accessories |
| Fuse MINI | 18 | Spare position |
| Fuse MINI 15A | 19 | Rear window wipers |
| Fuse MINI 20A | 20 | Towing wiring (15-feed) |
| Fuse MINI | 21 | Spare position |
| Fuse MINI – | 22 | – |
| Fuse MINI 7.5A | 23 | AWD |
| Fuse MINI 15A | 24 | Four-C SUM |
| Fuse MINI – | 25 | – |
| Fuse MINI 5A | 26 | Parking distance control |
| Fuse ATO 30A | 27 | Main fuse: towing wiring, Four-C, parking distance control |
| Fuse ATO 15A | 28 | Central locking (PCL) |
| Fuse ATO 25A | 29 | Trailer lighting, left: position lights, direction indicators |
| Fuse ATO 25A | 30 | Trailer lighting, right: brake light, fog light, direction indicators |
| Fuse MAXI 40A | 31 | Main fuse: Fuse 37, 38 |
| Fuse MINI – | 32 | – |
| Fuse MINI – | 33 | – |
| Fuse MINI – | 34 | – |
| Fuse MINI – | 35 | – |
| Fuse MINI – | 36 | – |
| Fuse MINI 20A | 37 | Rear window defroster |
| Fuse MINI 20A | 38 | Rear window defroster |
