Alfa Romeo Stelvio (2017 – 2026) Fuse Box Location & Diagrams
The Alfa Romeo Stelvio (2017–2026) fuse box location and diagrams provide essential details about the vehicle’s electrical protection system. This blog covers fuse box locations, fuse assignments, and diagrams to help you correctly identify and replace blown fuses. It includes information for different model years to make electrical troubleshooting easier.
Fuse Box Location

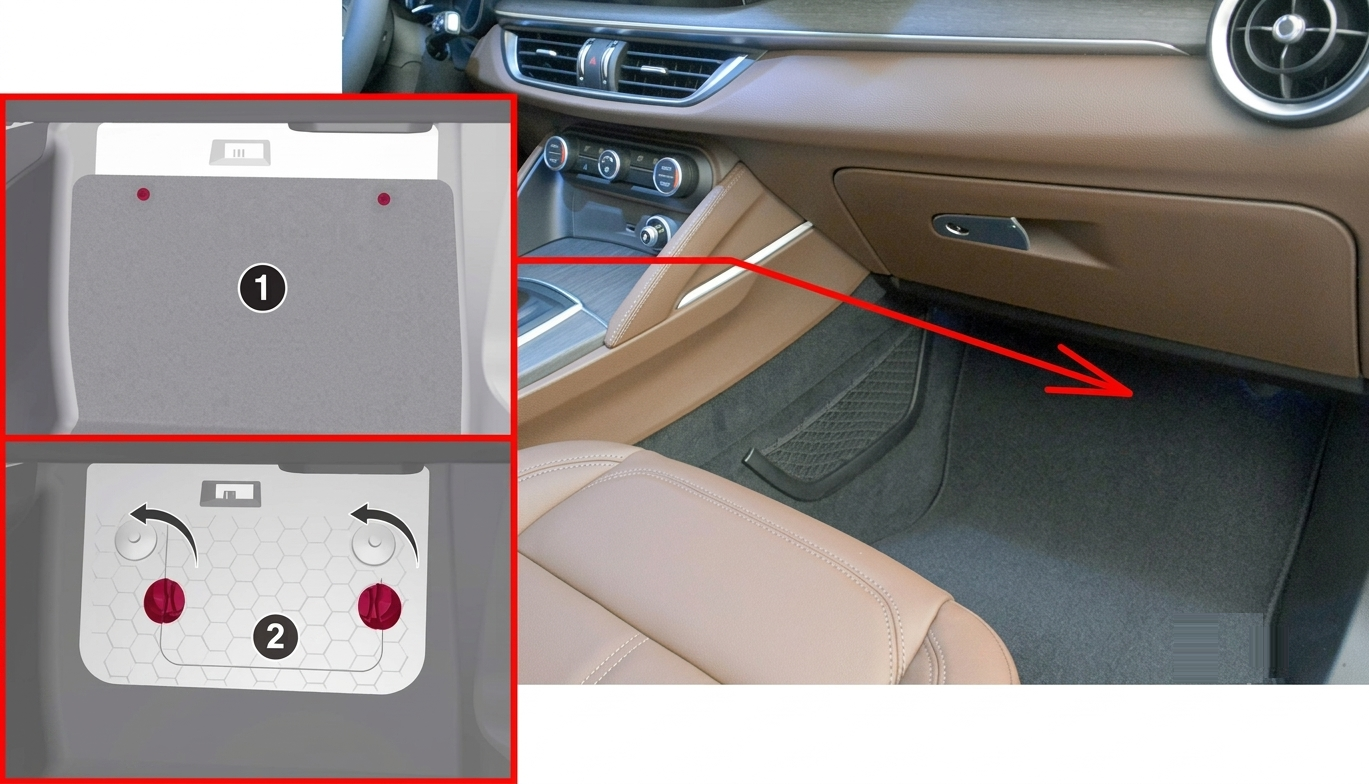

Passenger Compartment Fuse Box
The fuse box is located below the passenger side footboard.

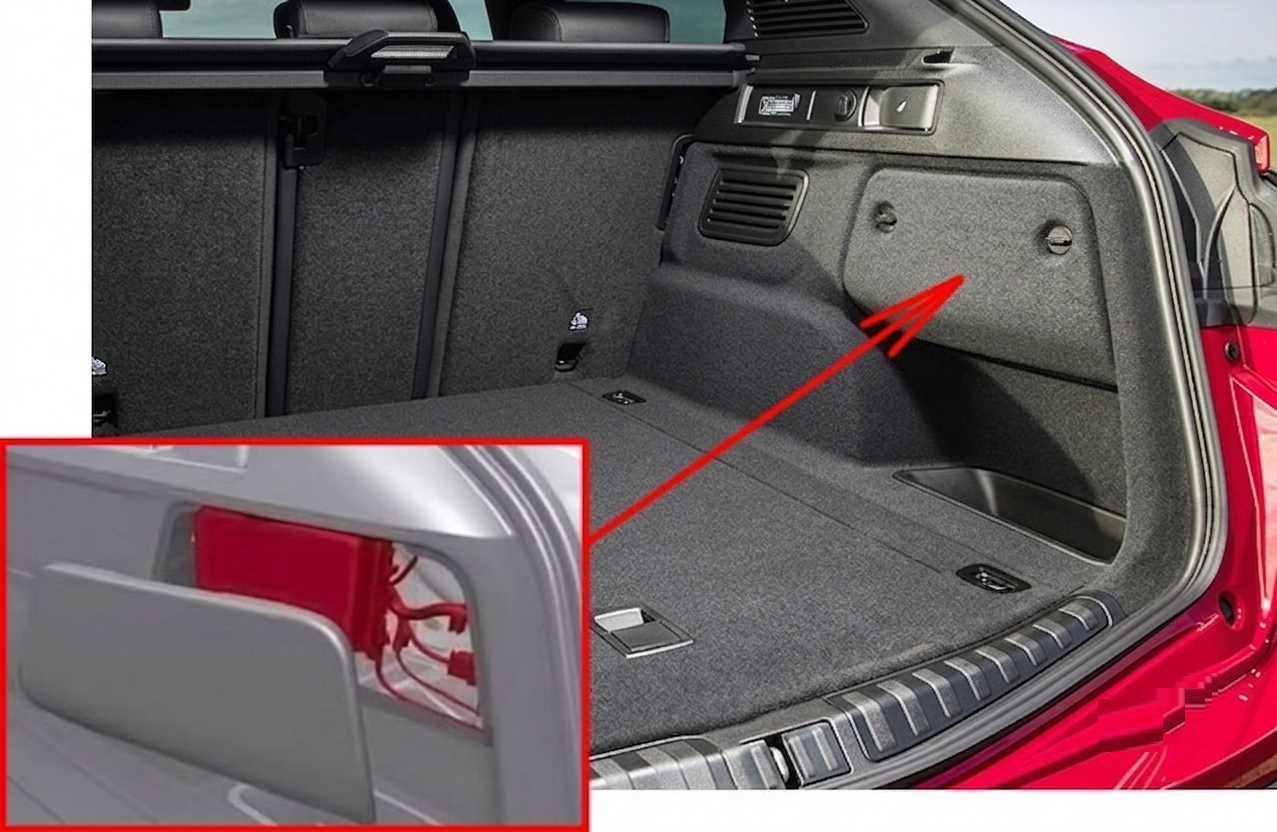

Luggage Compartment Fuse Box
The fuse box is located on the right side of the luggage compartment behind the side cover.
Fuse Box Diagrams

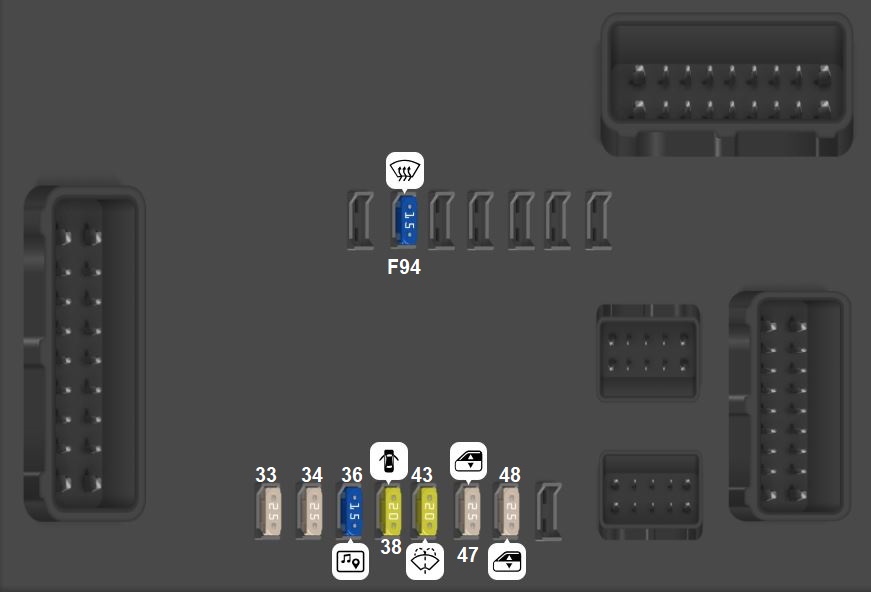

Passenger Compartment Fuse Box
| Type | No. | Description |
| Fuse MINI 25A | F33 | Front power window (driver’s side) |
| Fuse MINI 25A | F34 | Front power window (passenger side) |
| Fuse MINI 15A | F36 | Supply for Information and Entertainment system, Climate Control system, alarm, power door mirror folding, EOBD system, USB port |
| Fuse MINI 20A | F38 | Safe Lock device [driver side door unlock – if equipped], doors unlock, central lock |
| Fuse MINI 20A | F43 | Windshield washer pump |
| Fuse MINI 25A | F47 | Rear left power window |
| Fuse MINI 25A | F48 | Rear right power window |
| Fuse MINI 15A | F94 | Heater rear window coil |

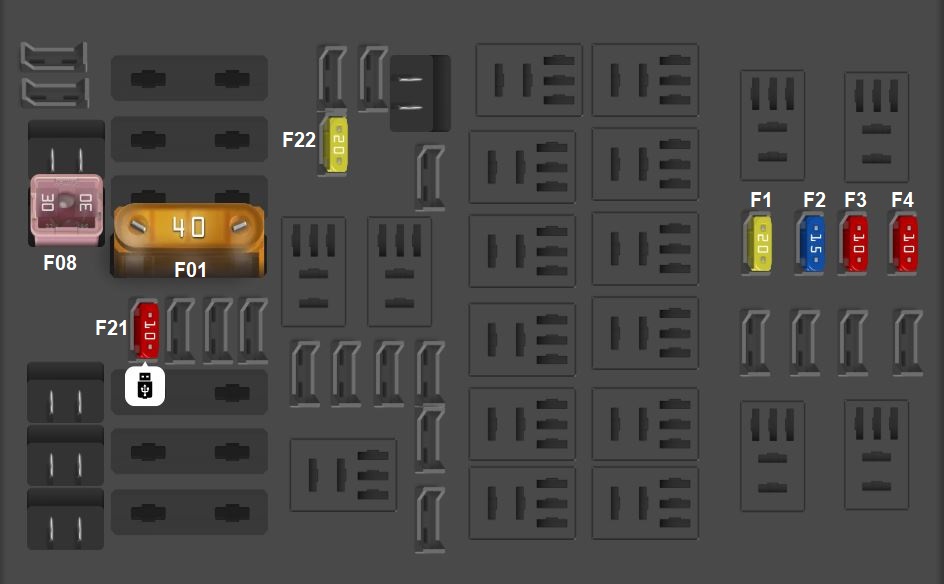

Luggage Compartment Fuse Box
| Type | No. | Description |
| Fuse MAXI 40A | F01 | 2017 to 2026: Receiver module (TTM/TTEBM) |
| Fuse FMX/JCase 30A | F08 | 20417 to 2026: Hi-Fi system |
| Fuse MINI 10A | F21 | 2017 to 2026: I-Drive, USB Socket, AUX, USB Charger |
| Fuse MINI 20A | F22 | 2017 to 2024:KL15/a 12 Volts Power socket in the luggage compartment |
| Fuse MINI 20A | F1 | 2017 to 2024: Trailer light control unit power supply (+30) |
| Fuse MINI 15A | F2 | 2017 to 2024: Trailer light control unit power supply (+30) |
| Fuse MINI 10A | F3 | 2017 to 2024:Trailer socket (only EMEA) (+30) |
| Fuse MINI 10A | F4 | 2017 to 2024: Tow bar (+15) |
