The BAIC BJ40 (B40) 2024 uses fuse boxes to protect important electrical circuits and components. Knowing the correct fuse locations and assignments makes troubleshooting electrical problems easier. This guide covers fuse box locations, diagrams, fuse ratings, and protected components for the BAIC BJ40.

Fuse Box Location

Passenger Compartment Fuse Box

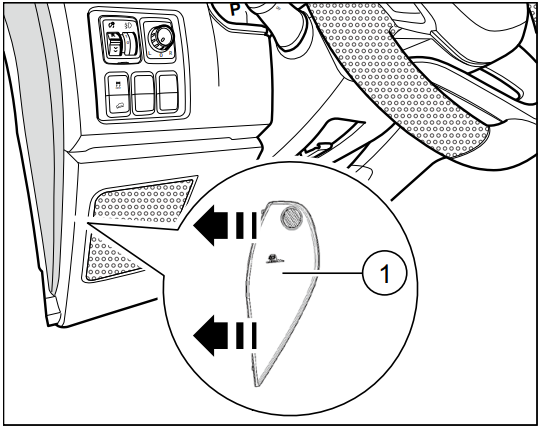

Removing cover for left section of dashboard
Disengage the left dashboard end cover assembly from the dashboard in the direction of the arrow using a plastic pry board.

Removing cover for left section

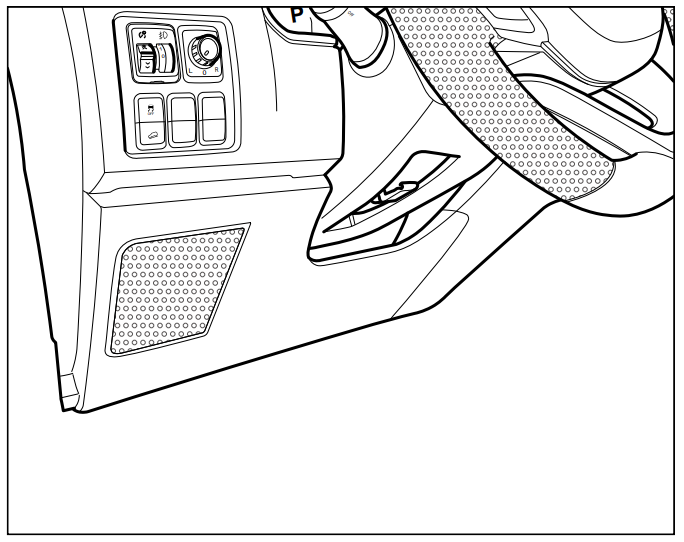

Removing knee protection cover plate

  1. Remove the fixing screw on the left side of the knee protection cover plate;
  2. Remove knee protection cover plate with plastic pry plate

Removing knee protection

Engine Compartment Fuse Box

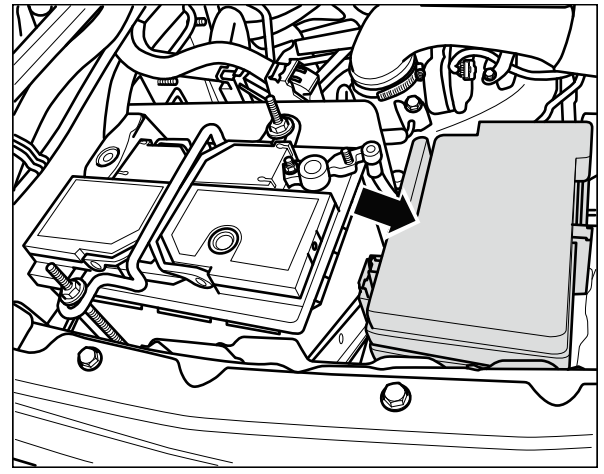

Engine Compartment Fuse Box Location

Fuse Box Diagrams

Passenger Compartment Fuse Box

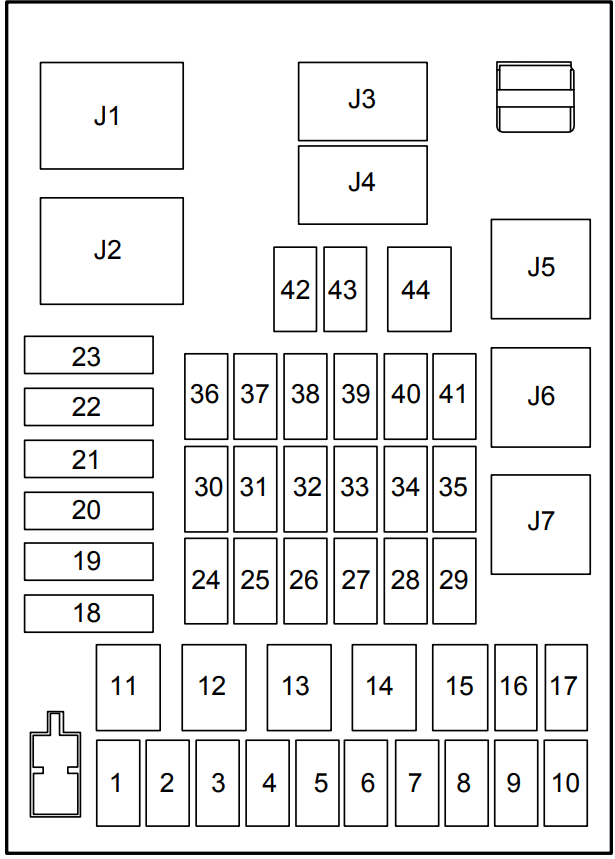

Passenger Compartment Fuse Box Location

(B201R/B231R/ B237R gasoline models)
PositionSpecificationFunction
130AACC Relay
230AIG1 Relay
320AFour-Wheel Drive Controller
430ARight EPB Motor
530ALeft EPB Motor
620ADriver Seat Heating
720AFront Passenger Seat Heating
8—Reserve
9—Reserve
10—Reserve
1130ALeft Front/Left Rear Door Module
1230ARight Front/Right Rear Door Module
1330ADriver Seat Adjustment
1430AFront Passenger Seat Adjustment
1510AOBD/GW/Host/A/C/A/C Panel
1610ARear Fog Light Relay
1710AGlove Box Lights/Trunk Lights/Ceiling Lights
1810AGauge/ESCL/Off-Road Information
195APEPS Power 1
205APEPS Power 2
2110AStreaming Media/Defrost Relay/EPB Switch/USB Charging Port
2210ABrake Switch
235AVehicle Data Recorder
24—Reserve
25—Reserve
26—Reserve
27—Reserve
28—Reserve
29—Reserve
3010AFour-Door Module/Four-Wheel Drive Controller/BCM/Backup Sensor/Backup Camera
3110AOff-Road Information/EPB Controller/PEPS/Instrument
325AAirbag
3310AGW/TPMS/A/C Panel/Shift Mechanism
3410ADriver & Front Passenger Seats/Streaming Media/EPB Switch/Inside Rear View Mirror/Headlight Height/Backlight Adjustment
355ARain Sensor
3610APEPS/BCM
3710AUSB/Host/220V/AV Switch
3815ACigar Light
39—Reserve
40—Reserve
41—Reserve
42—Reserve
43—Reserve
4430ARear Defrost
J1V4Reserve
J2V4Defroster Relay
J3V6Rear Fog Light Relay
J4—Reserve
J5V4ACC Relay
J6V4IG1 Relay
J7V4Reserve
(4G20TI3 gasoline model)
PositionSpecificationFunction
130AACC relay
230AIG1 Relay
320A4WD Controller (Only for BorgWarner)
430ARight EPB motor
530ALeft EPB motor
620ADriver seat heating
720AFront passenger seat heating
830AFour-wheel drive controller (Only for Dymos)
9—Reserve
10—Reserve
1130ALeft front/left rear door module
1230ARight front/right rear door module
1330ADriver’s seat adjustment
1430AAdjustment of front passenger seat
1510AOBD/GW/Host/A/C/A/C panel
1610ARear fog light relay
1710AGlove Box Lights / Trunk Lights / Ceiling Lights
1810AGauge / ESCL / Off-Road Information
195APEPS power 1
205APEPS power 2
2110AStreaming media / Defrost relay / EPB switch / USB charging port
2210ABrake switch
235AVehicle data recorder
2410AGear shift control mechanism
25—Reserve
26—Reserve
27—Reserve
28—Reserve
29—Reserve
3010AFour-door module / Four-wheel drive controller / BCM / Back-up sensor / Back-up camera
3110AOff-Road Information / EPB Controller / PEPS / Instrument
325AAirbag
3310AGW / TPMS / A/C / Panel
3410ADriver and Front Passenger Seats / Streaming Media / EPB Switch / Inside Rear View Mirror / Headlight Height / Backlight Adjustment
355ARain sensor
3610APEPS / BCM
3710AUSB / Host / 220V / AV switch
3815ACigar lighter
39—Reserve
40—Reserve
41—Reserve
42—Reserve
43—Reserve
4430ARear defrost
J1V4Reserve
J2V4Defroster relay
J3V6Rear fog light relay
J4—Reserve
J5V4ACC relay
J6V4IG1 Relay
J7V4Reserve
(Diesel Models)
PositionSpecificationFunction
130AACC relay
230AIG1 Relay
330AFour-wheel drive controller
430ARight EPB motor
530ALeft EPB motor
620ADriver seat heating
720AFront passenger seat heating
820ADefroster relay
9—Reserve
10—Reserve
1130ALeft front/left rear door module
1230ARight front/right rear door module
1330ADriver’s seat adjustment
1430AAdjustment of front passenger seat
1510AOBD/GW/Host/A/C/A/C panel
1610ARear fog light relay
1710AGlove box lights / Trunk lights / Ceiling lights
1810AGauge / ESCL / Off-Road Information
195APEPS power 1
205APEPS power 2
2110AStreaming media / Defrost relay / EPB switch / USB charging port
2210ABrake switch
235AVehicle data recorder
24—Reserve
25—Reserve
26—Reserve
27—Reserve
28—Reserve
29—Reserve
3010AFour-door module / Four-wheel drive controller / BCM / Back-up sensor / Back-up camera
3110AOff-Road Information / EPB Controller / PEPS / Instrument
325AAirbag
3310AGW / TPMS / A/C panel / Shift mechanism
3410ADriver and front passenger seats / Streaming media / EPB switch / Inside rear view mirror / Headlight height / Backlight adjustment
355ARain sensor
3610APEPS / BCM
3710AUSB / Host / 220V / AV switch
3815ACigar light
39—Reserve
40—Reserve
41—Reserve
42—Reserve
43—Reserve
44—Reserve
J1V4Reserve
J2V4Defroster relay
J3V6Rear fog light relay
J4—Reserve
J5V4ACC relay
J6V4IG1 Relay
J7V4Reserve
(City version: B237R/4G20TI3 gasoline model and Ring tower model: B237R)
PositionSpecificationFunction
130AACC Relay
230AIG1 Relay
320A/30AFour-wheel Drive Controller (30A only for 4G20TI3)
430ARight EPB Motor
530ALeft EPB Motor
620ADriver Seat Heating
720AFront Passenger Seat Heating
830APower Amplifier Power Supply
9—Reserve
10—Reserve
1130ALeft Front/Left Rear Door Module
1230ARight Front/Right Rear Door Module
1330ADriver Seat Adjustment
1430AFront Passenger Seat Adjustment
1530AB+ Power Supply
1615ASteering Wheel Heating
1710AGlove Box Lights / Trunk Lights / Ceiling Lights
1810ACombination Instrument / Off-Road Information Module B+
195APEPS Power 1
205APEPS Power 2
2110AStreaming Media / Defrost Relay / EPB Switch / USB Charging Port
2210ABrake Switch
235AVehicle Data Recorder
2410AShifting Mechanism (4G20TI3 Only)
25—Reserve
26—Reserve
2710AOBD / Host / A/C Panel / A/C Controller
285AGW
2910ARear Fog Light Relay
3010AFour-Door Module / Four-Wheel Drive Controller / BCM / Backup Sensor / Backup Camera
3110AOff-Road Information / EPB Controller / PEPS / Instrument
325AAirbag Controller
3310AGW / TPMS / A/C Panel / Shift Operating Mechanism
3410ADriver & Front Passenger Seats / Streaming Media / EPB Switch / Interior Rear View Mirror / Headlight Height Adjustment & Backlight Adjustment Switch
355ARain Sensor / Steering Wheel Heating
3610APEPS / BCM
3710AUSB / Host / 220V / AV Switch
3815ACigar Light
39—Reserve
40—Reserve
41—Reserve
42—Reserve
43—Reserve
4430ARear Defrost
J1V4Reserve
J2V4Rear Defroster Relay
J3V6Rear Fog Light Relay
J4—Reserve
J5V4ACC Relay
J6V4IG1 Relay
J7V4Reserve
(HY4C20B gasoline model)
PositionSpecificationFunction
130AACC Relay
230AIG1 Relay
330AFour-wheel Drive Controller
430ARight EPB Motor
530ALeft EPB Motor
620ADriver Seat Heating
720AFront Passenger Seat Heating
830APower Amplifier Power Supply
9—Reserve
10—Reserve
1130ALeft Front/Left Rear Door Module
1230ARight Front/Right Rear Door Module
1330ADriver’s Seat Adjustment
1430AFront Passenger Seat Adjustment
1520ABCM
1615ASteering Wheel Heating
1710AGlove Box Lights / Trunk Lights / Ceiling Lights
1810AGauge / ESCL / Off-Road Information
1915ABCM
205APEPS Power 2
2110AStreaming Media / Defrost Relay / EPB Switch / USB Charging Port
2210ABrake Switch
2320ABCM
2410AShift Operation Mechanism
2510AABS / ESP / YAW / SAS
2610APEPS / BCM
2710AUSB / Host / 220V / AV Switch
2815ACigar Lighter
29—Reserve
3010AFour-door Module / Four-wheel Drive Controller / BCM / Back-up Sensor / Back-up Camera
3110AOff-Road Information / EPB Controller / PEPS / Instrument
325AAirbag
3310AGW / TPMS / A/C / Panel
3410ADriver & Front Passenger Seats / Streaming Media / EPB Switch / Inside Rear View Mirror / Headlight Height / Backlight Adjustment
355ARain Sensor / Steering Wheel Heating
3610AShift Mechanism
3715AOBD / Main Unit
3810AGW
3910ARear Fog Lights / Ambient Lights
405ADriving Recorder / A/C Panel / A/C Controller
415APEPS Power 1
42—Reserve
43—Reserve
4430ARear Defrost
J1V4Reserve
J2V4Defroster Relay
J3V6Rear Fog Light Relay
J4—Reserve
J5V4ACC Relay
J6V4IG1 Relay
J7V4Reserve

Engine Compartment Fuse Box

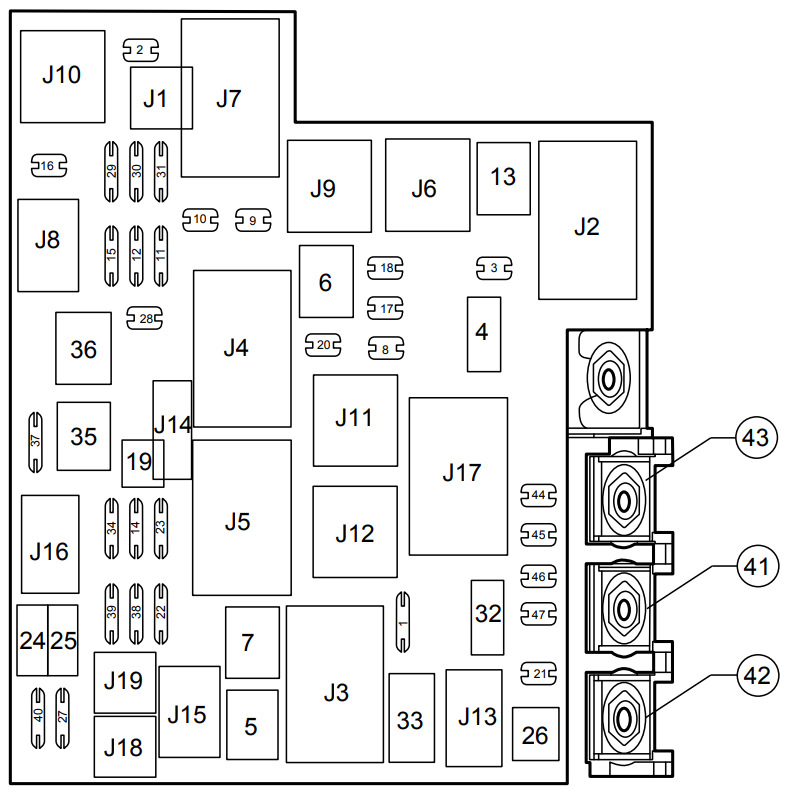

Engine Compartment Fuse Box Diagrams

(B201R/ B231R/B237R gasoline vehicles)
PositionSpecificationFunction
110A EMSEngine Management System
215A A/C CompressorAir Conditioning Compressor
35A PEPS/BCM STPassive Entry Passive Start / Body Control Module Start
430A Starter ExcitationStarter Motor Activation
5ReserveSpare Fuse
640A Fan 1 Low SpeedCooling Fan 1 Low Speed
740A Fan 2 Low SpeedCooling Fan 2 Low Speed
815A Fuel PumpFuel Pump Power Supply
910A Main Relay 2Main Relay Control
1010A Blower Relay CoilBlower Relay Control
1115A Fuel Injectors, SensorsFuel Injector and Sensor Power
1215A Ignition Coil, Brake SwitchIgnition Coil and Brake Switch Power
1330A Main RelayMain Power Relay
1425A ABS/ESP B+ABS/ESP Battery Power
15ReserveSpare Fuse
1615A Vacuum Pump (Special for National V)Vacuum Pump Power
1715A Left HeadlightLeft Headlight Power
1815A Right HeadlightRight Headlight Power
19ReserveSpare Fuse
2020A Front WiperFront Windshield Wiper Motor
2115A Left Front Fog LightLeft Fog Light Power
2215A Right Front Fog LightRight Fog Light Power
2315A HornHorn Power Supply
24ReserveSpare Fuse
2530A BCMBody Control Module Power
2630A BCMBody Control Module Power
2725A BCMBody Control Module Power
2825A BCMBody Control Module Power
2920A Ignition Switch IGIgnition Switch Power
3015A TCU/Gear Switch IGTransmission Control Unit / Gear Switch Power
3110A EMS/ABS/Steering Angle/Yaw Angle Sensor IGEngine, ABS and Steering Sensor Power
3220A 220V Power220V Power Supply
3340A BlowerBlower Motor Power
345A TCU B+Transmission Control Unit Battery Power
3540A ABS/ESP B+ABS/ESP Power Supply
36ReserveSpare Fuse
37ReserveSpare Fuse
38ReserveSpare Fuse
39ReserveSpare Fuse
40ReserveSpare Fuse
4180A Cab Fuse Box Power SupplyCabin Fuse Box Main Power
42175A AlternatorAlternator Main Power
4380A High Speed Fan FuseHigh-Speed Cooling Fan Power
445A Spare FusesSpare Fuse
4510A Spare FusesSpare Fuse
4615A Spare FusesSpare Fuse
4720A Spare FusesSpare Fuse
J1HFKA Compressor RelayA/C Compressor Control
J2V4 Starter RelayStarter Motor Control
J3V7 ReserveSpare Relay
J4V7 Fan 1 Low Speed RelayCooling Fan 1 Low-Speed Control
J5V7 Fan 2 Low Speed RelayCooling Fan 2 Low-Speed Control
J6V9 Fuel Pump RelayFuel Pump Control
J7V4 Main RelayMain Power Relay Control
J8V11 Vacuum Pump Delay Relay (Special for National V)Vacuum Pump Delay Control
J9V9 Low-Beam Headlight RelayLow Beam Headlight Control
J10V9 ReserveSpare Relay
J11V9-Z Low-Speed Front Wiper RelayFront Wiper Low-Speed Control
J12V9-Z High-Speed Front Wiper RelayFront Wiper High-Speed Control
J13V11 Left Front Fog Light RelayLeft Fog Light Control
J14HFKA Horn RelayHorn Control
J15V11 Right Front Fog Light RelayRight Fog Light Control
J16HFKA ReserveSpare Relay
J17V4 Blower RelayBlower Motor Control
J18HFKA ReserveSpare Relay
J19HFKA ReserveSpare Relay
(4G20TI3 gasoline model)
PositionSpecificationFunction
110AEMS
215AA/C Compressor
35APEPS/BCM ST
430AStarter Excitation
5ReserveSpare Fuse
640AFan 1 Low Speed
740AFan 2 Low Speed
815AFuel Pump
910AMain Relay 2
1010ABlower Relay Coil / EMS
1115AFuel Injectors, Sensors
1215AIgnition Coil, Brake Switch
1330AMain Relay
1425AABS/ESP B+
15ReserveSpare Fuse
1615APump
1715ALeft Headlight
1815ARight Headlight
19ReserveSpare Fuse
2020AFront Wiper
2115ALeft Front Fog Light
2215ARight Front Fog Light
2315AHorn
24ReserveSpare Fuse
2530ABCM
2630ABCM
2725ABCM
2825ABCM
2920AIgnition Switch IG
3015ATCU/Gear Switch IG
3110AEMS/ABS/Steering Angle, Yaw Angle Sensor IG
3220A220V Power
3340ABlower
345ATCU B+
3540AABS/ESP B+
36ReserveSpare Fuse
37ReserveSpare Fuse
38ReserveSpare Fuse
39ReserveSpare Fuse
40ReserveSpare Fuse
4180ACab Fuse Box Power Supply
42175AAlternator
4380AHigh Speed Fan Fuse
445ASpare Fuse
4510ASpare Fuse
4615ASpare Fuse
4720ASpare Fuse
J1HFKACompressor Relay
J2V4Starter Relay
J3V7Reserve
J4V7Fan 1 Low Speed Relay
J5V7Fan 2 Low Speed Relay
J6V9Fuel Pump Relay
J7V4Main Relay
J8V11Water Pump Relay
J9V9Low-Beam Headlight Relay
J10V9Reserve
J11V9-ZLow-Speed Front Wiper Relay
J12V9-ZHigh-Speed Front Wiper Relay
J13V11Left Front Fog Light Relay
J14HFKAHorn Relay
J15V11Right Front Fog Light Relay
J16HFKAReserve
J17V4Blower Relay
J18HFKAReserve
J19HFKAReserve
(Diesel Models)
PositionSpecificationFunction
1—Reserve
215AA/C Compressor
35APEPS/BCM ST
430AStarter Excitation
5—Reserve
640AFan 1 Low Speed
740AFan 2 Low Speed
825ACoarse Filter Heating
910AMain Relay 2
1010AEngine Management System
1115AFuel Injectors, Sensors
1215AIgnition Coil, Brake Switch
1330AMain Relay
1425AABS/ESP B+
15—Reserve
16—Reserve
1715ALeft Headlight
1815ARight Headlight
19—Reserve
2020AFront Wiper
21—Reserve
22—Reserve
2315AHorn
24—Reserve
2530ABCM
2630ABCM
2725ABCM
2825ABCM
2920AIgnition Switch IG
3015ATCU/Gear Switch IG
3110AEMS/ABS/Steering Angle, Yaw Angle Sensor IG
3220A220V Power
3340ABlower
34—Reserve
3540AABS/ESP B+
3660AIntake Preheating
37—Reserve
38—Reserve
39—Reserve
40—Reserve
4180ACab Fuse Box Power Supply
42175AAlternator
4380AHigh Speed Fan Fuse
445ASpare Fuses
4510ASpare Fuses
4615ASpare Fuses
4720ASpare Fuses
J1HFKACompressor Relay
J2V4Starter Relay
J3V7Reserve
J4V7Fan 1 Low Speed Relay
J5V7Fan 2 Low Speed Relay
J6V9Coarse Filter Heating Relay
J7V4Main Relay
J8V11Reserve
J9V9Low-Beam Headlight Relay
J10V9Reserve
J11V9-ZLow-Speed Front Wiper Relay
J12V9-ZHigh-Speed Front Wiper Relay
J13V11Reserve
J14HFKAHorn Relay
J15V12Reserve
J16HFKAReserve
J17V4Blower Relay
J18HFKAReserve
J19HFKAReserve
(HY4C20B gasoline model)
PositionSpecificationFunction
110AEMS
215AA/C compressor
35APEPS/BCM ST
430AStarter excitation
5—Reserve
6—Reserve
7—Reserve
815AFuel Pump
910AMain Relay 2
1015ABlower relay coil / engine management system sensor
1115AEMS
1215AIgnition coil
1330AMain relay
1425AABS/ESP B+
15—Reserve
16—Reserve
1715ALeft headlight
1815ARight headlight
19—Reserve
2020AFront wiper
2115ALeft front fog light
2215ARight front fog light
2315AHorn
24—Reserve
25—Reserve
26—Reserve
27—Reserve
2825ABCM
29—Reserve
30—Reserve
31—Reserve
3220A220V Power
3340ABlower
3410ATCU B+ (only for AT)
3540AABS/ESP B+
3630ACab fuse power supply
37—Reserve
38—Reserve
39—Reserve
40—Reserve
4180AHigh speed fan fuse
42175AAlternator
4360ALow speed fan fuse
445ASpare fuses
4510ASpare fuses
4615ASpare fuses
4720ASpare fuses
J1HFKACompressor relay
J2V4Starter relay
J3—Reserve
J4—Reserve
J5—Reserve
J6V9Fuel pump relay
J7V4Main relay
J8—Reserve
J9V9Low-beam headlight relay
J10—Reserve
J11V9-ZLow-speed relay of front wiper
J12V9-ZHigh-speed relay of front wiper
J13V11Left front fog light relay
J14HFKAHorn relay
J15V11Right front fog light relay
J16HFKAReserve
J17V4Blower relay
J18HFKAReserve
J19HFKAReserve

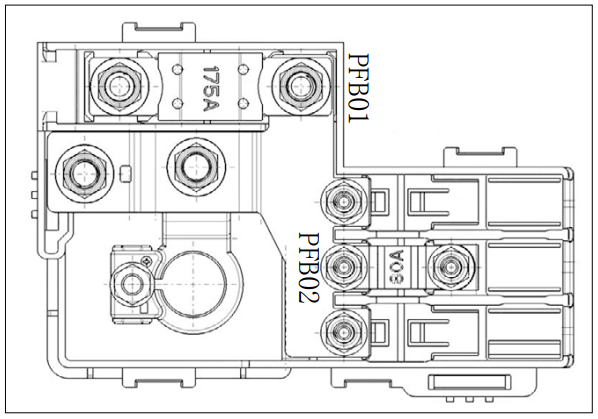

Battery positive electrode fuse box

Battery positive electrode fuse

PositionSpecificationFunction
PFB01MEGA 175AUEC
PFB02MIDI 80AIEC

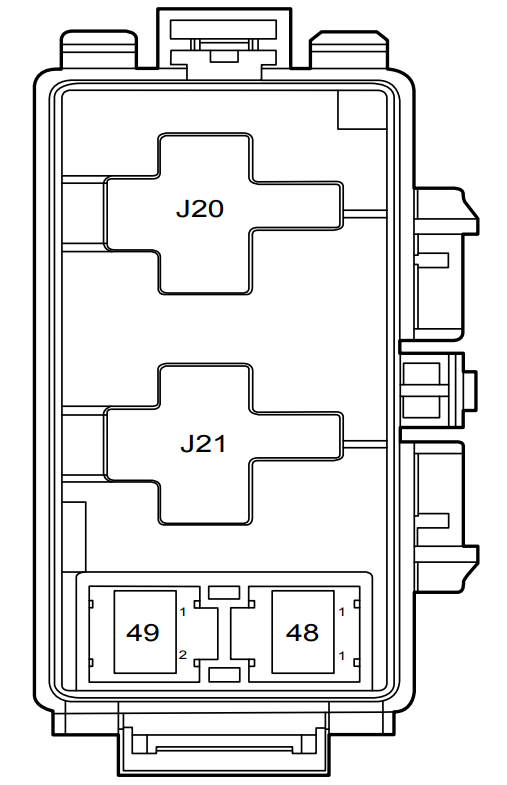

High-speed fan fuse box layout in the engine room

High-speed fan fuse box layout

PositionSpecificationFunction
4850AHigh-speed fan 1
4950AHigh-speed fan 2
J20V7High-speed fan 1
J21V7High-speed fan 2

Related Posts:

Related Posts

Leave a Comment

Your email address will not be published. Required fields are marked *

Scroll to Top
