BAIC X35 2024 Fuse Box Location and Diagrams
The BAIC X35 2024 uses fuse boxes to protect important electrical circuits and components. Knowing the correct fuse locations and assignments makes troubleshooting electrical problems easier. This guide covers fuse box locations, diagrams, fuse ratings, and protected components for the BAIC X35.
Fuse Box Location

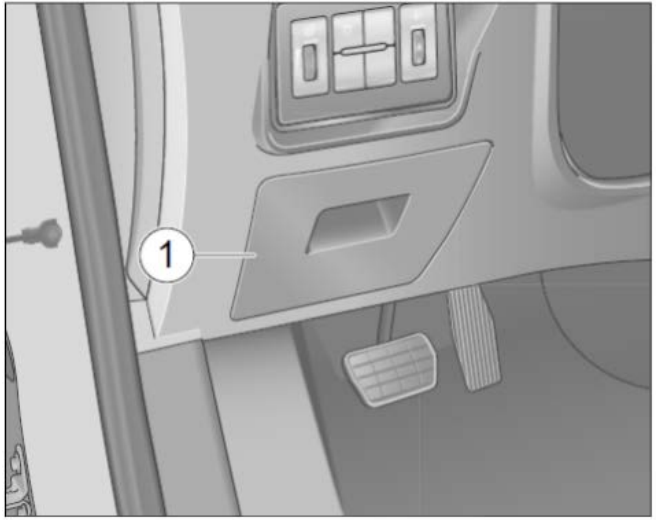

Passenger Compartment Fuse Box
The instrument panel fuse box is located in the lower left side of the instrument panel, and you can see it by removing the instrument panel fuse box cover.

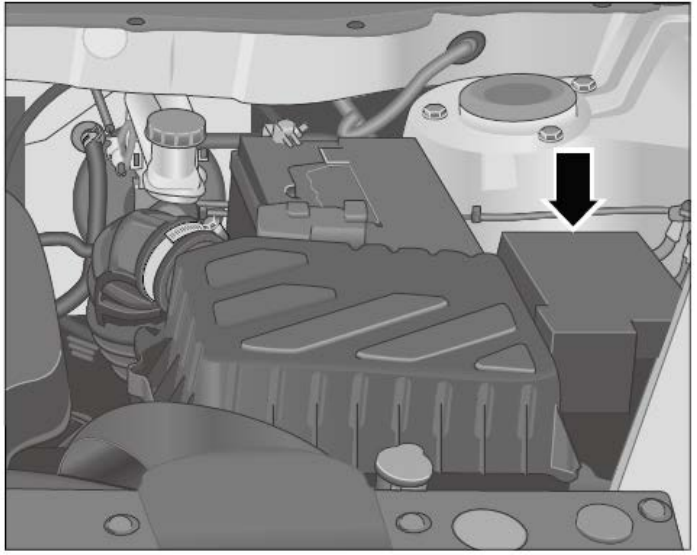

Engine Compartment Fuse Box
The Engine compartment fuse box is located in left of the Engine compartment.
Fuse Box Diagrams
Passenger Compartment Fuse Box

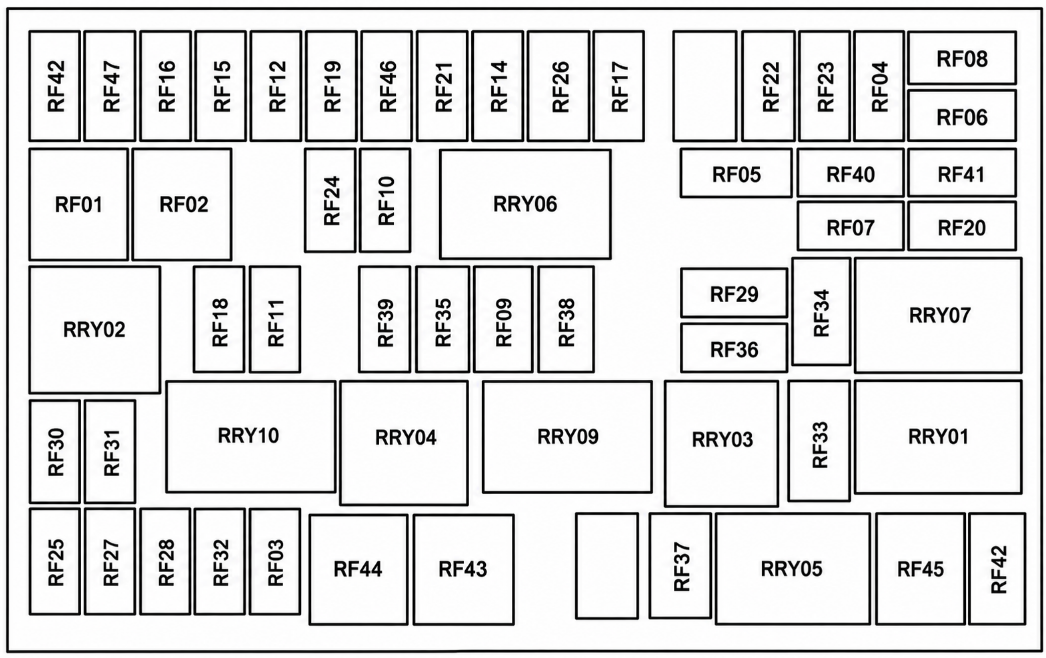

BAIC X35 (Chinese V)
| Number | Specification | Protective Circuit |
|---|---|---|
| RF01 | 25A | Left front / right rear window |
| RF02 | 15A | Right front / left rear window |
| RF03 | 20A | Power lock |
| RF05 | 15A | Horn power |
| RF06 | 30A | AM1 |
| RF07 | 20A | AM2 |
| RF08 | 15A | EMS start request |
| RF12 | 5A | EMS |
| RF13 | 10A | TCU |
| RF14 | 5A | BCM |
| RF16 | 7.5A | EPS / ABS / Brake / EPB |
| RF20 | 7.5A | Sunroof / BCM / Rain light sensor |
| RF21 | 10A | Reversing light |
| RF22 | 5A | Audio and video / BCM ACC |
| RF23 | 15A | Cigarette lighter |
| RF24 | 7.5A | Electric rearview mirror adjustment |
| RF25 | 15A | Radio |
| RF26 | 20A | Sunroof motor |
| RF27 | 15A | Power supply alarm |
| RF28 | 7.5A | Trunk lamp |
| RF29 | 7.5A | Anti-theft alarm coil |
| RF32 | 10A | Instrument |
| RF34 | 30A | Rear window heating |
| RF35 | 7.5A | Daytime running lights |
| RF36 | 7.5A | Rear fog lamp |
| RF38 | 10A | Rear wiper |
| RF39 | 10A | Rear washer |
| RF42 | 5A | A/C feedback |
| RF47 | 10A | Airbag |
| RRY01 | — | Rear window heating relay |
| RRY03 | — | Rear fog lamp relay |
| RRY04 | — | Daytime running lights relay |
| RRY09 | — | Rear wiper relay |

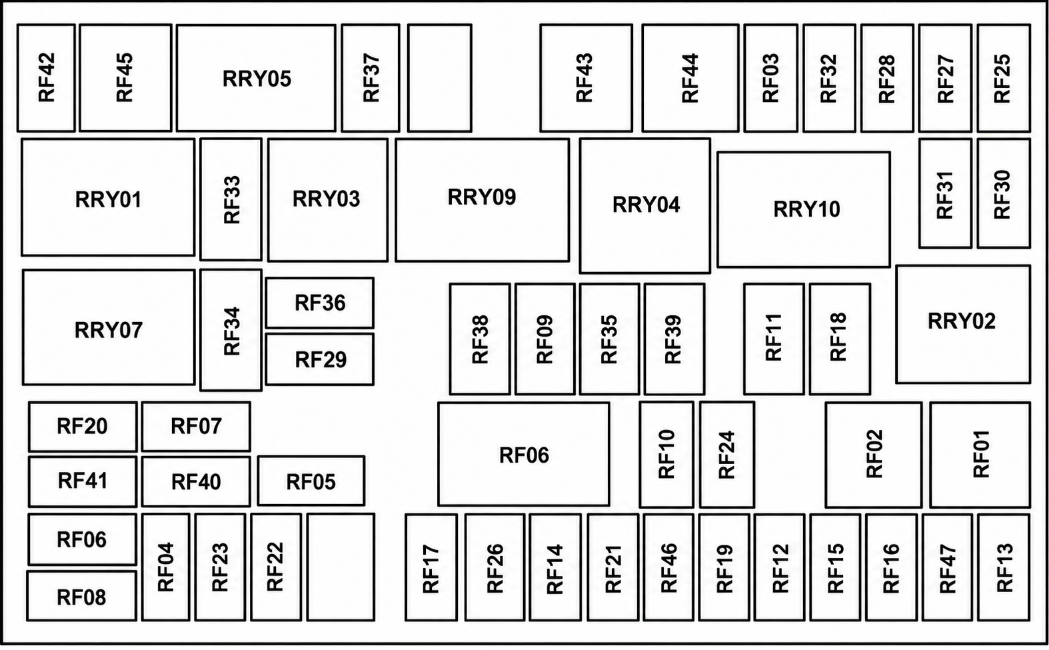

BAIC X35 (Chinese VI)
| Number | Specification | Protective Circuit |
|---|---|---|
| RF01 | 25A | Left front / right rear windows |
| RF02 | 15A | Right front / left rear window |
| RF03 | 20A | Power lock |
| RF05 | 15A | Horn power |
| RF06 | 30A | AM1 |
| RF07 | 20A | AM2 |
| RF08 | 15A | EMS start request |
| RF12 | 5A | EMS |
| RF13 | 10A | TCU |
| RF14 | 5A | BCM |
| RF16 | 7.5A | EPS / ABS / Brake / EPB |
| RF20 | 7.5A | Sunroof / BCM / Rain light sensor / Seat heating |
| RF21 | 10A | Reversing lamp |
| RF22 | 5A | Audio and video / BCM ACC |
| RF23 | 15A | Cigarette lighter |
| RF24 | 7.5A | Rearview mirror adjust switch |
| RF25 | 15A | Radio |
| RF26 | 20A | Sunroof motor |
| RF27 | 15A | Power alarm |
| RF28 | 7.5A | Trunk lamp |
| RF29 | 7.5A | Anti-theft alarm coil |
| RF32 | 10A | Instrument |
| RF34 | 30A | Rear window heating |
| RF35 | 7.5A | Daytime running lights |
| RF36 | 7.5A | Rear fog lamp |
| RF38 | 10A | Rear wiper |
| RF39 | 10A | Rear washer |
| RF40 | 15A | Seat heating |
| RF42 | 5A | A/C feedback |
| RF47 | 10A | Airbag |
| RRY01 | —- | Rear window heating relay |
| RRY02 | —- | Reversing light (CVT) |
| RRY03 | —– | Rear fog lamp relay |
| RRY04 | —- | Daytime running lights relay |
| RRY09 | —- | Rear wiper relay |
Engine Compartment Fuse Box

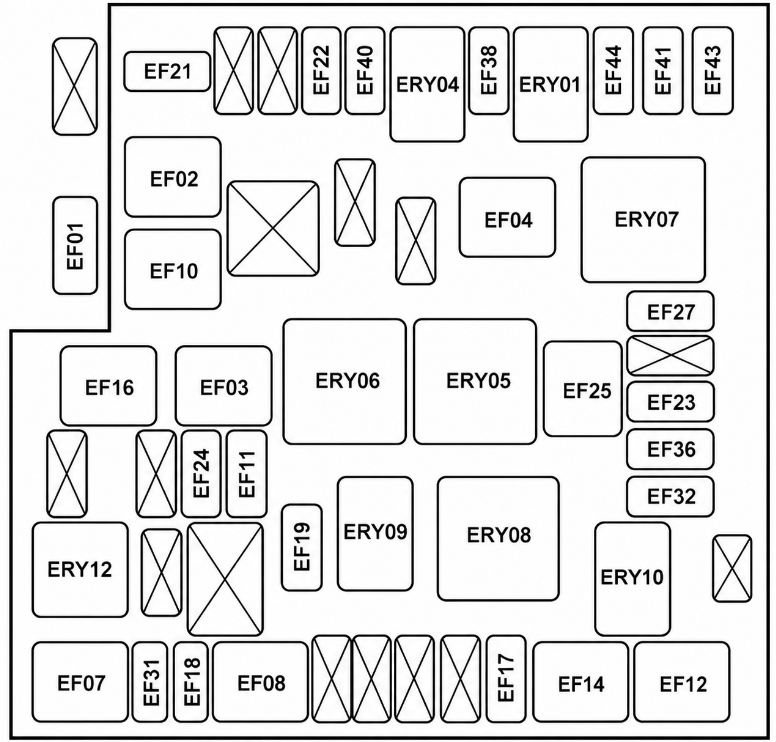

BAIC X35 (Chinese V)
| Number | Specification | Protective Circuit |
|---|---|---|
| EF01 | 150A | Generator |
| EF02 | 30A | Start power supply |
| EF03 | 30A | High-speed fan |
| EF04 | 30A | Blower |
| EF07 | 30A | Electrical Park Brake – right |
| EF08 | 40A | ABS |
| EF10 | 20A | Low-speed fan |
| EF11 | 15A | Horn |
| EF12 | 40A | IEC supply power 2 |
| EF14 | 60A | IEC supply power 1 |
| EF16 | 60A | EPS |
| EF17 | 15A | Fuel pump |
| EF18 | 5A | Blower speed |
| EF19 | 15A | Front washer |
| EF21 | 10A | A/C compressor |
| EF22 | 10A | EMS |
| EF23 | 15A | TCU |
| EF24 | 25A | ABS valve |
| EF25 | 30A | Electrical Park Brake – left |
| EF27 | 5A | High beam |
| EF31 | 10A | Brake switch |
| EF32 | 10A | Left low beam light |
| EF36 | 10A | Right low beam light |
| EF38 | 5A | Starting feedback signal |
| EF40 | 10A | Variable intake valve, valve timing, canister, front and rear oxygen sensor |
| EF41 | 10A | Fuel spray nozzle |
| EF43 | 10A | EMS power |
| EF44 | 15A | Ignition coil |
| ERY01 | – | Main relay |
| ERY04 | – | Starter relay |
| ERY05 | – | High-speed fan relay |
| ERY06 | – | Low-speed fan relay |
| ERY07 | – | Blower relay |
| ERY08 | – | Front wiper relay 1 |
| ERY09 | – | Front wiper relay 2 |
| ERY10 | – | Low beam light relay |
| ERY12 | – | Fuel pump relay |

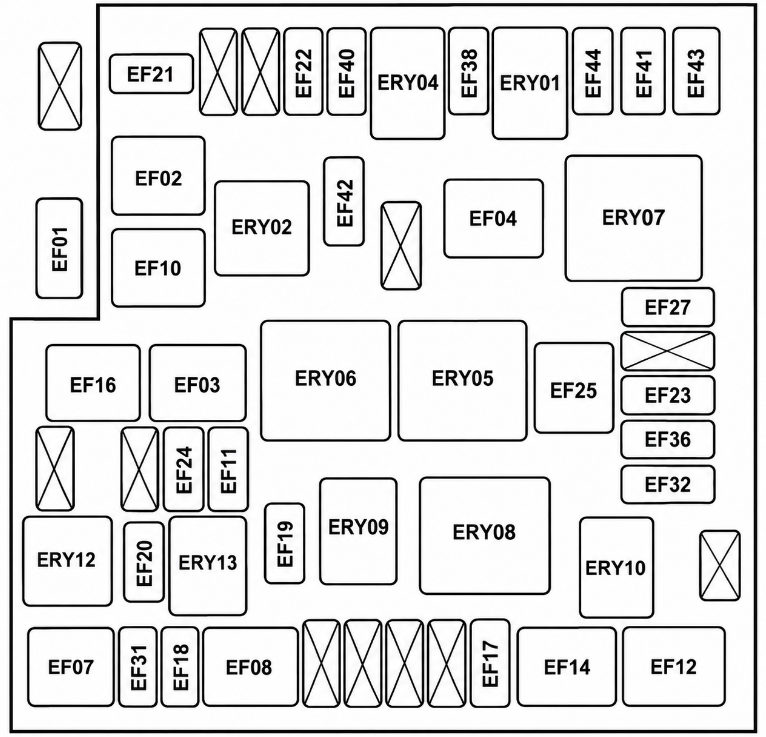

BAIC X35 (Chinese VI)
| Number | Specification | Protective Circuit |
|---|---|---|
| EF01 | 150A | Generator |
| EF02 | 30A | Start power supply |
| EF03 | 30A | High-speed fan |
| EF04 | 30A | Blower |
| EF07 | 30A | Electrical Park Brake – right |
| EF08 | 40A | ABS |
| EF10 | 20A | Low-speed fan |
| EF11 | 15A | Horn |
| EF12 | 40A | IEC supply power 2 |
| EF14 | 60A | IEC supply power 1 |
| EF16 | 60A | EPS |
| EF17 | 15A | Fuel pump |
| EF18 | 5A | Blower speed |
| EF19 | 15A | Front washer |
| EF21 | 10A | A/C compressor |
| EF22 | 10A | EMS |
| EF23 | 15A | TCU |
| EF24 | 25A | ABS valve |
| EF25 | 30A | Electrical Park Brake – left |
| EF27 | 5A | High beam light |
| EF31 | 10A | BREAK switch |
| EF32 | 10A | Left low beam light |
| EF36 | 10A | Right low beam light |
| EF38 | 5A | Starting feedback signal |
| EF40 | 10A | Variable intake valve, valve timing, canister, front and rear oxygen sensor |
| EF41 | 10A | Fuel spray nozzle |
| EF42 | 20A | Electronic vacuum pump |
| EF43 | 10A | EMS power |
| EF44 | 15A | Ignition coil |
| ERY01 | – | Main relay |
| ERY02 | – | Electronic vacuum pump relay |
| ERY04 | – | Starter relay |
| ERY05 | – | High-speed fan relay |
| ERY06 | – | Low-speed fan relay |
| ERY07 | – | Blower relay |
| ERY08 | – | Front wiper relay 1 |
| ERY09 | – | Front wiper relay 2 |
| ERY10 | – | Low beam light relay |
| ERY12 | – | Fuel pump relay |
| ERY13 | – | Transmission chain relay (CVT) |
