BMW X6 F16, F86 (2014 – 2019) Fuse Box Location & Diagrams
The BMW X6 F16 and F86 (2014–2019) feature multiple fuse boxes that protect essential electrical systems and components. This blog helps you quickly locate each fuse box, understand fuse layouts, and access detailed diagrams for easier troubleshooting, maintenance, and safe fuse replacement whenever required.
Fuse Box Location
Passenger Compartment Fuse Box
Instrument Panel Fuse Box

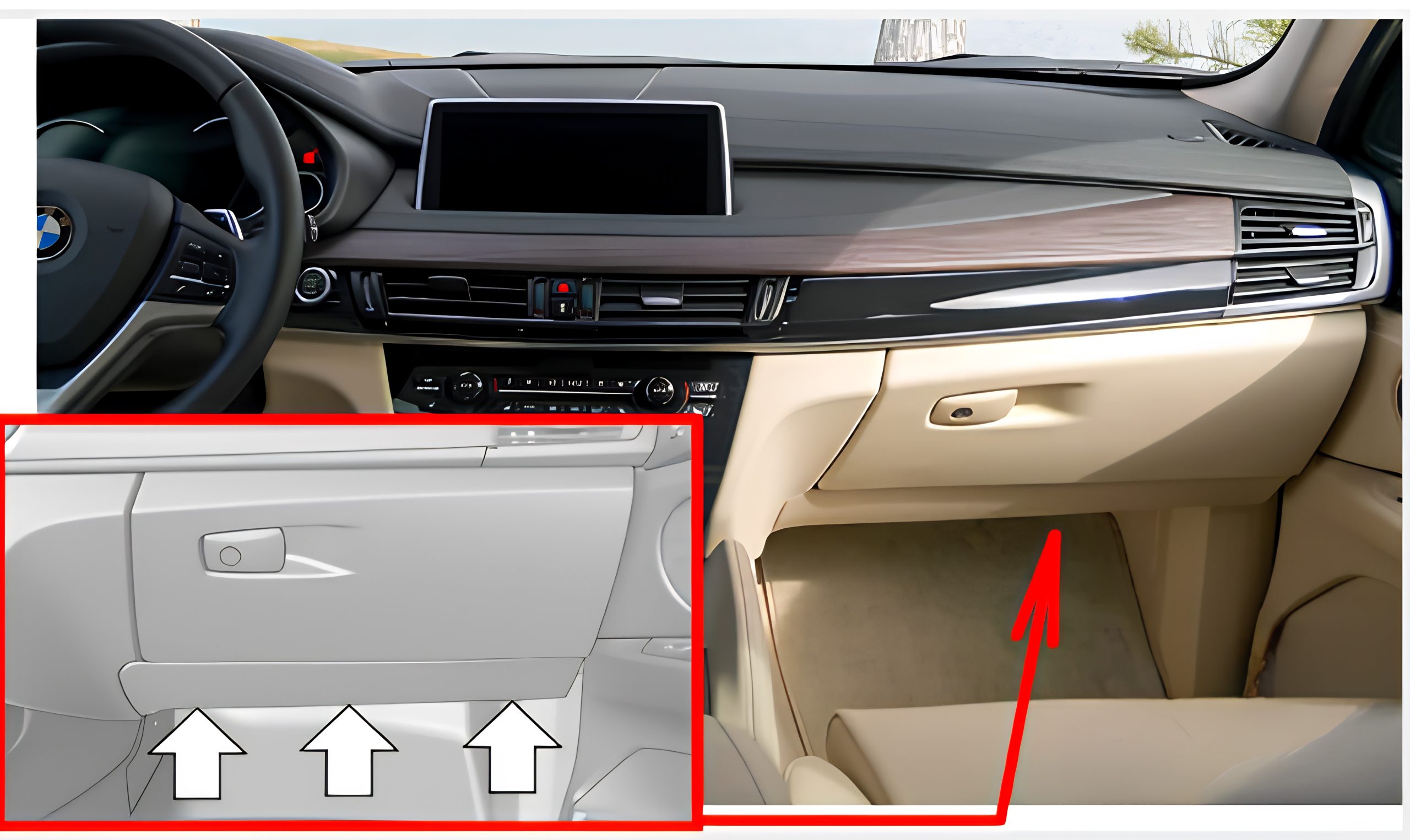

The fuses are located under the glove compartment. Loosen fasteners, arrows, and open cover.
Body Domain Controller (BDC)

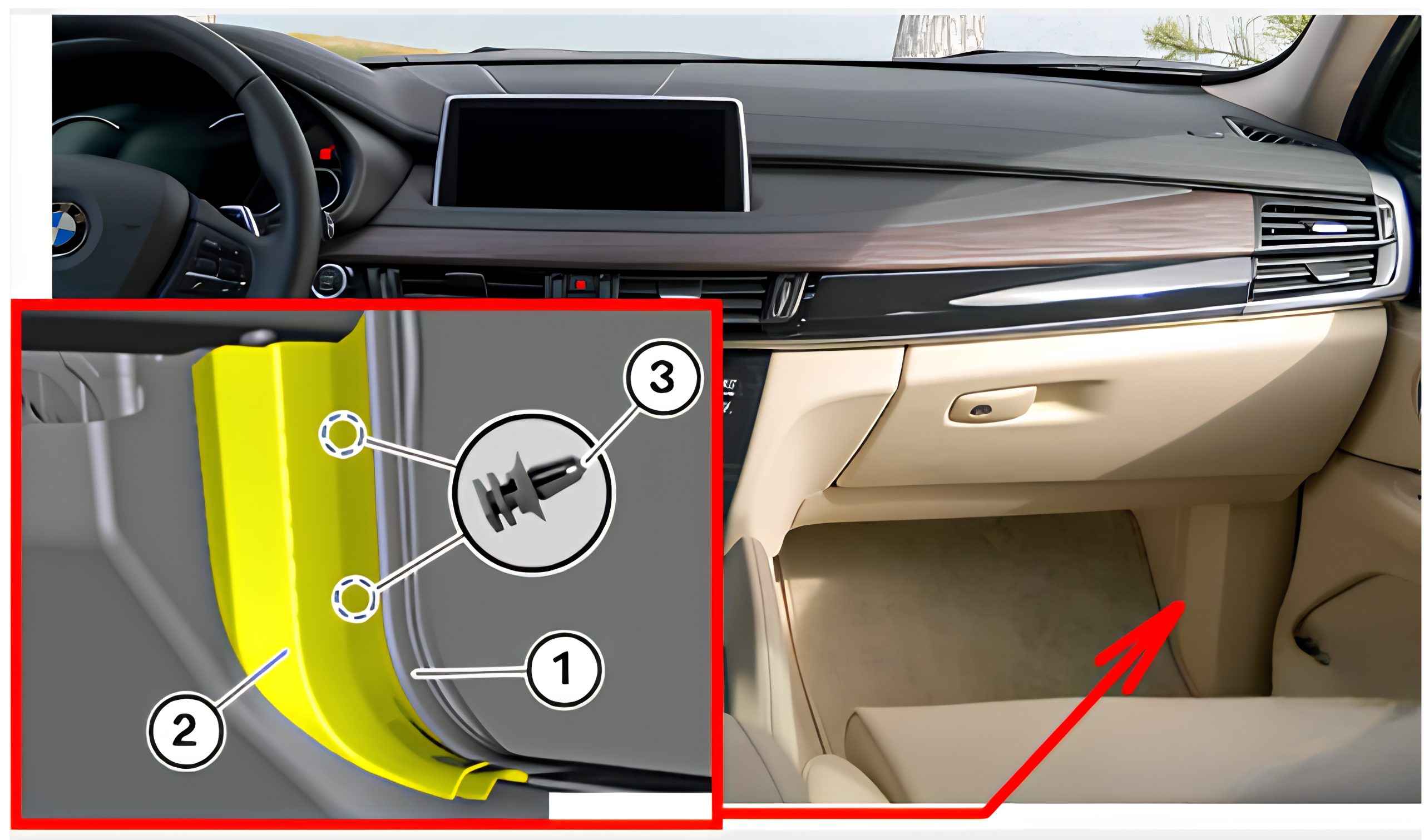

It is located in the front pillar on the passenger side, behind the interior trim.
To access:
- Detach edge protection (1) in area of side trim panel (2).
- Release side trim panel (2) from clips (3) with special tool and remove.
- If necessary, lever out clamps (3) remaining in bore holes.
Luggage Compartment Fuse Box

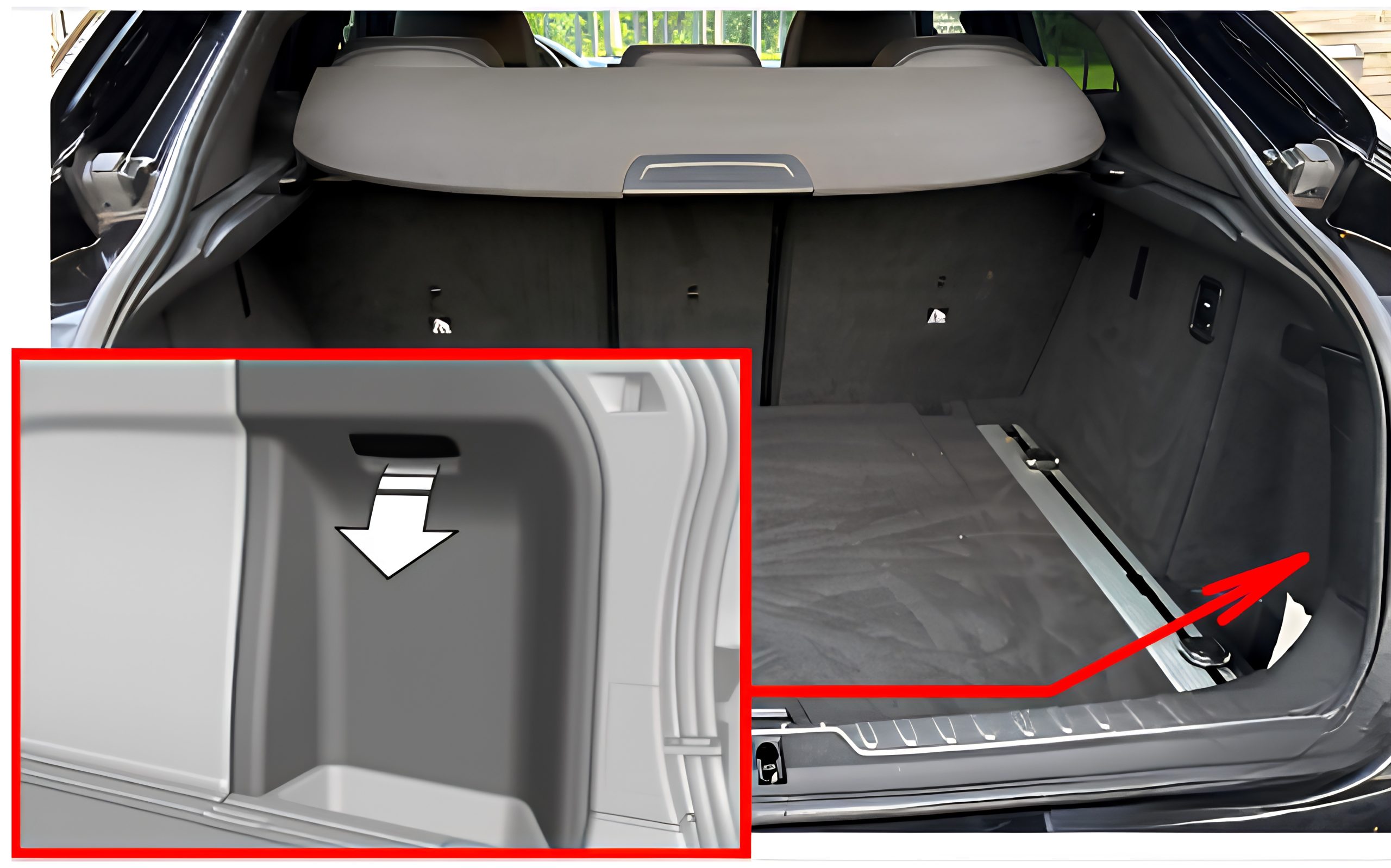

Open the cover on the right-side trim, arrow. The fuse box is located behind the sound isolation.
Fuse Box Diagrams
Passenger Compartment Fuse Box

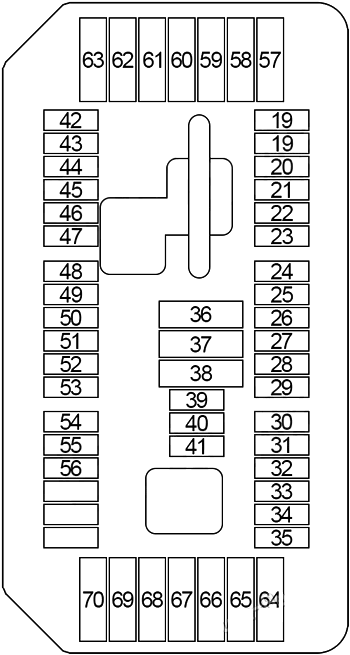

Instrument Panel Fuse Box
| № | Amps | Description |
|---|---|---|
| 19 | 5A | Remote control receiver |
| 20 | 5A | Ceiling console |
| 21 | 5A | Preheating control unit |
| 22 | 7.5A | Driver’s door switch box, outside rear view mirror on the front passenger’s side |
| 23 | 10A | Engine management system (DME) |
| 24 | 10A | Electronic transmission control system |
| 25 | 5A | Touchbox, controller (joystick) |
| 26 | 5A | Retractable instrument panel speaker, rear left/right heated seat switch |
| 27 | 10A | Driver /passenger seat lumbar support valve block, driver/passenger side seat adjustment switch block |
| 28 | 5A | Rain /light /sun sensor, overhead console, vanity mirror lighting |
| 29 | 15A | Additional coolant pump |
| 30 | 10A | Charge air cooler coolant pump |
| 31 | 5A | Electric fan open relay |
| 32 | 5A | Transfer case |
| 33 | 5A | N63, S63: Turbocharger coolant pump |
| 5A | N20: Electric air conditioner compressor, additional electric heater | |
| 34 | 5A | Integrated Chassis Management (ICM) |
| 35 | 20A | Electrochromic rear view mirror |
| 36 | 20A | Socket in the armrest |
| 37 | 20A | Cigarette lighter |
| 38 | 20A | Ceiling console (terminal 30 power supply) |
| 39 | 15A | Left headlight |
| 41 | 10A | S63: Charge air cooler coolant pump; N20: Refrigerant shut-off valve in the vehicle interior, electrical machine control (EME) |
| 42 | 5A | Electronic Damper Control, Electrochromic Rear View Mirror |
| 43 | 5A | Directional illumination left/right |
| 44 | 7.5A | Camera based driver assistance systems (KAFAS), active steering system |
| 45 | 5A | Active Cruise Control (ACC), Automatic Outside Air Contamination Control (AUC) sensors |
| 46 | 5A | Radiator shutter drive; B47, N47, N57: Engine ventilation system heating, radiator shutter drive |
| 47 | 5A | Night vision electronics (NVE), vehicle sound generator (VSG) |
| 48 | 10A | Switching center in the steering column |
| 49 | 5A | Steering angle sensor; 57D30T1: Coolant reservoir shut-off valve, steering angle sensor |
| 50 | 5A | Instrument cluster |
| 52 | 7.5A | Instrument cluster |
| 53 | 5A | Glove box lighting, instrument panel trim strip lighting (driver /passenger side), instrument panel trim strip lighting on driver’s side, driver/ passenger footwell lighting |
| 54 | 10A | Gear Select Switch (GWS) |
| 55 | 5A | Servotronic (SVT), electromechanical power steering (EPS) |
| 56 | 5A | Vertical Dynamics Management (VDM) |
| 57 | 20A | Left headlight |
| 58 | 30A | Dynamic Stability Control (DSC) |
| 59 | 40A | Active steering system |
| 60 | 40A | Heater |
| 61 | 20A | Electronic Damper Control |
| 62 | 20A | Vertical Dynamics Management (VDM) |
| 63 | 30A | Transfer box (VTG) |
| 64 | 30A | Front passenger seat heating module |
| 65 | 30A | Driver seat heating module |
| 66 | 20A | Auxiliary /additional heater |
| 67 | 30A | Driver’s side seat adjustment switch block (without seat module (SMFA)), driver’s seat module (SMFA) |
| 68 | 30A | Passenger side seat adjustment switch block (without seat module (SMBF)), front passenger seat module (SMBF) |
| 69 | 20A | Electronic transmission control system (EGS) |
| 70 | 20A | Power steering column adjustment |

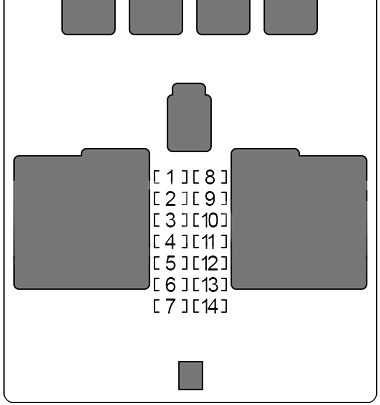

Body Domain Controller (BDC)
| № | Amps | Description |
|---|---|---|
| 1 | 30A | Front passenger window drive |
| 2 | 30A | Rear power window drive on the driver’s side |
| 3 | 20A | Front passenger door lock |
| 4 | 30A | Power window drive driver |
| 5 | 30A | Heated rear window |
| 6 | 30A | Rear power window drive from the passenger |
| 7 | 20A | Driver’s door lock |
| 9 | 5A | Switching center in the steering column, light switch unit, driver assistance system control unit with hazard warning light switch |
| 10 | 7.5A | Left headlight |
| 11 | 7.5A | Diagnostic connector, heating and air conditioning system, dynamic stability control (DSC) |
| 12 | 5A | Telematic communication unit, electronic units of door handles |
| 13 | 15A | Horn (high/low tone) |
Luggage Compartment Fuse Box
| № | Amps | Description |
|---|---|---|
| 100 | 5A | Parking brake button |
| 101 | 15A | Right headlight |
| 102 | 5A | High voltage battery pack |
| 103 | 5A | Siren with tilt alarm |
| 104 | 5A | Parking brake control unit, Natural Vacuum Leak Detection (NVLD) |
| 105 | 30A | Electric reversible seat belt retractor right |
| 106 | 30A | Torque distribution between rear axle wheels |
| 107 | 40A | Automatic tailgate lift, tailgate function module |
| 110 | 40A | Air suspensión compressor relay |
| 112 | 20A | Hybrid pressure tank electronics |
| 113 | 30A | Trailer electrical connection module |
| 114 | 30A | Trailer electrical connection module |
| 115 | 20A | Right headlight |
| 116 | 30A | Parking brake control unit |
| 117 | 30A | Electric reversible seat belt retractor left |
| 118 | 5A | Video switcher (VSW) |
| 120 | 5A | Power control unit |
| 120 | 5A | N20: Charging box for additional battery |
| 121 | 20A | Head Unit |
| 122 | 30A | Audio amplifier |
| 124 | 5A | Video module |
| 126 | 10A | Rear door closer drive (passenger side) |
| 127 | 5A | DVD changer |
| 128 | 5A | Wireless charging slot, antenna booster (wireless charging), base board |
| 129 | 15A | Active Sound Design (ASD) |
| 130 | 5A | Automatic tailgate lift |
| 131 | 5A | Luggage compartment lighting, trunk button on rear lid from inside, noise filter |
| 132 | 5A | Rear axle torque distribution, electronic ride height control |
| 133 | 5A | Rear climate control |
| 134 | 10A | Rear door closer drive (driver’s side) |
| 135 | 5A | Gas generator emergency shutdown terminals |
| 139 | 20A | Trailer socket |
| 140 | 20A | Trunk lid lock |
| 143 | 10A | Refrigerator relay |
| 144 | 15A | Control unit for selective catalytic reduction (SCR – Selective – Catalytic Reduction) |
| 145 | 5A | Parking aid, information system fan |
| 146 | 15A | Silencer electric shutter (#1, #2) |
| 147 | 15A | Control unit for selective catalytic reduction (SCR – Selective – Catalytic Reduction) |
| 148 | 5A | Lane change warning (SWW) |
| 149 | 7.5A | Right headlight |
| 150 | 5A | Contactless trunk release electronic return unit, electronic comfort charge [Hybrid] |
| 151 | 5A | USB-HUB (USB connector #1/#2, AUX-In connector) |
| 152 | 5A | Electric reversible seat belt retractor left/right |
| 153 | 15A | Control unit for selective catalytic reduction (SCR – Selective Catalytic Reduction) |
| 154 | 5A | Surround View Camera (TRSVC), rear view camera |
| 155 | 10A | Front passenger’s door closer drive |
| 156 | 10A | Driver’s door closer drive |
| 158 | 10A | Rear audio system |
| 159 | 5A | Audio amplifier, information system fan |
| 160 | 20A | Rear heater |
| 162 | 20A | Second row sockets, luggage compartment socket |
| 163 | 30A | Trailer electrical connection module |
| 164 | 30A | Heated rear right seat |
| 165 | 20A | Fuel pump control unit (EKPS) |
| 166 | 30A | Heated rear left seat |
| 167 | 30A | Driver’s door closer actuator, front passenger’s door closer actuator |
