Cadillac Eldorado (1993 – 2002) Fuse Box Location & Diagrams
Explore the Cadillac Eldorado (1993–2002) fuse box locations and diagrams to understand fuse panel positions, relay layouts, and electrical protection systems. This resource provides clear details about fuse assignments and locations, helping owners identify components, check circuits, and troubleshoot common electrical issues with confidence.
Fuse Box Location

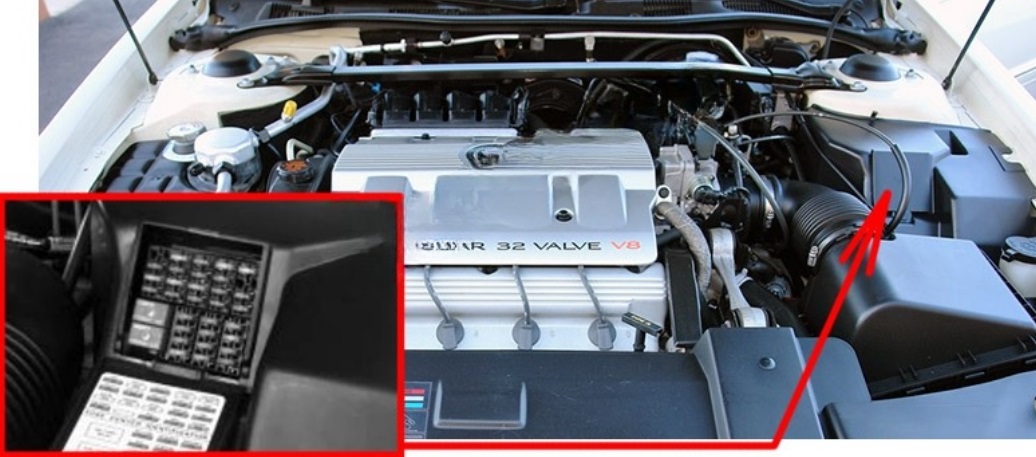

Engine Compartment Fuse Box
The fuse boxes are located on the driver’s side of the engine compartment, under the shroud cover. Lift the cover to gain access to the block. For access to the MaxiFuse/Relay Center remove the shroud cover.
Luggage Compartment Fuse Box

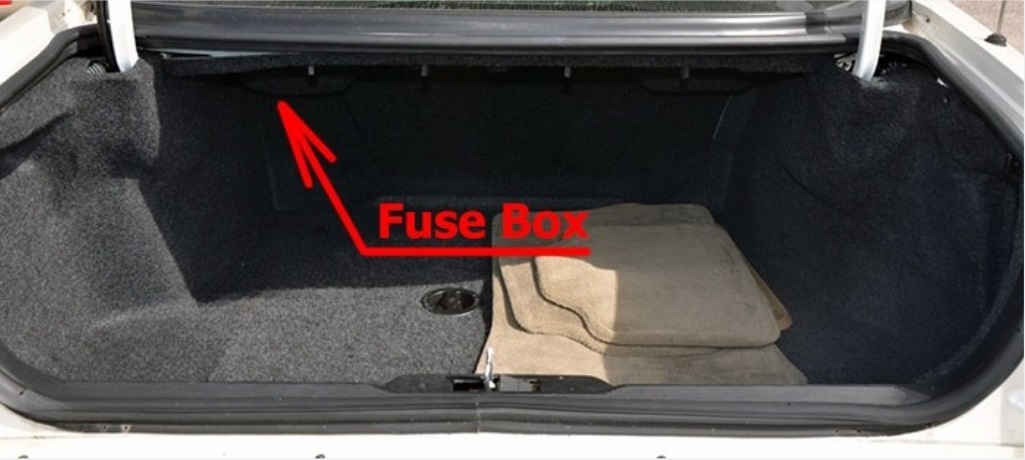

The fuse block is located on the front wall of the trunk on the driver’s side. Loosen the four trunk trim fasteners and pull the trim away from the block to gain access.
Fuse Box Diagrams
Engine Compartment Fuse Box

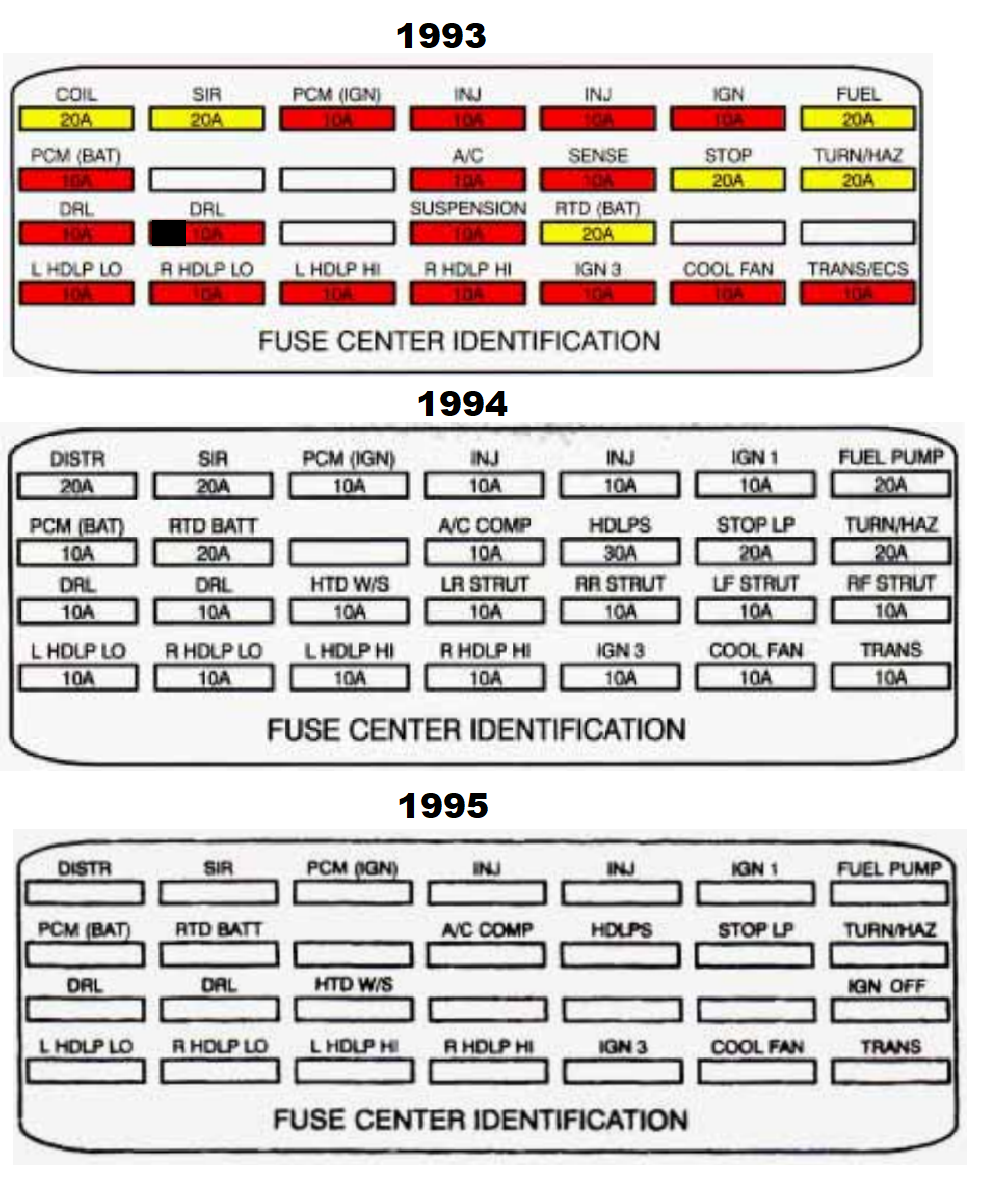

Main Fuse (1993 – 1995)
| Fuse Name | Function |
|---|---|
| DISTR | 1993: COIL – 4.9L Distributor; 4.6L Ignition Control Module. 1994: Ignition Control Module. 1995: Ignition Control Module. |
| SIR | 1993: Diagnostic Energy Reserve Module (DERM) Air Bag; Arming Sensor. 1994: Sensing & Diagnostic Module; Dual Pole Arming Sensor. 1995: Sensing Diagnostic Module. |
| PCM (IGN) | 1993: PCM; PASS-Key Decoder Module. 1994: PCM; PASS-Key II Decoder Module. 1995: PCM; PASS-Key II Decoder Module. |
| INJ | Fuel Injectors 1, 4, 6, and 7. |
| INJ | Fuel Injectors 2, 3, 5, and 8. |
| IGN 1 | 1993: A/C Compressor; Electrochromic Mirror; Instrument Panel Cluster; DERM; Keyless Entry Module; Cornering Lights; Chime Module; Twilight Sentinel/DRL Module; Backup Lights; Brake Transmission Shift Interlock. 1994: A/C Refrigerant Pressure Switch; Transaxle Range Switch; Stop/BTSI/Cruise Brake Switch; Instrument Panel Cluster; Keyless Entry Module; DERM; Cornering Lights; Turn/Hazard Switch Assembly; Chime Module; Headlamp Switch; Twilight Sentinel/DRL Module. 1995: Same as 1994. |
| FUEL PUMP | 1993: Fuel Pump; PCM. 1994: Fuel Pump; Oil Pressure Switch; PCM. 1995: Fuel Pump; Oil Pressure Switch; PCM. |
| PCM (BAT) | Powertrain Control Module (PCM). |
| RTD (BAT) | Road Sensing Suspension (RSS) Module. |
| A/C COMP | 1993: A/C Compressor. 1994: A/C Compressor Clutch. 1995: A/C Compressor Clutch. |
| HDLPS | 1993: Headlamp Dimmer Switch; Headlamp Relays; DRL Relay; Powers C13. 1994: Headlamp Dimmer Switch; Headlamp Relay “D”; DRL Headlamp Relay “E”; Powers C13. 1995: Same as 1994. |
| STOP LP | 1993: Stop Lights. 1994: Stop/BTSI/Cruise Switch; Stoplamp Switch Capacitor; Anti-Slip Regulation (ASR) Traction Control. 1995: Same as 1994. |
| TURN/HAZ | 1993: Hazard Lights; Turn Signal Lights. 1994: Hazard Flasher; Turn Flasher Relay; Turn Flasher Module. 1995: Same as 1994. |
| DRL | Daytime Running Lights (Canada). |
| DRL (Low Beam Canada) | 1993: Included with DRL system. 1994: Left and Right Low Beam Headlamps (Canada). 1995: Left and Right Low Beam Headlamps (Canada). |
| HTD W/S | 1993: Heated Windshield. 1994: Heated Windshield Control Module. 1995: Heated Windshield Control Module. |
| IGN OFF | 1993: Not Listed. 1994: Instrument Panel Cluster. 1995: Instrument Panel Cluster. |
| L HDLP LO | Left Low-Beam Headlamp. |
| R HDLP LO | Right Low-Beam Headlamp. |
| L HDLP HI | Left High-Beam Headlamp. |
| R HDLP HI | Right High-Beam Headlamp. |
| IGN 3 | 1993: Heated Windshield; Heater and A/C Programmer; ELC; Defogger Relay; Cruise Control; PCM. 1994: Rear Defogger Relay; ELC; Heated Windshield; Heater and A/C Programmer; Cruise Control. 1995: Same as 1994. |
| COOLING FAN | 1993: Cooling Fans; PCM (4.6L); Front and Rear Heated Oxygen Sensor (4.6L). 1994: Extended Travel Brake Switch; PCM; Cooling Fan Relays 1, 2, and 3; Front and Rear Heated Oxygen Sensor. 1995: Same as 1994. |
| TRANS/ECS | 1993: EGR Solenoid; PCM; Automatic Transaxle; Evaporative Emission Control Solenoid; Overspeed Alert Module; Power Steering Pressure Switch. 1994: Power Steering Pressure Switch; EGR Valve; Transaxle Shift Solenoids A & B; EVAP Solenoid; PCM; Torque Converter Clutch Solenoid; TCC Brake Switch. 1995: Same as 1994. |

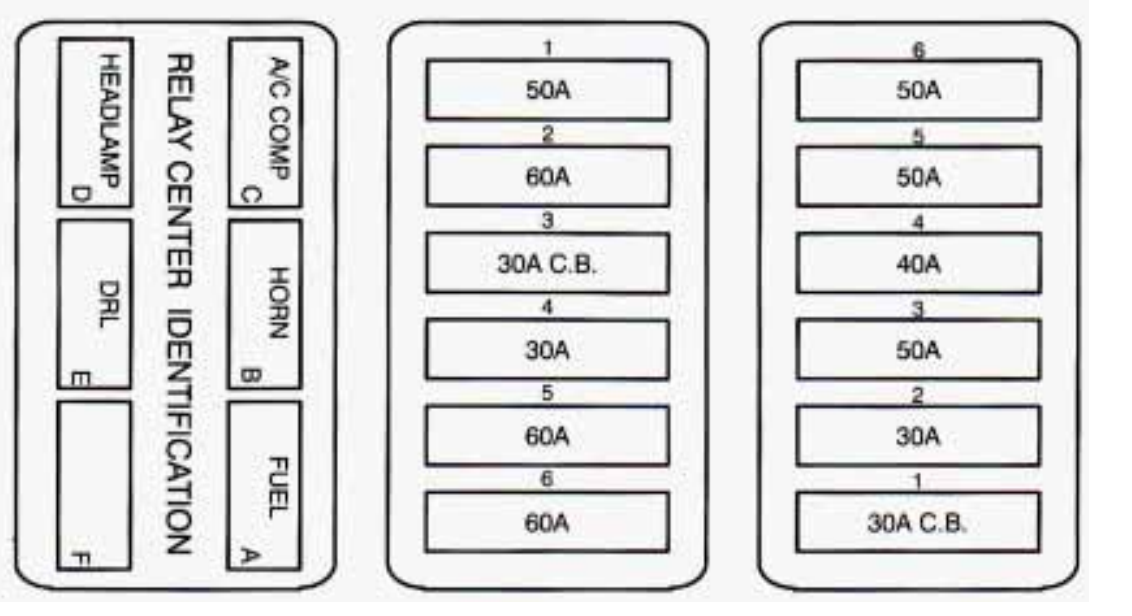

LH/RH Maxi & Relay box (1993 – 1995)
| Fuse / Relay Name | Function |
|---|---|
| IGN 1 / Fuse 1 | 1993: Retained Accessory Power (Radio/Wipers); Starter; Trunk Compartment Fuse A11; Engine Compartment Fuses A1, A3, A5, A7, A9, A11, A13. 1994: Retained Accessory Power (Radio/Wipers); Starter; Trunk Compartment Fuses B11 and B13. 1995: Same as 1994. |
| BODY 1 / Fuse 2 | 1993: Trunk Compartment Fuses C1, C3, C5, C7, C9, C11; Road Sensing Suspension; Export version included Rear Fog Light. 1994: Engine Compartment Fuse B11; Road Sensing Suspension; Fog Lamps; Trunk Compartment Fuses C1, C3, C5, C7, C9, C11; Export C13 and Rear Fog Lamp. 1995: Same as 1994. |
| SEATS/HORN / Circuit Breaker 3 | 1993: Trunk Release; Left and Right Power Seats; Left and Right Lumbar Control; Keyless Entry Module; Power Door Locks. 1994: Left and Right Power Seat Switches; Left and Right Lumbar Relays; Power Door Locks; Keyless Entry Module; Horns; Fuel Door Release Switch; Trunk Release Switch. 1995: Same as 1994. |
| ELECTRONICS / Fuse 4 | 1993: Powertrain Control Module (PCM); Electronic Climate Control; RAP/Illuminated Entry Module; Instrument Panel Cluster; PASS-Key Decoder Module; Theft Deterrent. 1994: Same function with PASS-Key II Decoder Module. 1995: Same as 1994. |
| BODY 2 / Fuse 5 | 1993: Left and Right Heated Seats; Electronic Level Control (ELC); Trunk Lid Pull Down; Power Antenna; Rear Defogger; Left and Right Mirror Defoggers. 1994: Same. 1995: Same. |
| IGN 3 / Fuse 6 | 1993: Retained Accessory Power (Sunroof/Power Windows); Engine Compartment Fuses C7, D1, D3, D5; Trunk Compartment Fuses A1, A3, A5, A7. 1994: Retained Accessory Power (Astroroof/Power Windows); Engine Compartment Fuses D1, D3, D5; Trunk Compartment Fuses A1, A3, A5, A7, A9. 1995: Same as 1994. |
| DAB / Circuit Breaker 1 | 1993: Not Listed Separately. 1994: Retained Accessory Power (RAP) – Astroroof/Power Windows. 1995: Same as 1994. |
| RADIO / Fuse | 1993: Delco-Bose Speakers; Radio Control Head; Remote Radio Receiver. 1994: Same. 1995: Delco-Bose Speakers; Radio Control. |
| COOLING FANS / Fuse | 1993: Cooling Fans. 1994: Cooling Fans. 1995: Cooling Fans. |
| HVAC BLOWER / Fuse | 1993: HVAC Power Module; A/C Compressor. 1994: HVAC Power Motor; A/C Compressor. 1995: HVAC Power Motor; A/C Compressor. |
| ABS BRAKES / Fuse | 1993: Antilock Brake Pressure Valve. 1994: Brake Pressure Modulator Valve. 1995: Brake Pressure Modulator Valve. |
| EXT LAMPS / Fuse | 1993: Turn/Hazard Stop Lamp; Park Lights; DRL; Headlights. 1994: Turn Flasher Module; Hazard Flasher; Stop/BTSI/Cruise Brake Switch; Parking Lamps; Daytime Running Lamps (Canada); Engine Compartment Fuses B1, B3, B5; Trunk Compartment Fuses D11, D13. 1995: Same as 1994. |
| A/C COMP (Relay A) | A/C Compressor Control Relay. |
| HORN (Relay B) | Horn Relay. |
| FUEL PUMP (Relay C) | Fuel Pump Relay. |
| HEADLAMP (Relay D) | Headlamp Relay. |
| DRL (Relay E) | Daytime Running Lamp (DRL) Relay. |
| Relay F | Not Used / No Function Listed. |

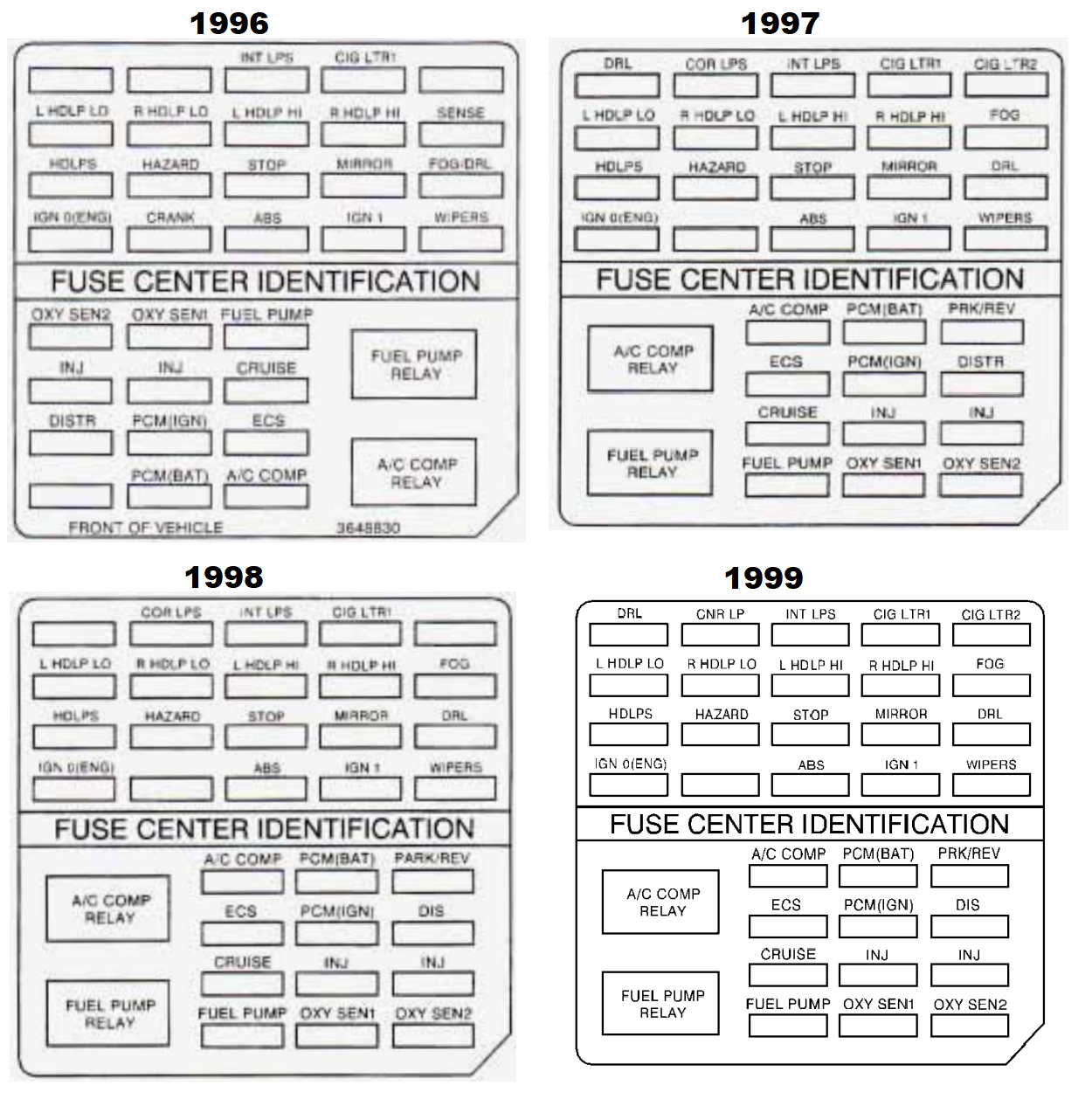

Main Fuse (1996 – 1999)
| Fuse Name | Function |
|---|---|
| DRL | 1996: Daytime Running Lamps (DRL) Relay; Left and Right Low Beam in DRL Mode; DRL Switch. 1997: Daytime Running Lamps. 1998: Daytime Running Lamp (DRL) Relay; Left and Right Low Beam in DRL Mode; DRL Switch. 1999: Daytime Running Lamps (DRL). |
| COR/CNR LPS | 1996: Cornering lamp function included in related lighting circuits. 1997: Cornering Lamp Switch; Right and Left Cornering Lamps. 1998: Same as 1997. 1999: Cornering Lamp Switch; Right and Left Cornering Lamps. |
| INT LPS | 1996: Trunk Lamp; Courtesy Lamps; Front Vanity Lamps; Glove Box Lamp; Garage Door Opener; Courtesy Lamp Relay. 1997: Same. 1998: Same. 1999: Same. |
| CIG LTR1 | 1996: Front Cigarette Lighter (Full Console Only); Rear Lighter. 1997: Front and Rear Cigarette Lighters (Full Console Only). 1998: Same. 1999: Same. |
| CIG LTR2 | 1997: Right and Left Rear Cigarette Lighters. 1998: Not separately listed. 1999: Right and Left Rear Cigarette Lighters. |
| L HDLP LO | Left Low-Beam Headlamp. |
| R HDLP LO | Right Low-Beam Headlamp. |
| L HDLP HI | Left High-Beam Headlamp. |
| R HDLP HI | Right High-Beam Headlamp. |
| FOG | 1996: Fog Lamp Relay (Optional); Headlamp Switch; Right and Left Front Fog Lamps. 1997: Right and Left Front Fog Lamp Relay. 1998: Front Fog Lamp Relay; Right and Left Front Fog Lamps. 1999: Front Fog Lamp Relay; Right and Left Front Fog Lamps; Headlamp Switch. |
| HDLPS | 1996: Headlamp Switch and Relay; High/Low Beam Control Relay; Right and Left Low Beam; Right and Left High Beam. 1997: Headlamp Relay; High/Low Beam Control Relay; Right and Left Low/High Beam Fuses. 1998: Same. 1999: Same. |
| HAZARD | 1996: Electronic Flasher Module; Turn/Hazard Module; Turn Lamps; Back-Up Lamps; Repeater Lamps (Export). 1997: Electronic Flasher Module; Turn/Hazard Switch; Front and Rear Turn Lamps; Repeater Lamps; Cluster. 1998: Same. 1999: Same. |
| STOP | Stoplamp Switch; Center High-Mounted Stoplamp (CHMSL); Turn Hazard Switch; ABS Controller; Stepper Motor Cruise Control; Rear Stoplamps (Export). |
| MIRROR | 1996: Inadvertent Power Relay; Outside Rearview Mirror; DLC; Flash-to-Pass Module. 1997: Inadvertent Power Relay; Left Outside Rearview Mirror Switch; ALDL; Memory Mirror Module; Dimmer Switch; Cluster. 1998: Same. 1999: Same. |
| IGN 0 (ENG) | Powertrain Control Module (PCM). |
| ABS | 1996: Anti-Lock Brake System / Anti-Slip Regulation-5 Controller. 1997: Anti-Lock Brake System (ABS)/Traction Control System. 1998: Same. 1999: Same. |
| IGN-1 | 1996: Rear Ignition-1 Relay; Front Fog Lamp Relay; Rear Lamp Relay (Export); Controlled Power Back-Up Relay; DRL Relay. 1997: Rear Ignition-1 Relay; Front Fog Lamp Relay; Rear Fog Lamp Relay (Export); Controlled Power Backup Relay; DRL Relay. 1998: Same. 1999: Same. |
| WIPERS | 1996: Accessory Relay; Wiper Switch; Cluster; Wiper Motor; Wiper Pump. 1997: Accessory Relay; Wiper Switch. 1998: Same. 1999: Same. |
| A/C COMP | 1996: A/C Compressor Relay; Cooling Fan Relays 1,2,3; Compressor. 1997: A/C Compressor Relay; Cooling Fan Relays 1,2,3; Compressor Clutch. 1998: Same. 1999: Same. |
| PCM (BAT) | Powertrain Control Module (PCM). |
| PARK/REV / PRK REV | 1996: TCC Travel Brake Switch; Reverse Relay; Back-Up Lamps; Electrochromic Mirror; Park Relay; BTSI Switch; PZM. 1997: Same with PZM details. 1998: Same. 1999: Reverse Relay; Back-Up Lamps; Electrochromic Mirror; Park Relay; BTSI Switch; Passenger Zone Module (PZM). |
| ECS | 1996: Transaxle Shift Solenoids; Mass Airflow; Canister Purge; PCM; EGR; Front Ignition-1 Relay; Torque Converter. 1997: Same. 1998: Same. 1999: Same. |
| PCM (IGN) | Powertrain Control Module (PCM). |
| DISTR / DIS | 1996: Electronic Ignition Control. 1997: Electronic Ignition Control Module. 1998: Electronic Ignition Control Module. 1999: Not listed as separate DIS; ignition control handled through PCM-related circuits. |
| CRUISE | 1996: Stepper Motor Cruise Control; Park-Neutral Position Switch; Back-Up Lamps; Electrochromatic Mirror; BTSI. 1997: Stepper Motor Cruise Control; Power Steering Pressure Switch; Low Refrigerant Pressure Cutoff Switch; Park Relay. 1998: Same. 1999: Same. |
| INJ | Injectors 1,4,6,7. |
| INJ | Injectors 2,3,5,8. |
| FUEL PUMP | 1996: Engine Oil Pressure Indicator; PCM; Fuel Pump Relay; Fuel Pump. 1997: PCM; Fuel Pump Relay; Fuel Pump. 1998: Same. 1999: Same. |
| OXY SEN1 | Front Oxygen Sensor; CAT Front Oxygen Sensor. |
| OXY SEN2 | Rear Oxygen Sensor; CAT Rear Oxygen Sensor. |
| RLY IGN1 | 1999: Cluster; Cruise in Stalk; Passenger Zone Module (PZM); Traction Control System Switch. |
| SIR | 1999: Sensing and Diagnostic Module (SDM). |
| ELC | 1999: Electronic Level Control Relay; A/C Compressor Relay. |
| TURN | 1999: Electronic Flasher; Turn/Hazard Switch. |
| CONSOLE | 1999: Rear Zone Blower; Right and Left Heated Seat Switches (Optional). |
| BRAKE | 1999: Brakes. |
| RSS | 1999: Road Sensing Suspension (RSS) Module (ETC Only). |
| IGN 0-BODY | 1999: PRNDL; PZM; Cluster; Air Control Module (ACM); Upper/Lower Zone Motors; HVAC Solenoids; Climate Control Panel; Rear Defogger Relay; ELC Relay. |

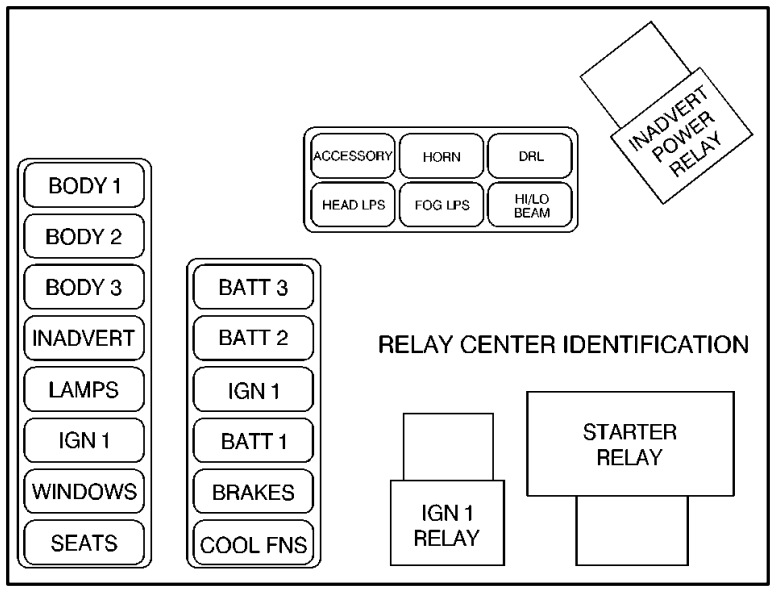

LH/RH Maxi & Relay box (1996 – 1999)
| Fuse Name | Function |
|---|---|
| BODY 1 | 1996: Real Time Dampening (RTD) Fuse; Convenience Fuse; BATT Fuse; Headlamp Wash Fuse (Export); Antenna Fuse; Park Lamp Relay; Right and Left Park Fuse. 1997: Added Passenger and Driver Seat Belt Comfort Solenoids; Trunk and Fuel Door Release Solenoids and Relays; Door Lock/Unlock Relays; Damper Relay (ETC Only); Rear Fog Lamp Relay. 1998: Added Heated Backlite Fuse and Electronic Level Control Breaker. 1999: Same as 1998. |
| BODY 2 | 1996: Defog Relay; Pull-Down Fuse; Right and Left Heated Seat Fuse; Electronic Level Control (ELC) Fuse; Rear Defog Fuse; Heated Mirror Fuse. 1997: Same with ELC Fuse/Relay description updated. 1998: Added Heated Backlite Fuse and ELC Circuit Breaker. 1999: Same as 1998. |
| BODY 3 | 1996: Controlled Power Relay; Controlled Power Back-Up Relay; Mirror Fuse; PZM Fuse; Radio/Phone Fuse; Cluster Fuse; AMP Fuse; Comfort Fuse. 1997: Added DAB Relay; Trunk/Fuel Door Release Relay; High Beam Relay; Bose AMP Fuse; Right and Left Bose Relay. 1998: Same as 1997. 1999: Same as 1998. |
| INADVERT | 1996: Inadvertent Power Relay; Brushless Blower Motor; Interior Lamps Fuse; Cigarette Lighter Fuse. 1997: Cigarette Lighter-1 Fuse; Courtesy Lamp Relay added. 1998: Same as 1997. 1999: Same as 1998. |
| LAMPS | 1996: High/Low Beam Relay; Headlamp Relay; Fog Lamp/DRL Fuse; Hazard Fuse; Mirror Fuse; Headlamp Fuse; High Beam Fuse; Low Beam Fuse; Stop Fuse. 1997: Added Inadvertent Power Relay; Fog Lamp Relay; DRL Relay. 1998: Same as 1997. 1999: Same as 1998. |
| IGN 1 | 1996: Rear Ignition-1 Relay; Wiper Fuse; Relay Ignition-1 Fuse; SIR Fuse. 1997: Added Accessory Relay. 1998: Same. 1999: Same. |
| WINDOWS | Delayed Accessory Bus (DAB) Relay. |
| SEATS | 1996: Horn Relay; Lumbar In/Out Relays; Up/Down Relays; Memory Seat Module; Power Seat Switch. 1997: Memory Seat Module and Power Seat Switch details removed from listing. 1998–1999: Same as 1997. |
| BATT 3 / BATT 2 | 1996: Ignition 0-Body Fuse; RTD Fuse; Ignition 0-Engine Fuse; ABS Fuse; Turn Fuse; Console. 1997: Steering Column Ignition Switch. 1998: Same. 1999: Same. |
| IGN 1* | 1996: Front Ignition-1 Relay; Oxygen Sensor 1 & 2 Fuse; Fuel Fuse; Cruise Fuse. 1997: Added DRL Relay; Front and Rear Fog Lamp Relay; Control Power Back-Up Relay. 1998: Added Fuel Pump Relay. 1999: Same as 1998. |
| BATT 1 | 1996: Starter Relay; PCM Fuse; A/C Compressor Fuse. 1997: Added Park/Rev Fuse; Park Relay; Fan Relay; Reverse Relay. 1998: Same. 1999: Same. |
| BRAKES | ABS Brake Modulator. |
| COOL FNS | 1996: Cooling Fan Relays 1, 2, 3. 1997: Cooling Fan Relays 1 and 3. 1998–1999: Same as 1997. |
| Power Distribution Block | 1999: Added separate circuits: ACCESSORY; HEAD LPS; HORN; FOG LPS; DRL; HI/LO BEAM; INADVERT POWER RELAY; IGN 1 RELAY; STARTER RELAY. |

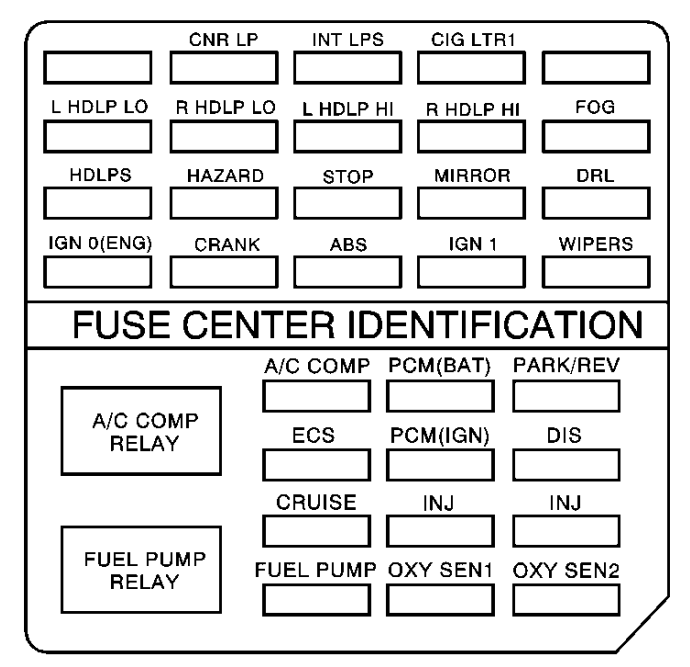

Main Fuse (2000 – 2002)
| Fuse Name | Function |
|---|---|
| SPARE | 2002: Spare Fuse |
| CNR LPS | Cornering Lamp Switch; Right and Left Cornering Lamps (2000–2002 Same) |
| INT LPS | Trunk Lamp; Courtesy Lamps; Front Vanity Lamps; Glove Box Lamp; Garage Door Opener; Courtesy Lamp Relay (2000–2002 Same) |
| CIG LTR1 | Front and Rear Cigarette Lighters (2000–2002 Same) |
| L HDLP LO | Left Low-Beam Headlamp (2000–2002 Same) |
| R HDLP LO | Right Low-Beam Headlamp (2000–2002 Same) |
| L HDLP HI | Left High-Beam Headlamp (2000–2002 Same) |
| R HDLP HI | Right High-Beam Headlamp (2000–2002 Same) |
| FOG | Fog Lamp Relay; Right and Left Fog Lamps; Headlamp Switch (2000–2002 Same) |
| HDLPS | Headlamp Relay; High/Low-Beam Control Relay; Right and Left Low/High-Beam Fuses (2000–2002 Same) |
| HAZARD | Electronic Flasher Module; Turn/Hazard Switch; Right and Left Front Turn Lamps; Right and Left Rear Turn Lamps; Cluster (2000–2002 Same) |
| STOP | Stoplamp Switch; Centered High-Mounted Stoplamp (CHMSL); Turn Hazard Switch; ABS Controller; Stepper Motor Cruise Control (2000–2002 Same) |
| MIRROR | Inadvertent Power Relay; Left Outside Rearview Mirror Switch; ALLDL; Memory Mirror Module; Dimmer Switch; Cluster (2000–2002 Same) |
| DRL | Daytime Running Lamp (DRL) Relay; Left and Right Low Beam in DRL Mode (2000–2002 Same) |
| IGN 0 (ENG) | Powertrain Control Module (PCM) (2000–2002 Same) |
| CRANK | Powertrain Control Module (PCM) (2000–2002 Same) |
| ABS | Anti-Lock Brake System (ABS) / Traction Control System (2000–2002 Same) |
| IGN-1 | Rear Ignition-1 Relay; Front Fog Lamp Relay; Controlled Power Backup Relay; DRL Relay; Canister Vent Solenoid (2000–2002 Same) |
| WIPERS | Accessory Relay; Wiper Switch (2000–2002 Same) |
| A/C COMP | A/C Compressor Relay; Cooling Fan Relays 1, 2, 3; Compressor Clutch (2000–2002 Same) |
| PCM (BAT) | Powertrain Control Module (PCM) (2000–2002 Same) |
| PARK/REV | Reverse Relay; Right and Left Back-Up Lamps; Electrochromic Mirror (in Header); Park Relay; Automatic Transaxle Shift Lock Control (BTSI) Switch (2000–2002 Same) |
| ECS | Transaxle Shift Solenoids; Air Meter; Canister Purge; PCM; Front Ignition-1 Relay (2000–2002 Same) |
| PCM (IGN) | Powertrain Control Module (PCM) (2000–2002 Same) |
| DIS | Odd and Even Coil Packs (2000–2002 Same) |
| CRUISE | Stepper Motor Cruise Control; Low Refrigerant Pressure Cutoff Switch; Park Relay (2000–2002 Same) |
| INJ | Injectors 1, 4, 6, 7 (2000–2002 Same) |
| INJ | Injectors 2, 3, 5, 8 (2000–2002 Same) |
| FUEL PUMP | Fuel Pump Relay; Fuel Pump (2000–2002 Same) |
| OXY SEN1 | Oxygen Sensor Front (2000–2002 Same) |
| OXY SEN2 | Catalytic Converter (CAT) Rear Oxygen Sensor; Starter Enable Relay (2000–2002 Same) |
| A/C COMP RELAY | A/C Compressor Relay (2000–2002 Same) |
| FUEL PUMP RELAY | Fuel Pump Relay (2000–2002 Same) |

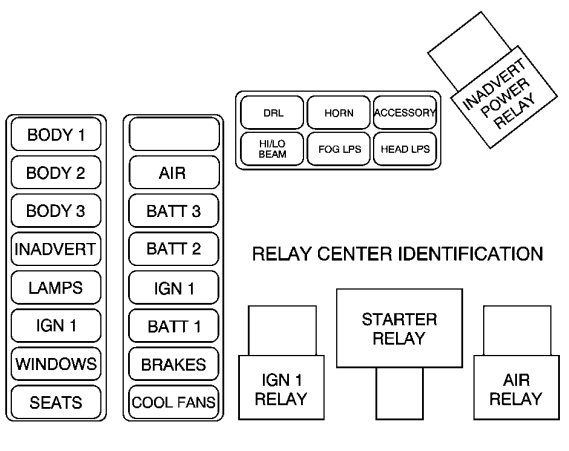

LH/RH Maxi & Relay box (2000 – 2002)
| Fuse Name | Function |
|---|---|
| BODY 1 | 2000, 2001, 2002: Road Sensing Suspension (RSS) Fuse (ETC Only); Convenience Fuse; BATT Fuse; Antenna Fuse; Passenger and Driver Seat Belt Comfort Solenoids; Trunk and Fuel Door Release Solenoids and Relays; Door Lock/Unlock Relays; Damper Relay (ETC Only); Parking Lamp Relay; Right and Left Park Fuse |
| BODY 2 | 2000, 2001, 2002: Defog Relay; Pull-Down Fuse; Right and Left Heated Seat Fuses; Electronic Level Control (ELC) Relay; Heated Mirror Fuse; Heated Backlite Fuse; ELC Circuit Breaker |
| BODY 3 | 2000, 2001, 2002: Controlled Power Relay; Controlled Power Back-Up Relay; Cluster Fuse; Passenger Zone Module (PZM) Fuse; Radio Fuse; RAP Relay; Trunk and Fuel Door Release Relay; High-Beam Relay; Comfort Fuse; AMP Fuse (Optional); Right and Left Bose Relay (Optional) |
| INADVERT | 2000, 2001, 2002: Inadvertent Power Relay; Interior Lamps Fuse; Cigarette Lighter-1 Fuse; Courtesy Lamp Relay |
| LAMPS | 2000, 2001, 2002: Headlamps Fuse/Relay; High/Low Beam Control Relay; Fog Lamp Fuse; DRL Fuse; Hazard Fuse; Mirror Fuse; Inadvertent Power Relay; Right and Left High-Beam Fuse; Right and Left Low-Beam Fuse; Stoplamp Fuse; Fog Lamp Relay; DRL Relay |
| IGN 1 | 2000, 2001, 2002: Rear Ignition-1 Relay; Wiper Fuse; Relay Ignition-1 Fuse; Supplemental Inflatable Restraint (SIR) Fuse; Accessory Relay |
| WINDOWS | 2000, 2001, 2002: Retained Accessory Power (RAP) Relay |
| SEATS | 2000, 2001, 2002: Horn Relay; Driver and Passenger Lumbar In/Out Relays; Driver and Passenger Lumbar Up/Down Relays |
| BATT 3 | 2000, 2001, 2002: Steering Column Ignition Switch |
| BATT 2 | 2000, 2001, 2002: Steering Column Ignition Switch |
| IGN 1 (6-Way) | 2000, 2001, 2002: Front Ignition-1 Relay; Oxygen Sensor 1 and 2 Fuse; Fuel Fuse; Cruise Fuse; Fuel Pump Relay |
| BATT 1 | 2000, 2001, 2002: Starter Relay and Solenoid; Park/Reverse Fuse; Park Relay; Powertrain Control Module (PCM) Fuse; A/C Compressor Fuse and Relay; Fan Relays; Reverse Relay |
| BRAKES | 2000, 2001, 2002: Anti-Lock Brake System (ABS) Brake Modulator |
| COOL FANS | 2000, 2001, 2002: Cooling Fan Relays 1 and 3 |
| DRL | 2000, 2001, 2002: Daytime Running Lamps (DRL) |
| HI/LO BEAM | 2000, 2001, 2002: High and Low-Beam Headlamps |
| HORN | 2000, 2001, 2002: Horn |
| FOG LPS | 2000, 2001, 2002: Fog Lamps |
| ACCESSORY | 2000, 2001, 2002: Accessories |
| HEAD LPS | 2000, 2001, 2002: Headlamps |
| INADVERT POWER RELAY | 2000, 2001, 2002: Inadvertent Power Relay |
| IGN 1 RELAY | 2000, 2001, 2002: Ignition 1 Relay |
| STARTER RELAY | 2000, 2001, 2002: Starter Relay |
| AIR | 2002: Added AIR Pump Fuse |
| AIR RELAY | 2002: Added AIR Pump Relay |
| SPARE | 2002: Added Spare Fuse |

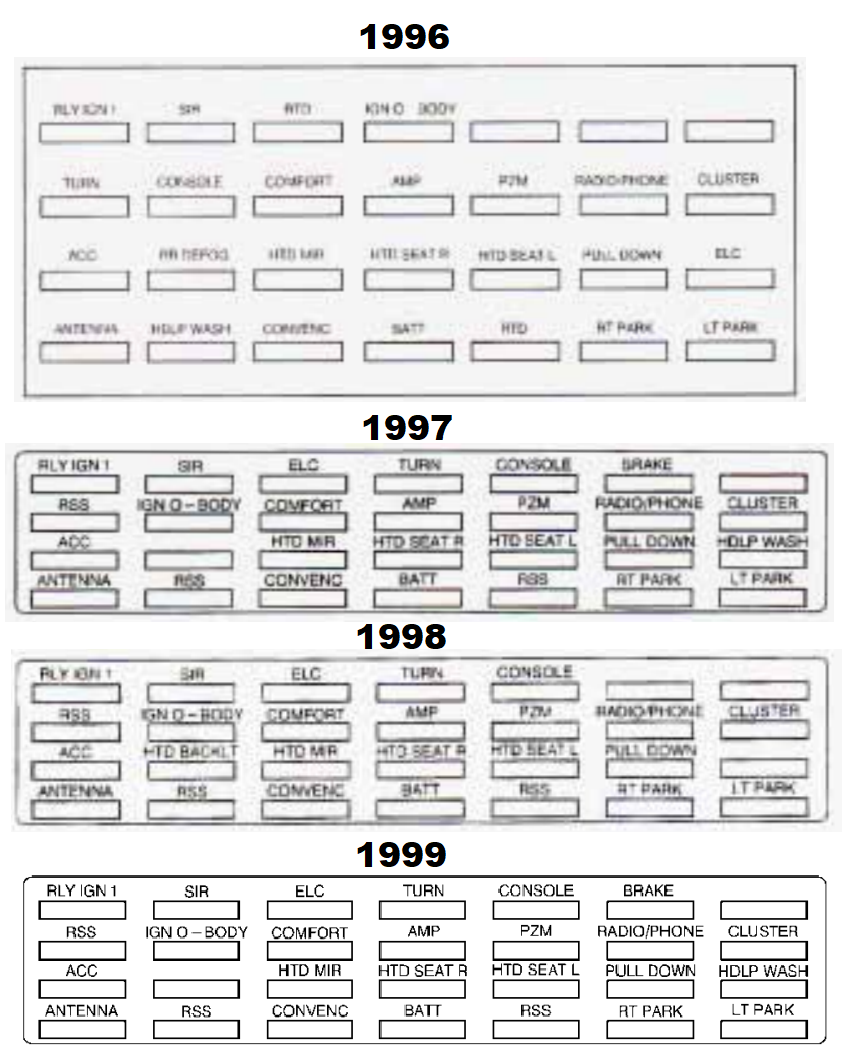

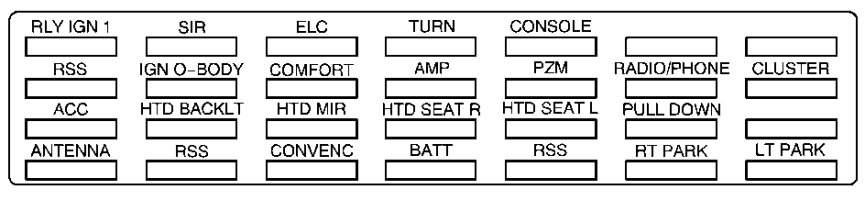

Luggage Compartment Fuse Box

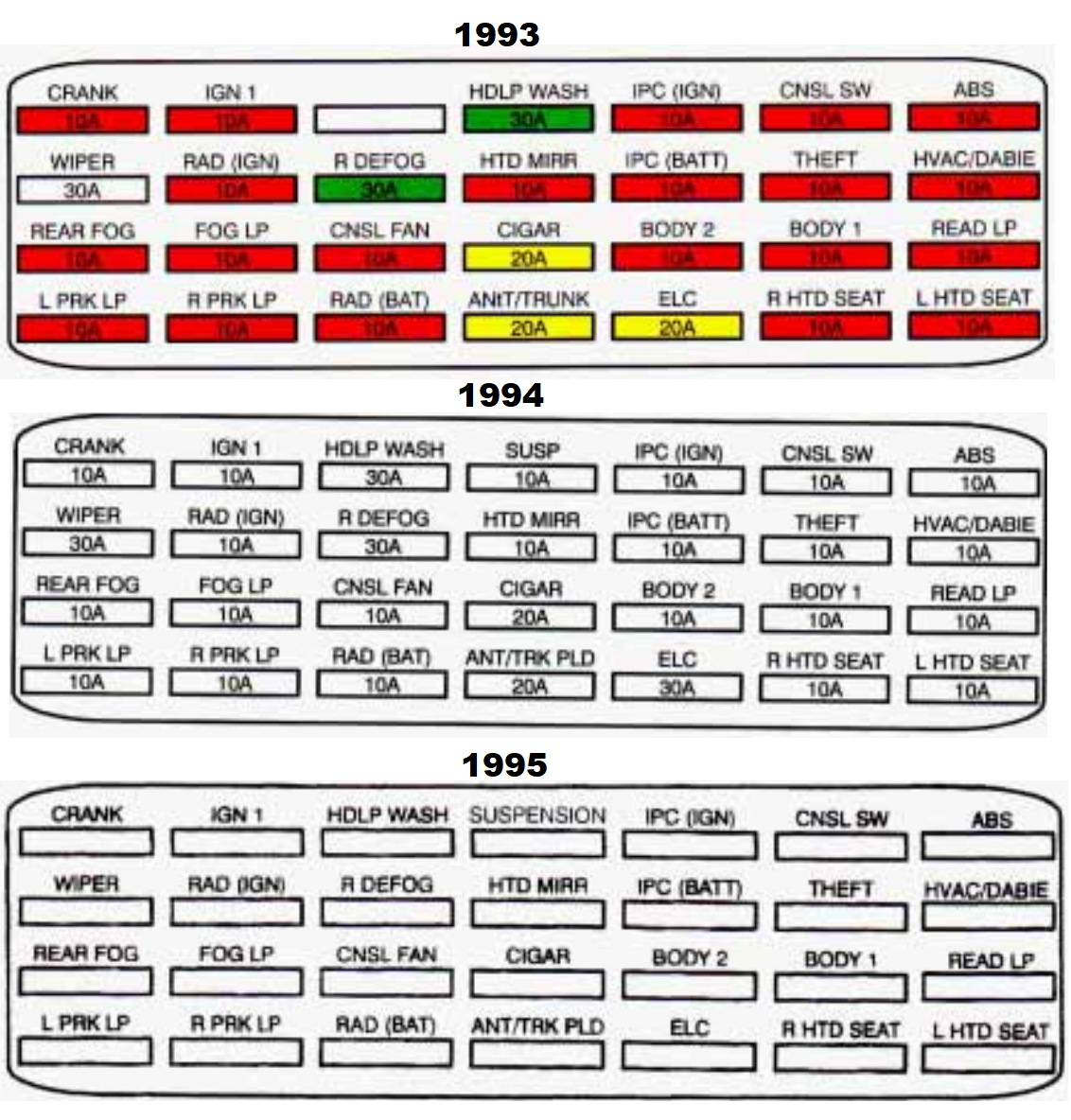

Cadillac Eldorado (1993 – 1995)
| Fuse Name | Function |
|---|---|
| CRANK | 1993: RAP/Illuminated Entry Module; Diagnostic Energy Reserve Module (DERM); Starter. 1994: RAP/Illuminated Entry Module; Diagnostic Energy Reserve Module (DERM); Transaxle Range Switch (NSS). 1995: RAP/Illuminated Entry Module; Sensing & Diagnostic Module; Transaxle Range Switch (NSS). |
| IGN 1 | 1993: Fuel Level Sensor; Electrochromic Mirror; Theft Deterrent Module; Keyless Entry Module; Turn Signal Lights; RAP/Illuminated Entry Module; Catalytic Converter Alarm Module (Export). 1994: Fuel Level Sensor; Electrochromic Mirror; RAP/Illuminated Entry Module; Theft Deterrent Module; Keyless Entry Module; Turn Flasher Relay; Trunk Compartment Micro Relay Center; Catalytic Converter Alarm Module (Export). 1995: Same as 1994. |
| HDLP WASH / HDLP WASHER | Headlight Washer Module (Export Only). |
| RSS / SUSP | 1993: Not listed in this fuse block. 1994: Road Sensing Suspension (RSS) Module. 1995: Road Sensing Suspension (RSS) Module. |
| IPC (IGN) | Instrument Panel Cluster. |
| CNSL SW | 1993: Rear Blower Motor; Console Switch. 1994: Rear Blower Relay “E”; Console Switch. 1995: Rear Blower Relay “E”; Console Switch. |
| ABS | 1993: Electronic Brake Control Module (4.9L); Electronic Brake and Traction Control Module (Northstar). 1994: Electronic Brake and Traction Control Module (EBTCM). 1995: Electronic Brake and Traction Control Module (EBTCM). |
| WIPER | Wiper/Washer Switch. |
| RAD (IGN) | Remote Radio Receiver. |
| R DEFOG | Rear Defogger. |
| HTD MIRR | 1993: High and Left Power Mirror Defogger. 1994: Left and Right Outside Mirror Defoggers. 1995: Left and Right Outside Mirror Defoggers. |
| IPC (BAT) | Instrument Panel Cluster. |
| THEFT | 1993: PASS-Key Decoder Module; Theft Deterrent Relay; Theft Deterrent Module. 1994: PASS-Key II Decoder Module; Theft Deterrent Relay “D” (Trunk Compartment Relay Center); Theft Deterrent Module. 1995: Same as 1994. |
| HVAC/DABIE | Heater and A/C Programmer; RAP/Illuminated Entry Module. |
| REAR FOG | 1993: Rear Fog Lights (Export). 1994: Rear Fog Lamp Relay A (Export). 1995: Rear Fog Lamp Relay A (Export). |
| FOG LP | 1993: Fog Lights. 1994: Fog Lamp Relays A and F. 1995: Fog Lamp Relays A and F. |
| CNSL FAN | 1993: Rear Blower Motor. 1994: Rear Blower Motor; Rear Blower Relay. 1995: Rear Blower Motor; Rear Blower Relay. |
| CIGAR | 1993: Rear Cigar Lighters (Seville Only); Front Cigar Lighter; Chime Module. 1994: Left and Right Rear Cigarette Lighters (Seville Only); Front Cigarette Lighter; Chime Module. 1995: Front Cigarette Lighter; Chime Module. |
| BODY 2 | 1993: Power Mirror Switch; Retained Accessory Power; Trunk Light; Console Switch; Panel Lights Inhibit (Export); Courtesy Lights; Keyless Entry Module. 1994: Power Mirror Switch; RAP Relay; Lock-Out Inhibit Relay “B”; Panel Lights Inhibit Relay “F”; Courtesy Lamps Relay “C”; RAP Relay “E”; Keyless Entry Module; Trunk Lamp; Seat Belt Retractor Solenoids. 1995: Same as 1994. |
| BODY 1 | 1993: Power Door Locks; Door Lock Cylinder Illumination; Glove Box Light; Footwell Lights; Twilight Sentinel/DRL Module; Headlight Switch. 1994: Front Door Lock Switches; Glove Box Lamp; Left and Right Footwell Courtesy Lamps; Headlamp Switch. 1995: Same as 1994. |
| READ LP | 1993: Left and Right Vanity Mirrors; Garage Door Opener; Front and Rear Header Lights. 1994: Left and Right Front Header Lamp; Left and Right Vanity Mirror; Garage Door Opener; Left and Right Rear Header Lamps. 1995: Same as 1994. |
| L PRK LP | 1993: Radio Dimming; Headlight Switch; Instrument Panel Cluster; Left Tail/Stop/Turn Lights; Left Marker Light; Left Park/Turn Light. 1994: Left Rear Tail/Stop/Turn Lamps; Left Front Park/Turn Lamps; Front and Rear Left Side Marker Lamps; Radio Control Head; Headlight Switch; Instrument Panel Cluster. 1995: Same as 1994. |
| R PRK LP | 1993: Right Marker Lights; License Lights; Right Park/Turn Light; Engine Compartment Light; Right Tail/Stop/Turn Lights. 1994: Right Tail/Stop/Turn Lamps; Right Front and Rear Side Marker Lamps; Right Front Park and Turn Lamps; Engine Compartment Lamp; License Plate Lamps. 1995: Same as 1994. |
| RAD (BAT) | 1993: Remote Radio Receiver; Radio Control Head. 1994: Radio. 1995: Radio. |
| ANT/TRUNK / ANT/TRK PLD | Trunk Lid Pull Down Motor; Power Antenna. |
| ELC | 1993: Electronic Level Control (20A). 1994: Electronic Level Control (30A). 1995: Electronic Level Control (ELC). |
| R HTD SEAT | Passenger Heated Seat. |
| L HTD SEAT | Driver Heated Seat. |
Cadillac Eldorado (1996 – 1999)
| Fuse Name | Function |
|---|---|
| RLY IGN1 | 1996: SDM; Cluster; Cruise in Stalk; Brake Switch; PZM; Fuel Level Sensor; Catalytic Converter Overtemp Amplifier (Export). 1997: Cluster; Cruise in Stalk; PZM; Catalytic Converter Overtemp Amplifier (Export); TCC Switches. 1998: Cluster; Cruise in Stalk; PZM. 1999: Cluster; Cruise in Stalk; PZM; Traction Control System (TCC) Switch. |
| SIR | 1996: SDM; Left and Right Door Sensors. 1997: Same. 1998: Sensing and Diagnostic Module (SDM). 1999: Same. |
| ELC | 1996: ELC Relay; Auto Level Sensor (Eldorado Only); Vacuum Pump; ALC Sensor. 1997: Same function. 1998: ELC Relay; ELC (A/C) Compressor. 1999: Same as 1998. |
| TURN | 1996: Electronic Flasher; Turn/Hazard Switch; Turn Signal Lamps; Repeater Lamps (Export). 1997: Electronic Flasher; Turn/Hazard Switch. 1998: Same. 1999: Same. |
| CONSOLE | 1996: Cellular Phone Docking Station; Washer Circuit Board; Heated Seat Switch; Rear Zone Blower; Heated Seat Switches; Headlamp Wash Relay. 1997: Rear Zone Blower; Right and Left Heated Seat Switches (Optional). 1998: Same. 1999: Same. |
| BRAKE | 1996: Not listed separately. 1997: Vacuum Pump Relay; VP Motor; VP Pressure Switch. 1998: Not listed. 1999: Brakes. |
| SPARE | 1998: Not Used. 1999: Not Used. |
| RSS | 1996: CV-RTD (CV-RSS) Module (ETC Only). 1997: Same. 1998: CV-RTD (CV-RSS) Module (ETC Only). 1999: Road Sensing Suspension (RSS) Module (ETC Only) / Damper Relay (ETC Only). |
| IGN 0-BODY | 1996: PRNDL; Dual Zone Switch; PZM; Cluster; ACM; Upper and Lower Zone Motors; HVAC Solenoids; Climate Control Panel; Rear Defog Relay; ELC Relay. 1997: Same with Climate Control Panel Analog Cluster (Console Shift Only). 1998: Same. 1999: Same. |
| COMFORT | 1996: CD Player; Remote Function Actuator (RFA); Controlled Power Relay; ACM; PZM. 1997: CD Player; Remote Keyless Entry (RKE); Controlled Power Relay; ACM; PZM. 1998: Same. 1999: Same. |
| AMP (Bose Only) | 1996: Right and Left Bose Relay; Front and Rear Speakers. 1997: Added Bose Amplifier. 1998: Same. 1999: Same. |
| PZM | Passenger Zone Module (PZM). |
| RADIO/PHONE | 1996: Radio Receiver; RIM (Bose Only); Phone; DAB Relay; Trunk Release Relay; Fuel Door Release Relay; High/Low Beam Relay. 1997: Same. 1998: Same. 1999: Same. |
| CLUSTER | Steering Wheel Controls; Cluster. |
| ACC | 1996: PZM; Electrochromic Mirror; Rain Sensor (Optional); Accessory Relay. 1997: Same. 1998: Same. 1999: Same. |
| HTD BACKLT | 1998: Rear Window Defog. 1999: Not listed separately. |
| HTD MIR | Right and Left Outside Heated Mirror. |
| HTD SEAT R | Passenger Heated Seat Relay (Optional). |
| HTD SEAT L | Driver Heated Seat Relay (Optional). |
| PULL DOWN | Trunk Pull-Down Motor. |
| HDLP WASH | 1996: Headlamp Wash Motor. 1997: Headlamp Wash Motor. 1998: Not listed. 1999: Headlamp Washers. |
| ANTENNA | Power Mast Antenna. |
| CONVENC | 1996: Trunk Release Relay; Trunk Release Solenoid; Fuel Door Release Relay; Fuel Filler Door Release Solenoid; Door Lock Relay; Right and Left Front Door Motors; Door Unlock Relay. 1997: Same with PZM added. 1998: Same. 1999: Same. |
| BATT | Driver and Passenger Seat Lumbar Switch (Optional); Seat Belt Comfort Solenoid; Memory Seat Module. |
| RT PARK | 1996: Front and Rear Park Lamps; Right Front and Rear Sidemarker Lamps; Headlamp Switch; Rear Fog Lamps (Export). 1997: Added Right Turn/Stop/Tail Lamps; Park Position Lamp. 1998: Same. 1999: Same. |
| LT PARK | 1996: Left Front and Rear Sidemarker Lamps; Parking Lamps; License Lamp; Underhood Lamp. 1997: Added Left Turn/Stop/Tail Lamps and Park Position Lamp. 1998: Same. 1999: Same. |
Cadillac Eldorado (2000 – 2002)
| Fuse Name | Function |
|---|---|
| RLY IGN1 | 2000, 2001, 2002: Cluster; Cruise in Stalk; Passenger Zone Module (PZM); Torque Converter Clutch (TCC) Switch. |
| SIR | 2000, 2001, 2002: Sensing and Diagnostic Module (SDM). |
| ELC | 2000, 2001, 2002: Electronic Level Control (ELC) Relay. 2000, 2002: ELC Height Sensor. |
| TURN | 2000, 2001, 2002: Electronic Flasher; Turn/Hazard Switch. |
| CONSOLE | 2000, 2001, 2002: Rear Zone Blower; Right and Left Heated Seat Switches (Optional). |
| RSS | 2000: Road Sensing Suspension (RSS) Module (ETC Only); Damper Relay (ETC Only). 2001, 2002: Road Sensing Suspension (RSS) Module (ETC Only). |
| IGN 0-BODY | 2000, 2001, 2002: PRNDL; PZM; Cluster; Air Control Module (ACM); Upper Zone Motor; Lower Zone Motor (Optional); HVAC Solenoids; Climate Control Panel; Rear Defog Relay; ELC Relay. |
| COMFORT | 2000, 2001, 2002: CD Player; Remote Keyless Entry (RKE); Controlled Power Relay; Air Control Module (ACM); PZM. |
| AMP (Optional) | 2000, 2001, 2002: Right and Left Bose Relay; Right and Left Front Speakers (On Door); Right and Left Rear Speakers. |
| PZM | 2000, 2001, 2002: Passenger Zone Module (PZM). |
| RADIO/PHONE | 2000, 2001, 2002: Radio Receiver; Radio Interface Module (RIM) (Optional); Phone; RAP Relay; Trunk Release Relay; Fuel Door Release Relay; High/Low-Beam Relay. |
| CLUSTER | 2000, 2001, 2002: Steering Wheel Controls; Cluster. |
| ACC | 2000, 2001, 2002: PZM; Electrochromic Mirror; Rain Sensor (Optional); Accessory Relay. |
| HTD MIR | 2000, 2001, 2002: Right and Left Outside Heated Mirror. |
| HTD SEAT R | 2000, 2001, 2002: Passenger Heated Seat Relay (Optional). |
| HTD SEAT L | 2000, 2001, 2002: Driver Heated Seat Relay (Optional). |
| HTD BACKLIT | 2002: Rear Window Defogger. |
| PULL DOWN | 2000, 2001, 2002: Trunk Pull-Down Motor. |
| ANTENNA | 2000, 2001, 2002: Power Mast Antenna. |
| CONVENC | 2000, 2001, 2002: Trunk Release Relay; Trunk Release Solenoid; Fuel Door Release Relay; Fuel Filler Door Release Solenoid; Door Lock Relay; Left and Right Door Motors; PZM; Door Unlock Relay. |
| BATT | 2000, 2001, 2002: Driver and Passenger Seat Lumbar Switch (Optional); Driver and Passenger Seat Belt Comfort Solenoid; Memory Seat Module (Optional). |
| RT PARK | 2000, 2001, 2002: Headlamp Switch; Right Front Parking Lamp; Right Front and Rear Sidemarker Lamps; Right Turn/Stop/Tail Lamps. |
| LT PARK | 2000, 2001, 2002: Left Front and Rear Sidemarker Lamps; Left Front Parking Lamp; Left Turn/Stop/Tail Lamps; Right and Left License Lamps; Underhood Lamp. |
| SPARE | 2002: Spare Fuse added. |
Related Posts:
