Finding the correct fuse box in your Cadillac XT5 is essential for diagnosing electrical problems and replacing blown fuses safely. This guide covers fuse box locations and easy-to-follow diagrams for Cadillac XT5 models from 2017 through 2026, helping you identify the right fuse with confidence.

Fuse Box Location

Passenger Compartment Fuse Box

The fuse box is located under the instrument panel (on the passenger’s side) behind the cover (open the cover or remove all panel).

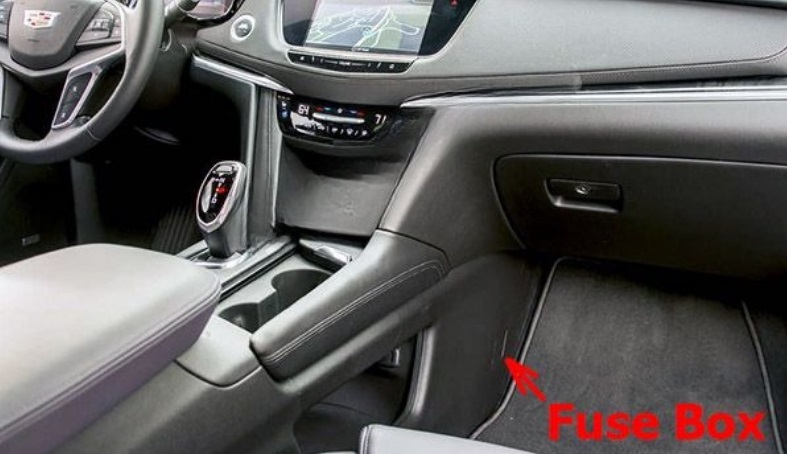

Cadillac XT5 (2017-2026) PASSENGERN COMPARTMENT LOCATION

Engine Compartment Fuse Box

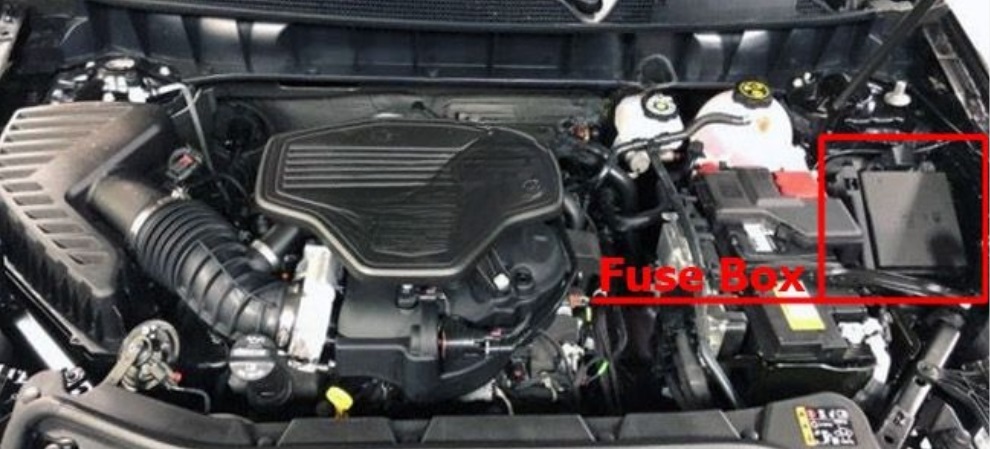

Cadillac XT5 (2017-2026) ENGINE COMPARTMENT LOCATIONLuggage Compartment Fuse Box

The fusebox is located in the left side of the trunk, behind the cover.

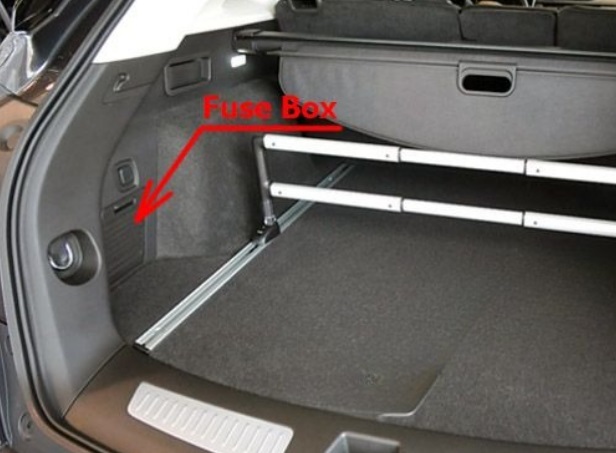

Cadillac XT5 (2017-2026) LUGGAGE COMPARTMENT LOCATION

Fuse Box Diagrams

Passenger Compartment Fuse Box

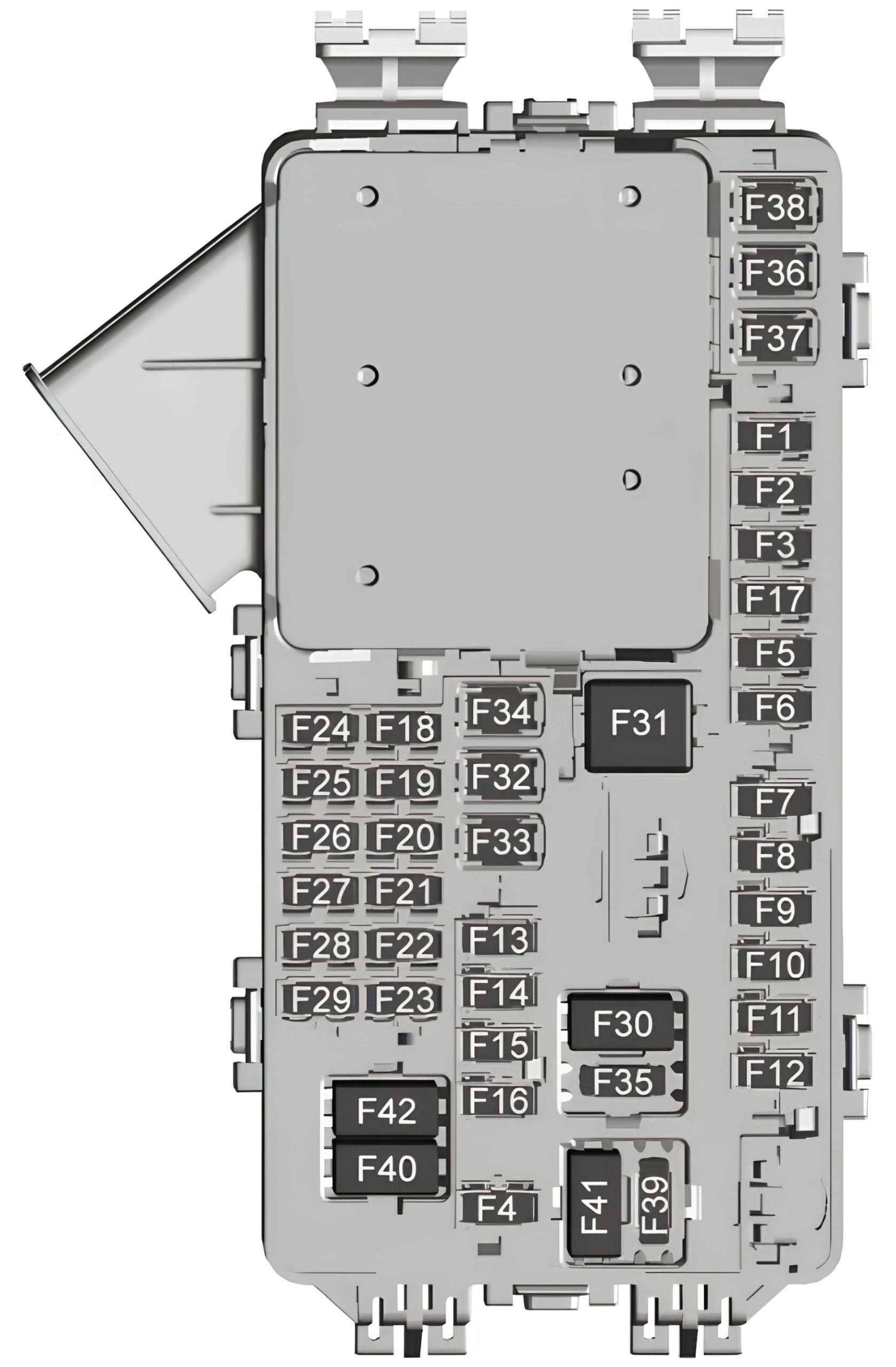

Cadillac XT5 (2017-2026) PASSENGERN COMPARTMENT DIAGRAM

№Description
F1Body control module 6
F22017-2018: Diagnostic link
2019-2026: Diagnostic link/ Central gateway module
F3Electric steering column lock
F4Not Used
F5Logistics
F62017-2021: Heating, ventilation, and air conditioning
2022-2026: Heating, Ventilation, and Air Conditioning/ Humidity Sensor
F7Body control module 3
F82017-2019: Head-up display
2020: Not Used
2021-2026: Park aid/ Electronic transmission range system hybrid
F9Right front heated seat
F102017: Airbag
2018-2019: Airbag/Seat belt
2020-2026: Airbag
F112017: Electronic transmission range system
2018-2019: Electronic precision shift
F122017-2019: Amplifier
2020-2026: Amplifier 2
F13Body control module 7
F14Left front heated seat
F15Instrument panel switch bank
F16Sunroof
F17Body control module 1
F182017-2020: Instrument panel cluster
2021-2026: Instrument cluster/ Head up display
F19Not Used
F20Rear seat entertainment
F21Body control module 4
F222017: Infotainment
2018-2026: Infotainment/ USB data/ Aux jack
F23Body control module 2
F24USB charger/Wireless charging module
F252017-2019: Ultrasonic parking aid
2020-2026: Park aid/electronic transmission range system
F26CIM (Communications integration module)
F272018-2020: Video
2021-2026: Video/ Night vision module
F28HVAC Display
F29Radio
F30Steering wheel controls
F312017-2019: Front blower
2020-2026: Electronic brake control module electric brake booster
F32AC DC inverter
F33Driver power seat
F34Passenger power seat
F35Battery IEC 1 feed
F36Electric power steering
F372017-2020: Rear seat entertainment/ USB charge/ Wireless charging module
2021-2026: Rear seat entertainment/ USB charge/ Wireless charging module/ Auxiliary power outlet/Lighter
F38Body control module 8
F39Not Used
F40Not Used
F41Not Used
F42Auxiliary Power Outlet (Circuit Breaker) / Lighter (mini-fuse)

Engine Compartment Fuse Box

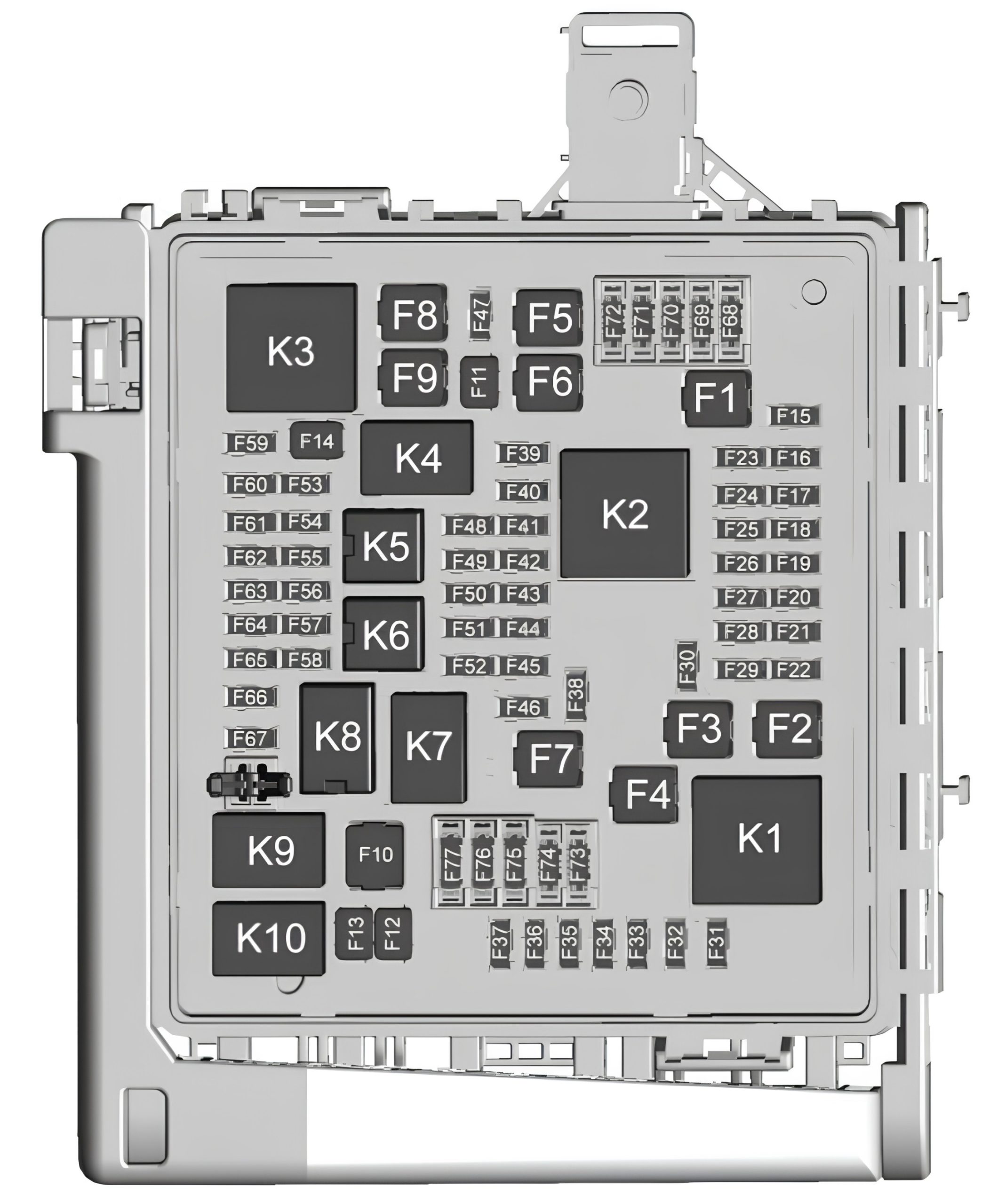

Cadillac XT5 (2017-2026) ENGINE COMPARTMENT DIAGRAM IMAGE

№Description
F1ABS pump
F2Starter 1
F3DC DC transformer 1
F4Not Used
F52020-2026: DC-DC transformer 2
F62020-2026: Amplifier 1
F72017-2019: DC DC transformer 2
2020-2026: Front Blower
F8Starter 3
F9Not Used
F10Not Used
F11Not Used
F12Front wiper
F13Starter 2
F14LED/Automatic headlamp leveling (if equipped)
F15Rear wiper 1
F16Not Used
F17Not Used
F18Automatic headlamp leveling (if equipped)
F19Not Used
F20Not Used
F21Not Used
F22Electronic brake control module
F23Parking/Trailer lamps
F24Right trailer stoplamp/Turnlamp
F25Steering column lock
F26Not Used
F27Left trailer stoplamp/Turnlamp
F28Not Used
F29Not Used
F30Washer pump
F312017-2019: Right low-beam headlamp
F322017-2019: Left low-beam headlamp
F33Fog lamps
F34Horn
F35Not Used
F36Left high-beam headlamp
F37Right high-beam headlamp
F382017-2020: Automatic headlamp leveling (if equipped)
F392017-2019: Transmission control module 1
2020-2026: Transmission control module/Battery 1
F40Left rear bus electrical center/Ignition
F41Instrument cluster
F422017-2020: Heating, ventilation, and air conditioning
2021-2026: Heating, ventilation, and air conditioning/ Central gateway module R/C
F432017-2020: Head-up display
2021-2026: Head-Up display/ Reflective light auxiliary
F442020-2026: Electronic brake control module electric brake booster/ Run/Crank
F45Not Used
F46Not Used
F47Not Used
F48Rear wiper 2
F492017-2020: Interior rearview mirror/Trailer
2021-2026: Interior rearview mirror/Trailer/Rear heated seats/Run/Crank
F50Fuel system control module
F51Heated steering wheel
F52Air conditioning clutch
F532017-2019: Transmission range control module
2020: Not Used
2021-2026: Coolant pump
F542017-2020: Coolant pump
F55Not Used
F56Not Used
F57Engine control module/Ignition
F58Transmission control module/Ignition
F59Engine control module battery
F602017-2019: Transmission range control module 2
F612017-2020: O2 sensor 1/ Aeroshutter
2021-2026: O2 sensor 1/ Aeroshutter/ Mass air flow sensor
F62Engine control module – odd
F632017-2023: O2 sensor 2
2024-2026: O2 Sensor 2/ Miscellaneous Powertrain
F64Engine control module – even
F65Engine control module powertrain 1
F66Engine control module powertrain 2
F672017-2019: Powertrain TRCM
2020-2026: Engine control module powertrain 3
F68Not Used
F69Not Used
F70Not Used
F71Not Used
F72Not Used
F73Not Used
F74Not Used
F75Not Used
F76Not Used
F77Not Used
Relays
K1Starter 1
K2Run/Crank
K3Starter 3
K4LED/Automatic headlamps (if equipped)
K5Not Used
K62017-2020: Coolant pump
K7Engine control module
K8Air conditioning
K9Not Used
K10Starter 2

Luggage Compartment Fuse Box

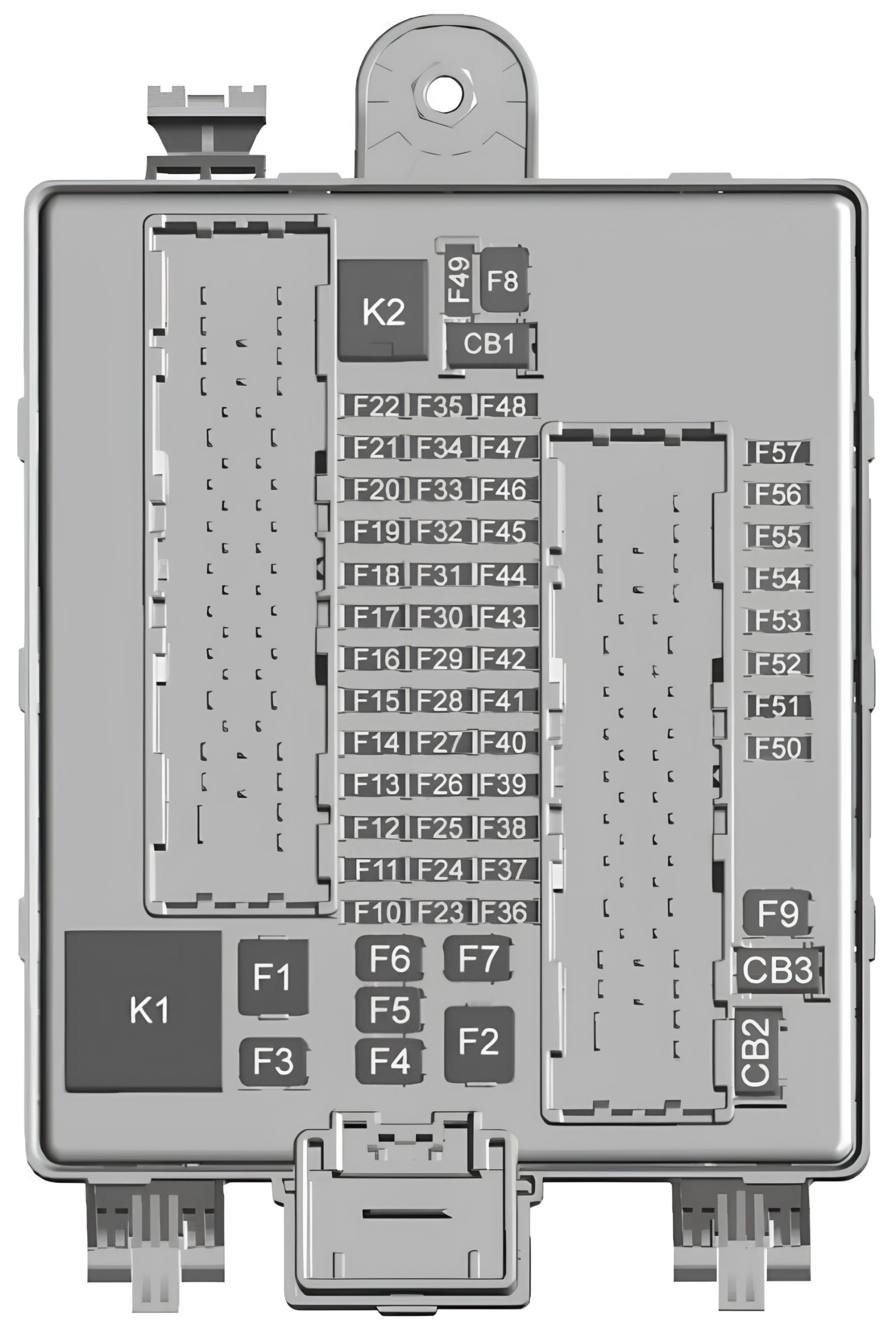

Cadillac XT5 (2017-2026) LUGGAGE COMPARTMENT DIAGRAM

№Description
F1Not Used
F2Trailer battery 1
F3Driver safety belt
F4Rear blower
F5Rear drive control
F6Passenger safety belt
F7Right window
F8Rear defogger
F9Left window
F10Not Used
F11Trailer reverse
F12Not Used
F13Not Used
F14Not Used
F15Not Used
F16Not Used
F172017-2020: Camera
F182017-2020: Trailer module
2021-2026: Trailer module/ Accessory power module/ Rechargeable energy storage system ignition
F192017-2020: Ventilated seats
2021-2026: Ventilated seats/ Left front heated seats/ Run/Crank
F20Not Used
F21Trailer connector
F22Not Used
F23Not Used
F24Passenger window switch
F25Not Used
F26Trailer brake
F27Driver ventilated seat/Lumbar
F28Passive entry/ Passive start
F29Not Used
F30Canister vent
F312021-2026: Rechargeable energy storage system
F32Heated mirror
F33Not Used
F342017: Logic mode
2018-2026: Liftgate module
F352017-2021: Fuel system control module
2022-2026: Fuel System Control Module / Fuel Tank Zone Module
F36Passenger ventilated seat/Lumbar
F372021-2026: External amplifier hybrid
F38Window module
F39Rear closure
F40Memory seat module
F41Automatic occupancy sensor
F42Trailer battery 2
F432021-2026: Blower console
F44Not Used
F45Liftgate
F46Rear heated seats
F47Not Used
F48Glass break sensor
F49Not Used
F50Not Used
F51Not Used
F52Semi-active dampen system module
F532017: Rear parking aid module
2018-2020: Rear parking aid module/ Video/ USB
F542017: External object calculating
2018-2026: External object calculating/ Side blind zone alert
F55Not Used
F56Universal garage door opener/Rain sensor
F572017-2023: Theft deterrent
2024-2026: Theft Deterrent/ Overhead Console
Circuit brackers
CB1Not Used
CB2Not Used
CB3Rear auxiliary power outlet
Relays
K1Not Used
K2Not Used
