Chery A1 (2008 – 2015) Fuse Box Location & Diagrams
Knowing the fuse box location in your Chery A1 is essential for diagnosing electrical faults and replacing blown fuses safely. This article includes fuse box locations and easy-to-read diagrams for Chery A1 models from 2008 through 2015, helping you identify the correct fuse quickly.
Fuse Box Location
Passenger Compartment Fuse Box

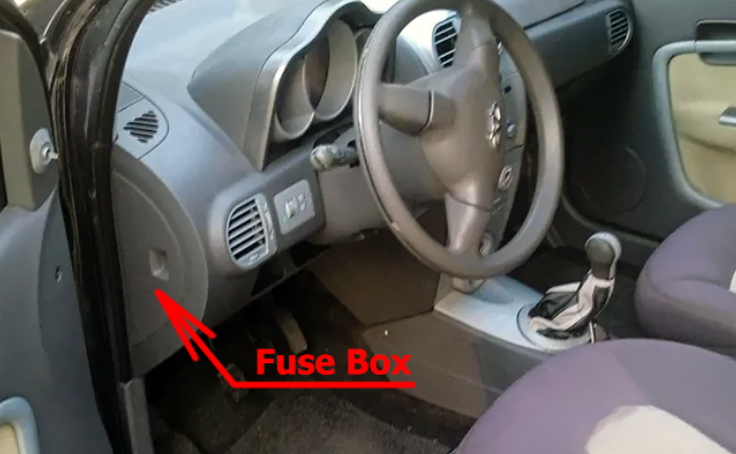

The instrument fuse box is located within the left cover plate of the dashboard.
Engine Compartment Fuse Box

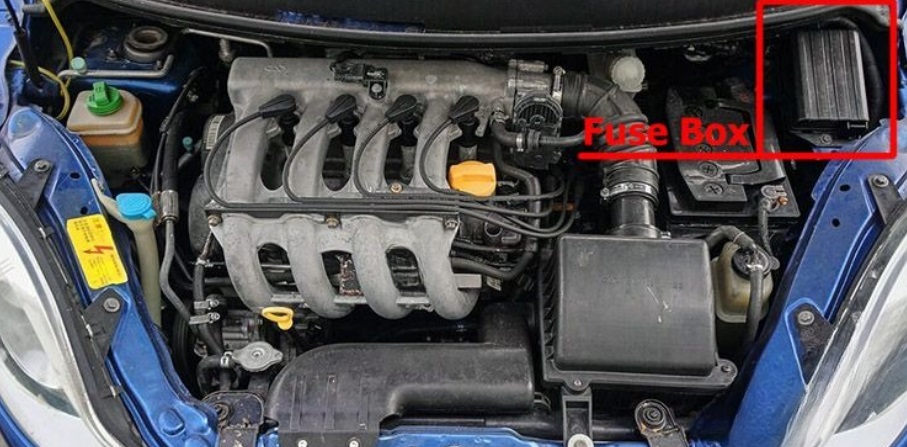

The fuse box is located near the front compartment battery.
Fuse Box Diagrams

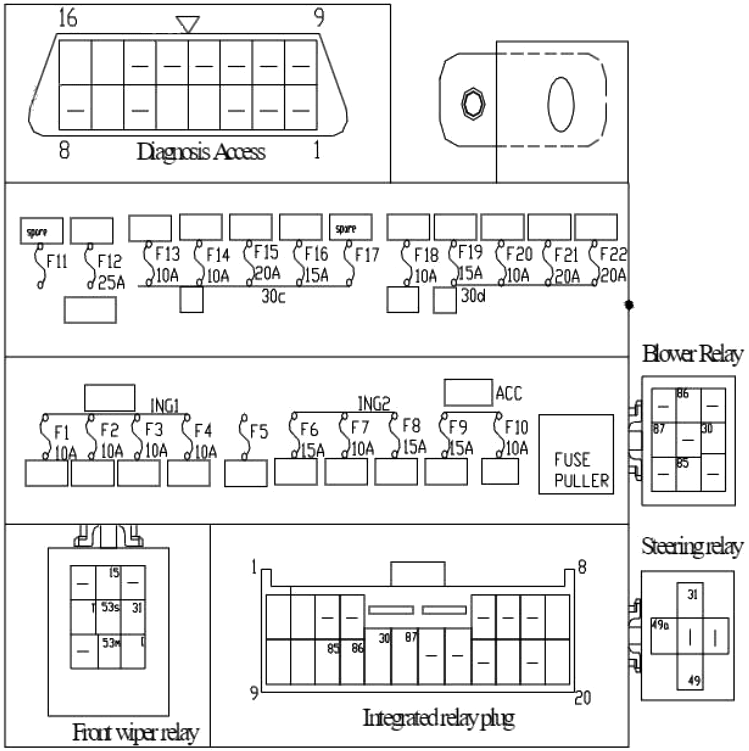

Passenger Compartment Fuse Box
| № | Amps | Functions |
|---|---|---|
| F1 | 10A | COMBINED INSTRUMENTS |
| F2 | 10A | Rear view nirror, brake switch, BCM |
| F3 | 10A | ABS control |
| F4 | 10A | Air Baq |
| F5 | – | Vacant |
| F6 | 15A | Washer, rear wiper power supply, sinroof control |
| F7 | 10A | Steering power supply, A/C relay coil |
| F8 | 15A | Front wiper |
| F9 | 15A | Ciqar Liqhter |
| F10 | 10A | Radio/player control |
| F11 | – | Vacant |
| F12 | 25A | Start |
| F13 | 10A | Diagnosis Access |
| F14 | 10A | Braking Lamp |
| F15 | 20A | Audio device |
| F16 | 15A | Horn, fog lamp |
| F17 | – | Vacant |
| F18 | 10A | Clearance lamp, ceiling lamp |
| F19 | 15A | Alarm switch |
| F20 | 10A | Lamp switch, instrument |
| F21 | 20A | Sunroof power supply |
| F22 | 20A | Rear defroster |

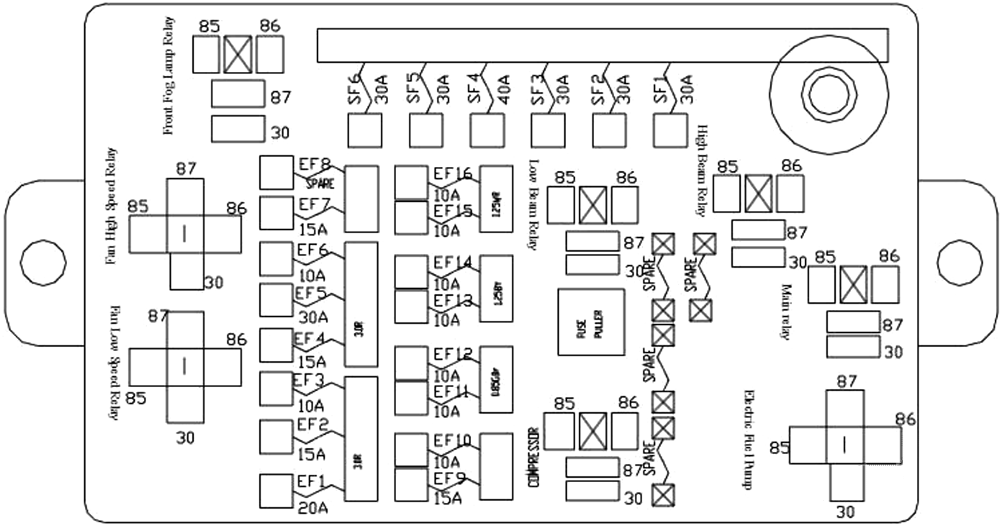

Engine Compartment Fuse Box
| № | Amps | Function |
|---|---|---|
| SF1 | 30A | Fan, high speed |
| SF2 | 30A | BCM |
| SF3 | 30A | A/C |
| SF4 | 40A | Instrument electric box |
| SF5 | 30A | ABS |
| SF6 | 30A | ABS |
| EF1 | 20A | Fan low speed |
| EF2 | 15A | Front fog lamp |
| EF5 | 10A | ECU |
| EF4 | 15A | Fuel pump |
| EF5 | 30A | Primary relay |
| EF6 | 10A | Compressor |
| EF7 | 15A | Oxygen sensor |
| EF8 | – | Vacant |
| EF9 | 15A | Ignition coil |
| EF10 | 10A | Backup lamp |
| EF11 | 10A | Right position lamp |
| EF12 | 10A | Left position lamp |
| EF13 | 10A | Right high beam |
| EF14 | 10A | Left high beam |
| EF15 | 10A | Right low beam |
| EF16 | 10A | Left low beam |
