Dodge Ram Truck Pickup 1500 (2019 – 2026) Fuse Box Location & Diagrams
Locating the correct fuse box and understanding fuse layouts is essential for troubleshooting electrical issues in your Dodge Ram 1500. This article provides fuse box locations and detailed diagrams for Dodge Ram Truck Pickup 1500 models from 2019 to 2026, helping owners quickly identify and replace faulty fuses.
Fuse Box Location
Engine Compartment Fuse Box
The Power Distribution Center is located in the engine compartment near the battery. This center contains cartridge fuses, micro fuses, relays, and circuit breakers. A description of each fuse and component may be stamped on the inside cover, otherwise the cavity number of each fuse is stamped on the inside cover that corresponds to the following chart.

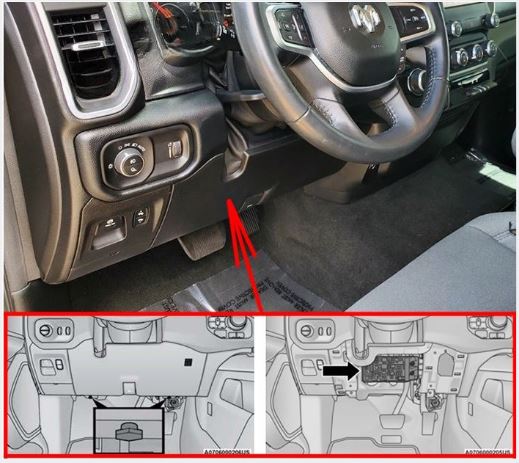

Passenger Compartment Fuse Box
The Power Distribution Center is located under the driver’s side instrument panel. This center contains cartridge fuses, micro fuses, relays, and circuit breakers.
For access:
- Locate and remove the two screws from the lower portion of the fuse panel cover.
- After removing the screws, gently pull both the left and right side of the fuse panel cover to release the fastener clips.
- Reverse the procedure to reinstall the fuse panel cover.
Fuse Box Diagrams

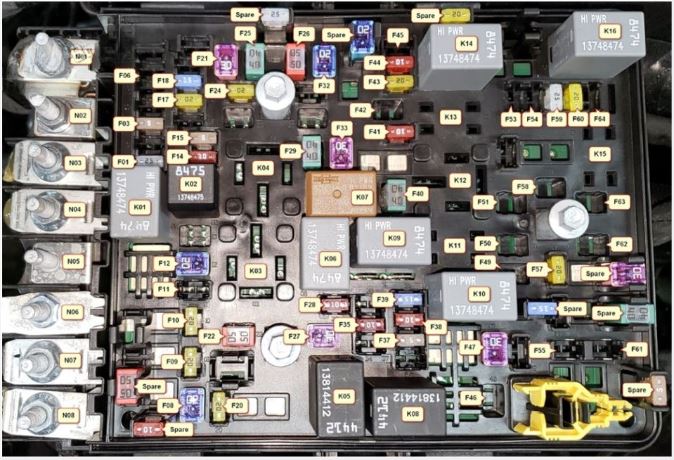

Engine Compartment Fuse Box
Dodge Ram Truck Pickup 1500 (2019 – 2021)
| № | Amps | Description |
|---|---|---|
| F01 | 25 | Fuel Pump Motor |
| F02 | – | Spare |
| F03 | 5 | eTorque Motor Generator Unit (MGU) |
| F04 | – | Spare |
| F05 | – | Spare |
| F06 | 10 | Output to Upfitter Power Distribution Center (PDC) – If Equipped |
| F07 | – | Spare |
| F08 | 20 | Trailer Tow Backup Lamp |
| F09 | 20 | Trailer Stop / Turn Lamp Left |
| F10 | 20 | Trailer Stop / Turn Lamp Right |
| F11 | 15 | ID/Clearance Lights – If Equipped |
| F12 | 20 | Trailer Tow Park Lamp |
| F13 | – | Spare |
| F14 | 10 | Air Conditioner (AC) Clutch |
| F15 | 5 | Intelligent Battery Sensor (IBS) |
| F16 | – | Active Damping Control Module (ADCM) |
| F17 | 20 | Air Suspension |
| F18 | 15 | Active Grill Shutter (AGS) / Rear Axle Cooling Valve / Active Air Dam |
| F19 | – | Spare |
| F20 | 20 | Adjustable Pedals |
| F21 | 30 | Power Side Step |
| F22 | 50 | Air Suspension Control Module |
| F23 | – | Spare |
| F24 | 20 | Transmission Control Module (TCM). Shift by Wire Module (SBW) |
| F25 | 40 | Exterior Lights 2 |
| F26 | 50 | Electronic Stability Program (ESP) Module |
| F27 | 30 | Front Wiper |
| F28 | 10 | Powertrain Control Module (PCM) / Electronic Control Module (ECM) |
| F29 | 40 | Electronic Stability Program (ESP) Module |
| F30 | – | Spare |
| F31 | – | Spare |
| F32 | 20 | Electronic Control Module (ECM) / Powertrain Control Module (PCM) |
| F33 | 30 | Brake Vacuum Pump |
| F34 | – | Spare |
| F35 | 10 | Electronic Control Module (ECM) / Powertrain Control Module (PCM) / eTorque Power Pack Unit (PPU) Motor Generator Unit (MGU) / Wake Up / Electric Power Steering / Active Tuned Mass Module (ATMM) / ESP |
| F36 | – | Spare |
| F37 | 5 | Run/Start (R/S) Switch Output to Internal Power Distribution Center (IPDC) |
| F38 | 10 | Drive Train Controller Module (DTCM) / Active Cooling Temperature Valve |
| F39 | 15 | Active Tuned Mass Module (ATMM) |
| F40 | 40 | Starter |
| F41 | 10 | Infrared Camera (IRCAM) Heaters |
| F42 | 20 | Auxiliary Switch #5 – If Equipped |
| F43 | 20 | Motor Generator Unit (MGU) Coolant Pump |
| F44 | 10 | Trailer Camera |
| F45 | 10 | Active Damping Control Module (ADCM) – If Equipped |
| F46 | 30 | Fuel Heater (Diesel Only) |
| F47 | 30 | Rear Defroster |
| F48 | – | Spare |
| F49 | 30 | Heater Control (Diesel Only) |
| F50 | 20 | Auxiliary Switch #6 – If Equipped |
| F51 | 25 | Fuel Pump Motor #1 – If Equipped |
| F52 | – | Spare |
| F53 | 10 | Supply / Purging Pump – If Equipped |
| F54 | 15 | Powertrain Control Module (PCM) |
| F55 | 15 | Right High-Intensity Discharge (HID) Headlamp |
| F56 | – | Spare |
| F57 | 20 | Horn |
| F58 | 25 | Fuel Pump Motor #2 – If Equipped |
| F59 | 25 | Injectors / Ignition (IGN) Coil / Glow Plug Module |
| F60 | 20 | Electronic Control Module (ECM) / Powertrain Control Module (PCM) / Actuator (ACT) Short Running Valve |
| F61 | 15 | Left High-Intensity Discharge (HID) Headlamp / Spare |
| F62 | 60 | Glow Plug (Diesel) |
| F62 | 40 | Low Temperature Radiator (LTR) Cooling Pump (TRX only) |
| F63 | 20 | Diesel Nitrogen Oxide (NOx) Sensor (Diesel) |
| F64 | 10 | Particulate Matter (PM) Sensor – If Equipped (Diesel) |
| High Current Fuses | ||
| N01 | BUS | B+ BUS Feed |
| N02 | – | Spare |
| N03 | 80 | Internal Power Distribution Center (IPDC) Feed 1 |
| N04 | 80 | Internal Power Distribution Center (IPDC) Feed 2 |
| N05 | 150 | Auxiliary Power Distribution Center (PDC) |
| N06 | 300 | Power Pack Unit (PPU) Generator – eTorque |
| N07 | 80 | Electric Power Steering (EPS) |
| N08 | 100 | Radiator Fan |
| Relays | ||
| K01 | Fuel Pump | |
| K02 | Air Conditioner Clutch | |
| K03 | Spare | |
| K04 | Spare | |
| K05 | Front Wiper Control | |
| K06 | Starter # 2 | |
| K07 | Brake Vacuum Pump | |
| K08 | Front Wiper Speed | |
| K09 | Starter #1 | |
| K10 | Run/Start #1 | |
| K11 | Auxiliary Switch # 6 – If Equipped | |
| K12 | Street and Racing Technology (SRT) Fuel Pump – If Equipped | |
| K13 | Auxiliary Switch # 5 – If Equipped | |
| K14 | Run Only #1 | |
| K15 | Selective Catalytic Reduction (SCR) #2 (Diesel) | |
| K16 | Automatic Shutdown (ASD) |
Dodge Ram Truck Pickup 1500 (2022 – 2024)
| № | Cartridge Fuse | Micro Fuse | Description |
|---|---|---|---|
| F01 | – | 25A Clear | Fuel Pump Motor / Assy Fuel Tank |
| F02 | – | – | Spare * |
| F03 | – | 5A Tan | MGU * |
| F04 | – | – | Spare * |
| F05 | – | – | Spare * |
| F06 | – | 10A Red | OUTPUT TO UPFITTER PDC * |
| F07 | – | – | Spare * |
| F08 | 20A Blue | – | Trailer Tow Backup |
| F09 | – | 20A Yellow | Trailer Stop / Turn Lamp Left |
| F10 | – | 20A Yellow | Trailer Stop / Turn Lamp Right |
| F11 | – | 15A Blue | ID/CLEARANCE LIGHTS * |
| F12 | 20A Blue | – | Trailer Tow Park Lamp |
| F13 | – | – | Spare * |
| F14 | – | 10A Red | AC Clutch |
| F15 | – | 5A Tan | Intelligent Battery Sensor (IBS) |
| F16 | – | – | Spare * |
| F17 | – | 20A Yellow | Air Suspension |
| F18 | – | 15A Blue | AGS / Rear Axle Cooling Valve / Active Air Dam |
| F19 | – | – | Spare * |
| F20 | – | 20A Yellow | Adjustable Pedals * |
| F21 | 30A Pink | – | Power Side Step * |
| F22 | 50A Red | – | Air Module * |
| F23 | – | – | Spare * |
| F24 | – | 20A Yellow | TCM SBW |
| F25 | 40A Green | – | MOD CBC 4 Exterior Lights 2 |
| F26 | 50A Red | – | ESP Module |
| F27 | 30A Pink | – | Front Wiper |
| F28 | – | 10A Red | PCM / ECM |
| F29 | 40A Green | – | ESP Module |
| F30 | – | – | Spare * |
| F31 | – | – | Spare * |
| F32 | 20A Blue | – | ECM / PCM |
| F33 | 30A Pink | – | Brake Vacuum Pump |
| F34 | – | – | Spare * |
| F35 | – | 10A Red | PCM / ECM / Power Pack Unit (PPU) Motor Generator Unit (MGU) Wake Up * / EPS / ATMM / ESP |
| F36 | – | – | Spare * |
| F37 | – | 5A Tan | R/S Output to iPDC |
| F38 | – | 10A Red | DTCM / Active CL TEMP VLV |
| F39 | – | 15A Blue | MOD ATMM * |
| F40 | 40A Green | – | Starter |
| F41 | – | 10A Red | IRCAM Heaters |
| F42 | 20A Blue | – | AUX SWITCH #5 * |
| F43 | – | 20A Yellow | MGU Coolant Pump / ADCM * |
| F44 | – | 10A Red | Trailer Camera * |
| F45 | – | 10A Red | ADCM * |
| F46 | 30A Pink | – | Fuel Heater * |
| F47 | 30A Pink | – | Rear Defroster |
| F48 | – | – | Spare * |
| F49 | 30A Pink | – | Htr Ctrl * |
| F50 | 20A Blue | – | AUX SWITCH #6 * |
| F51 | 25A White | – | FUEL PUMP MOTOR #1 * |
| F52 | – | – | Spare * |
| F53 | – | 10A Red | Supply / Purging Pump * |
| F54 | – | 15A Blue | PCM * |
| – | 10A Red | Vapor Blocking Valve * | |
| F55 | – | 15A Blue | RT HID Headlamp |
| F56 | – | – | Spare * |
| F57 | – | 20A Yellow | Horn |
| F58 | 25A White | – | FUEL PUMP MOTOR #2 * |
| F59 | – | 25A Clear | Injectors/ IGN Coil / Glow Plug Module * |
| F60 | – | 20A Yellow | ECM / PCM / ACT Short Running Valve / LTR Coolant Pump * |
| F61 | – | 15A Blue | LT HID Headlamp |
| F62 | 60A Blue | – | Glow Plug * |
| 40A Green | – | LTR Coolant Pump * | |
| F63 | 20A Blue | – | NOx Sensor * |
| F64 | – | 10A Red | PM Sensor * |
| * If Equipped |
Dodge Ram Truck Pickup 1500 (2025 – 2026)
| № | Cartridge Fuse | Micro Fuse | Description |
|---|---|---|---|
| N1 | 150A Gray | – | AUX PDC* |
| N2 | 300A Gray | – | ALTERNATOR/ PPU* |
| N3 | Shunt | – | AUX BATTERY* |
| N4 | 300A Gray | – | INVERTER* |
| N5 | 80A Gray | – | Interior PDC Feed #2 |
| N6 | 80A Gray | – | Interior PDC Feed #1 |
| N7 | 80A Gray | – | ELEC PWR STR #2 |
| N8 | 100A Gray | – | RAD FAN |
| N9 | Shunt | – | CRANK BATTERY |
| N10 | 80A Gray | – | ELEC PWR STR #1 |
| F01 | – | – | SPARE* |
| F02 | – | 15A Blue | LTR COOLANT PUMP* |
| F03 | – | 15A Blue | SSMD/SSMP* |
| F04 | – | 5A Tan | IBS #2* |
| F05 | – | 15A Blue | AGS / RR AXLE CL VLV/ ACTIVE AIR DAM / LCVM |
| F06 | – | – | SPARE* |
| F07 | – | 20A Yellow | ADJ PEDALS* |
| F08 | – | 15A Blue | MOD CLUSTER |
| F09 | – | 25A Clear | FUEL PMP MTR / ASSY FUEL TANK* |
| F10 | – | – | SPARE* |
| F11 | – | 20A Yellow | CADM-MID* |
| F12 | – | 20A Yellow | SLM FEED_LT |
| F13 | – | 20A Yellow | SLM FEED_RT |
| F14 | – | 5A Tan | MGU* |
| F15 | – | – | SPARE* |
| F16 | – | 20A Yellow | CADM – MAP* |
| F17 | – | 10A Red | ECM (VOLTAGE SENSE)* |
| F18 | – | 5A Tan | IBS #1 |
| F19 | – | 10A Red | IRCAM HEATER |
| F20 | 20A Blue | – | AUX SWITCH #6* |
| F21 | – | – | SPARE* |
| F22 | – | 10A Red | GNMM / VMPS* |
| F23 | – | 15A Blue | MOD CVADAS |
| F24 | 30A Pink | – | BSM #2 VALVES* |
| F25 | 40A Green | – | STARTER |
| F26 | – | – | SPARE* |
| F27 | – | – | SPARE* |
| F28 | – | – | SPARE* |
| F29 | 25A White | – | ITCM #1 – LIGHTS |
| F30 | 40A Green | – | BCM 4 – POWER LOCKS |
| F31 | 50A Red | – | BSM #2 MTR* |
| F32 | 50A Red | – | BCM 2 – EXTERIOR LIGHTS 2 |
| F33 | 50A Red | – | BSM #1 – VALVES |
| F34 | 50A Red | – | IAIR SUSP* |
| F35 | – | – | SPARE* |
| F36 | 50A Red | – | BSM #1 – MTR |
| F37 | 20A Blue | – | AUX SWITCH #5* |
| F38 | – | 10A Red | ECM |
| F39 | – | 30A Green | IAIR SUSP* |
| F40 | – | 20A Yellow | HORN |
| F41 | – | – | SPARE* |
| F42 | – | – | SPARE* |
| F43 | 30A Pink | – | PWR TAILGATE |
| F44 | 30A Pink | – | DTCM |
| F45 | 25A White | – | ITCM #2 – LIGHTS |
| F46 | – | – | SPARE* |
| F47 | – | – | SPARE* |
| F48 | – | – | SPARE* |
| F49 | – | 20A Yellow | TCM SBW |
| F50 | – | – | SPARE* |
| F51 | – | 10A Red | OUTPUT TO UPFITTER PDC* |
| F52 | – | 10A Red | PCR CTRL FEED* |
| F53 | – | – | SPARE* |
| F54 | – | – | SPARE* |
| F55 | – | 10A Red | DTCM / SW ENG MOUNT 1 & 2 / BSM #2 |
| F56 | – | 10A Red | ECM / PPU MGU WAKE UP/ BSM #1 / SLM |
| F57 | – | 10A Red | EPS |
| F58 | – | – | SPARE* |
| F59 | – | 10A Red | DALM* |
| F60 | – | 10A Red | ADCM* |
| F61 | – | 20A Yellow | MGU COOL PMP / ADCM* |
| F62 | – | 10A Red | TRAILER CAMERA* |
| F63 | – | 25A Clear | INJ / IGN COIL / ISCM |
| F64 | – | 15A Blue | SOL / OIL LVL SNSR / 02 HTR / VAPOR BLOCKING VLV (BSG) |
| F65 | – | 20A Yellow | ECM / ACT SHORT RUNNER VALVE |
| F66 | – | – | SPARE* |
| F67 | – | 10A Red | AC CLUTCH |
| F68 | – | – | SPARE* |
| F69 | 30A Pink | – | REAR DEFROSTER* |
| F70 | – | – | SPARE* |
| F71 | 25A White | – | FUEL PUMP MOTOR #2* |
| F72 | 25A White | – | FUEL PUMP MOTOR #1* |
| F73 | – | – | SPARE* |
| F74 | – | – | SPARE* |
| F75 | 30A Pink | – | PWR SIDE STEP* |
| F76 | – | – | SPARE* |
| F77 | – | – | SPARE* |
| F78 | – | 20A Yellow | TAILGATE LATCHES |
| F79 | – | – | SPARE* |
| F80 | – | – | SPARE* |
| F81 | 20A Blue | – | ECM |
| F82 | – | – | SPARE* |
| F83 | – | – | SPARE* |
| F84 | – | – | SPARE* |
| F85 | – | – | SPARE* |
| F86 | 30A Pink | – | FRT WPR |
| F87 | 40A Green | – | HVAC BLOWER MOTOR |
| F88 | – | – | SPARE* |
| * If Equipped |

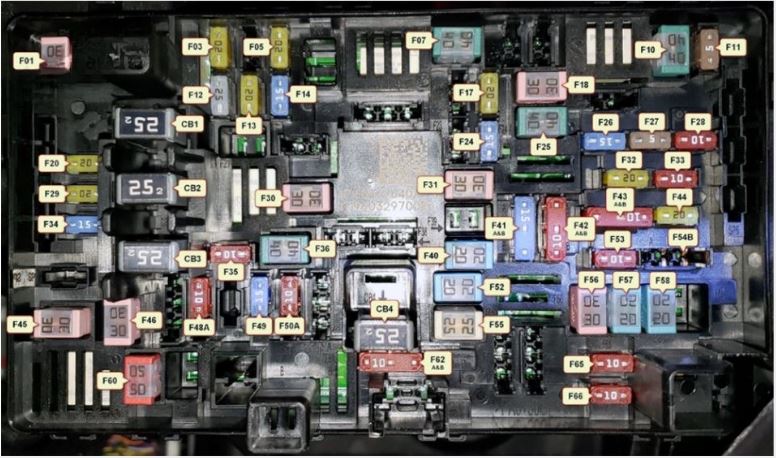

Passenger Compartment Fuse Box
Dodge Ram Truck Pickup 1500 (2019 – 2021)
| № | Amps | Description |
|---|---|---|
| F01 | 30 | Trailer Tow Receptacle |
| F02 | – | Spare |
| F03 | 20 | Seat Heater Module – Front Passenger |
| F04 | – | Spare |
| F05 | 20 | eToraue Power Pack Unit (PPU) Cooling Fan Module |
| F06 | – | Spare |
| F07 | 40 | Central Body Controller (CBC) 3 Power Locks Module |
| F08 | – | Spare |
| F09 | – | Spare |
| F10 | 40 | Heating Ventilation and Air Conditioning (HVAC) Blower Motor |
| F11 | 5 | Output to Under-Hood Power Distribution Center (UPDC) Run Coil |
| F12 | 25 | Audio Amplifier Module / Active Noise Cancellation (ANC) / Sine Wave (SW) Inverter |
| F13 | 20 | Seat Heater Module – Driver |
| F14 | 15 | Steering Wheel Heater Module |
| F15 | – | Spare |
| F16 | – | Spare |
| F17 | 20 | Left Spot Lamp – If Equipped |
| F18 | 30 | Sunshade Sunroof Motor |
| F19 | – | Spare |
| F20 | 20 | Comfort Rear Seat Module (CRSM) (Heat Rear Right) |
| F21 | – | Spare |
| F22 | – | Spare |
| F23 | – | Spare |
| F24 | 15 | Radio Frequency (RF) Hub Module / Ignition Module / Cluster Module |
| F25 | 40 | Integrated Trailer Brake Module |
| F26 | 15 | Cluster Cabin/Compartment Node (CCN) Module / Cyber Security Module |
| F27 | 5 | Cluster Cabin/Compartment Node (CCN) Module / Secure Gateway (SGW) Module |
| F28 | 10 | Occupant Restraint Control (ORC) Module |
| F29 | 20 | Comfort Rear Seat Module (CRSM) (Heat Rear Left) |
| F30 | 30 | Drive Train Controller Module (DTCM) / Tailgate Module |
| F31 | 30 | Central Body Controller (CBC) 1 Interior Light Module |
| F32 | 20 | Right Spot Lamp – If Equipped |
| F33 | 10 | Overhead Console / 911 Switch / Assist Switch / Heads Up Display (HUD) |
| F34 | 15 | Front & Rear Ventilated Seat Motor |
| F35 | 10 | Inverter Module / Sunshade Sunroof Motor / Dual Sunroof Motor / USB Charge Only |
| F36 | 40 | Central Body Controller (CBC) 2 Exterior Light 1 |
| F37 | – | Spare |
| F38 | – | Spare |
| F39 | – | Spare |
| F40 | 20 | Dome Pursuit Vehicle — If Equipped |
| F41A / F41B | 15 | Lumbar Support & Pass Switch / Integrated Center Stack (ICS) Switch Bank Module / HVAC Ctrl / Bank Upper Switch / Steering Control Module |
| F42A / F42B | 10 | Transfer Case Switch Module (TCSM) / Shift bv Wire Module (SBW) / Electric Park Brake Switch / Overhead Console (OHC) Switch / E-Call / Bank 3 Switch / Seat Left & Riaht Ventilation / Trailer A&B Tire Pressure Module / Gateway Trailer Module |
| F43A / F43B | 10 | Port Diagnostics / Collision Detection (CD) Module / Front & Rear USB |
| F44 | 20 | Radio/Digital Content Service Delivery (DCSD) Module / Telematics Box Module/Fleet Telematics Module (FTM) |
| F45 | 30 | Door Multiplexer Module (Driver-side) |
| F46 | 30 | Door Multiplexer Module (Passenger-side) |
| F47 | – | Spare |
| F48A | 10 | Rear View Mirror / SW Window Passenger / Rear USB / Wireless Charging Pad Module |
| F49 | 15 | Central Vision Processing Module (CVPM) / Sensor Blind SDot / HDLP AdaDtive Front Lighting Sensor (AFLS) |
| F50A | 10 | Battery Pack Control Module |
| F51A / F51B | – | Spare |
| F52 | 20 | Direct Battery Feed – If Equipped |
| F53 | 10 | Trailer Reverse Steerina Control / Trailer Steerinq Control Knob |
| F54B | 20 | Power Outlet Center Seat |
| F55 | 25 | Upfitter – If Equipped |
| F56 | 30 | Network Interface Module – If Equipped |
| F57 | 20 | Direct Battery Feed – If Equipped |
| F58 | 20 | Direct Battery Feed – If Equipped |
| F59 | – | Spare |
| F60 | 50 | Inverter Module |
| F61 | – | Spare |
| F62A / F62B | 10 | Intearated T railer Brakina (ITBM) / Occupant Class Mod / IAIR Suspension Mod / HVAC Sensor In-Car Temp Module / Rear Coolant Temp / Parktronic System (PTS) / Intearated Relay Ctrl Mod (IRCM) / HRLS / Gateway Trailer TPMS Module |
| F63 | – | Spare |
| F64 | – | Spare |
| F65 | 10 | Occupant Restraint Controller (ORC) Module |
| F66 | 10 | Run Accessory Feed — If Equipped |
| CB1 | 25 | (2021) Driver Window SW Rear PWR Windows / Overhead SW Rear Defrost |
| CB2 | 25 | (2021) Driver PWR Seat / Driver Seat Memory Mod |
| CB3 | 25 | (2021) Passenger Power Seat / Passenger Seat Memory Mod |

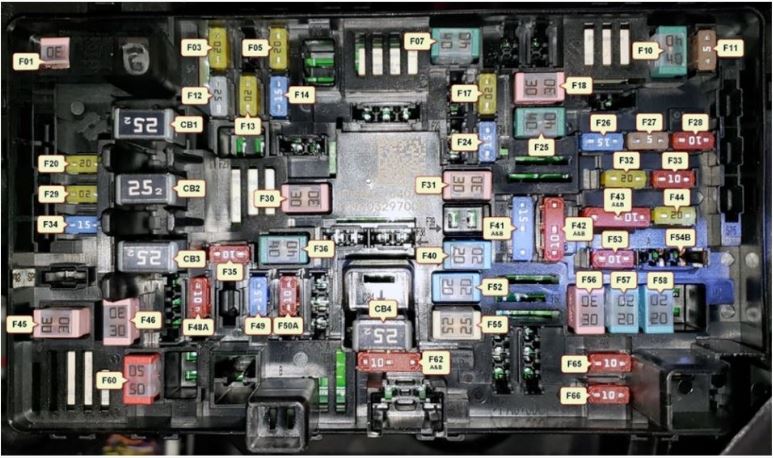

Dodge Ram Truck Pickup 1500 (2022 – 2024)
| № | Cartridge Fuse | Micro Fuse | Description |
|---|---|---|---|
| F01 | 30A Pink | – | Trailer Tow Receptacle |
| F02 | – | – | Spare |
| F03 | – | 20A Yellow | Module Seat Heater Front (Pass) |
| F04 | – | – | Spare |
| F05 | – | 20A Yellow | Module PPU Cooling Fan * |
| F06 | – | – | Spare |
| F07 | 40A Green | – | Mod CBC 3 PWR Locks |
| F08 | – | – | Spare |
| F09 | – | – | Spare |
| F10 | 40A Green | – | HVAC Blower Motor |
| F11 | – | 5A Tan | Output to Under-hood Power Distribution Center (UPDC) Run Coil |
| F12 | – | 25A Clear | Mod Audio Amplifier / Active Noise Cancellation |
| F13 | – | 20A Yellow | Mod Seat Heater Front (Driver) |
| F14 | – | 15A Blue | Mod Seat Heater Front (Steering Wheel) |
| F15 A&B | – | – | Spare |
| F16 | – | – | Spare |
| F17 | – | 20A Yellow | LT Spot Lamp * |
| F18 | 30A Pink | – | Motor Sunshade Sunroof |
| F19 | – | – | Spare |
| F20 | – | 20A Yellow | Comfort Rear Seat Module (CRSM) (Heat Rear RT) |
| F21 | – | – | Spare |
| F22 | – | – | Spare |
| F23 | – | – | Spare |
| F24 | – | 15A Blue | Mod RF Hub / Mod Ignition / Mod Cluster CNN |
| F25 | 40A Green | – | Mod Integrated Trailer Brake |
| F26 | – | 15A Blue | Mod Cluster CCN / Mod Cyber Security / Trailer Gateway Module (360 Camera) |
| F27 | – | 5A Tan | Mod Cluster CCN / Mod SGW |
| F28 | – | 10A Red | Mod ORC |
| F29 | – | 20A Yellow | Mod CRSM (Heat Rear LT) |
| F30 | 30A Pink | – | Mod DTCM / Mod Tailgate |
| F31 | 30A Pink | – | Mod CBC 1 Interior Light |
| F32 | – | 20A Yellow | RT Spot Lamp * |
| F33 | – | 10A Red | Assy Overhead Console / Switch 911 / Switch Assist / Sunshade / HUD |
| F34 | – | 15A Blue | Frt & RR Ventilated Seat Motor |
| F35 | – | 10A Red | Mod Inverter / Mtr Sunshade Sunroof / Mtr Dual Sunroof / USB Charge Only |
| F36 | 40A Green | – | Mod CBC 2 Exterior Light 1 |
| F37 | – | – | Spare |
| F38 | – | – | Spare |
| F39 | – | – | Spare |
| F40 | 20A Blue | – | Dome Pursuit Vehicle * |
| F41 A&B | – | 15A Blue | Lumbar Support & Pass SW / Steering Column Control Module / HVAC Control Module / ICS Switch Bank / Upper Switch Bank |
| F42 A&B | – | 10A Red | Mod Transfer Case Switch Module (TCSM) / SBW / Electric Park Brake SW / Module TPM Trailer / Module Gateway Can-C Trailer TPM / Seat LT & RT Vent |
| F43 A&B | – | 10A Red | Port Diagnostics / Front & Rear USB |
| F44 | – | 20A Yellow | Radio / DCSD / Telematics Box Mod / Trailer Gateway Module (360) |
| F45 | 30A Pink | – | Mod Door MUX Driver |
| F46 | 30A Pink | – | Mod Door MUX Passenger |
| F47 | – | – | Spare |
| F48A | – | 10A Red | Rear View Mirror / SW Window Passenger / Rear USB / Wireless Charging Pad Mod |
| F49 | – | 15A Blue | Mod CVPM / SNSR Blind Spot / HDLP Adaptive Front Lighting Sensor (AFLS) |
| F50A | – | 10A Red | Battery PACK Control Mod (BPCM) * |
| F51 A&B | – | – | Spare |
| F52 | 20A Blue | – | Direct Battery Feed * |
| F53 | – | 10A Red | Trailer Reverse Steering Control / Trailer Steering Control Knob |
| F54 A&B | – | 20A Yellow | Power Outlet Center Seat Battery Feed Position Power Outlet Center Seat Ignition Feed Position |
| F55 | 25A White | – | Upfitter * |
| F56 | 30A Pink | – | Mod Network Interface * |
| F57 | 20A Blue | – | Direct Battery Feed * |
| F58 | 20A Blue | – | Direct Battery Feed * |
| F60 | 50A Red | – | Mod Inverter * |
| F61 | – | – | Spare |
| F62 A&B | – | 10A Red | ITBM / Mod Occupant Class / Mod IAIR Suspension / Mod HVAC / Snsr In car Temp / Integrated Radar Camera Mod (IRCM) / Humidity Rain & Light Sensor (HRLS) / Parktronics System Mod (PTS) / Gateway Can-C Trailer TPM Mod |
| F63 | – | – | Spare |
| F64 | – | – | Spare |
| F65 | – | 10A Red | Mod ORC |
| F66 | – | 10A Red | Run – Accessory Feed |
| Circuit Breakers: | |||
| CB1 | 25A | Driver Window SW Rear PWR Windows / Overhead SW Rear Defrost | |
| CB2 | 25A | Driver PWR Seat / Driver Seat Memory Mod | |
| CB3 | 25A | Passenger Power Seat / Passenger Seat Memory Mod | |
| * If Equipped |
Dodge Ram Truck Pickup 1500 (2025 – 2026)
| № | Cartridge Fuse | Micro Fuse | Description |
|---|---|---|---|
| F01 | 30A Pink | – | Assy Trailer Tow Receptacle |
| F02 | 30A Pink | – | Mod Memory Seat Driver/ Power Seat Driver |
| F03 | – | – | Spare |
| F04 | – | 5A Tan | Smart Door Handle Drvr |
| F05 | – | 30A Green | Mod Audio Amplifier/ Mod Active Noise Cancellation |
| F06 | 40A Green | – | Mod BCM Feed #3 (Interior Lights) |
| F07 | 40A Green | – | Mod Integration Trailer Brake Module (ITBM) |
| F08 | – | 15A Blue | SNSR UWB (1-7)* |
| F09 | – | – | Spare |
| F10 | – | – | Spare |
| F11 | – | 10A Red | Animation Lighting Rr Rt |
| F12 | – | – | Spare |
| F13 | – | – | Spare |
| F14 | – | 15A Blue | Central ADAS Decision Mod CADM LO |
| F15A | – | 10A Red | Mod Occupant Class / Integrated Trailer Control Module (ITCM)/ Mod HVAC Control / Mod 1 Air Suspension* |
| F15B | – | 10A Red | Parktronic System Mod (PTS) |
| F16 | – | – | Spare |
| F17 | – | 5A Tan | MOD SGW (Cybersecurity) |
| F18 | 30A Pink | – | Mtr Sunshade Sunroof / Mtr Sunshade Sunroof-Dual Pane / Mtr Sunshade Sunroof-Singlepane / Lamp Dome |
| F19 | – | 20A Yellow | Module PPU Cooling Fan* |
| F20 | – | – | Spare |
| F21 | – | – | Spare |
| F22 | – | 20A Yellow | MOD CRSM (Heat Seat RR RT) |
| F23 | – | – | Spare |
| F24 | – | 10A Red | Wireless Charging Pad – Passenger / Mod Spaak* |
| F25 | – | – | Spare |
| F26 | – | 10A Red | Mod Cluster CCN / Mod SGW (Cybersecurity) |
| F27 | – | 15A Blue | MOD RF HUB / Module Ignition |
| F28 | – | – | Spare |
| F29 | – | 20A Yellow | Module Seat Heater FRT (PASS) |
| F30 | – | – | Spare |
| F31 | 20A Blue | – | Smart Motor RR RT |
| F32 | – | – | Spare |
| F33 | – | 15A Blue | MOD DCSD |
| F34 | – | 20A Yellow | Module Seat Heater FRT (Driver) |
| F35 | – | 10A Red | Driver Monitoring Camera* |
| F36 | 50A Red | – | Mod_BCM Feed #1 (Exterior Lights #1) |
| F37 | – | 20A Yellow | MOD CRSM (Hear Seat RR LT) |
| F38 | – | – | Spare |
| F39 | – | – | Spare |
| F40 | – | – | Spare |
| F41A | – | 10A Red | MOD ORC |
| F41B | – | – | Spare |
| F42A | – | – | Spare |
| F42B | – | – | Spare |
| F43A | – | – | Spare |
| F43B | – | – | Spare |
| F44 | – | 20A Yellow | MOD CMCM (Radio) |
| F45 | 30A Pink | – | MOD DOOR MUXDRIVER |
| F46 | 30A Pink | – | MOD DOOR MUXPASSENGER |
| F47A | – | – | Spare |
| F47B | – | – | Spare |
| F48A | – | 10A Red | Assy Overhead Console OHC W/ Sunshade / SW 911/ SW Assist/ Head’s Up Display (HUD)/ Humidity Rain Light |
| F48B | – | 10A red | Animation Lighting RR-LT |
| F49 | – | 15A Blue | Mod Seat Heater FRT (STRNG WHL) |
| F50A | – | – | Spare |
| F50B | – | 10A Red | Port Diagnostic 1 & 2 |
| F51A | – | 10A Red | Mod TCSM/ Mod SBW/ SW Park Brake Electronic/ Mod Tire Pressure Trailer TPM/ Transfer Case SW/ Automatic Gear Shifter Module (AGSM) |
| F51B | – | 10A Red | SW Seat Vent LT & RT/ Wireless Charging Pad Driver |
| F52 | – | – | Spare |
| F53 | – | 15A Blue | Front Passenger Display Module (FPDM) / Port UCI Dual USB Frt/ Port UCI 2 USB-RR/ Mod TBM (Telematics Box Mod)/ Trailer Steering Control Knob |
| F54 A&B | – | 20A Yellow | Power Outlet-Center Seat – Battery Feed Power Outlet-Center Seat – IGN Feed |
| F55 | – | – | Spare |
| F56 | 30A Pink | – | Mod Memory Seat Passenger/ Power Seat Passenger |
| F57 | – | – | Spare |
| F58 | – | – | Spare |
| F59 | – | – | Spare |
| F60 | 50A Red | – | Mod Inverter 400W |
| F61 | 20A Blue | – | Smart Motor RR LT |
| F62A | – | 10A Red | Assy Mirror Inside RR View / Port Power Or USB IP USB Charge Only/ USB Port RR Armrest |
| F62B | – | 10A Red | Mod Inverter (Wake Up)/ MTR Sunroof Dual Pane/ MTR Sunshade Sunroof/ USB Charge Only/ Port Media Hub FPDM/ Port Video USB/ Mod Inverter – 2kw (Wake Up)* |
| F63A | – | 15A Blue | Lumbar Support DR & PASS SW |
| F63B | 15A Blue | Mod ICS Switch Bank/ Mod HVAC Ctrl/ Sw Bank Upper/ Mod Ctrl Steering/ RR Window Sw/Sw Bank Second | |
| F64A | – | 10A Red | PPU Battery Pack Control MOD (BPCM)* |
| F64B | – | 10A Red | MOD ORC |
| F65 | – | 5A Tan | Smart Door Handle Pass |
| F66 | – | 30A Green | MOD Amplifier Feed #2 |
| Circuit Breakers | |||
| CB1 | – | Spare | |
| CB2 | – | Spare | |
| CB3 | – | Spare | |
| CB4 | – | Spare | |
| CB5 | 25A | Power Window Rearview | |
| CB6 | – | Spare | |
| * If Equipped |
Related Posts:
