Honda Accord (2023 – 2026) Fuse Box Location & Diagrams

Finding the correct fuse box and understanding fuse diagrams is essential for troubleshooting electrical issues in your Honda Accord. This article provides detailed fuse box locations, fuse assignments, and easy-to-follow diagrams for Honda Accord models from 2023 to 2026, helping owners perform quick and accurate checks.

Fuse Box Location

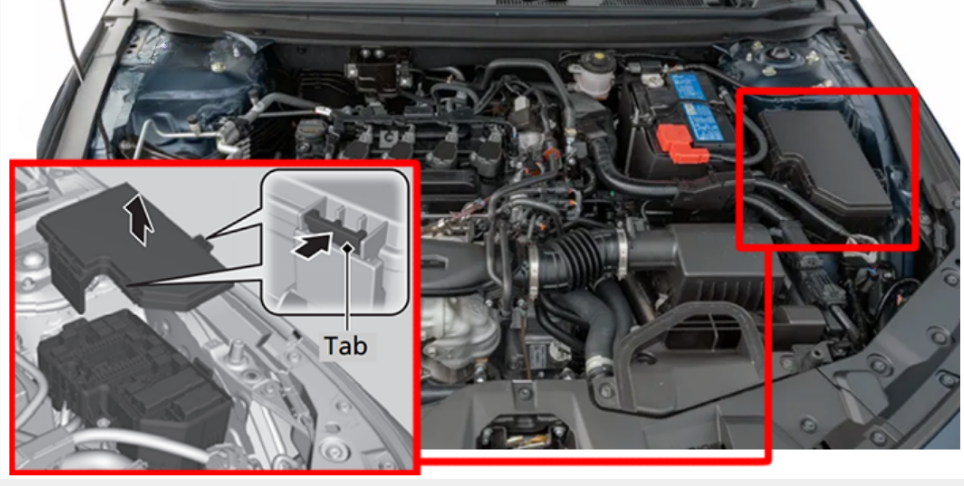

Engine Compartment Fuse Box
Located near the battery. Push the tabs to open the box. Fuse locations are shown on the fuse box cover.

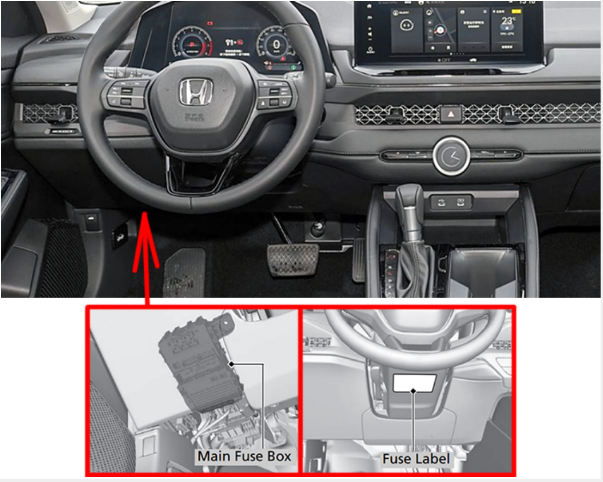

Passenger Compartment Fuse Box
Located under the dashboard. Fuse locations are shown on the label under the steering column.

Fuse Box Diagrams

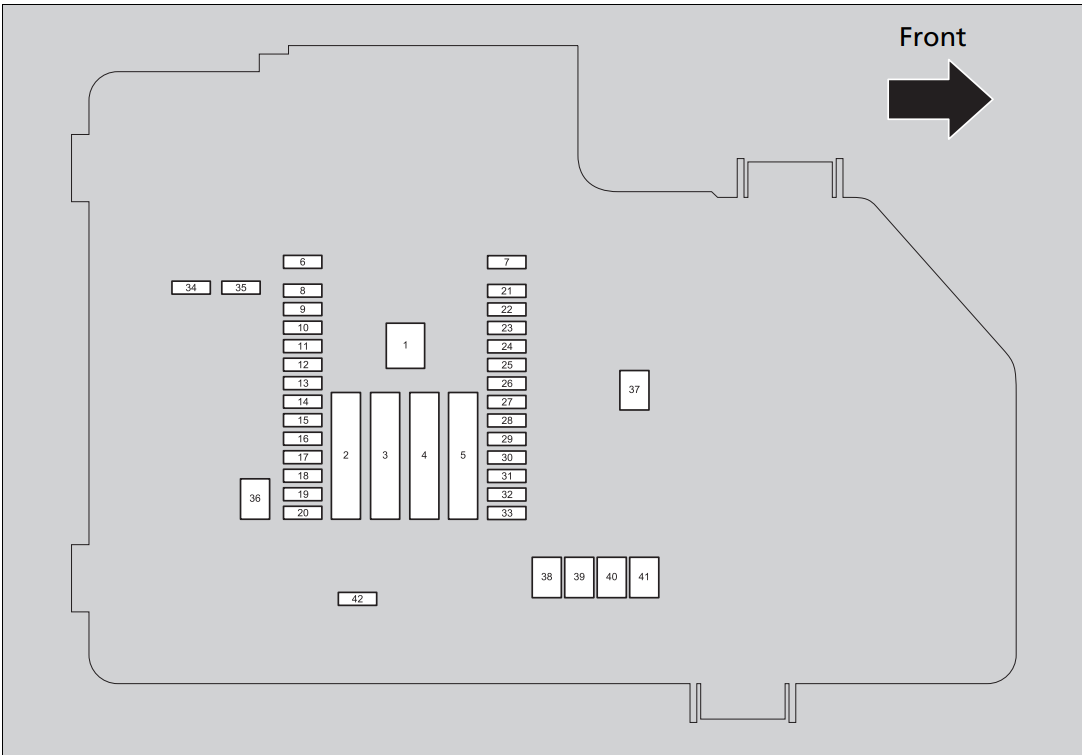

Engine Compartment Fuse Box

Honda Accord (2023 – 2026)

No.	Circuit Protected	Amps
1	BATTERY	125 A
2	DC/DC2	(30 A)
	—	40 A
	F/BOX OPTION	60 A
	—	40 A
	F/BOX OPTION2	60 A
	—	60 A
	F/BOX MAIN	60 A
3	—	(30 A)
	ST MAGNETIC SW	30 A
	—	40 A
	—	30 A
	—	50 A
	HTR MTR	40 A
	RR DEFROSTER	40 A
4	ABS/VSA FSR	40 A
	ABS/VSA MTR	40 A
	—	40 A
	EBB	40 A
	IG MAIN	30 A
	—	40 A
	R/M2	30 A
5	DC/DC	(30 A)
	WIPER	30 A
	EPS	70 A
	R/M1	30 A
	—	40 A
	MAIN FAN	30 A
	F/BOX MAIN2	60 A
6	SUB FAN	30 A
7	IG MAIN2	30 A
8	—	—
9	BACK UP	15 A
10	WASHER	15 A
11–14	—	—
15	SHUTTER GRILLE	(10 A)
16	—	—
17	MG CLUTCH	10 A
18	HORN	10 A
19–21	—	—
22	DBW	15 A
23	HAZARD	15 A
24	BACKUP FI-ECU	10 A
25	IGP	15 A
26	TCU	15 A
27	LCM L	20 A
28	INJ	20 A
29	STOP	10 A
30	LCM R	20 A
31	IG COIL	15 A
32–35	—	—
36	IGPS [LAF]	10 A
37	BACKUP2	(30 A)
38	—	—
39	VBACT	10 A
40	IGPS FAN	7.5 A
41	—	—
42	MON2	7.5 A

Fuse Box Diagrams

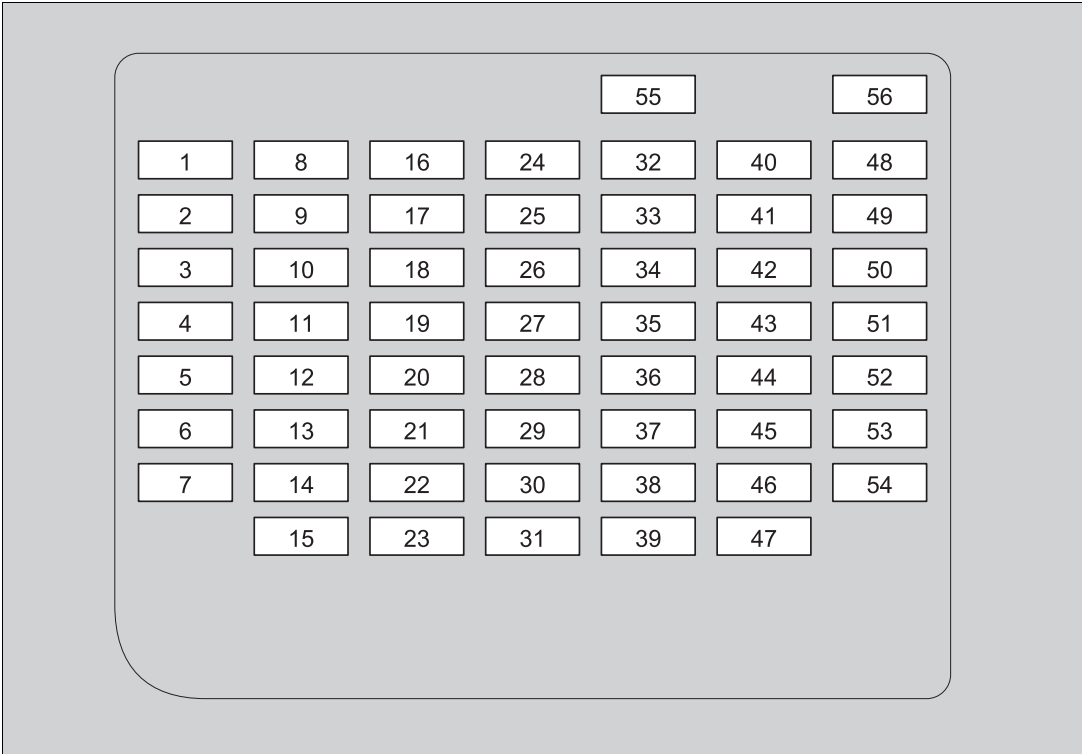

Passenger Compartment Fuse Box

Honda Accord (2023 – 2026)

No.	Circuit Protected	Amps
1	P/W DR	20 A
2	P/W AS	20 A
3	P/W RR R	20 A
4	P/W RR L	20 A
5	OPTION	10 A
6	SRS	10 A
7	TRUNK LOCK ACT	10 A
8	—	—
9	FR ACC SOCKET	20 A
10	DOOR LOCK	20 A
11	METER	10 A
12	STARTER CUT	(10 A)
13	OPTION2	10 A
14	MISS SOL	10 A
15	DR DOOR UNLOCK	(10 A)
16	—	—
17	—	—
18	—	—
19	—	—
20	CGW	10 A
21	—	—
22	SMART	10 A
23	DR DOOR LOCK	(10 A)
24	—	—
25	—	—
26	SRS	10 A
27	ACG	10 A
28	VSA/ABS	10 A
29	FUEL PUMP	20 A
30	L SIDE DOOR UNLOCK	10 A
31	R SIDE DOOR UNLOCK	10 A
32	SUN ROOF*	(20 A)
33	—	(7.5 A)
34	USB CHG	10 A
35	—	—
36	—	—
37	– (2026) USB CHG PD	– (10 A)
38	—	(20 A)
39	R SIDE DOOR LOCK	10 A
40	DR P/SEAT SLIDE*	(20 A)
41	DR P/SEAT REC*	(20 A)
42	—	(10 A)
43	A/C	10 A
44	DRL	10 A
45	ACC	10 A
46	ACC KEY LOCK	10 A
47	L SIDE DOOR LOCK	10 A
48	FR H/SEAT*	(20 A)
49	—	(20 A)
50	P/LUMBER DR*	(10 A)
51	—	—
52	—	—
53	—	(20 A)
54	OPTION1	10 A
55	—	—
56	—	—

Fuse Box Diagrams

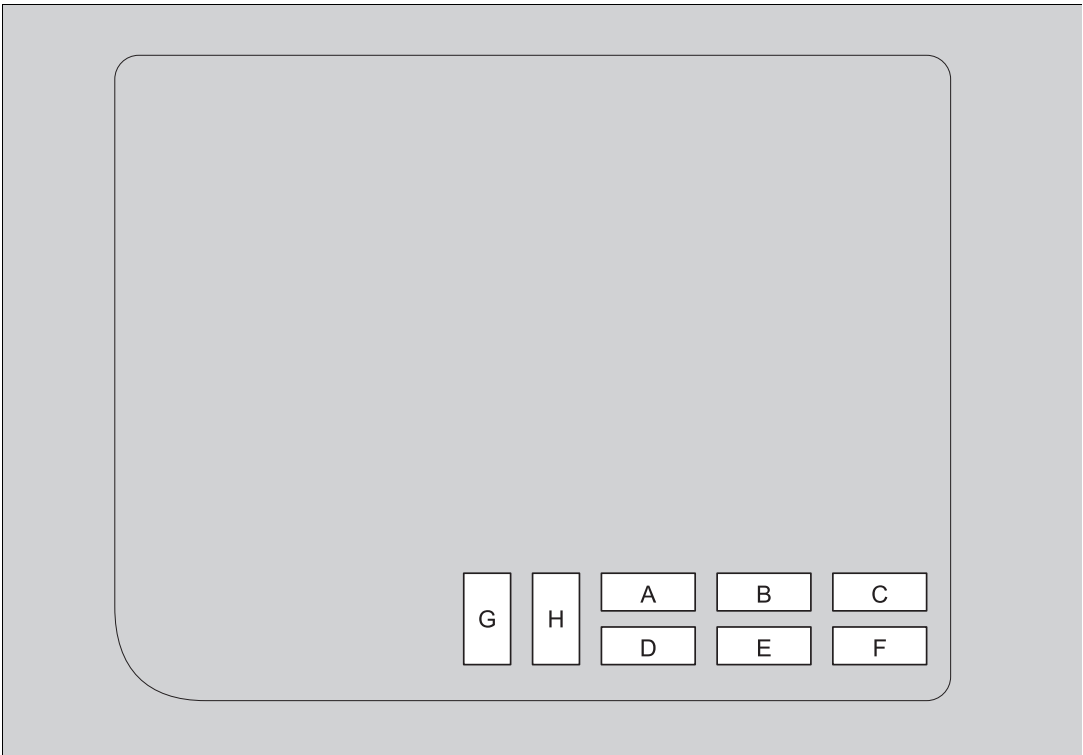

Interior Sub Fuse Box

Honda Accord (2023 – 2026)

Circuit	Circuit Protected	Amps
A	—	—
B	EOP	10 A
C	AUDIO VST	15 A
D	ACC VST	10 A
E	—	—
F	—	—
G	METER	10 A
H	OPTION	10 A
