Toyota Corolla (2023 – 2025) Fuse Box Location and Diagrams
Locating the fuse box in your 2023–2025 Toyota Corolla shouldn’t be a challenge. This comprehensive guide features accurate diagrams and clear instructions to help you pinpoint interior and engine bay fuse locations instantly. Master your vehicle’s electrical system, troubleshoot issues efficiently, and keep your Corolla running perfectly.
Fuse Box Location

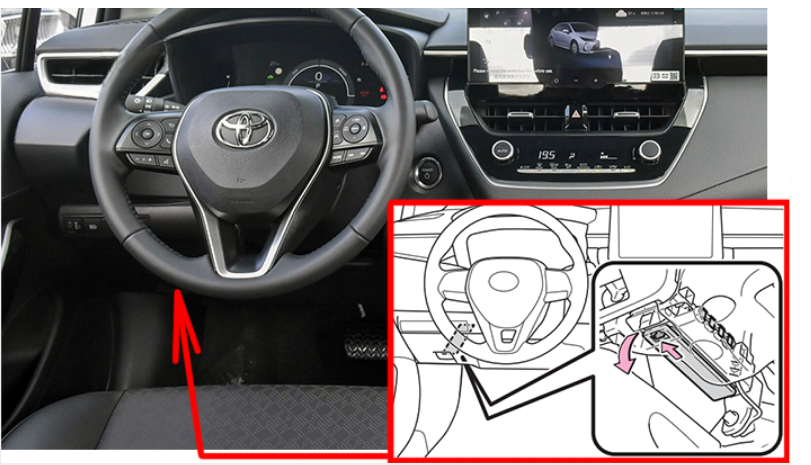

Passenger Compartment Fuse Box
The fuse panel is located below the dashboard.
Engine Compartment Fuse Box
Fuse Box Diagrams

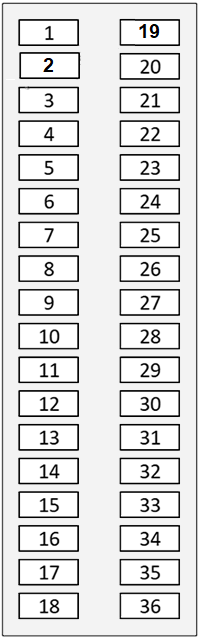

Passenger Compartment Fuse Box
Toyota Corolla (2023 – 2025)
| № | Amps | Name | Description |
|---|---|---|---|
| 1 | 10A | ECU-B NO.1 | Engine control unit |
| 2 | 10A | STOP | Stop lights |
| 3 | 10A | FUEL OPN/LOCK | Fuel lid opener |
| 4 | 10A | ECU-B NO.2 | Engine control unit |
| 5 | 10A | DCM | Data communication module (telematics system) |
| 6 | 10A | ECU-DCC NO.1 | Engine control unit |
| 7 | 10A | ECU-DCC NO.2 | Engine control unit |
| 8 | 15A | RADIO | Radio and audio system |
| 10 | 10A | BKUP LP | Backup lights |
| 11 | 5A | EPS-IGR | Electric power steering |
| 12 | 10A | ECU-IGR NO.2 | Engine control unit |
| 13 | 10A | ECU-ACC | Engine control unit |
| 14 | 7.5A | USB NO.1 | USB charger |
| 15 | 10A | SFT LOCK-ACC | AT Shift lock control system |
| 16 | 10A | ECU-IGR NO.4 | Engine control unit |
| 17 | 5A | METER-IGR | Instrument cluster |
| 18 | 10A | A/BAG-IGR | Airbag |
| 19 | 20A | DOOR R/R | Rear right door |
| 20 | 20A | DOOR R/L | Rear left door |
| 21 | 7.5A | OBD | On-board diagnostics |
| 22 | 10A | DOME | Dome light and interior light |
| 23 | 20A | DOOR F/R | Front right door |
| 24 | 10A | TRUNK/DOOR BACK | TRUNK/DOOR BACK |
| 25 | 7.5A | AM2 | Starter system |
| 26 | 10A | HAZ | Hazard light |
| 27 | 5A | AM1 | w/o Smart Key System: Starter system |
| 10A | STRG LOCK | w/ Smart Key System: Steering lock | |
| 28 | 15A | D/L | Power door lock system |
| 29 | 15A | P/OUTLET NO.1 | Cigar lighter / power outlet |
| 30 | 20A | DOOR F/L | Front left door lock |
| 31 | 10A | BA NO.1 | +B NO.1 |
| 32 | 10A | BA NO.2 | +B NO.2 |
| 33 | 3A | PANEL | Instrument panel lights |
| 34 | 10A | TAIL | Tail lights |
| 35 | 10A | ECU-IGR NO.3 | Engine control unit |
| 36 | 10A | ECU-IGR NO.1 | Engine control unit |
Engine Compartment Fuse Box Type 1
Toyota Corolla (2023 – 2025)
| № | Amps | Name | Description |
|---|---|---|---|
| F2 | 5A | EFI NO.1 | Multiport fuel injection system |
| F5 | 7.5A | S-HORN | Horn / anti-theft deterrent |
| F6 | 25A | EFI-MAIN NO.3 | Multiport fuel injection system |
| F7 | 10A | HORN | Horn |
| F8 | 25A | D INJ | D INJ |
| F9 | 30A | AMP | Audio system |
| F10 | 10A | H-LP RH | Right-hand headlight |
| F11 | 25A | IGP-MAIN | Ignition |
| F13 | 25A | EFI-MAIN NO.2 | Multiport fuel injection system |
| F14 | 80A | INP STD NO.3 | INP STD NO.3 |
| F15 | 80A | EPS | Electric power steering |
| F17 | 30A | D/C CUT | D/C CUT |
| F19 | 20A | VVT | VVT |
| F21 | 7.5A | H-LP HI | Headlights high beam |
| F22 | 10A | H-LP LH | Left-hand headlight |
| F23 | 40A | ABS NO.2 | Anti-lock braking system |
| F25 | 50A | ABS NO.1 | Anti-lock braking system |
| F26 | 30A | WIPER | Wipers |
| F27 | 30A | ST | Starter system |
| F28 | 30A | EFI-MAIN NO.1 | Multiport fuel injection system |
| F29 | 25A | ECU-IGR NO.6 | Engine control unit |
| F30 | 5A | BATT-S | Battery and charging system |
| F31 | 10A | EFI NO.4 | Multiport fuel injection system |
| F32 | 10A | EFI NO.3 | Multiport fuel injection system |
| F33 | 10A | EFI NO.2 | Multiport fuel injection system |
| F36 | 10A | ECU-IGP NO.3 | ECU-IGP NO.3 |
| F37 | 15A | WASHER | Windshield washer |
| F38 | 5A | ECU-IGP NO.1 | ECU-IGP NO.1 |
| F39 | 10A | IGN | Ignition |
| F40 | 10A | EFI NO.5 | Multiport fuel injection system |
| F48 | 80A | INP STD NO.2 | INP STD NO.2 |
| F50 | 15A | S/HTR RR | Rear seat heater |
| F55 | 15A | DEICER | Deicer or defroster |
| F56 | 25A | S/HTR-MAIN | Seat heater |
| F60 | 30A | FAN NO.1 | Electric cooling fan |
| F62 | 40A | HTR | Air conditioning system / Heater / Seat Heater |

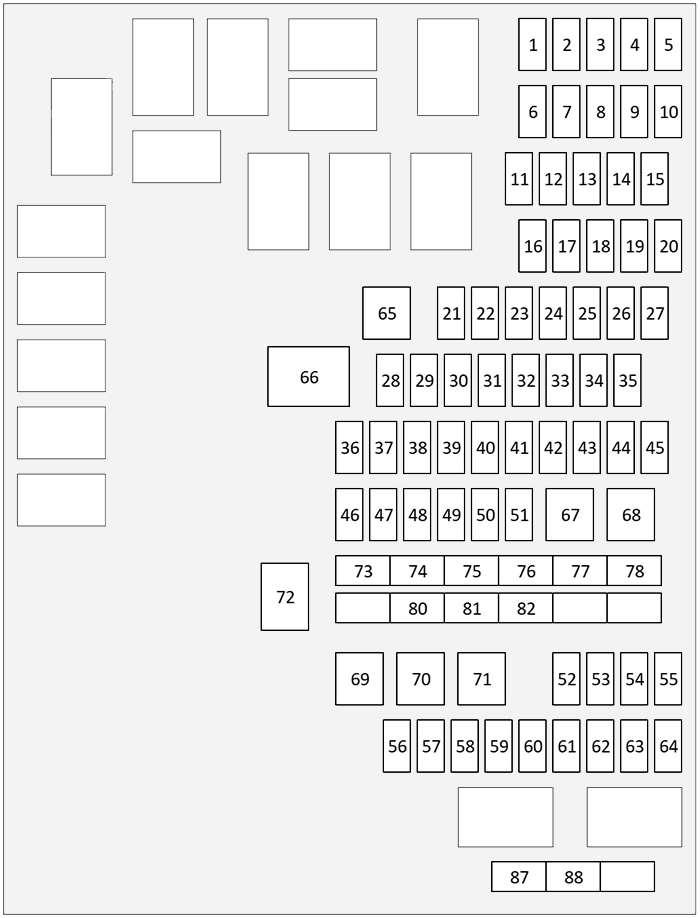

Engine Compartment Fuse Box Type 2
Toyota Corolla (2023 – 2025)
| № | Amps | Name | Description |
|---|---|---|---|
| 1 | 10A | PCU NO.2 | PCU NO.2 |
| 2 | 10A | PCU NO.1 | PCU NO.1 |
| 4 | 10A | PM-IGCT | PM-IGCT |
| 5 | 10A | IGCT NO.2 | IGCT NO.2 |
| 11 | 15A | WASHER | Windshield washer |
| 12 | 7.5A | IGN | Ignition |
| 13 | 5A | ECU-IGP NO.1 | ECU-IGP NO.1 |
| 14 | 10A | ECU-IGP NO.3 | ECU-IGP NO.3 |
| 16 | 10A | EFI NO.2 | Multiport fuel injection system |
| 18 | 10A | BATT FAN | BATT FAN |
| 19 | 5A | INV W/PMP | INV W/PMP |
| 20 | 10A | EFI NO.3 | Multiport fuel injection system |
| 22 | 10A | H-LP RH | Right-hand headlight |
| 25 | 20A | EFI-MAIN NO.2 | Multiport fuel injection system |
| 27 | 15A | INV W/PMP NO.2 | INV W/PMP NO.2 |
| 28 | 30A | EFI-MAIN NO.1 | Multiport fuel injection system |
| 31 | 10A | H-LP LH | Left-hand headlight |
| 32 | 7.5A | H-LP HI | Headlights high beam |
| 34 | 10A | BATT-S NO.2 | Battery and charging system |
| 35 | 30A | AMP | Audio system |
| 36 | 25A | EFI-MAIN NO.3 | Multiport fuel injection system |
| 37 | 5A | BATT-S | Battery and charging system |
| 39 | 10A | CAPCITOR | CAPCITOR |
| 40 | 25A | IGP-MAIN | Ignition |
| 41 | 5A | EFI NO.1 | Multiport fuel injection system |
| 44 | 10A | ECU-B | Engine control unit |
| 45 | 30A | D/C CUT | D/C CUT |
| 47 | 30A | WIPER | Wipers |
| 49 | 10A | HORN | Horn |
| 51 | 7.5A | S-HORN | Horn / anti-theft deterrent |
| 53 | 15A | DEICER | Deicer or defroster |
| 55 | 15A | S/HTR RR | Rear seat heater |
| 62 | 25A | S/HTR-MAIN | Seat heater |
| 67 | 30A | IGCT-MAIN NO.2 | IGCT-MAIN NO.2 |
| 69 | 40A | HTR | Air conditioning system |
| 70 | 30A | FAN NO.1 | Electric cooling fan |
| 71 | 30A | FAN NO.2 | Electric cooling fan |
| 72 | 130A | DC/DC | DC to DC transformer 400 watts |
| 73 | 30A | IGCT-MAIN NO.1 | IGCT-MAIN NO.1 |
| 74 | 40A | ABS MAIN | Anti-lock braking system |
| 75 | 80A | EPS | Electric power steering |
| 76 | 80A | INP STD NO.3 | INP STD NO.3 |
| 77 | 50A | ABS NO.1 | Anti-lock braking system |
| 78 | 40A | ABS NO.2 | Anti-lock braking system |
| 80 | 30A | PTC HTR NO.3 | Additional heater |
| 81 | 30A | PTC HTR NO.2 | Additional heater |
| 82 | 50A | PTC HTR NO.1 | Additional heater |
| 87 | 60A | INP STD NO.1 | INP STD NO.1 |
| 88 | 80A | INP STD NO.2 | INP STD NO.2 |
