Honda Civic (2022 – 2026) Fuse Box Location and Diagrams
Fuse box locations and diagrams for the Honda Civic (2022–2026) help drivers quickly identify electrical components, troubleshoot issues, and replace fuses safely. This guide provides clear layout details, interior and engine fuse box positions, and essential information for easy maintenance and an accurate understanding of the vehicle’s electrical system.
Fuse Box Location
Engine Compartment Fuse Box

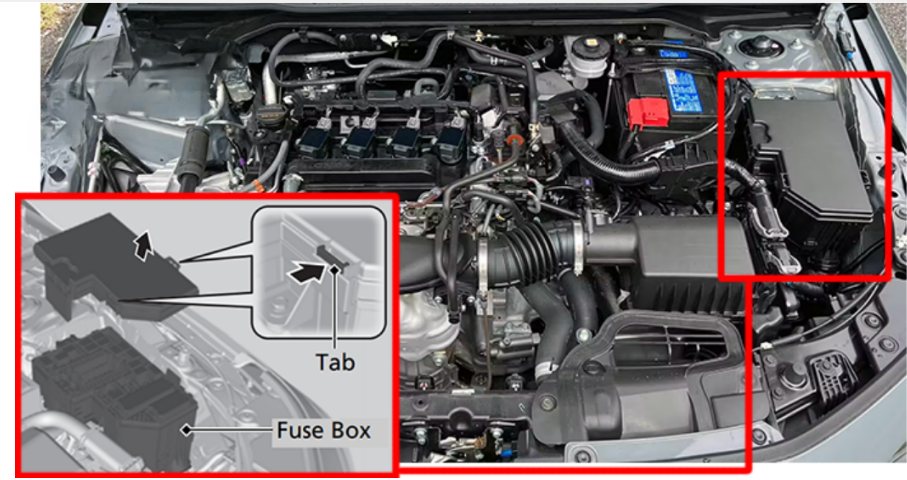

Located near the battery. Push the tabs to open the box. Fuse locations are shown on the fuse box cover.
Passenger Compartment Fuse Box

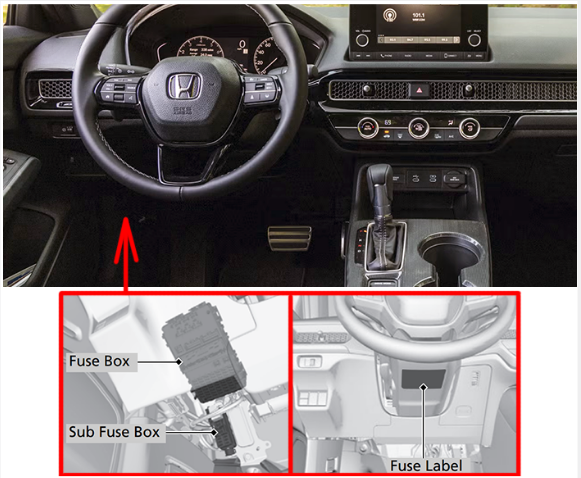

Located under the dashboard. Fuse locations are shown on the label under the steering column.
Fuse Box Diagrams
Engine Compartment Fuse Box
Honda Civic (2022 – 2026)
| No. | Circuit Protected | Amps |
| 1 | BATTERY | (2025, 2026) 150 A 125 A |
| 2 | – | 40 A |
| – | 40 A | |
| F/BOX OPTION | 60 A | |
| – | 40 A | |
| – | 40 A | |
| F/BOX OPTION2* | (40 A) | |
| DC/DC2 | (30 A) | |
| F/BOX MAIN | 60 A | |
| 3 | – | 40 A |
| – | 40 A | |
| – | 40 A | |
| RR DEFROSTER | 40 A | |
| – | 40 A | |
| HTR MTR | 40 A | |
| – | 40 A | |
| 4 | – | 30 A |
| ABS/VSA MTR | 40 A | |
| DC/DC | (30 A) | |
| – | 30 A | |
| IG MAIN | 30 A | |
| – | 30 A | |
| R/M2 | 30 A | |
| 5 | ST MAGNETIC SW | 30 A |
| WIPER | 30 A | |
| EPS | 70 A | |
| R/M1 | 30 A | |
| ABS/VSA FSR | 40 A | |
| MAIN FAN | 30 A | |
| F/BOX MAIN2 | 40 A | |
| 6 | SUB FAN | 30 A |
| 7 | IG MAIN2 | 30 A |
| 8 | – | – |
| 9 | (2022, 2023, 2024) EVP* – | (30 A) – |
| 10 | (2022, 2023, 2024) AUDIO SUB* – | (7.5 A) – |
| 11 | USB CHG* | (10 A) |
| 12 | – | – |
| 13 | H/STRG* | (10 A) |
| 14 | – | – |
| 15 | (2022, 2023, 2024) FR FOG* – | (10 A) – |
| 16 | MG CLUTCH | (10 A) |
| 17 | WASHER | 15 A |
| 18 | HORN | 10 A |
| 19 | BACK UP | 15 A |
| 20 | AUDIO* | (15 A) |
| 21 | – | – |
| 22 | DBW | 15 A |
| 23 | EOP* | (20 A) |
| 24 | BACKUP FI-ECU | 10 A |
| 25 | IGP | 15 A |
| 26 | TCU* | (15 A) |
| 27 | LCM L | (15 A) |
| 28 | INJ | 15 A |
| 29 | STOP | 10 A |
| 30 | LCM R | (15 A) |
| 31 | IG COIL | 15 A |
| 32 | (2022, 2023, 2024) – EVTC* | – 20 A |
| 33 | HAZARD | 15 A |
| 34 | (2022, 2023, 2024) AUDIO SUB VST* – | (7.5 A) – |
| 35 | – | – |
| 36 | AUDIO VST MAIN | (30 A) |
| 37 | BACKUP2 | (30 A) |
| 38 | – | – |
| 39 | – | – |
| 40 | VBACT* | 10 A |
| 41 | IGPS [LAF] | 10 A |
| 42 | IG1 MON2 | 7.5 A |
Fuse Box Diagrams

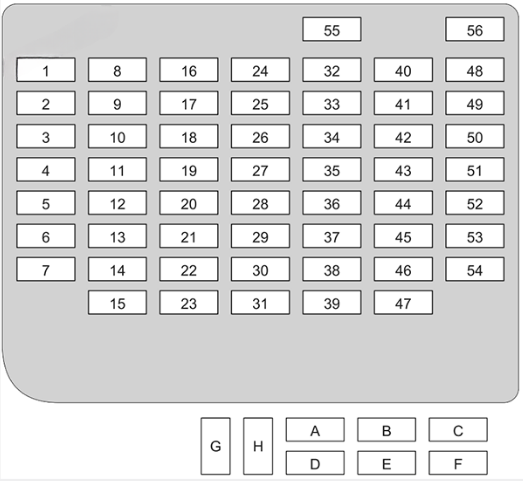

Passenger Compartment Fuse Box
Honda Civic (2022 – 2026)
| No. | Circuit Protected | Amps |
|---|---|---|
| 1 | P/W DR | 20A |
| 2 | P/W AS | 20A |
| 3 | P/W RR R | 20A |
| 4 | P/W RR L | 20A |
| 5 | OPTION | 10A |
| 6 | SRS | 10A |
| 7 | T/G MTR / TRUNK ACT | 10A |
| 8 | – | – |
| 9 | FR ACC SOCKET | 20A |
| 10 | DOOR LOCK | 20A |
| 11 | METER | 10A |
| 12 | OPTION 3 (ST CUT) | 10A |
| 13 | OPTION 2 (RR WIP)* | (10A) |
| 14 | OPTION 6 (VB SOL) | 10A |
| 15 | DR DOOR UNLOCK | (10A) |
| 16 | SUNROOF* | (20A) |
| 17 | SBW1* | (10A) |
| 18 | – | – |
| 19 | – | – |
| 20 | RR FOG* | (10A) |
| 21 | CARGO ACC SOCKET* | (20A) |
| 22 | SMART | 10A |
| 23 | DR DOOR LOCK | (10A) |
| 24 | SBW 2* | (7.5A) |
| 25 | IMG | 10A |
| 26 | SRS | 10A |
| 27 | ACG / D/V / ST CUT RLY | 20A |
| 28 | OPTION 5 | 10A |
| 29 | FUEL PUMP | 15A |
| 30 | L SIDE DOOR UNLOCK | 10A |
| 31 | R SIDE DOOR UNLOCK | 10A |
| 32 | – | – |
| 33 | – | – |
| 34 | – | – |
| 35 | – | – |
| 36 | OPTION 3 (SUNSHADE)* | (20A) |
| 37 | IGA 2* | (15A) |
| 38 | – | – |
| 39 | R SIDE DOOR LOCK | 10A |
| 40 | P/SEAT REC/RR HI* | (20A) |
| 41 | P/SEAT SLIDE / FR HI* | (20A) |
| 42 | – (2025-2026) BACK LT* | – (10A) |
| 43 | A/C | 10A |
| 44 | DRL | 10A |
| 45 | ACC | 10A |
| 46 | ACC KEY LOCK | 10A |
| 47 | L SIDE DOOR LOCK | 10A |
| 48 | H/SEAT | 20A |
| 49 | AS P/SEAT REC* | (20A) |
| 50 | P/LUMBAR DR* | (10A) |
| 51 | P/LUMBAR AS* | (10A) |
| 52 | RR H/SEAT* | (20A) |
| 53 | AS P/SEAT SLI* | (20A) |
| 54 | OPTION 1 / FUEL LID | 10A |
| 55 | AUDIO AMP* | (30A) |
| 56 | ADS* | (30A) |
| Sub Fuse Box: | ||
| A | BACKUP 2 MAIN | (10A) |
| B | AUDIO SUB VST* | (7.5A) |
| C | ACC VST | (10A) |
| D | VST 1 | (10A) |
| E | AUDIO VST | (15A) |
| F | EOP* | (20A) |
| G | – | – |
| H | VST 2 | (10A) |
