BMW 2-series F44 (2020 – 2024) Fuse Box Location & Diagrams
Struggling to locate the fuse box in your BMW 2-series F44? This essential guide provides clear diagrams and exact fuse locations for models produced between 2020 and 2024. Quickly identify, troubleshoot, and resolve your electrical issues with our easy-to-follow, expert-verified maintenance walkthrough.
Fuse Box Location
Passenger Compartment Fuse Box & BDC

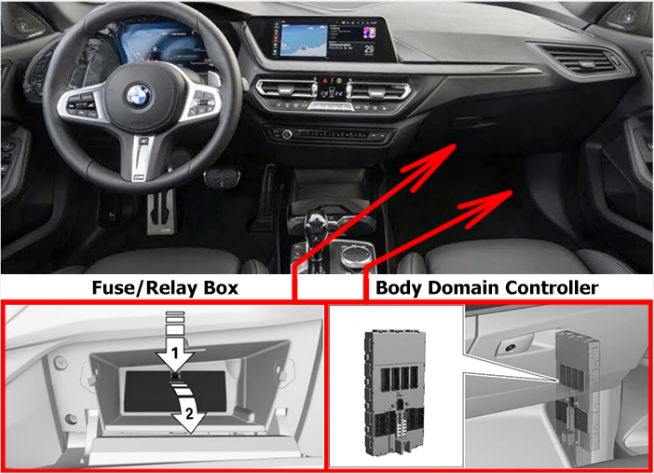

The fuses are located behind a cover in the glove compartment on the front passenger side. Push the holder down, arrow 1, and remove the cover, arrow 2.
BDC
It is located in the front pillar on the passenger side, under the glove box.
Fuse Box Diagrams

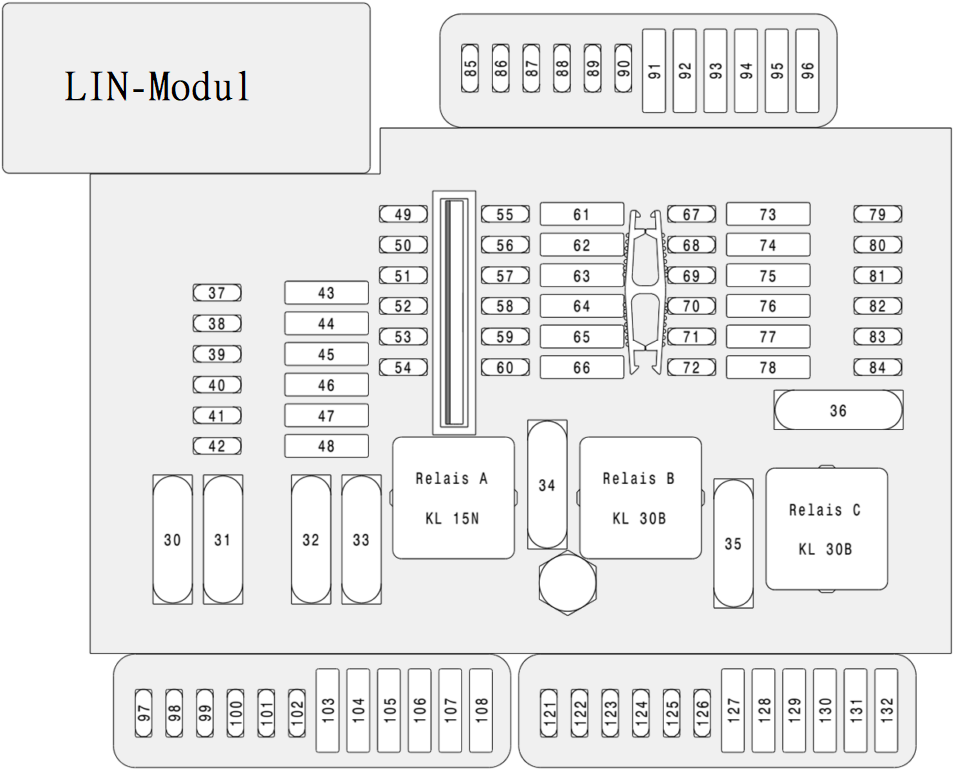

Passenger Compartment Fuse Box (2020 – 2024)
| № | Amps | Description |
|---|---|---|
| 31 | 40A | ABS (Anti-lock Brake System), DSC (Dynamic Stability Control), Parking brake |
| 33 | 60A | Steering column function control module, Main headlights / Rain sensor / Light sensor / Electronic ride height control, Rear seat entertainment, Door module / Automatic soft-close, Electric fan, OBD, Air conditioner system, HiFi Amp, TV tuner, Video module, Boot lid (tailgate) lock / Soft-close automatic for tailgate, Telephone |
| 34 | 40A | Electric fan, Air conditioner system |
| 35 | 40A | Horn, Rear wiper relay |
| 37 | 5A | ABS (Anti-lock Brake System), DSC (Dynamic Stability Control), Indicator Cutie Viteze Automata, Sistem EDC, Sistemul de tractiune integrala / Gear indicator, EDC, Gear Automatic Transmission Control, AWD, Parking brake |
| 38 | 5A | Door module / Automatic soft-close |
| 39 | 5A | Rear seat entertainment, Door module / Automatic soft-close, Seatbelts, Convertible top module / Convertible relay |
| 41 | 5A | Head-Up Display (HUD), Instrument cluster |
| 42 | 5A | Door module / Automatic soft-close, Tire pressure control RDV |
| 43 | 30A | Power windows with anti-trapping function |
| 44 | 30A | Power windows with anti-trapping function |
| 45 | 30A | Steering column function control module, Air suspension system, Indicator Cutie Viteze Automata, Sistem EDC, Sistemul de tractiune integrala / Gear indicator, EDC, Gear Automatic Transmission Control, AWD, Driver assistance system, Air conditioner system, Fuel pump relay / Fuel pump control |
| 46 | 30A | Power windows with anti-trapping function |
| 47 | 30A | Power windows with anti-trapping function |
| 48 | 30A | Rear window defroster (defogger) |
| 49 | 20A | Trailer module |
| 50 | 20A | Trailer module |
| 56 | Front & rear cigarette lighter, 12V socket / Glove box charging socket (12V) | |
| 61 | 7.5A | Instrument cluster |
| 62 | 7.5A | Front & rear cigarette lighter, 12V socket / Glove box charging socket (12V) |
| 63 | 20A | Trailer module |
| 64 | 15A | Head-Up Display (HUD), Rear seat entertainment, Navigation system |
| 65 | 20A | Front & rear cigarette lighter, 12V socket / Glove box charging socket (12V) |
| 66 | 20A | Fuel pump relay / Fuel pump control, |
| 67 | 5A | Electric mirrors |
| 68 | 5A | Rear seat entertainment |
| 69 | 5A | Electric mirrors, Power windows with anti-trapping function, Power windows with anti-trapping function |
| 70 | 5A | Interior lights |
| 71 | 5A | Interior lights |
| 72 | 5A | Electric fan, DME – Digital Motor Electronics / Integrated Voltage Module – IVM |
| 73 | 10A | Seat adjustment |
| 74 | 7.5A | Electric fan, OBD, DME – Digital Motor Electronics / Integrated Voltage Module – IVM |
| 75 | 10A | Seat adjustment, OBD |
| 76 | 5A | Seatbelts |
| 77 | 10A | Steering column function control module |
| 78 | 10A | OBD, DME – Digital Motor Electronics / Integrated Voltage Module – IVM |
| 79 | 5A | Rear seat entertainment, Parking sensors / Home link (garage door opener), Navigation system, Electrochromic rear view mirror |
| 81 | 5A | Electric fan, DME – Digital Motor Electronics / Integrated Voltage Module – IVM |
| 82 | 15A | Indicator Cutie Viteze Automata, Sistem EDC, Sistemul de tractiune integrala / Gear indicator, EDC, Gear Automatic Transmission Control, AWD |
| 83 | 5A | Steering column function control module, Driver assistance system |
| 84 | 5A | Indicator Cutie Viteze Automata, Sistem EDC, Sistemul de tractiune integrala / Gear indicator, EDC, Gear Automatic Transmission Control, AWD |
| 85 | 5A | Door module / Automatic soft-close, Telephone, Near Field Communication |
| 86 | 5A | Rear seat entertainment, Front & rear cigarette lighter, 12V socket / Glove box charging socket (12V) |
| 87 | 5A | Driver assistance system, Rear seat entertainment |
| 88 | 4A | Driver assistance system, Parking sensors / Home link (garage door opener) |
| 89 | 10A | Heating / Independent aux. heater |
| 90 | 7.5A | DME – Digital Motor Electronics / Integrated Voltage Module – IVM |
| 91 | 15A | Rear seat entertainment, HiFi Amp, TV tuner, Video module |
| 92 | 10A | Air suspension system |
| 93 | 10A | OBD, DME – Digital Motor Electronics / Integrated Voltage Module – IVM |
| 94 | 15A | OBD, DME – Digital Motor Electronics / Integrated Voltage Module – IVM |
| 95 | 30A | Seat adjustment |
| 96 | 10A | Boot lid (tailgate) lock / Soft-close automatic for tailgate |
| 99 | 5A | OBD, Fuel pump relay / Fuel pump control |
| 101 | 5A | Door module / Automatic soft-close, Near Field Communication |
| 103 | Seatbelts | |
| 104 | Seatbelts | |
| 105 | 40A | Rear seat entertainment |
| 106 | 30A | OBD, DME – Digital Motor Electronics / Integrated Voltage Module – IVM |
| 107 | 40A | Boot lid (tailgate) lock / Soft-close automatic for tailgate |
| 108 | 30A | Convertible top module / Convertible relay |
| 113 | OBD | |
| 121 | HiFi Amp, TV tuner, Video module | |
| 122 | DME – Digital Motor Electronics / Integrated Voltage Module – IVM | |
| 127 | 30A | Heated seats, Seat adjustment |
| 128 | 30A | Heated seats |
| 129 | 30A | Rear seat entertainment |
| 130 | 30A | Indicator Cutie Viteze Automata, Sistem EDC, Sistemul de tractiune integrala / Gear indicator, EDC, Gear Automatic Transmission Control, AWD |

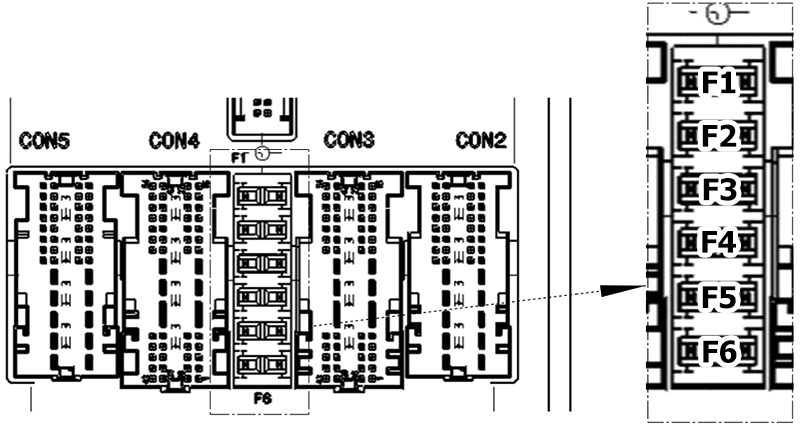

Body Domain Controller
| № | Amps | Description |
|---|---|---|
| F1 | 5A | Steering column switch box, Front center air vent, audio control panel, lighting control unit, head unit |
| F2 | 7.5A | Diagnostic socket, Electronic ride height control, vertical dynamics platform |
| F3 | 7.5A | Heating/air conditioning system, Tailgate function module, rain/light/sun/condensation sensor |
| F4 | 5A | Passenger Side Outer Door Handle Electronic Module, Driver Side Rear Door Outer Handle Electronic Module, Rear Passenger Side Outer Door Handle Electronic Module, Power Control Unit, Telematics Unit |
| F5 | 20A | Lock Relay, Unlock Relay (Doors, Fuel Cap) |
| F6 | 20A | Driver’s Door Lock Relay, Lockout Relay (Driver’s Door Lock, Front Passenger’s Door Lock, Driver’s Side Rear Door Lock, Rear Passenger’s Side Door Lock, Fuel Door Central Lock Actuator) |
