Ford Fiesta (2009 – 2010) Fuse Box Location & Diagrams
Find information about Fuse Box Location & Diagrams User Guide for Ford Fiesta (2009 – 2010). This guide helps identify interior and engine bay fuse boxes, explains layout diagrams, and supports quick troubleshooting for electrical issues, ensuring safe maintenance and easy vehicle understanding for owners.
Fuse Box Location
Engine Compartment Fuse Box

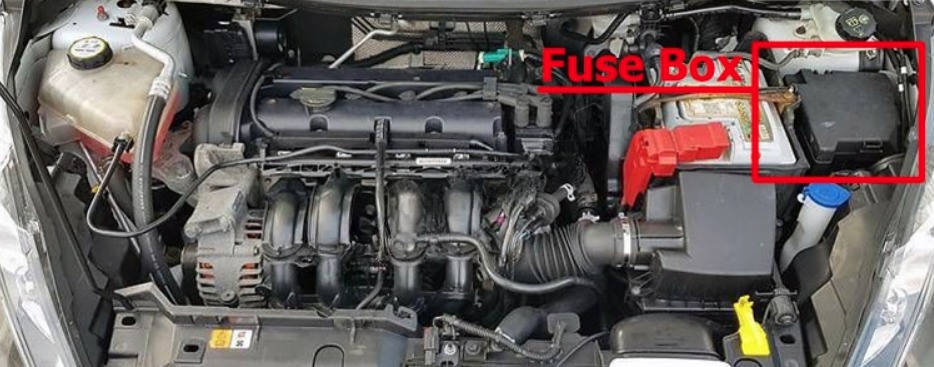

The power distribution box is located in the engine compartment.
Passenger Compartment Fuse Box

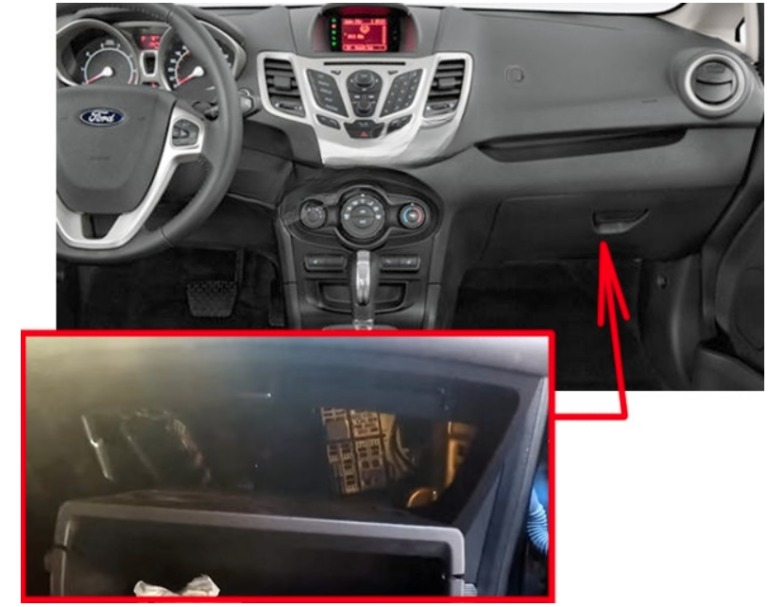

The fuse panel is located behind the glove box. Open the glove box, press the sides inward and swing the glove box down.

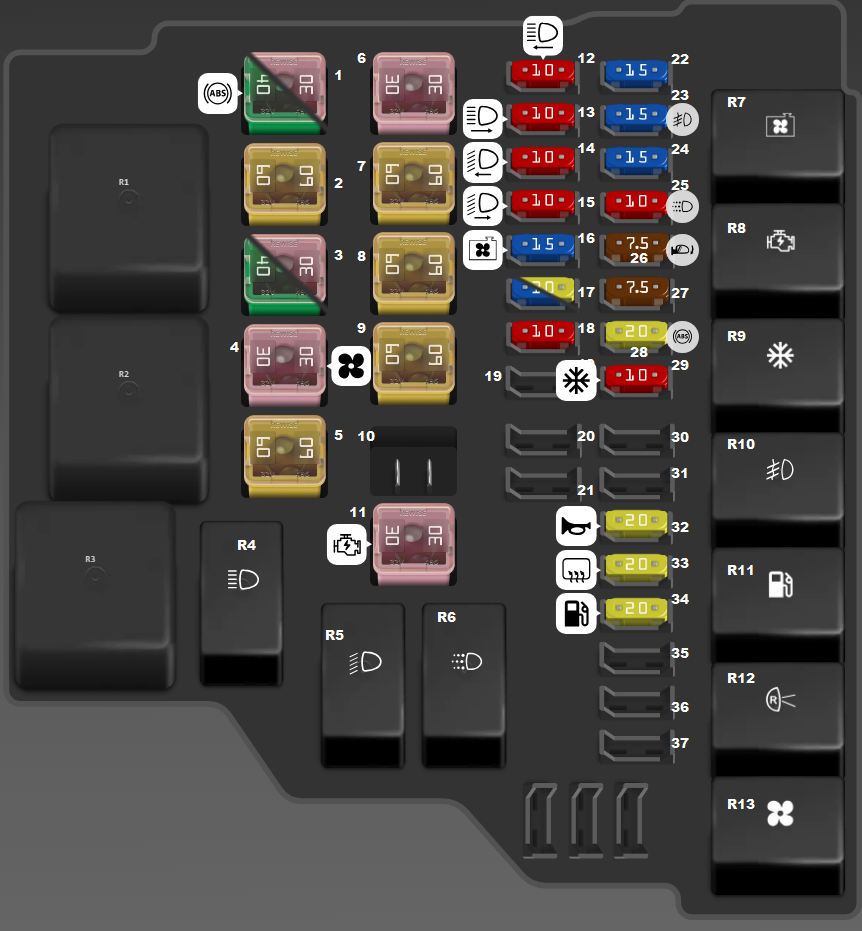

Engine Compartment Fuse Box
Ford Fiesta (2009 )
| Type | No. | Description |
| Fuse FMX/JCase 40A | 1 | ABS module |
| Fuse FMX/JCase 30A | 1 | ABS ESP module |
| Fuse FMX/JCase 60A | 2 | Cooling system fan high speed |
| Fuse FMX/JCase 40A | 3 | Cooling system fan |
| Fuse FMX/JCase 30A | 3 | Cooling system fan low speed |
| Fuse FMX/JCase 30A | 4 | Heater blower |
| Fuse FMX/JCase 60A | 5 | Passenger compartment fuse box supply (battery) |
| Fuse FMX/JCase 30A | 6 | Body control module (BCM) |
| Fuse FMX/JCase 60A | 7 | Passenger compartment fuse box supply (ignition) |
| Fuse FMX/JCase 60A | 8 | Glow plugs |
| Fuse FMX/JCase 60A | 9 | Heated windscreen |
| Fuse FMX/JCase 30A | 11 | Starter relay |
| Fuse MINI 10A | 12 | Main beam left-hand relay |
| Fuse MINI 10A | 13 | Main beam right-hand relay |
| Fuse MINI 10A | 14 | Dipped beam left-hand relay |
| Fuse MINI 10A | 15 | Dipped beam right-hand relay |
| Fuse MINI 15A | 16 | Powertrain control module (PCM), high and low cooling fan |
| Fuse MINI 15A | 17 | Heated oxygen (HEGO) sensors (Petrol engines) |
| Fuse MINI 20A | 17 | Power supply module (Diesel engines) |
| Fuse MINI 10A | 18 | Powertrain control module (PCM) |
| Fuse MINI 15A | 22 | Lighting control battery supply |
| Fuse MINI 15A | 23 | Front fog lamps |
| Fuse MINI 15A | 24 | Direction indicators |
| Fuse MINI 10A | 25 | Daytime running lamps |
| Fuse MINI 7.5A | 26 | Electric exterior mirrors switch, electric folding mirrors, power window (driver’s door) |
| Fuse MINI 7.5A | 27 | PCM |
| Fuse MINI 20A | 28 | ABS module, ESP |
| Fuse MINI 10A | 29 | Air conditioning clutch |
| Fuse MINI 20A | 32 | Horn, battery saver, keyless vehicle module |
| Fuse MINI 20A | 33 | Heated rear window |
| Fuse MINI 20A | 34 | Fuel pump relay, diesel fuel heater |
| Relay | R1 | Cooling system fan |
| Relay | R2 | Glow plugs |
| Relay | R4 | Main beam |
| Relay | R5 | Dipped beam |
| Relay | R6 | Daytime running lamps |
| Relay | R7 | Engine cooling fan |
| Relay | R8 | Starter |
| Relay | R9 | Air conditioning clutch |
| Relay | R10 | Front fog lamps |
| Relay | R11 | Fuel pump, fuel heater |
| Relay | R12 | Reverse lamp |
| Relay | R13 | Heater blower |
| Relay | R3 | PCM |

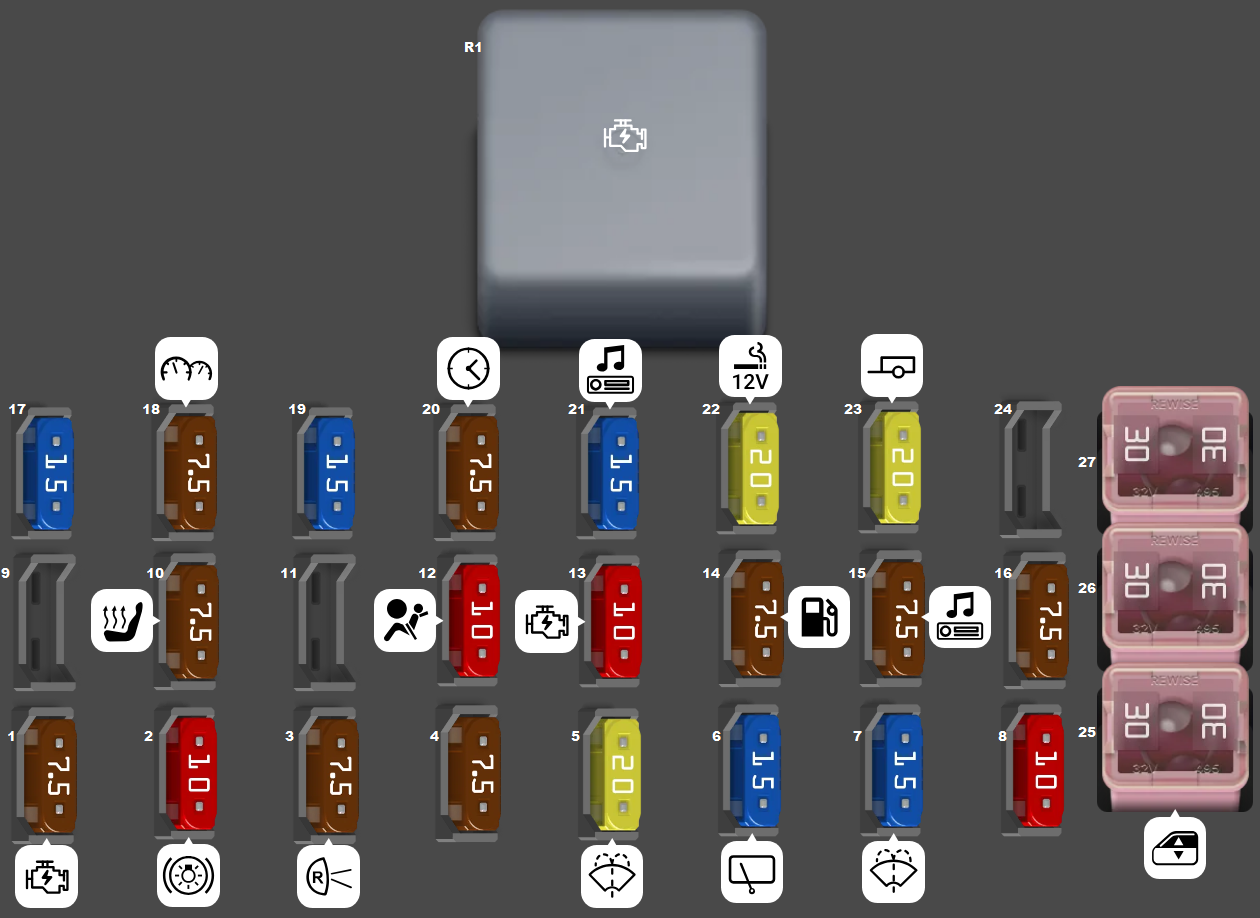

Engine Compartment Fuse box – Type 1
Ford Fiesta (2010)
| Type | No. | Description |
| Fuse MINI 7.5A | 1 | Ignition, rain sensor, heated windshield |
| Fuse MINI 10A | 2 | Brake lights |
| Fuse MINI 7.5A | 3 | Reverse light, rearview camera (VP) |
| Fuse MINI 7.5A | 4 | Headlight leveling |
| Fuse MINI 20A | 5 | Windshield wiper-washer |
| Fuse MINI 15A | 6 | Rear window wiper |
| Fuse MINI 15A | 7 | Windshield washer pump |
| Fuse MINI 10A | 8 | Parking assistance (vehicles with front parking assistance) |
| Fuse MINI 7.5A | 10 | Heated seats |
| Fuse MINI 10A | 12 | Airbag module |
| Fuse MINI 10A | 13 | Ignition, electric power-assisted steering (EPAS), instrument cluster, passive anti-theft system (PATS), ABS |
| Fuse MINI 7.5A | 14 | PCM, selector lever, fuel pump |
| Fuse MINI 7.5A | 15 | Audio system, instrument cluster |
| Fuse MINI 7.5A | 16 | Heated exterior mirror |
| Fuse MINI 15A | 17 | Ignition switch |
| Fuse MINI 7.5A | 18 | Instrument cluster |
| Fuse MINI 15A | 19 | Data transmission connector |
| Fuse MINI 7.5A | 20 | Multifunction display, clock, interior sensor, heating, ventilation, and air conditioning (HVAC) panel |
| Fuse MINI 15A | 21 | Audio system, Bluetooth |
| Fuse MINI 20A | 22 | Cigarette lighter, front power outlet |
| Fuse MINI 20A | 23 | Trailer module |
| Fuse FMX/JCase 30A | 25 | Power windows (front) |
| Fuse FMX/JCase 30A | 26 | Heated windshield, left side |
| Fuse FMX/JCase 30A | 27 | Heated windshield, right side |
| Relay | R1 | Ignition |

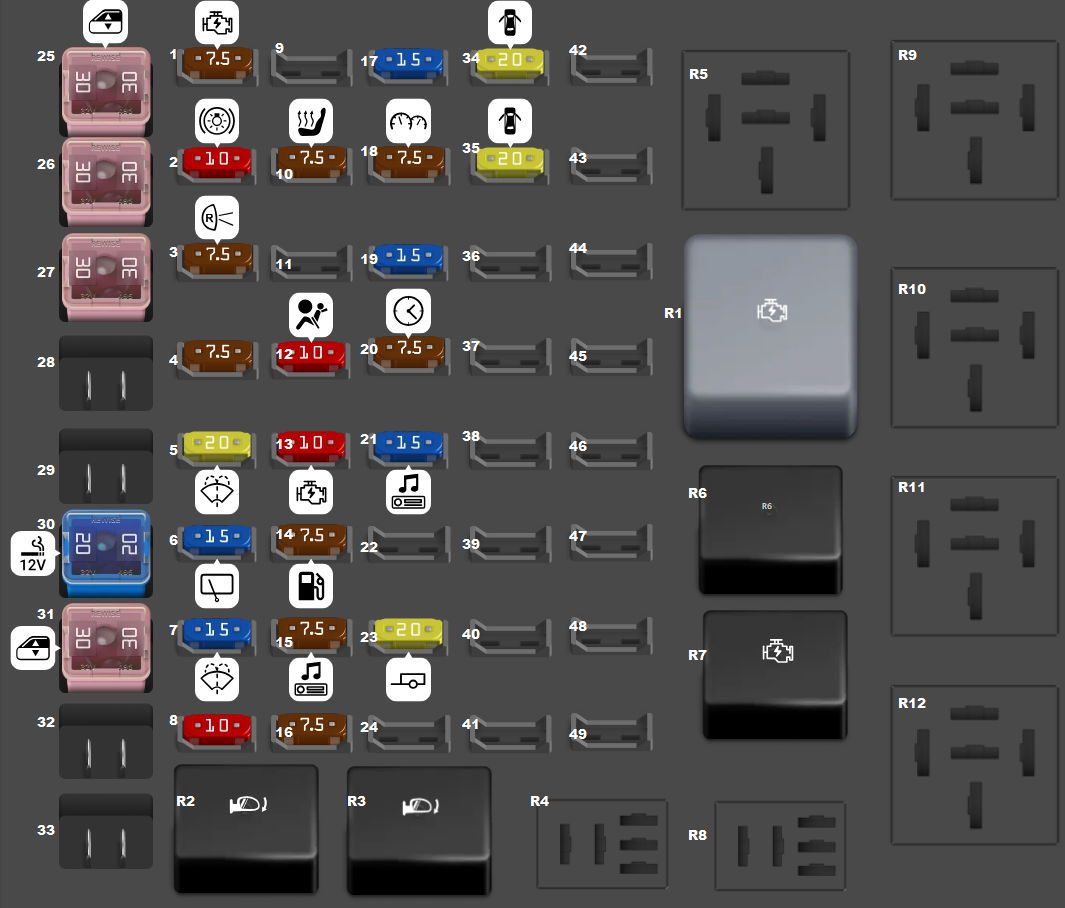

Engine Compartment Fuse box – Type 2
Ford Fiesta (2010)
| Type | No. | Description |
| Fuse MINI 7.5A | 1 | Ignition, rain sensor, heated windshield |
| Fuse MINI 10A | 2 | Brake lights |
| Fuse MINI 7.5A | 3 | Reverse light |
| Fuse MINI 7.5A | 4 | Headlight leveling |
| Fuse MINI 20A | 5 | Windshield wiper-washer |
| Fuse MINI 15A | 6 | Rear window wiper |
| Fuse MINI 15A | 7 | Windshield washer pump |
| Fuse MINI 10A | 8 | Parking aid (vehicles with front parking aid) |
| Fuse MINI 7.5A | 10 | Heated seats |
| Fuse MINI 10A | 12 | Airbag module |
| Fuse MINI 10A | 13 | Ignition, electric power-assisted steering (EPAS), instrument cluster, passive anti-theft system (PATS), ABS |
| Fuse MINI 7.5A | 14 | PCM, selector lever, fuel pump |
| Fuse MINI 7.5A | 15 | Audio system, instrument cluster |
| Fuse MINI 7.5A | 16 | Heated exterior mirror |
| Fuse MINI 15A | 17 | Ignition switch |
| Fuse MINI 7.5A | 18 | Instrument cluster |
| Fuse MINI 15A | 19 | Data transmission connector |
| Fuse MINI 7.5A | 20 | Multifunction display, clock, interior sensor, HVAC panel |
| Fuse MINI 15A | 21 | Audio system, Bluetooth |
| Fuse MINI 20A | 23 | Trailer module |
| Fuse FMX/JCase 30A | 25 | Power windows (front) |
| Fuse FMX/JCase 30A | 26 | Heated windshield, left side |
| Fuse FMX/JCase 30A | 27 | Heated windshield, right side |
| Fuse FMX/JCase 20A | 30 | Cigarette lighter, front power outlet |
| Fuse FMX/JCase 30A | 31 | Power windows (rear) |
| Fuse MINI 20A | 34 | Keyless entry |
| Fuse MINI 20A | 35 | Keyless entry |
| Relay | R1 | Ignition |
| Relay | R2 | Electric folding mirror 1 |
| Relay | R3 | Electric folding mirror 2 |
| Relay | R6 | Keyless entry (accessories) |
| Relay | R7 | Keyless entry (ignition) |

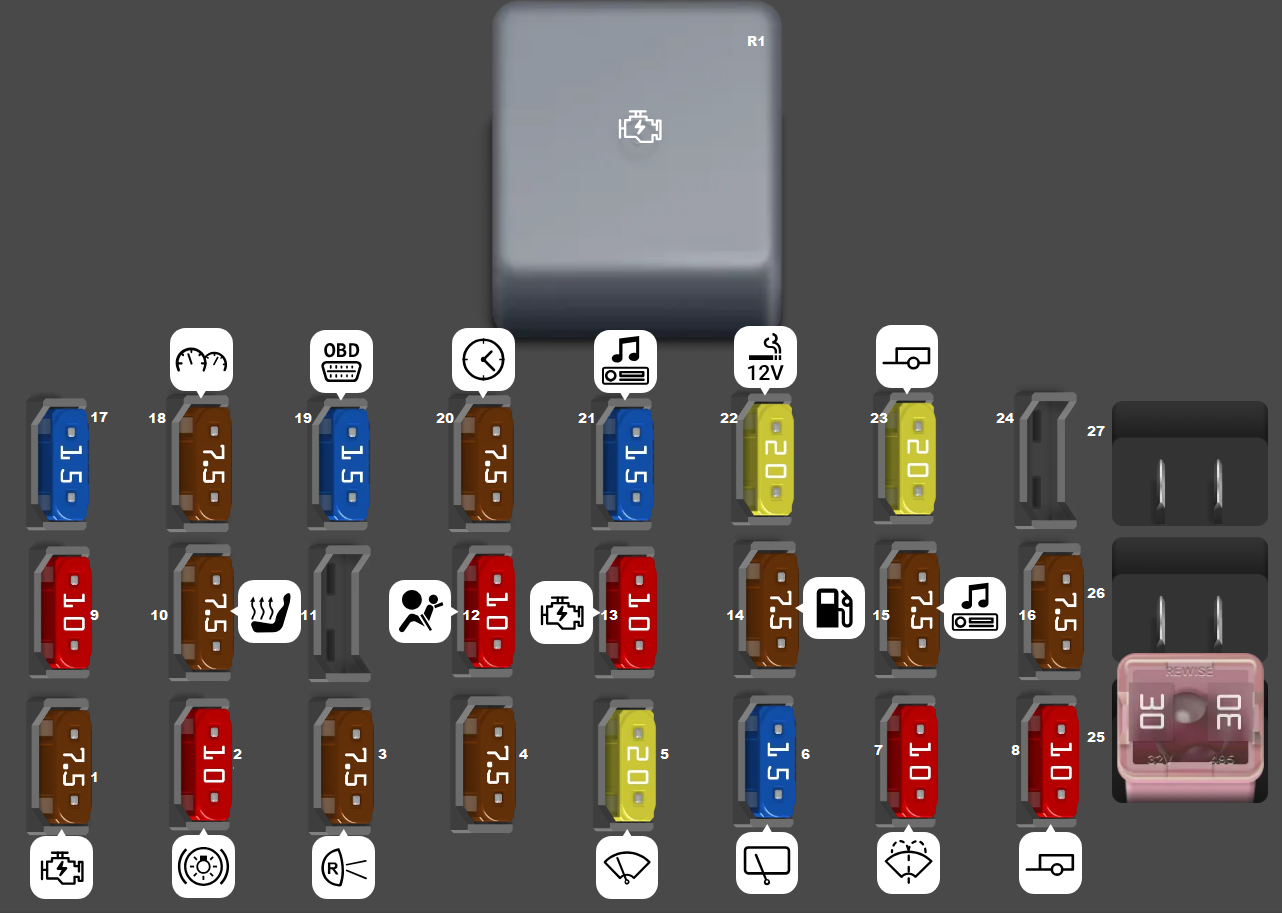

Passenger compartment Fuse box – Type 1
Ford Fiesta (2009 )
| Type | No. | Description |
| Fuse MINI 7.5A | 1 | Ignition, rain sensor, heated windscreen |
| Fuse MINI 10A | 2 | Stop lamps |
| Fuse MINI 7.5A | 3 | Reversing lamp |
| Fuse MINI 7.5A | 4 | Headlamp levelling |
| Fuse MINI 20A | 5 | Windscreen wipers |
| Fuse MINI 15A | 6 | Rear window wiper |
| Fuse MINI 10A | 7 | Washer pump |
| Fuse MINI 10A | 8 | Trailer module, parking aid (vehicles with front parking aid) |
| Fuse MINI 10A | 9 | Not used |
| Fuse MINI 7.5A | 10 | Heated seats |
| Fuse MINI 10A | 12 | Airbag module |
| Fuse MINI 10A | 13 | Ignition, electric power assisted steering (EPAS), instrument cluster, passive anti theft system (PATS), ABS |
| Fuse MINI 7.5A | 14 | PCM, gear selector lever, fuel pump, |
| Fuse MINI 7.5A | 15 | Audio system, instrument cluster |
| Fuse MINI 7.5A | 16 | Heated exterior mirror |
| Fuse MINI 15A | 17 | Ignition switch |
| Fuse MINI 7.5A | 18 | Instrument Cluster |
| Fuse MINI 15A | 19 | Data link connector |
| Fuse MINI 7.5A | 20 | Multi functional display, clock, internal scanner, heating ventilating, air conditioning (HVAC) panel |
| Fuse MINI 15A | 21 | Audio system, Bluetooth |
| Fuse MINI 20A | 22 | Cigar lighter, front power point |
| Fuse MINI 20A | 23 | Trailer module |
| Fuse FMX/JCase 30A | 25 | Power windows (front) |
| Relay | R1 | Ignition |

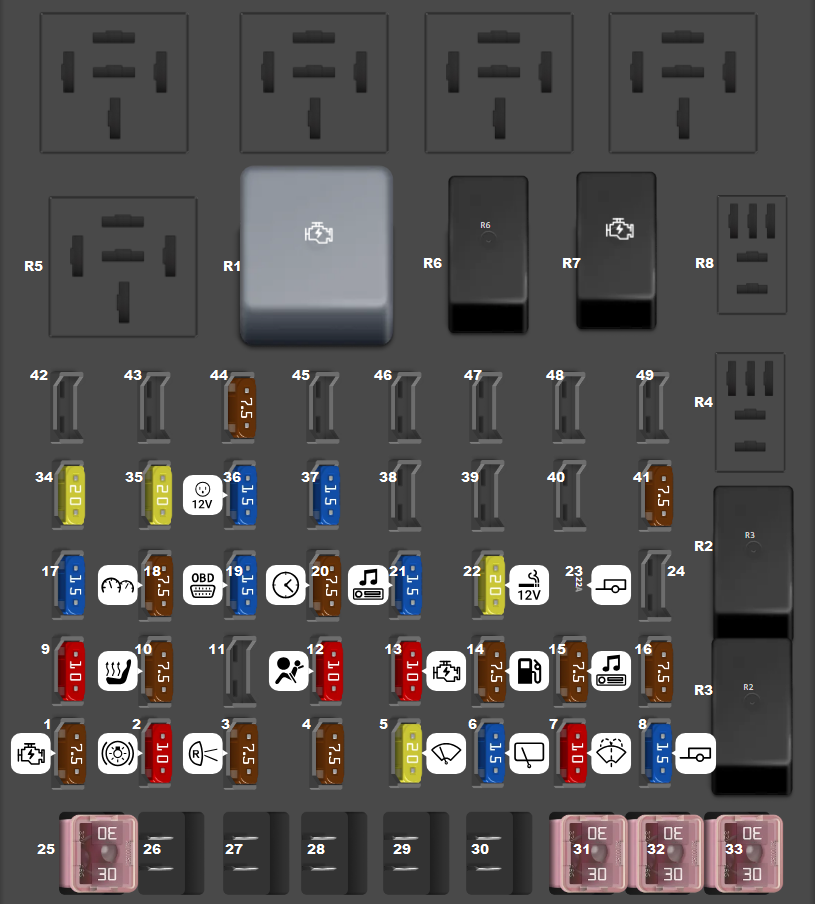

Passenger compartment Fuse box – Type 2
Ford Fiesta (2009 )
| Type | No. | Description |
| Fuse MINI 7.5A | 1 | Ignition, rain sensor, heated front screen |
| Fuse MINI 10A | 2 | Stop lamps |
| Fuse MINI 7.5A | 3 | Reversing lamp |
| Fuse MINI 7.5A | 4 | Headlamp levelling |
| Fuse MINI 20A | 5 | Windscreen wipers |
| Fuse MINI 15A | 6 | Rear window wiper |
| Fuse MINI 10A | 7 | Washer pump |
| Fuse MINI 15A | 8 | Trailer module |
| Fuse MINI 10A | 9 | Parking aid |
| Fuse MINI 7.5A | 10 | Heated seats |
| Fuse MINI 10A | 12 | Airbag module |
| Fuse MINI 10A | 13 | Ignition, electric power assisted steering (EPAS), instrument cluster, passive anti theft system (PATS), ABS |
| Fuse MINI 7.5A | 14 | PCM, gear selector lever, fuel pump, |
| Fuse MINI 7.5A | 15 | Audio system, instrument cluster |
| Fuse MINI 7.5A | 16 | Heated exterior mirror |
| Fuse MINI 15A | 17 | Ignition switch |
| Fuse MINI 7.5A | 18 | Instrument cluster |
| Fuse MINI 15A | 19 | Data link connector |
| Fuse MINI 7.5A | 20 | Multi functional display, clock, internal scanner, HVAC panel |
| Fuse MINI 15A | 21 | Audio system, Bluetooth |
| Fuse MINI 20A | 22 | Cigar lighter, front power point |
| Fuse MINI 22A | 23 | Trailer module |
| Fuse FMX/JCase 30A | 25 | Power windows (front) |
| Fuse FMX/JCase 30A | 31 | Power windows (rear) |
| Fuse FMX/JCase 30A | 32 | Heated windscreen, lefthand side |
| Fuse FMX/JCase 30A | 33 | Heated windscreen, righthand side |
| Fuse MINI 20A | 34 | Keyless entry |
| Fuse MINI 20A | 35 | Keyless entry |
| Fuse MINI 15A | 36 | Rear power point, battery saver |
| Fuse MINI 15A | 37 | Luggage compartment auxiliary power point |
| Fuse MINI 7.5A | 41 | Ignition switch position 1 |
| Fuse MINI 7.5A | 44 | Ignition switch position 245 |
| Relay | R1 | Ignition |
| Relay | R2 | Power fold mirror 1 |
| Relay | R3 | Power fold mirror 2 |
| Relay | R5 | Heated front screen |
| Relay | R6 | Keyless entry (accessory) |
| Relay | R7 | Keyless entry (ignition) |
| Relay | R8 | Battery saver |

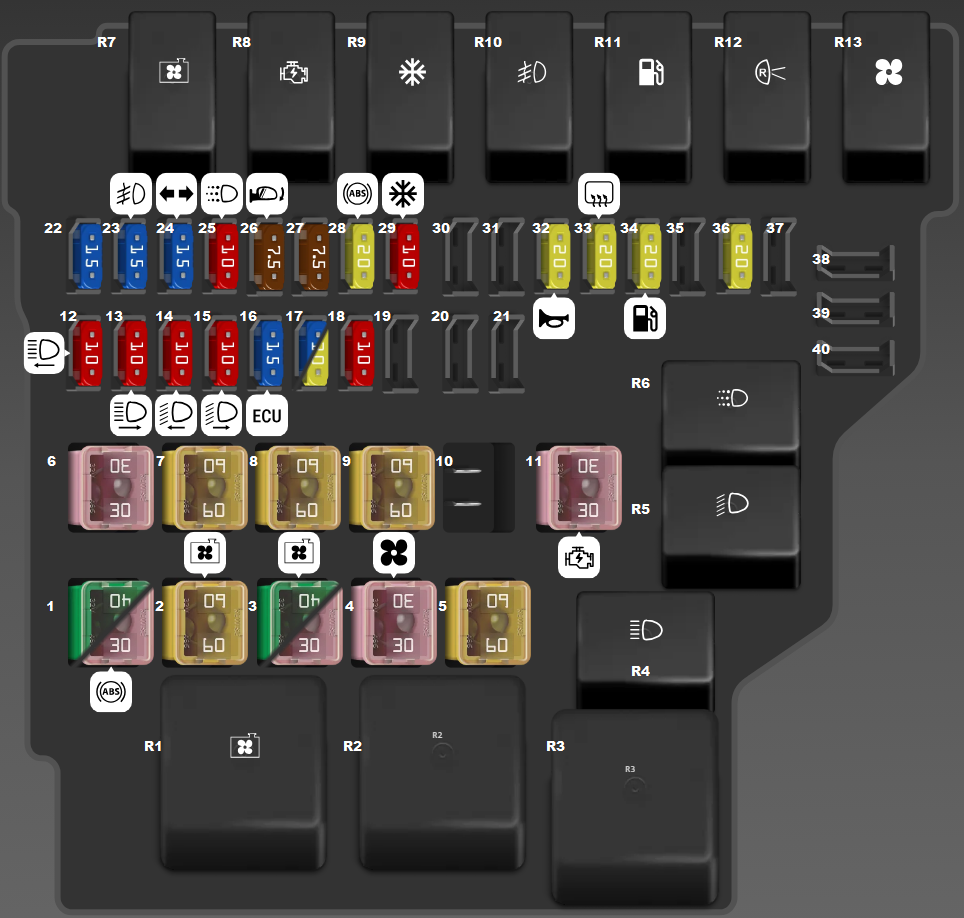

Passenger compartment fuse box
Ford Fiesta (2010)
| Type | No. | Description |
| Fuse FMX/JCase 40A | 1 | ABS Module |
| Fuse FMX/JCase 30A | 1 | ABS/ESP Module |
| Fuse FMX/JCase 60A | 2 | High Speed Cooling Fan |
| Fuse FMX/JCase 40A | 3 | Cooling Fan |
| Fuse FMX/JCase 30A | 3 | Low Speed Cooling Fan |
| Fuse FMX/JCase 30A | 4 | Heater Fan |
| Fuse FMX/JCase 60A | 5 | Interior Fuse Box (Battery) |
| Fuse FMX/JCase 30A | 6 | Body Control Module (BCM) |
| Fuse FMX/JCase 60A | 7 | Interior Fuse Box (Ignition) |
| Fuse FMX/JCase 60A | 8 | Glow Plugs |
| Fuse FMX/JCase 60A | 9 | Heated Windshield |
| Fuse FMX/JCase 30A | 11 | Starter Relay |
| Fuse MINI 10A | 12 | Left High Beam Relay |
| Fuse MINI 10A | 13 | Right High Beam Relay |
| Fuse MINI 10A | 14 | Left Low Beam Relay |
| Fuse MINI 10A | 15 | Right Low Beam Relay |
| Fuse MINI 15A | 16 | Engine Control Module (PCM). High and Low Speed Cooling Fan |
| Fuse MINI 15A | 17 | Oxygen Sensors (HEGO) (Gasoline Engines) |
| Fuse MINI 20A | 17 | Voltage Supply Module (Diesel Engines) |
| Fuse MINI 10A | 18 | FN Gearbox (Automatic) |
| Fuse MINI 15A | 22 | Battery Supply to Lighting Control |
| Fuse MINI 15A | 23 | Fog Lights |
| Fuse MINI 15A | 24 | Turn Signals |
| Fuse MINI 10A | 25 | Daytime Running Lights |
| Fuse MINI 7.5A | 26 | Exterior Electric Mirrors Switch, Electric Folding Mirrors, Electric Window (Driver’s Door) |
| Fuse MINI 7.5A | 27 | PCM |
| Fuse MINI 20A | 28 | ABS, ESP Module |
| Fuse MINI 10A | 29 | Air Conditioning Clutch |
| Fuse MINI 20A | 32 | Horn, Battery Saver Function, Keyless Entry and Start System Module |
| Fuse MINI 20A | 33 | Heated Rear Window |
| Fuse MINI 20A | 34 | Fuel Pump Relay, Diesel Fuel Heater |
| Fuse MINI 20A | 36 | Trunk |
| Relay | R1 | Cooling Fan |
| Relay | R2 | Glow Plugs [Only DV4 Phase 4], Heated Windshield |
| Relay | R4 | High Beam |
| Relay | R5 | Low Beams |
| Relay | R6 | Daytime Running Lights |
| Relay | R7 | Engine Cooling Fan |
| Relay | R8 | Starter Motor |
| Relay | R9 | Air Conditioning Clutch |
| Relay | R10 | Fog Lights |
| Relay | R11 | Fuel Pump, Fuel Heater |
| Relay | R12 | Reverse Light |
| Relay | R13 | Heater Fan |
| Relay | R3 | PCM |
